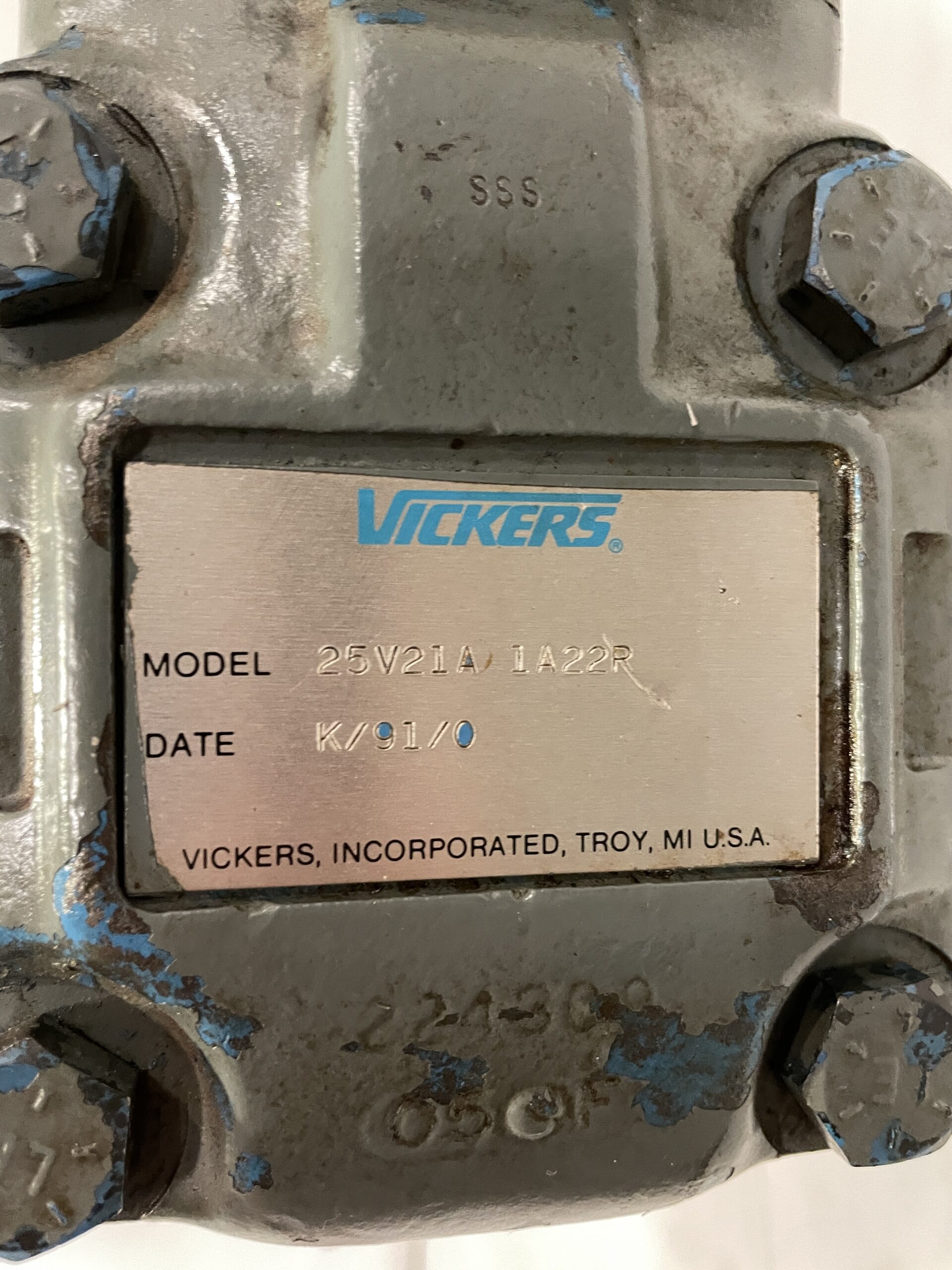

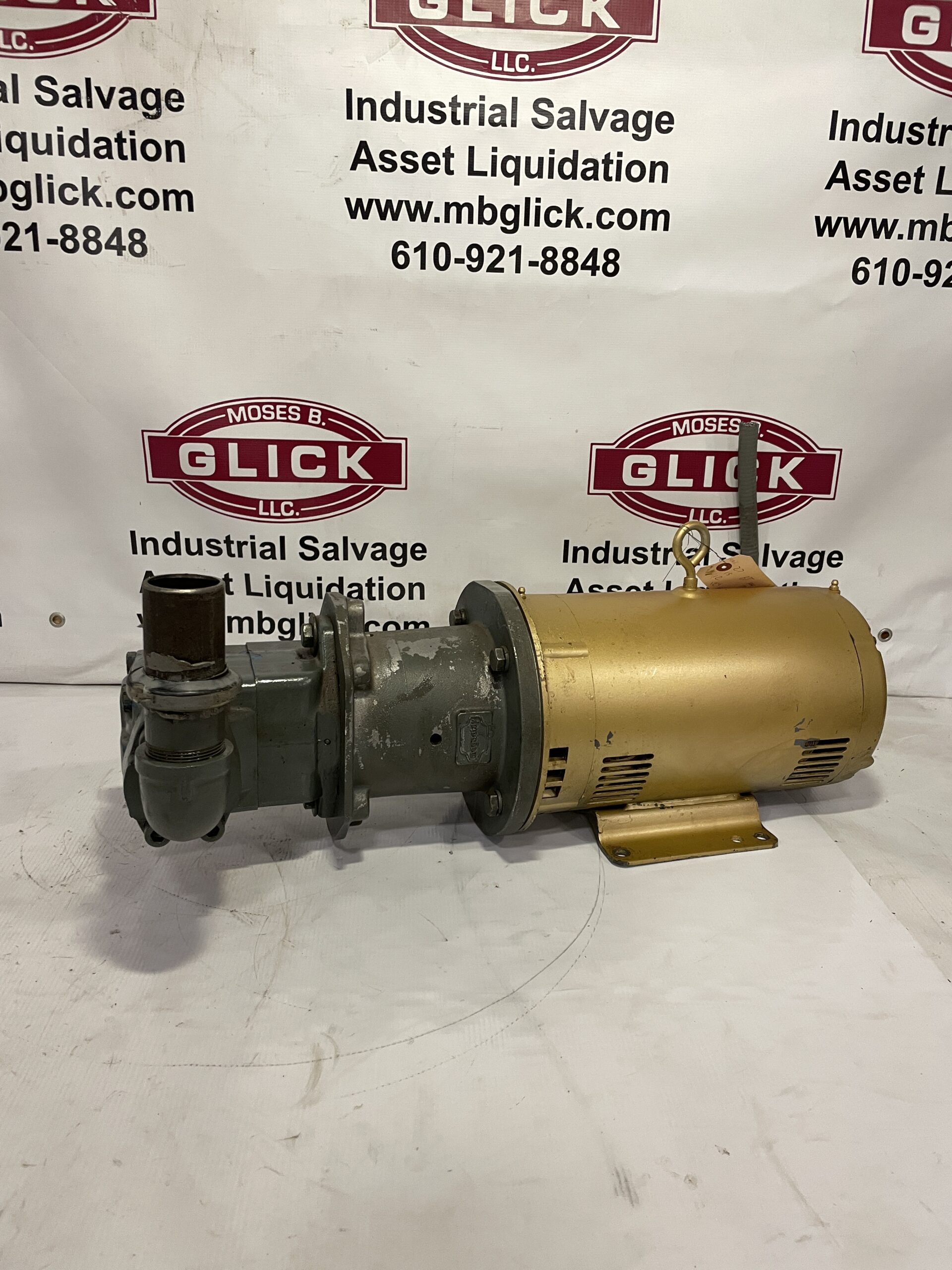

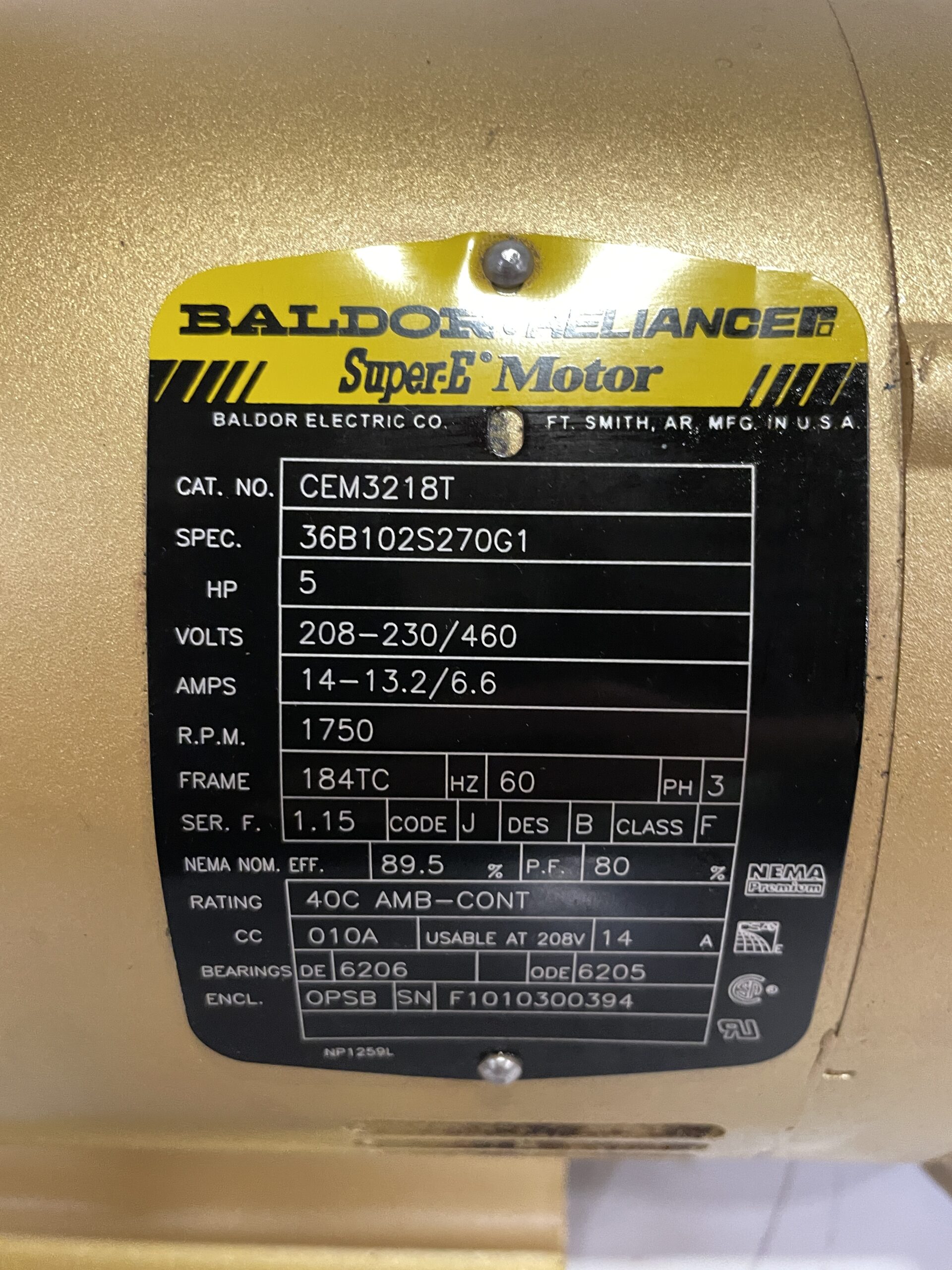

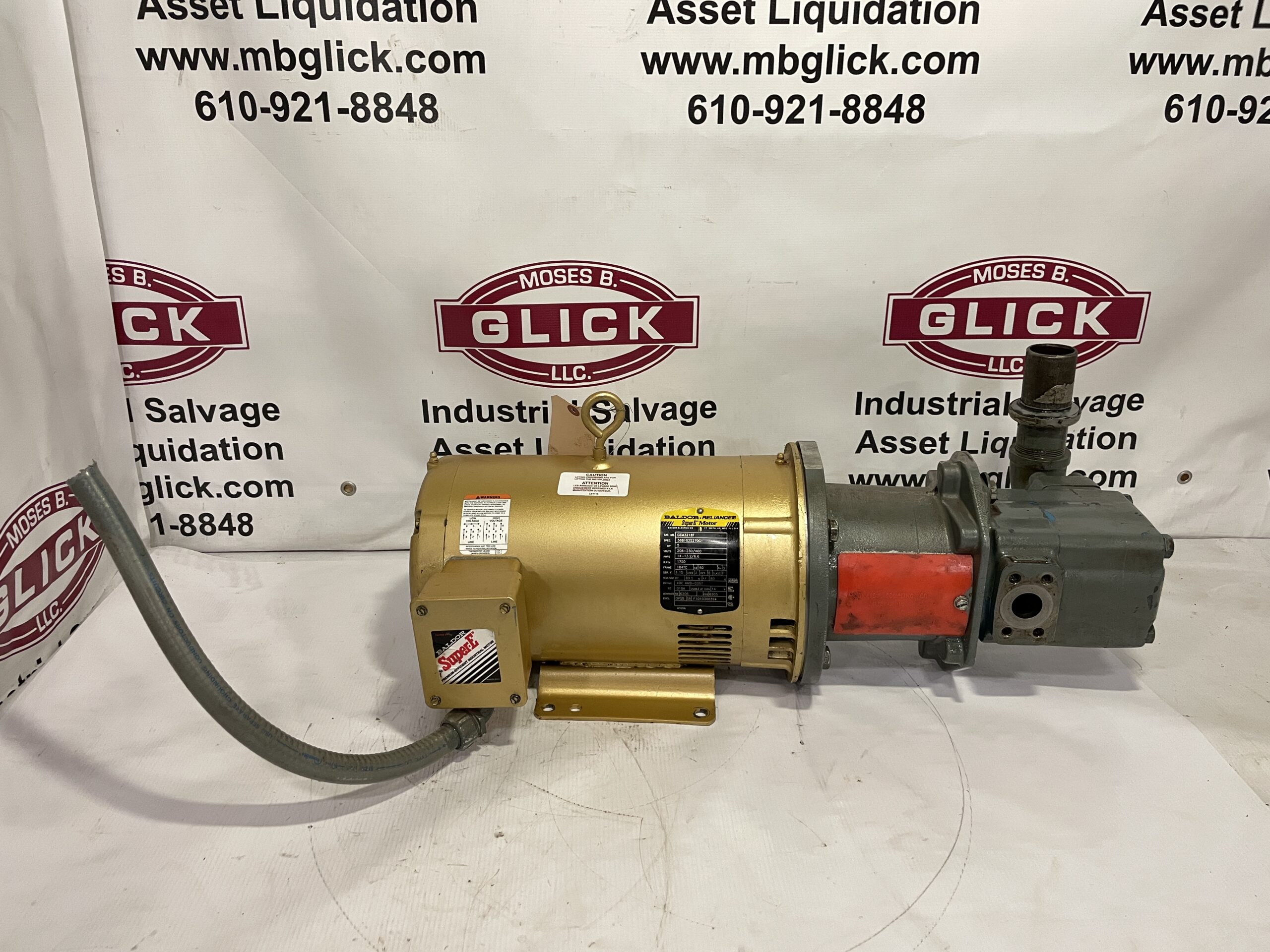

Vickers 25V21A 1A22R Hydraulic Vane Pump 5HP 1750RPM 3PH

The Vickers 25V21A-1A22R is a fixed displacement hydraulic vane pump manufactured by Vickers, a brand under Danfoss. This pump is designed for industrial applications requiring reliable fluid power delivery.

#24 CODE 61 INLET AND #16 CODE 61 OUTLET

• Displacement: 4.3 in³/rev (70.5 cm³/rev)

• Flow Rate: Up to 21 GPM (79 L/min) at 1200 RPM with 100 PSI

• Maximum Pressure: 2500 PSI

• Maximum Speed: 1800 RPM

• Mounting: SAE B 2-bolt flange

• Shaft: 1-3/16″ square keyed

• Rotation: Clockwise (viewed from shaft end)

• Port Orientation: Outlet opposite inlet

• Seal Material: Standard (Buna-N or Viton, depending on variant)

• Temperature Range: Up to 210°F (99°C)
