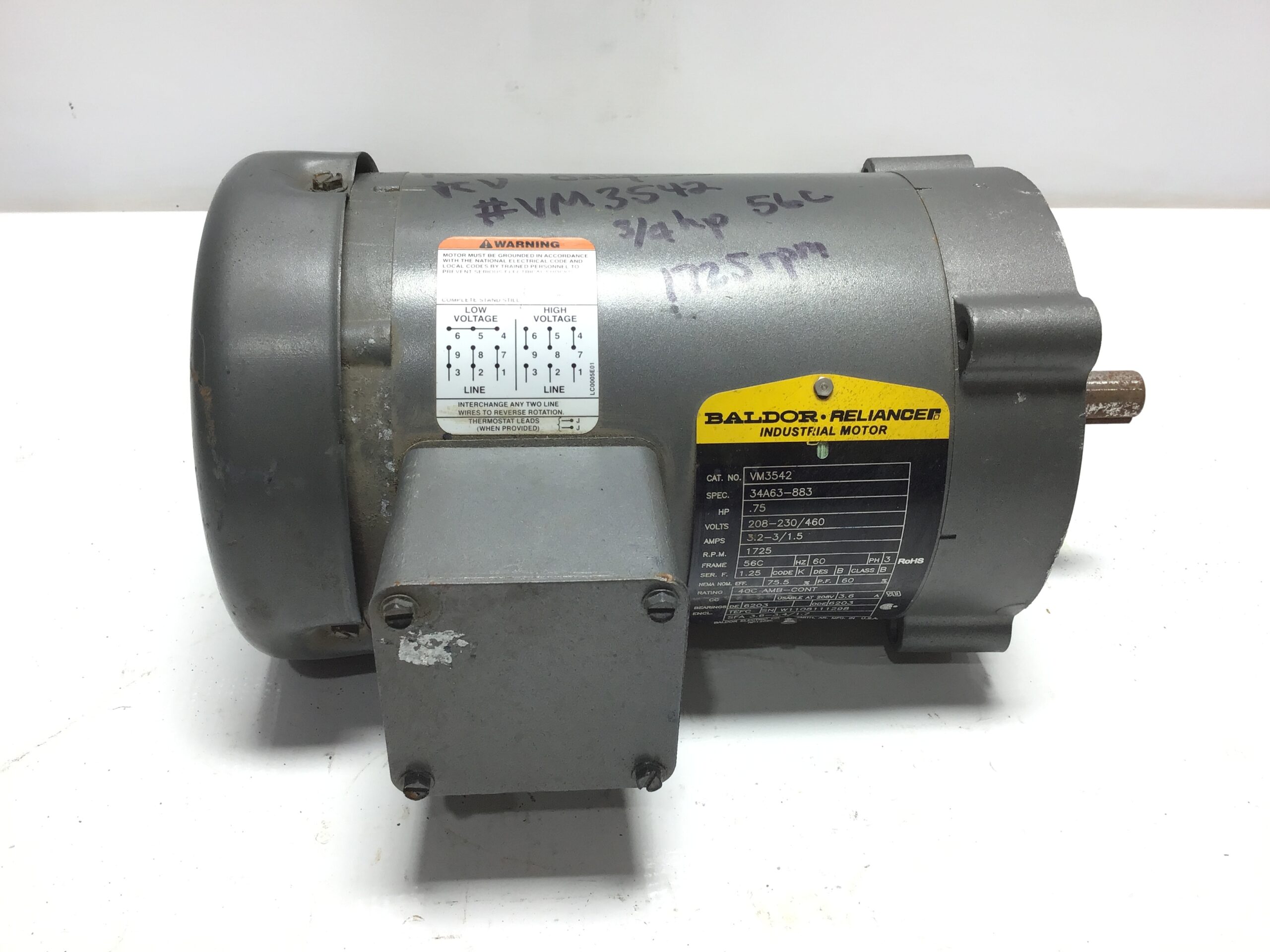

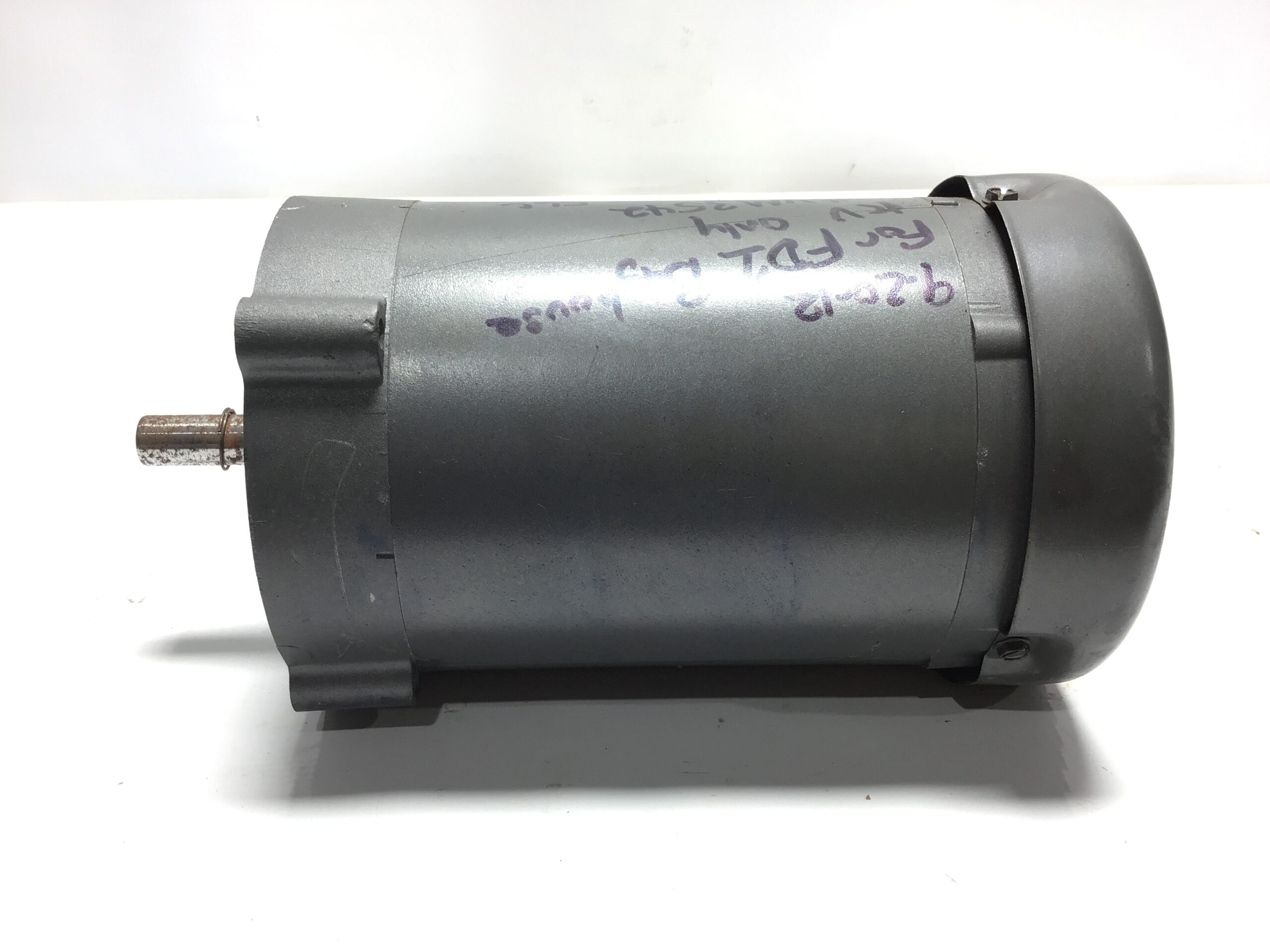

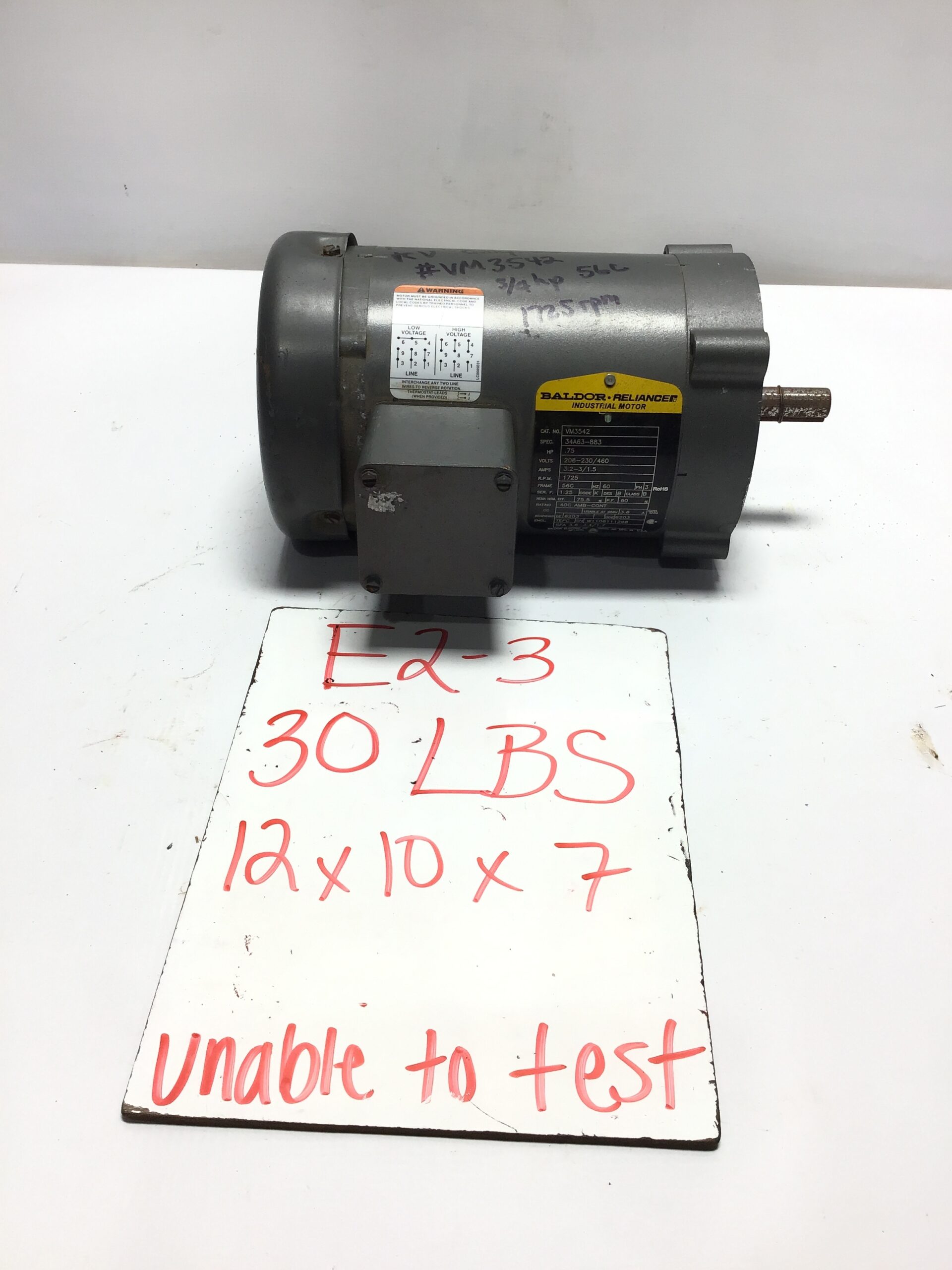

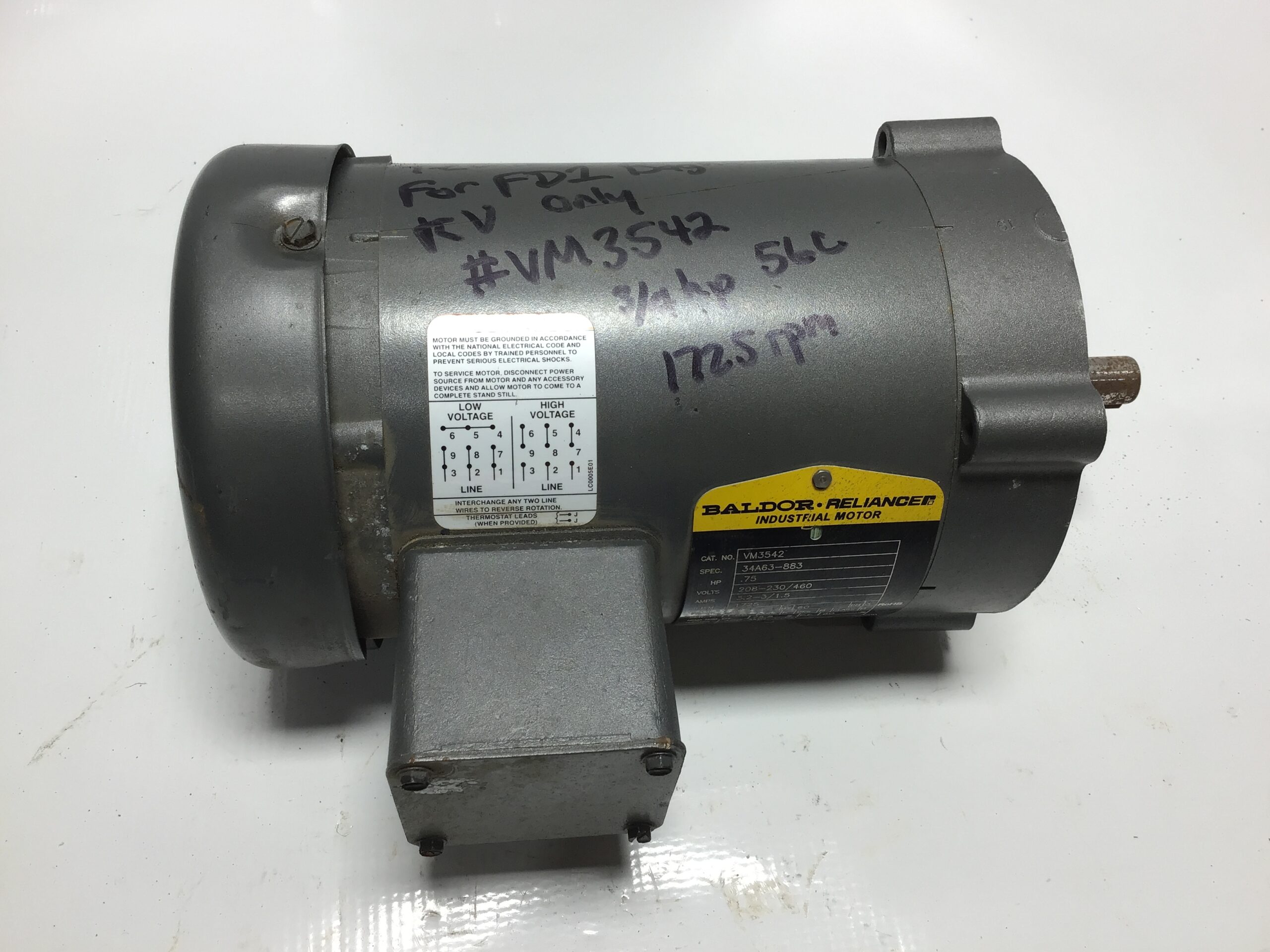

Engineered for dependable industrial performance, this Baldor Reliance VM3542 Industrial Motor delivers reliable power, durability, and efficiency in a compact, heavy-duty design. Rated at 3/4 HP with a 1725 RPM output, this 3-phase TEFC (Totally Enclosed Fan Cooled) motor is built to withstand demanding operating environments while providing smooth, consistent operation. Featuring a versatile 208-230/460V dual-voltage configuration, rugged 56C frame, and continuous-duty rating, it is an excellent choice for pumps, conveyors, compressors, machine tools, packaging equipment, and other industrial applications. Manufactured by Baldor Reliance—one of the most trusted names in electric motors—this unit is designed for long service life, dependable performance, and easy integration into existing industrial systems, making it a valuable replacement or upgrade for a wide range of equipment.

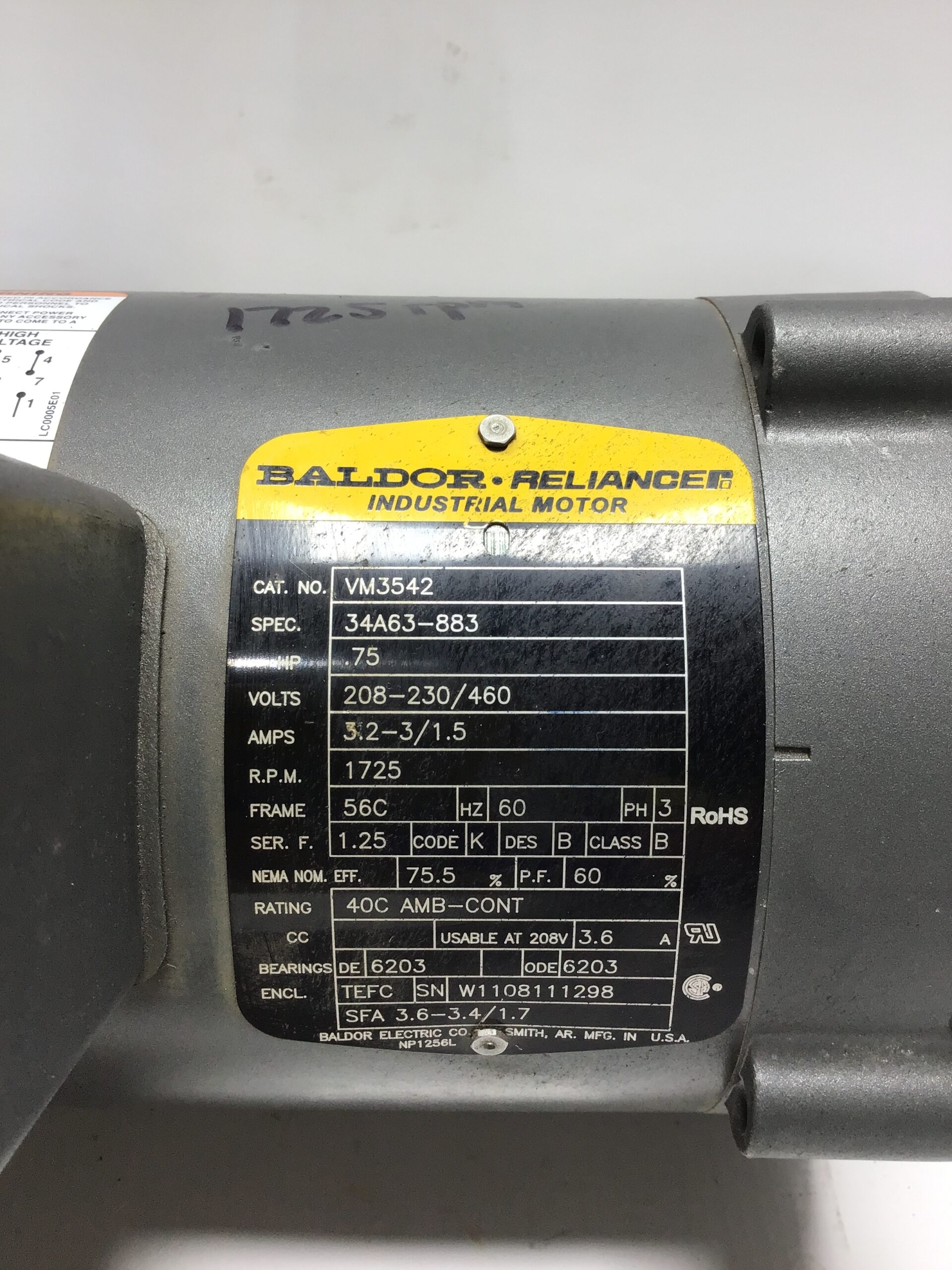

Specifications:
- Brand: Baldor Reliance
- Model Number: VM3542
- Specification Number: 34A63-883
- Horsepower: 3/4 HP
- Voltage: 208-230/460 VAC
- Phase: 3 Phase
- Frequency: 60 Hz
- Full Load RPM: 1725

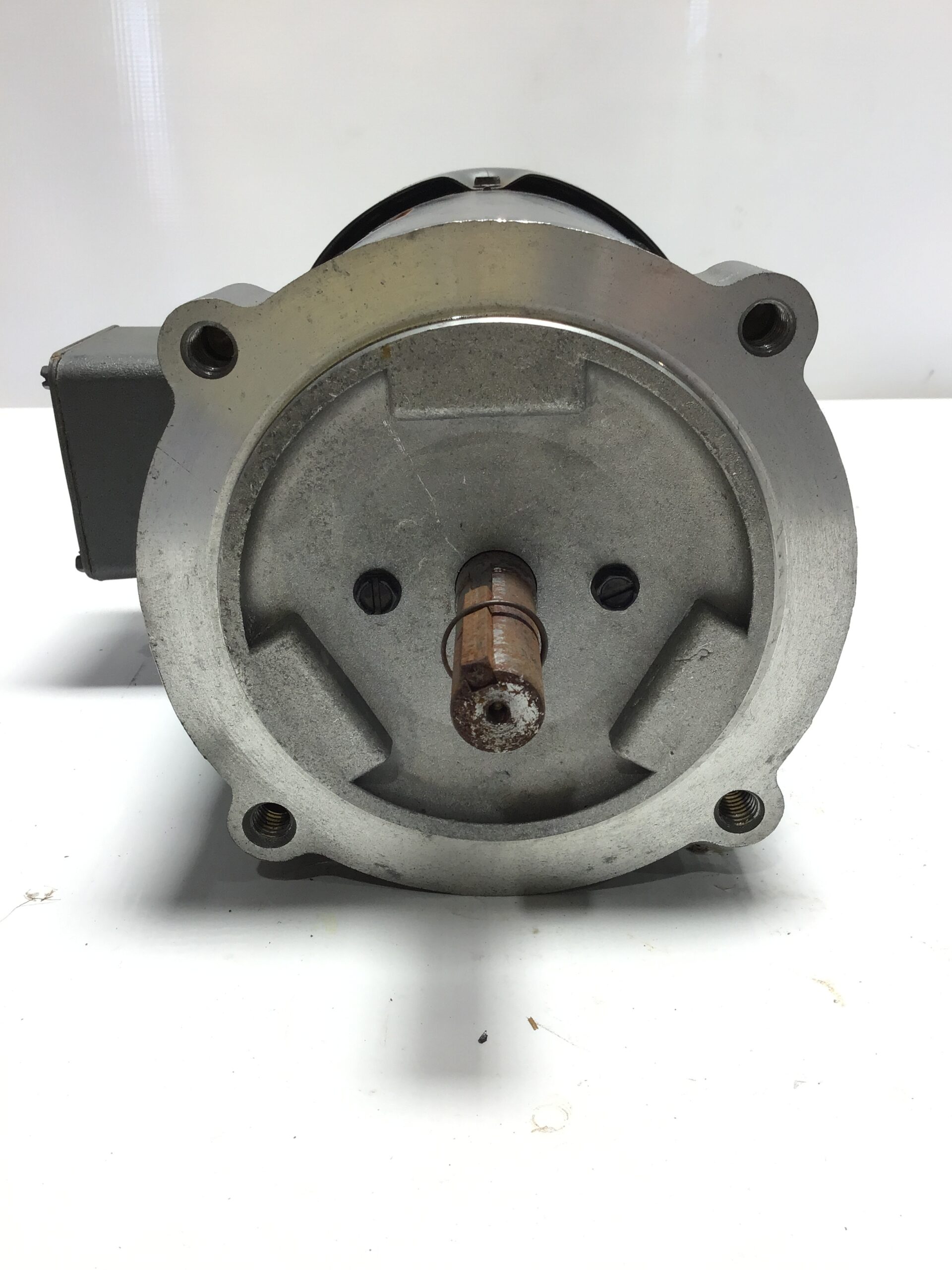

- Frame: 56C

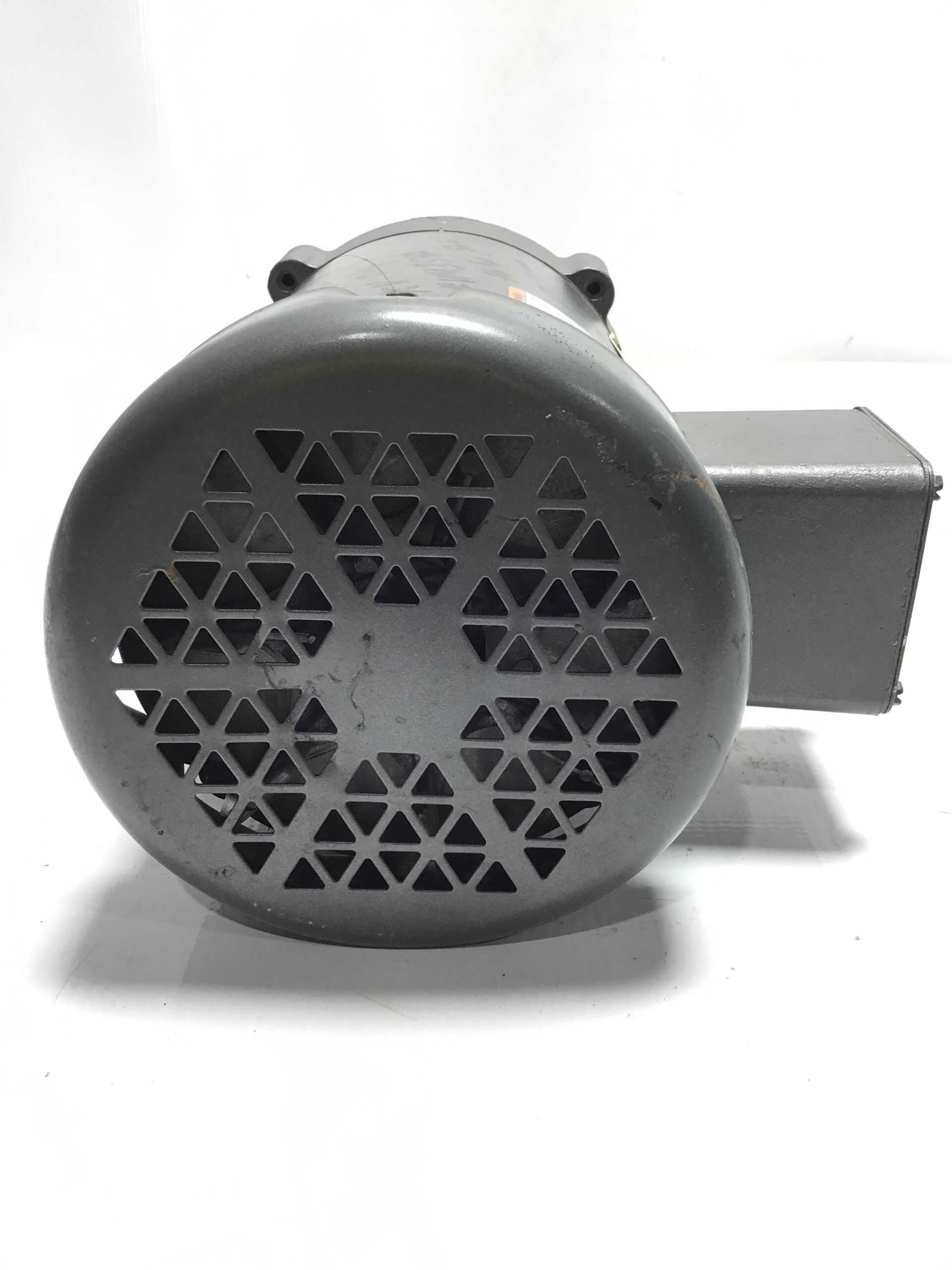

- Enclosure: TEFC
- Service Factor: 1.25
- Insulation Class: B
- NEMA Nominal Efficiency: 75.5%
Applications:
- Industrial machinery
- Pumps
- Compressors
- Conveyor systems
- Manufacturing equipment
- Packaging machinery
- Material handling systems
- Processing equipment
