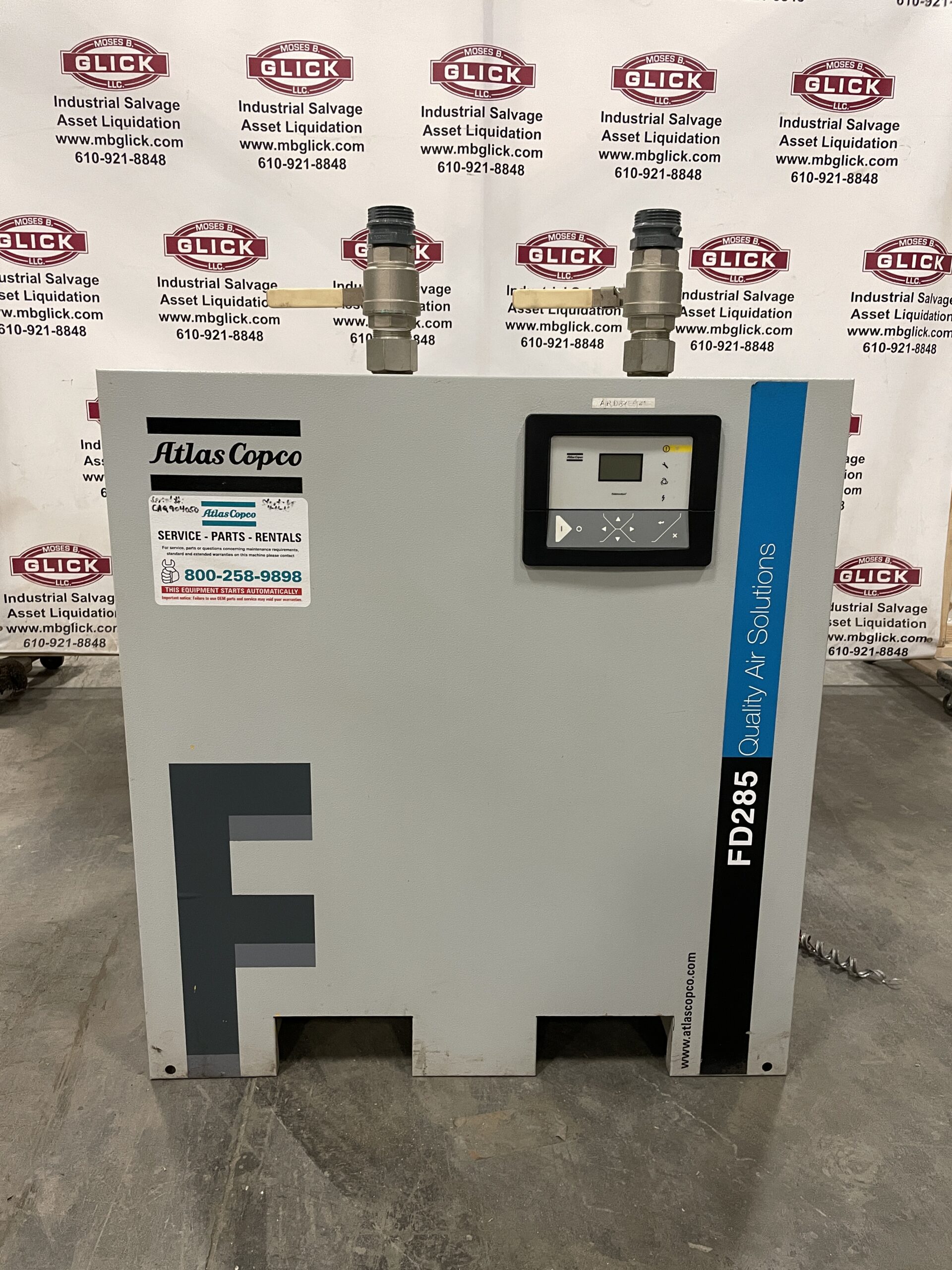

2016 Atlas Copco FD285 Refrigerated Compressed Air Dryer

The Atlas Copco FD 285 is a high-capacity refrigerated air dryer designed for industrial applications requiring up to 653 CFM of clean, dry compressed air. It utilizes direct expansion technology and is equipped with Saver-Cycle control, making it suitable for environments with varying loads and temperatures.

Key Specifications

• Model: FD 285 Saver-Cycle Cycling Refrigerated Air Dryer

• Air Flow Capacity: Up to 653 CFM (at 100% load)

• Voltage: 460V, 3-phase, 60 Hz

• Refrigerant: R410A, known for its high efficiency and low environmental impact

• Dew Point: Stable dew point as low as 37.4°F (3°C)

• Dimensions: 36″ L × 32″ W × 39″ H

• Weight: Approximately 434 lbs

• Connections: 2½” NPT inlet and outlet

• Control System: Mk5 controller for fixed-speed models; Elektronikon® Touch controller with remote monitoring capabilities for VSD models

•
