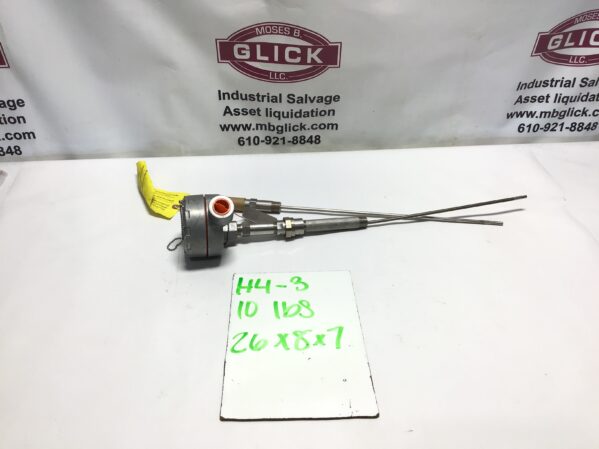

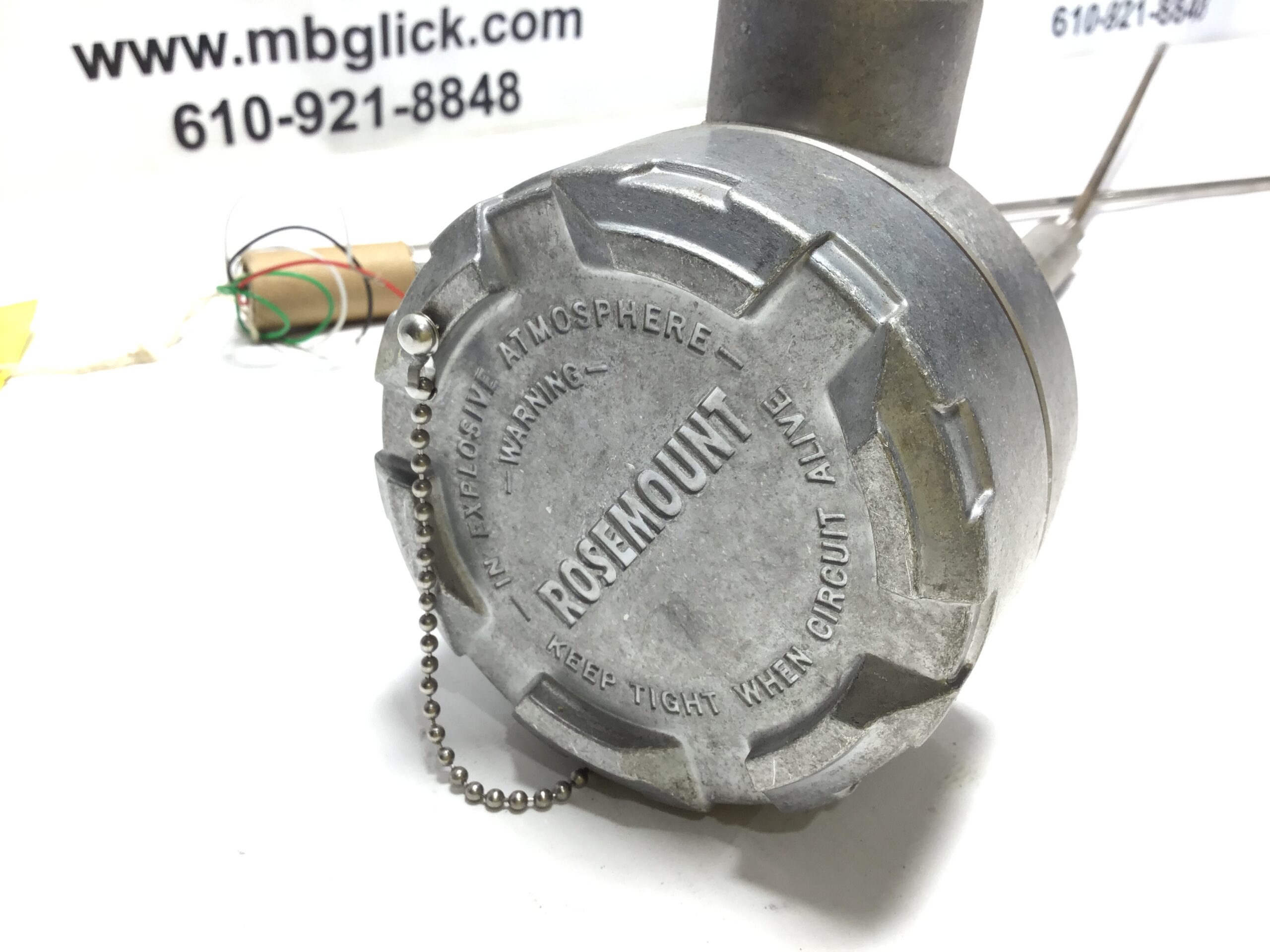

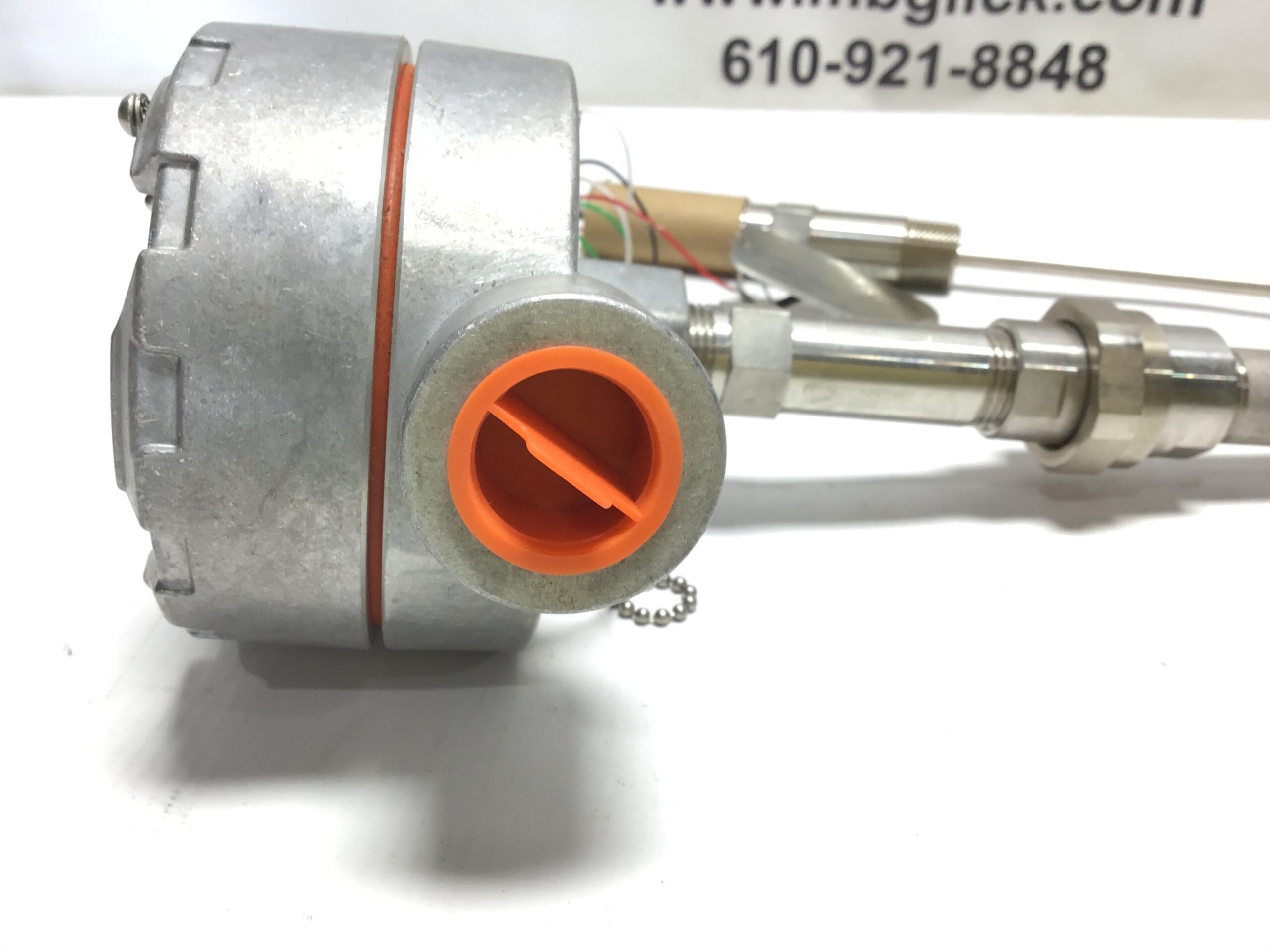

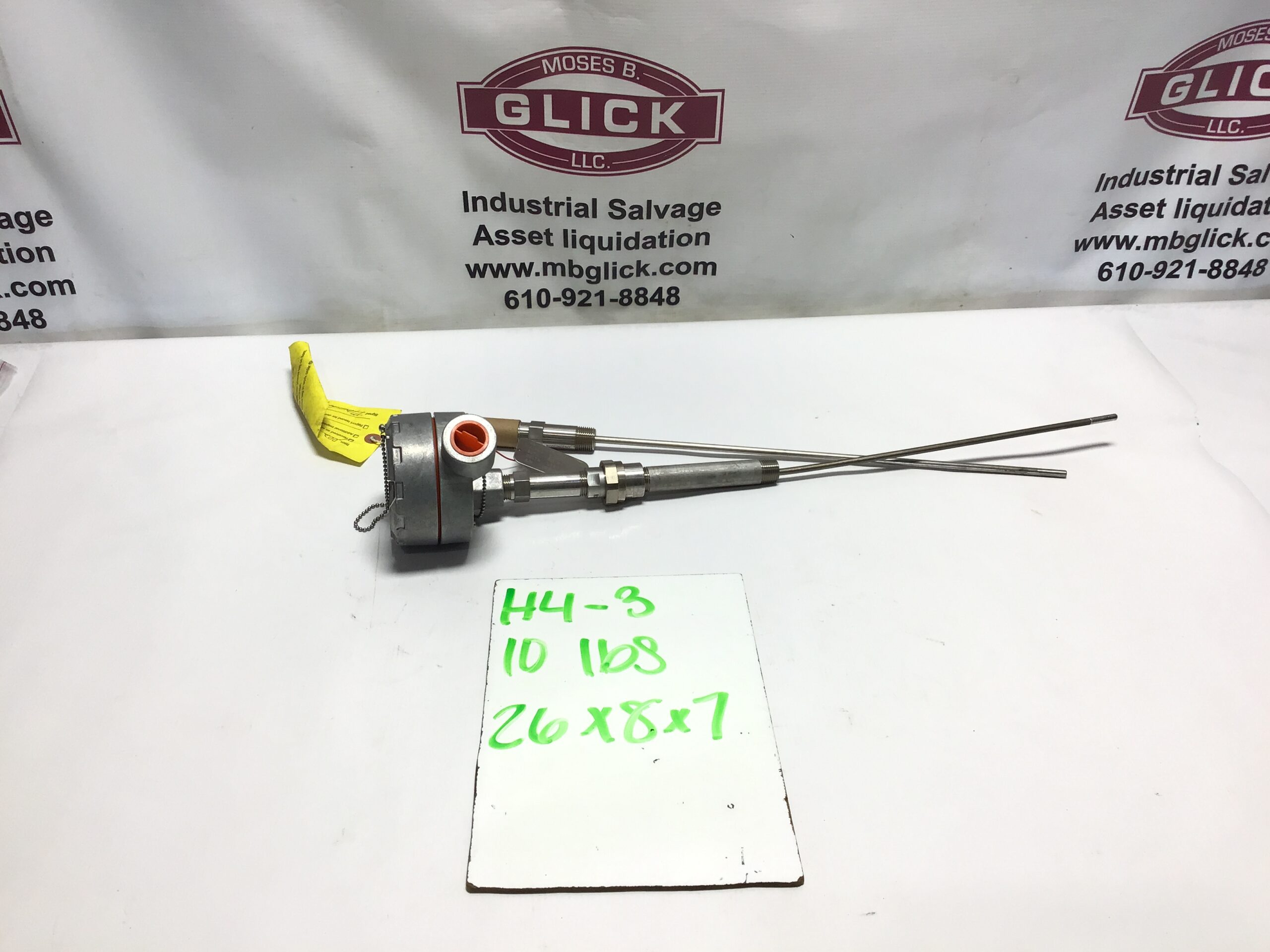

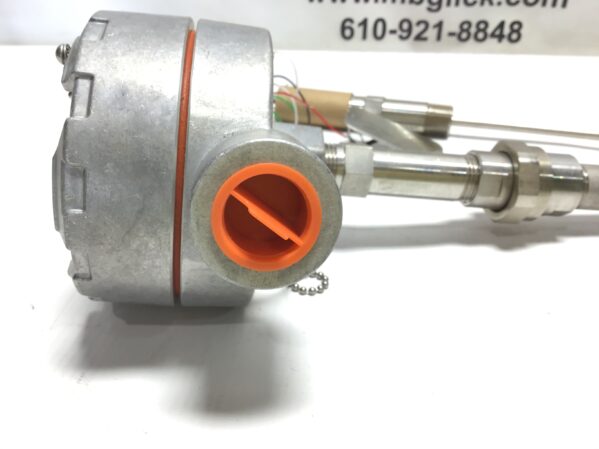

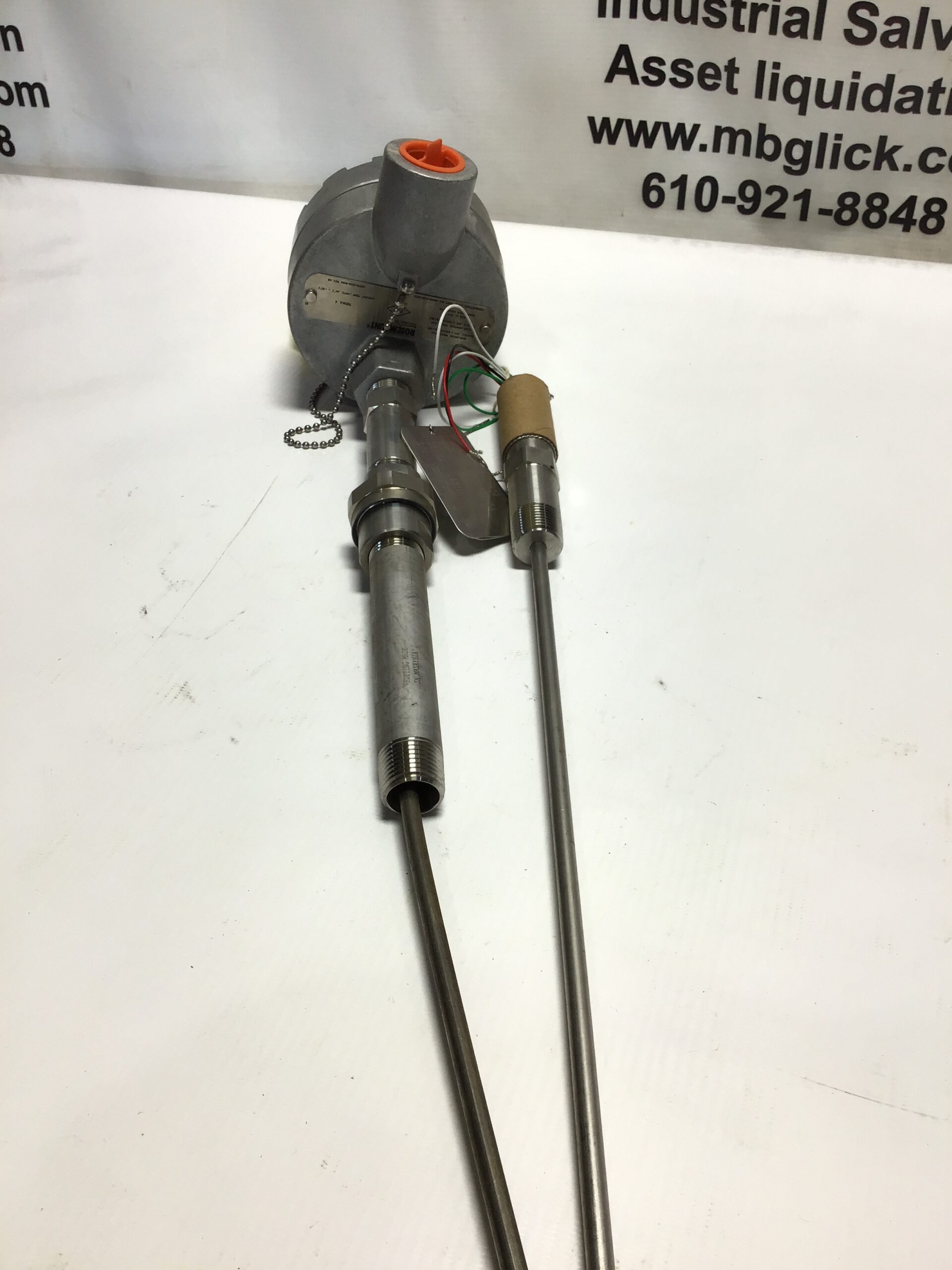

ROSEMOUNT CONNECTION HEAD 00079-0325-0002

The Rosemount Connection Head with the part number 00079-0325-0002 is an accessory used for mounting and protecting various types of sensors, particularly Rosemount transmitters. The connection head is designed to house the electrical connections and facilitate the safe installation of the transmitter into industrial environments.

Here’s a more detailed breakdown of the Rosemount 00079-0325-0002 Connection Head:

Key Features:

1. Mounting and Housing:

   • The connection head provides a protective enclosure for field transmitters, including pressure, temperature, and other types of measurement devices. It protects the electronics of the transmitter from environmental conditions such as dust, moisture, and mechanical damage.
   • The connection head is designed for ease of installation, ensuring that wiring and electrical connections are securely housed, and the components are isolated from harsh environmental elements.

2. Material Construction:

   • Typically, the Rosemount connection head is constructed from sturdy, corrosion-resistant materials such as aluminum or stainless steel. These materials are selected to handle harsh industrial environments, especially in applications like chemical, oil, and gas processing, as well as power plants and HVAC systems.
   • The material ensures durability and protection against the elements like moisture, dirt, and harsh chemicals.

3. Electrical Terminations:

   • The connection head serves as the interface between the transmitter’s electrical wiring and the control system. It provides a safe location for the wiring terminals, offering space to connect the power supply and communication cables (like HART, Modbus, or 4-20 mA signals).
   • Some connection heads may include features such as ex-proof (explosion-proof) enclosures or intrinsically safe certifications, making them suitable for use in hazardous locations.

4. Compatibility:

   • This connection head is compatible with a range of Rosemount transmitters and sensors. It can be paired with Rosemount 3000, 3051, or other models for seamless integration into various applications.

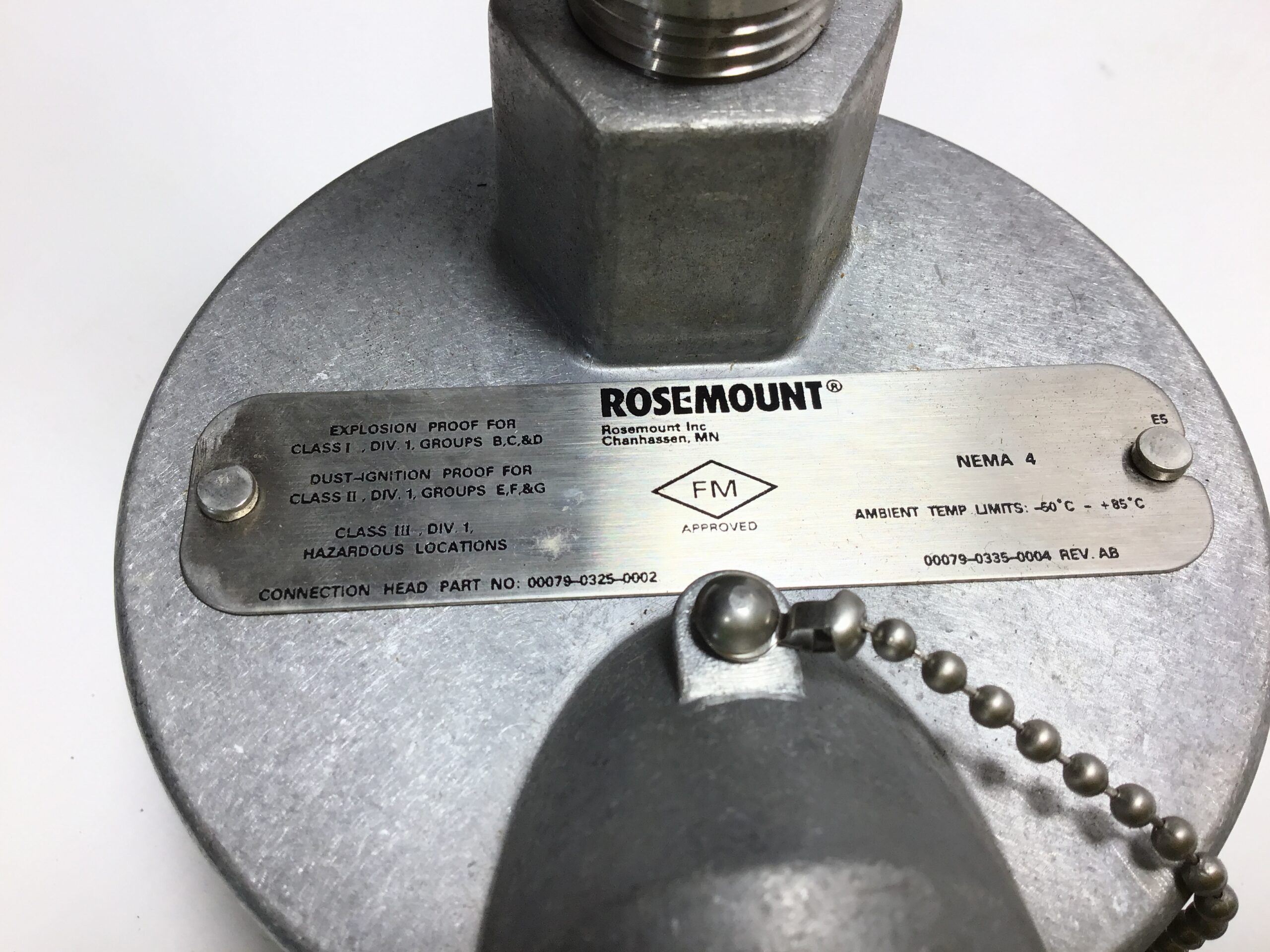

   • The part number 00079-0325-0002 specifically refers to a standard connection head model that can accommodate the mounting and wiring needs of Rosemount transmitters.

5. Ingress Protection (IP Rating):

   • The connection head typically comes with an IP66 or IP67 rating, ensuring that it is dust-tight and can withstand water immersion up to a certain depth. This makes it ideal for outdoor installations or applications in harsh environments where moisture or dust might be present.

6. Field Wiring and Maintenance:

   • The connection head makes it easier to perform field wiring and maintenance, allowing for quick access to the transmitter’s electrical connections without the need to disassemble the entire device.
   • Many models allow for easy reconfiguration or wiring adjustments, simplifying installation and replacement of components.

7. Temperature and Pressure Range:

   • Rosemount connection heads are typically designed to operate in a wide range of temperatures, typically from -40°C to 85°C (-40°F to 185°F), and they support applications with various pressure ranges depending on the sensor and transmitter model used.
   •
