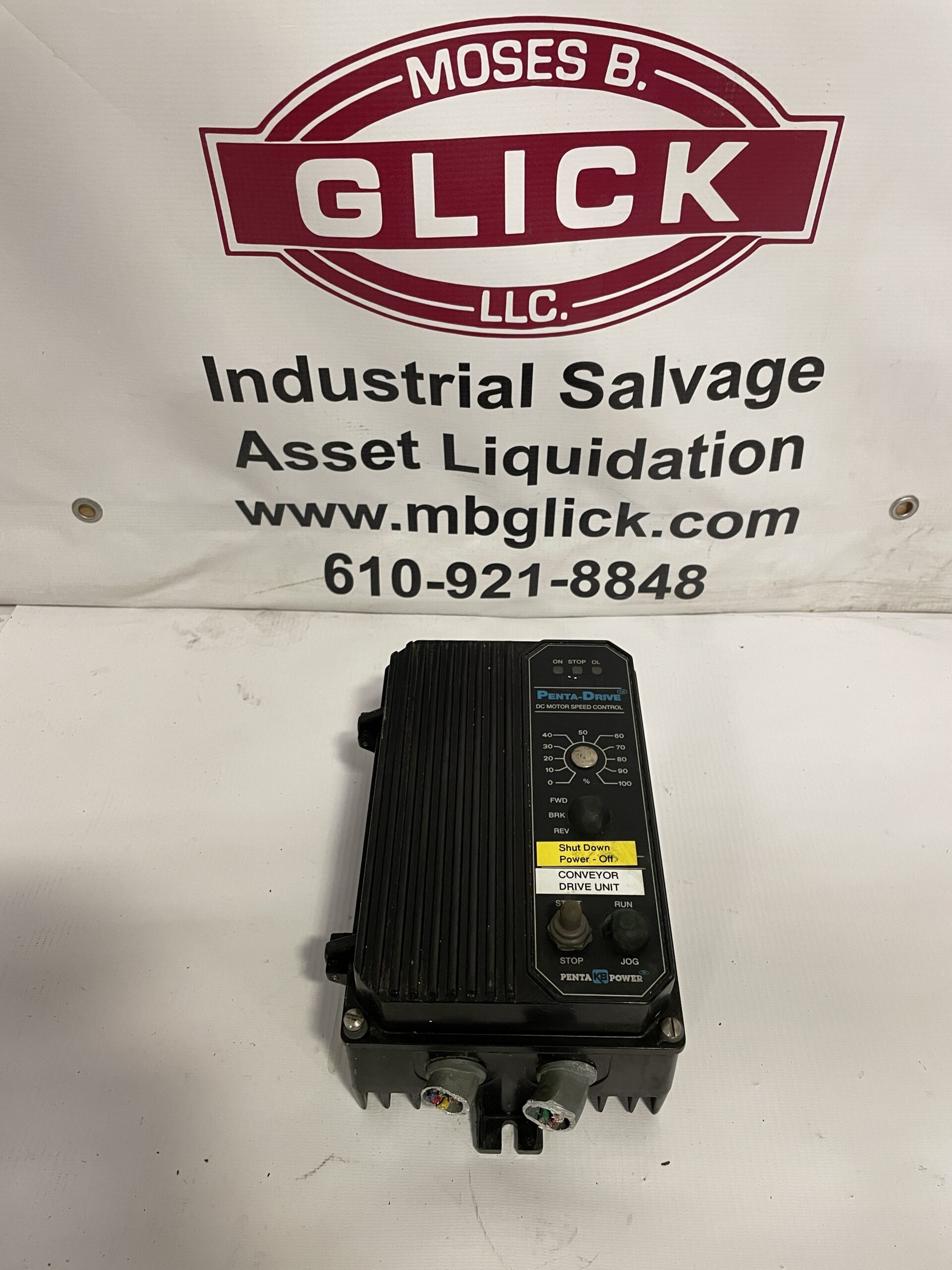

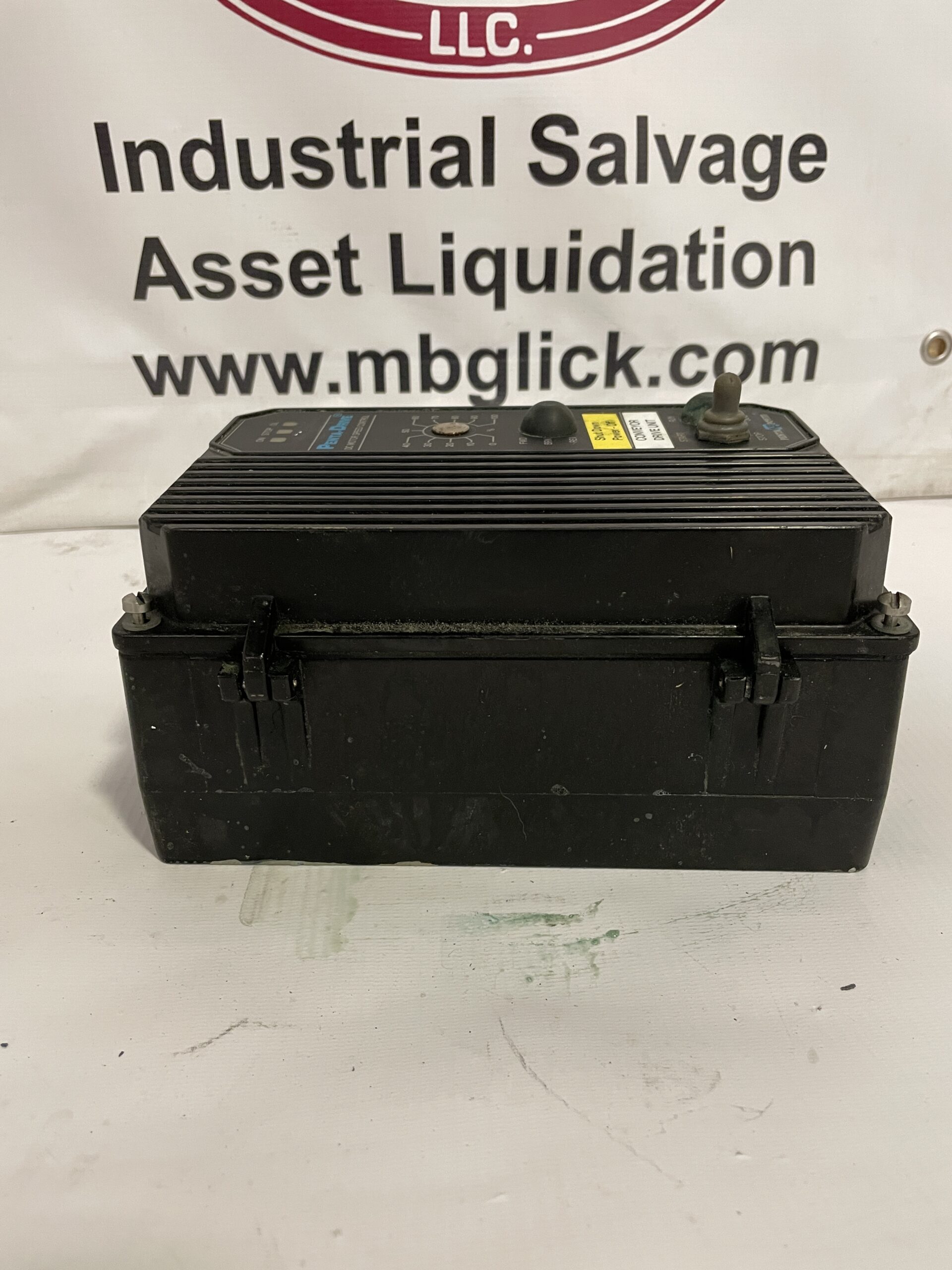

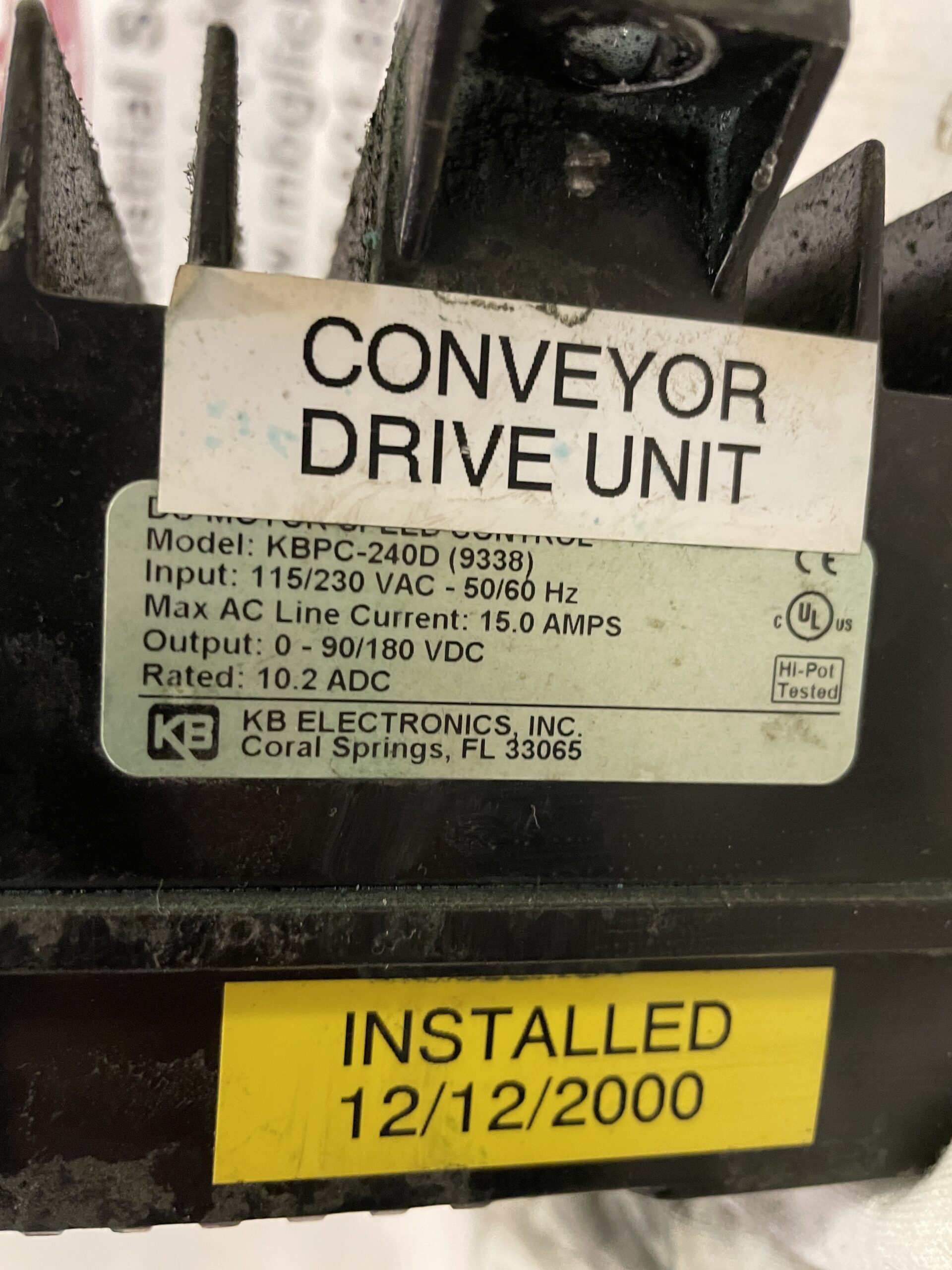

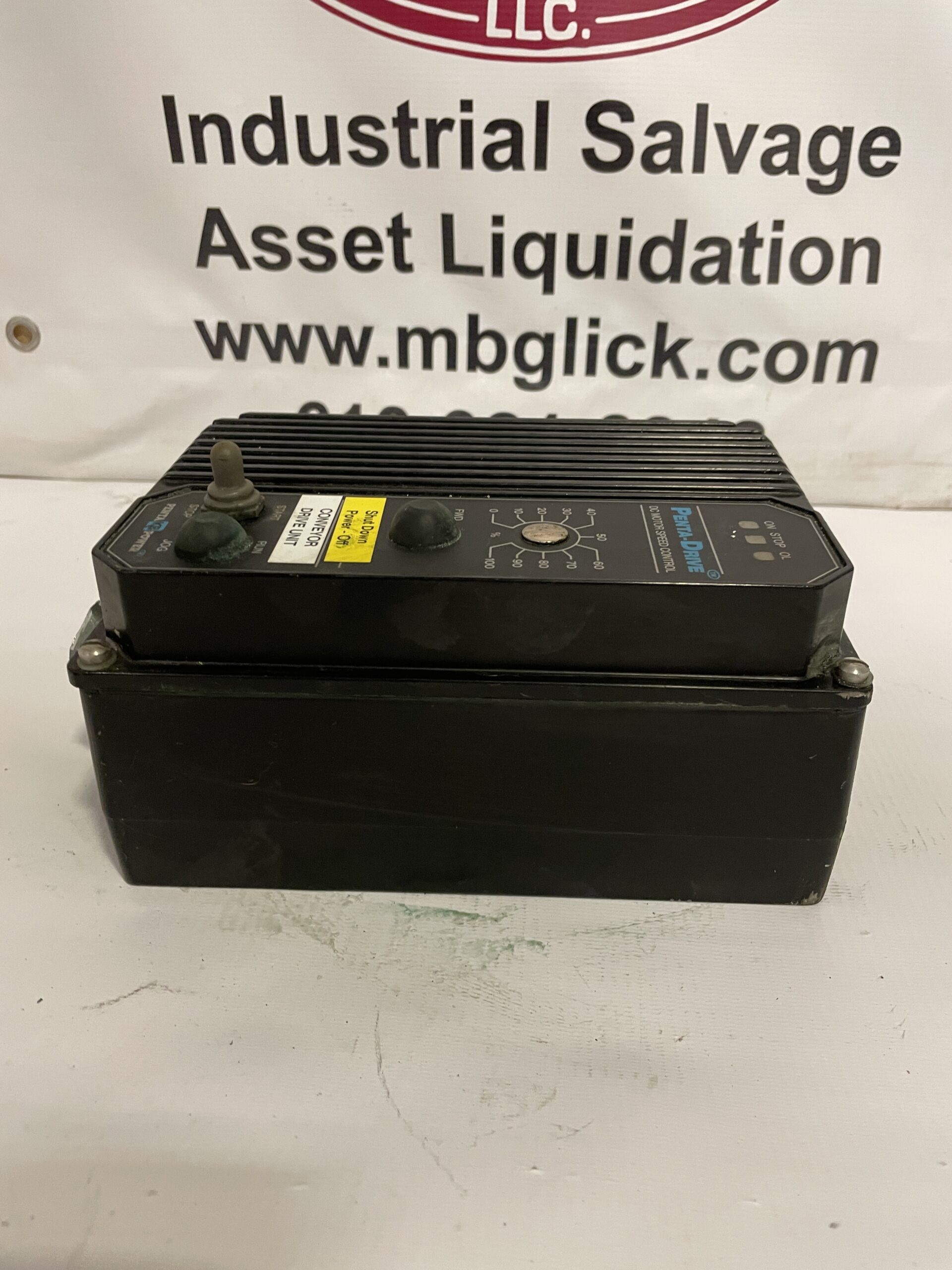

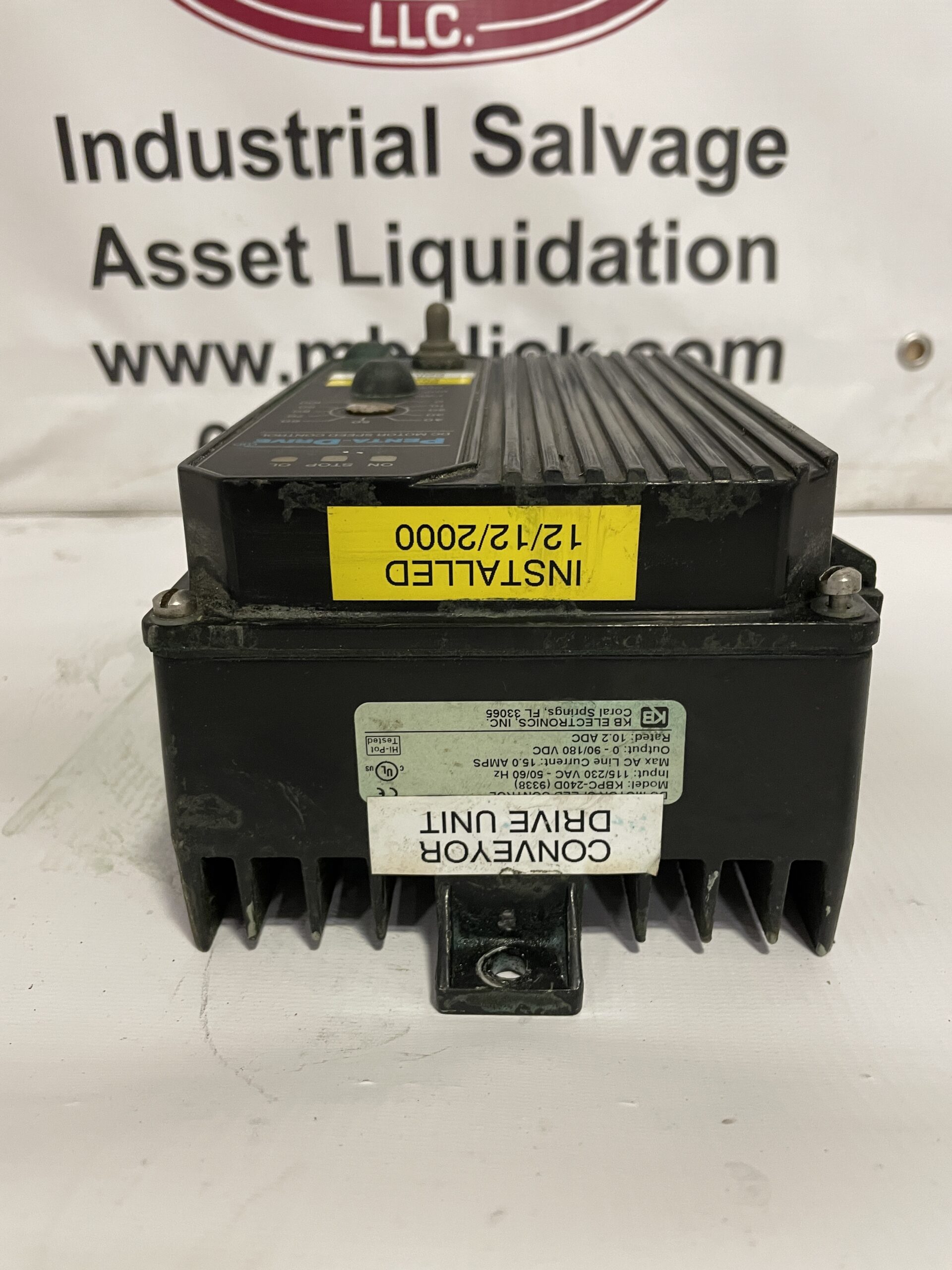

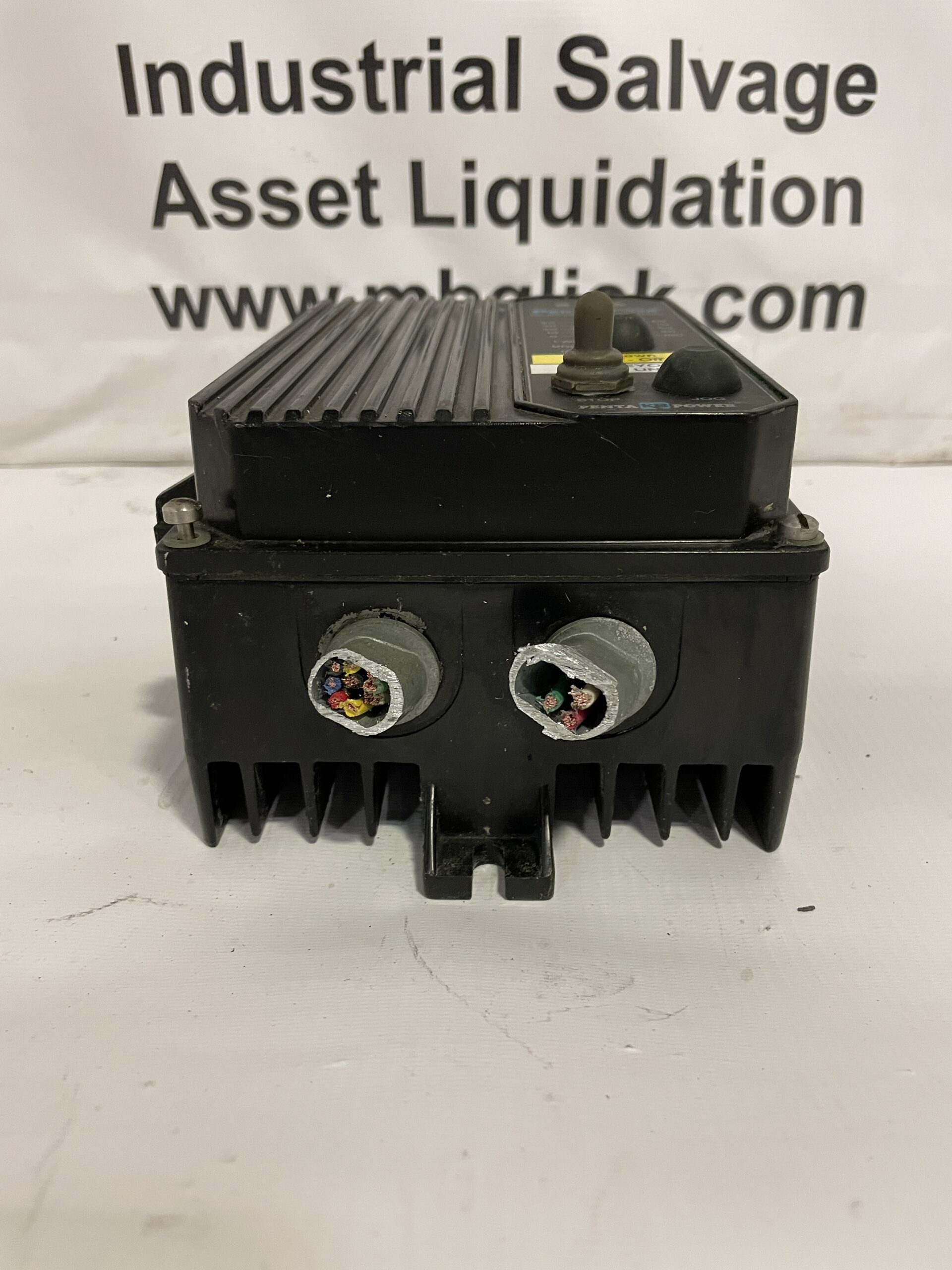

The KB Electronics KBPC-240D is a variable-speed DC motor control designed for controlling permanent magnet (PM), shunt-wound, or universal (AC/DC) motors. This product is part of KB Electronics’ KBPC series and is widely used in industrial and commercial applications requiring precision speed control.
Specifications:
- Input Voltage:
- Dual input: 115 VAC or 230 VAC, 50/60 Hz.
- Output Voltage:
- DC output of 0–90 VDC (for 115 VAC input).
- DC output of 0–180 VDC (for 230 VAC input).
- Motor Rating:
- Supports motors up to 2 HP at 230 VAC input and up to 1 HP at 115 VAC input.
- Maximum armature current: 10 amps.
- Speed Range:
- Speed control range of 50:1, allowing for precise motor speed adjustments.
- Operating Modes:
- Can operate in open-loop or closed-loop configurations, providing flexibility in different control scenarios.
Key Features:
- Dual Voltage Capability:
- Accepts both 115V and 230V input, making it versatile for various installations.
- Plug-In Horsepower Resistor®:
- Automatically matches the controller to the motor’s horsepower rating.
- Current Limiting:
- Adjustable to protect the motor and control from overloads.
- Built-In Features:
- Dynamic Braking: Allows quick motor stopping.
- IR Compensation: Maintains consistent motor speed under varying loads.
- Electronic Inhibit Circuit: Enables instant start and stop control.
- Field Supply:
- Provides up to 200 VDC for shunt-wound motors.
- Compact and Durable Design:
- Engineered for rugged industrial environments, with a compact footprint.
Applications:
- Conveyor systems
- Packaging equipment
- Fans and blowers
- Pumps
- Material handling systems
- General industrial machinery
Benefits:
- Versatility: Supports a wide range of motor types and applications.
- Ease of Installation: Simple wiring and configuration.
- Enhanced Protection: Overload and current-limiting features prevent damage to the system.
- Precise Speed Control: Excellent linearity over a broad speed range.
