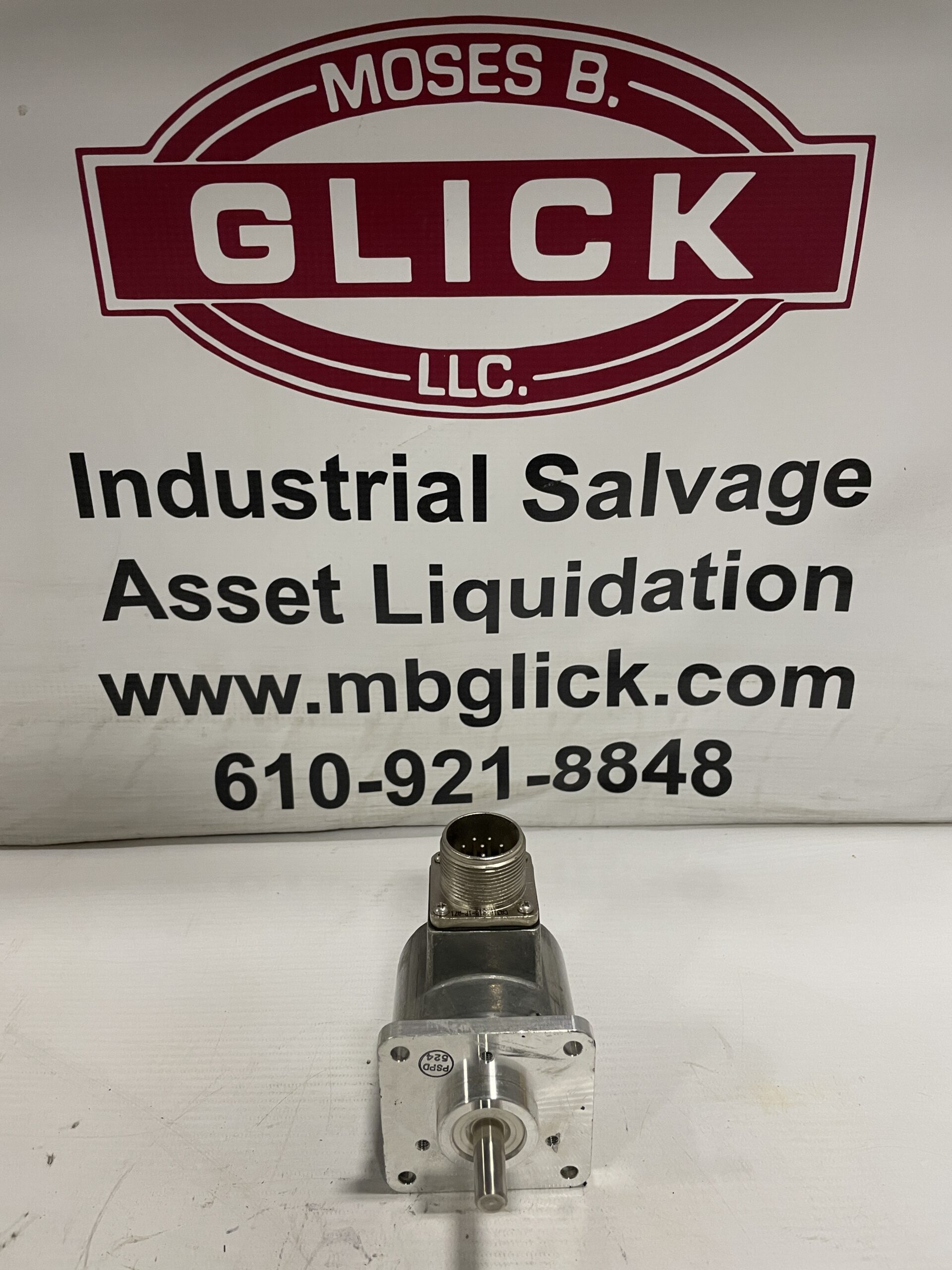

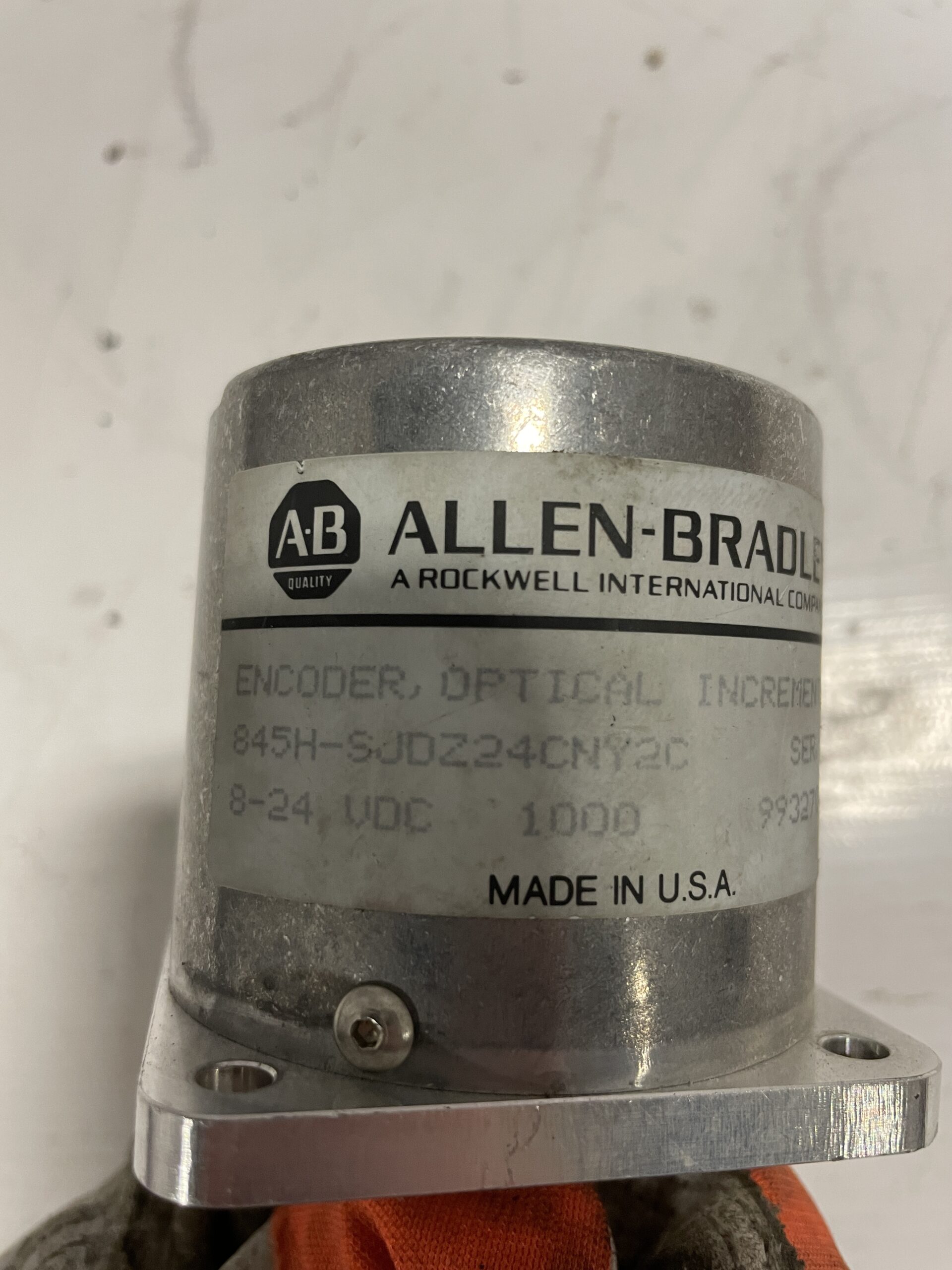

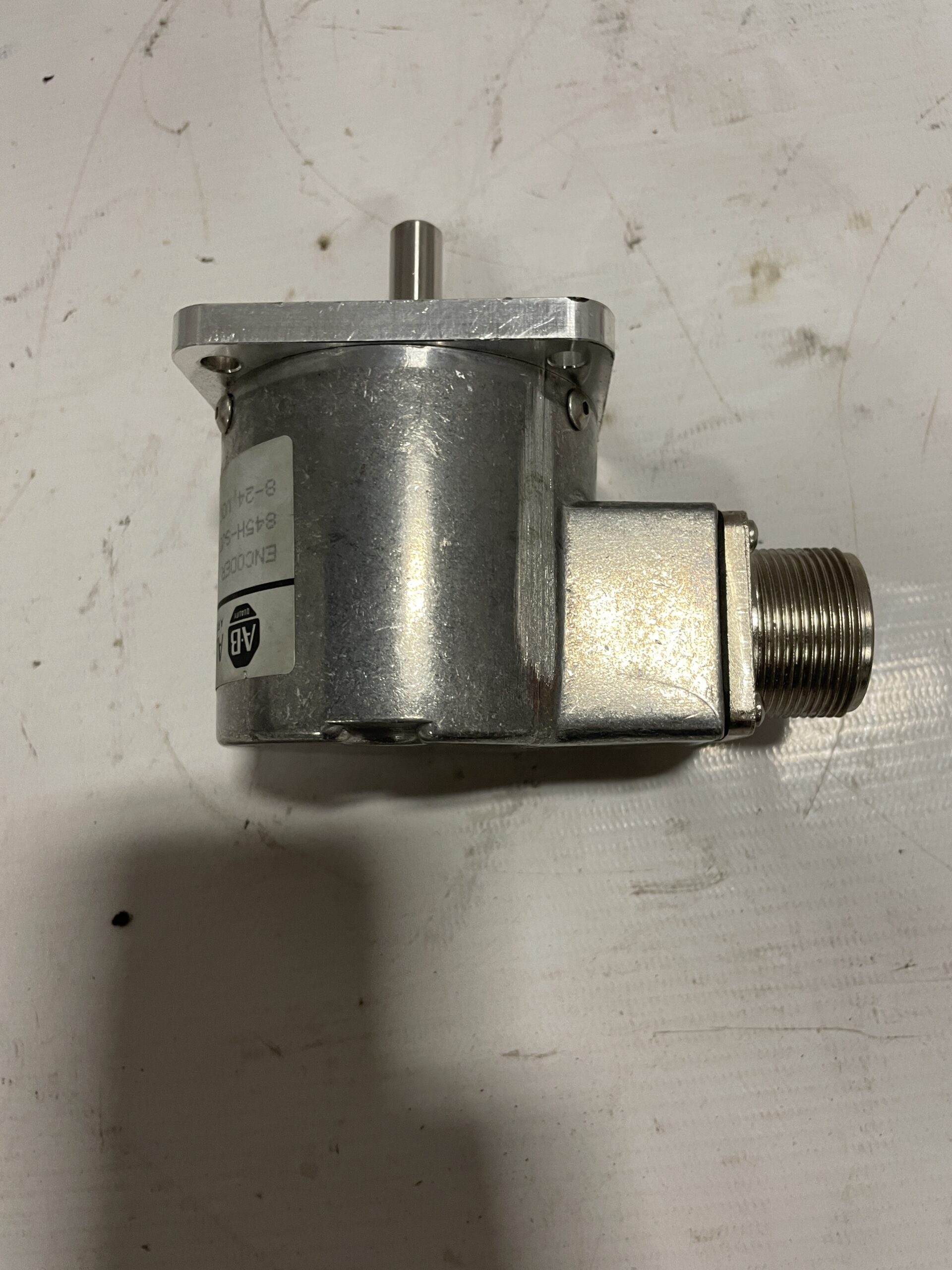

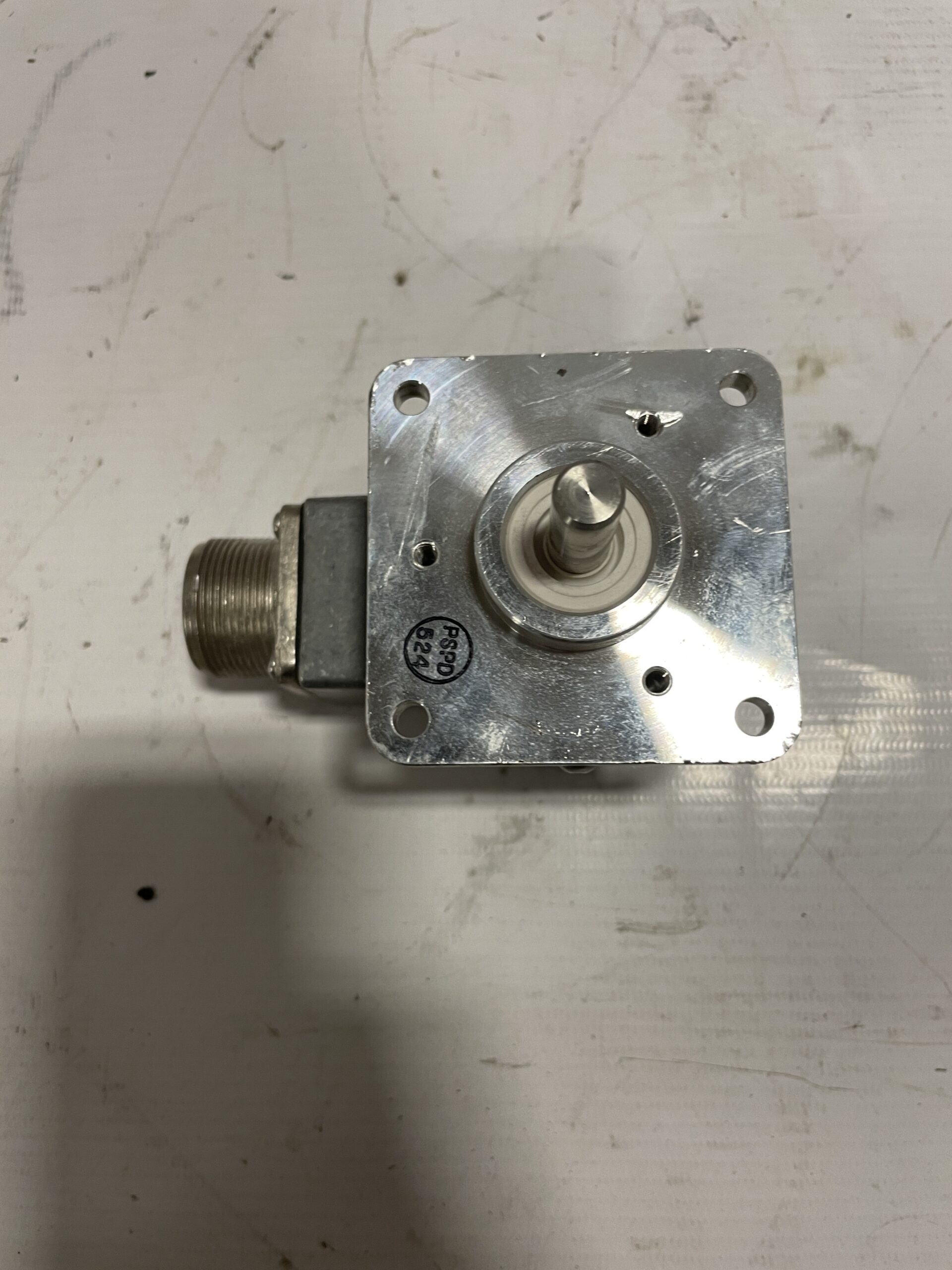

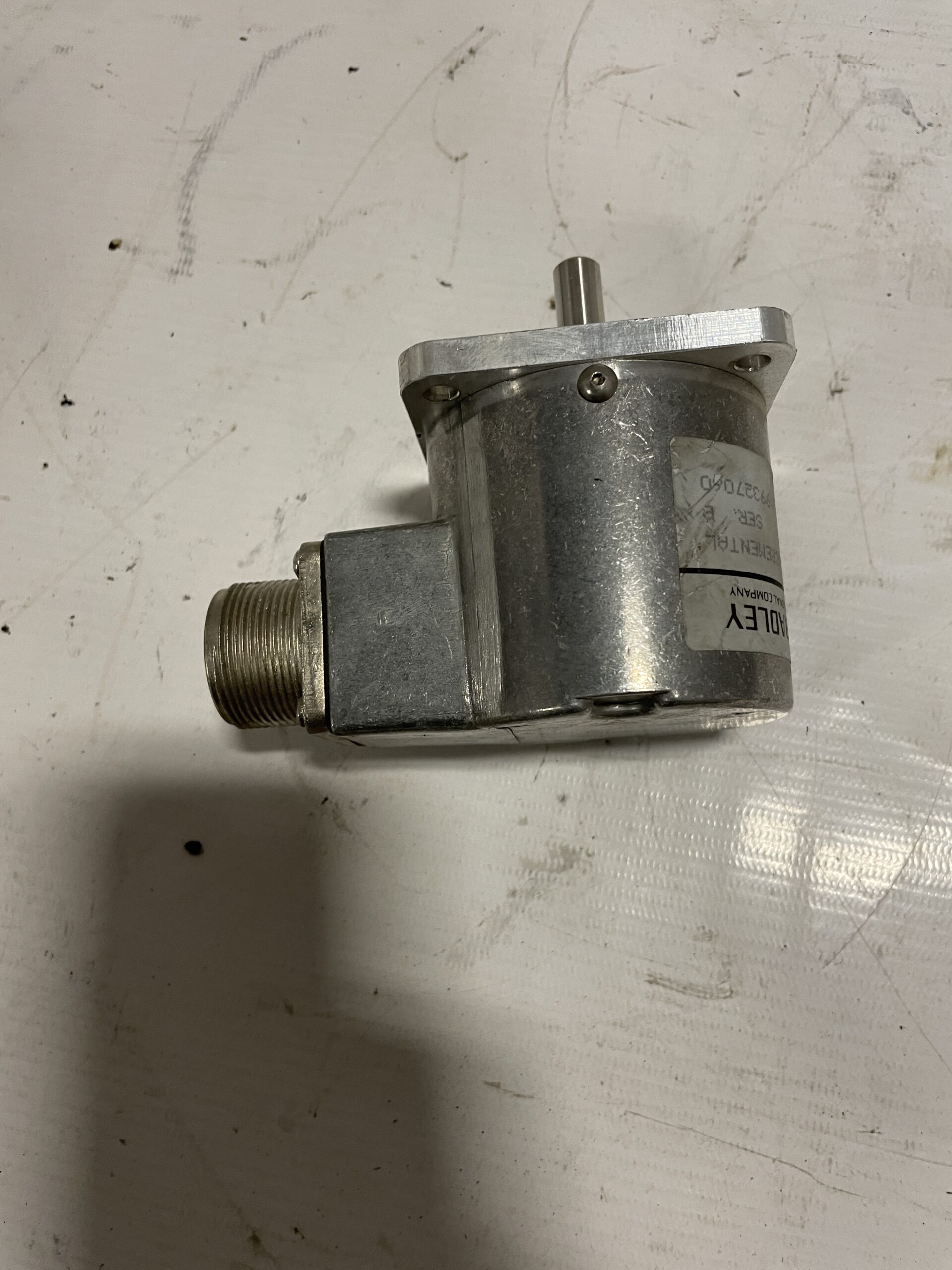

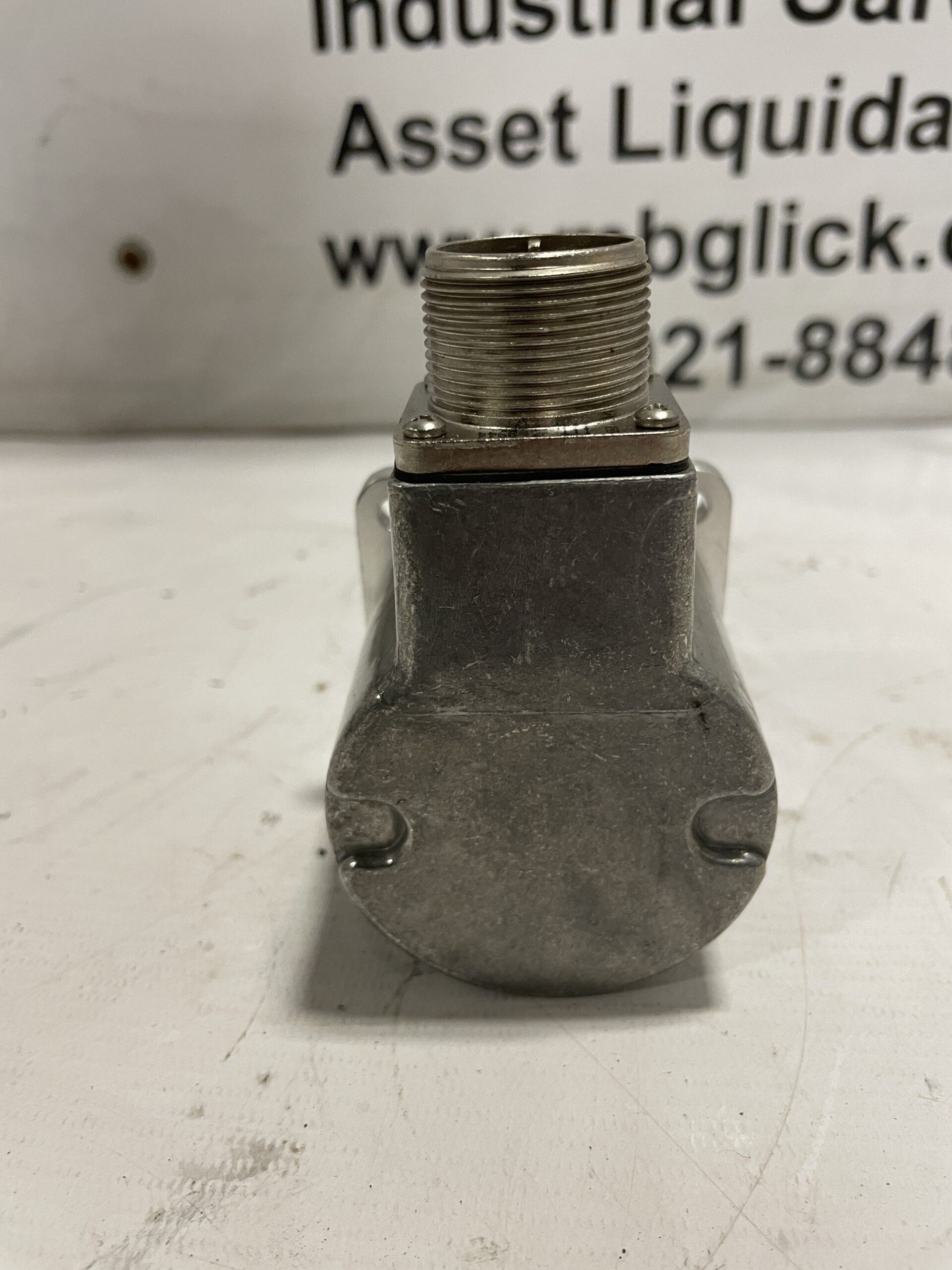

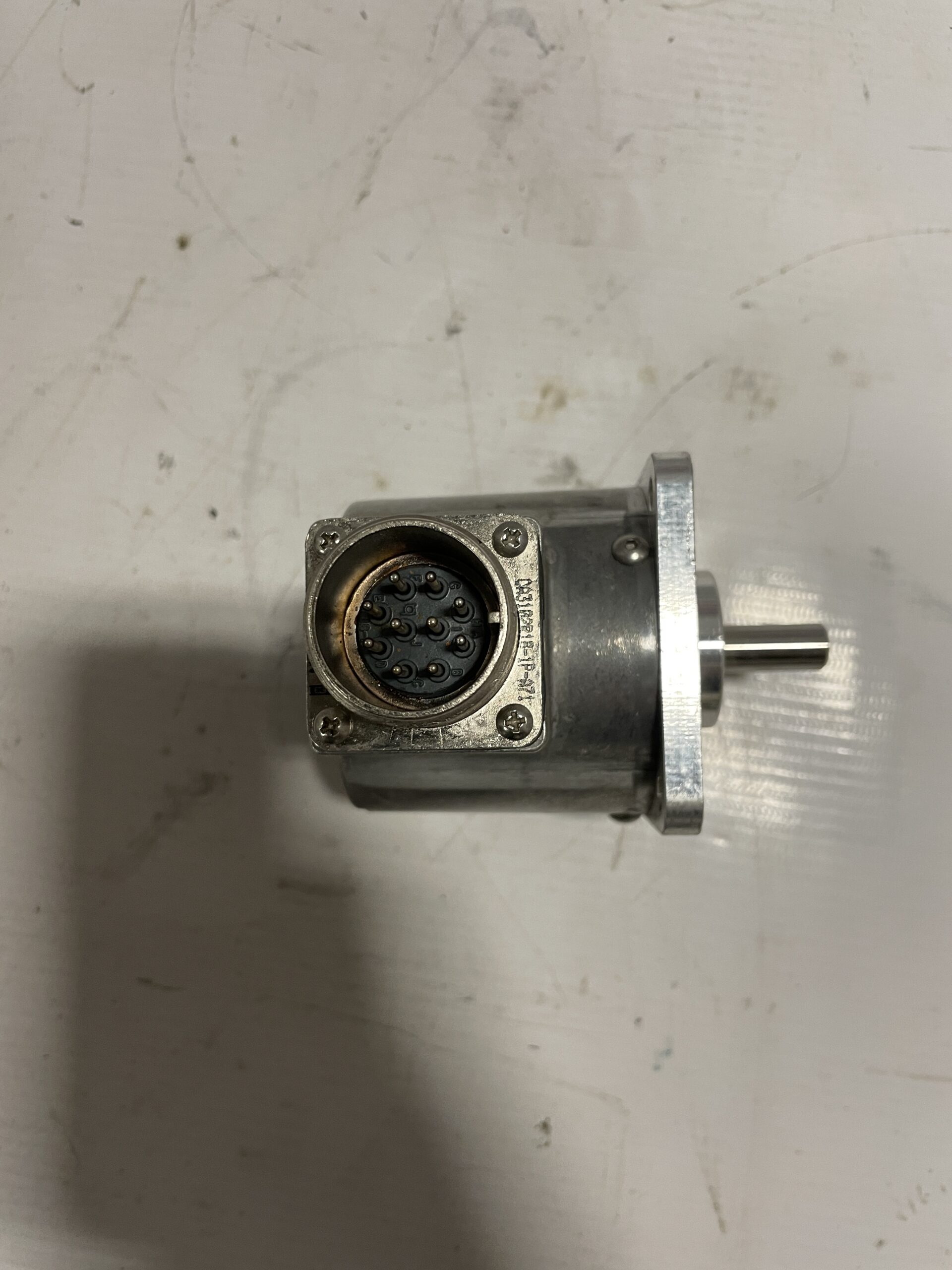

Allen Bradley 845H-SJDZ24CNY2C DC Optical Incremental Encoder 8-24V 1000 PPR

HAS A APPROX. 0.375” DIAMETER SHAFT

The Allen-Bradley 845H-SJDZ24CNY2C is an optical incremental encoder designed for use in industrial automation applications. Below is a breakdown of its features and specifications:

Key Features:

• Series: 845H
• Type: DC Optical Incremental Encoder
• Signal Output: Provides incremental signals for precise motion control.
• Resolution: Usually specified in terms of pulses per revolution (PPR). For the specific resolution of this model, refer to the product datasheet or documentation.
• Power Supply: Operates on DC power. Specific voltage range is typically in the 5-24V DC range.
• Output Signal:
  • Quadrature signals (A, B) for direction detection.
  • Optional index pulse (Z) for homing or reference.
• Shaft or Hollow Shaft: Depending on the configuration, it might have a solid shaft or hollow shaft.
• Mounting: Features a rugged design suitable for industrial environments with various mounting options.

Applications:

• Position Sensing: In robotics, CNC machines, and automated systems.
• Speed Feedback: For motors in industrial drives.
• Motion Control: Integration in servo systems or variable frequency drives.

Key Benefits:

• Durability: Designed for harsh industrial conditions.
• Accuracy: High-resolution incremental feedback ensures precise control.
• Compatibility: Supports a wide range of industrial controllers and interfaces.

For exact specifications like PPR, electrical connections, and environmental ratings, consulting the official Allen-Bradley datasheet for the 845H-SJDZ24CNY2C is recommended. Let me know if you need help finding that document or other related information!
