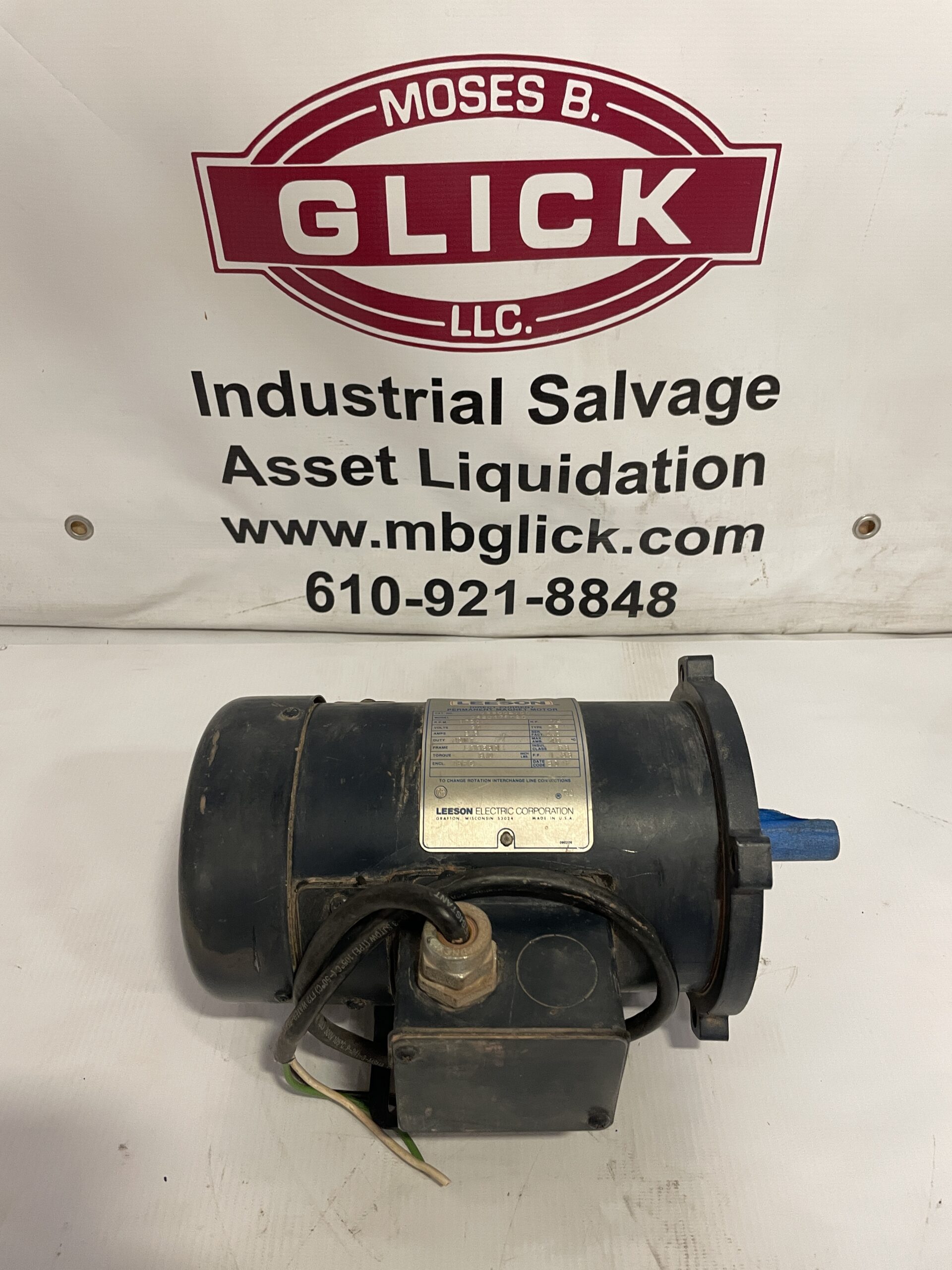

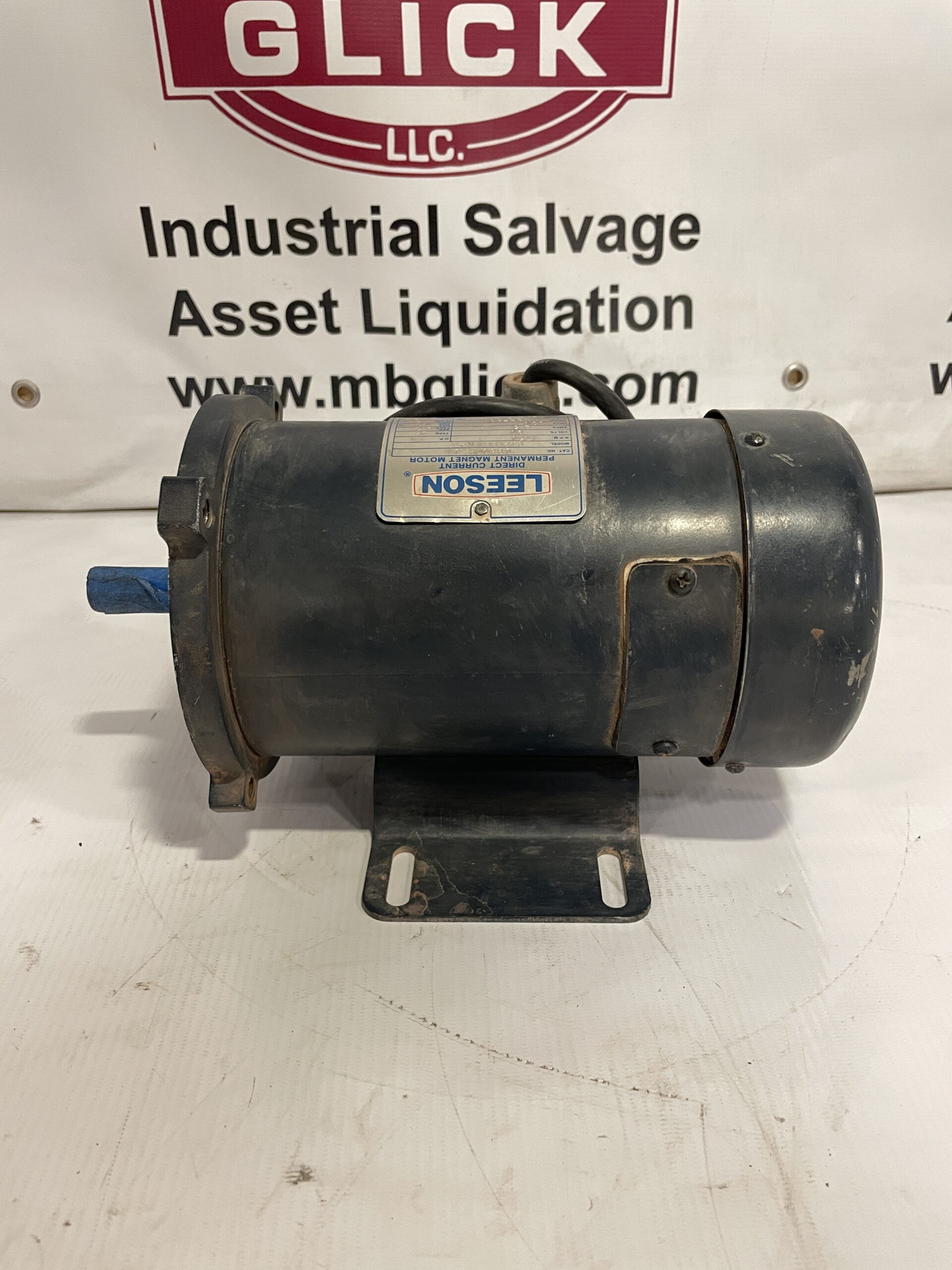

LEESON C42D17FK2C 90V DC Permanent Magnet Motor 1/4HP 1750RPM TEFC

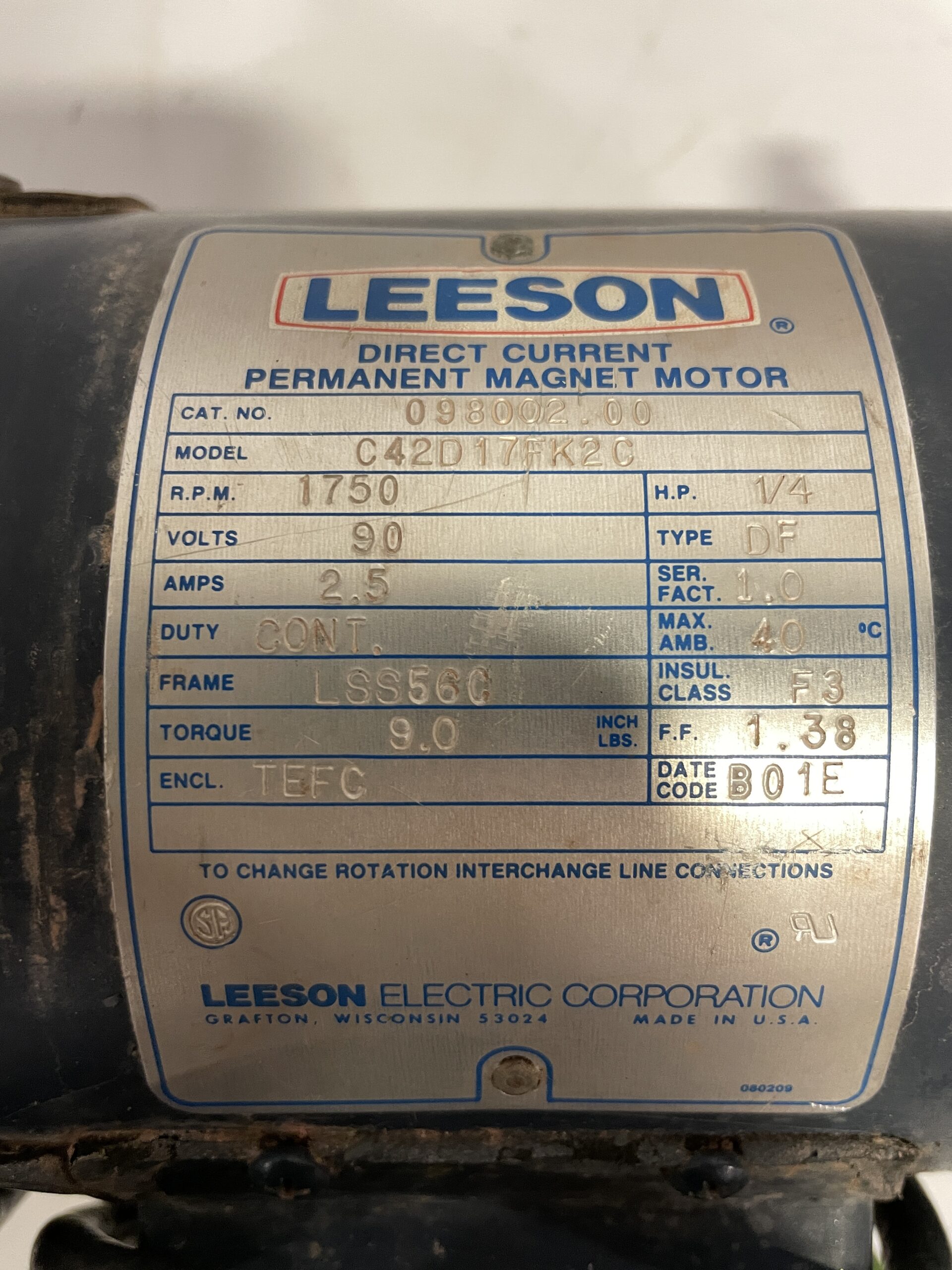

Key Specifications:

• Power Output: 0.25 HP (0.19 kW)

• Voltage: 90 V DC

• ICurrent: 2.5 A

• Speed: 1750 RPM

• Frame Size: 56C

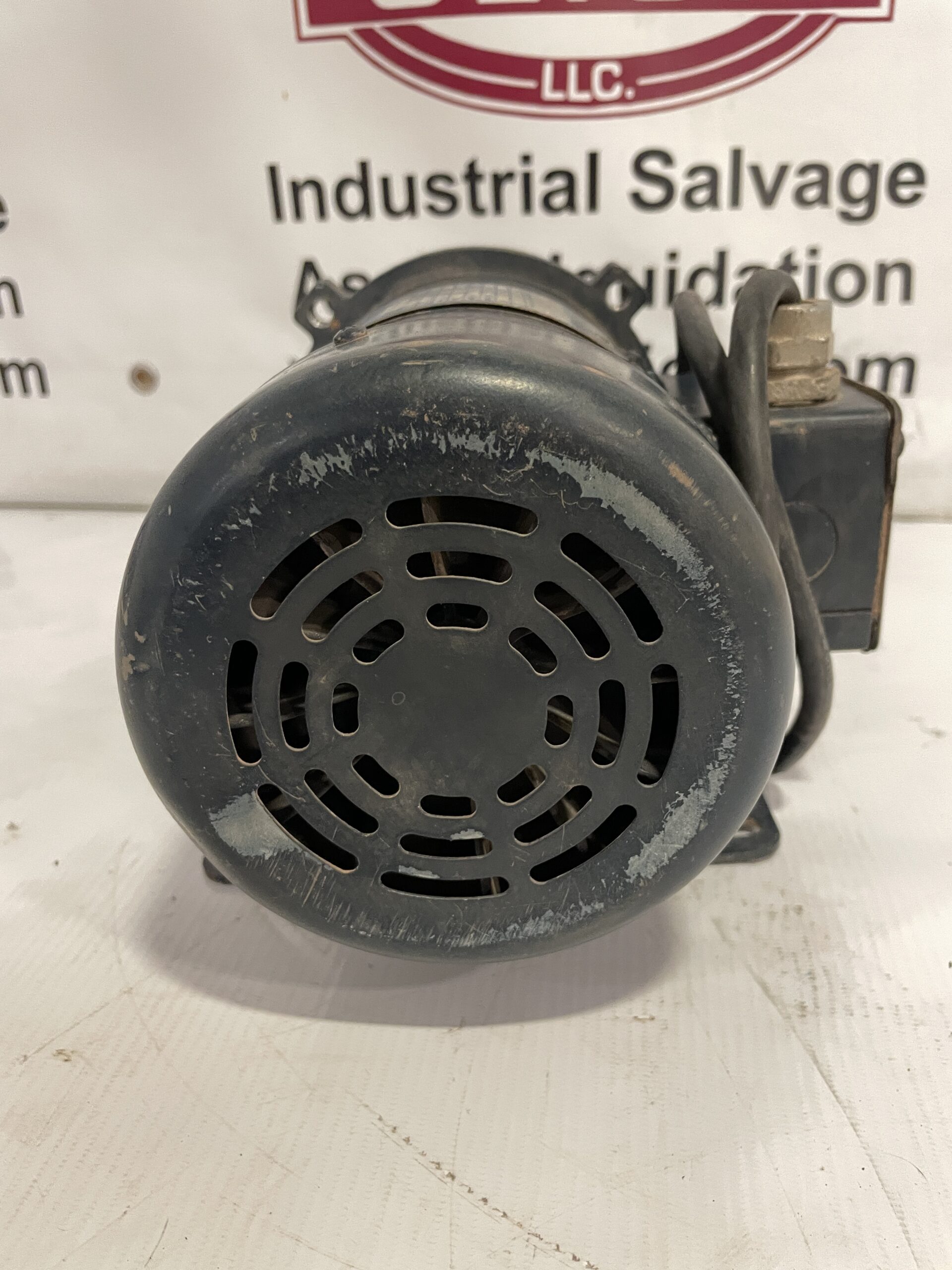

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.0

• Efficiency: 78.5%

• Insulation Class: F

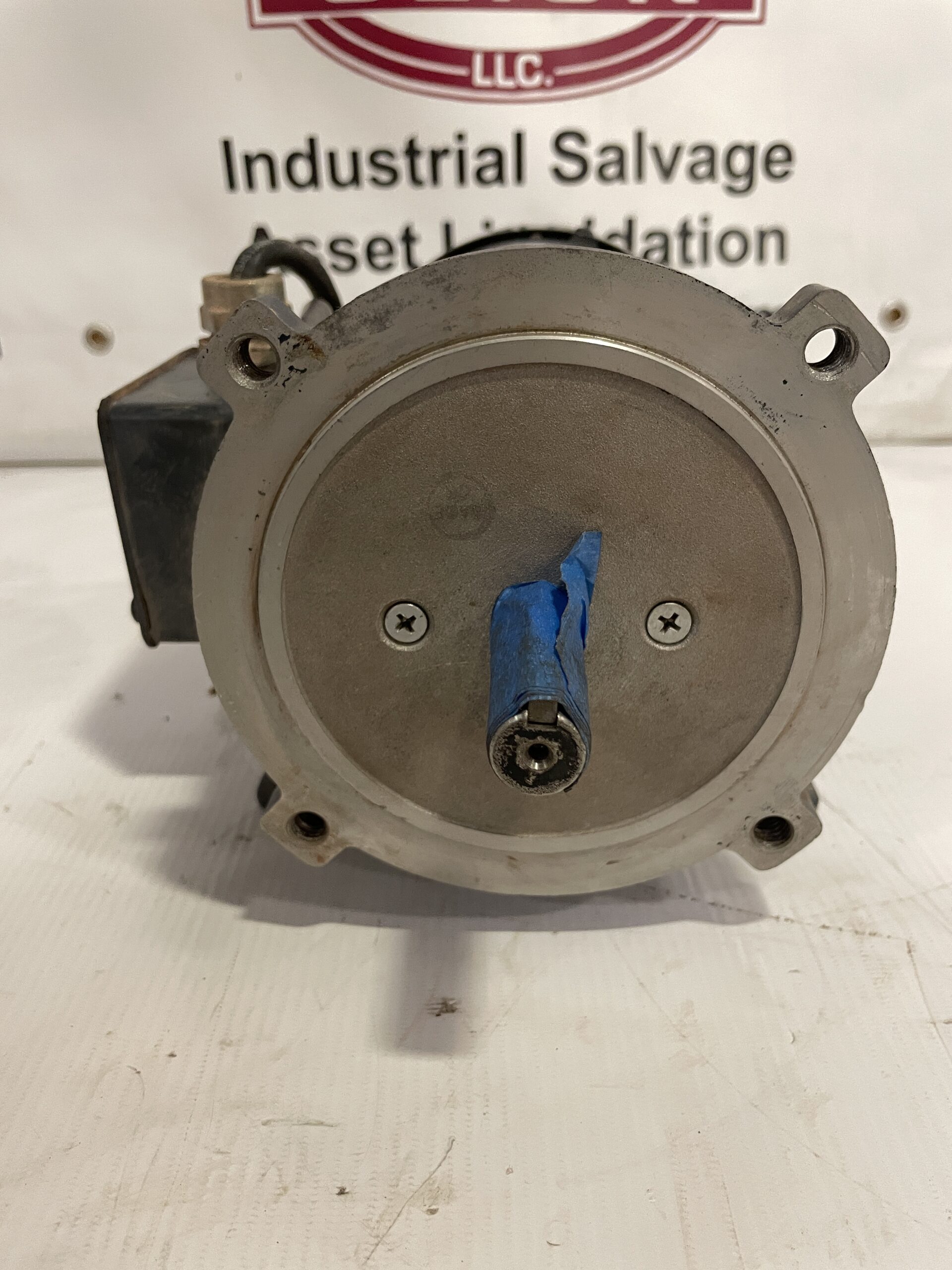

• Mounting: Rigid C base

• Ambient Temperature: 40°C

• Weight: Approximately 21 lbs (9.5 kg)

• Shaft Diameter: 5/8 in

• Shaft Extension: 2.06 in

• Bearings: 6203-2RS-C3 (double sealed)
