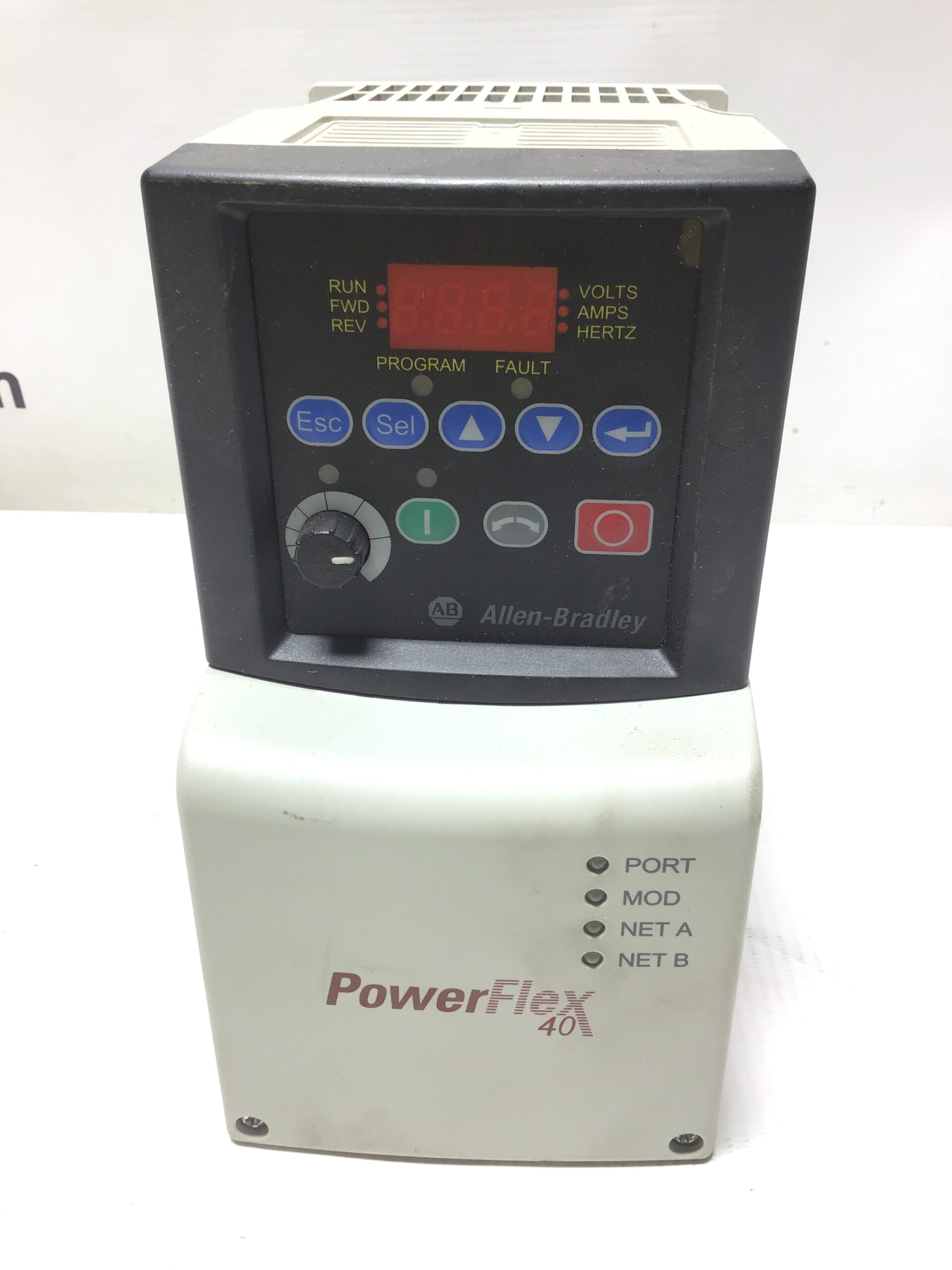

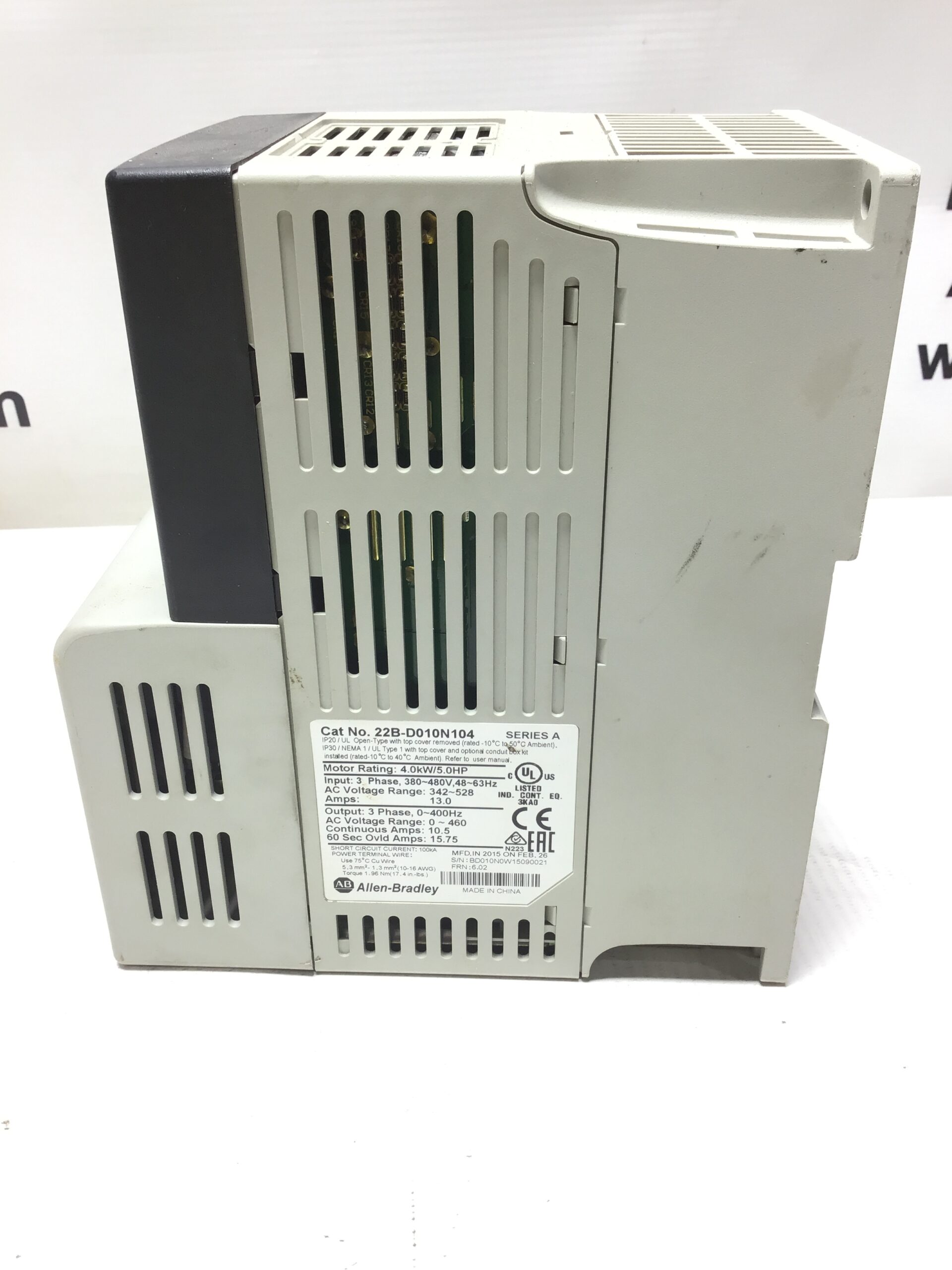

Allen Bradley PowerFlex 40 22B-D010N104 Variable Frequency Drive

The Allen Bradley PowerFlex 40 22B-D010N104 Variable Frequency Drive (VFD) is a versatile and efficient drive designed for industrial applications. Here are some key features:

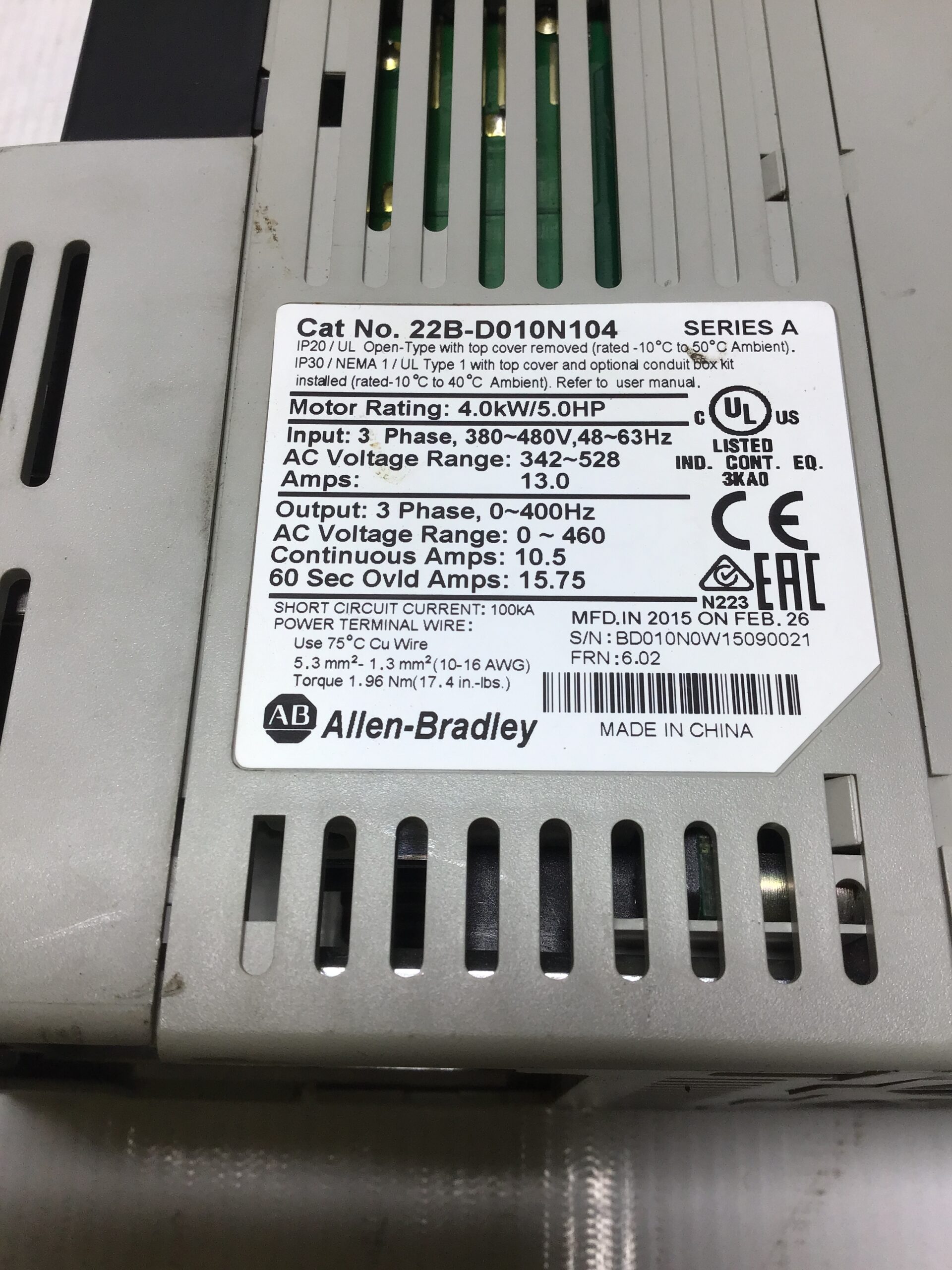

• Voltage: 480 V AC, 3-phase

• Current: 10 Amps

• Power Output: 4 kW (5.1 HP)

• Control: Sensorless vector control for precise speed and torque control

• Human Interface: Fixed digital keypad with LED display for easy configuration and monitoring

• Inputs: Two analog inputs (one unipolar, one bipolar), three fixed digital inputs, and four programmable digital inputs

• Outputs: One analog output (0-20 mA or 0-10 V), two opto outputs, and one form C relay output

• Communication: Supports DeviceNet, RS-485, and Ethernet interfaces

• Additional Features: Timer, counter, basic logic, StepLogic functions, autotune feature, flying start, drive overload protection, and ramp regulation
