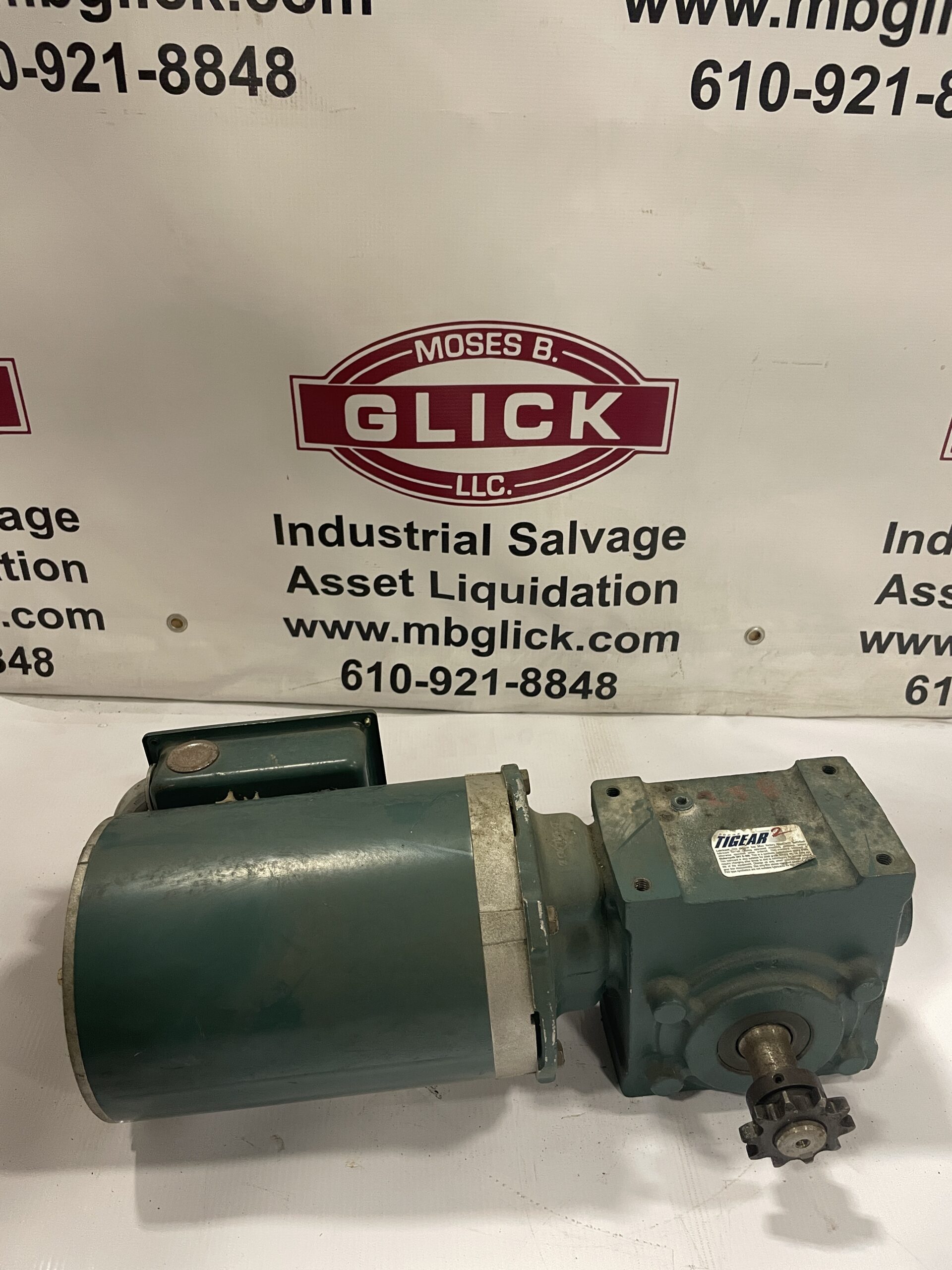

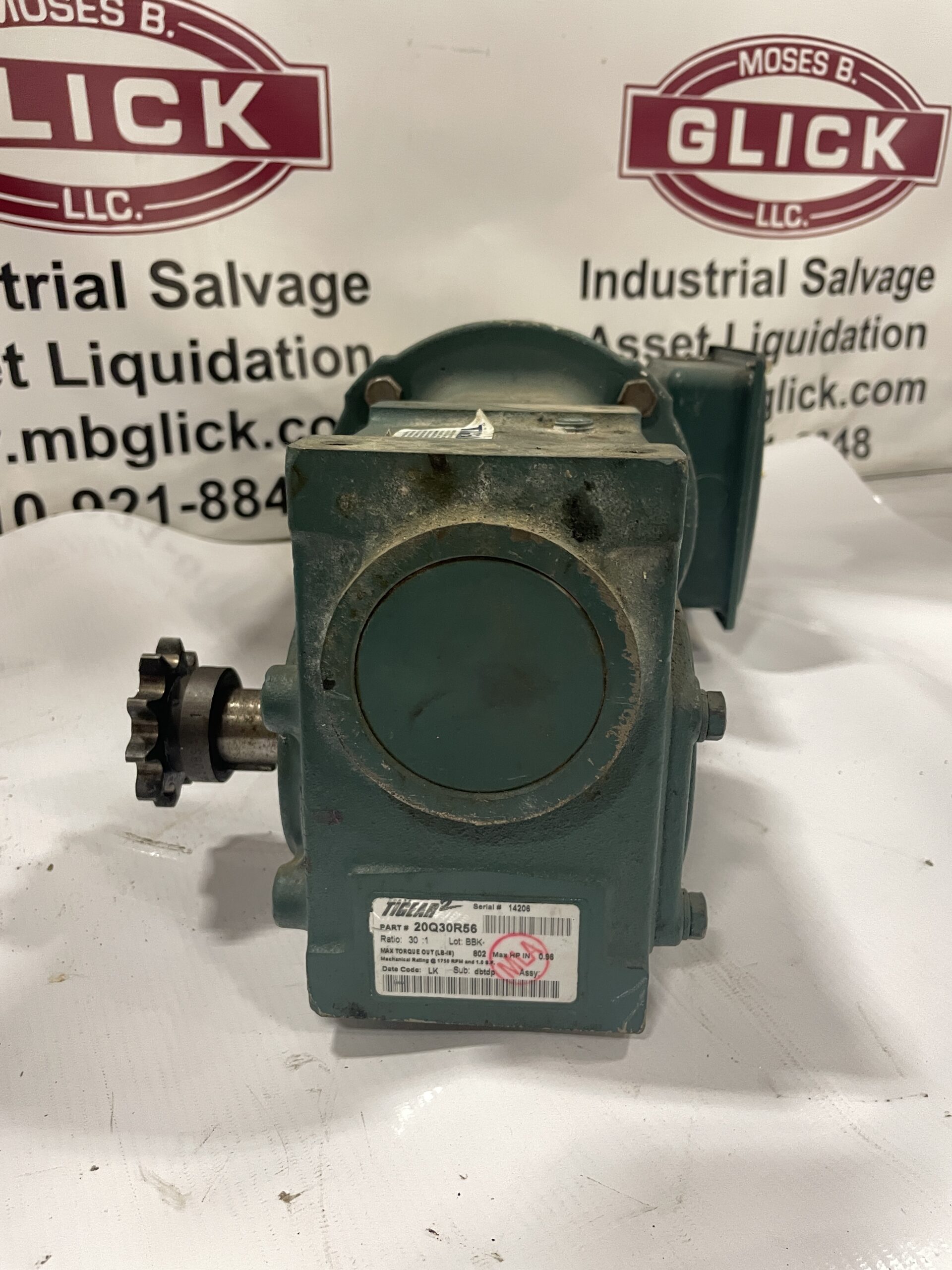

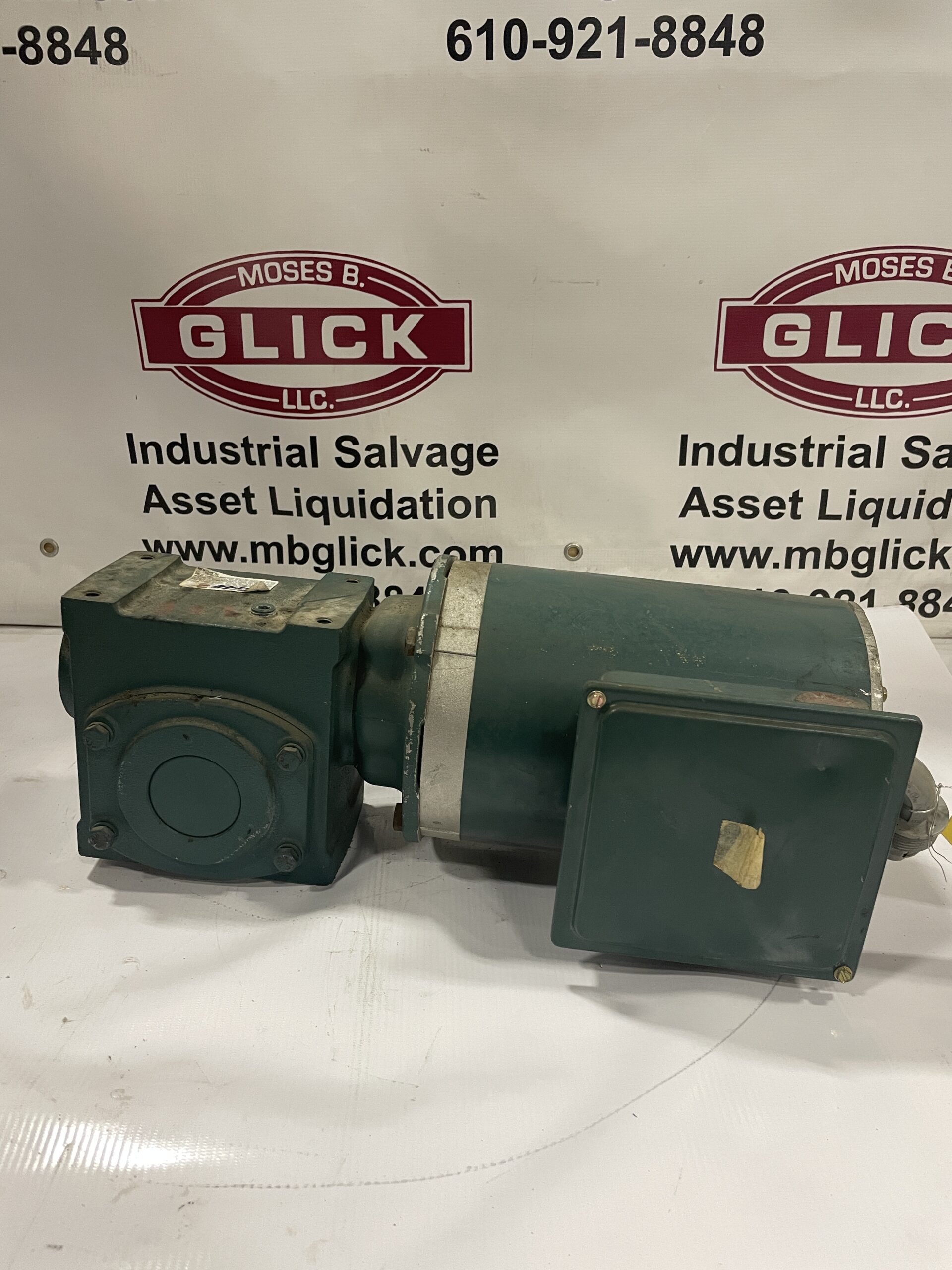

Dodge Tigear 2 20Q30R56 Gear Drive/Reducer 30:1 1HP 230/460V 3PH

The Dodge Tigear-2 20Q30R56 is a robust, right-angle worm gear reducer designed for industrial applications requiring reliable torque transmission and compact design. Part of the Dodge® Tigear-2® series, this model is engineered for durability and efficiency in demanding environments.

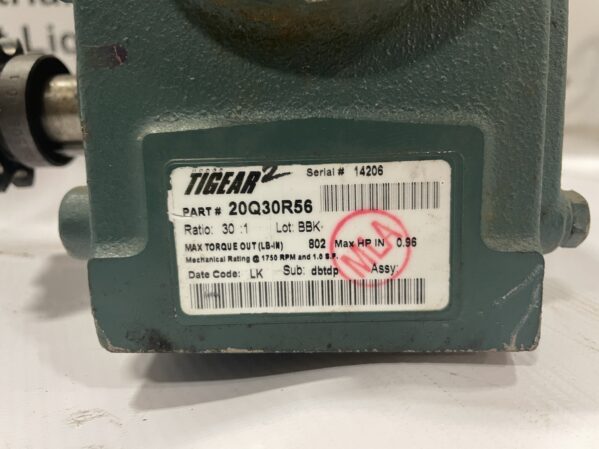

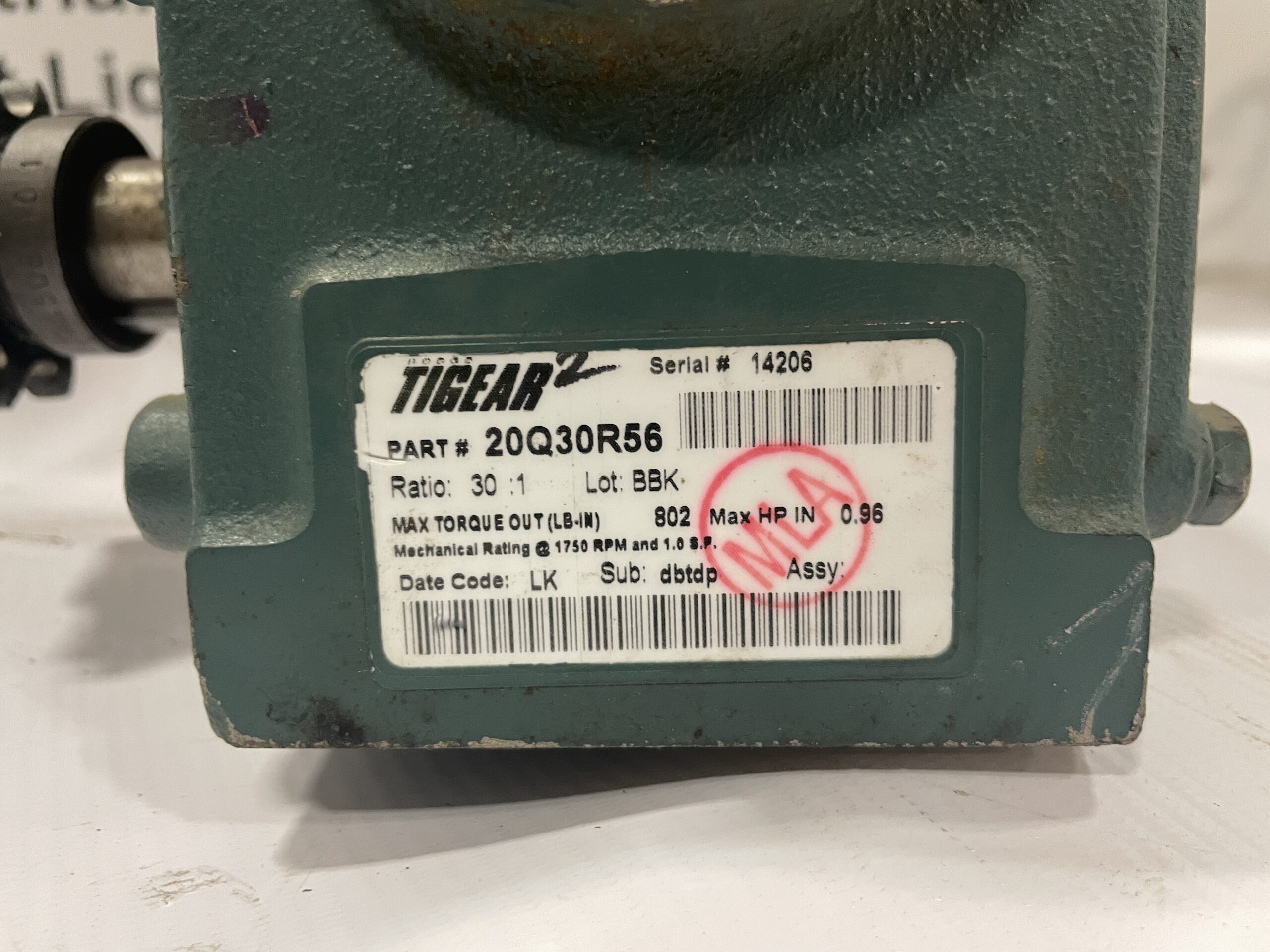

🔧 Key Specifications

• Gear Ratio: 30:1

• Input Type: Quill (C-Face Quilled)

• Input Shaft Size: 5/8 inch

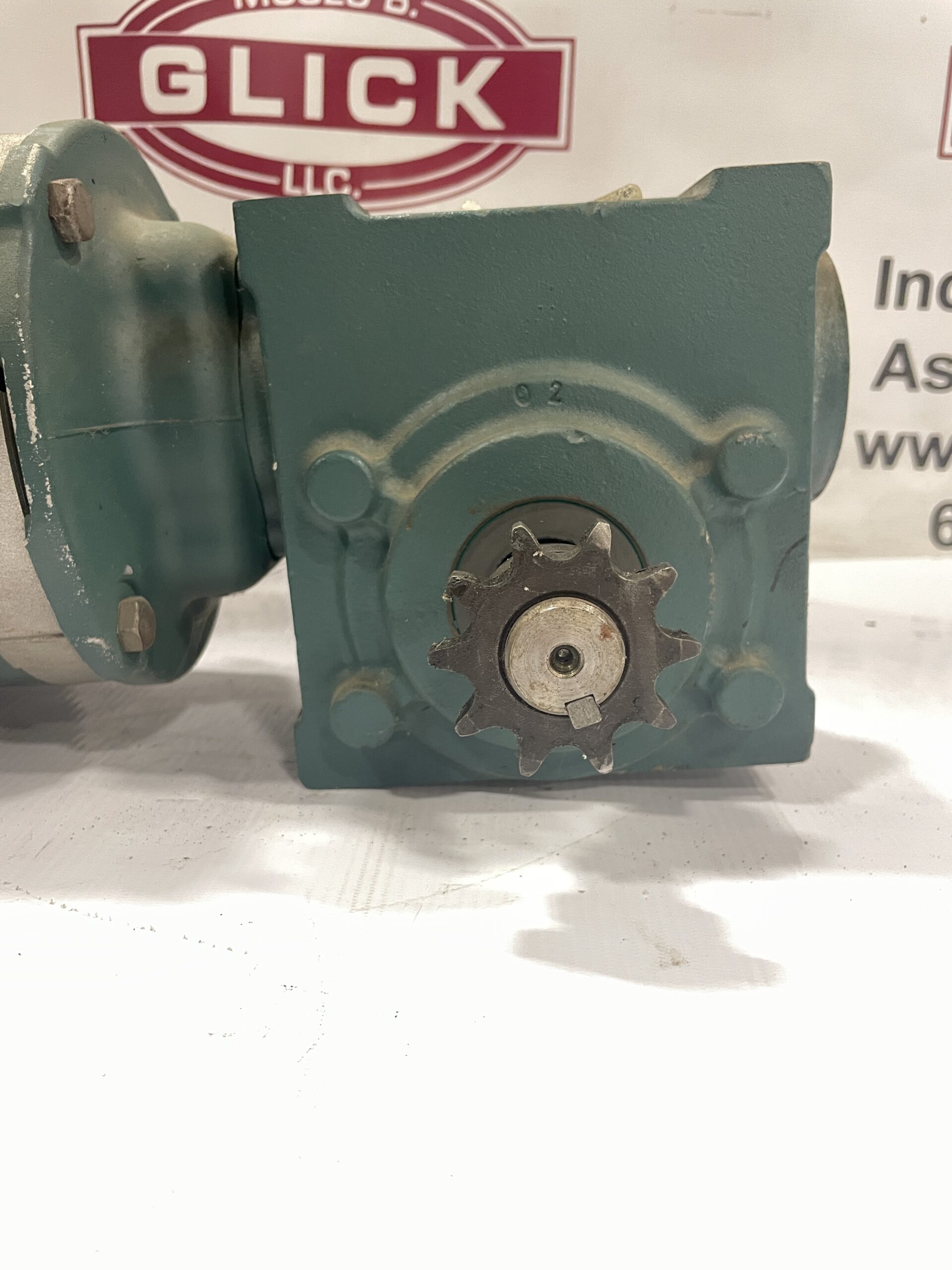

• Output Type: Solid B Right

• Output Shaft Size: 1 inch

• Maximum Input Speed: 1750 RPM

• Maximum Output Speed: 58 RPM

• Rated Output Torque: 802 in-lb

• Horsepower Input: 0.96 hp

• Horsepower Output: 0.74 hp

• Thermal Horsepower Rating: 1.49 hp

• Center Distance: 2 inches

• Weight: Approximately 30 lbs

• Housing Material: Class 30 Gray Iron

• Lubrication: Synthetic Oil (PAG)

• Seal Type: Single-Lip Contact

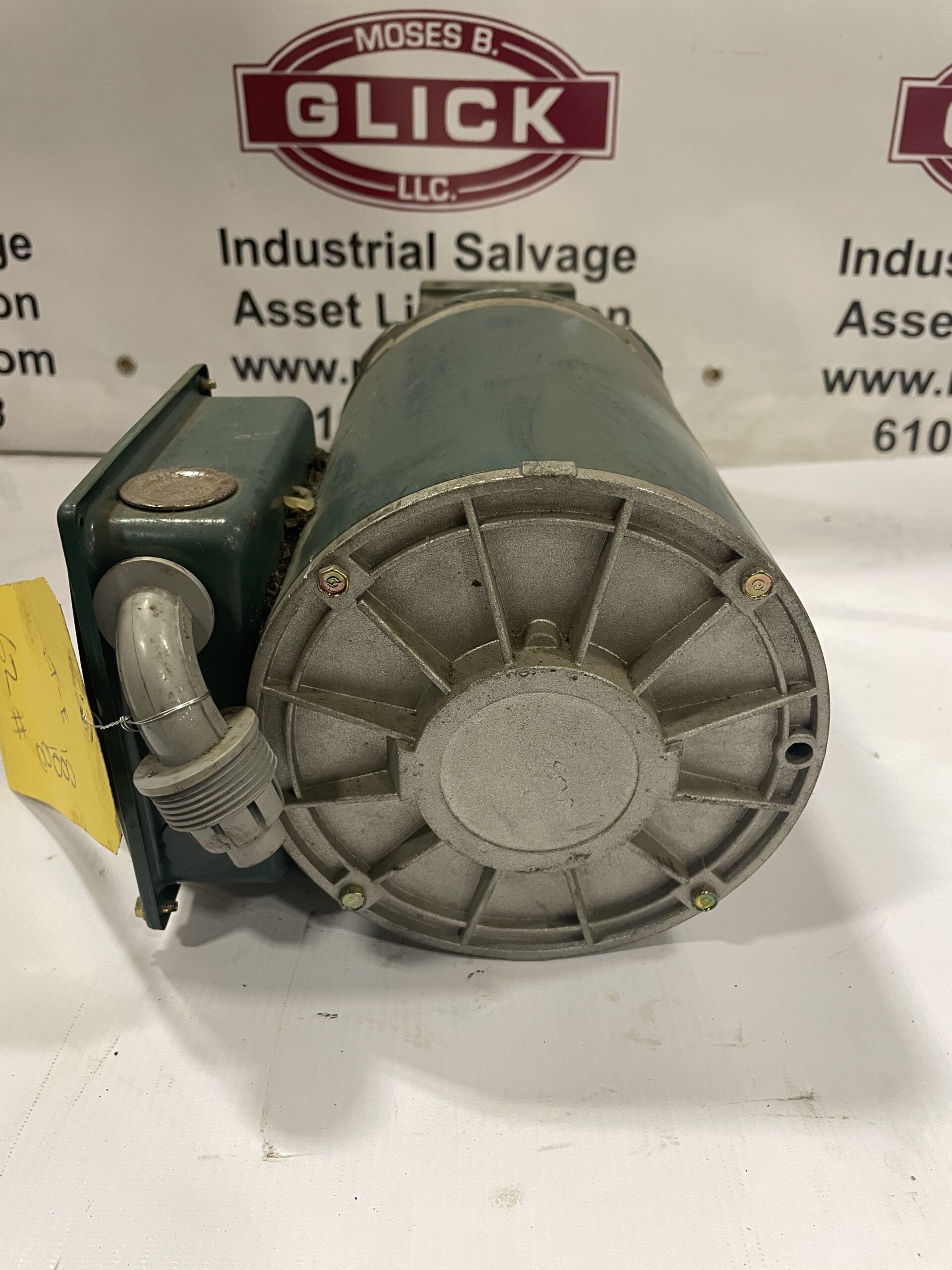

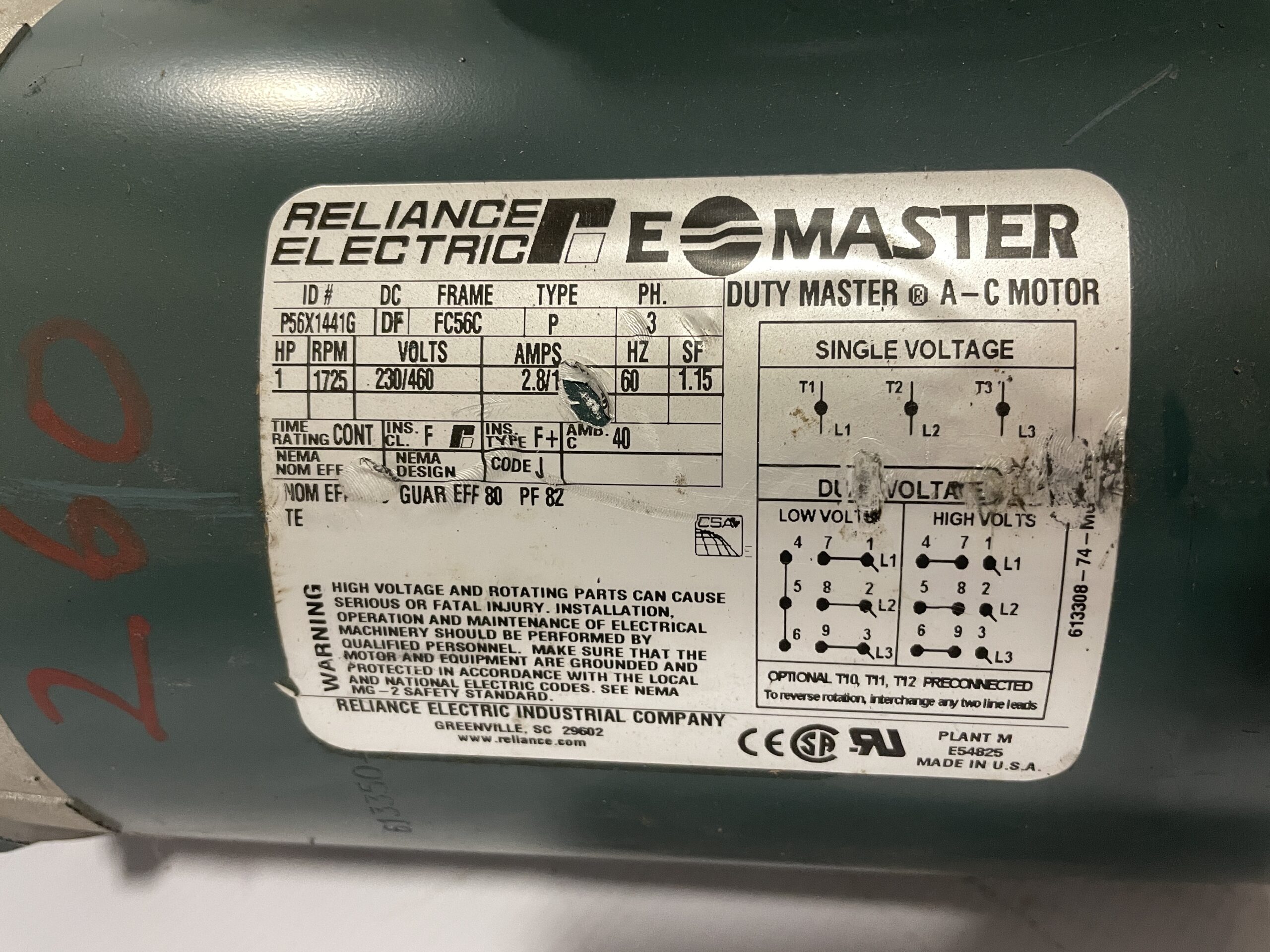

• Mounting: 56C Frame, compatible with NEMA motors

• Overhung Load Capacity: 1560 lbf

• Efficiency: 60–95%

• Rotation Type: Right Hand
