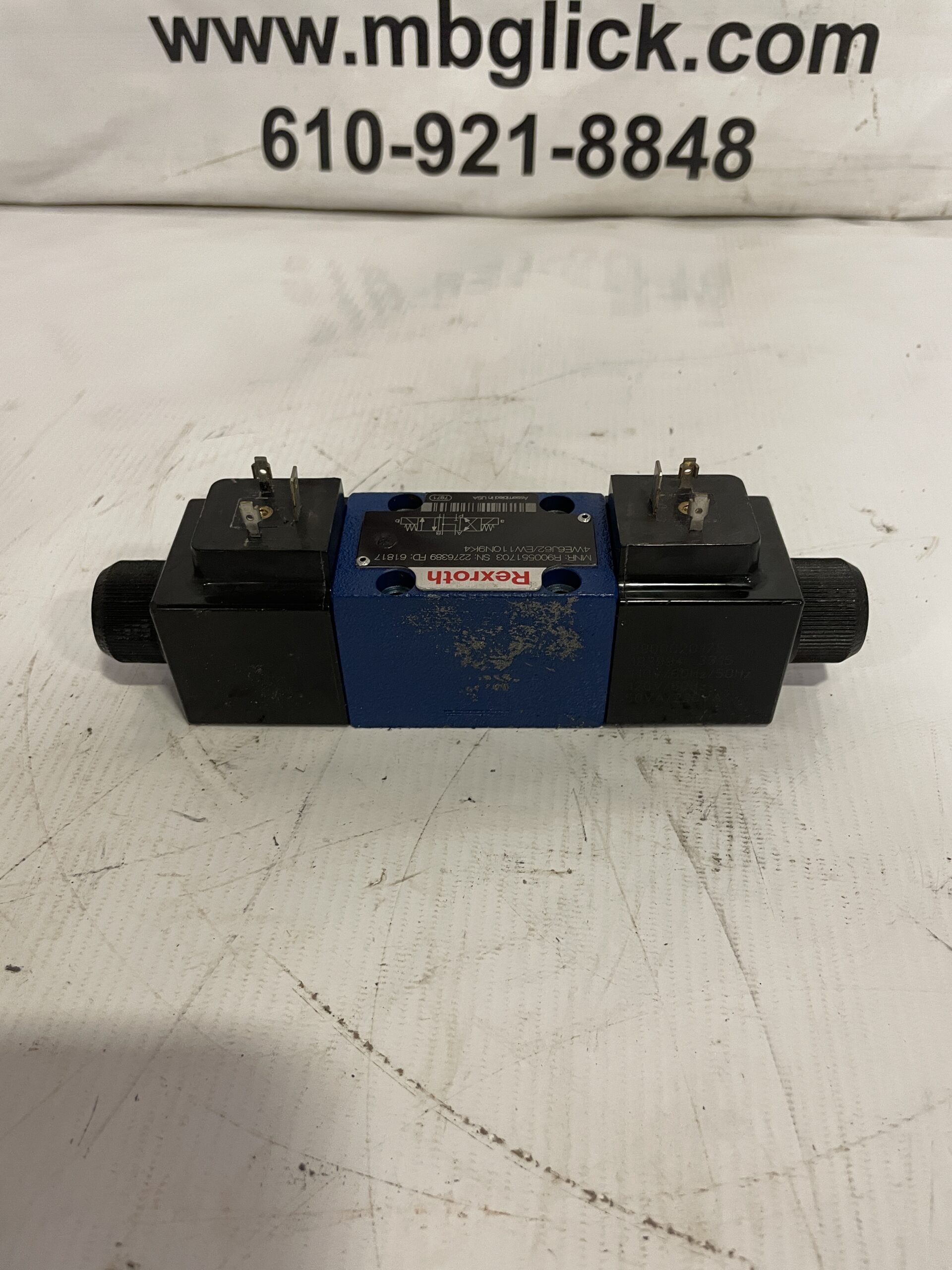

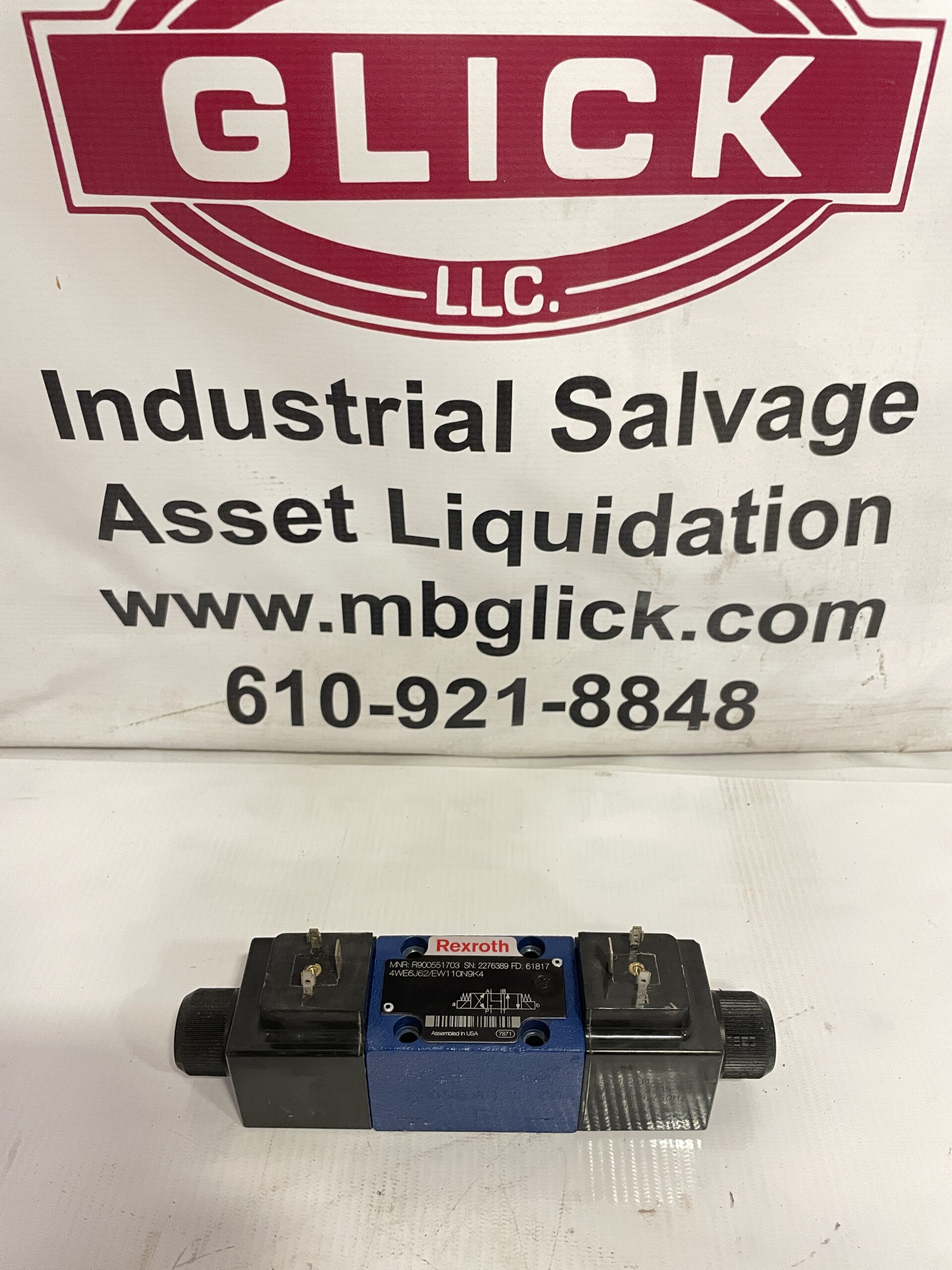

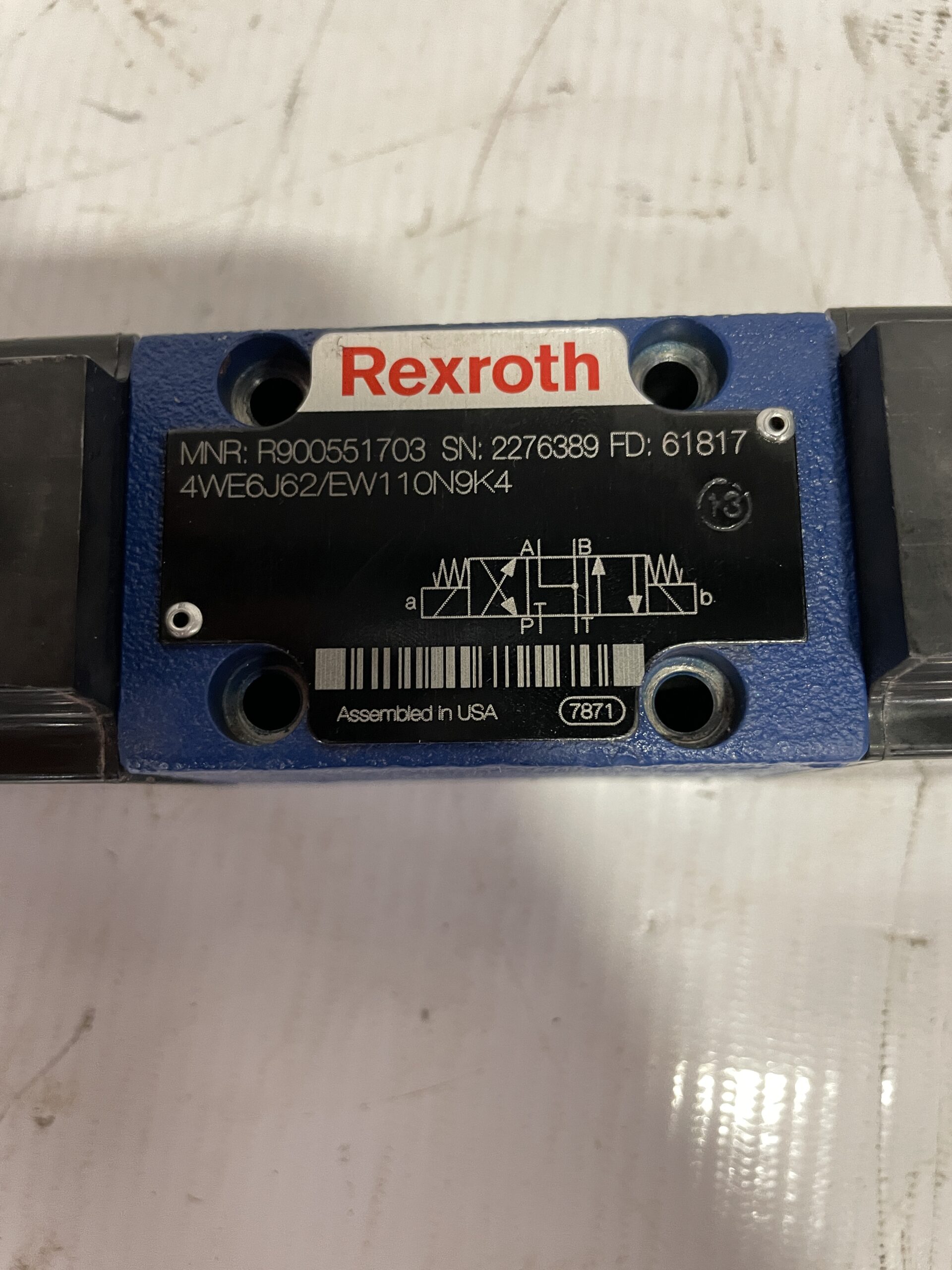

Rexroth R900551703 4WE6J62/EW110N9K4 Hydraulic Control Valve 4/3 5076psi

The part number 4WE6J62/EW110N9K4 corresponds to a Bosch Rexroth 4WE6J62/EW110N9K4 hydraulic directional control valve. This valve is part of the WE6 series, size 6, and is designed for precise control of fluid flow in hydraulic systems.

• Valve Type: 4/3-way (4 ports / 3 positions), double solenoid, monostable

• Size: 6 (CETOP D03)

• Flow Rate: 60 L/min (AC), 80 L/min (DC)

• Maximum Operating Pressure: 350 bar (5076 psi)

• Control Voltage: 110–120 VAC, 50/60 Hz

• Power Consumption: 30W

• Seals: NBR (Nitrile Butadiene Rubber)

• Electrical Connection: 3-pin DIN connector (EN 175301-803)

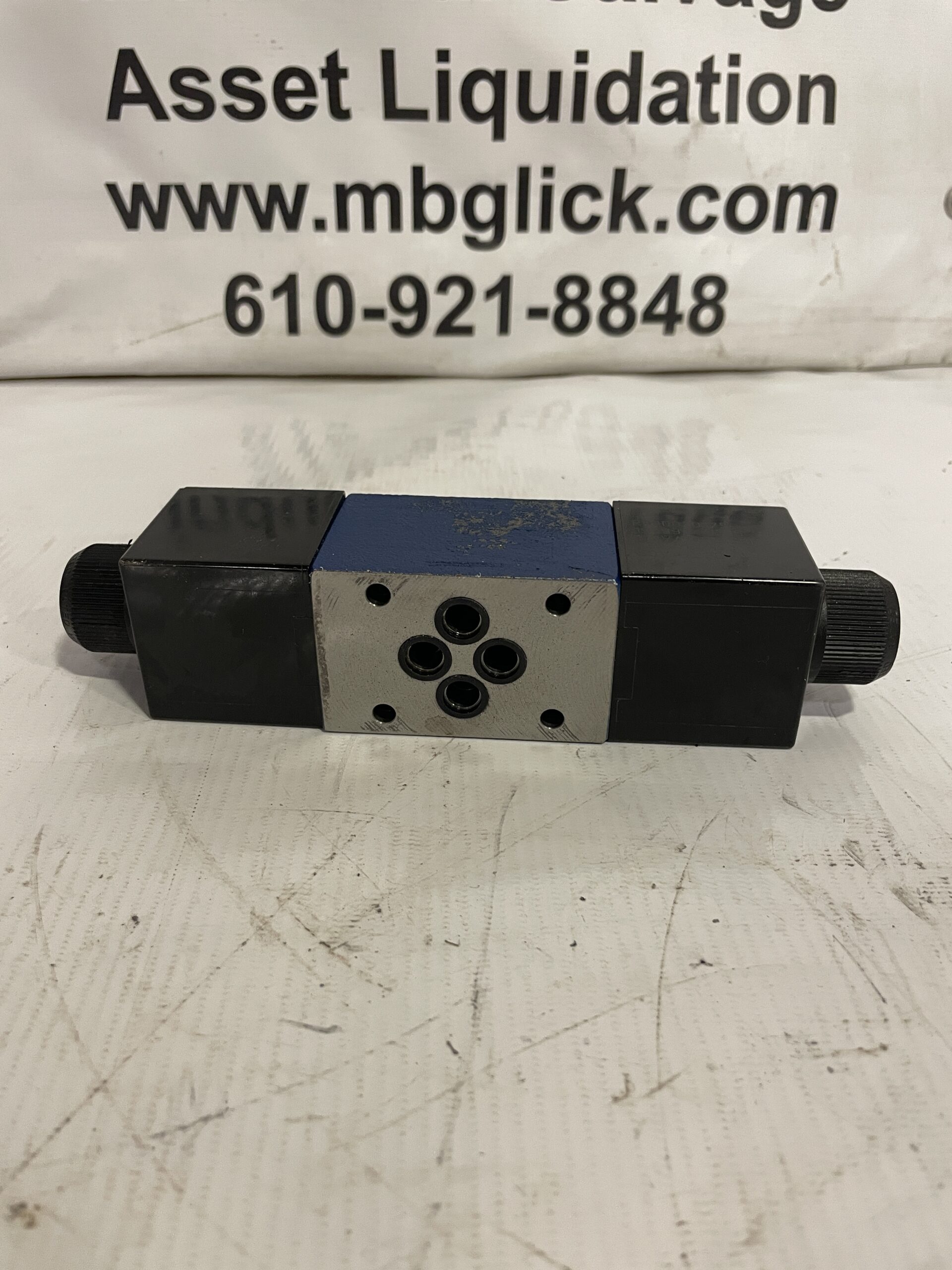

• Mounting: Subplate mounting (ISO 4401-03-02-0-05 / NFPA D03)

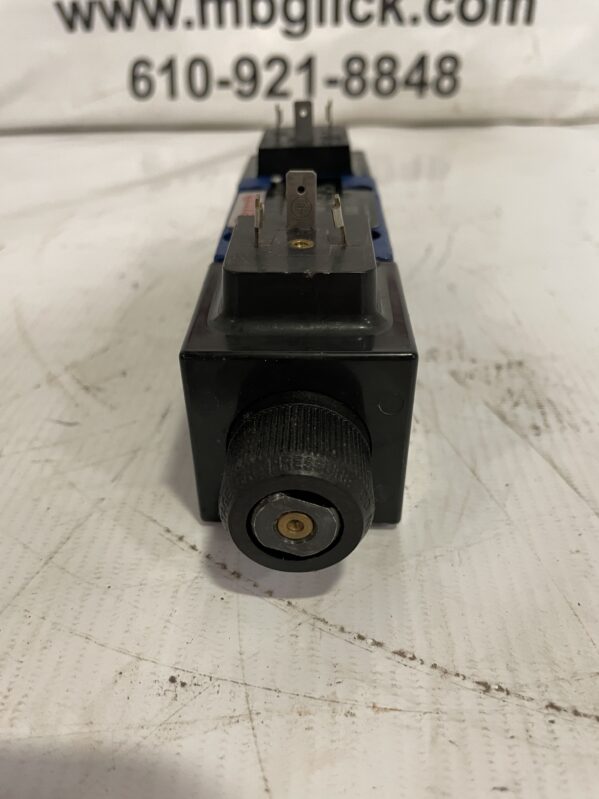

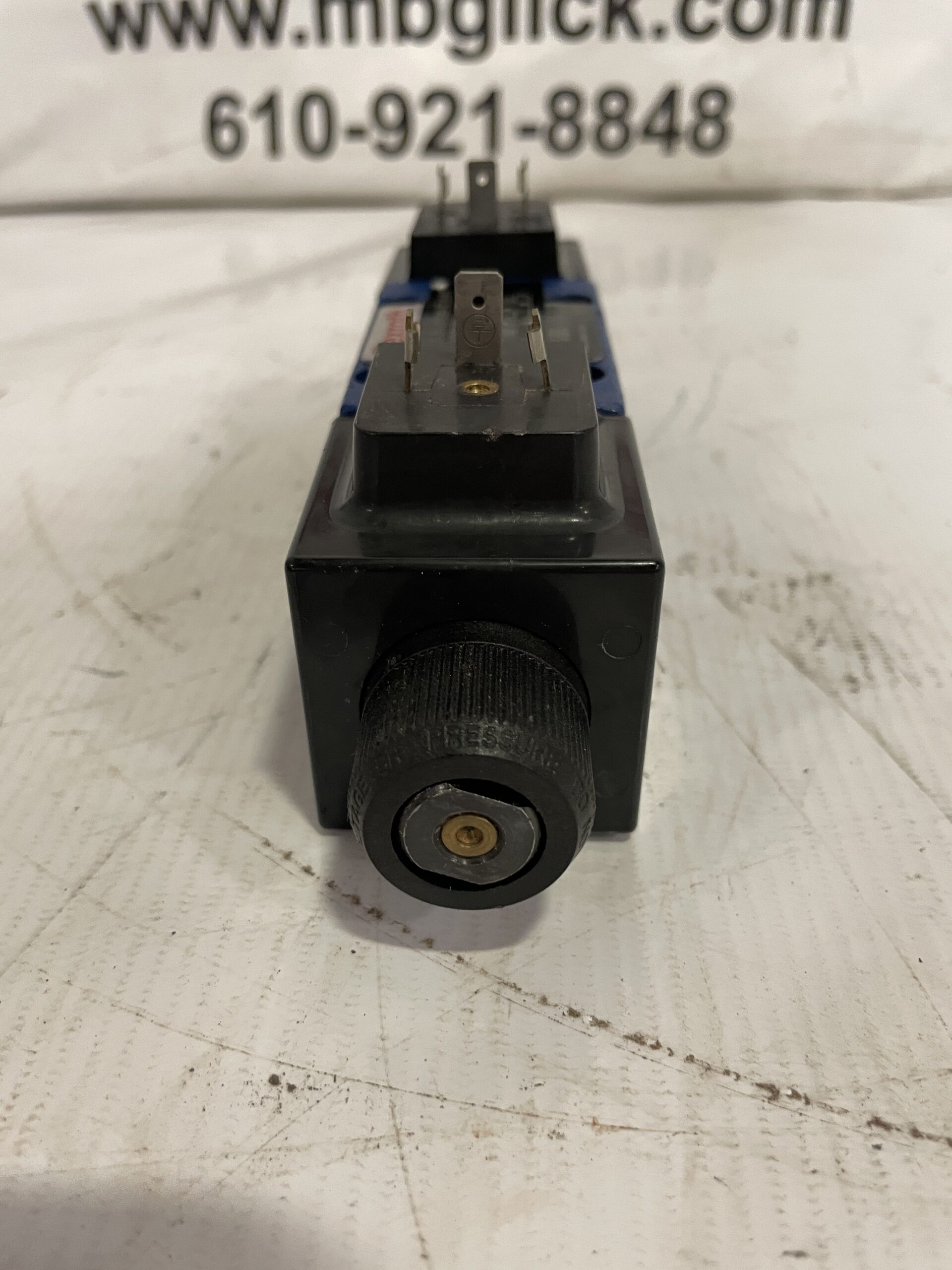

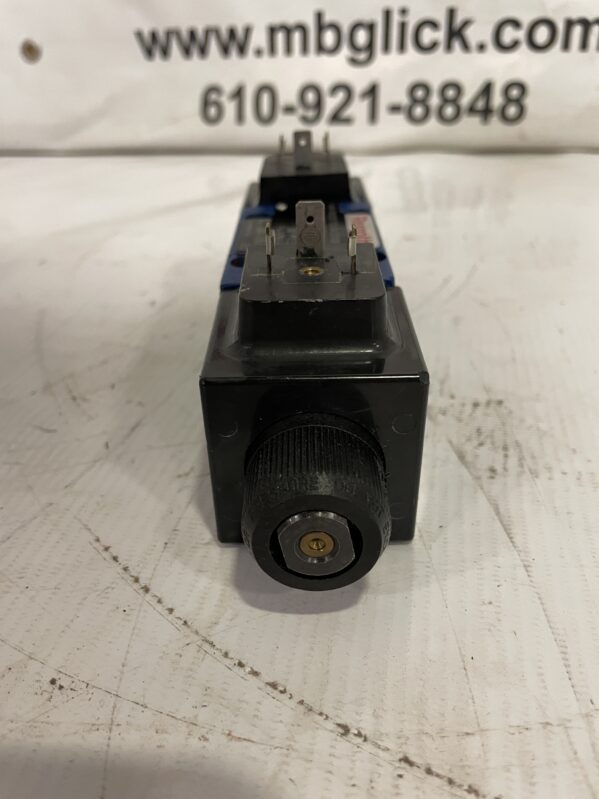

• Manual Override: Concealed flush

• Protection Class: IP65

• Temperature Range: Hydraulic fluid: –20°C to +80°C; Ambient: –20°C to +50°C
