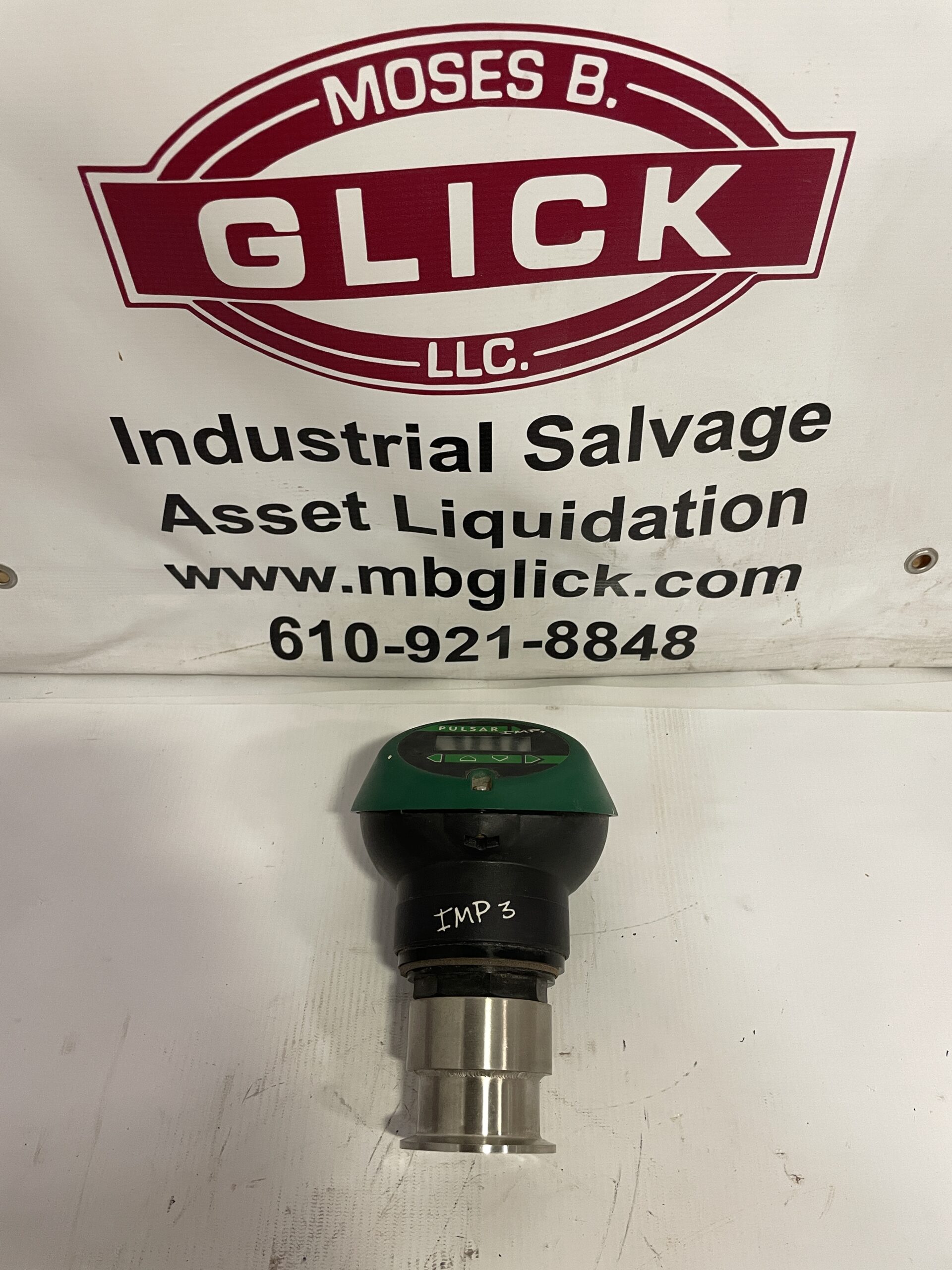

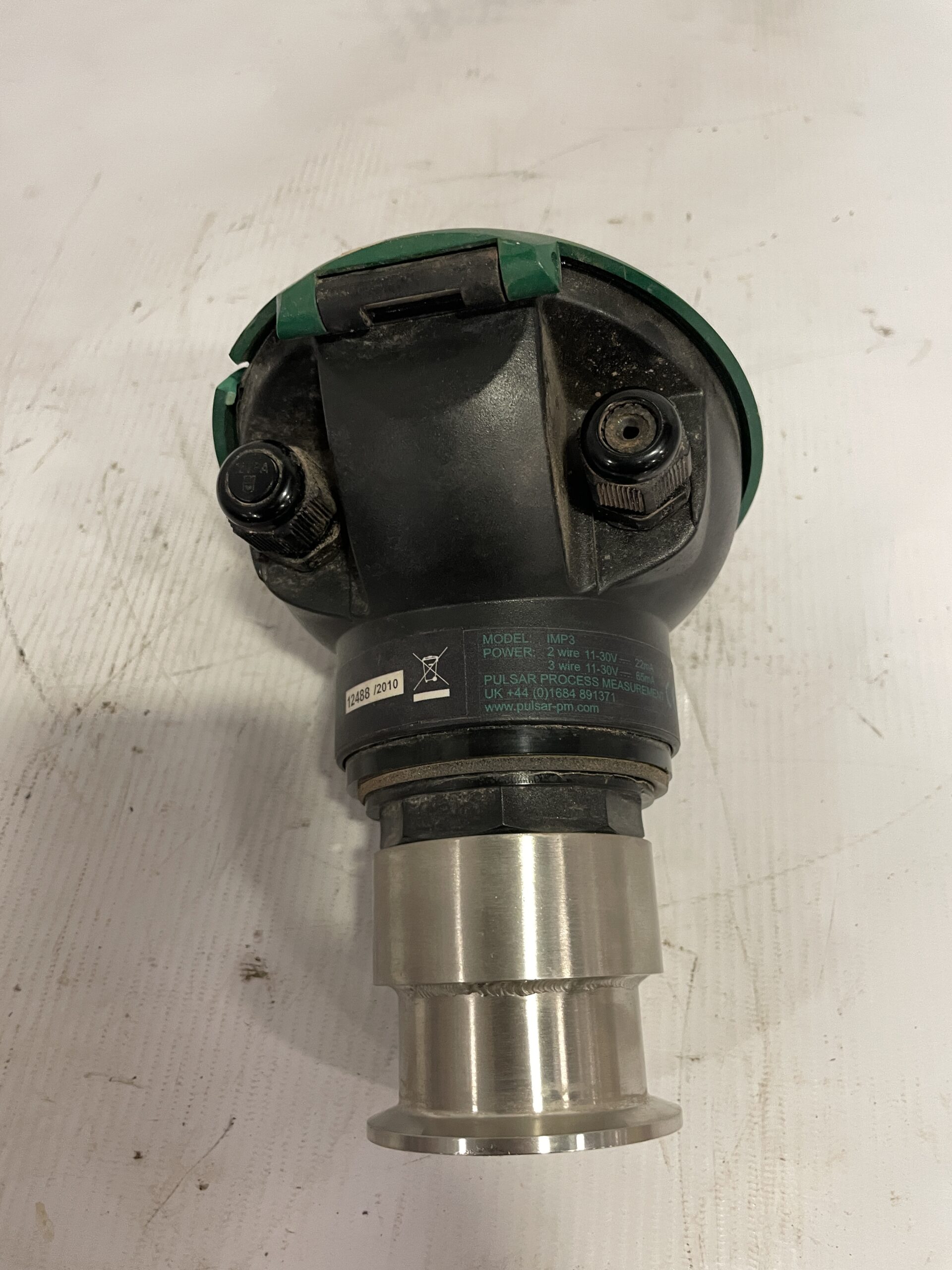

Pulsar IMP3 Non Contacting Ultrasonic Level Sensor 11-30VDC 125KHZ 200mm-3m

Measurement Range: 200 mm to 3 m (7.9 in to 9.8 ft)

Beam Angle: <10° (narrow beam)

Operating Frequency: 125 kHz

Accuracy: ±0.25% or 6 mm (0.2 in), whichever is greater

Resolution: ±0.1% or 2 mm (0.1 in), whichever is greater

Output Options:

• 4–20 mA (active and passive)

• 0–10 V (optional)

• 2 SPDT relays (optional)

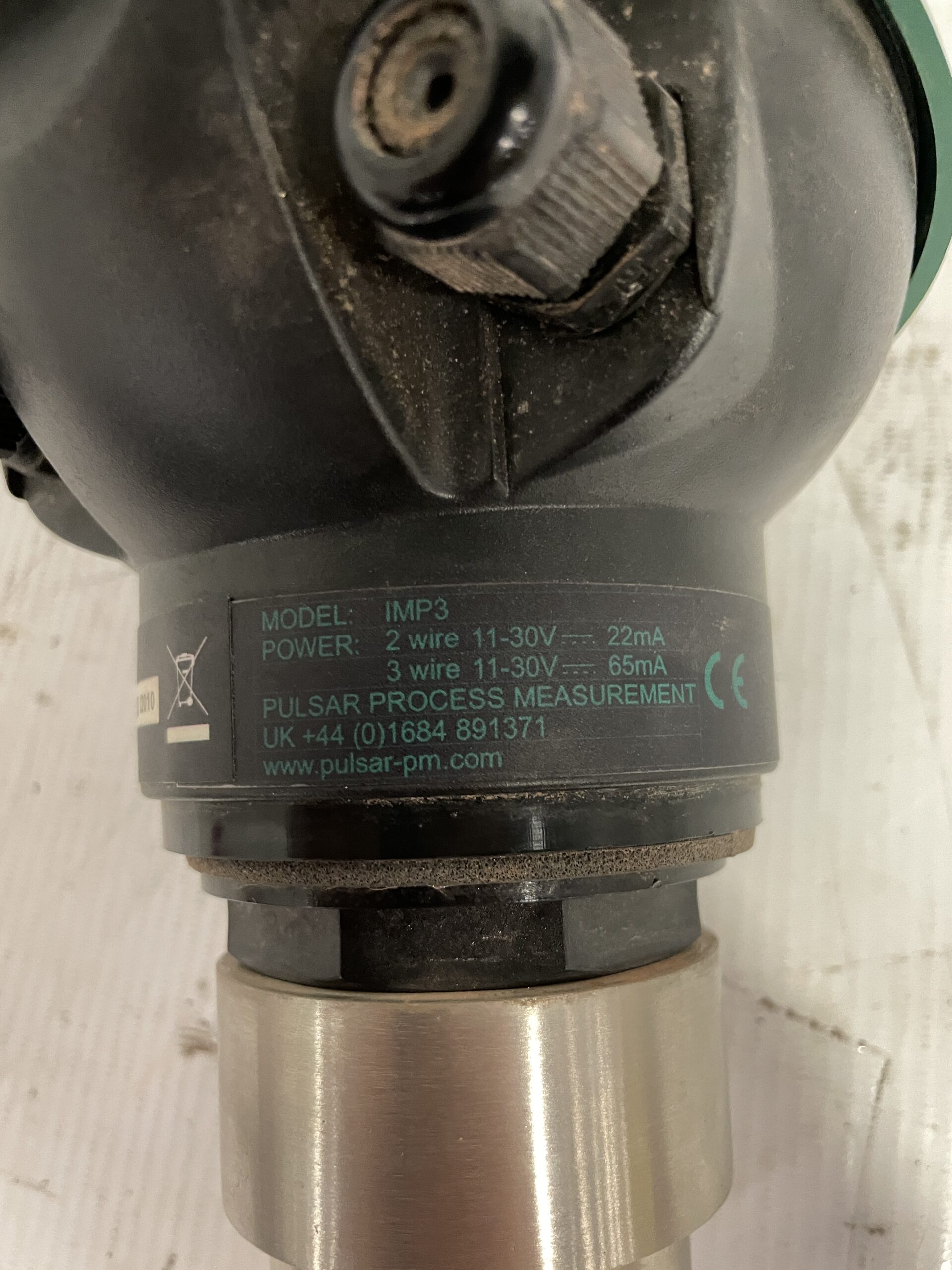

Power Supply: 11–30 V DC

Enclosure Protection: IP67

Process Temperature: -40°C to +65°C (-40°F to +149°F)

Ambient Temperature: -40°C to +80°C (-40°F to +176°F)

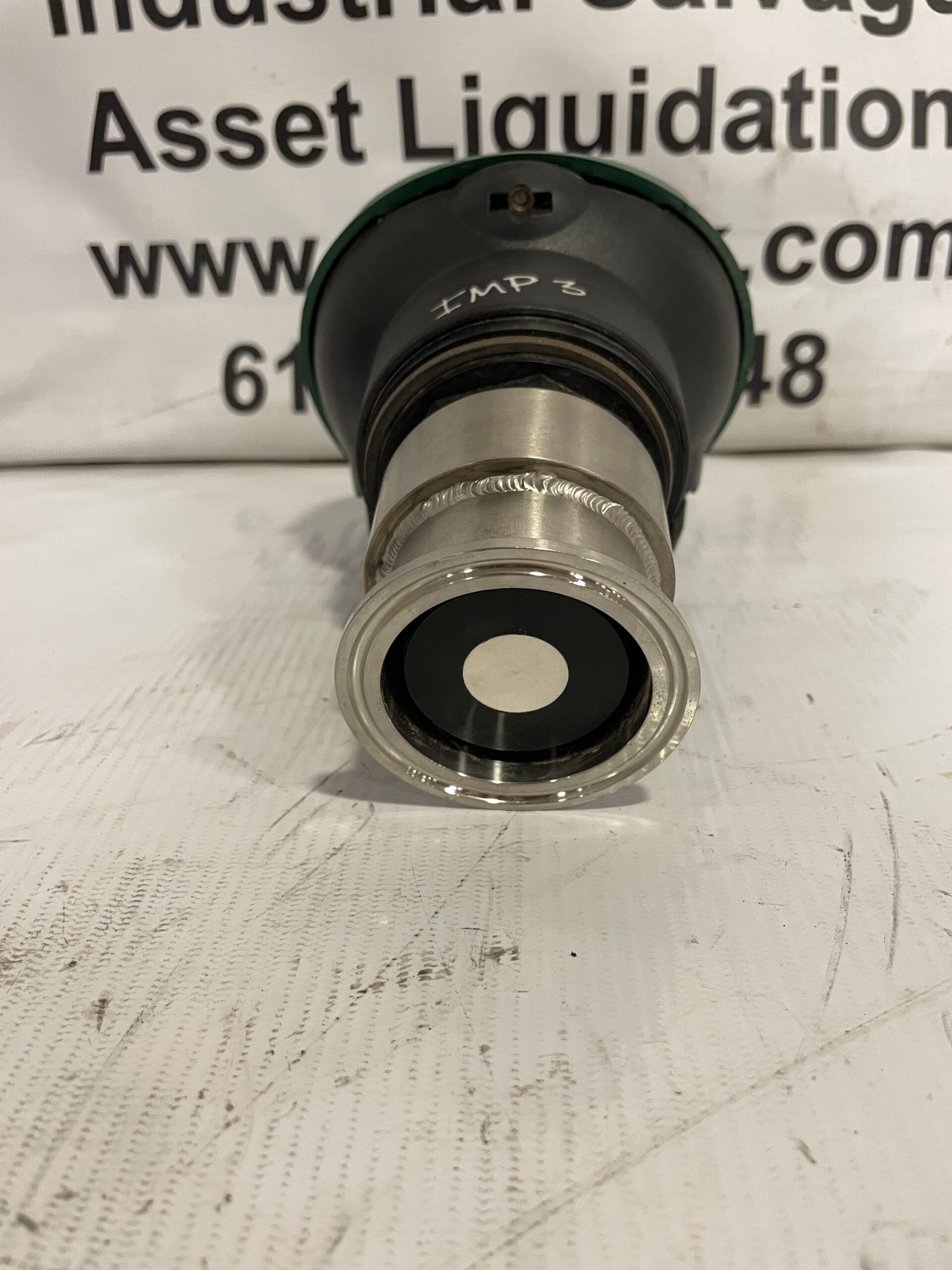

Mounting: 1.5″ BSP/NPT threads / 2” Sanitary Connection
