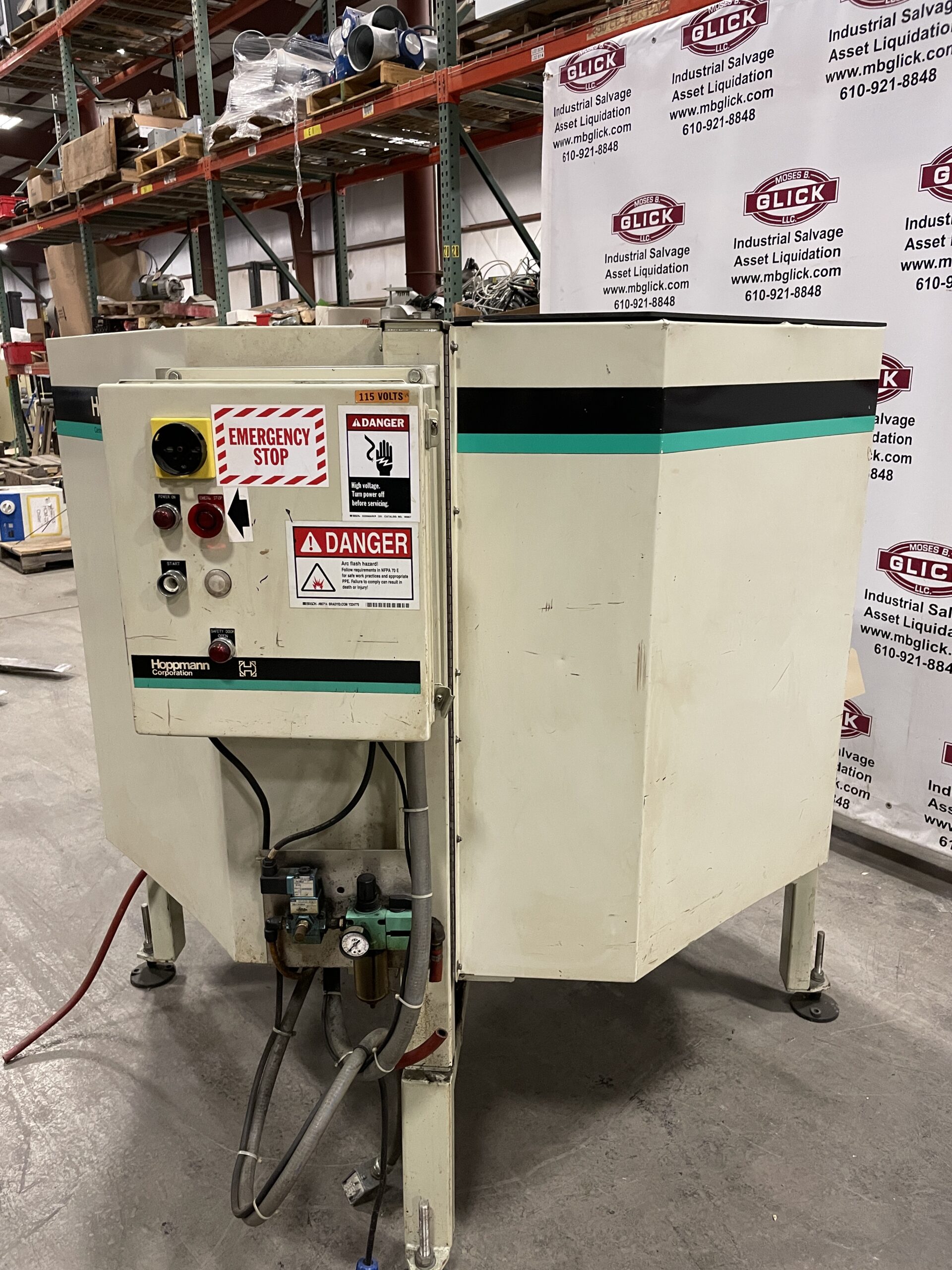

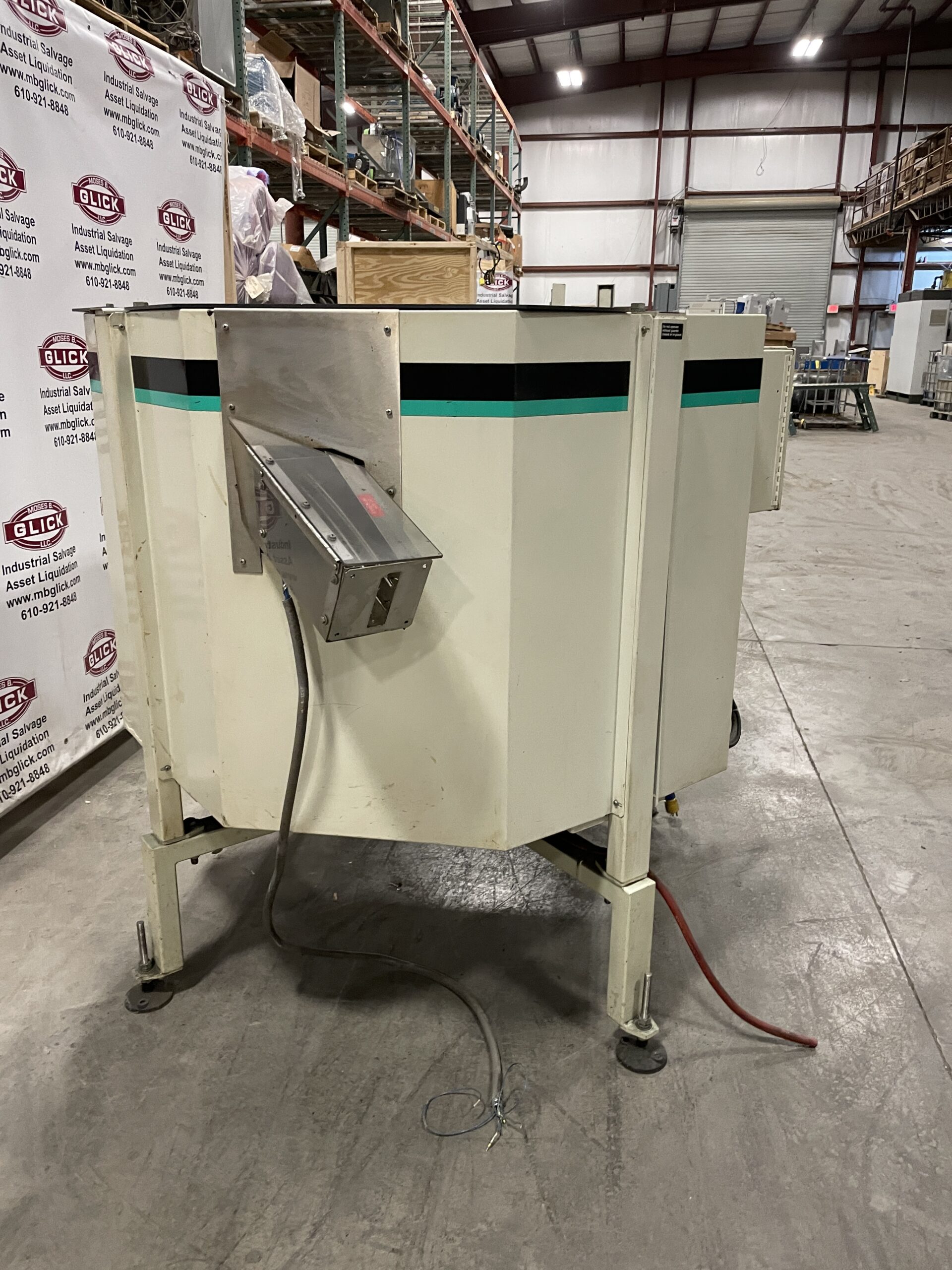

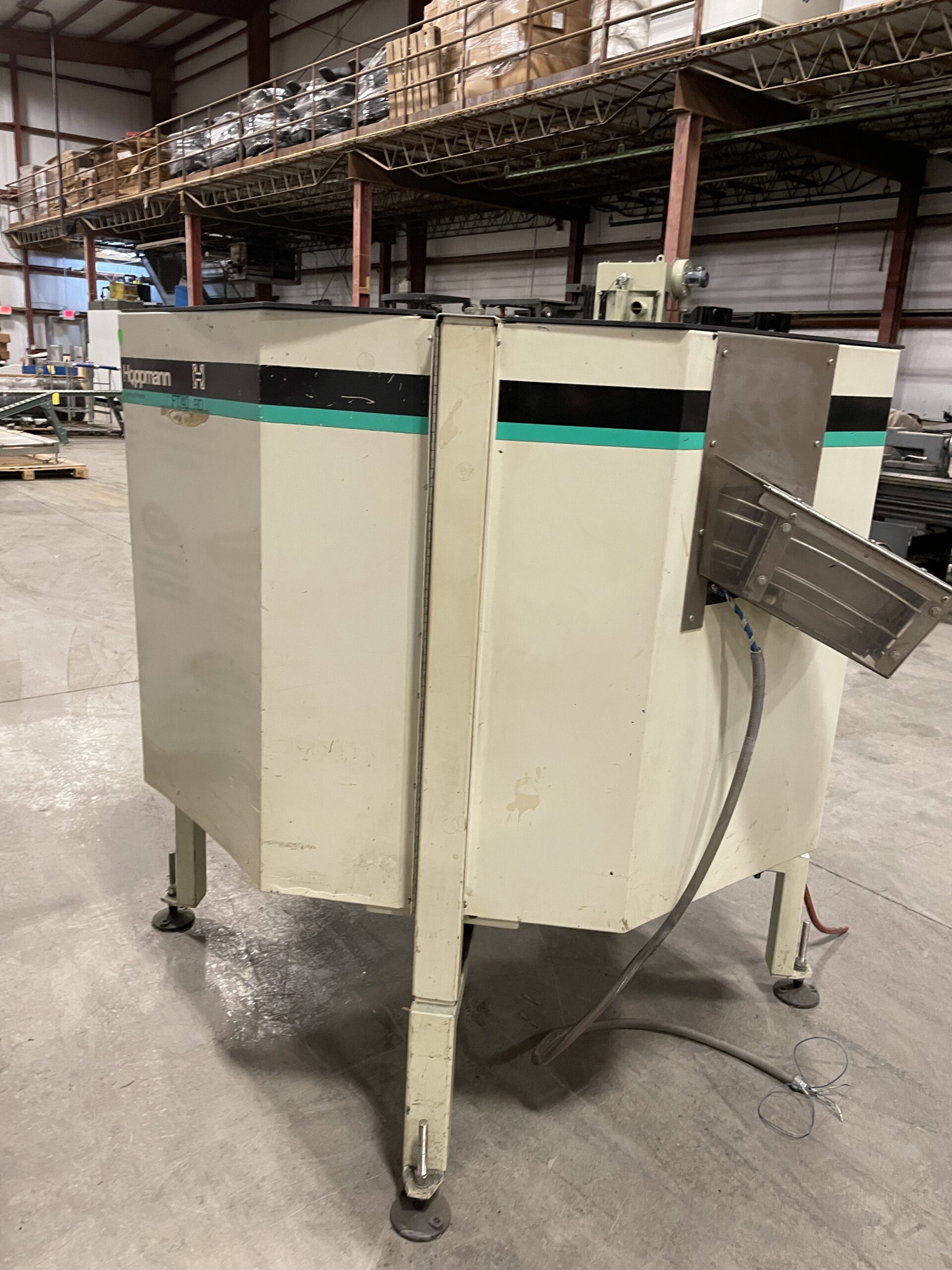

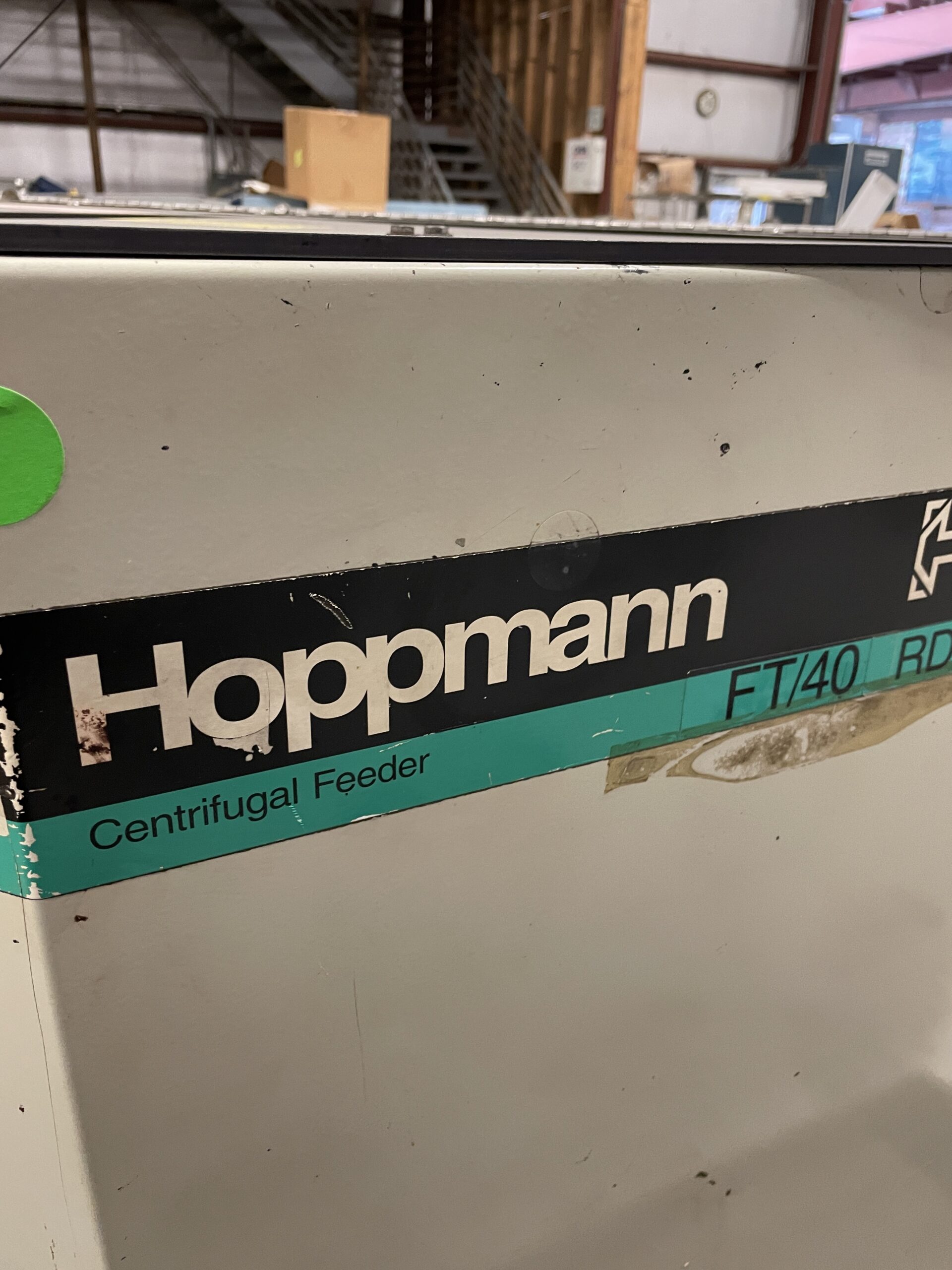

Hoppmann FT/40 RD Centrifugal Cap Feeder

$1,950.00

1 in stock

Category: Tag:

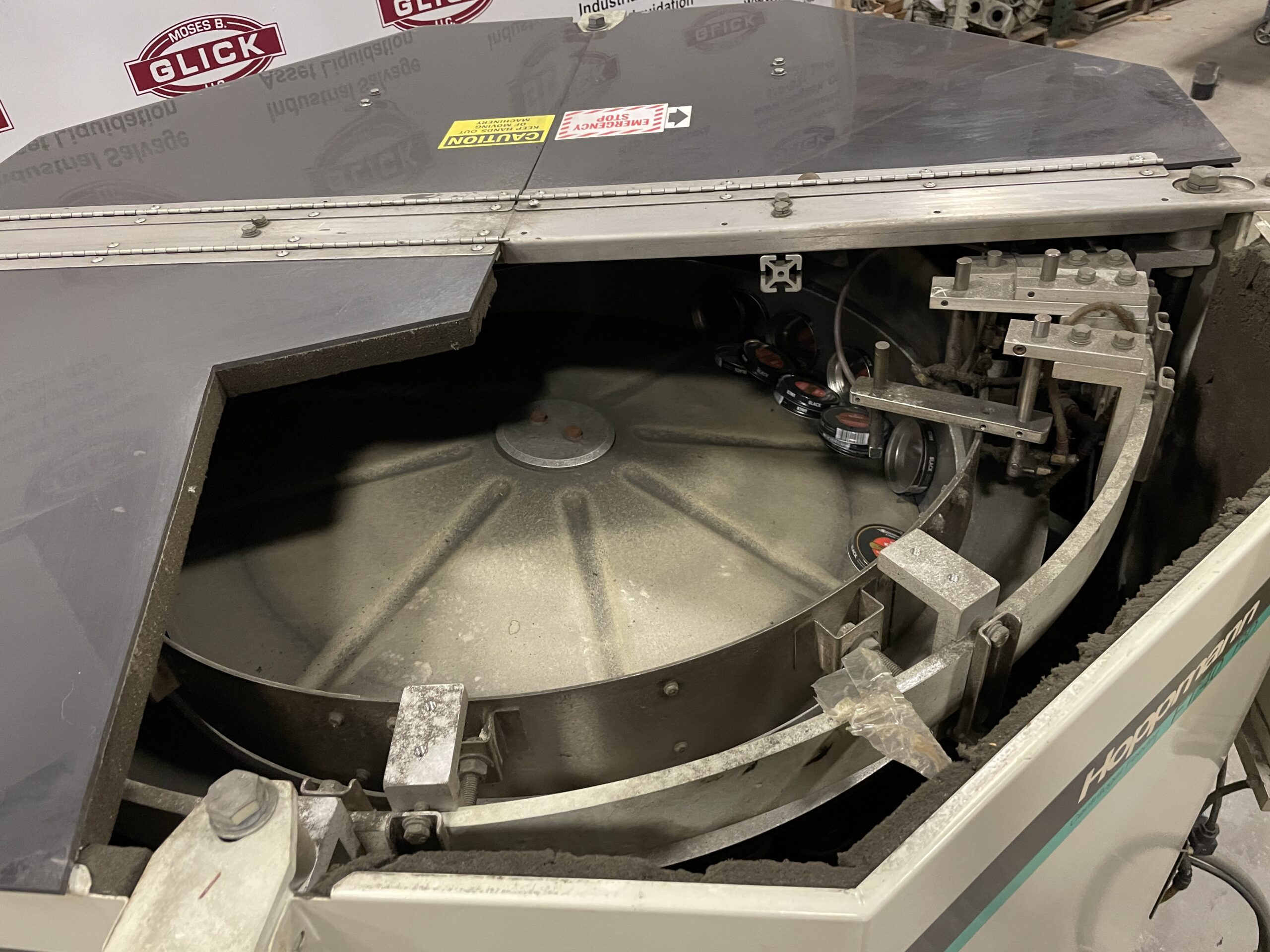

The Hoppmann FT/40 RD Centrifugal Feeder is designed for high-speed product orientation and feeding. It features a stainless steel exterior, an FDA-approved ABS vacuum-formed disc, and a Teflon hard-coated anodized aluminum bowl. The feeder accepts bulk product, singulates and orients it, and delivers it in the correct orientation to downstream operations.

Specifications:

  • Maximum Bowl Linear Speed: 255 ft/min (78 m/min)
  • Motor: 1/2 hp (DC 90V or AC 230/460V)
  • Total Weight: ~850 lbs (385 kg)
  • Bowl Inside Diameter: 36.25” (921 mm)
  • Overall Height: 47” ± 1.5” (1194 ± 38 mm)
  • Discharge Height: 36” ± 2” (914 ± 51 mm)

Optional Features:

  • Polycarbonate safety covers
  • Dual motor drive system
  • Washdown motor(s)
  • NEMA 1 encased controller
