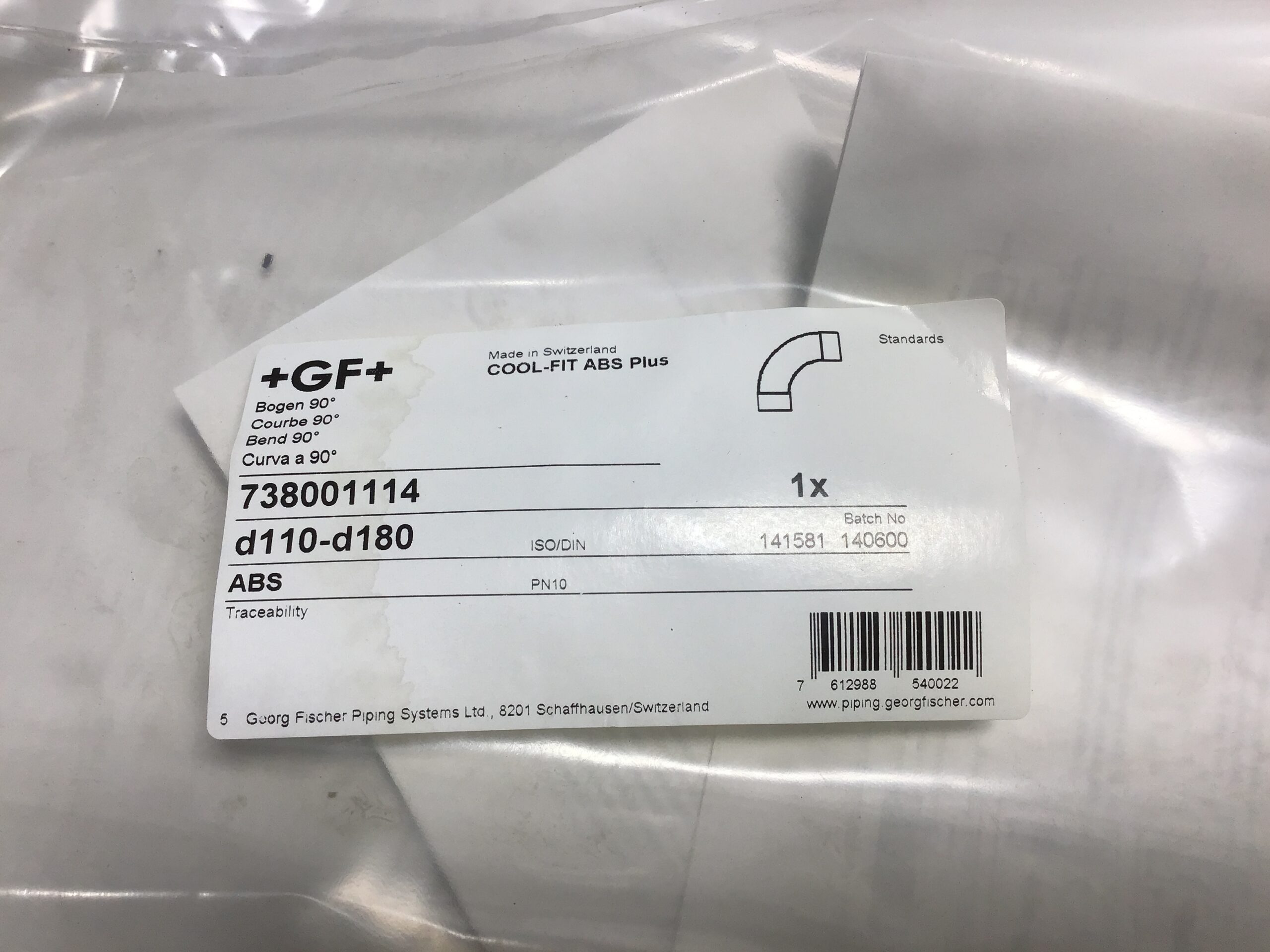

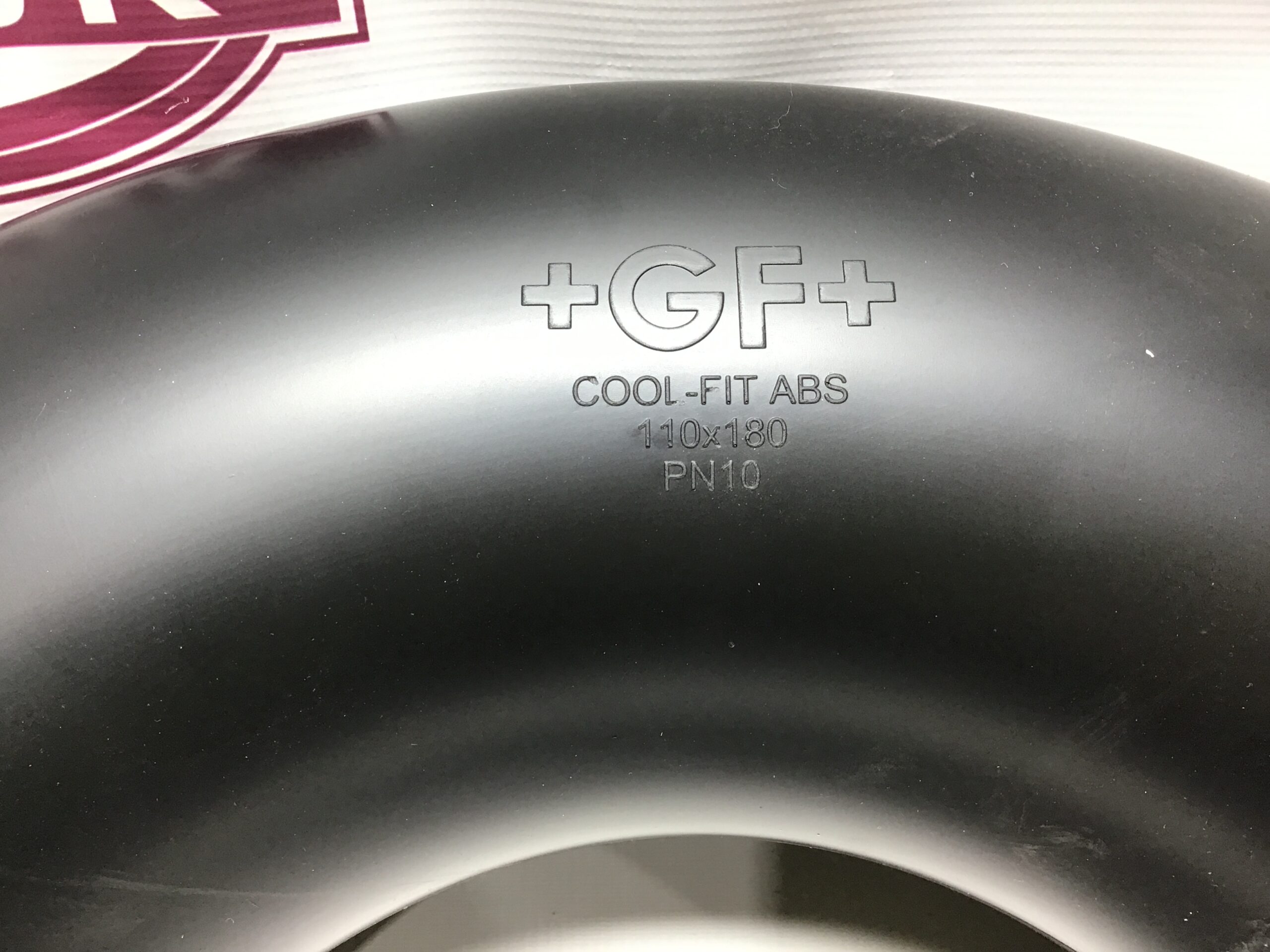

George Fischer GF+ 738001114 90 Degree Cool-Fit Elbow ABS

The GF 738001114 90 Degree Cool-Fit ABS 110×180 PN10 is a specific type of fitting designed for use in piping systems, particularly for transporting fluids in industrial and commercial settings. Here are the key details and features of this product:

Key Features:

1. Type of Fitting:

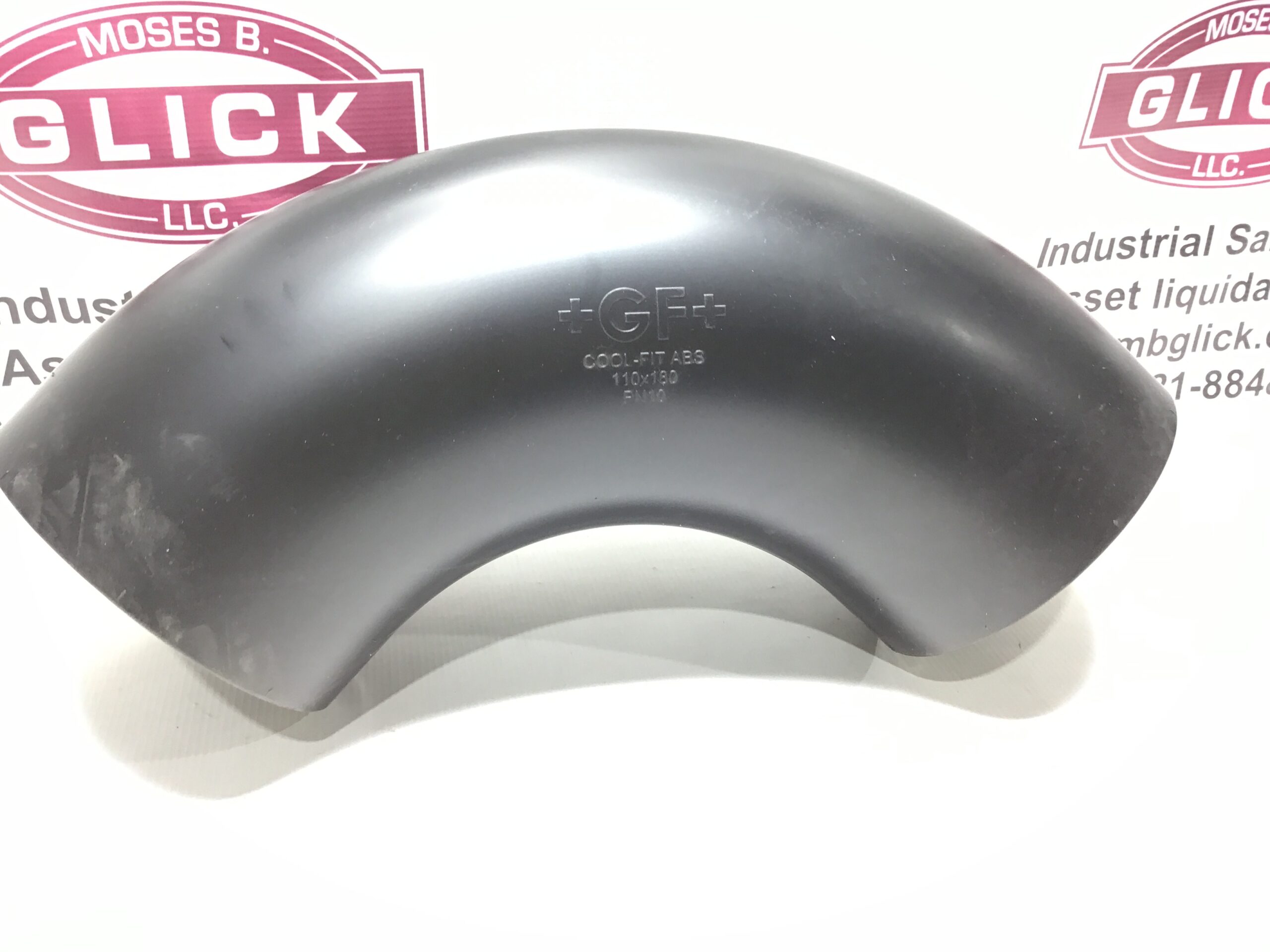

   • 90 Degree Elbow: This fitting allows for a change in direction of the pipe by 90 degrees, helping redirect flow in systems where cornering or direction change is necessary.

2. Material:

   • ABS (Acrylonitrile Butadiene Styrene): This material is widely used in piping systems due to its strength, toughness, and resistance to various chemicals. ABS is also known for its impact resistance and ease of installation, making it suitable for a variety of fluid transportation applications.

3. Size:

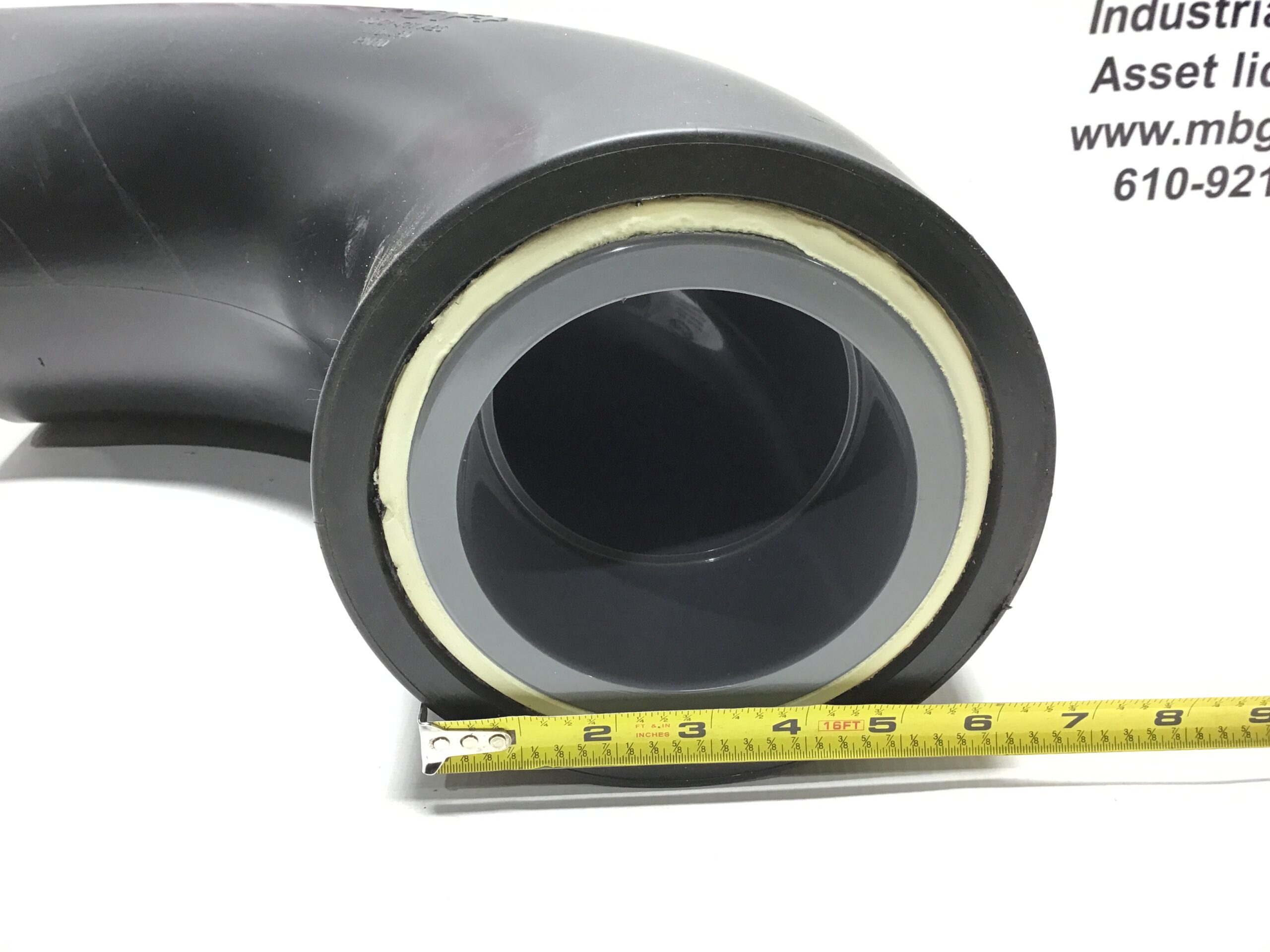

   • 110×180 mm: This refers to the sizes of the pipes that this fitting connects. The 110 mm likely refers to the diameter of the pipe that enters the fitting, while the 180 mm is the size of the pipe that exits or the overall length of the fitting, depending on the exact configuration.

4. Pressure Rating:

   • PN10: The “PN” (Pressure Nominal) rating of 10 indicates that the fitting is designed to withstand a maximum pressure of 10 bar (approximately 145 psi) at the specified temperature. This makes it suitable for medium-pressure applications.

5. Cooling Systems:

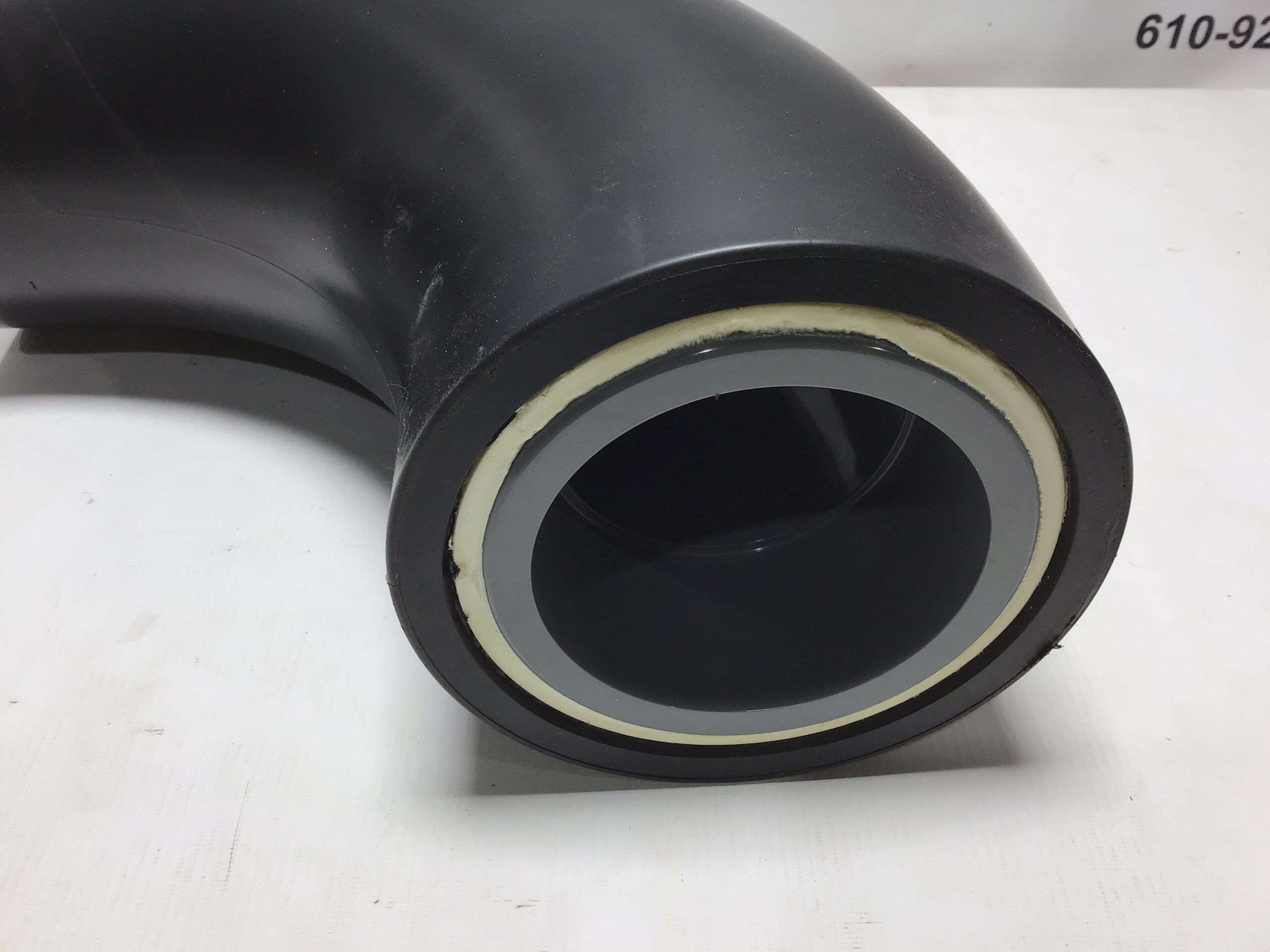

   • Cool-Fit: The “Cool-Fit” system is a part of the GF Piping Systems’ range, which is specifically designed for efficient, insulated piping systems, typically used in cooling and refrigeration systems. The system is designed to handle thermal insulation to maintain the temperature of fluids, which is important in HVAC, refrigeration, and industrial cooling applications.

6. Application:

   • Fluid Transport: This fitting is typically used in the transportation of fluids within closed-loop systems, including HVAC (Heating, Ventilation, and Air Conditioning), industrial cooling systems, and other piping systems that require the transportation of water or refrigerants.
   • It’s particularly useful in systems that require thermal insulation to reduce energy losses and maintain fluid temperature.

7. Installation:

   • The Cool-Fit series of fittings often features easy installation processes such as push-fit or fusion techniques, making them convenient for quick setup in commercial and industrial applications.

Summary:

The GF 738001114 90 Degree Cool-Fit ABS 110×180 PN10 is a high-quality fitting designed for use in fluid transportation systems. Made from durable ABS material, this fitting provides a reliable and pressure-resistant solution for changing the direction of the pipeline. It is part of the Cool-Fit series, which is specifically suited for HVAC and refrigeration applications, offering thermal insulation and maintaining the efficiency of cooling systems. With its 90-degree angle, it enables effective flow direction changes in systems with medium-pressure requirements.
