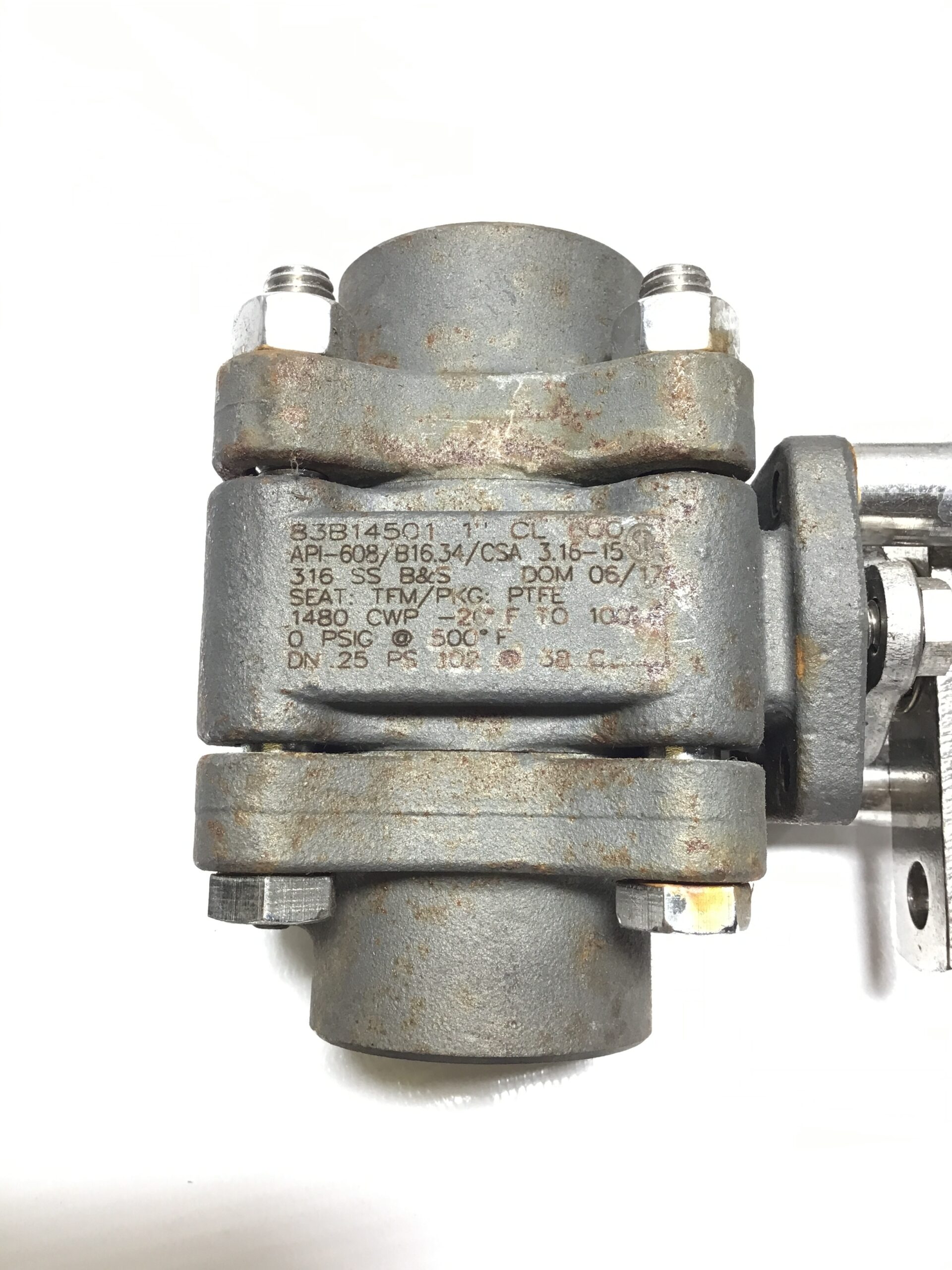

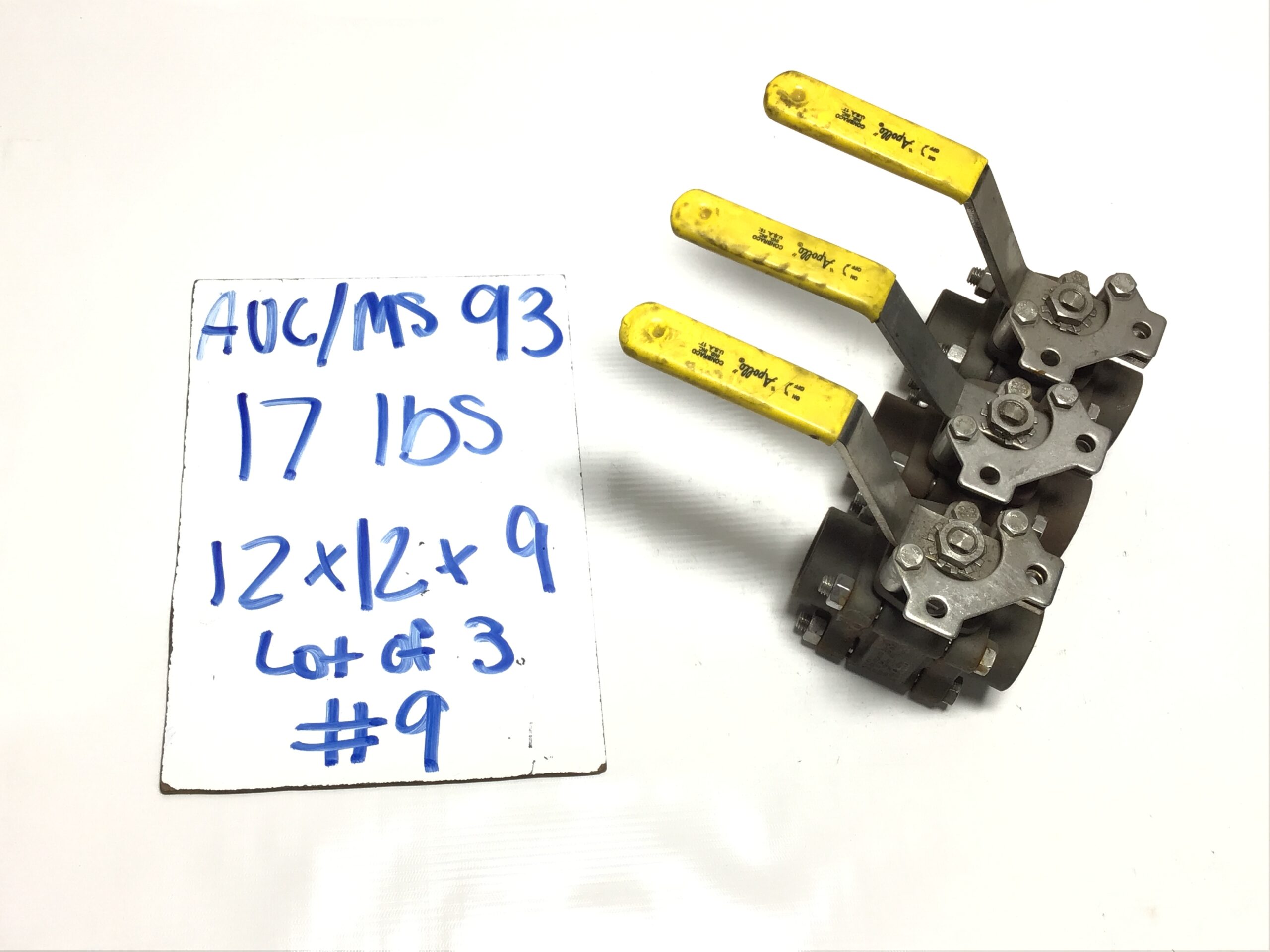

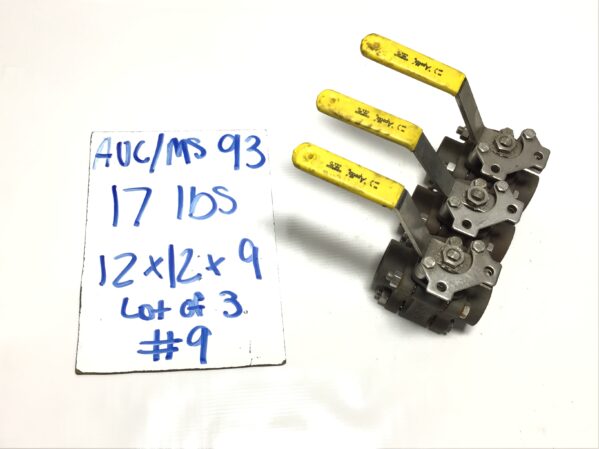

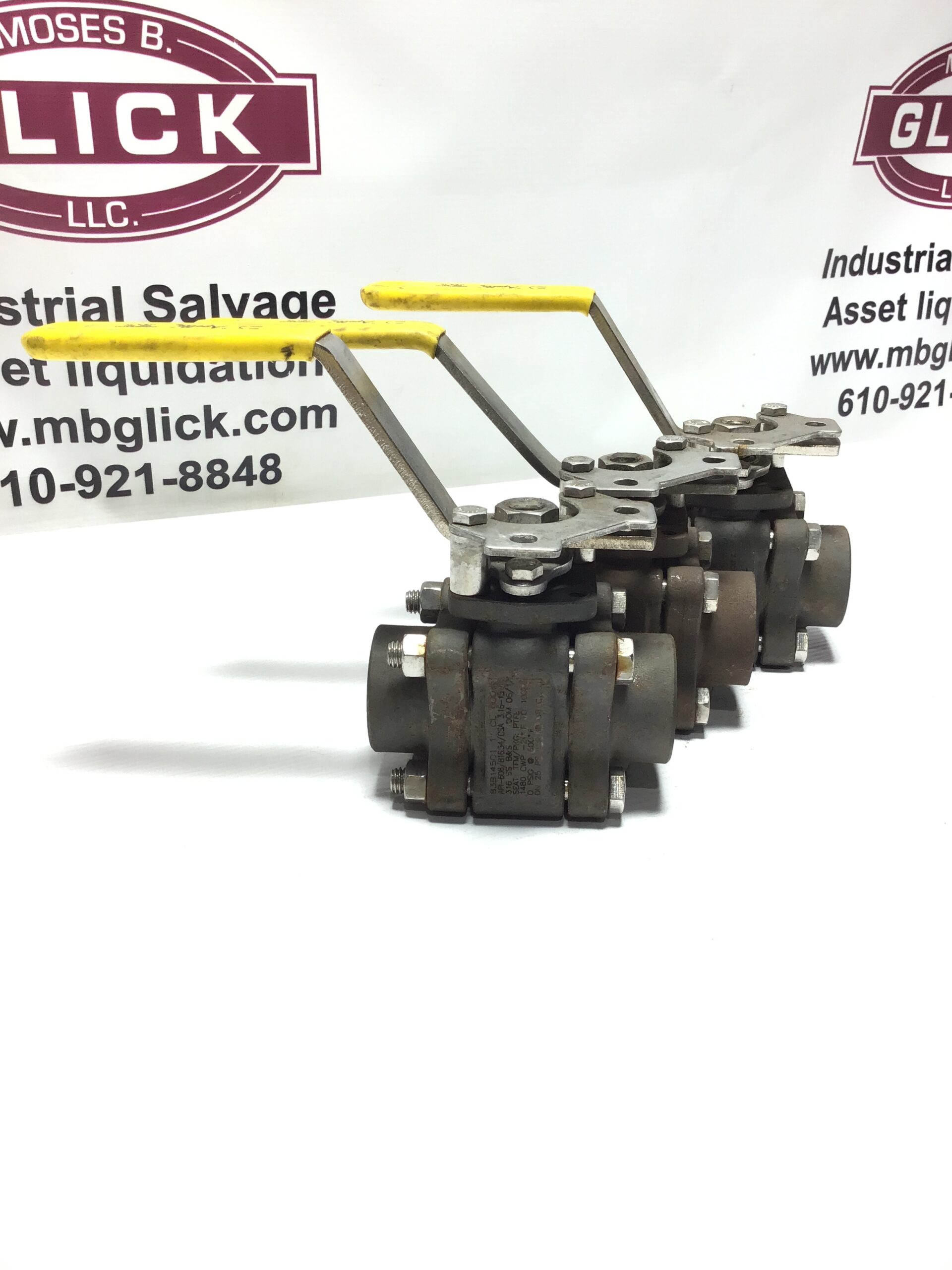

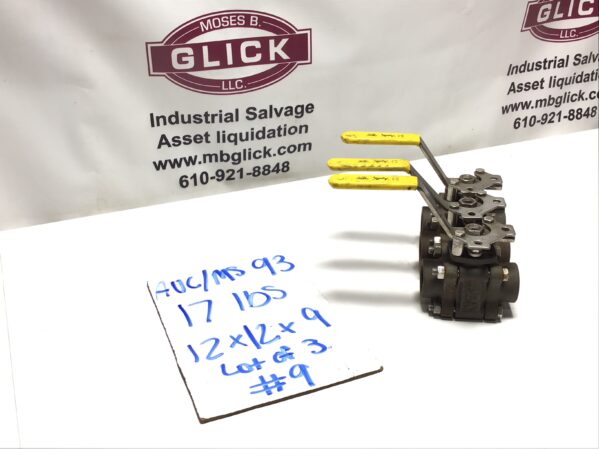

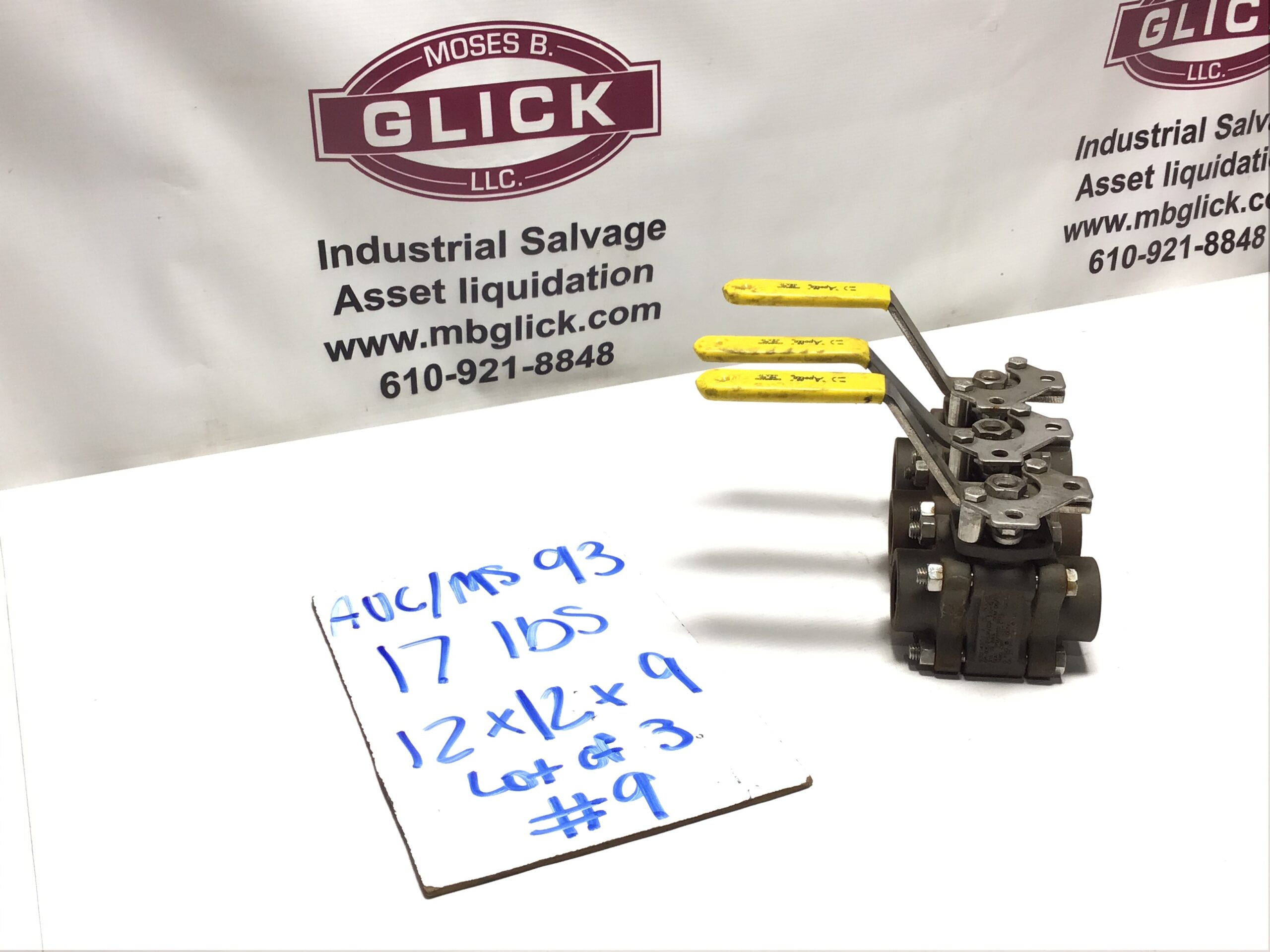

Apollo 83B14501 Class 600 Carbon Steel Ball Valve (Lot of 3)

The Apollo 83B14501 Class 600 Carbon Steel Ball Valve is a heavy-duty valve designed for use in high-pressure applications. Ball valves are used to control the flow of fluids (liquids or gases) in a pipeline, and this particular model is made of carbon steel, which provides a balance of strength, durability, and cost-effectiveness. The Class 600 rating indicates that it is designed for high-pressure service.

Key Features:

1. Class 600 Pressure Rating:

   • The Class 600 rating means this ball valve is designed to handle very high pressures, typically up to 600 PSI for liquids and up to 600 PSIG for gas applications at ambient temperature (though this can vary depending on the temperature).
   • This makes it suitable for high-pressure industrial processes, including oil and gas, chemical, and power generation applications.

2. Material – Carbon Steel:

   • The carbon steel construction offers high strength and durability, making the valve suitable for demanding environments.
   • Carbon steel is commonly used for valves because it can handle high-pressure and high-temperature conditions while being cost-effective compared to stainless steel.
   • It is important to note that carbon steel is susceptible to corrosion, so these valves are best used in systems where exposure to corrosive materials is minimal or controlled.

3. Ball Valve Design:

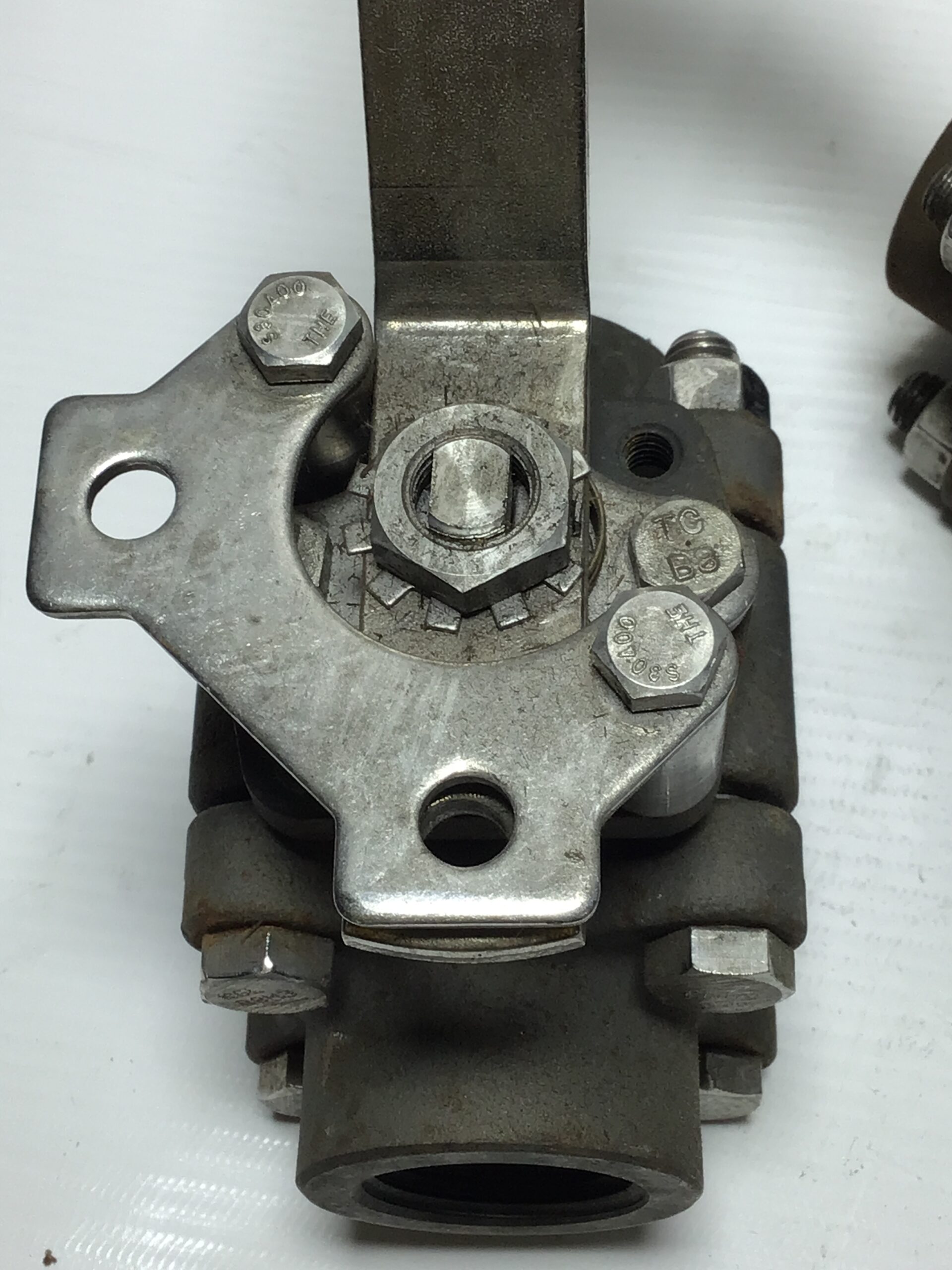

   • Ball valves are known for their quarter-turn operation, providing fast and reliable shutoff. The ball inside the valve has a hole through the center, and rotating the valve stem positions the ball to either allow or block the flow of fluid.
   • Ball valves are often preferred for their durability, ease of operation, and ability to seal tightly, making them ideal for a variety of applications, including those involving high pressure and flow control.

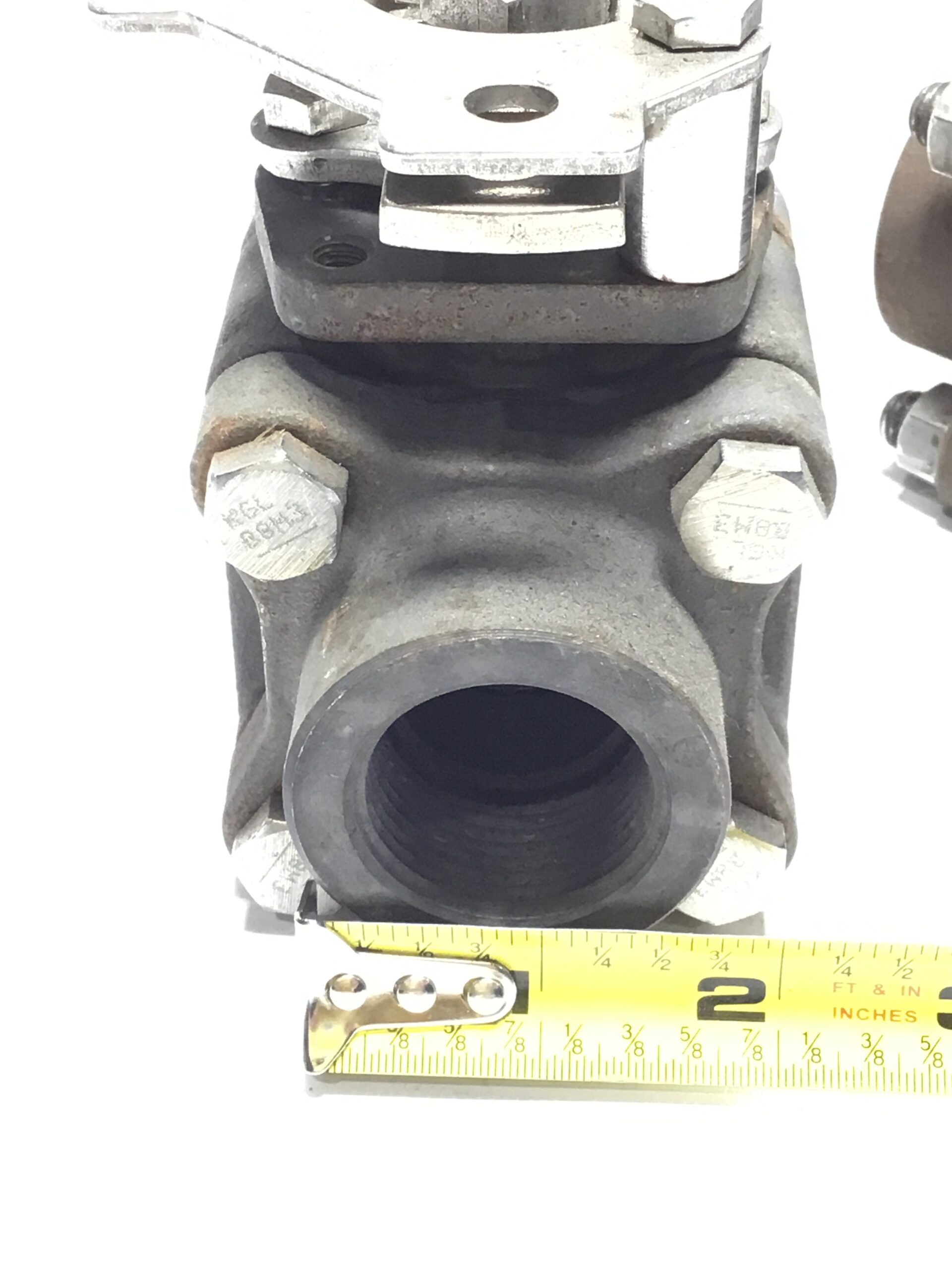

4. Size & Connection Type:

   • The size of the valve will vary (but often between ½” and 6” in nominal pipe size for this type of valve).
   • Common end connections for ball valves like this one include flanged (RF or RTJ), butt-weld, and threaded connections. The specific connection type should be verified based on the system requirements.

5. Application:

   • High-pressure Systems: The Class 600 rating is ideal for use in high-pressure systems, such as in the oil and gas industry, steam systems, chemical processing, and industrial flow control.
   • On/Off Control: Ball valves are generally used in applications where quick, reliable shutoff is needed rather than precise throttling control.
   • Flow Isolation: These valves are often used to isolate different sections of piping systems for maintenance or repair.

6. Temperature Range:

   • The temperature range for carbon steel ball valves can typically span from -20°F to 400°F (depending on the specific design and seals used), but it can vary. You should always check the product’s datasheet for specific temperature capabilities.

Benefits:

• Tight Sealing: Ball valves provide a tight seal, which makes them highly reliable for preventing leaks in critical applications.
• Quick Operation: The quarter-turn mechanism allows for fast and easy valve operation.
• Durability: Carbon steel is tough and provides long-lasting performance under high pressures and in industrial environments.
• Compact Design: Ball valves tend to be more compact than other valve types, making them suitable for space-constrained installations.

Considerations:

• Corrosion Resistance: Carbon steel is prone to corrosion, particularly in environments with high humidity or exposure to certain chemicals. In cases where the valve may be exposed to corrosive substances, a corrosion-resistant coating or lining might be needed.
• Maintenance: Ball valves require regular maintenance to ensure that the sealing mechanism operates properly, particularly if they are exposed to abrasive or corrosive fluids.

Typical Applications:

• Oil and Gas: Controlling flow in upstream, midstream, or downstream systems.
• Chemical Processing: Used to isolate various sections of chemical plants.
• Power Generation: For steam or water systems where high pressure and reliable shutoff are critical.
• Industrial Manufacturing: In systems where flow control is necessary under high pressure.

If you are seeking further specifications (like exact dimensions, flow coefficients, or materials of construction), it’s always a good idea to consult the manufacturer’s datasheet for the Apollo 83B14501 model, or let me know, and I can help you find more detailed information.
