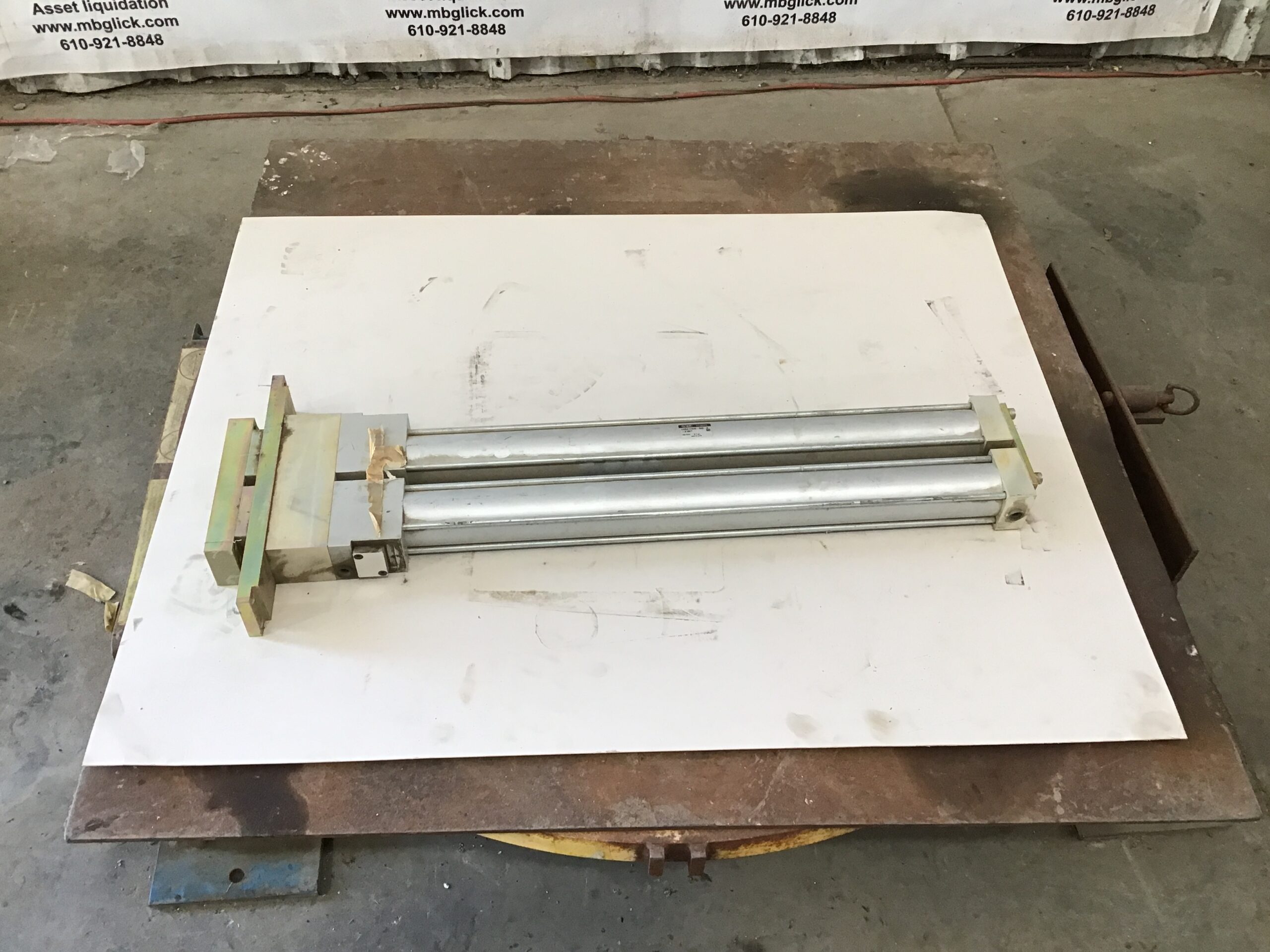

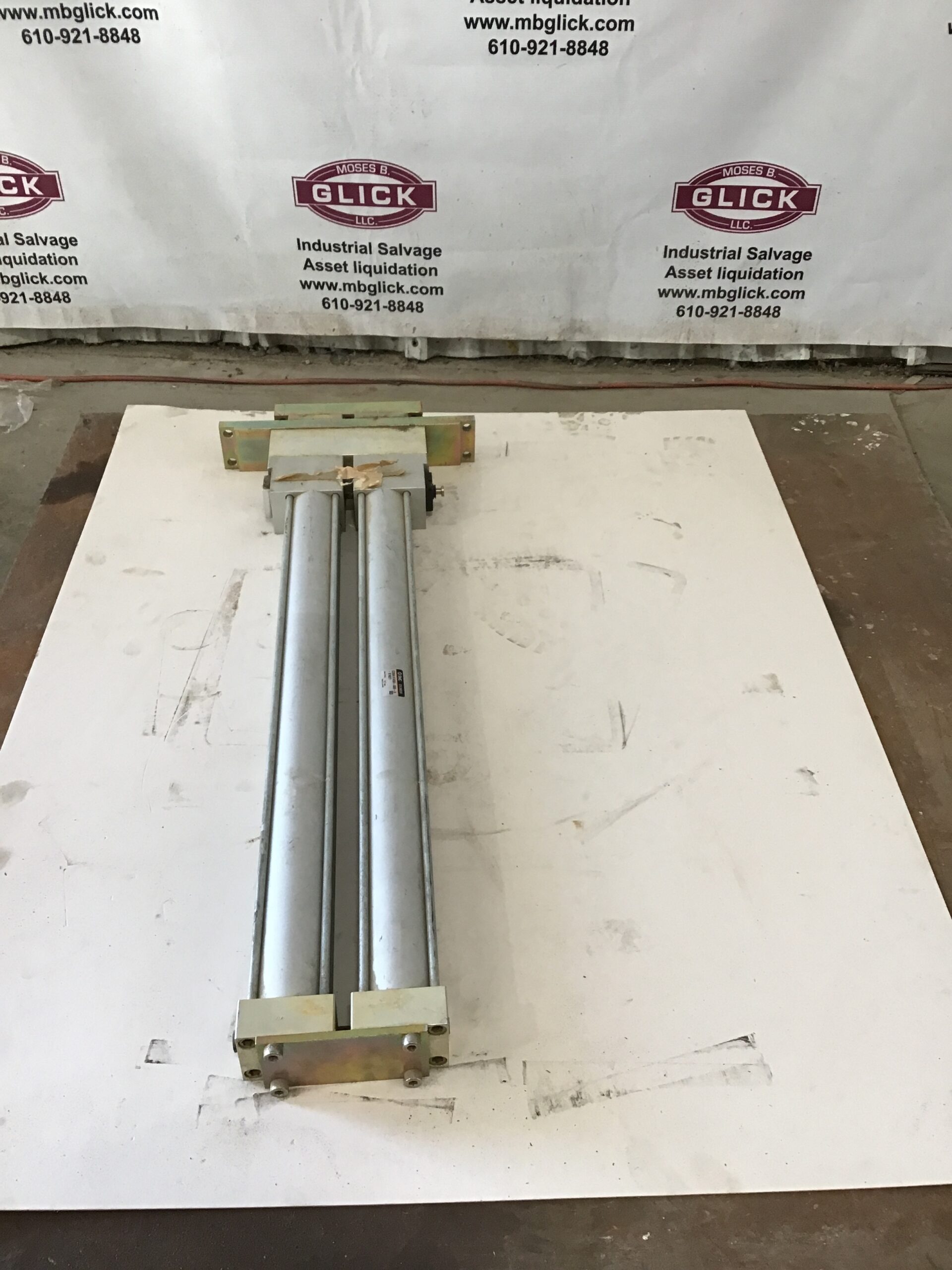

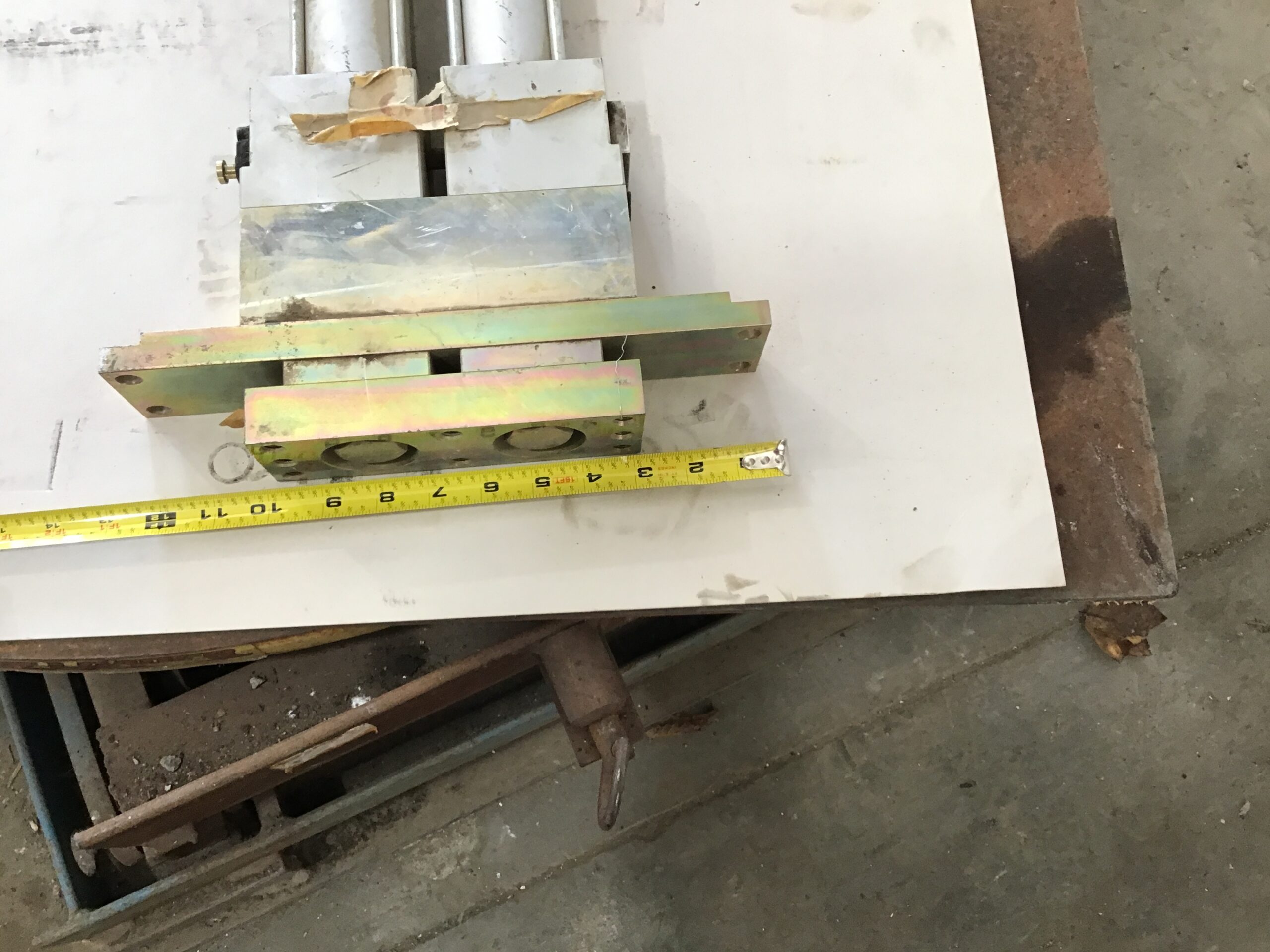

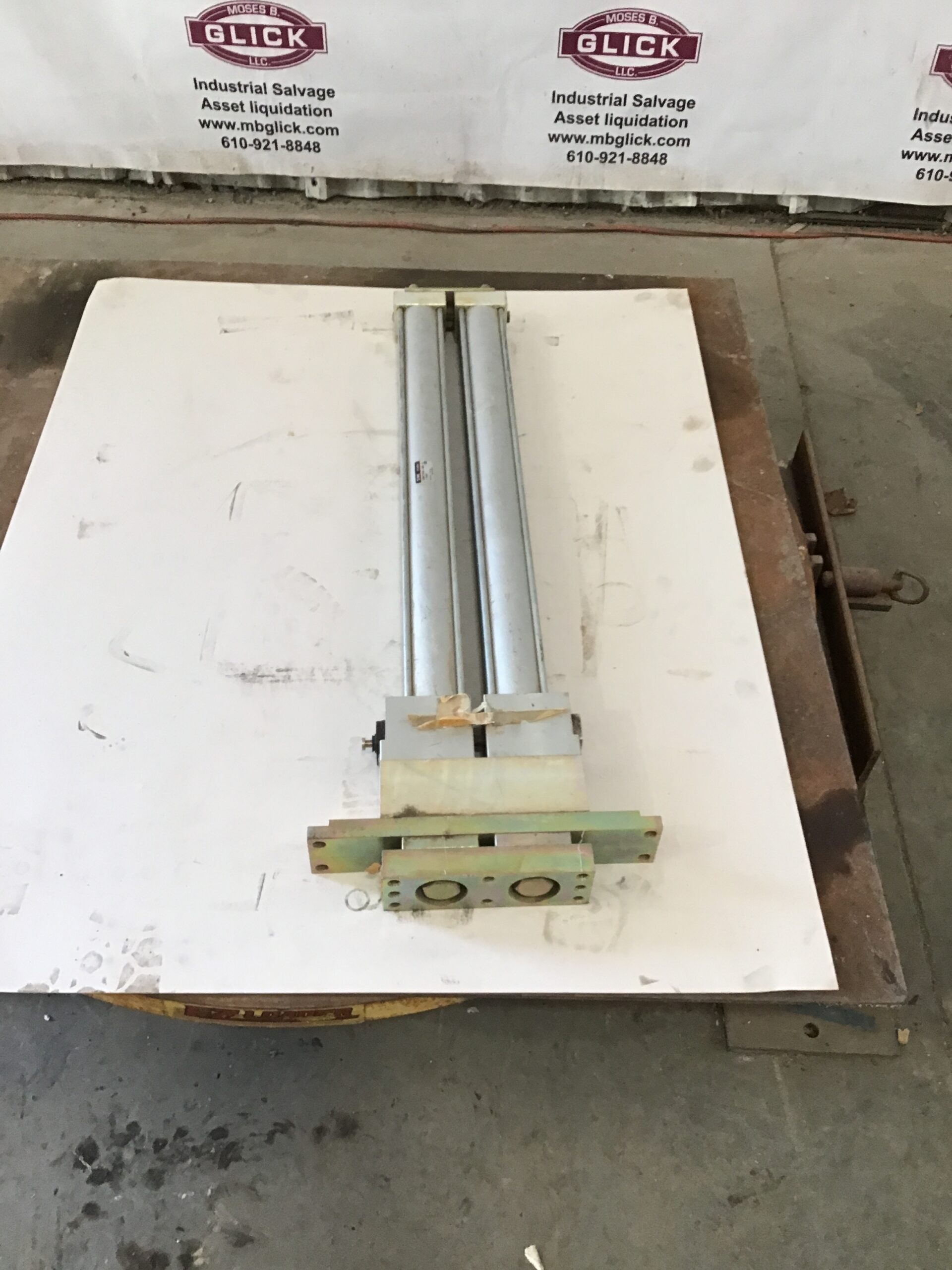

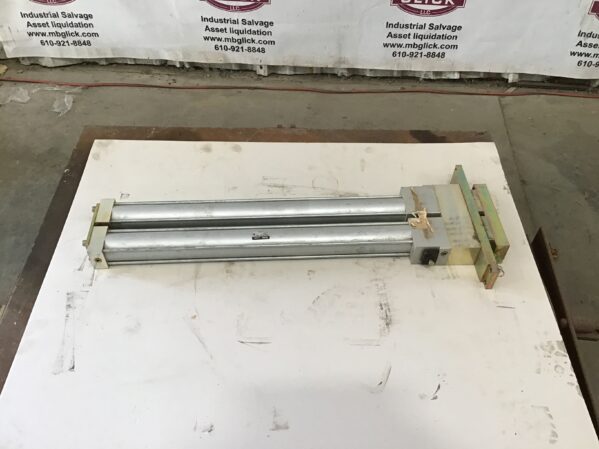

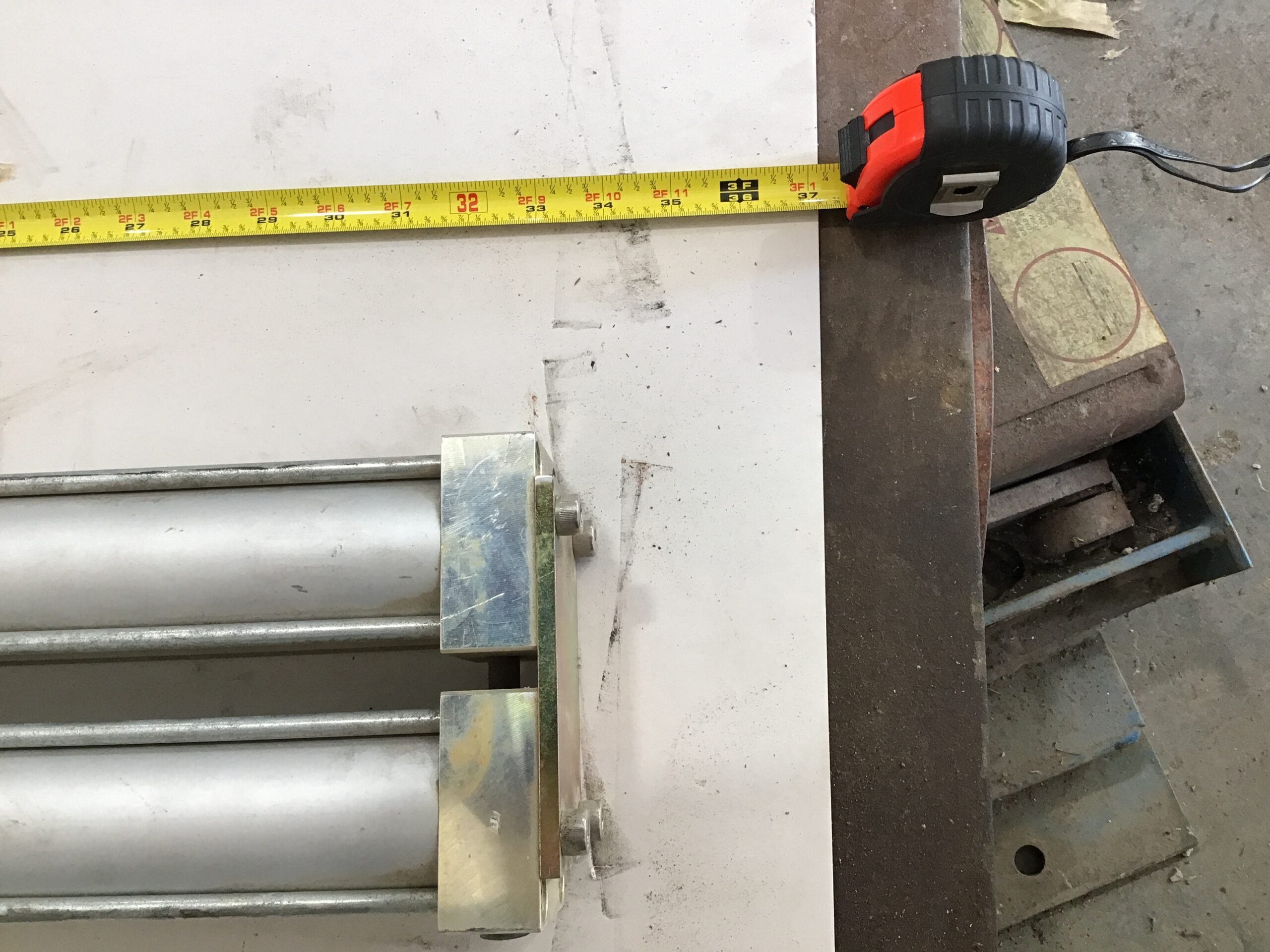

SMC CDBA1FA50-600-A-X1027 Cylinder Actuator Maximum Pressure 0.7MPa

Here’s a detailed description of the SMC Cylinder CDBA1FA50-600-A-X1027 with a Maximum Pressure of 0.7 MPa:

⚙️ Type: SMC Double-Acting Pneumatic Cylinder, model CDBA1FA50-600-A-X1027, designed for precise movement in industrial automation systems.

📏 Specifications:

• Bore Size: 50mm diameter piston, providing a balance between force output and compactness.
• Stroke Length: 600mm, offering a long range of motion for applications requiring extended linear movement.

🔧 Operating Pressure:

• Maximum Pressure: 0.7 MPa (7 bar or approximately 101 psi), allowing it to handle moderate-pressure pneumatic applications with reliable performance.
• This pressure limit ensures the cylinder delivers sufficient force while maintaining durability and safety in operation.

🔩 Double-Acting Functionality: Uses air pressure on both sides of the piston for efficient extension and retraction, ensuring smooth and controlled motion.

🏗️ Durable Construction: Built from high-strength materials, like aluminum or stainless steel, to withstand the demands of industrial environments and maintain performance at maximum pressure.

🚀 Applications: Ideal for use in automated systems such as assembly lines, robotic arms, or material handling systems where precise, controlled linear motion is required under moderate pressure conditions.
