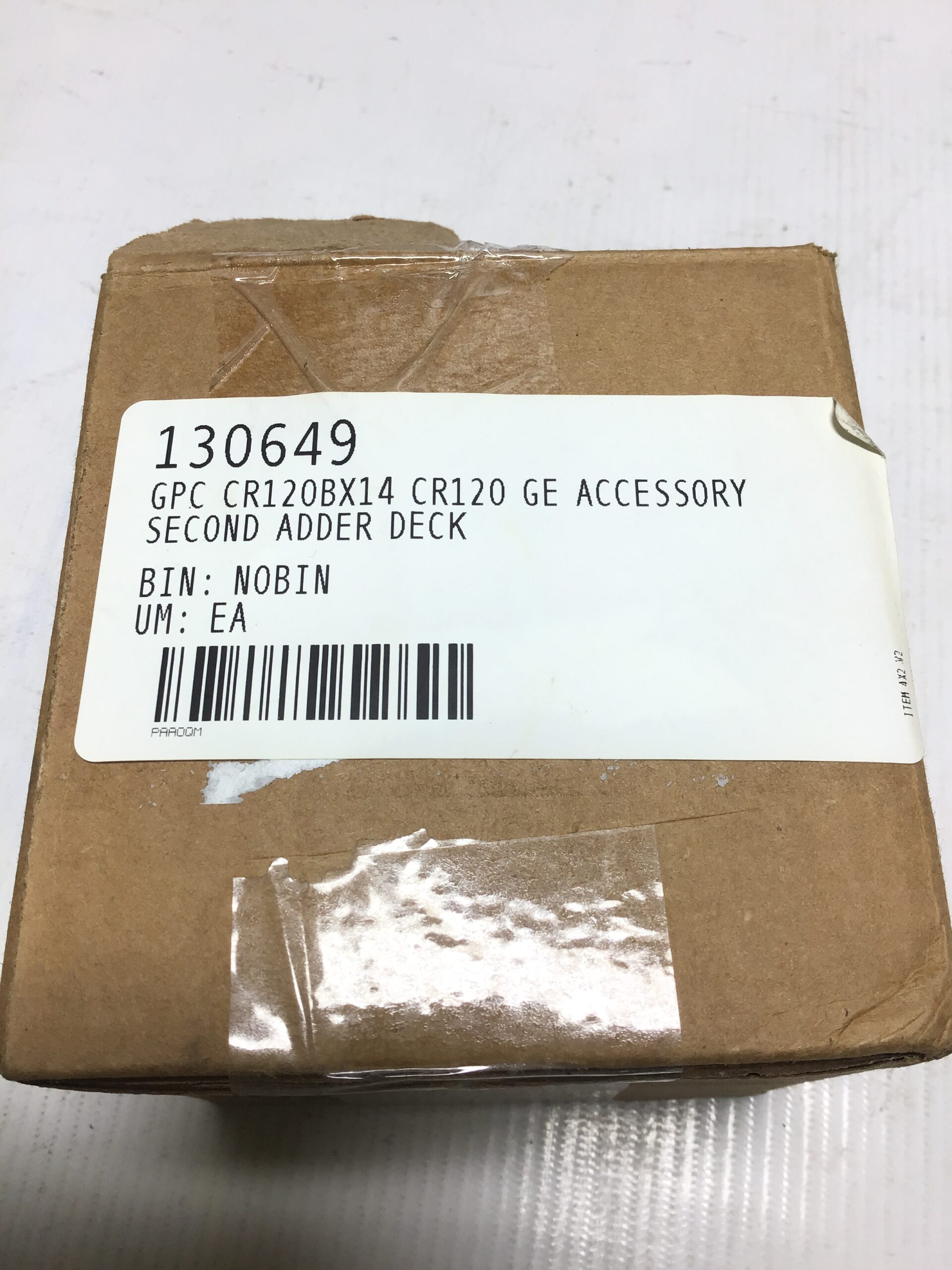

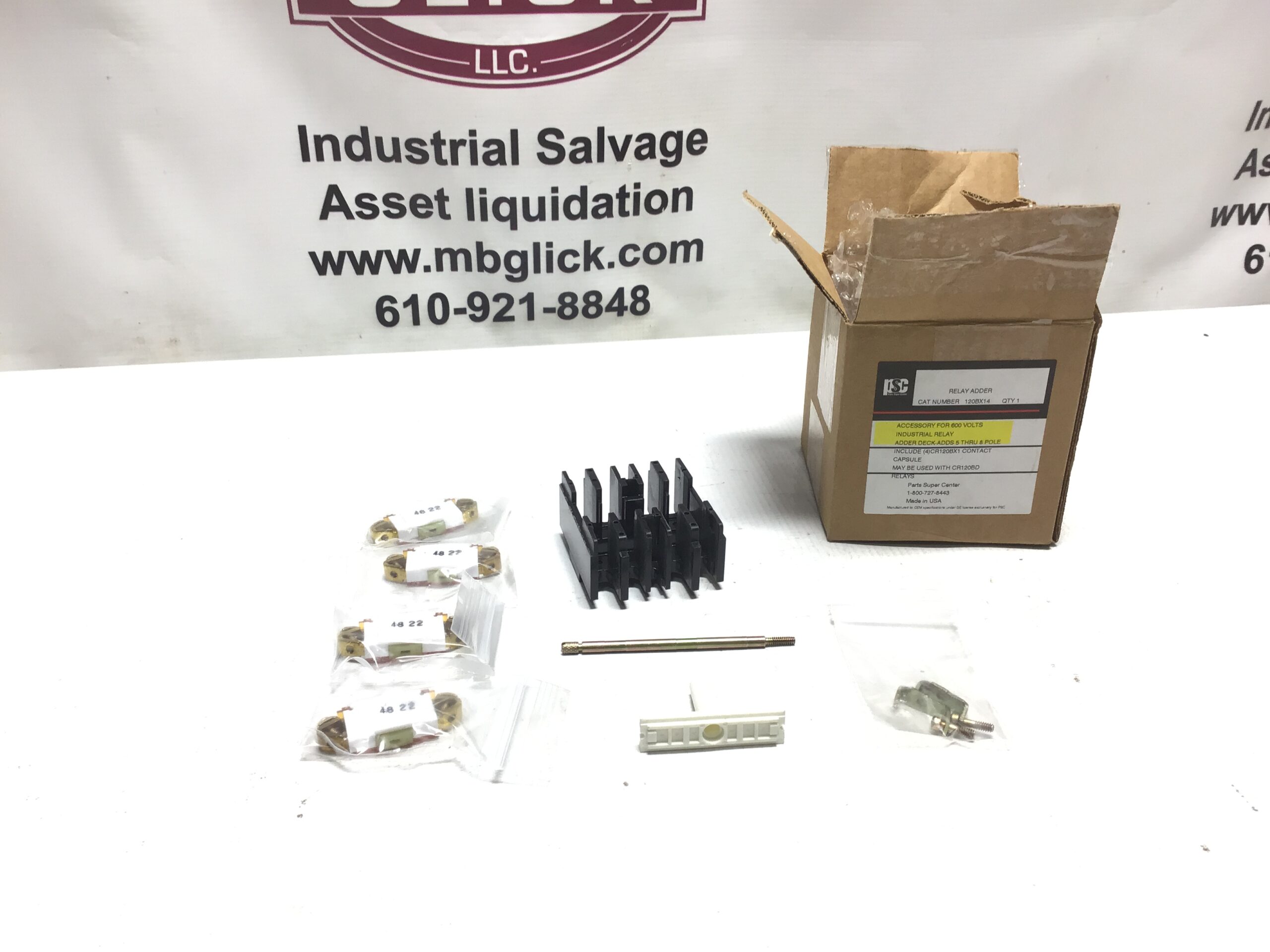

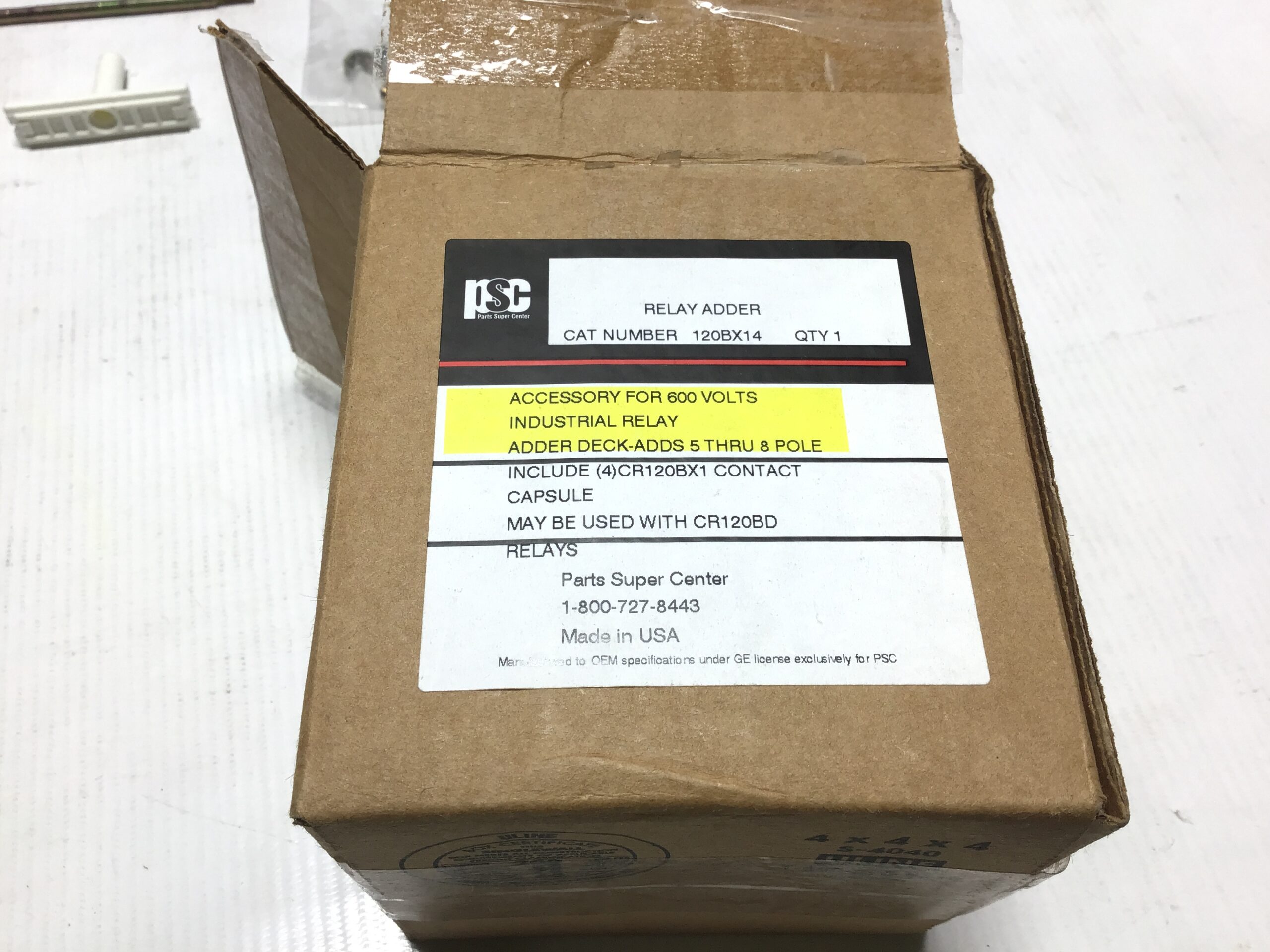

120BX14 Relay Adder 600V CR120BX1

$29.99

1 in stock

Category: Tag:
  • Product Name: 120BX14 Relay Adder (600V)
  • Model: CR120BX1
  • Purpose: A component used to add relay-based switching capabilities in electrical systems.
  • Voltage Rating: 600V

2. Function and Application

  • Relay Adder:
    • A relay adder allows the control of multiple electrical circuits by expanding the relay capacity in control systems.
    • It typically functions to switch high-voltage or high-current circuits, often in industrial or commercial applications.
  • Use Cases:
    • Motor control circuits
    • Overcurrent protection
    • Automation systems
    • Load management in industrial settings

3. Specifications

  • Voltage: 600V maximum operating voltage
  • Current Rating: Typically ranges based on the system it’s used in
  • Relay Type: Usually electromechanical or solid-state relays
  • Terminals/Connections: Connections for input, output, and control signals
  • Operating Environment: Indoor or industrial settings with high electrical demand

4. Features

  • High Voltage Support: Supports high-voltage circuits, typically up to 600V, to handle significant electrical loads.
  • Multiple Channels: May support multiple relay control channels, allowing it to control more than one load or process at the same time.
  • Automation Compatibility: Often used in automated systems or with PLCs (Programmable Logic Controllers).
  • Protection Features: May include overvoltage, overcurrent, or short-circuit protection to ensure safe operation.

5. Wiring and Installation

  • Wiring Diagram:
    • Relays typically include input terminals for control signals and output terminals to control electrical loads.
    • The wiring might also include auxiliary terminals for additional relay functions (such as NO/NC contacts).
  • Installation Considerations:
    • Proper grounding is essential to ensure safety and prevent electrical hazards.
    • Must be installed in a location that allows for adequate ventilation and protection from dust or moisture.

6. Safety and Compliance

  • Safety Standards: Compliance with industry safety standards such as UL, IEC, or other relevant certifications.
  • Electrical Ratings: Ensure that the relay’s voltage and current ratings match the specifications of the controlled circuit to avoid failure.

7. Troubleshooting

  • Common Issues:
    • Relay not activating
    • Incorrect wiring or short circuits
    • Overheating due to excess load
  • Diagnostic Tips:
    • Check the control signal for proper voltage and polarity.
    • Verify load connections and ensure the relay is within its rated limits.
    • Inspect for damage or wear to contacts or the coil.
