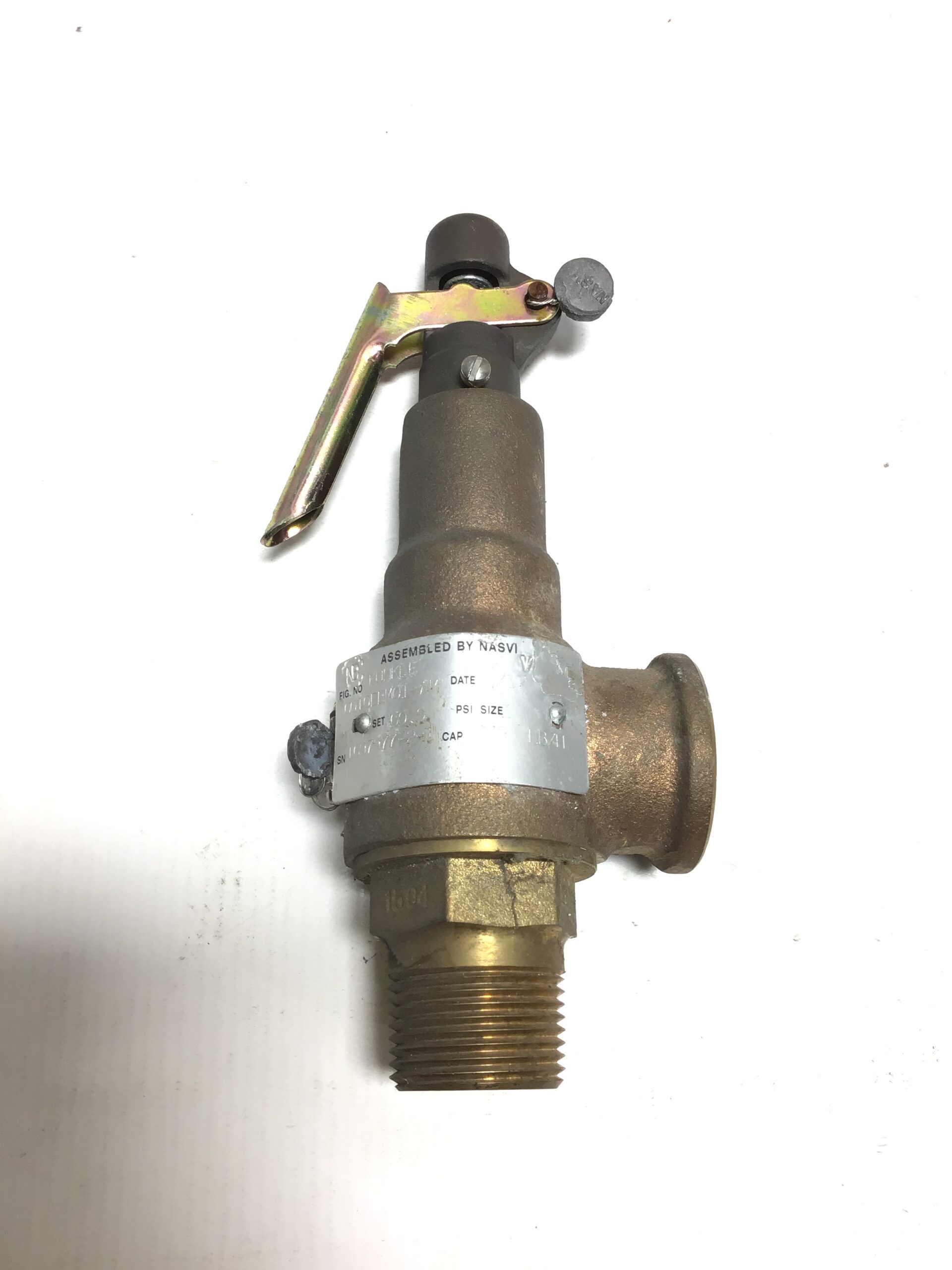

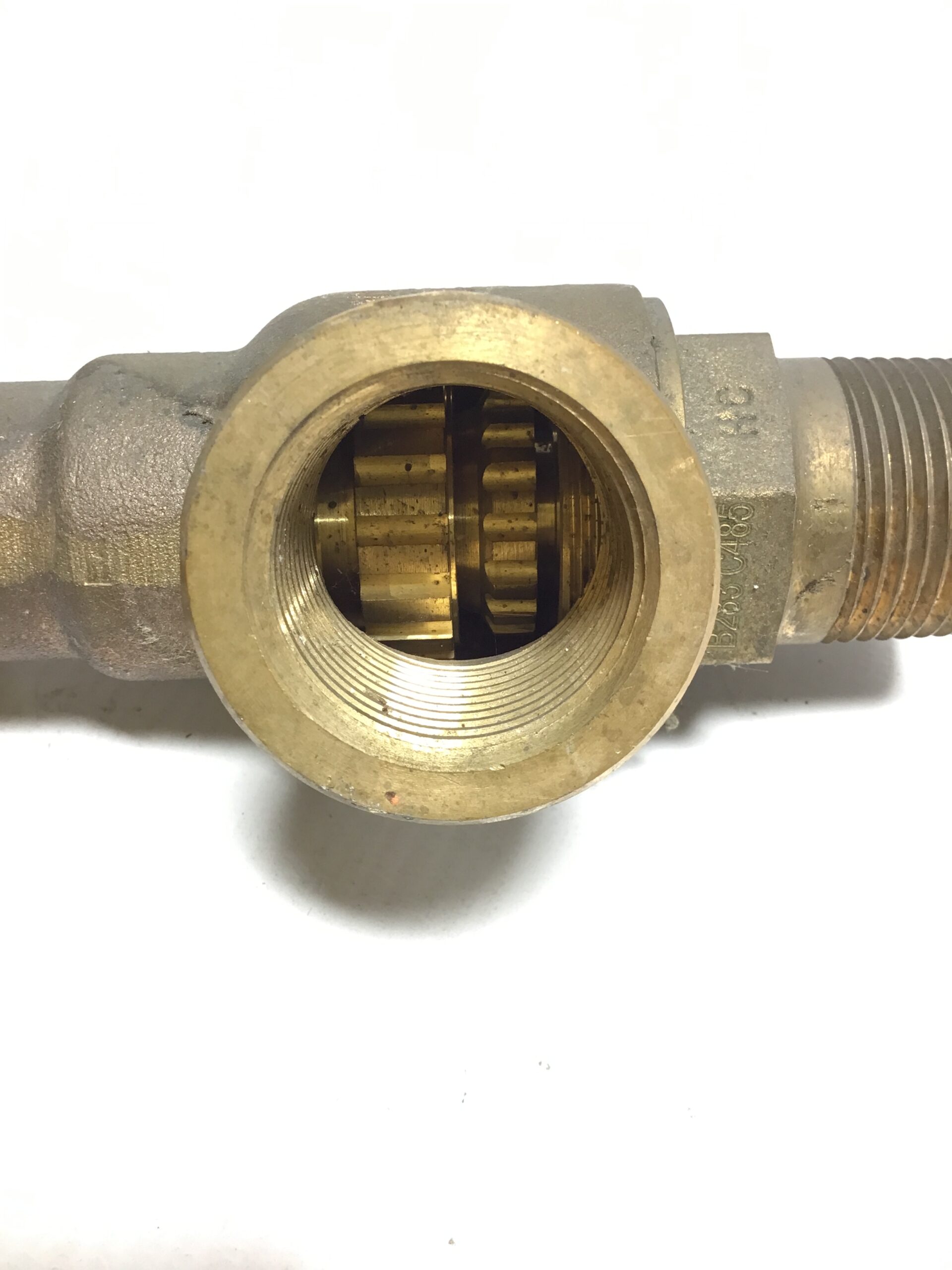

Kunkle 60100EEM01 AM Bronze Relief Valve 3/4NPT 125 PSI B283C485

The Kunkle 60100EEM01 AM Bronze Relief Valve is a pressure relief valve designed to help control and maintain safe pressure levels in various systems, such as piping or tanks. Here’s a detailed breakdown of its key specifications and features:

Key Specifications:

1. Model: Kunkle 60100EEM01 AM

   • Kunkle is a reputable manufacturer of safety valves and pressure relief products for industrial applications. The model number represents a specific configuration of the valve, likely indicating certain design features, pressure ratings, and materials.

2. Material: Bronze

   • The valve body is made of bronze, a corrosion-resistant material that provides durability, particularly in systems that handle water, steam, or various chemicals. Bronze is known for its strength and resistance to rust, which is crucial in applications exposed to harsh environmental conditions.

3. Valve Type: Relief Valve

   • This is a pressure relief valve, which automatically opens to relieve pressure from a system when it exceeds a preset level. This prevents equipment damage, system failure, or unsafe conditions by maintaining safe operational pressure.
   • Typically used to control and protect systems in the event of overpressure situations, ensuring the pressure remains within safe operating limits.

4. Connection Size: 3/4″ NPT

   • The valve is designed with a 3/4-inch National Pipe Thread (NPT) connection. NPT is a standard threading system used for piping connections in the U.S., particularly for pressure relief and control valves.
   • This size of connection is commonly used for medium-sized piping systems and industrial applications.

5. Pressure Rating: 125 PSI

   • The 125 PSI rating indicates the maximum pressure at which the valve is designed to operate. If the pressure within the system exceeds this value, the valve will open to release excess pressure and protect the system from overpressure.
   • This pressure rating is typical for industrial applications like water, air, or steam systems.

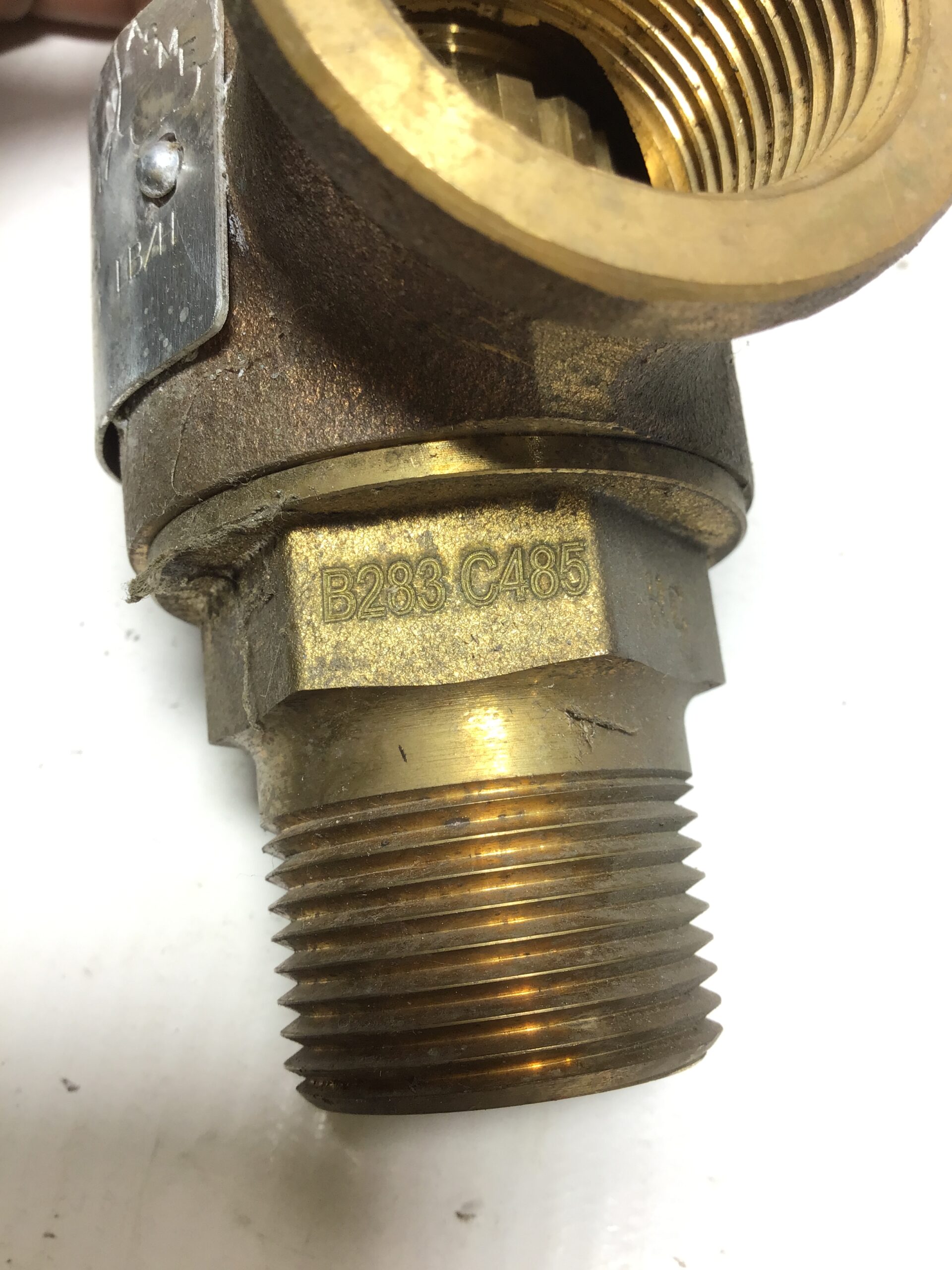

6. Part Number: B283C485

   • The part number is likely a secondary identifier that helps Kunkle and distributors recognize the specific configuration or series of the valve, aiding in inventory management and replacement.

Features and Benefits:

1. Pressure Control and Safety:

   • The primary function of the Kunkle 60100EEM01 AM is to relieve excess pressure in a system. When the system’s pressure exceeds the set threshold (125 PSI), the valve automatically opens, releasing pressure to prevent damage to equipment, pipes, or tanks.
   • This feature is crucial in maintaining the safety and reliability of pressurized systems, particularly in industries like water treatment, chemical processing, oil and gas, and HVAC systems.

2. Corrosion Resistance:

   • The bronze construction of the valve helps resist corrosion, particularly in systems exposed to water, steam, or mildly corrosive fluids. This helps extend the valve’s lifespan and reduce maintenance costs compared to valves made from materials more prone to rust and deterioration.

3. Durability and Reliability:

   • Kunkle valves are known for their high-quality construction, and the 60100EEM01 AM is no exception. The bronze material, combined with the valve’s design, ensures that it can withstand frequent cycles of opening and closing without failure.

4. Versatile Applications:

   • The 3/4 NPT connection and 125 PSI pressure rating make this valve suitable for various systems, such as water pumps, boilers, heating systems, and air compressors.
   • It can be used in both residential and industrial applications, especially where pressure control is critical for safety and system integrity.

5. Ease of Installation:

   • The 3/4-inch NPT threading ensures compatibility with a wide range of pipes, making installation straightforward. Additionally, the valve’s compact size and simple operation help make it easy to maintain and replace as needed.

Applications:

• Water Systems: Used in water treatment plants, pumps, and irrigation systems to ensure that pressure does not exceed safe limits.
• Boilers and Heating Systems: Prevents overpressure situations in steam or water heating systems, which can be hazardous without proper pressure regulation.
• Air Compressors: Protects air compressor systems from pressure buildup that could cause damage to equipment.
• Chemical or Petrochemical Processing: Ensures that pressure is regulated in systems handling chemicals or petroleum products, where pressure control is essential for both safety and operational efficiency.

Conclusion:

The Kunkle 60100EEM01 AM Bronze Relief Valve (Part No. B283C485) is a durable, reliable, and corrosion-resistant pressure relief valve designed to protect systems from dangerous overpressure conditions. With its bronze construction, 125 PSI pressure rating, and 3/4 NPT connections, it is suitable for a wide range of industrial applications where pressure regulation is crucial for maintaining safety and system integrity.
