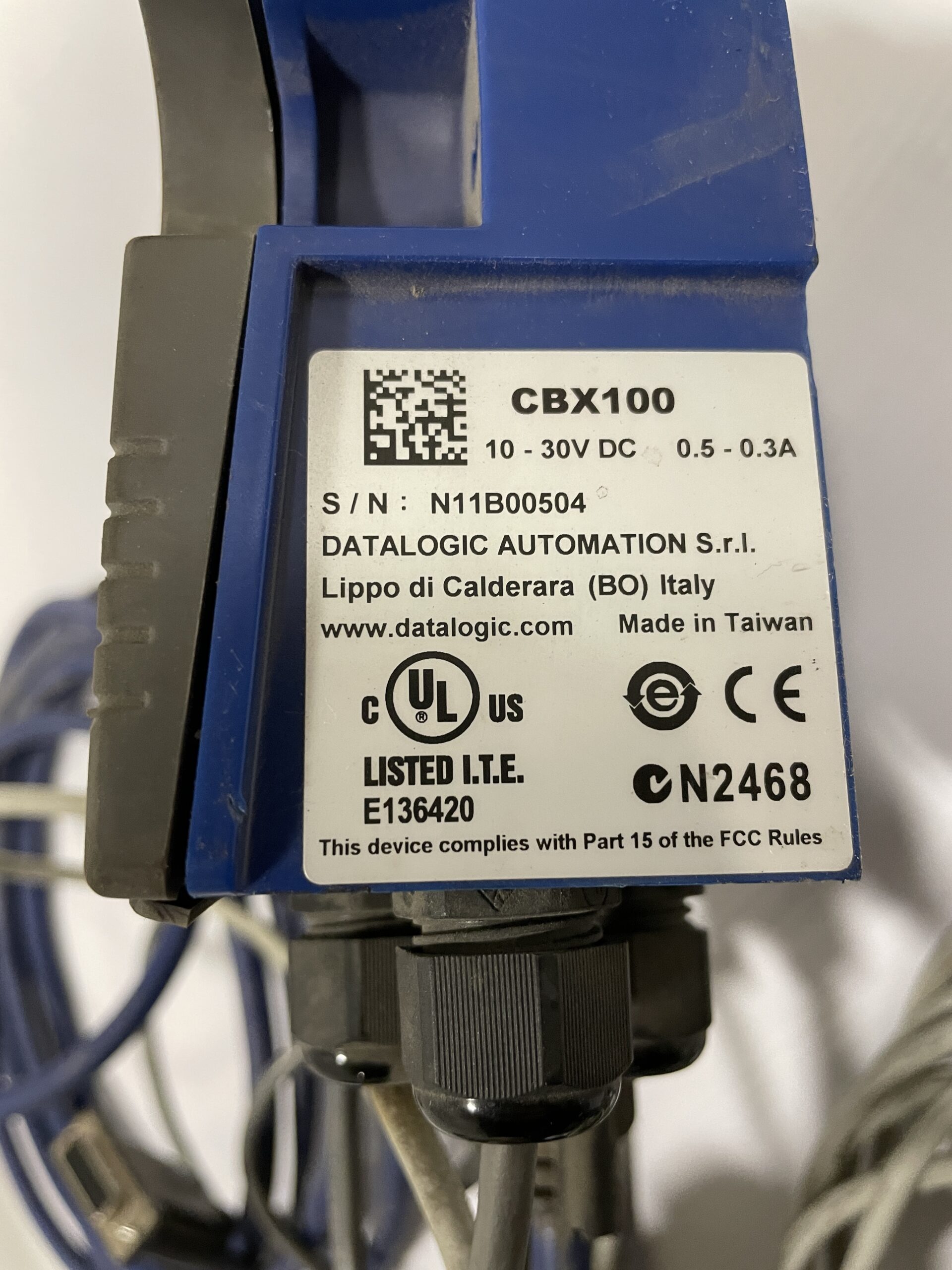

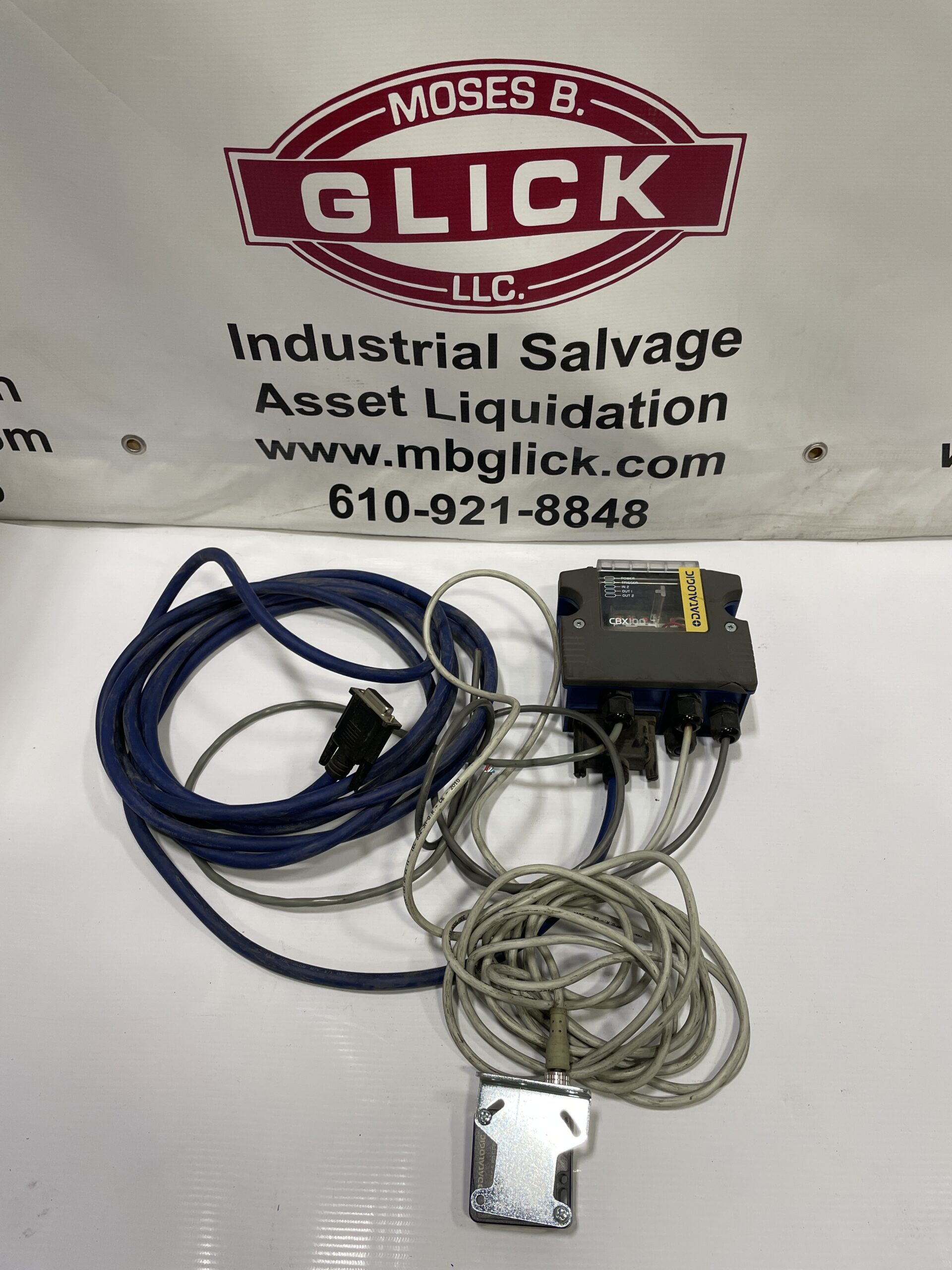

Datalogic CBX100 Connector Box for Barcode Scanner 10-30VDC

CLICK HERE FOR THIS ITEMS SPECIFICS

The Datalogic CBX100 is a connection box designed to facilitate the installation and wiring of Datalogic barcode scanners and other industrial devices. It helps streamline cabling operations, reduce installation time, and improve maintenance efficiency.

Key Features:

• Easy Scanner Connection: Uses clamp terminals for simplified wiring.
• Modular Design: Allows upgrades with memory modules.
• Multi-Device Connectivity: Supports up to 32 scanners through ID-Net™.
• IP65 Protection: Ensures durability in industrial environments.
• Multiple Interfaces: Includes a 25-pin Sub-D socket for barcode scanners and M16 cable glands for system connections.
• Power Supply: Operates on 10-30 V DC with a maximum 2.5A current consumption.
• Environmental Conditions: Functions in temperatures from -35°C to 50°C, with 90% relative humidity (non-condensing).
• Shock & Vibration Resistance: Complies with EN 60068-2-27 (shock) and EN 60068-2-6 (vibration).

System Wiring:

• Features spring clamp connectors for power and I/O signals.
• Supports RS-232 and RS-485 connections for industrial communication.
• Allows chassis grounding and shield-to-protection earth jumper settings for electrical safety.
