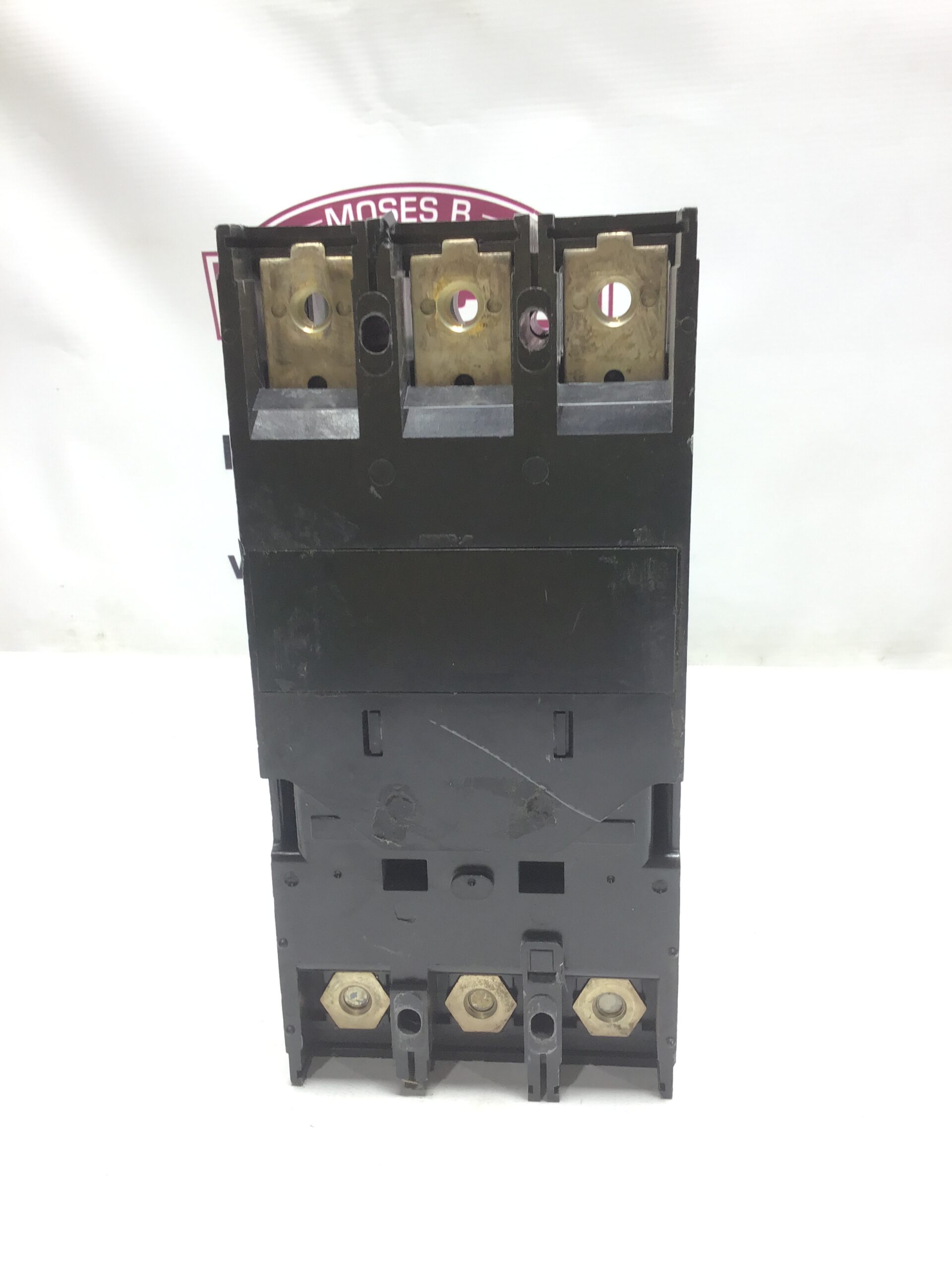

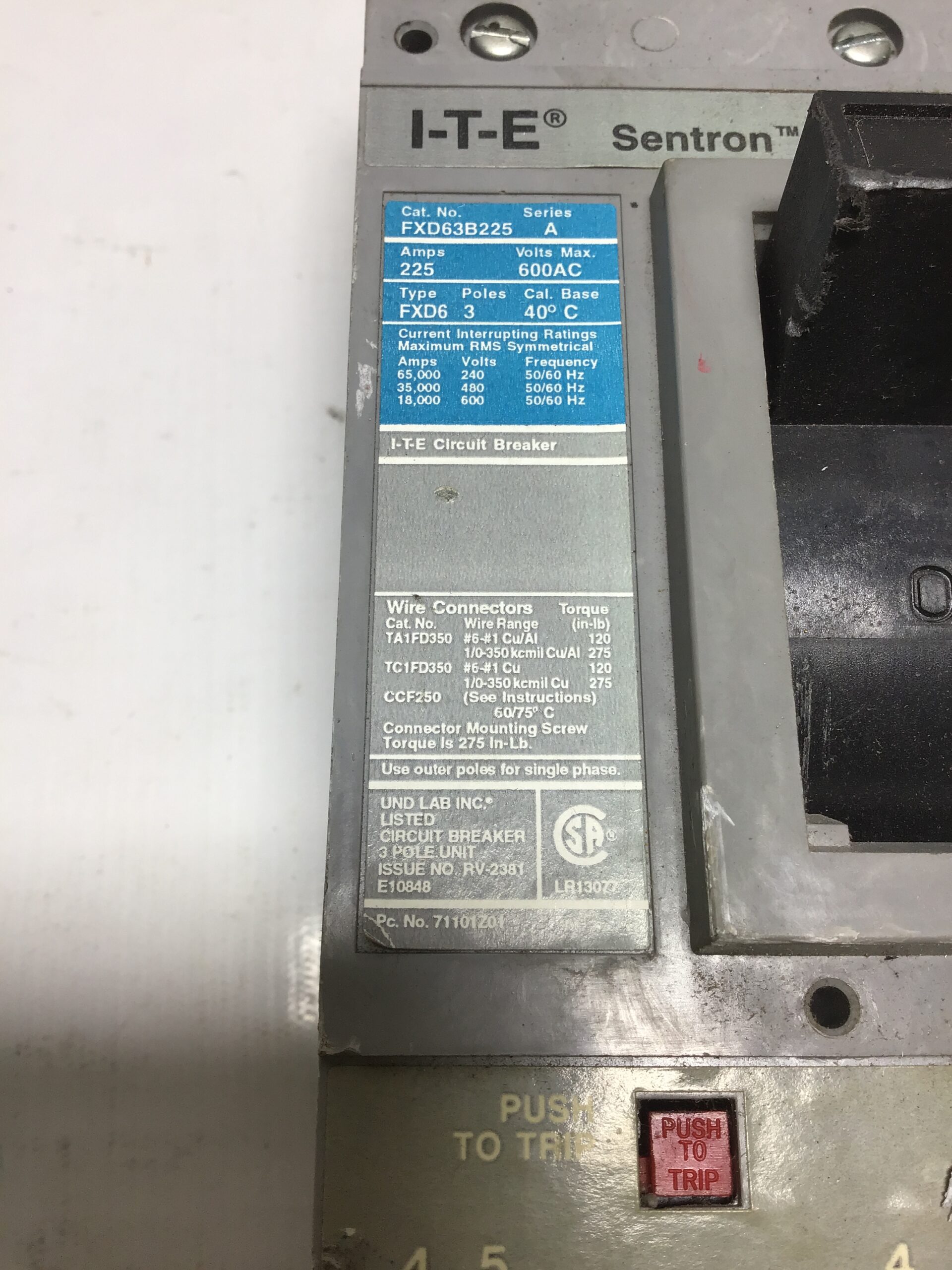

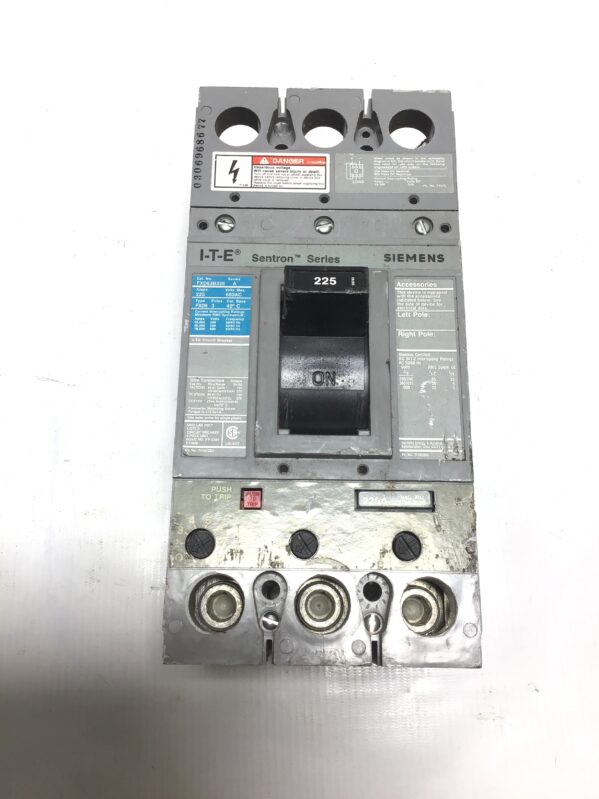

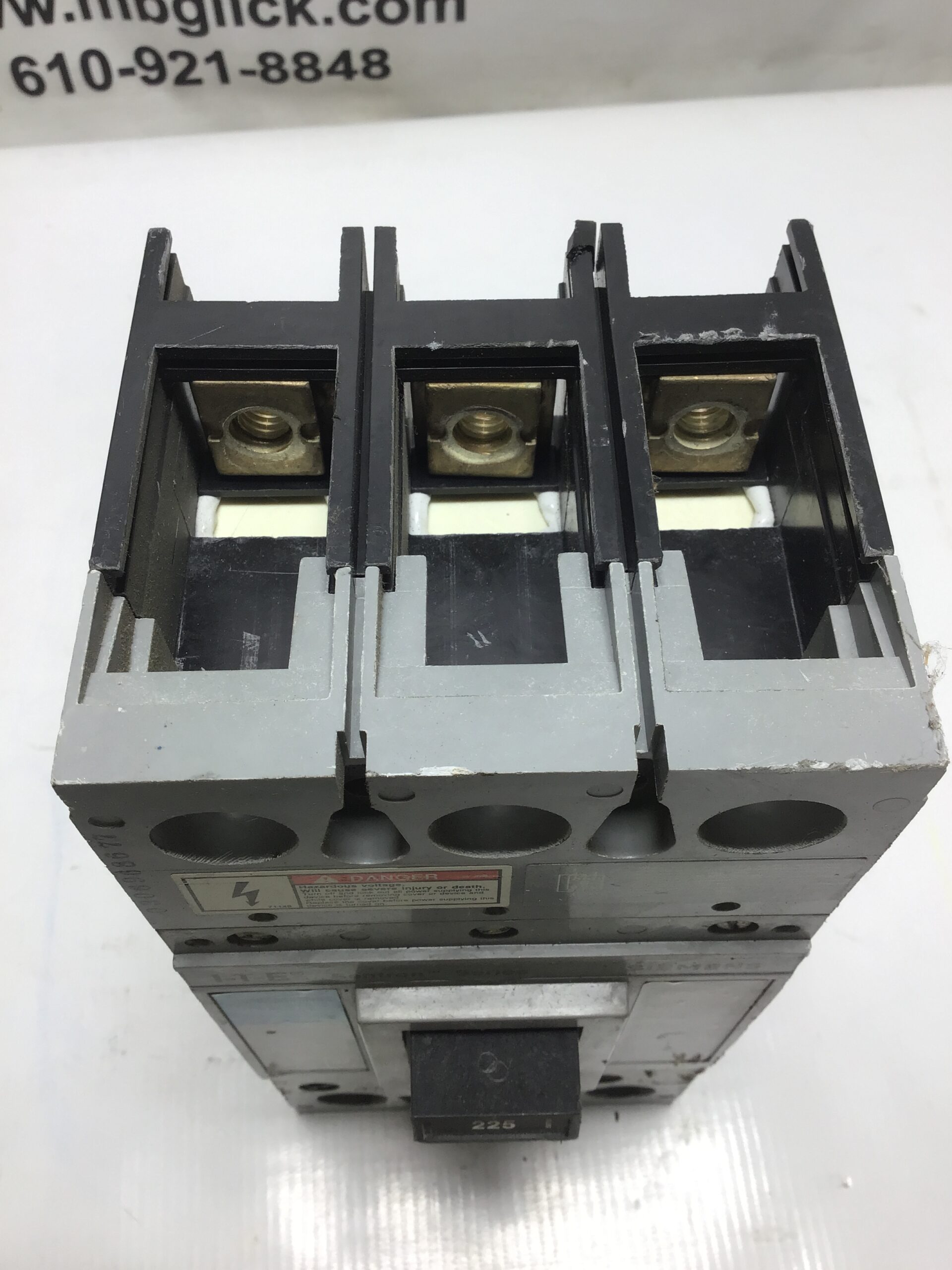

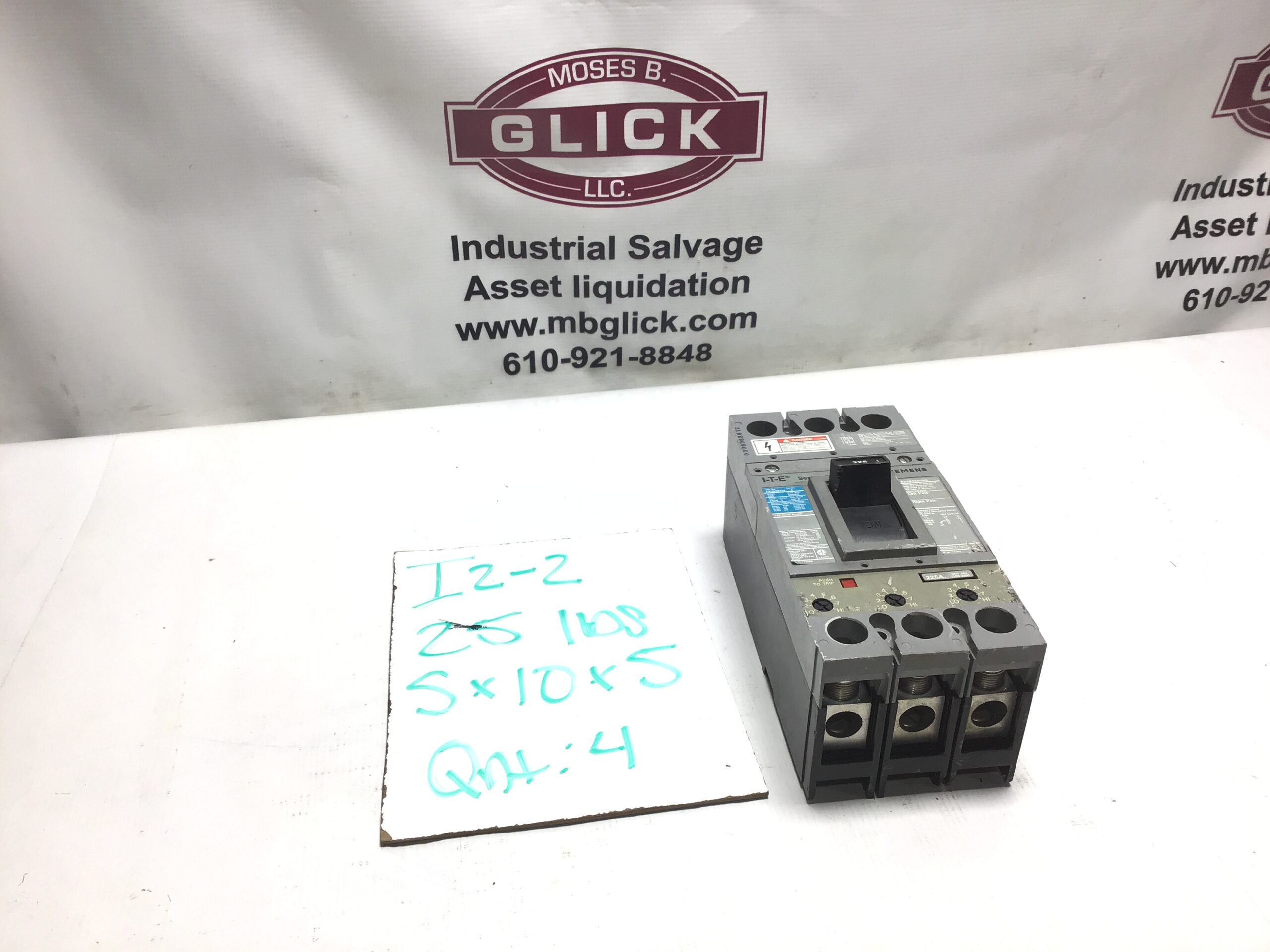

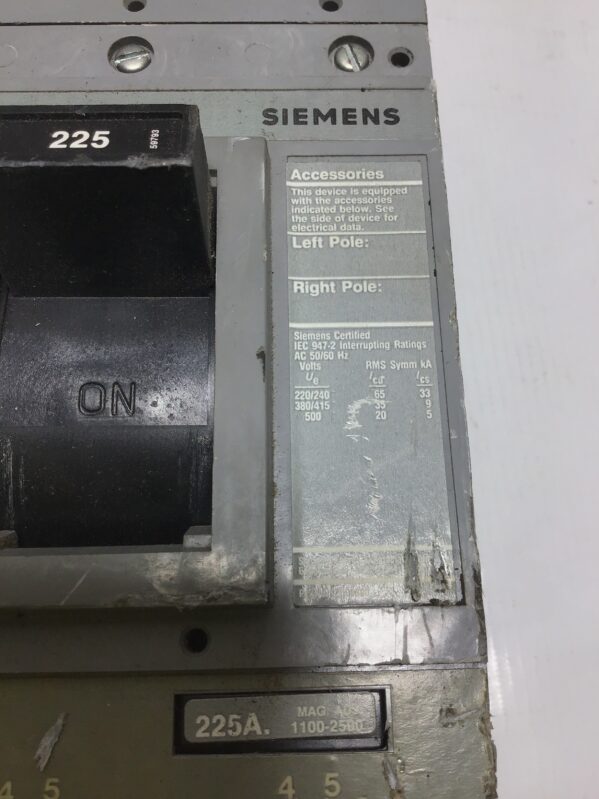

I-T-E Siemens Sentron FXD63B225 225A 3 Pole 600VAC Circuit Breaker

The I-T-E Siemens Sentron FXD63B225 is a Molded Case Circuit Breaker designed for industrial applications. Here are some key specifications:

• Voltage: 600V AC, 3-Pole

• Amperage: 225A

• Trip Type: Thermal-Magnetic

• Interrupting Rating: 22kA at 600V, 35kA at 480V

• Mounting: Unit Mount

• Dimensions: 4.5 x 9.5 x 4 inches (W x H x D)

• Certifications: UL 489, IEC 60947-2

• Special Features: No lugs installed, non-interchangeable trip unit2

This circuit breaker provides reliable protection by combining thermal sensing for overload conditions and magnetic sensing for short circuits. It is designed to meet industry standards and ensure safety in electrical circuits
