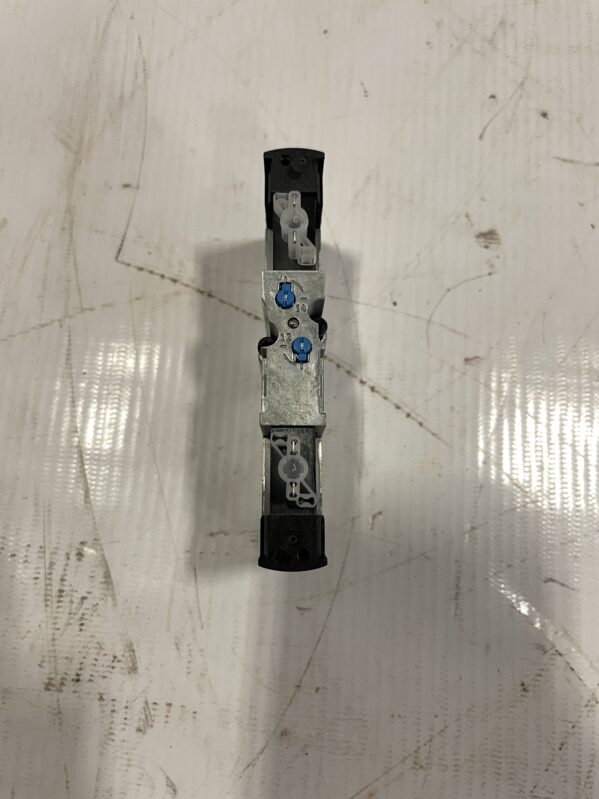

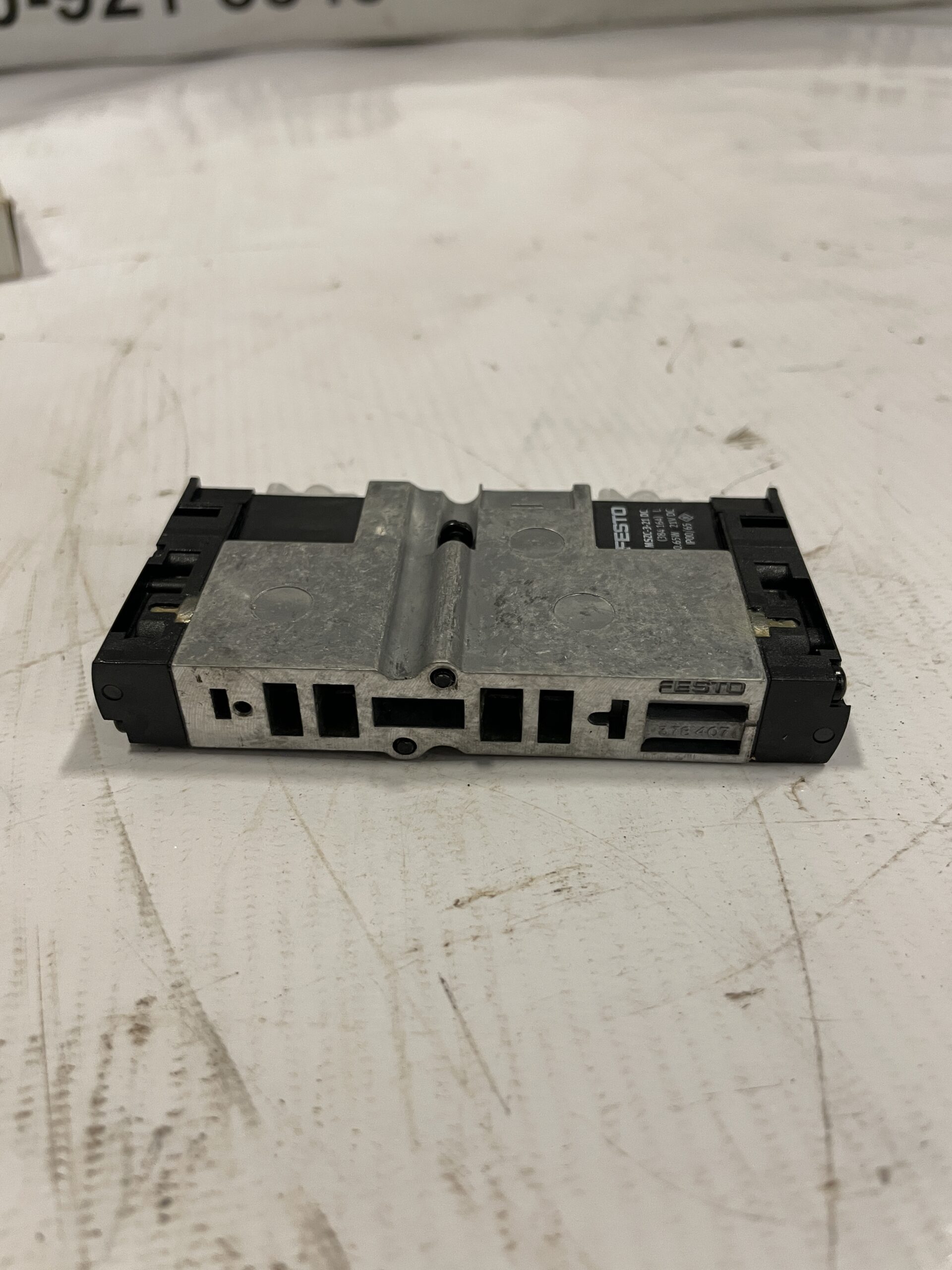

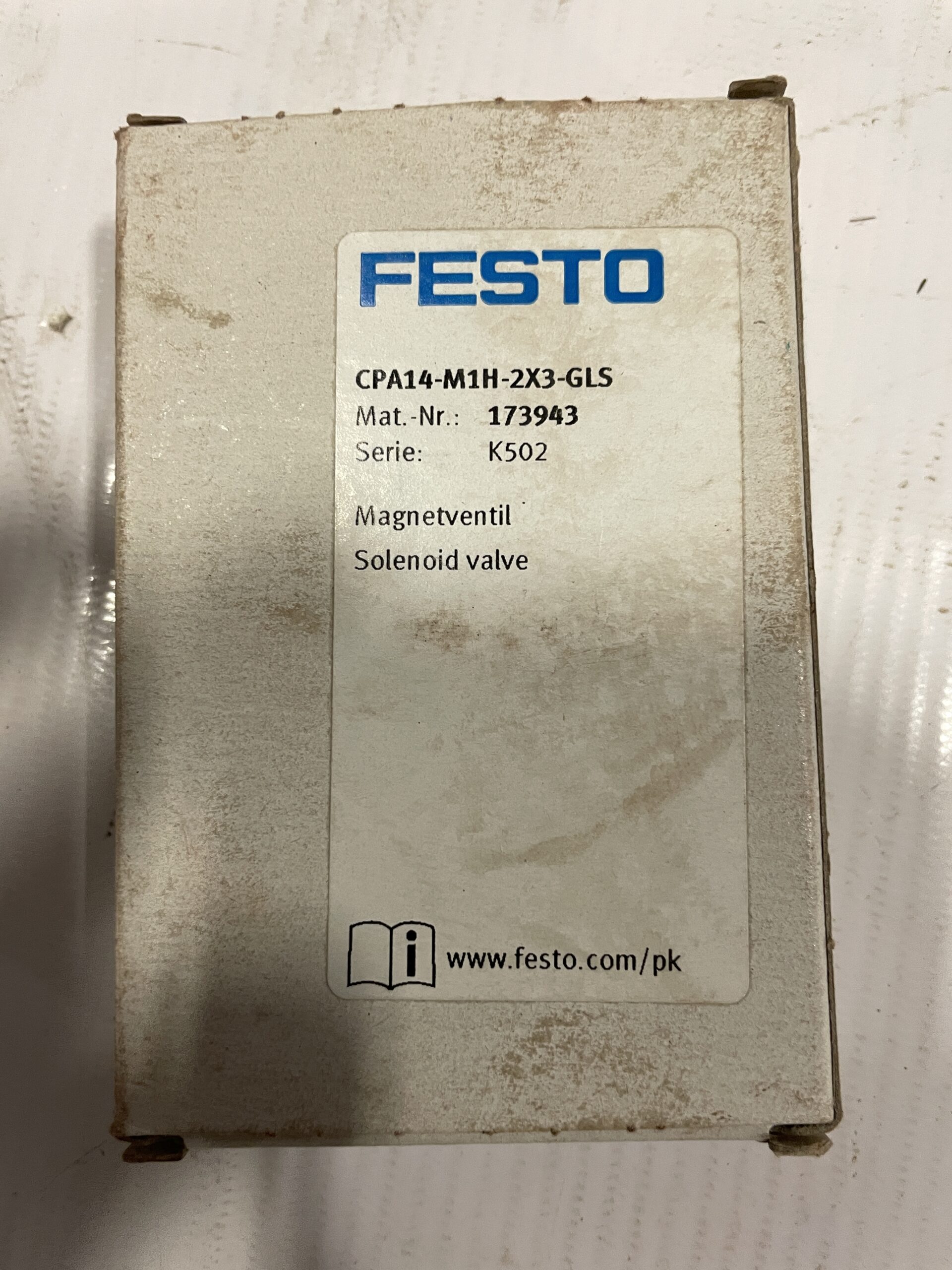

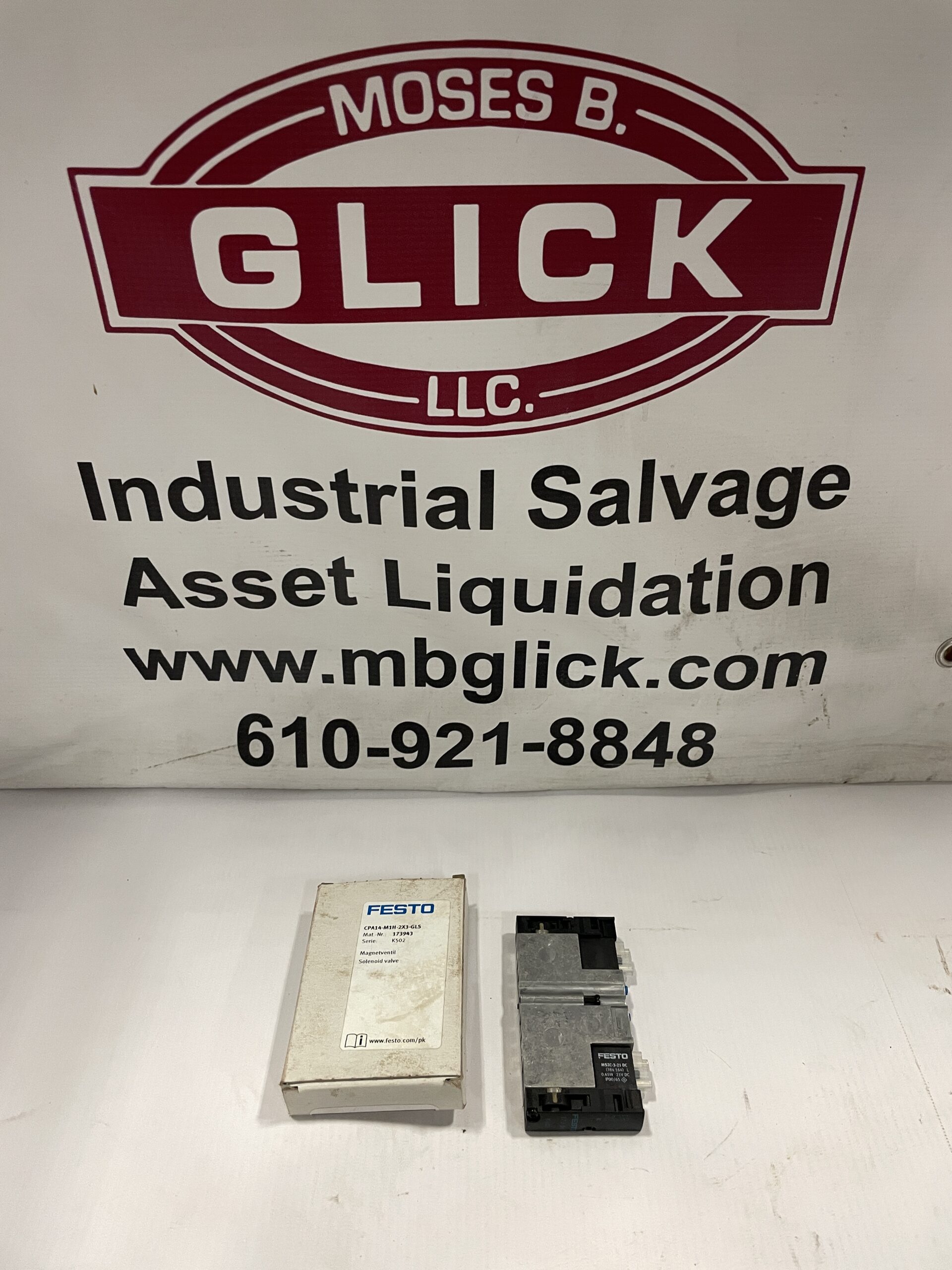

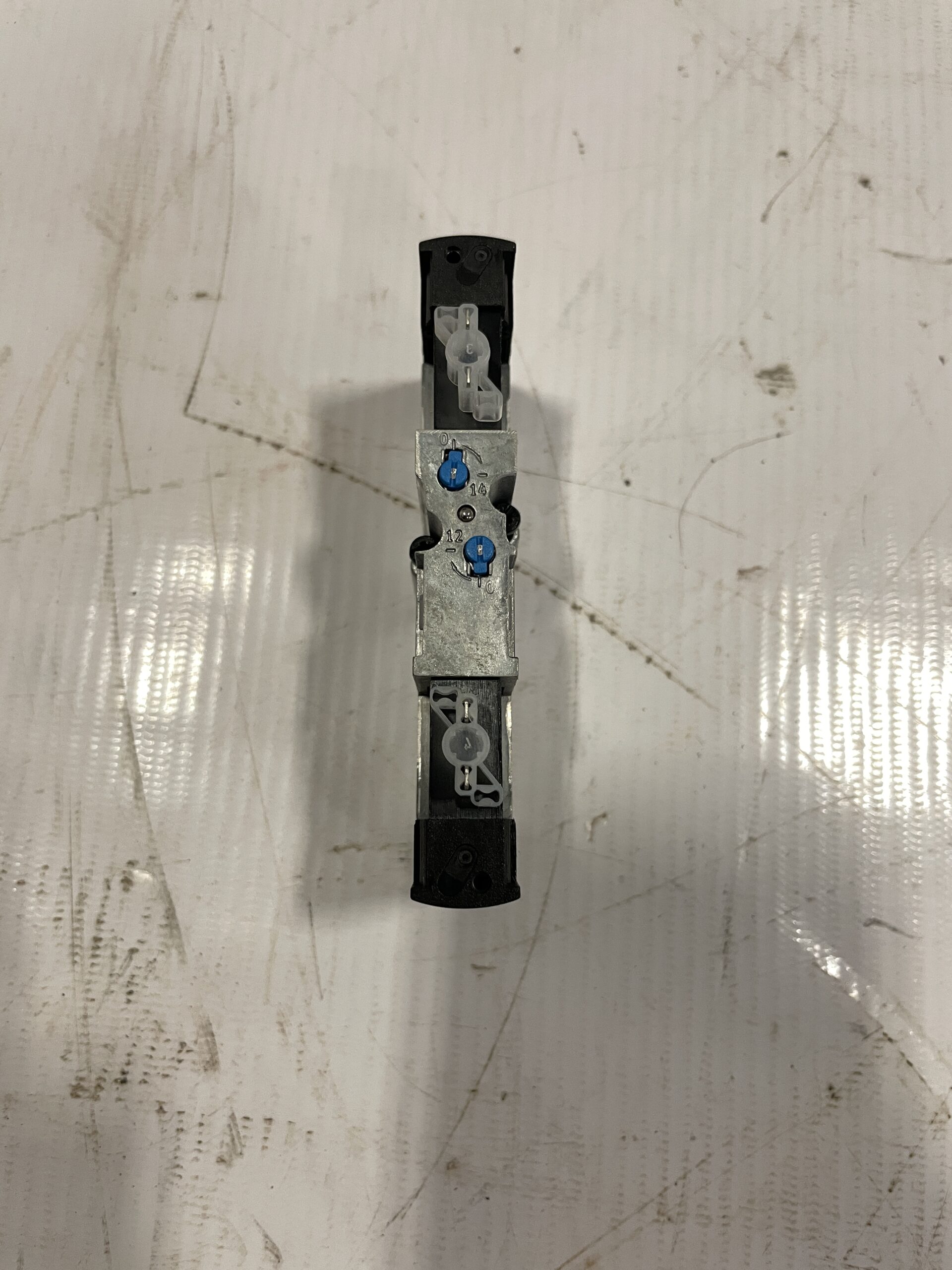

Festo CPA14-M1H-2X3-GLS Single Solenoid Pneumatic Valve 21VDC -NIB

Key Specifications

• Valve Function: 2×3/2-way, Normally Closed (NC), monostable

• Actuation Type: Electrical

• Width: 14 mm

• Flow Rate: 550 L/min

• Operating Pressure: 3–10 bar

• Temperature Range: -5°C to +50°C

• Housing Material: Aluminum die-cast

• Seal Material: NBR (Nitrile Butadiene Rubber)

• Protection Class: IP65

• Mounting: Through-hole

• Exhaust-Air Function: Non-throttleable

• Switching Times:

  • On: 9 ms

  • Off: 28 ms

• Pilot Air Supply: External

• Reset Mechanism: Air spring
