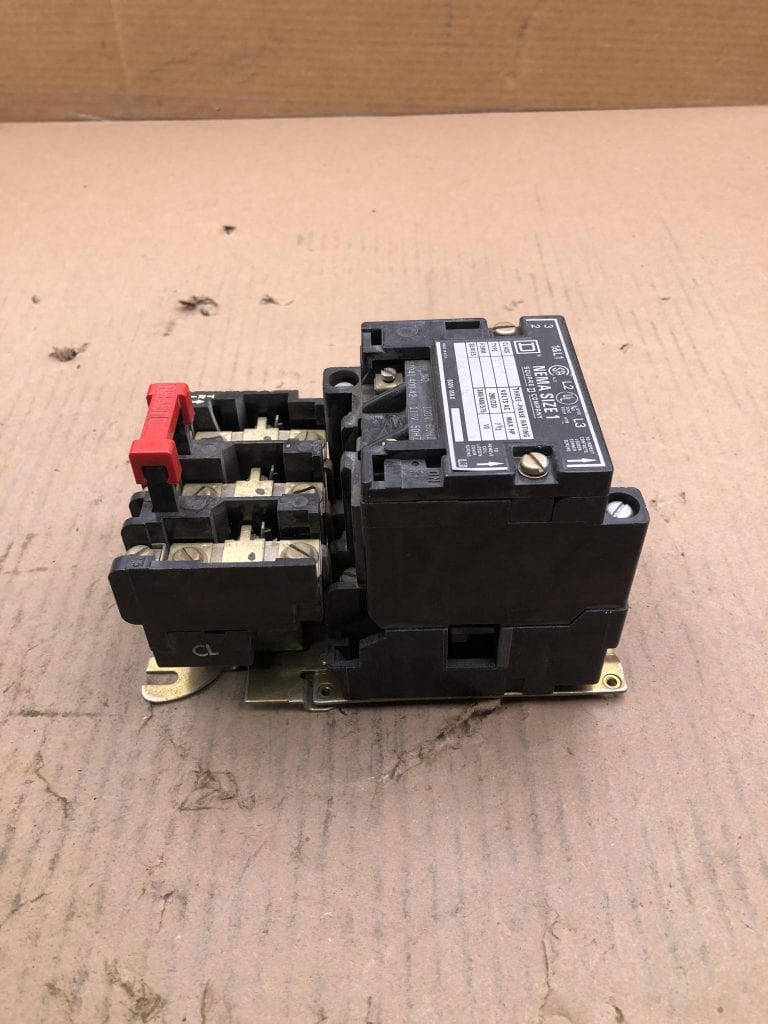

Square D 8536SC03SA NEMA Size 1 Magnetic Motor Starter 7.5 / 10 Hp

110V 120V 50/60Hz COIL

The Square D 8536SC03SA is a NEMA Size 1 Magnetic Motor Starter designed for industrial and commercial motor control applications. It is part of the Type S starter family, which is well-known for durability and reliability.

Key Features:

1. Horsepower Ratings:

   • 7.5 HP at 200/230V (three-phase).
   • 10 HP at 460/575V (three-phase).

2. NEMA Size 1:

   • Rated for motors with a full load current of up to 27 amps.

3. Voltage Rating:

   • Coil voltage: Specify the control voltage (commonly available in 120V, 240V, or other options).

4. Magnetic Contactor:

   • Provides full-voltage starting and stopping for motors.

5. Thermal Overload Protection:

   • Includes adjustable overload relays to protect motors from overheating due to prolonged overload conditions.

6. Durable Construction:

   • Heavy-duty components designed for industrial environments.

7. Enclosure Options:

   • Commonly available with open style, NEMA 1 (indoor), or NEMA 3R (outdoor) enclosures.

Applications:

• Industrial machinery.
• HVAC systems.
• Pumps, compressors, and conveyors.
• Motor control in commercial and industrial settings.

The Square D Type S starters are valued for their reliability, making them a popular choice for motor control across various industries.
