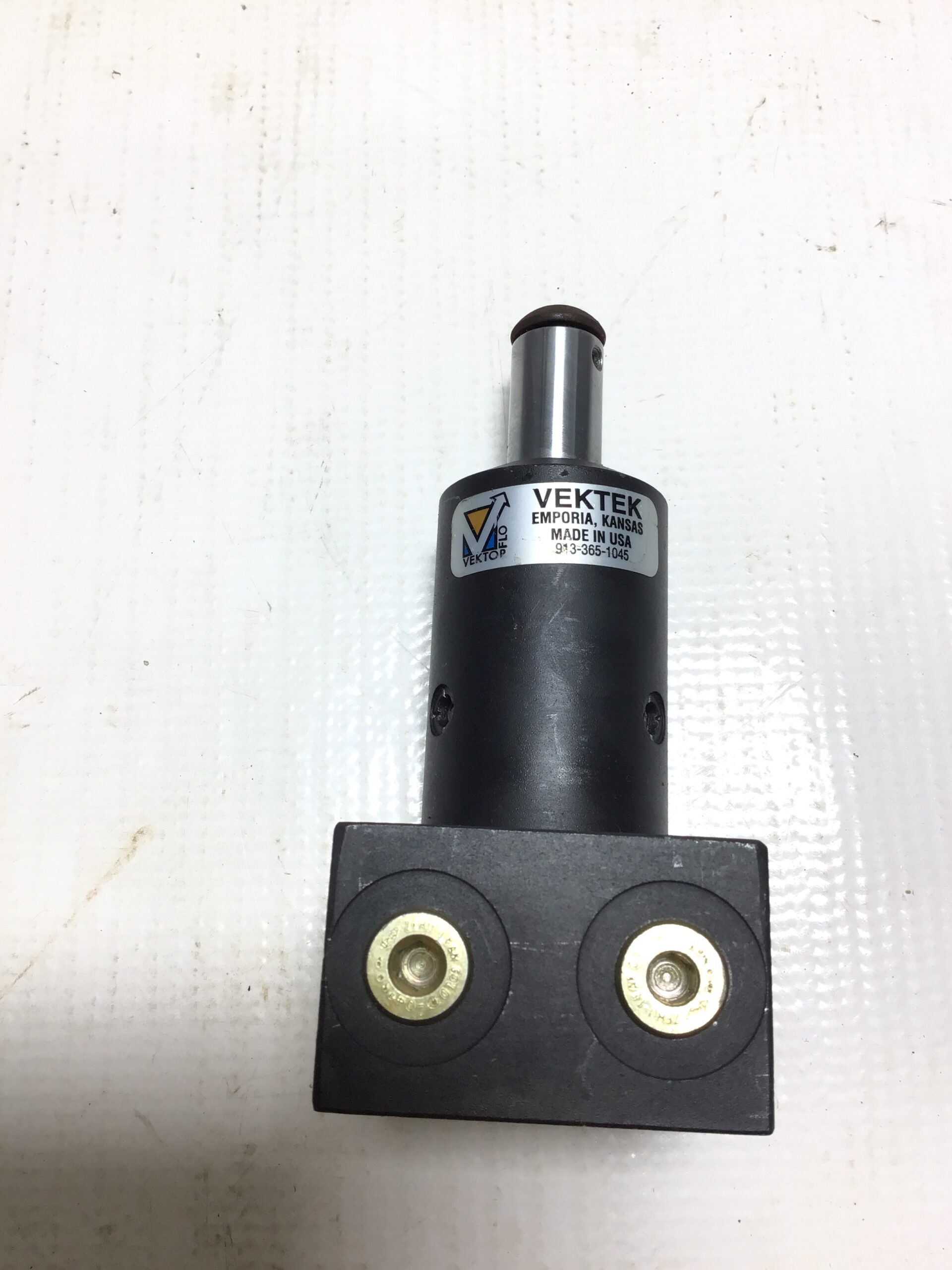

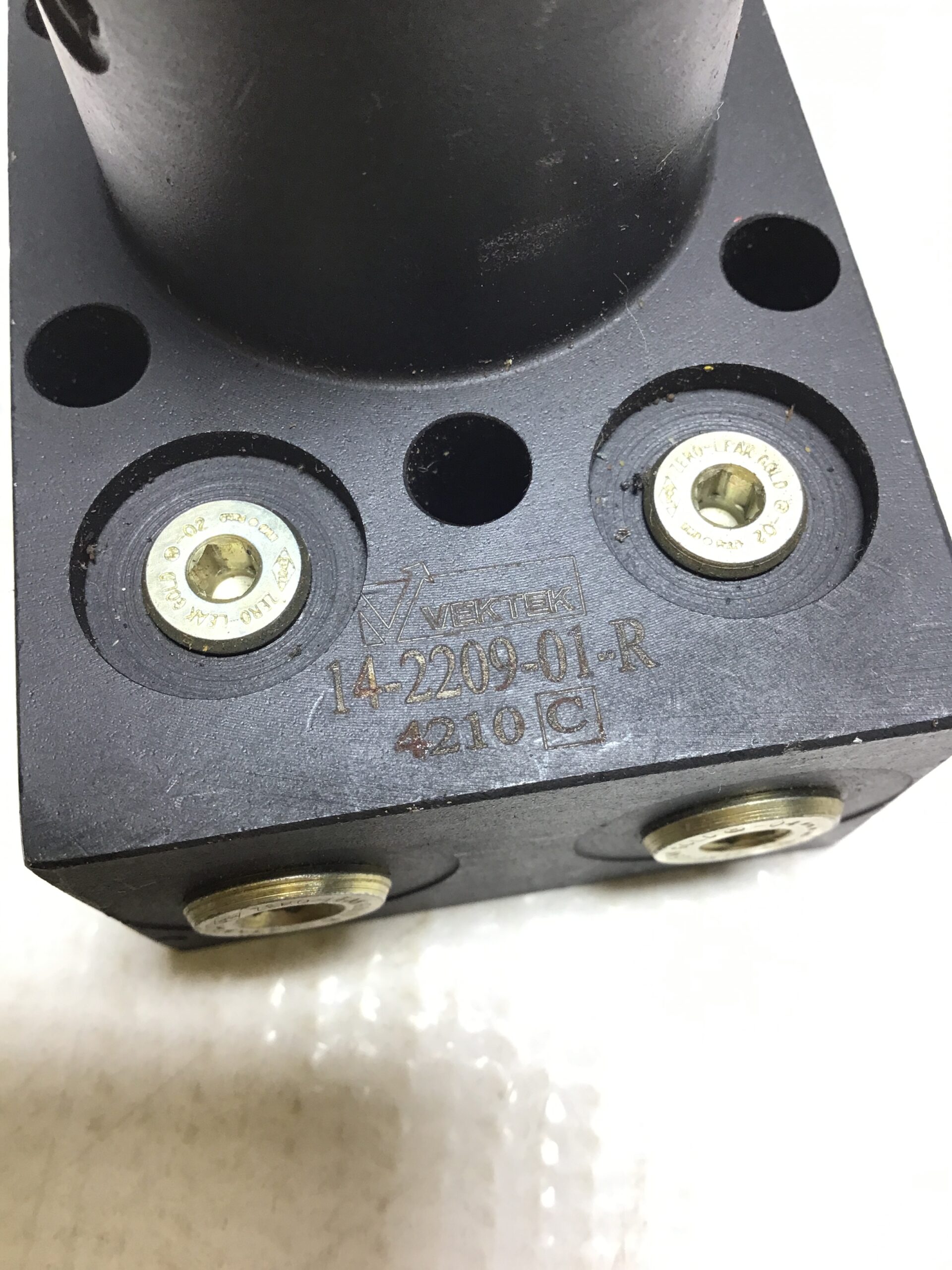

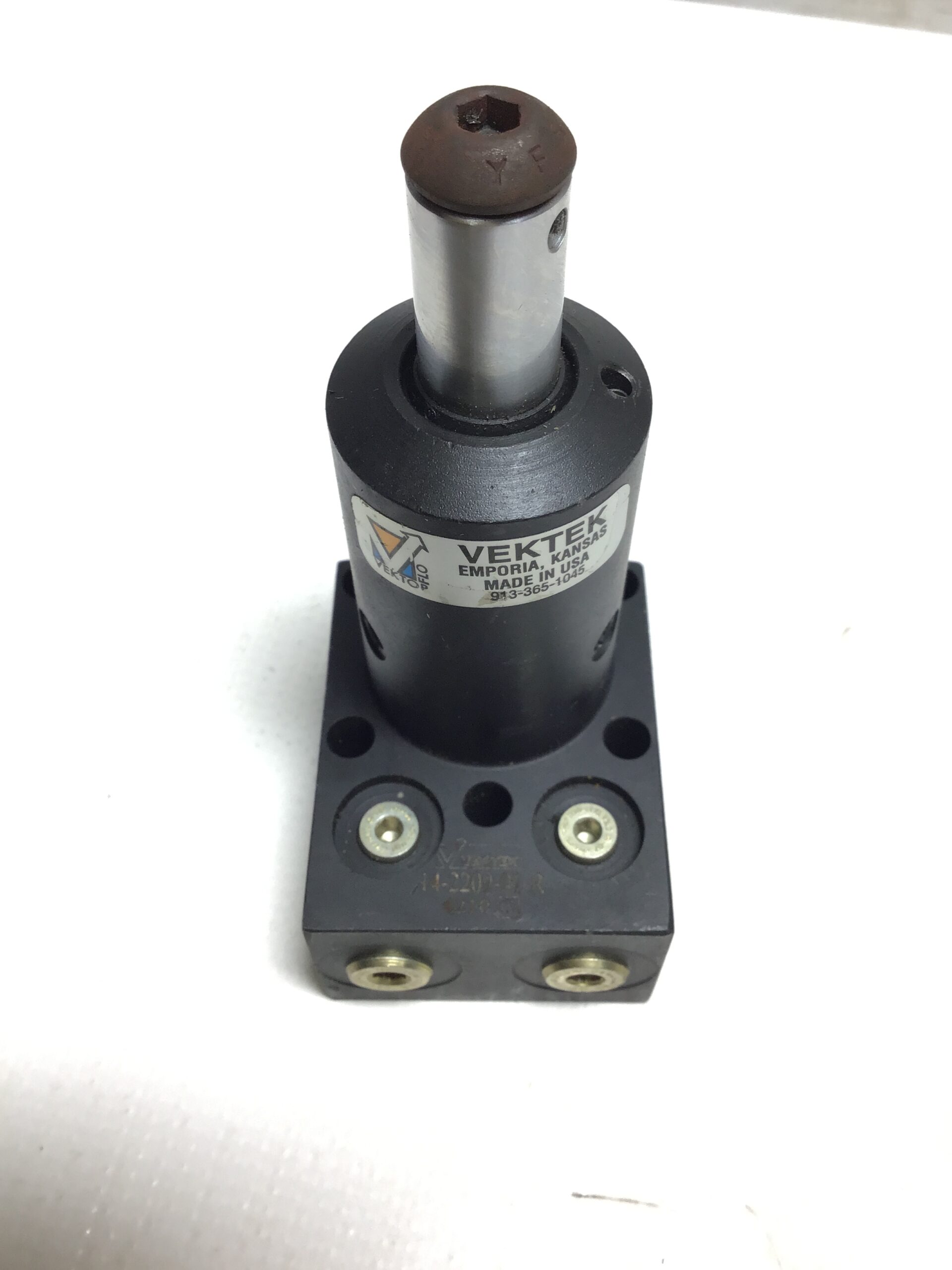

Vektek 14-2209-01-R Hydraulic Bottom Flange Swing Clamp Double Acting

The Vektek 14-2209-01-R Hydraulic Bottom Flange Swing Clamp is engineered for precision and reliability in your manufacturing processes. This robust clamp features a hydraulic actuation system that ensures consistent and powerful clamping force, enhancing productivity and safety in your operations. Its bottom flange design allows for easy installation and adaptability to various setups, making it an essential tool for any workshop. With its durable construction, this swing clamp promises longevity and minimal maintenance, providing excellent value for your investment. Upgrade your clamping solutions with the Vektek Hydraulic Bottom Flange Swing Clamp and experience superior performance today.

🔩 Vektek 14-2209-01-R Hydraulic Swing Clamp – Precision-engineered for reliable and repeatable clamping in automated and manual fixtures
🔄 Double Acting Operation – Hydraulically powered in both extend and retract cycles for faster, more controlled motion

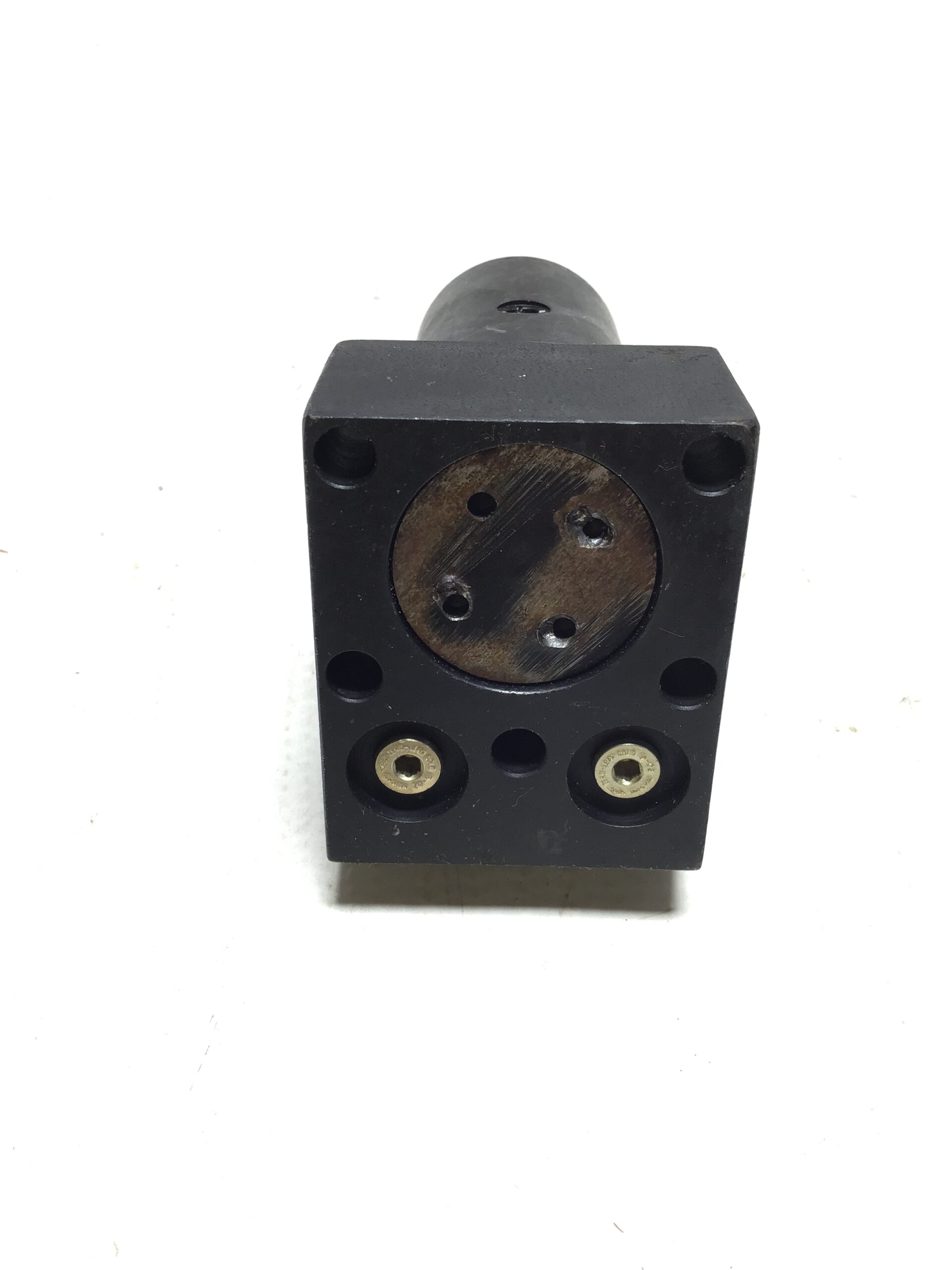

📐 Bottom Flange Mounting – Compact footprint with versatile mounting options for tight fixture layouts
🌀 Right-Hand Swing Direction – Arm swings right during clamping for optimal clearance and positioning
📏 Clamp Stroke: 0.31″ vertical stroke with a total swing + vertical stroke of 1.50″
💪 Clamping Capacity: Rated up to 1,100 lbs at 5,000 PSI system pressure
🛠️ Durable Construction: Features a patented ball seat and cam follower for smooth, low-friction rotation
💧 Hydraulic Ports: SAE 4 ports for both extend and retract functions, compatible with in-port flow control or sequencing valves
🔧 Arm Compatibility: Compatible with standard Vektek swing arms (sold separately)
✅ Ideal For: CNC fixtures, automated clamping systems, and precision workholding applications
