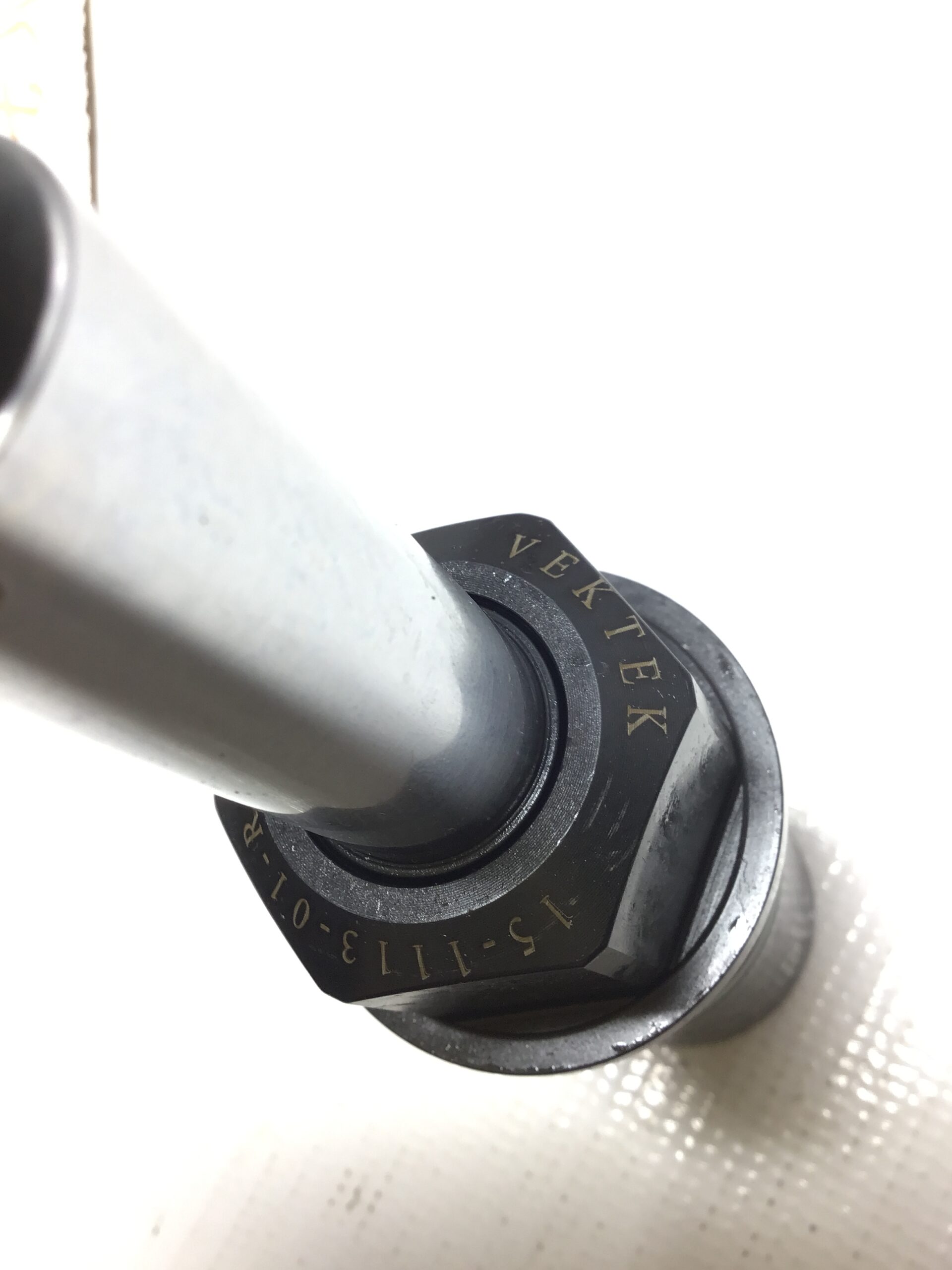

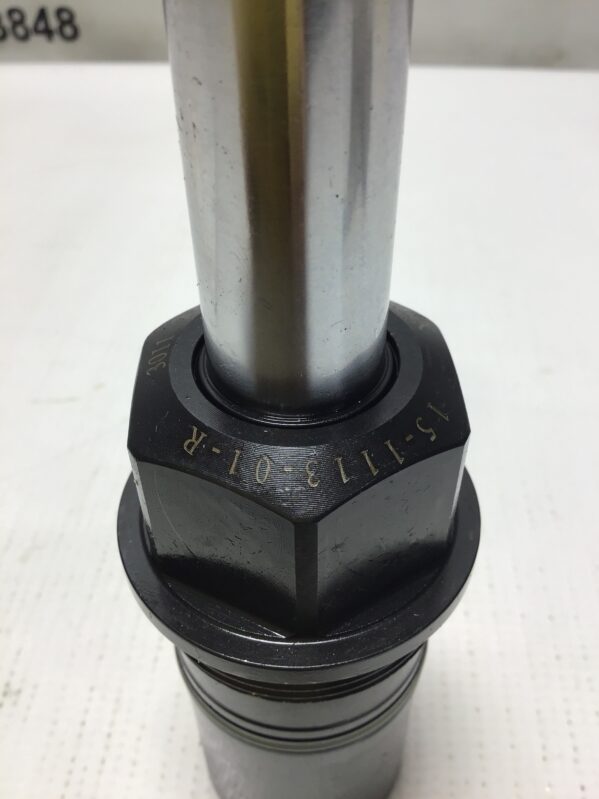

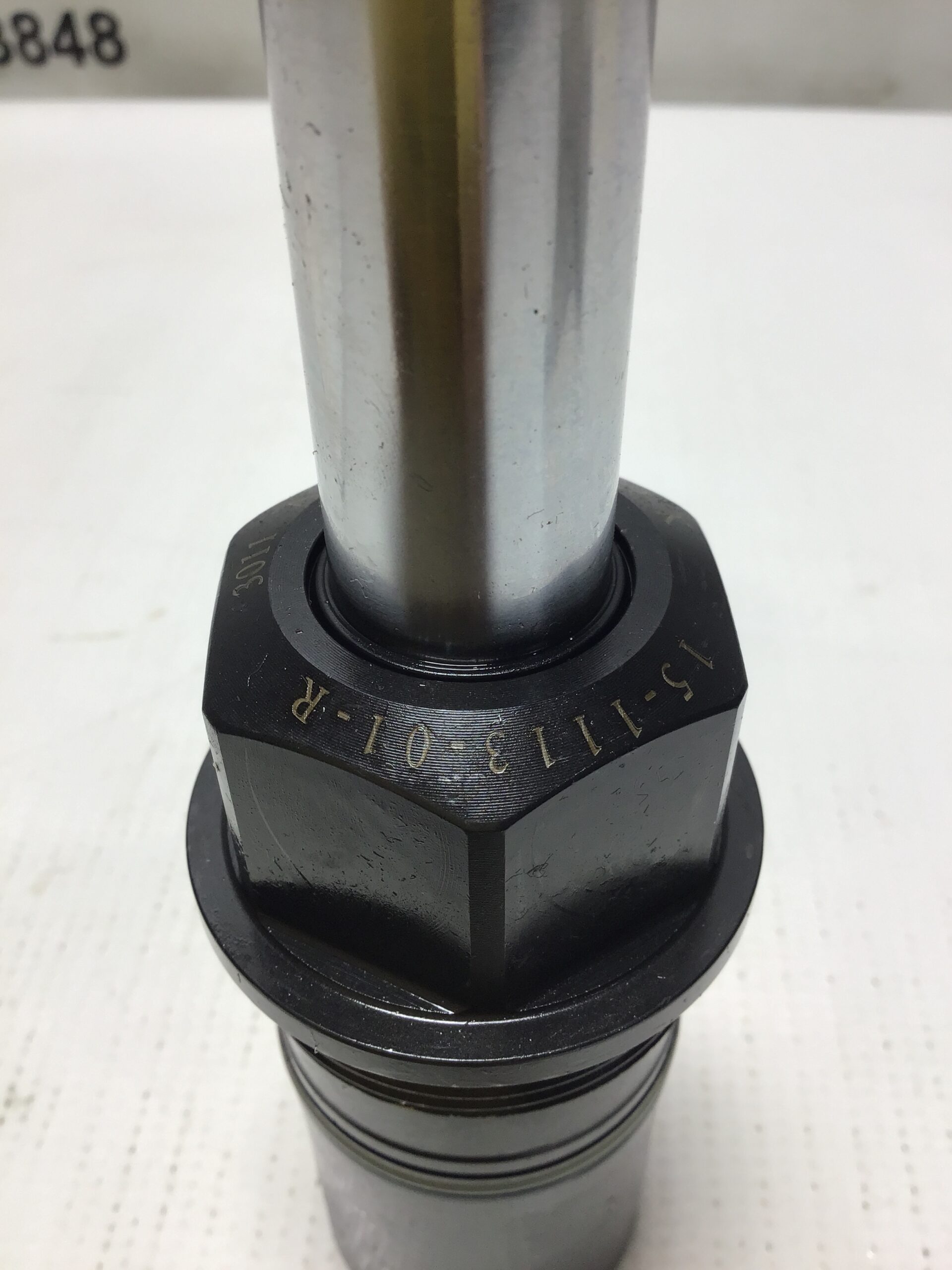

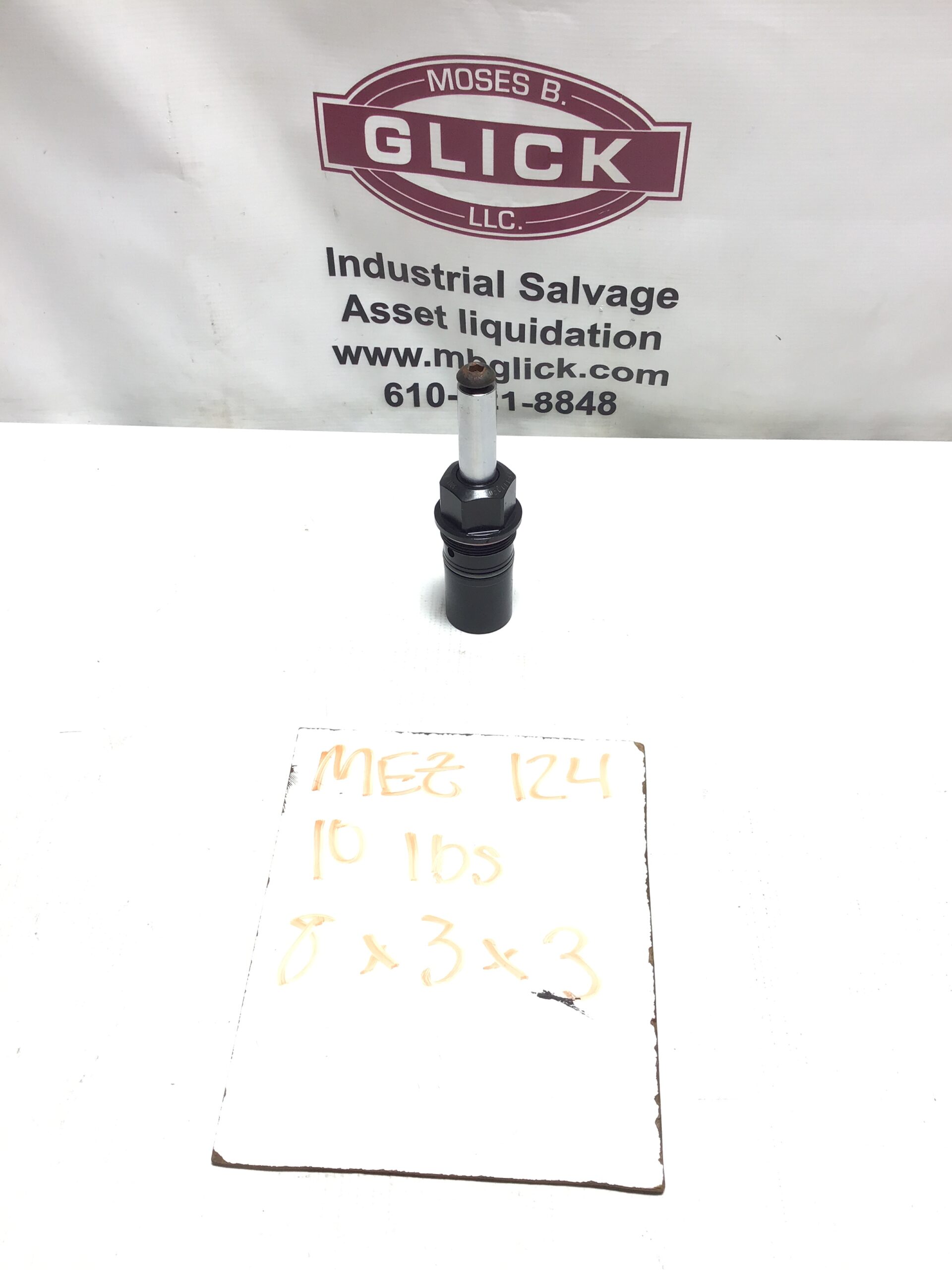

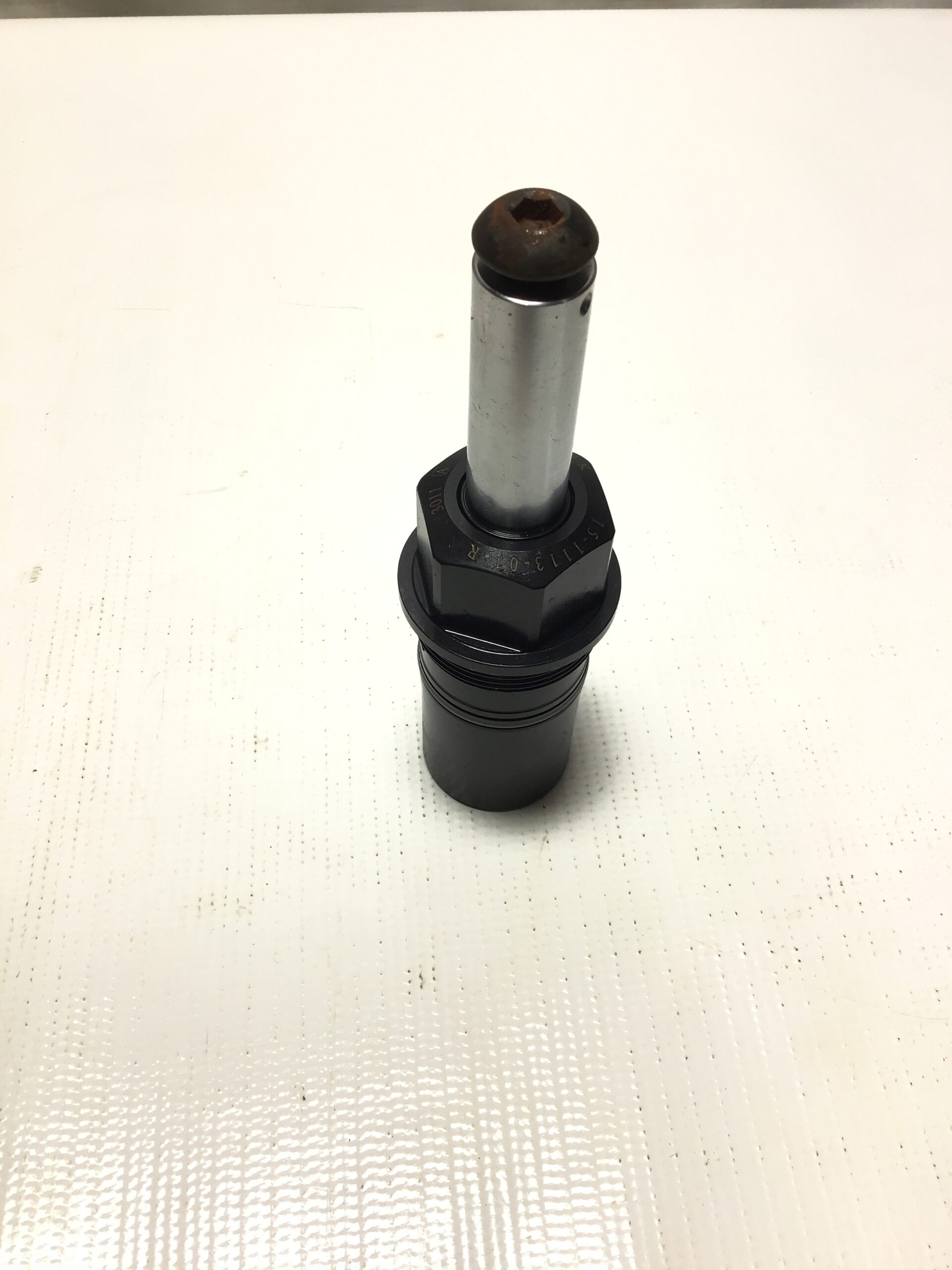

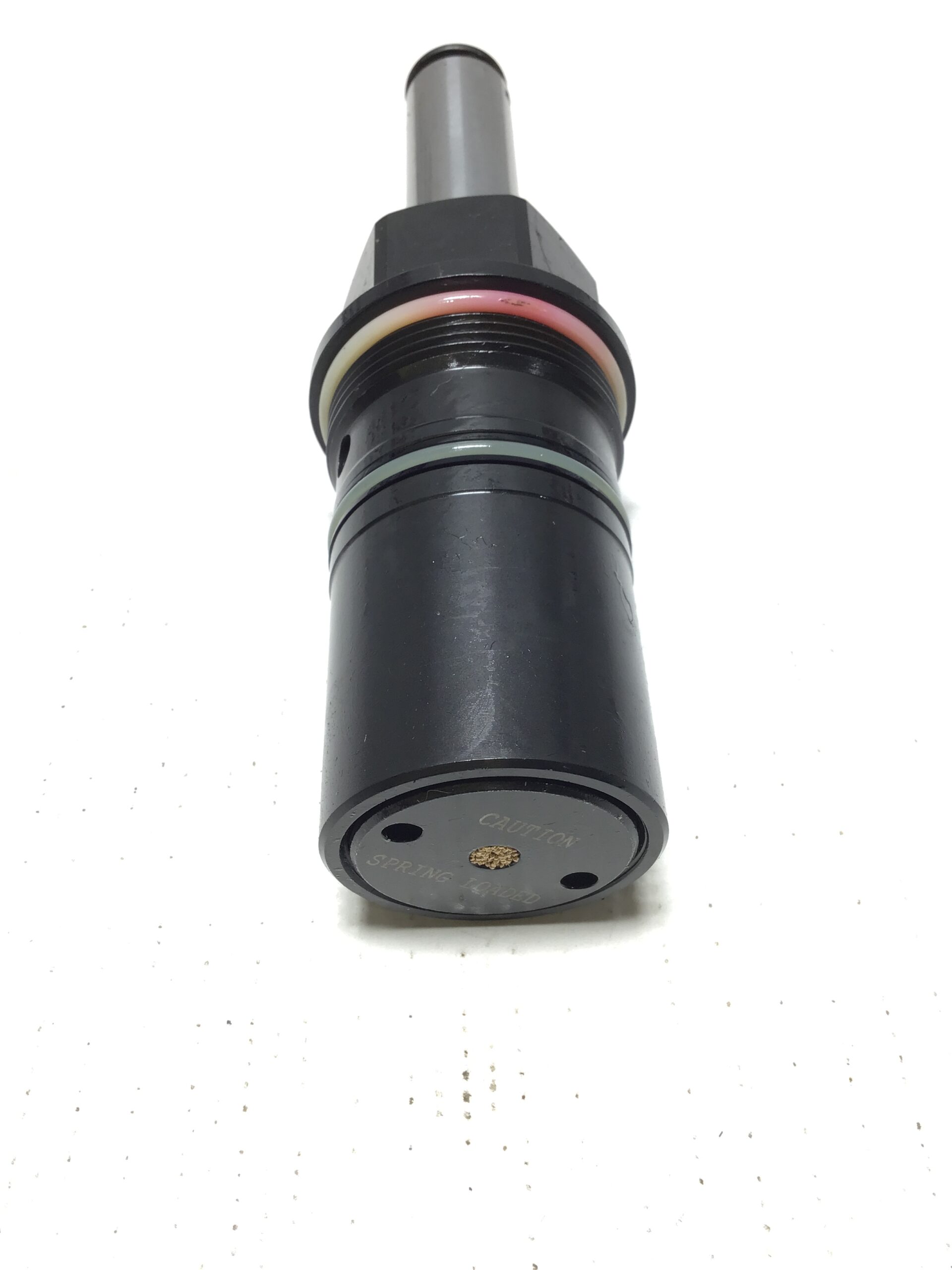

Vektek 15-1113-01-R Hydraulic Double Acting Swing Clamp

$254.99

1 in stock

Category: Tag:

The Vektek 15-1113-01-R Hydraulic Double Acting Swing Clamp is engineered for precision and efficiency in your manufacturing processes. This robust clamp features a double-acting design that ensures reliable and consistent clamping force, enhancing productivity and safety in your operations. With its durable construction and easy installation, it is ideal for a variety of applications, providing the versatility needed for both light and heavy-duty tasks. Upgrade your workflow with this essential tool that combines strength and reliability for optimal performance.

🔧 Vektek 15-1113-01-R Hydraulic Swing Clamp – Engineered for precision workholding in CNC fixtures and automated systems
🔄 Double Acting Operation – Hydraulically powered in both extend and retract cycles for faster, more controlled motion
📐 Right-Hand Swing Direction – Arm swings right during clamping for optimal clearance and positioning
📏 Clamping Capacity: Rated up to 2,600 lbs at 5,000 PSI system pressure
⬆️ Vertical Clamping Stroke: 0.50 inches; Total Stroke (Swing + Vertical): 1.16 inches
⚙️ Body Thread: 1 7/8-16; Standard Arm Length: 2.00 inches
💧 Hydraulic Ports: SAE 4 ports for both extend and retract functions, compatible with in-port flow control or sequencing valves
🛠️ Durable Construction: Features a patented V-cam track design for smooth, low-friction rotation and enhanced durability
✅ Ideal For: CNC fixtures, automated clamping systems, and precision workholding applications

Weight 10 lbs
Dimensions 8 × 3 × 3 in
Brand

Vektek
