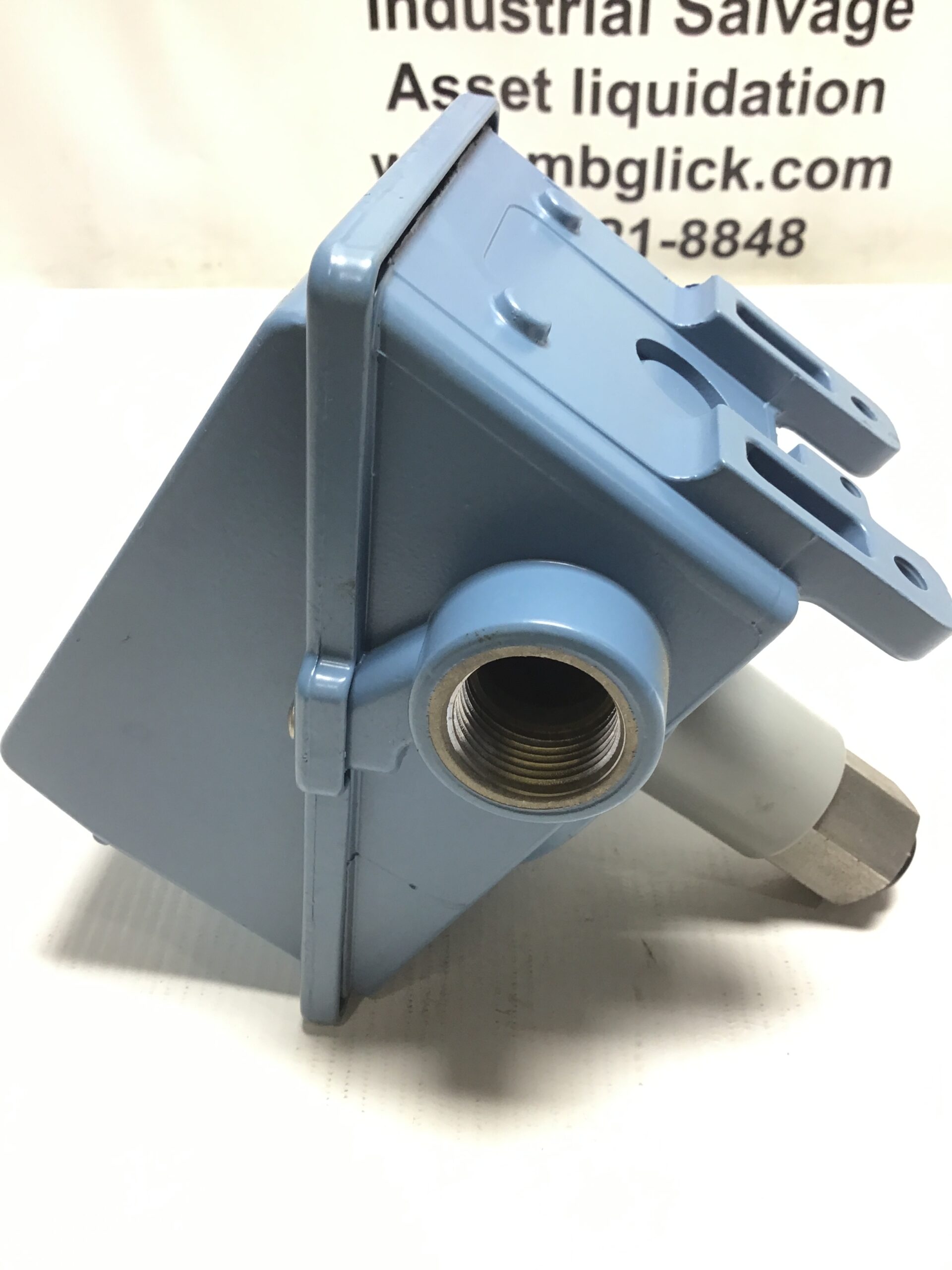

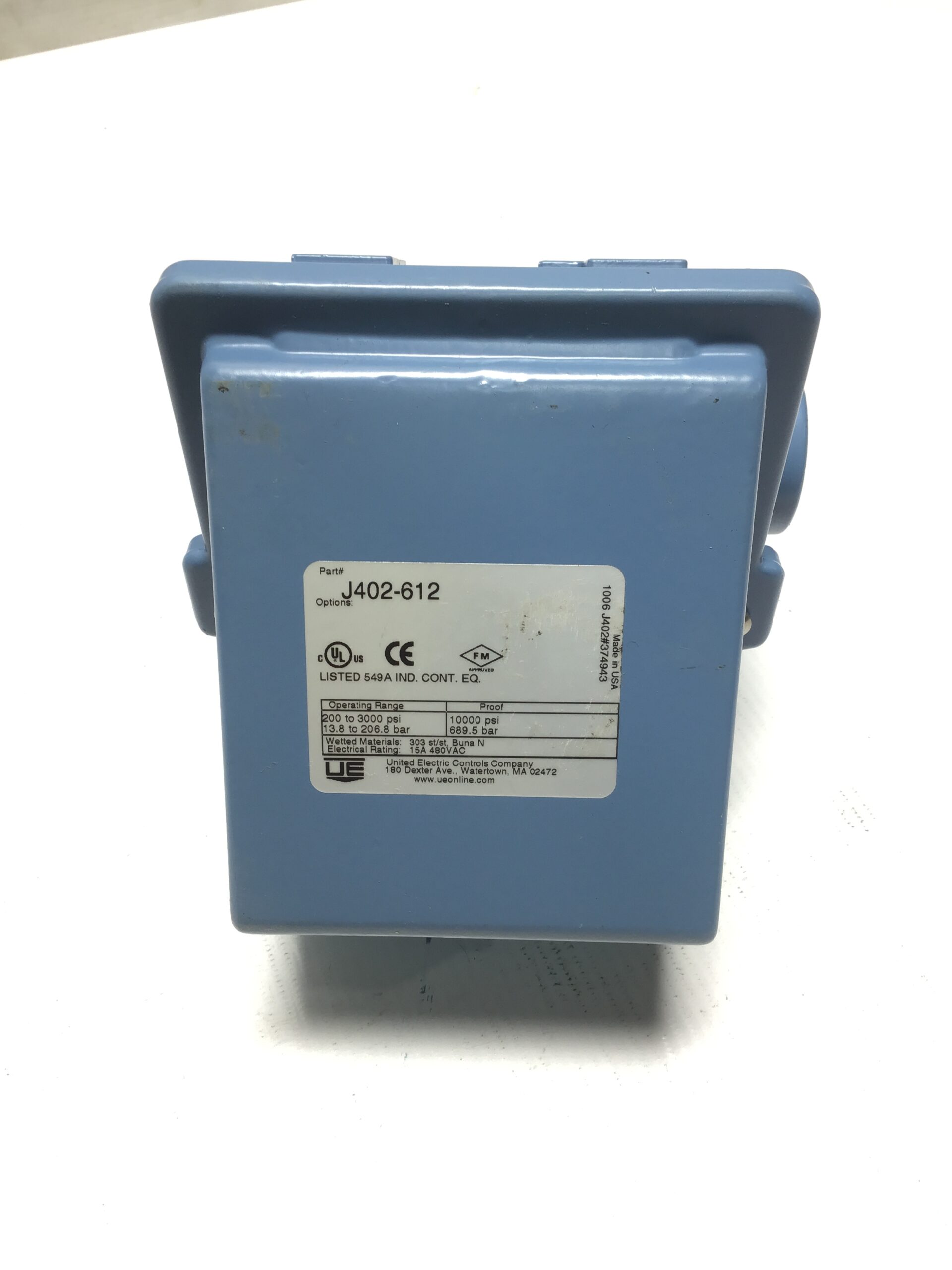

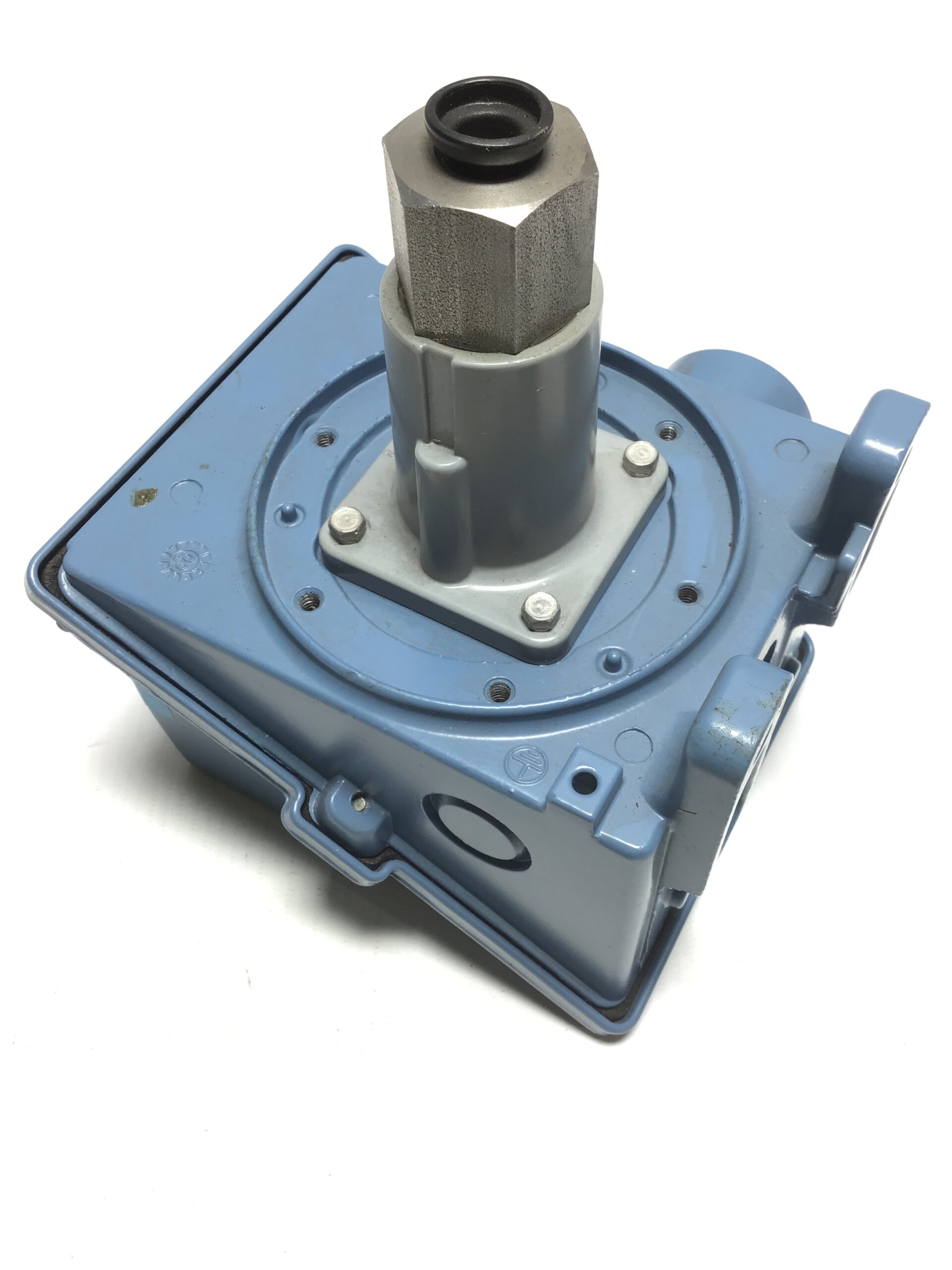

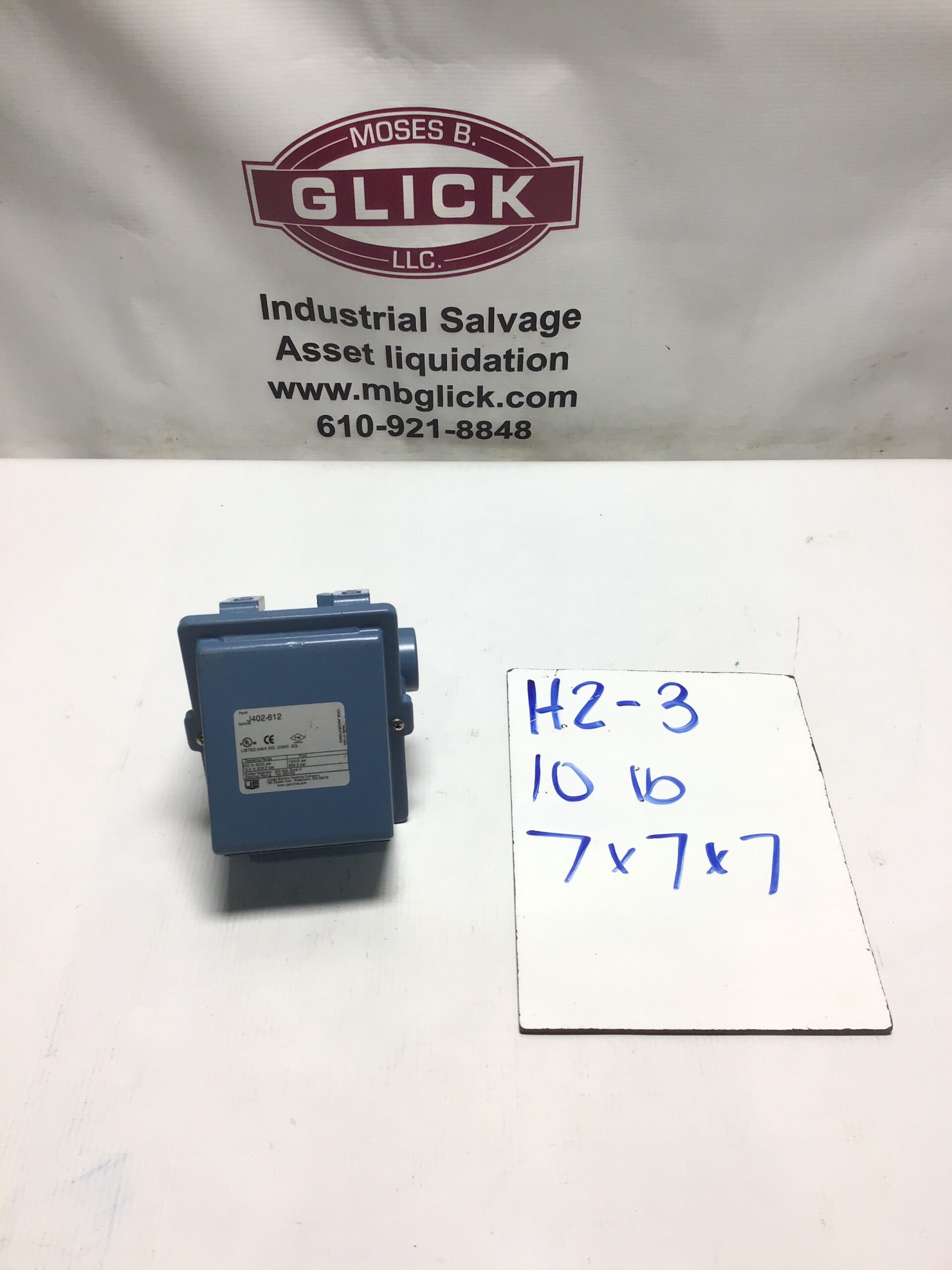

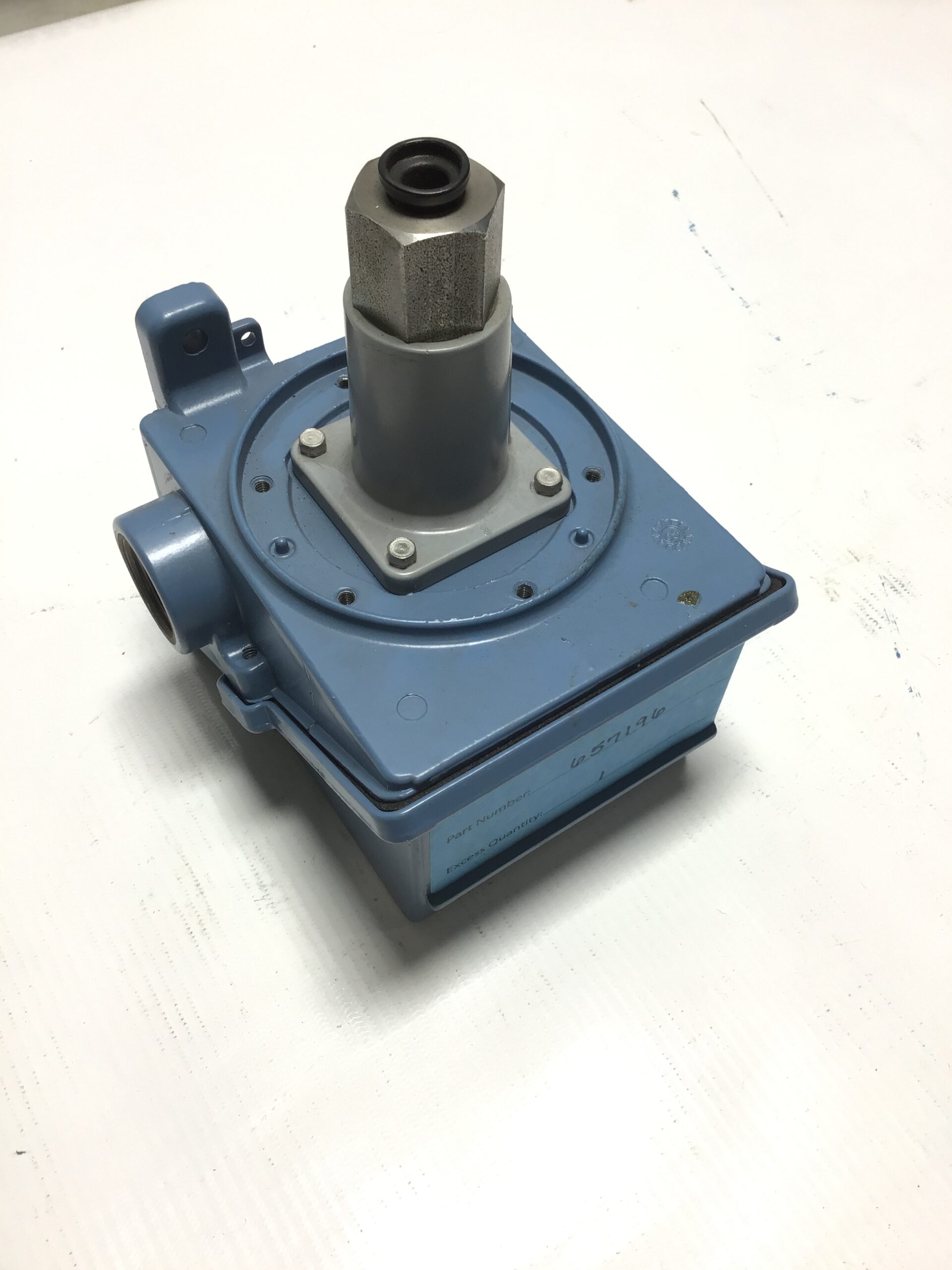

UE  J402-612 200-3000PSI PRESSURE SWITCH

The United Electric J402-612 Pressure Switch is engineered for precise pressure monitoring and control in industrial applications.

Key Features:

• Adjustable Pressure Range: Offers an adjustable setpoint from 200 to 3,000 PSI, accommodating a wide range of pressure control needs.

• Switch Configuration: Equipped with two SPDT (Single Pole Double Throw) switches, allowing for multiple control or alarm functions.

• Construction: Features a 303 stainless steel piston and Buna-N O-ring, ensuring durability and compatibility with various media. The 1/4″ NPTF 303 stainless steel pressure connection provides a secure and corrosion-resistant interface.

• Enclosure: Housed in an epoxy-coated die-cast aluminum NEMA 4X enclosure, offering protection against dust and water ingress.

• Electrical Rating: The switches are rated for 15A at 125/250/480 VAC, suitable for controlling various electrical loads.

Applications:

This pressure switch is ideal for industries requiring precise pressure regulation, including:

• Hydraulic Systems: Monitoring and controlling pressure in hydraulic circuits.

• Pneumatic Systems: Ensuring optimal pressure levels in pneumatic applications.

• Industrial Equipment: Protecting machinery by ensuring pressure remains within safe operating limits.
