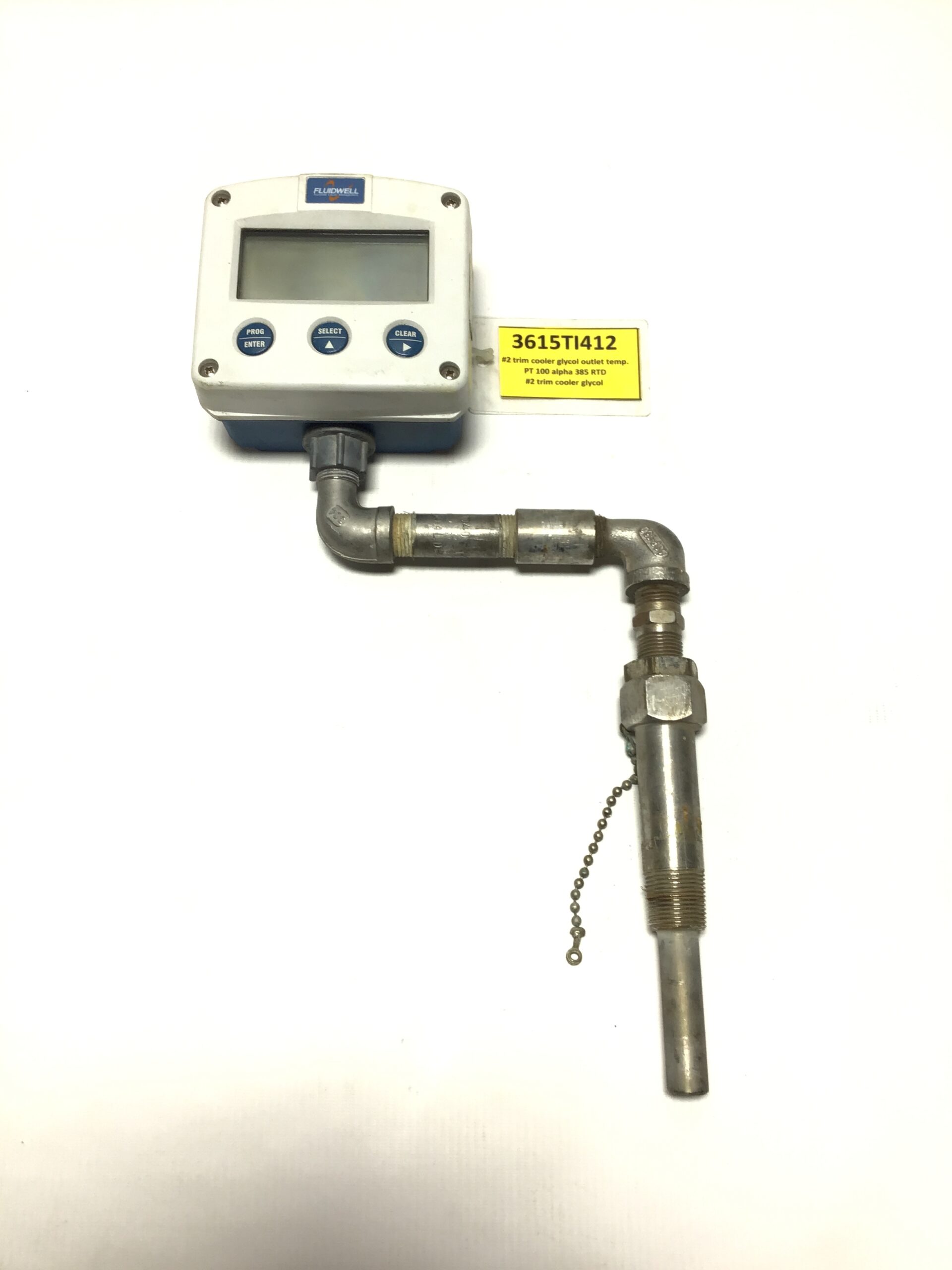

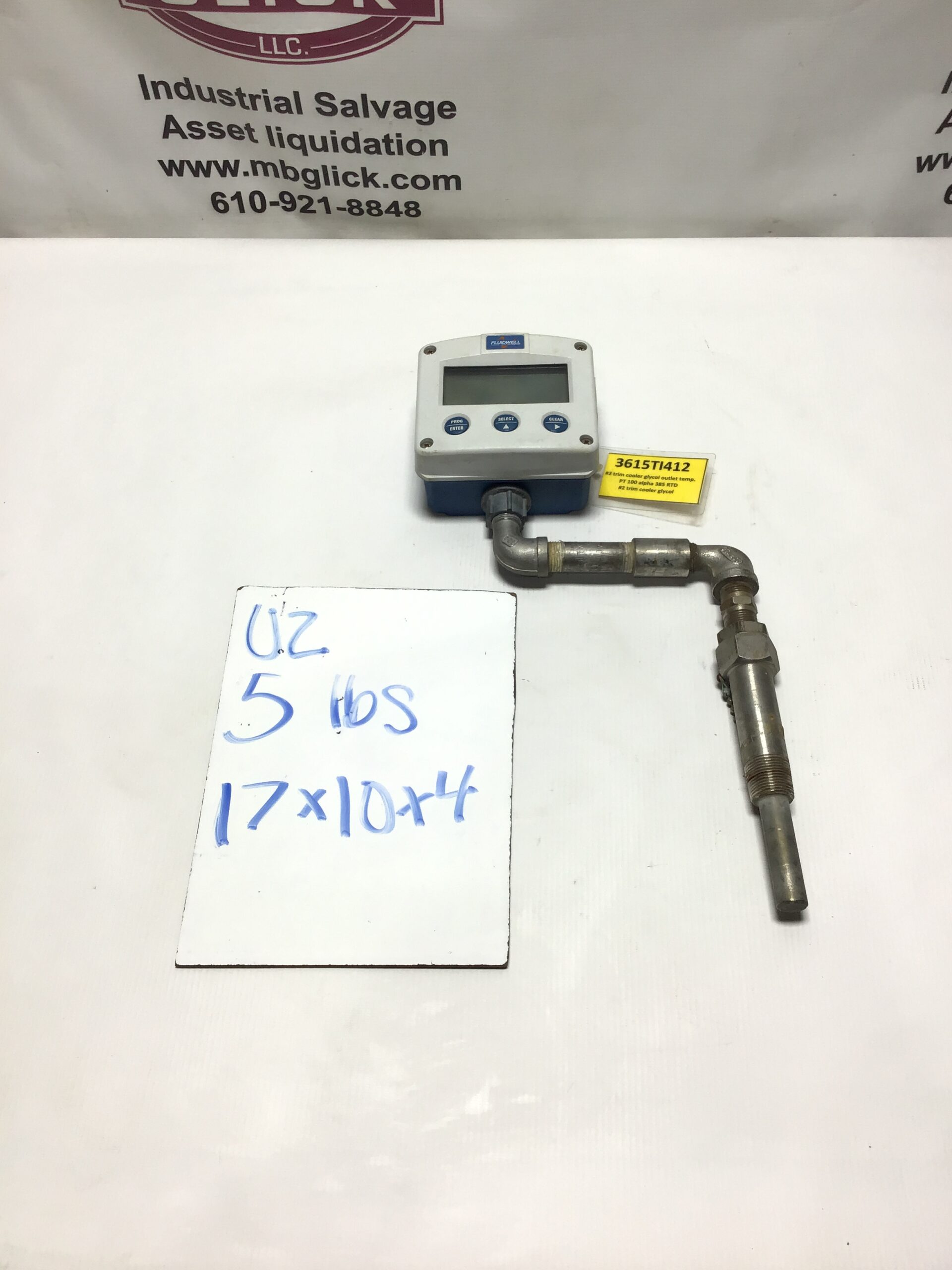

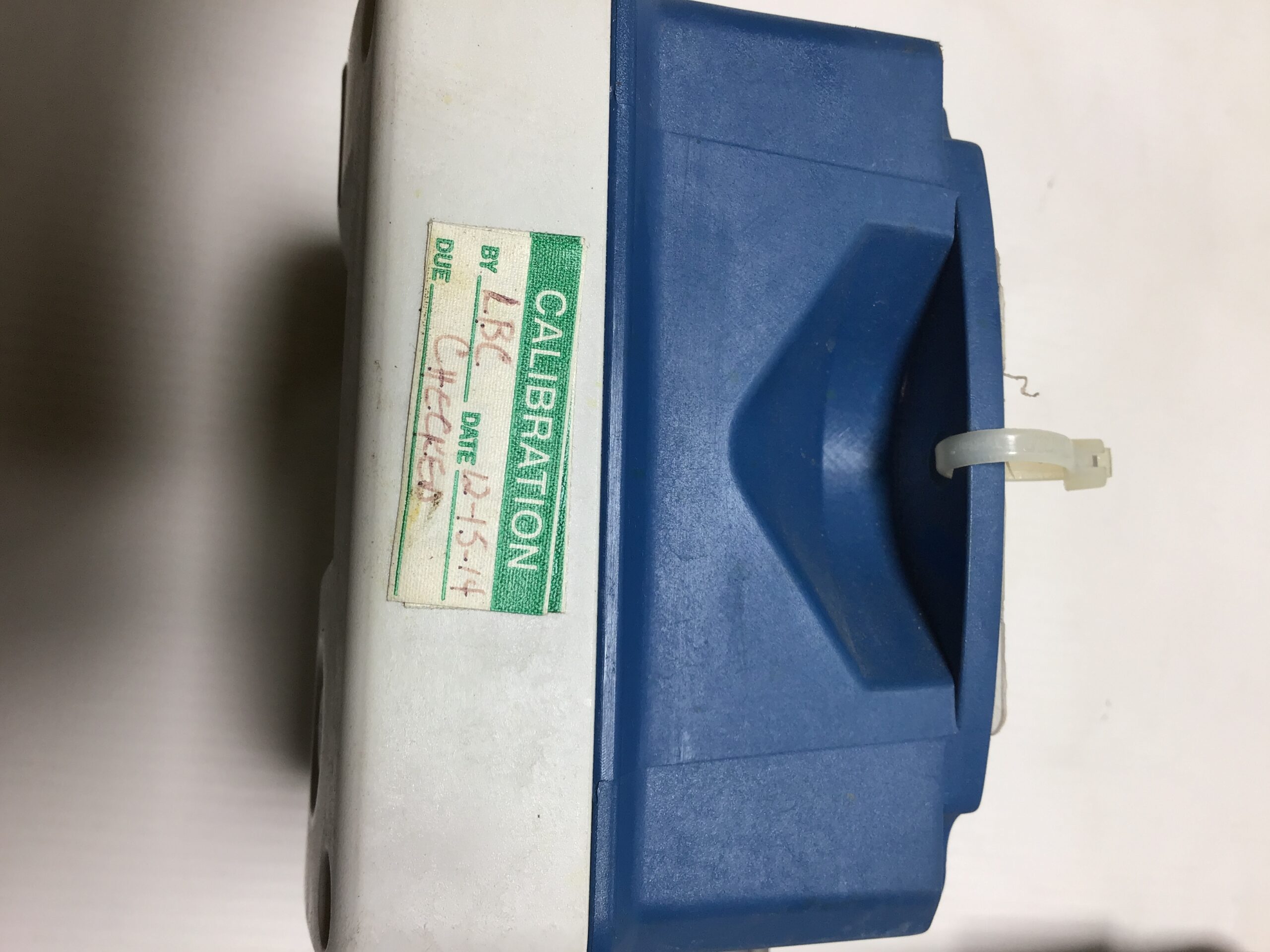

Fluidwell F116 Differential Sum Flow Computer

The Fluidwell F116 Differential Sum Flow Computer is a specialized instrument used for flow measurement and data calculation in industrial applications. It is commonly used to measure and monitor the flow of liquids or gases in processes where differential pressure is used to calculate flow rates, such as in pipe networks, chemical processing, and oil and gas industries.

Key Features:

1. Differential Pressure Measurement:

   • The F116 uses differential pressure (DP) to measure the flow of fluid through a pipeline. Differential pressure is the difference between the pressure at two points in the pipeline (typically across an orifice plate or flow meter), and this pressure difference is used to calculate the flow rate.
   • The F116 can measure the differential pressure and convert it into flow readings, which are important for systems where traditional flow meters may not be practical.

2. Sum Flow Calculation:

   • The Sum Flow function is a feature that allows the F116 to sum total flow over time, providing accumulated flow totals for a specified period. This is useful for applications where you need to keep track of total fluid or gas usage in industrial operations or monitor consumption levels.

3. Wide Measurement Range:

   • The F116 is designed to handle a broad range of flow rates and can be configured for various fluids, including liquids and gases. It is suitable for processes where precise flow monitoring and control are essential.

4. Versatile Input Options:

   • It can receive inputs from various flow sensors, differential pressure transmitters, and other measurement devices. The F116 is highly adaptable to different system setups and sensor types, providing flexibility for installation in a variety of industrial settings.

5. User-Friendly Display:

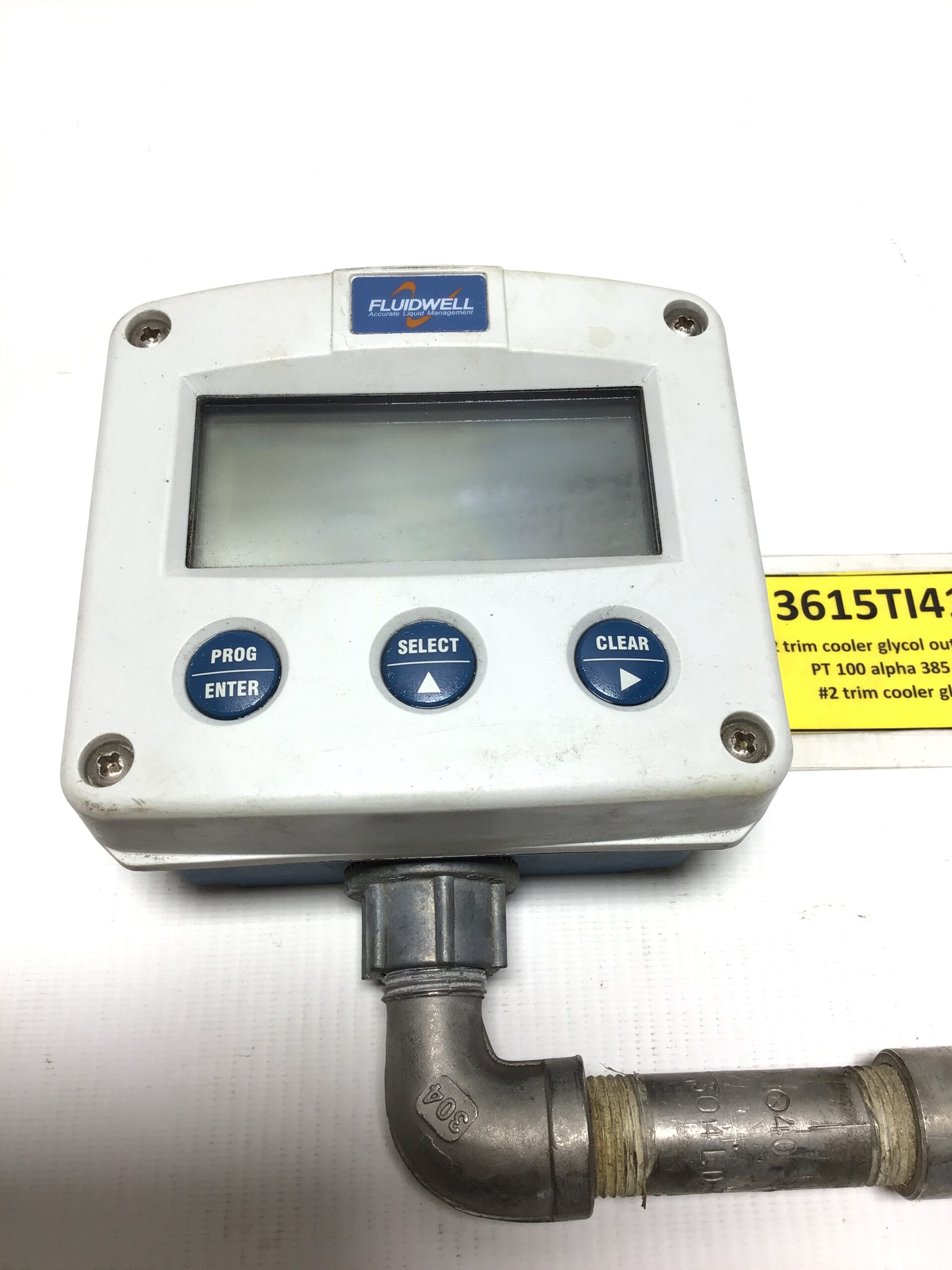

   • The F116 features an easy-to-read display that shows real-time flow data, including the differential pressure, flow rate, and accumulated total flow. This allows operators to monitor the system in real-time and ensure accurate operation.
   • Some models may offer digital displays, which can show measurements in multiple formats and allow for configuration adjustments directly on the screen.

6. Digital and Analog Outputs:

   • The F116 typically supports both analog and digital outputs, allowing it to integrate with other process control systems, such as SCADA systems, PLC control systems, or data loggers.
   • Analog outputs allow the F116 to send a continuous signal (such as 4-20mA) to other equipment, while digital outputs may be used for transmitting discrete flow information or for integration into more complex systems.

7. Data Logging and Alarm Features:

   • The device may include data logging capabilities to record flow data over time, which can be useful for analysis or troubleshooting.
   • It can also be programmed with alarm thresholds to notify operators when flow rates exceed or drop below preset levels, ensuring quick responses to abnormal conditions.

8. Industrial Durability:

   • The Fluidwell F116 is built to be rugged and durable, suitable for harsh industrial environments, including those with high temperatures, high pressures, or corrosive fluids.
   • Its casing is typically designed to be weatherproof and dustproof, making it suitable for outdoor installations.
