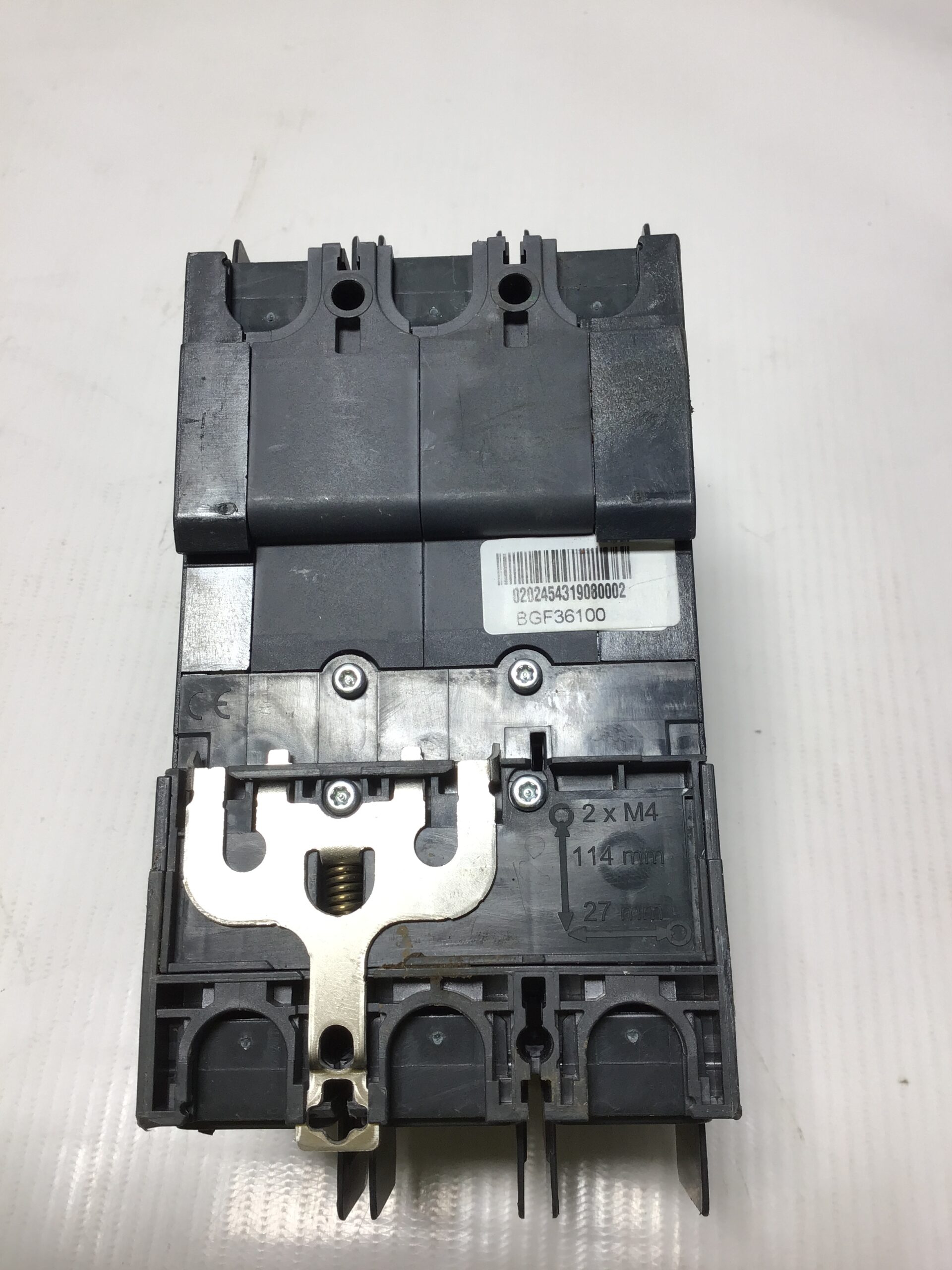

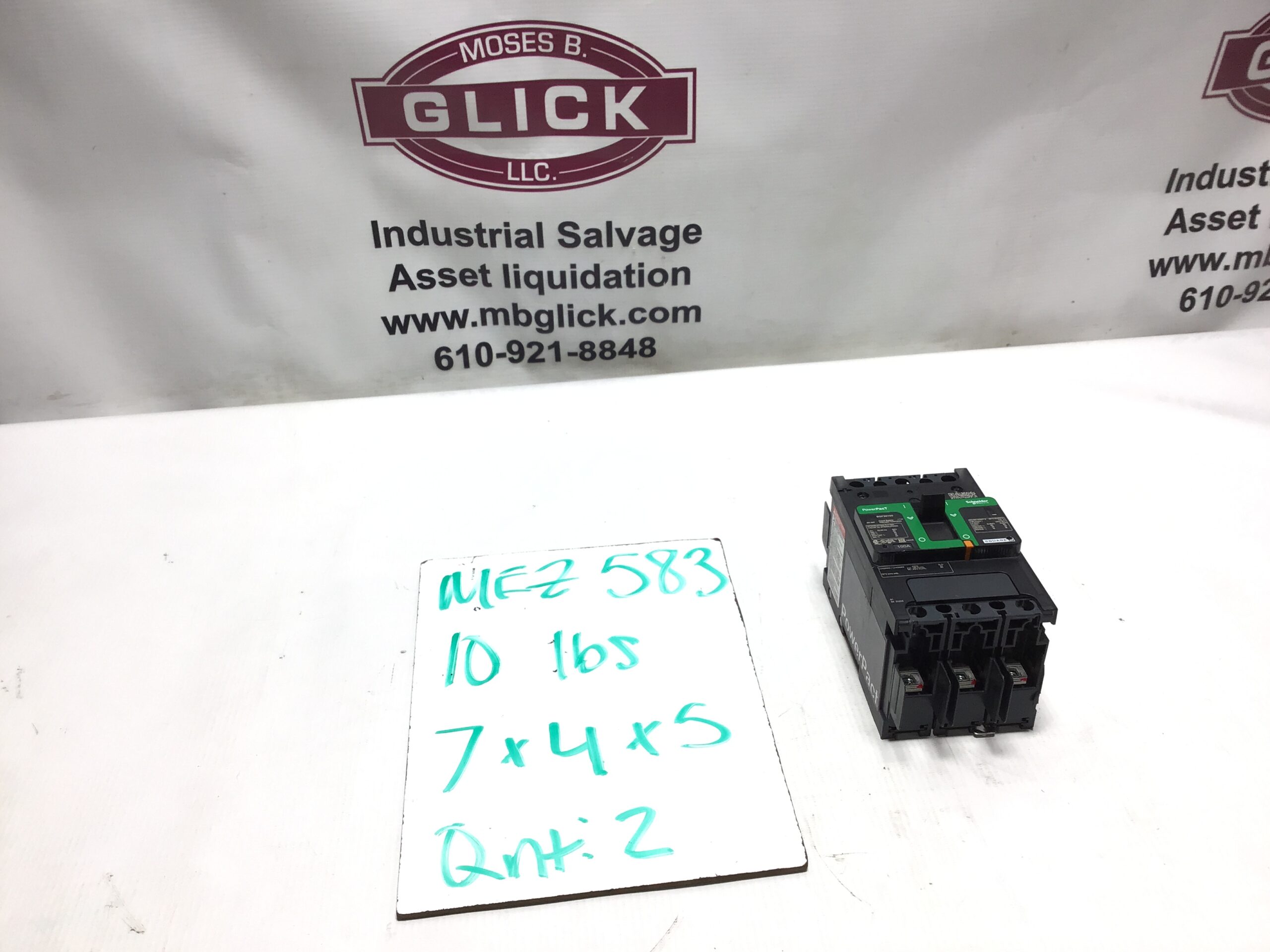

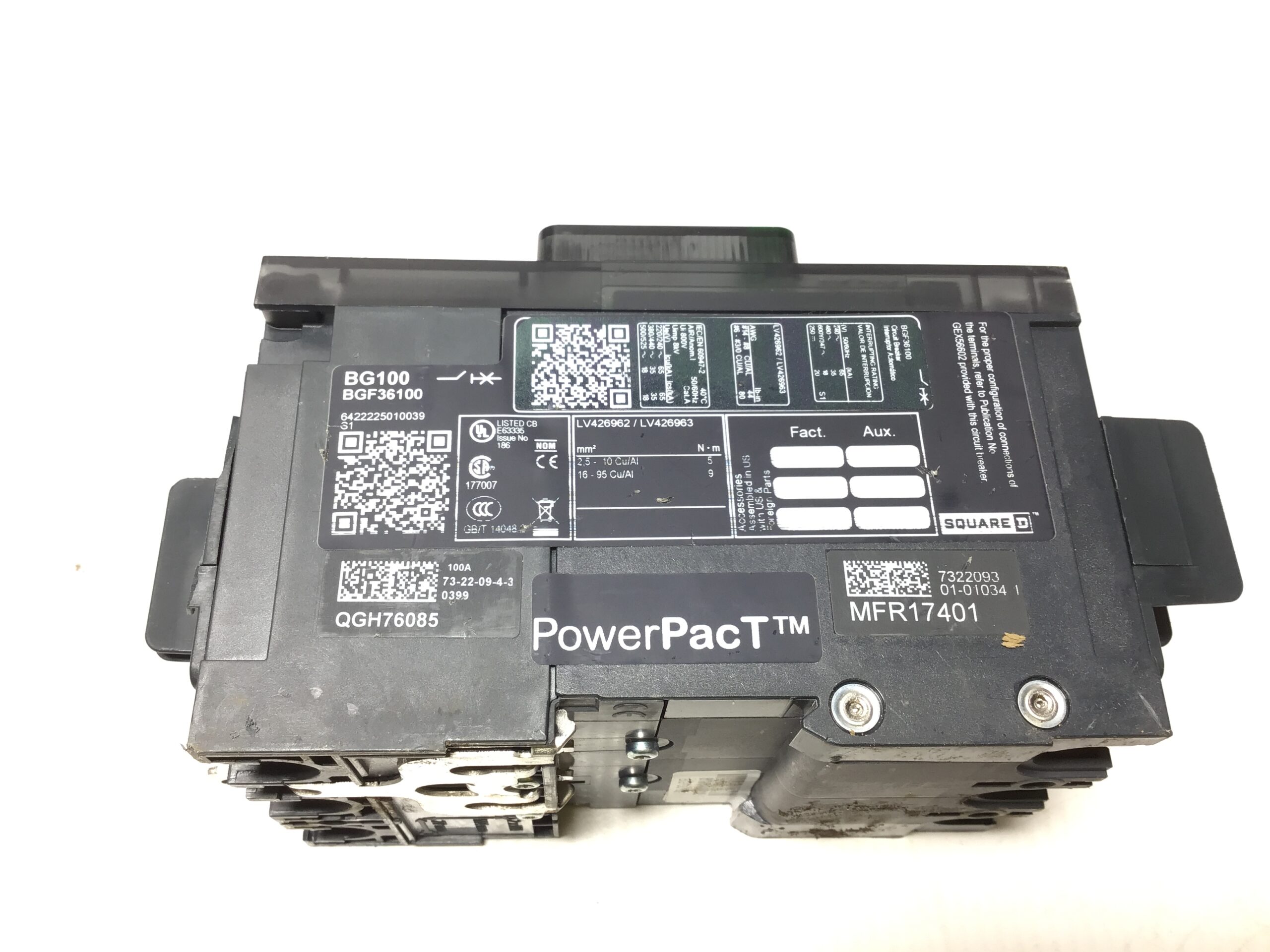

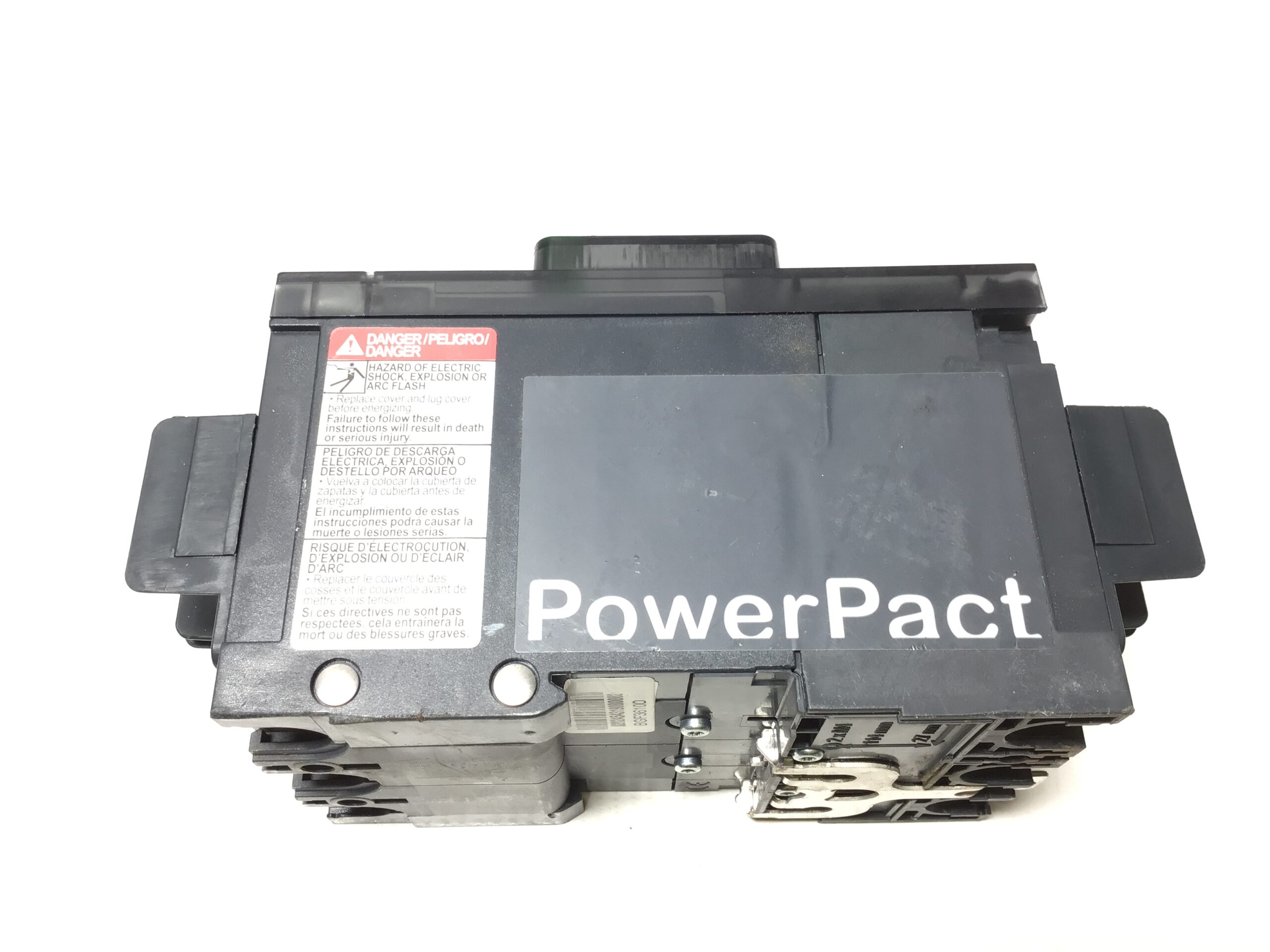

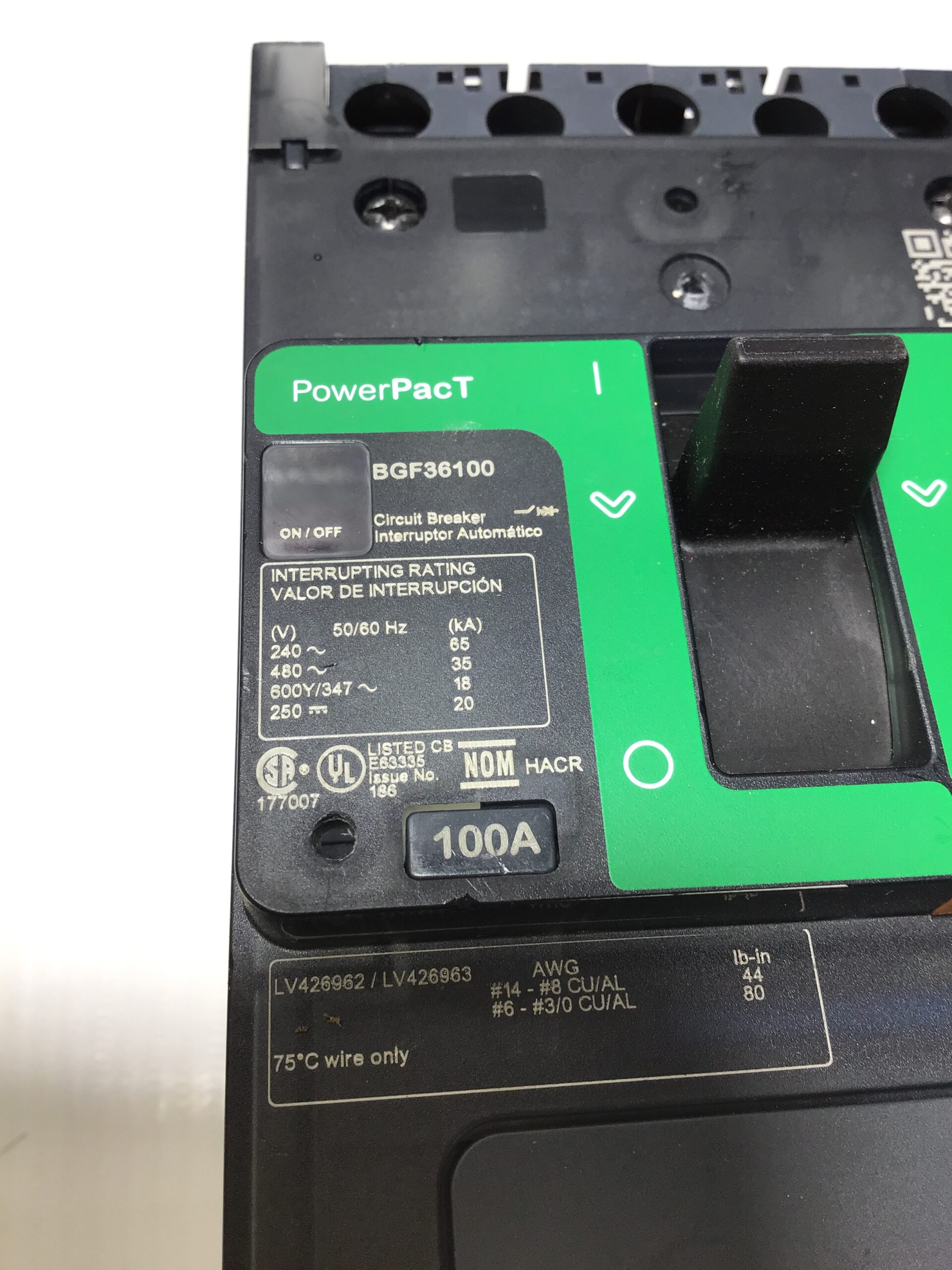

Square D BGL36100 100amp 3 Pole Circuit Breaker

The Square D BGL36100 100amp 3 Pole Circuit Breaker is a robust and reliable circuit breaker designed for industrial applications. Here are some key details:

Features:

• Voltage: 600Y/347VAC

• Amp Rating: 100 Amps

• Poles: 3 Pole

• Breaking Capacity: 35kA@480V

• Trip Unit Technology: Thermal-magnetic (Long-Time and Instantaneous Protection)

• Mounting: I-Line connection line / Lugs load

• Dimensions: 5.39 in H x 3.19 in W x 3.15 in D

• Weight: 2.37 lbs

• Connection Type: Feed-Thru with EverLink connectors

• Continuous Current Rating: 80%

• Control Type: Toggle

• Standards: UL 489 Listed, CSA C22.2 No. 142 Listed

Applications:

• Industrial Power Distribution: Ideal for protecting electrical circuits in industrial settings

• Commercial Use: Suitable for commercial buildings requiring reliable circuit protection

• HVAC Systems: Ensures safe operation of HVAC electrical systems
