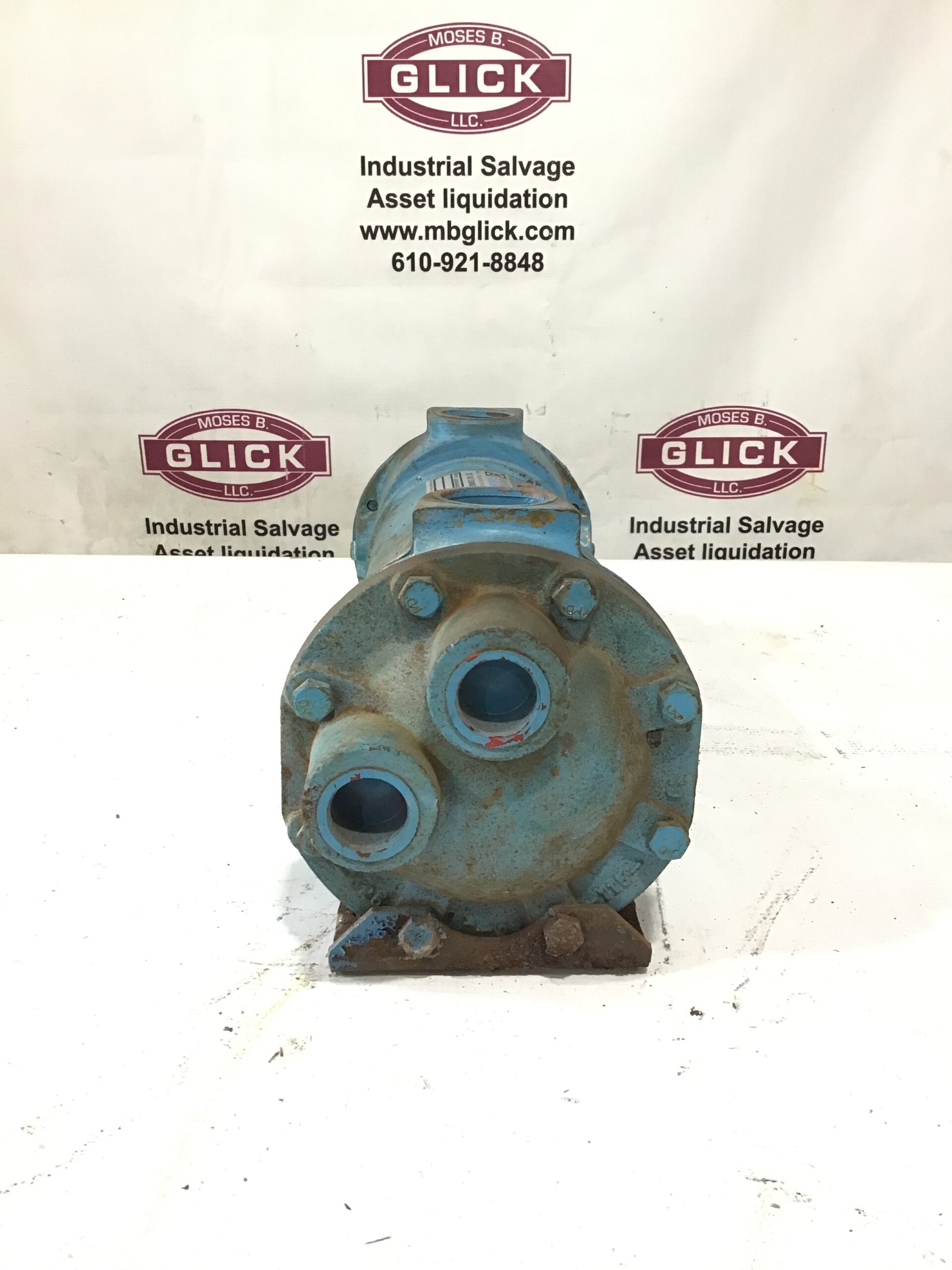

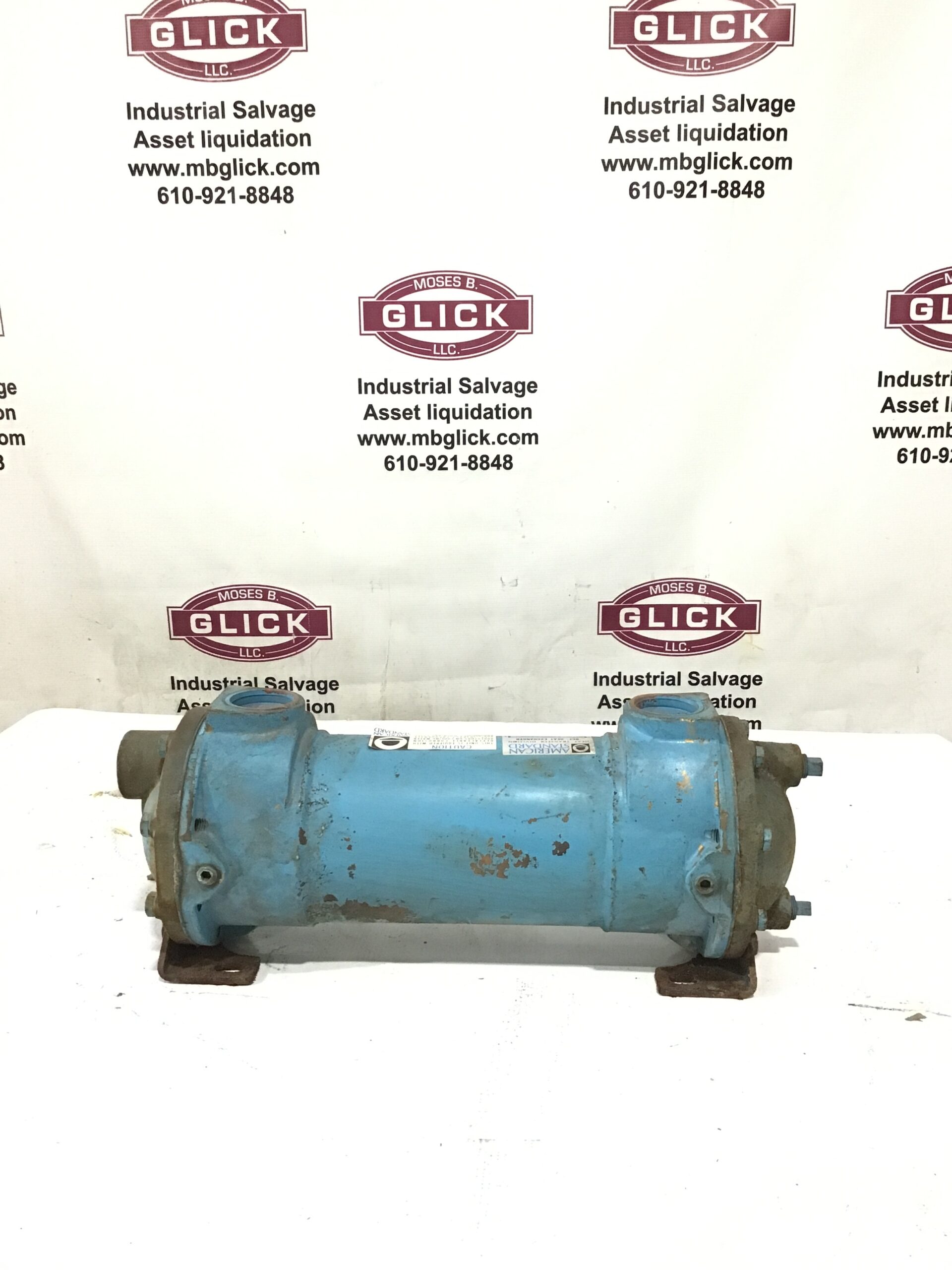

American Standard 5-030-05-014-C05 BCF Shell & Tube Heat Exchanger

The American Standard 5-030-05-014-005 BCF Shell & Tube Heat Exchanger is a heavy-duty industrial heat exchanger engineered for efficient fluid-to-fluid heat transfer in a wide range of commercial and industrial applications. Featuring a rugged brass shell with copper tubes, this unit is designed to provide dependable thermal performance for cooling or heating water, oil, and other compatible process fluids. Its compact shell-and-tube construction makes it well suited for hydraulic systems, compressors, process equipment, HVAC applications, and machinery requiring reliable temperature control. This model features a 4-pass tube design with narrow baffle spacing, promoting improved heat transfer efficiency while maintaining a compact footprint. Built for continuous-duty operation, the exchanger is rated for temperatures up to 300°F, with a maximum 300 PSI shell pressure and 150 PSI tube pressure, making it a durable solution for demanding industrial environments.

Features:

• Manufacturer: American Standard / Standard Xchange

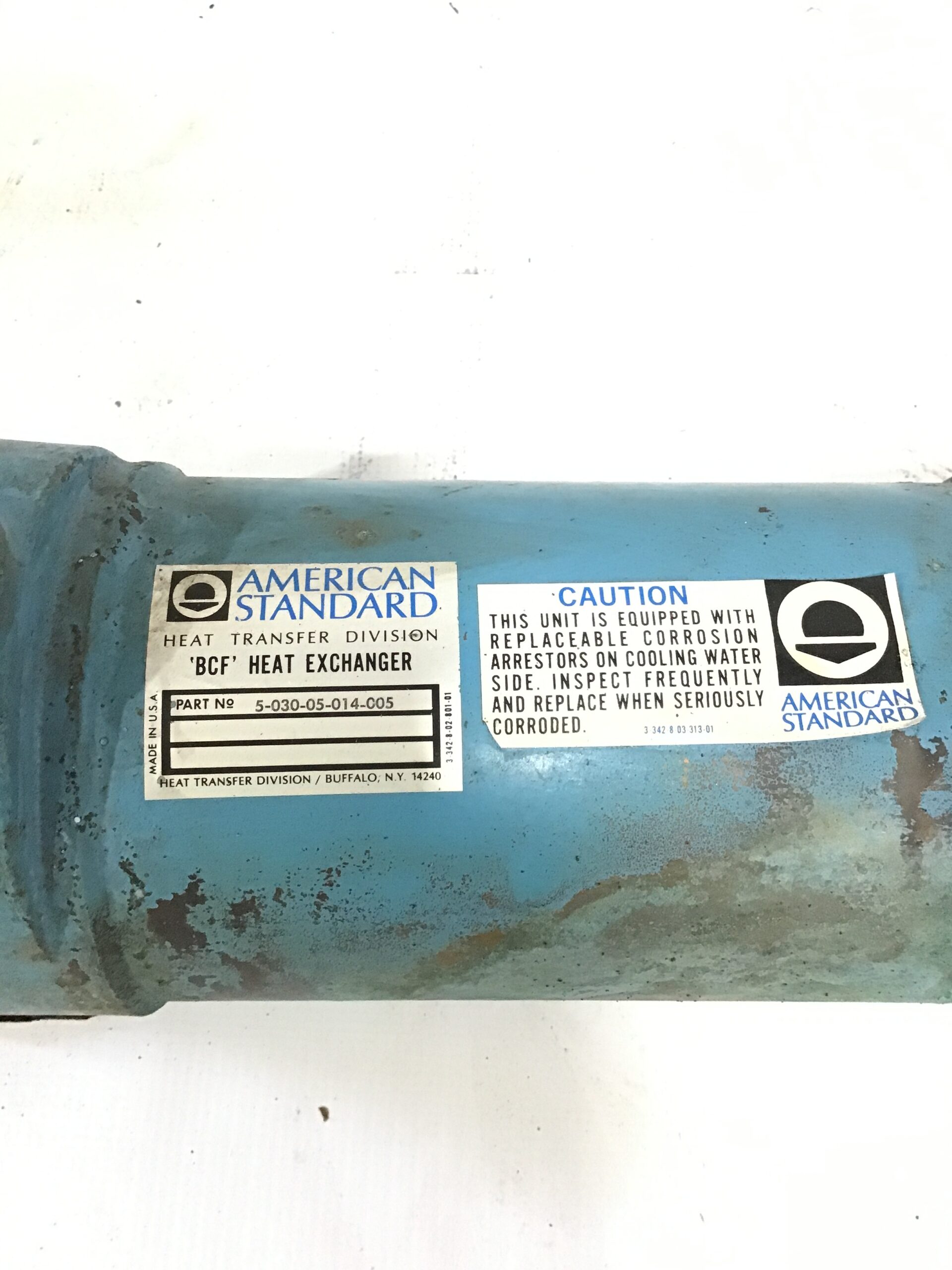

• Model: 5-030-05-014-005
• BCF Series shell & tube heat exchanger
• Heavy-duty brass shell with copper tube construction
• 4-pass tube configuration
• Narrow baffle spacing for enhanced heat transfer
• Maximum shell pressure: 300 PSI
• Maximum tube pressure: 150 PSI
• Maximum operating temperature: 300°F
• Suitable for industrial cooling and heating applications
• Ideal for hydraulic systems, compressors, process equipment, and OEM replacement installations
