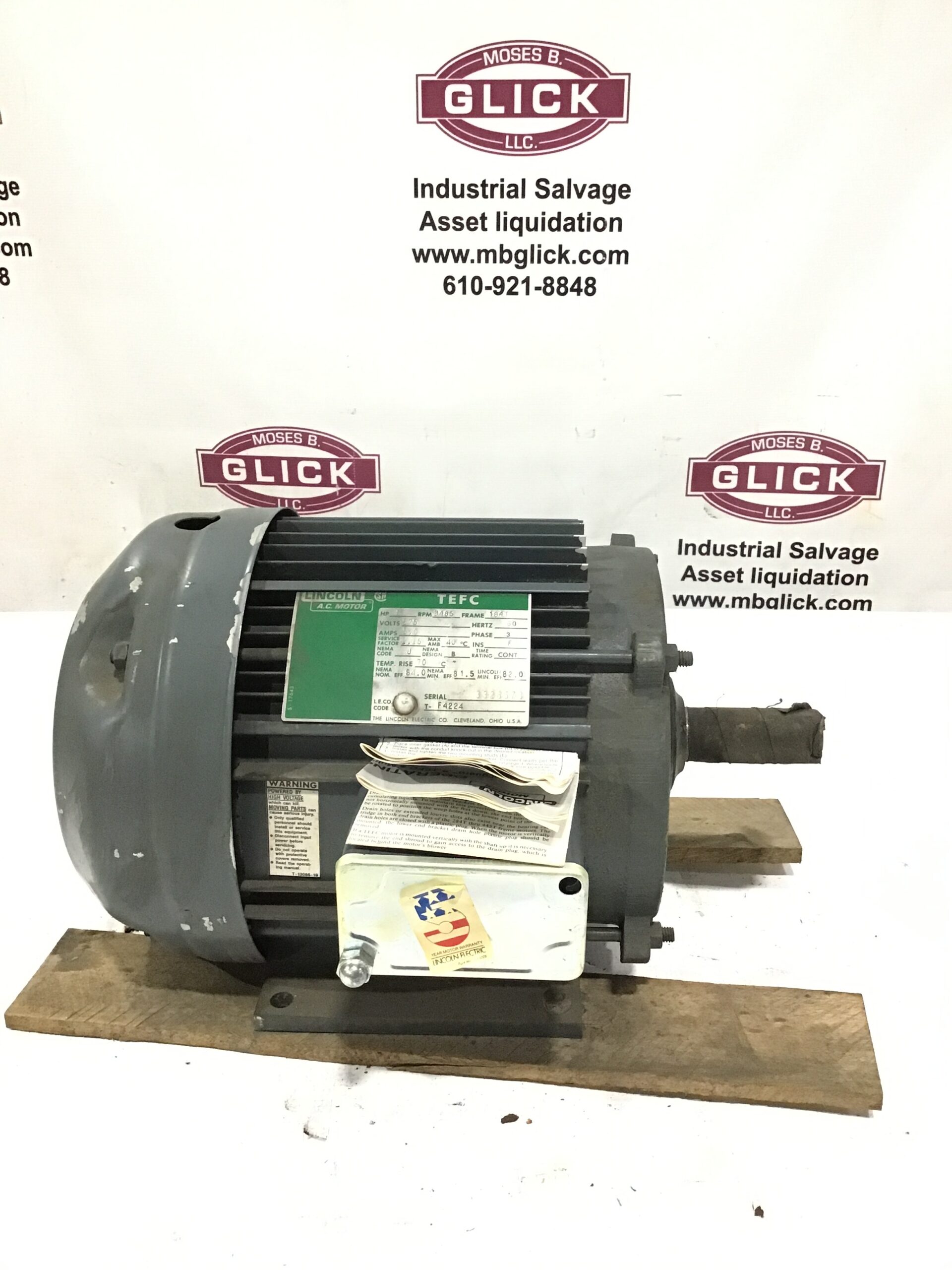

Lincoln AC Motor 5HP 3PH 3485RPM

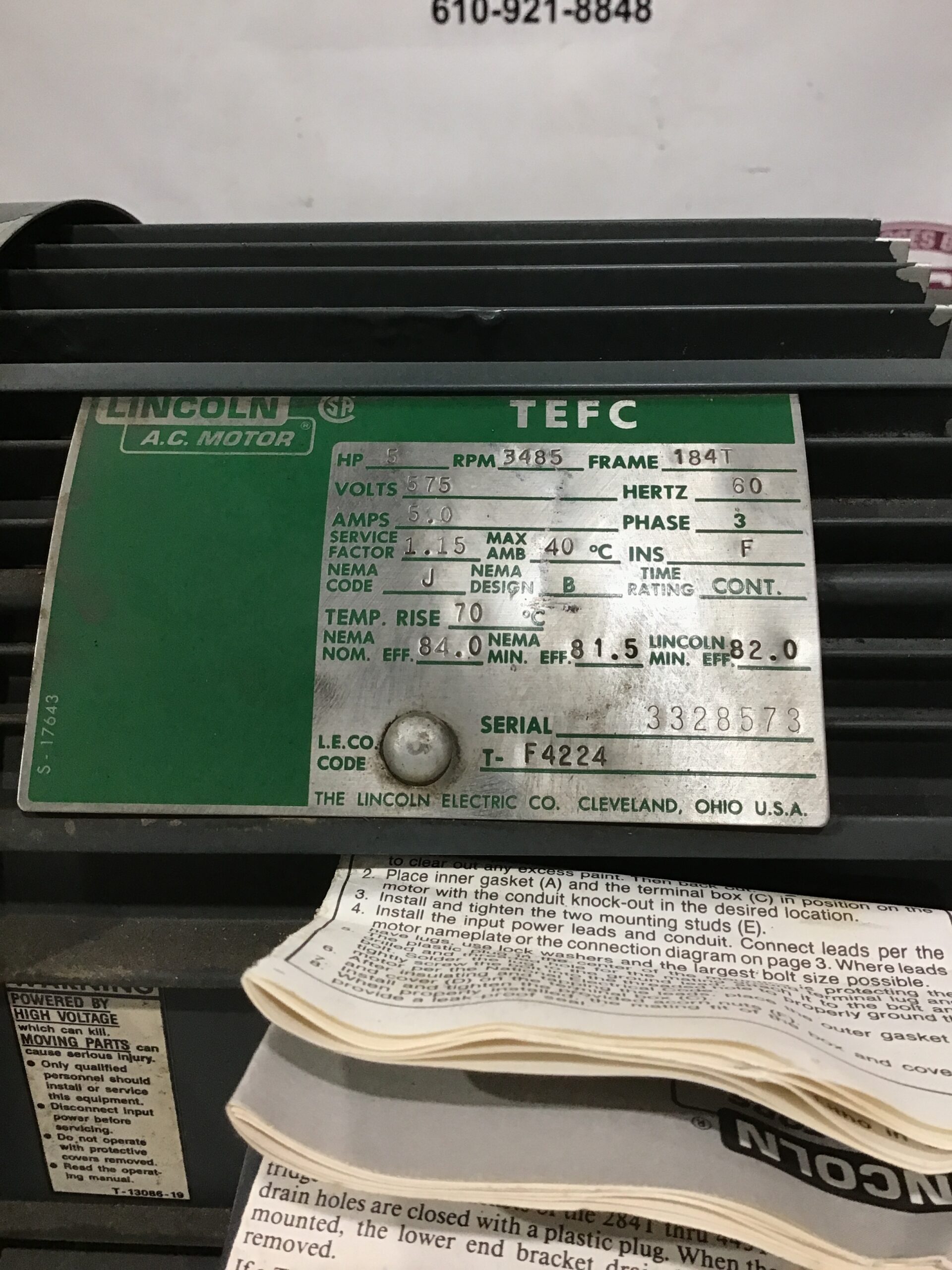

Experience unparalleled performance with the Lincoln AC Motor, featuring a robust 5HP power output and a three-phase design that operates at 3485 RPM. Engineered for efficiency, this motor boasts a NEMA nominal efficiency of 84.00% and a minimum efficiency of 82.0%, ensuring optimal energy use while maintaining a maximum ambient temperature of 40°C and a temperature rise of 70°C. With a NEMA Code J and Design B classification, this motor is built to handle demanding applications with ease, making it the ideal choice for industrial settings. Upgrade your operations with the reliability and power of the Lincoln AC Motor today

🔌 Three-phase (3PH) motor designed for stable and efficient power delivery in industrial systems

⚡ Rated 5HP horsepower output for strong and consistent mechanical performance

🚀 High-speed operation at 3485 RPM for fast-driven equipment and productivity-focused applications

🔋 Electrical input rated at 575V with 5 Amps for compatible industrial power systems

📡 Operates at 60Hz frequency for standard industrial and commercial electrical networks

🏭 NEMA Design B construction providing standard torque and dependable starting characteristics

🔐 NEMA Code J rated motor for defined locked-rotor performance and electrical specifications

🧲 Insulation Class F design for enhanced heat resistance and long service life under load

🌡️ Maximum ambient temperature rating of 40°C for safe operation in industrial environments

🔥 Temperature rise rated at 70°C to ensure controlled thermal performance during continuous use

⚙️ Service Factor 1.15 allowing extra load capacity during peak or temporary overload conditions

📊 NEMA nominal efficiency rated at 84.00 for optimized energy performance

📉 NEMA minimum efficiency rated at 81.5 with Lincoln minimum efficiency rated at 82.0 for consistent standards compliance
