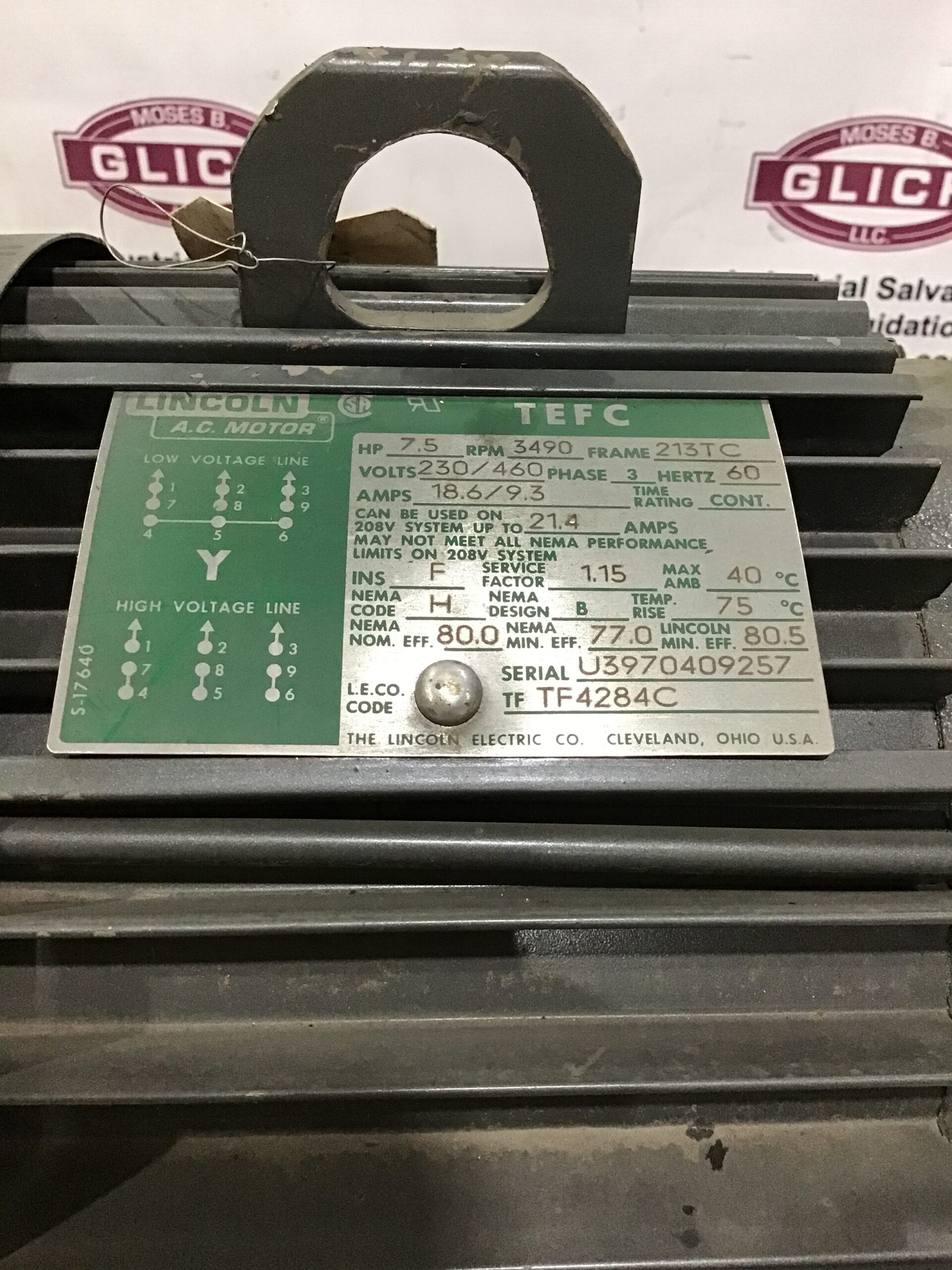

Experience unparalleled performance with the Lincoln Electric AC Induction Motor, featuring a robust 7.5HP power output and a reliable 3-phase design. Operating at 3490 RPM, this motor delivers exceptional efficiency with a current draw of 18.6/9.3 Amps at 60Hz, ensuring optimal functionality for your industrial applications. Built to withstand demanding environments, it boasts a maximum ambient temperature of 40°C and a temperature rise of 75°C, all while adhering to NEMA Code H and Design B standards. With a durable frame size of 213TC and dual voltage capability of 230/460V, this motor is engineered for longevity and reliability, making it the ideal choice for your heavy-duty needs.
⚡ 7.5HP AC induction motor built for reliable industrial and commercial performance
🔌 Three-phase (3PH) configuration for smooth, efficient, and balanced power output
🔌 Dual voltage capability at 230/460V for flexible installation across various systems
🔄 High operating speed of 3490 RPM ideal for high-performance machinery
📊 Rated current of 18.6/9.3 Amps for flexible voltage compatibility
⏱️ Operates at standard 60Hz frequency for consistent operation
📈 Service Factor of 1.15 allows the motor to handle temporary overload conditions
🔥 Insulation Class F ensures excellent heat resistance and extended lifespan
🏭 Designed with NEMA Design B for normal starting torque and dependable operation
⚙️ NEMA Code H provides solid locked-rotor performance and starting characteristics
🌡️ Maximum ambient temperature rating of 40°C for continuous-duty environments
🌡️ Temperature rise rated at 75°C for safe and efficient thermal performance
🛠️ Frame size 213TC offers standardized mounting compatibility and easy replacement options ()
🧱 Rugged construction suitable for demanding industrial applications
