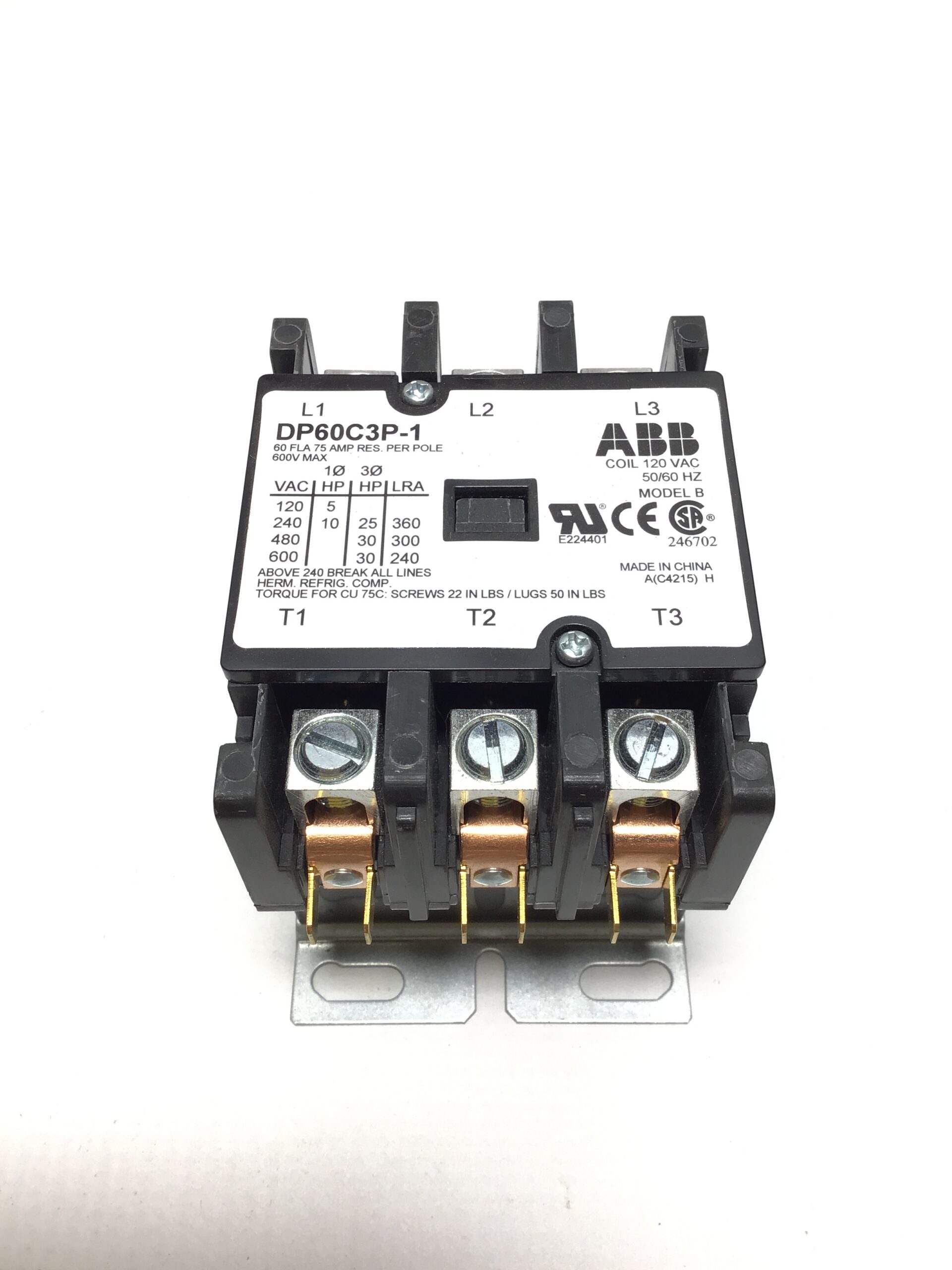

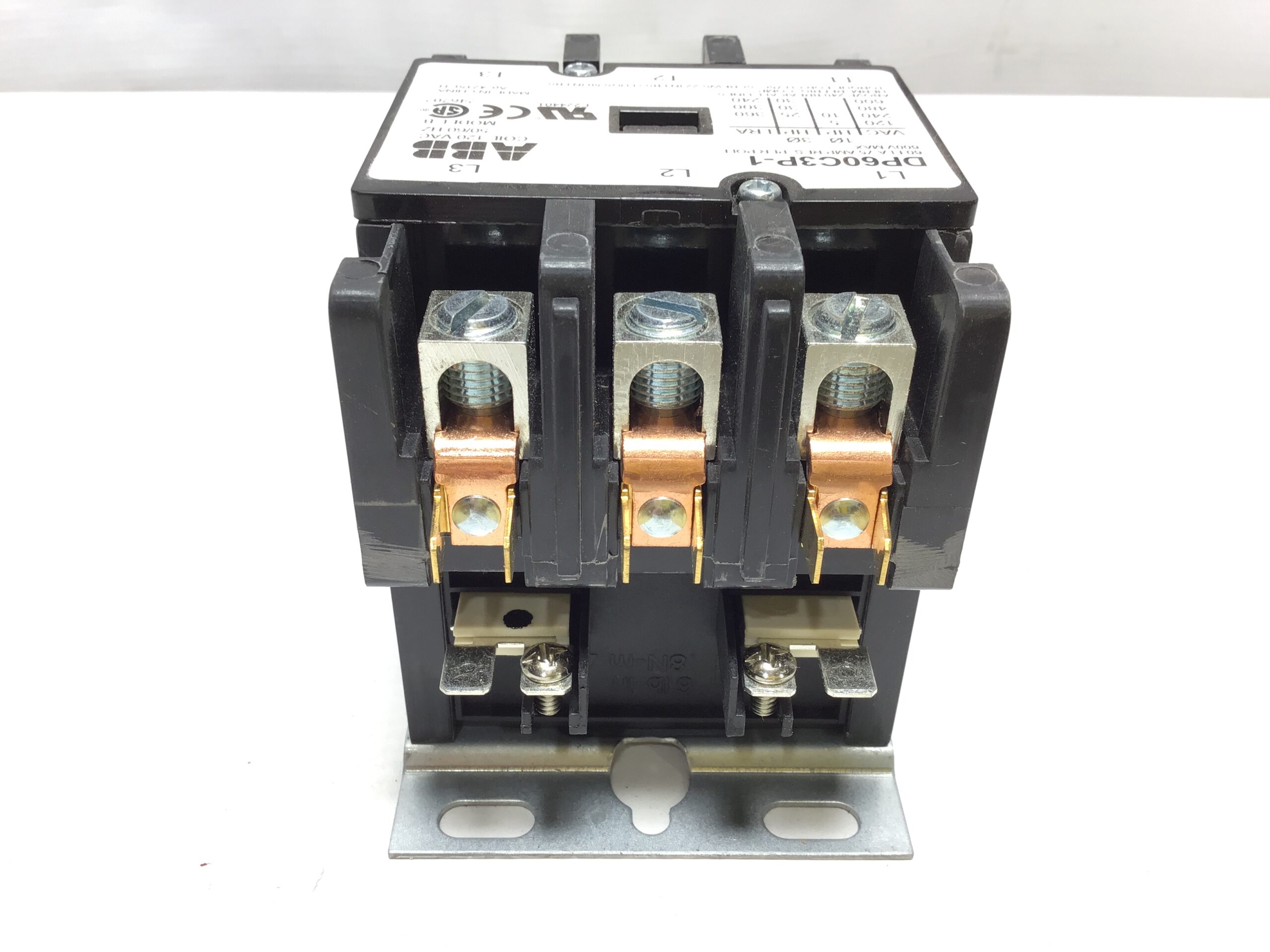

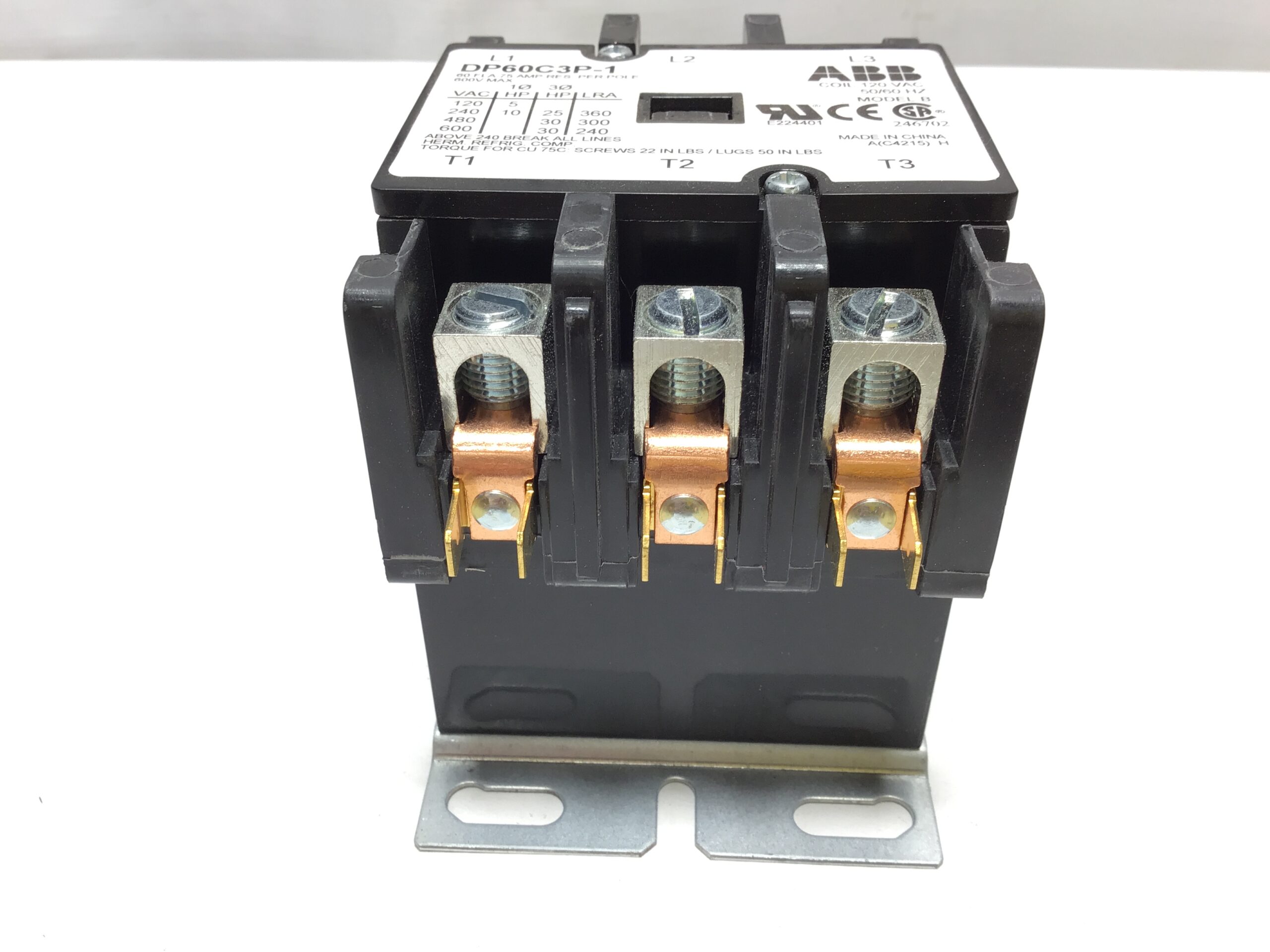

The ABB DP60C3P-1 Definite Purpose Contactor is a three-pole electrical switching device designed for reliable operation in compatible HVAC systems, air conditioning units, refrigeration equipment, compressor control circuits, and electrical control panels. Featuring a 120 VAC coil operating at 50/60 Hz, a 60 FLA rating, a 75A resistive rating, and a maximum voltage rating of 600 VAC, this contactor provides dependable switching for compatible electrical loads. It features clearly marked L1, L2, and L3 line terminals and T1, T2, and T3 load terminals, along with a metal mounting bracket for convenient installation. Manufactured by ABB, the DP60C3P-1 is suitable for compatible electrical control, equipment replacement, and maintenance applications. Verify the coil voltage, current ratings, terminal configuration, and equipment specifications to ensure proper compatibility.
Specifications:
- Brand: ABB
- Model: DP60C3P-1
- MPN: DP60C3P-1
- Number of Poles: 3
- Full Load Amperage (FLA): 60 A
- Resistive Rating: 75 A
- Coil Voltage: 120 VAC
- Coil Frequency: 50/60 Hz
- Maximum Voltage: 600 VAC
- Line Terminals: L1, L2, L3
- Load Terminals: T1, T2, T3
Applications
- HVAC systems and air conditioning equipment
- Commercial and residential refrigeration systems
- Air conditioning compressor control circuits
- Heating and cooling equipment
- Electrical control panels and switching systems
- Compatible industrial electrical equipment
- Electrical equipment maintenance and replacement
- Compatible motor and compressor switching applications
