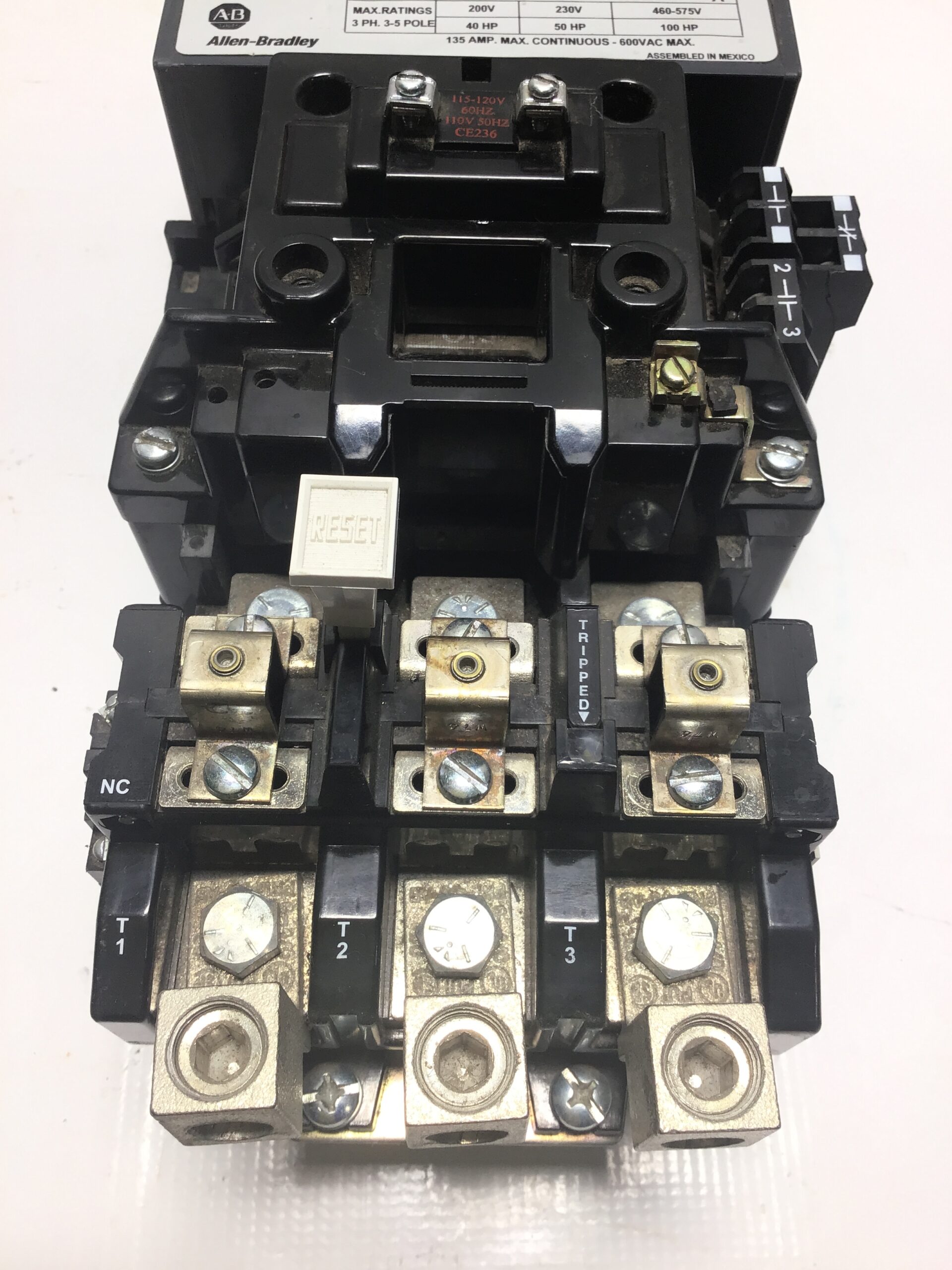

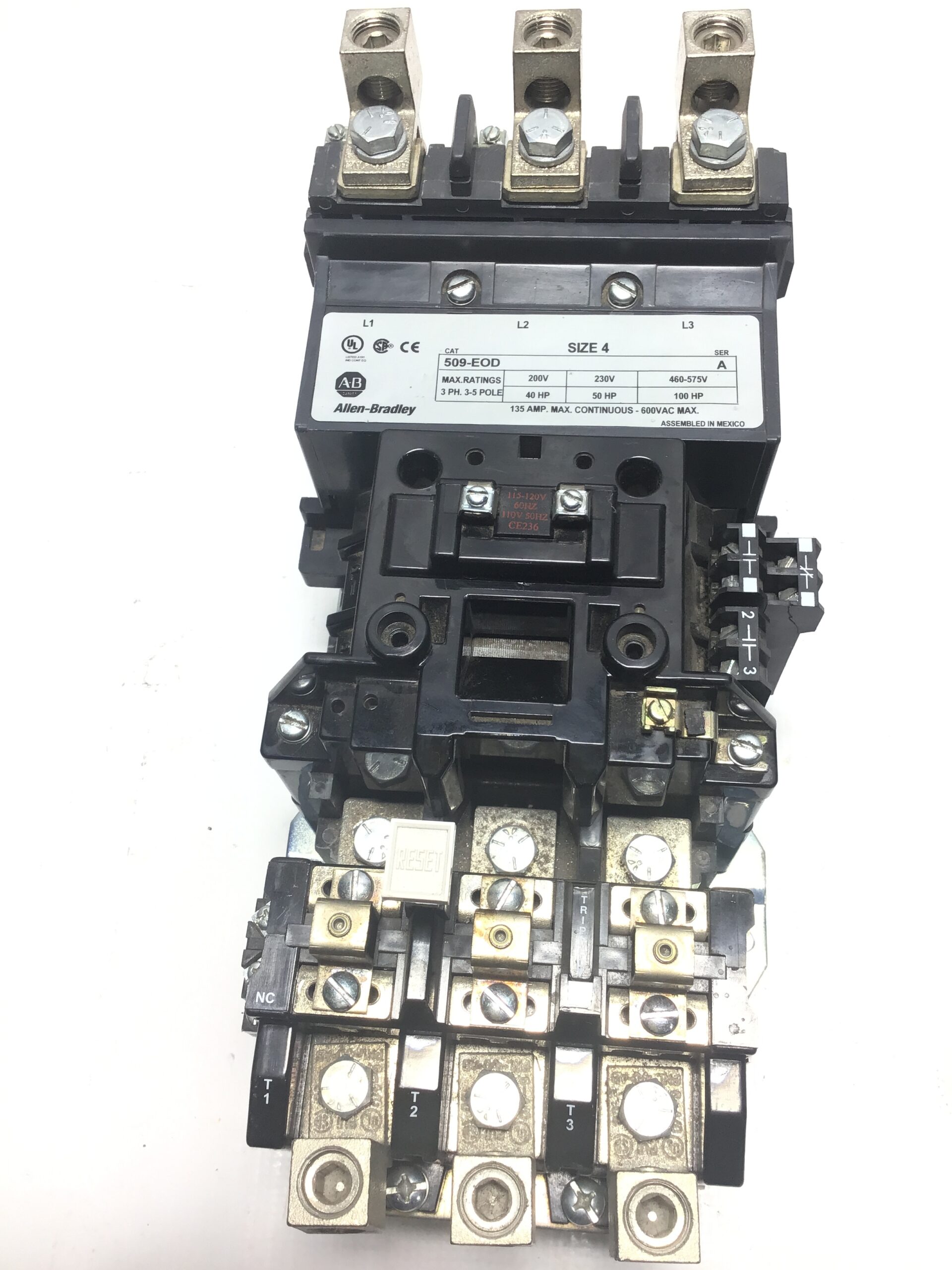

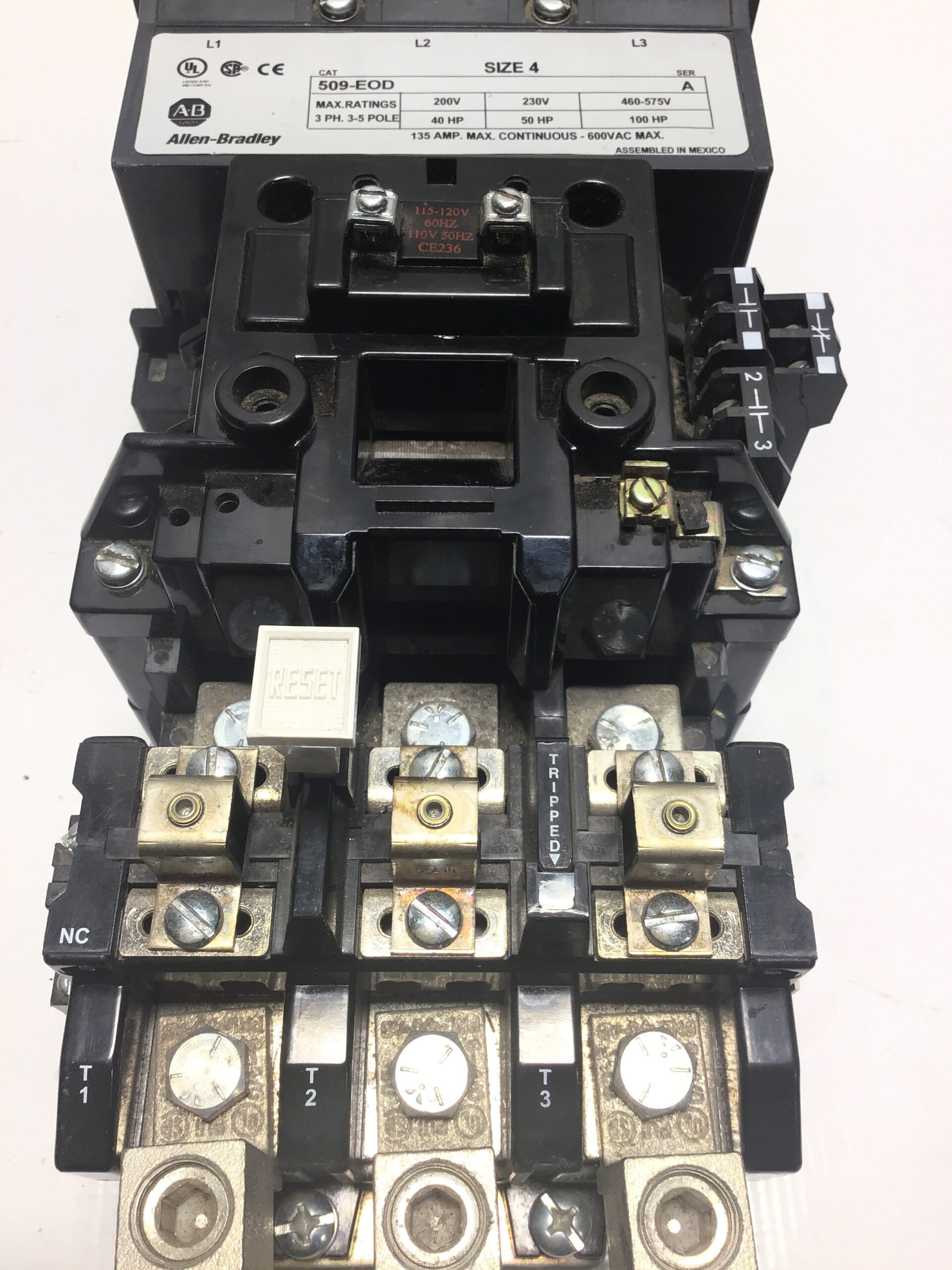

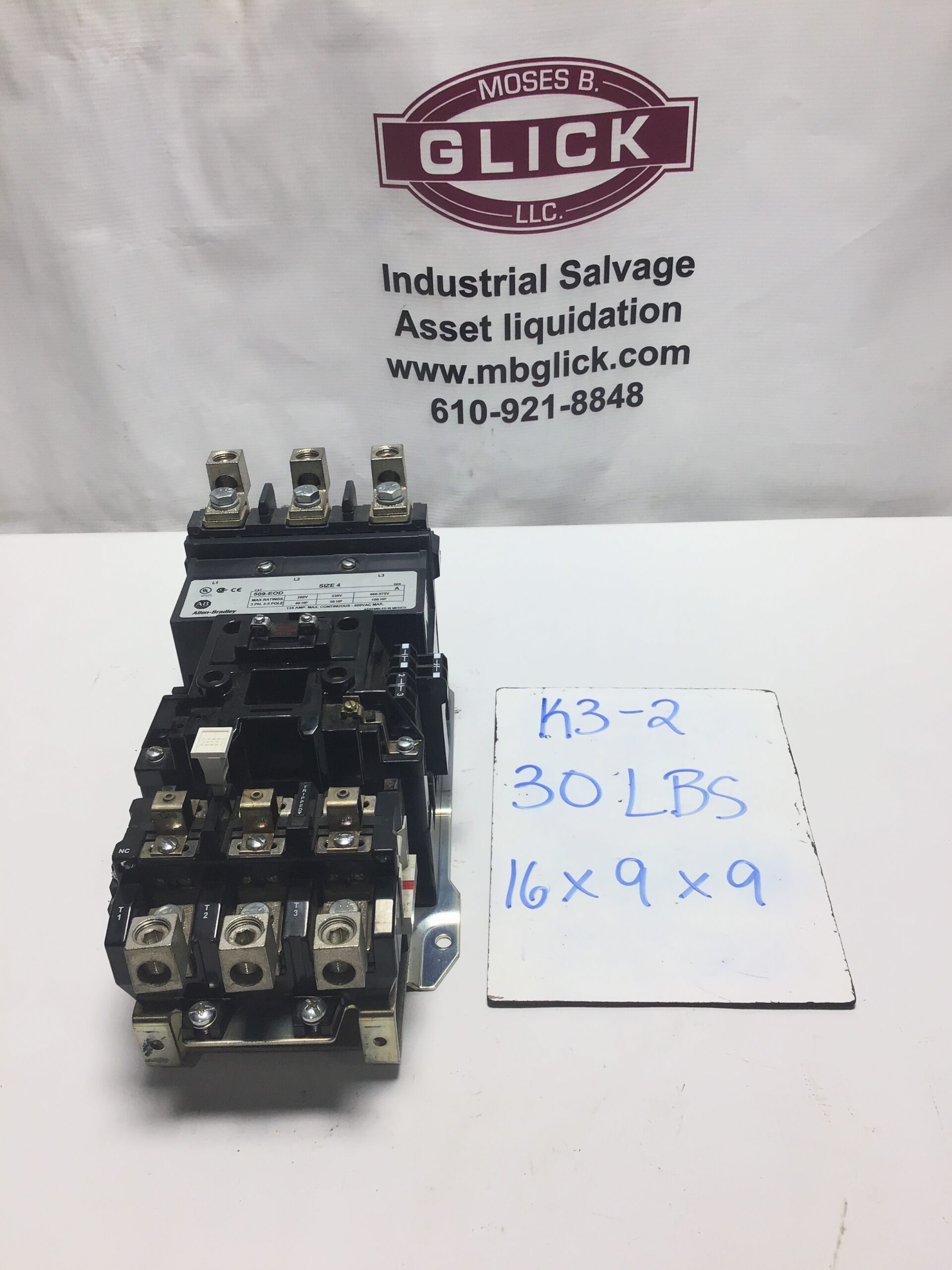

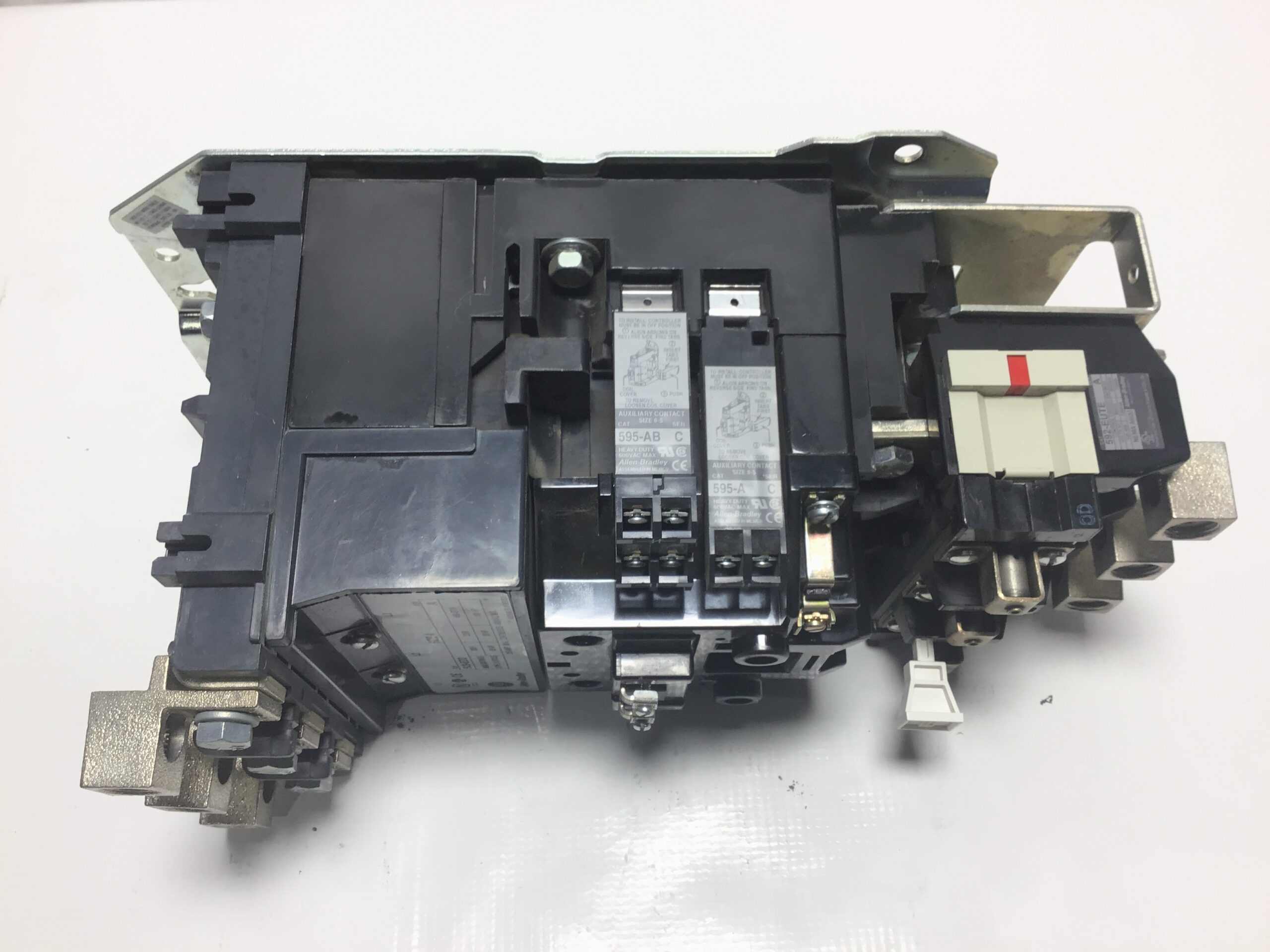

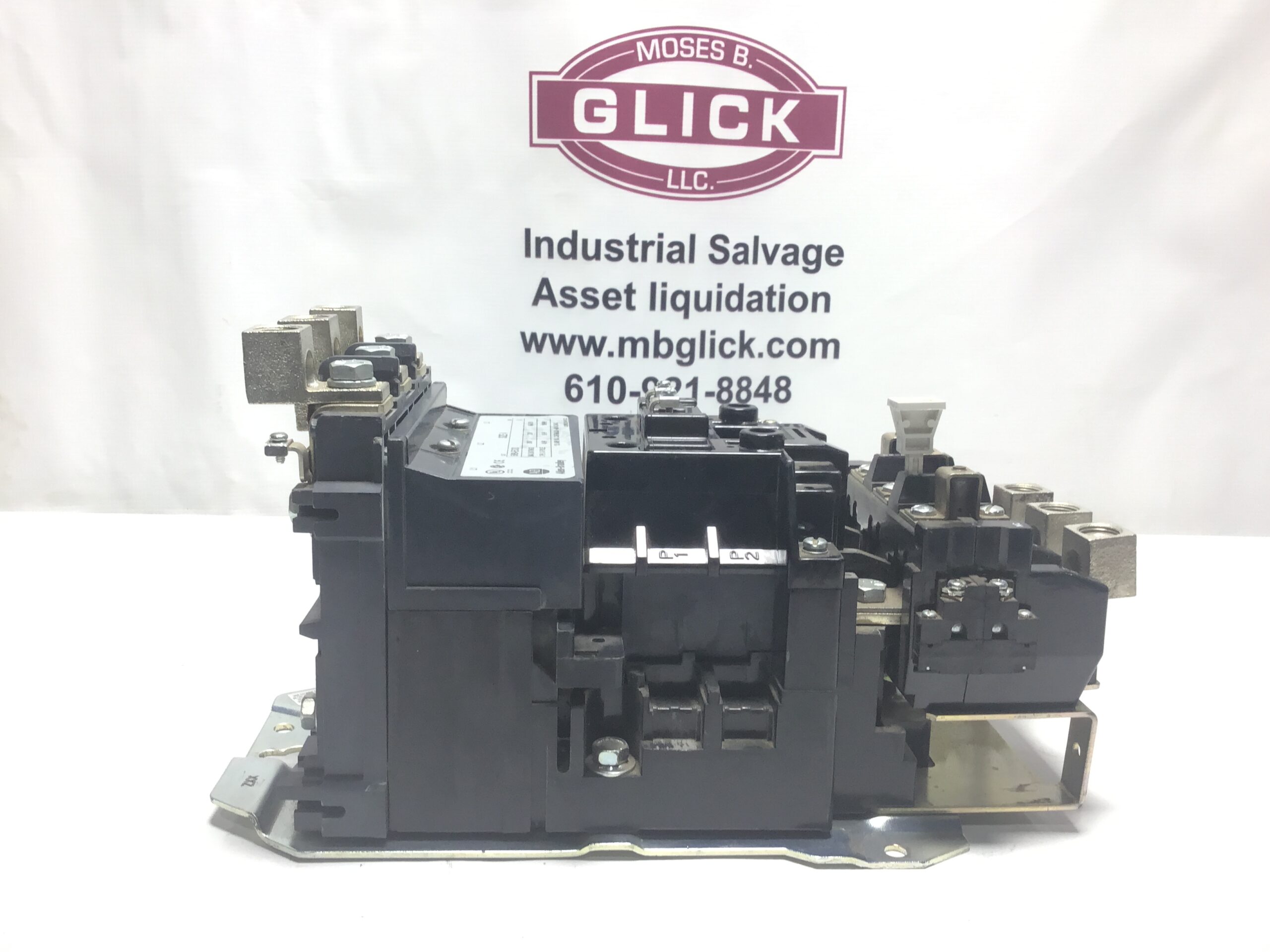

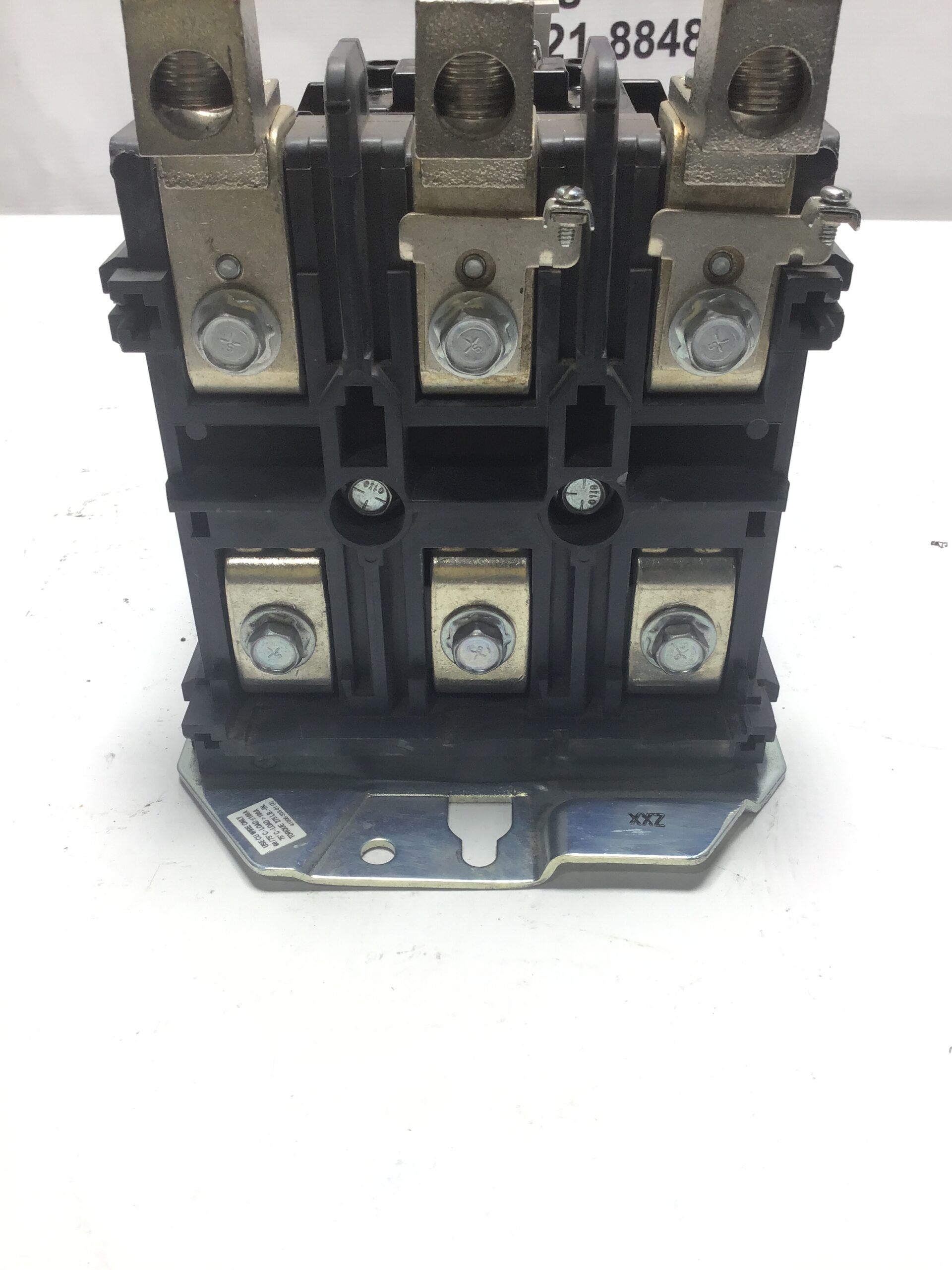

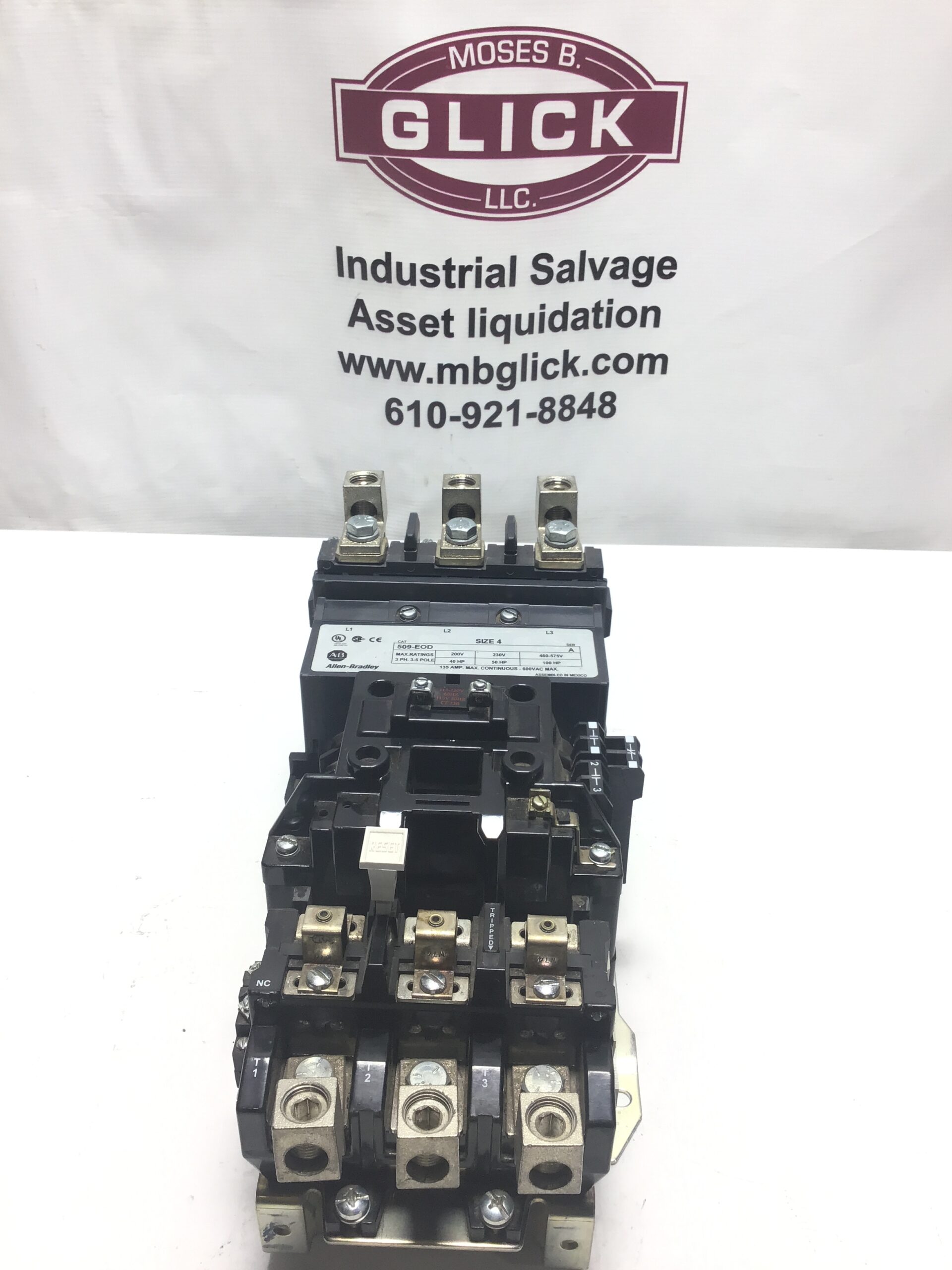

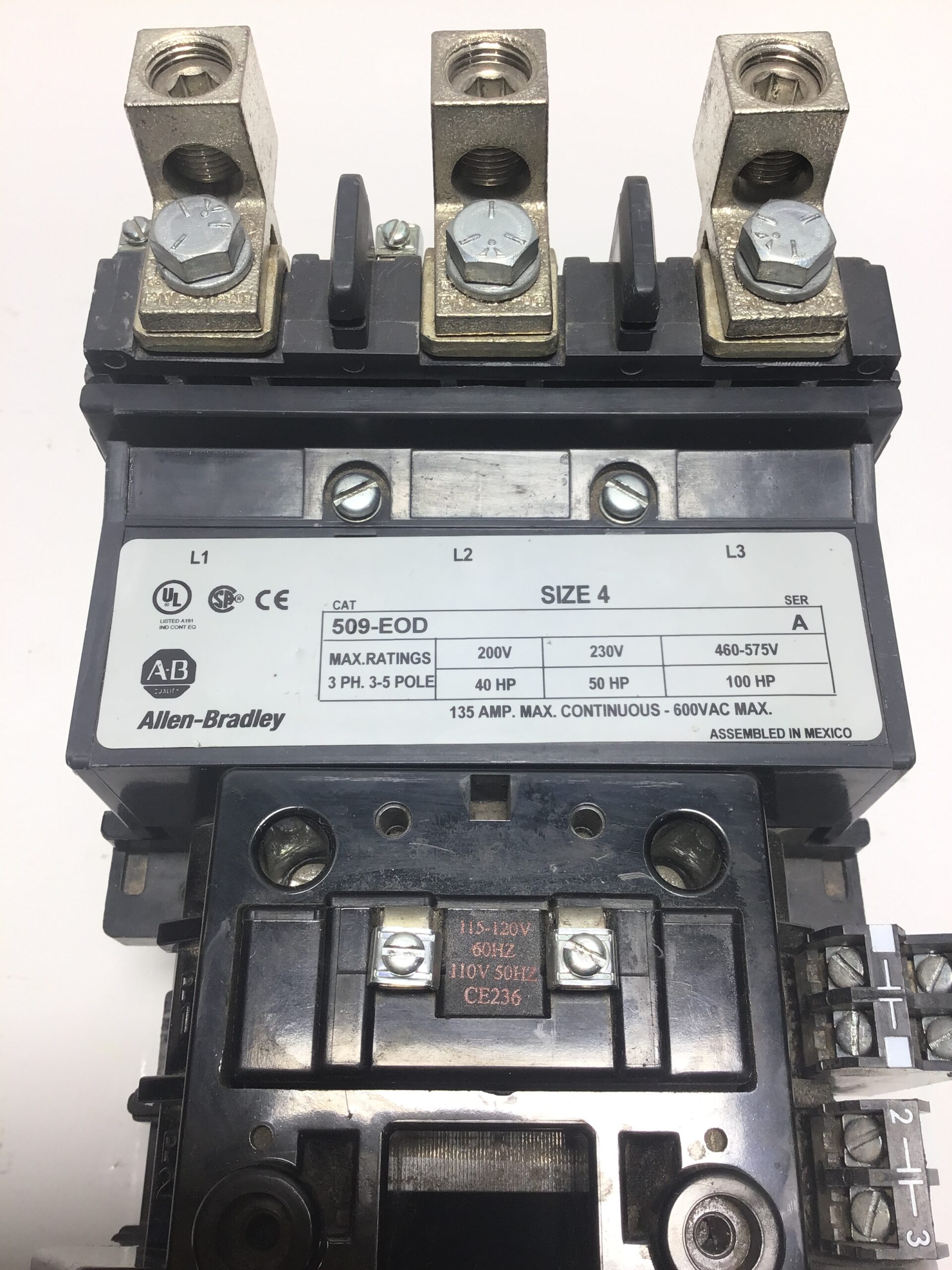

Allen-Bradley 509-EOD Full Voltage Starter

The Allen-Bradley 509-EOD Full Voltage Starter is a durable and reliable motor control solution designed for industrial applications requiring dependable starting and stopping of three-phase motors. Part of the trusted 509 series, this full voltage non-reversing starter is widely used in manufacturing facilities, processing plants, and commercial systems where consistent motor control is essential.

Engineered for rugged industrial environments, the 509-EOD provides straightforward full-voltage motor starting while helping protect connected equipment. Its heavy-duty construction and proven design make it a popular choice for controlling pumps, compressors, fans, conveyors, and other motor-driven machinery.

Allen-Bradley starters are known for long service life and compatibility with a wide range of motor control systems. The 509-EOD model is designed for panel or enclosure mounting and integrates easily into existing motor control centers or standalone control panels.

Item Overview

• Brand: Allen-Bradley

• Model: 509-EOD

• Type: Full Voltage Motor Starter

• Starter Type: Non-Reversing

• Series: 509 Bulletin

Key Features

• Full voltage across-the-line motor starting

• Heavy-duty industrial motor control design

• Reliable performance for demanding applications

• Compatible with many industrial motor systems

• Durable construction for long service life

• Commonly used in control panels and motor control centers

Technical Specifications

• Model Number: 509-EOD

• Starter Type: Full Voltage Non-Reversing

• Application: Motor Starting / Motor Control

• Mounting: Panel / Enclosure Mount

• Phase: Typically used with three-phase motors

• Manufacturer: Allen-Bradley

Applications

Commonly used in:

• Industrial motor control systems

• Pumps and compressors

• Conveyor systems

• HVAC equipment

• Manufacturing and processing machinery

• Factory automation equipment
