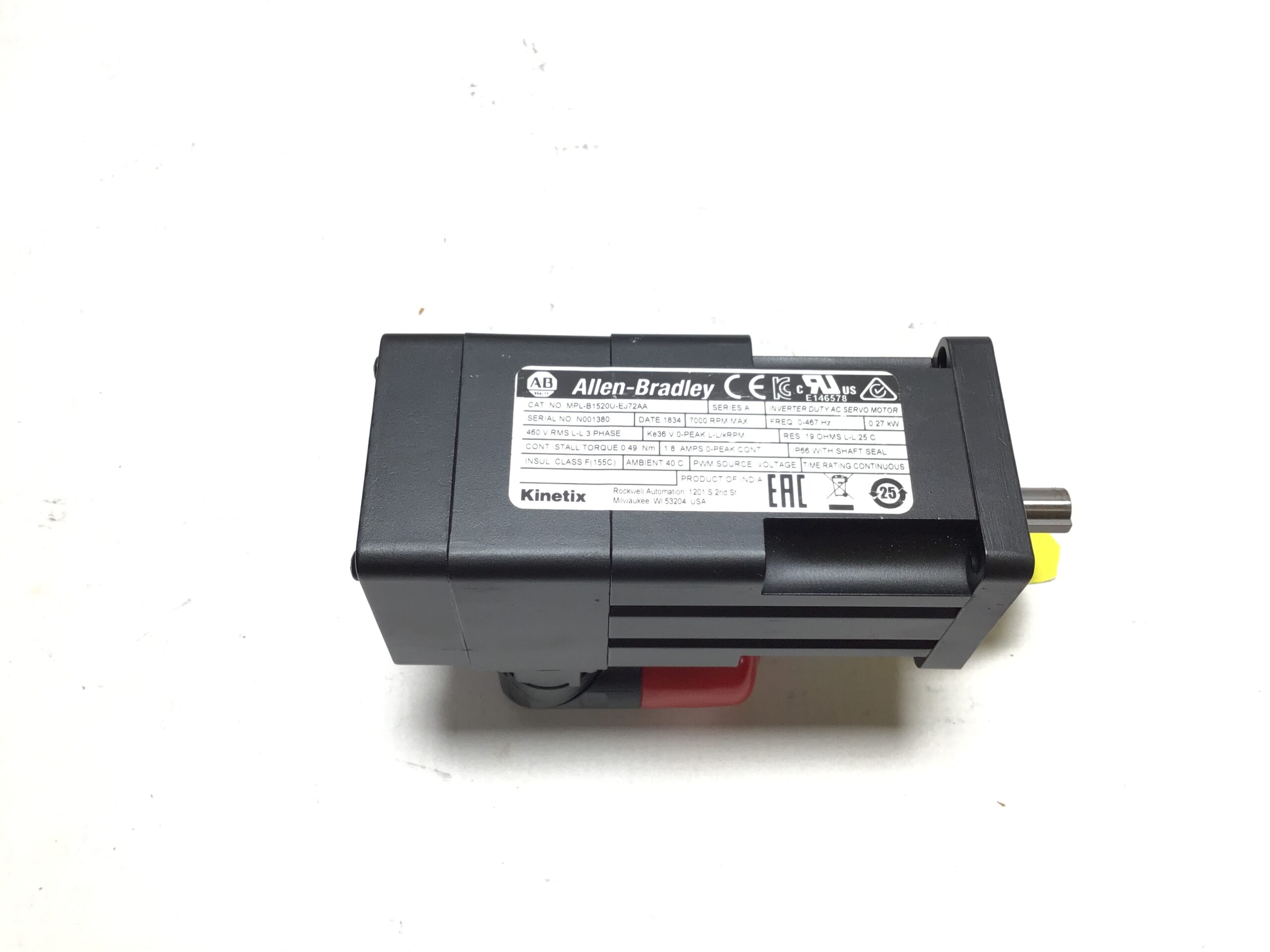

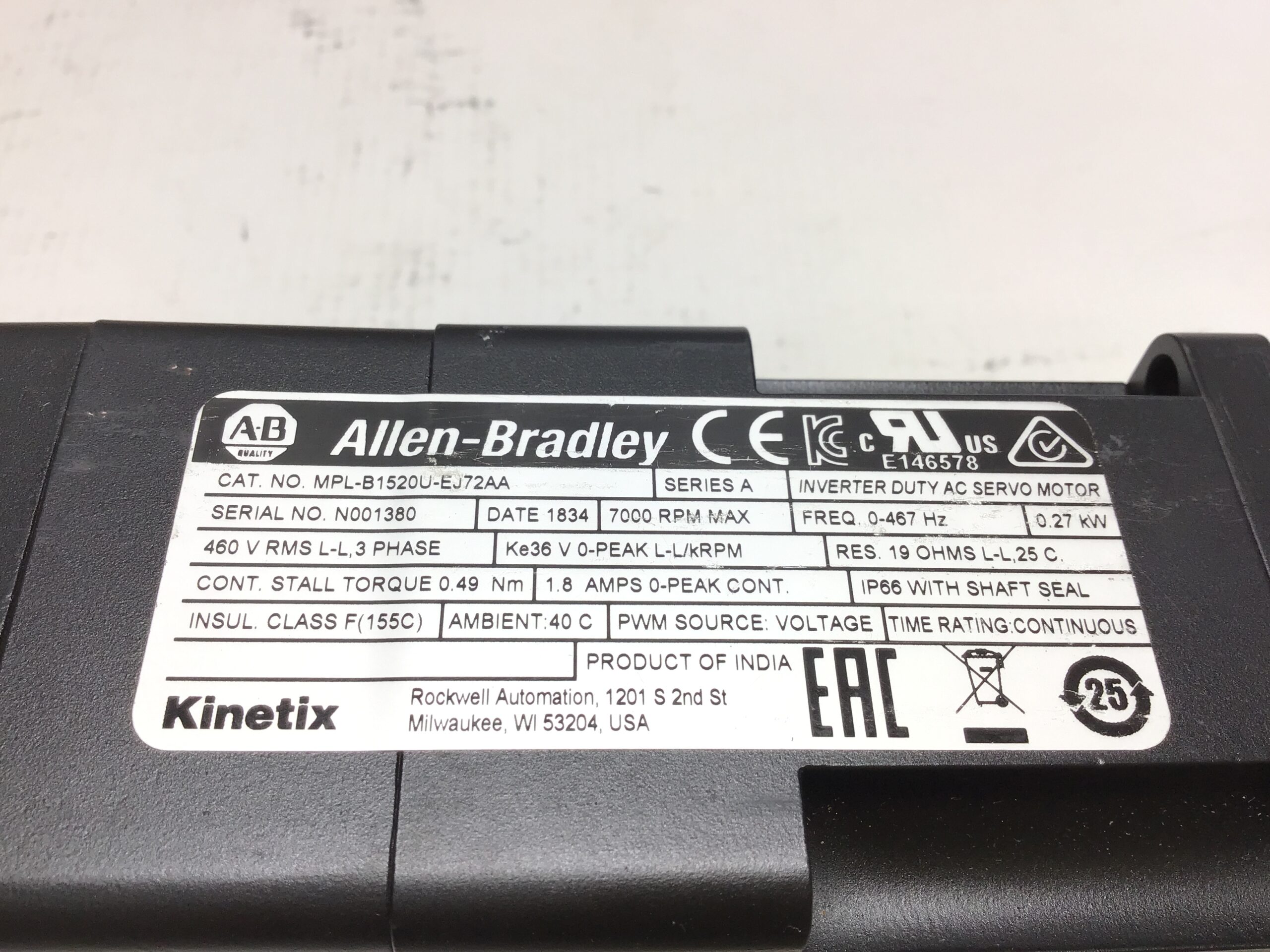

The Allen-Bradley MPL-B1520U-EJ72AA Inverter Duty AC Servo Motor is engineered for high-performance applications, delivering a power output of 0.27 kW and operating efficiently at a voltage rating of 460 V RMS in a three-phase configuration. With a maximum speed of 7000 RPM and a frequency range of 0-467 Hz, this motor ensures precise control and responsiveness, making it ideal for demanding industrial environments. Its continuous stall torque of 0.49 Nm and continuous current of 1.8 Amps provide reliable performance, while the 36 V back EMF constant enhances energy efficiency. Designed for durability, the motor features an IP66 enclosure protection with a shaft seal, ensuring resilience against dust and water ingress, and operates effectively in ambient temperatures up to 40°C, with an insulation class of F (155°C) for added reliability.
🔌 Rated for 460V RMS line-to-line, 3-phase operation, drawing 1.8A continuous for compatible inverter/drive systems.
⚡ Delivers 0.27kW output power at up to 7000RPM max for high-speed servo applications.
💡 Continuous stall torque of 0.49Nm provides precise, repeatable positioning performance for demanding motion applications.
🛠️ Ideal Allen-Bradley MPL-B1520U-EJ72AA replacement for AC servo motor maintenance or system upgrades.
🔋 Operates across a 0-467Hz frequency range for compatibility with variable-speed servo drive systems.
📊 Back EMF constant of 36V 0-peak L-L/kRPM and 19 ohm line-to-line resistance at 25°C support accurate drive tuning.
🛡️ IP66-rated enclosure with shaft seal protects against dust and high-pressure water in harsh environments.
🌡️ Class F (155°C) insulation rated for 40°C ambient operation ensures dependable thermal performance.
📐 Compact motor housing designed for straightforward direct-mount or bracket integration.
🔒 Engineered to meet industrial safety and reliability standards for continuous-duty servo applications.
