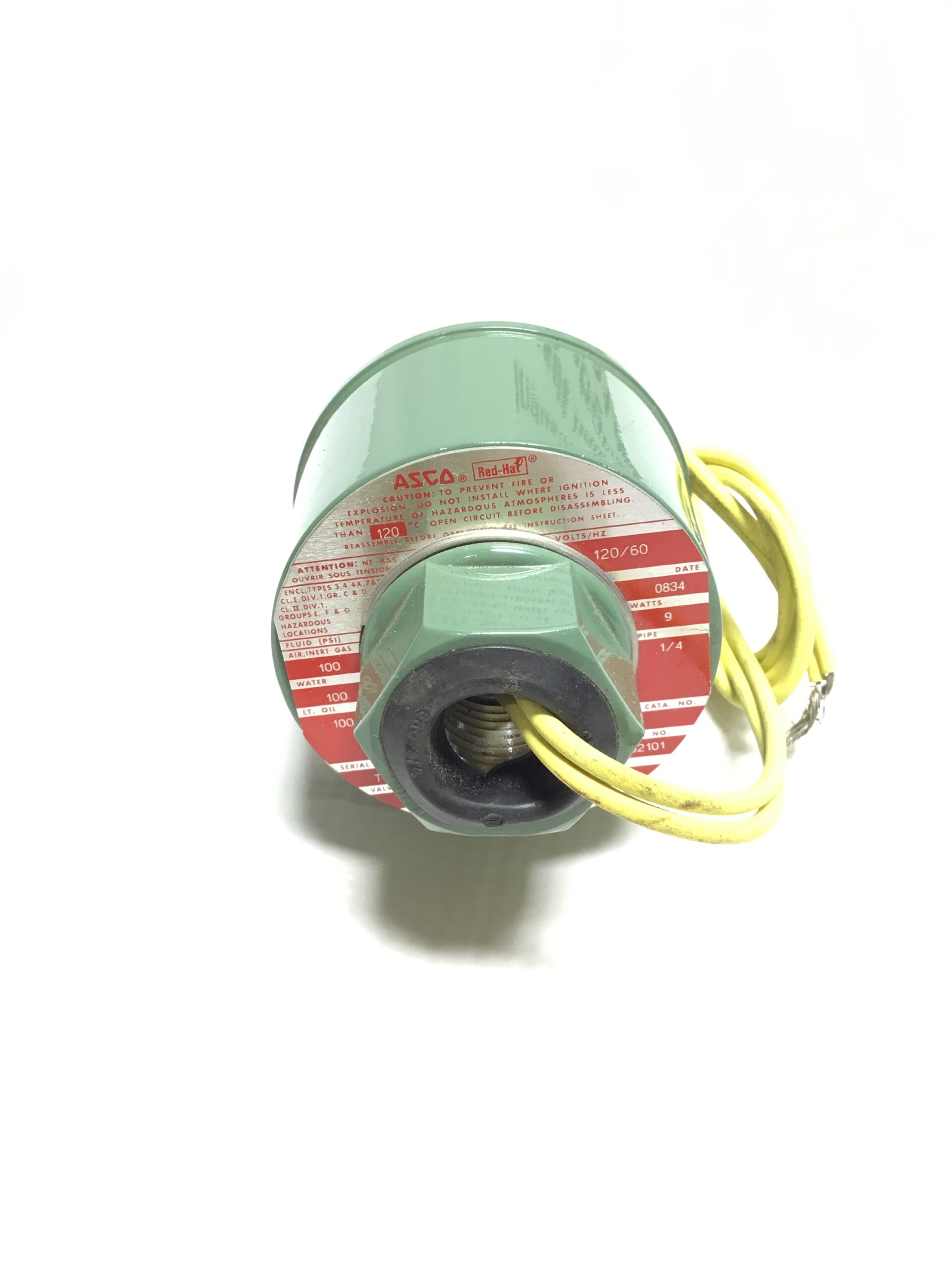

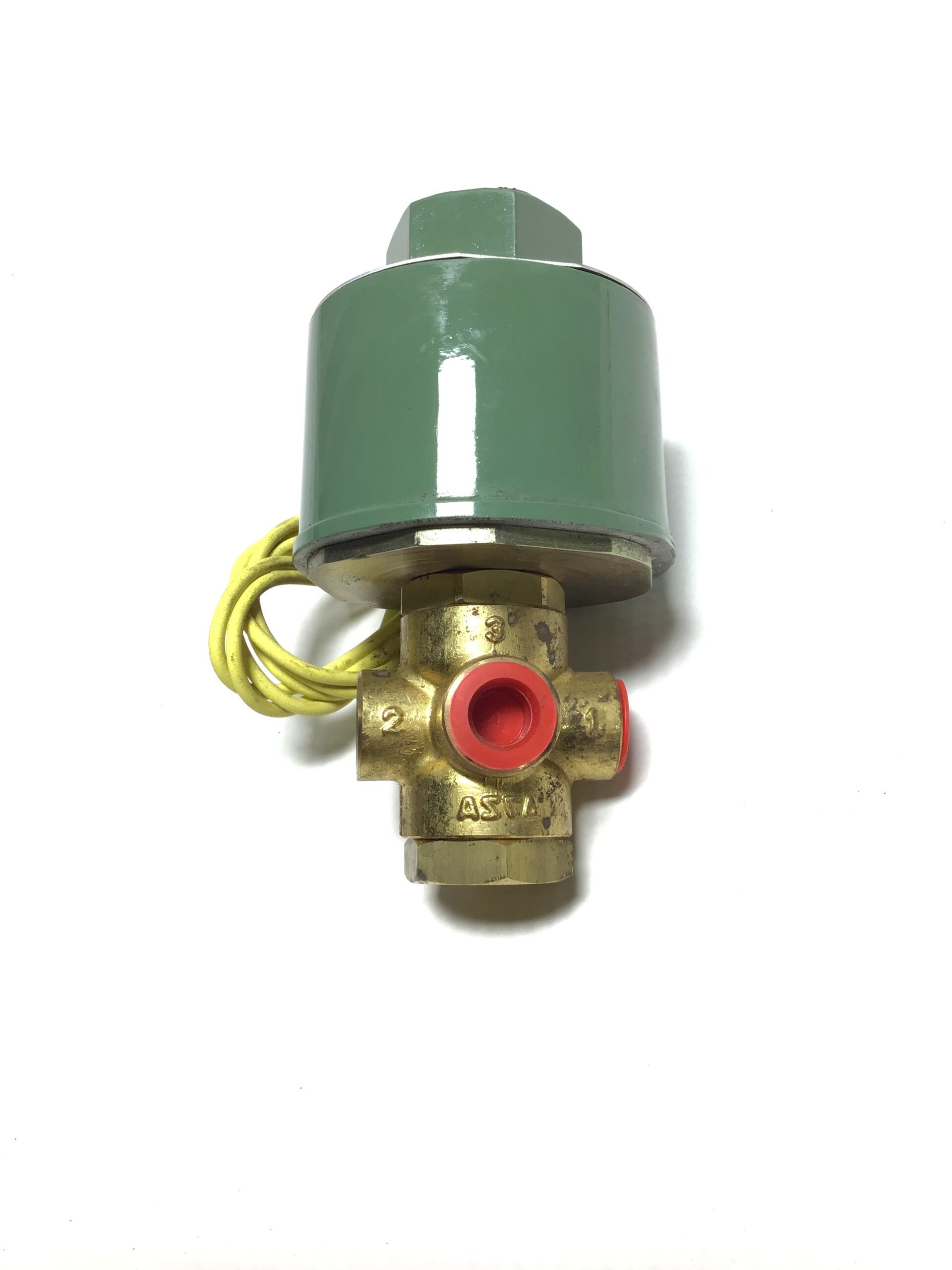

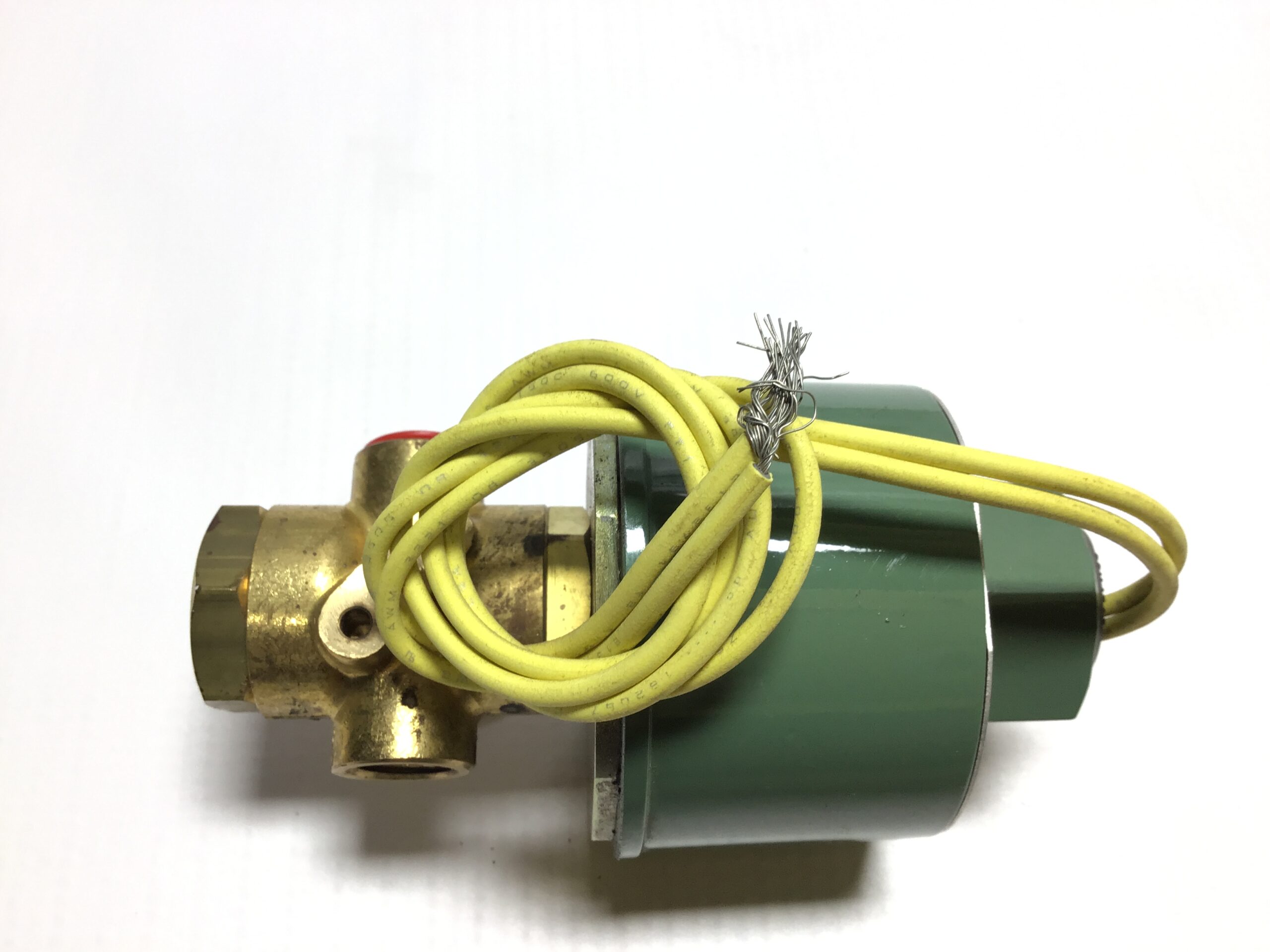

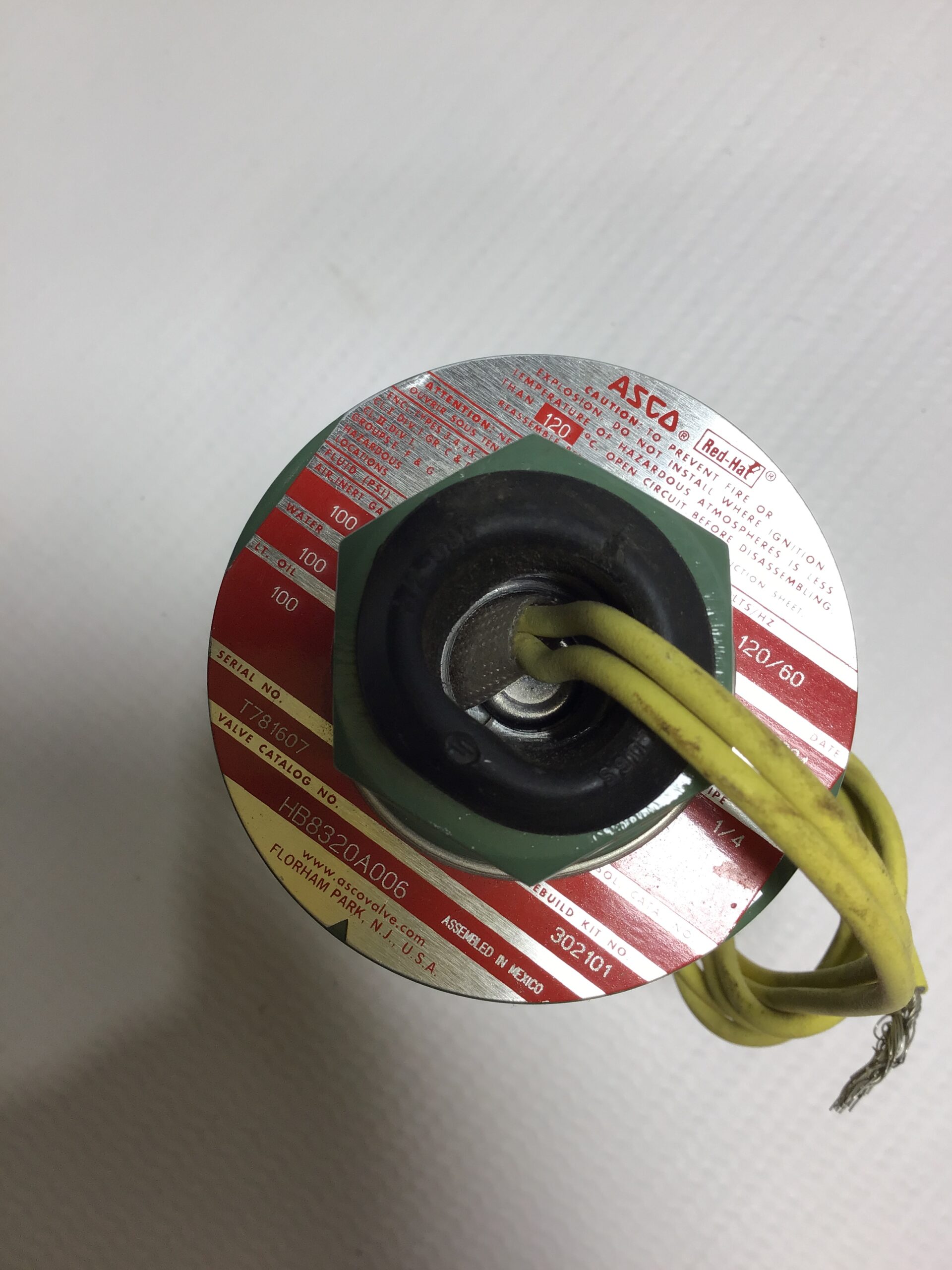

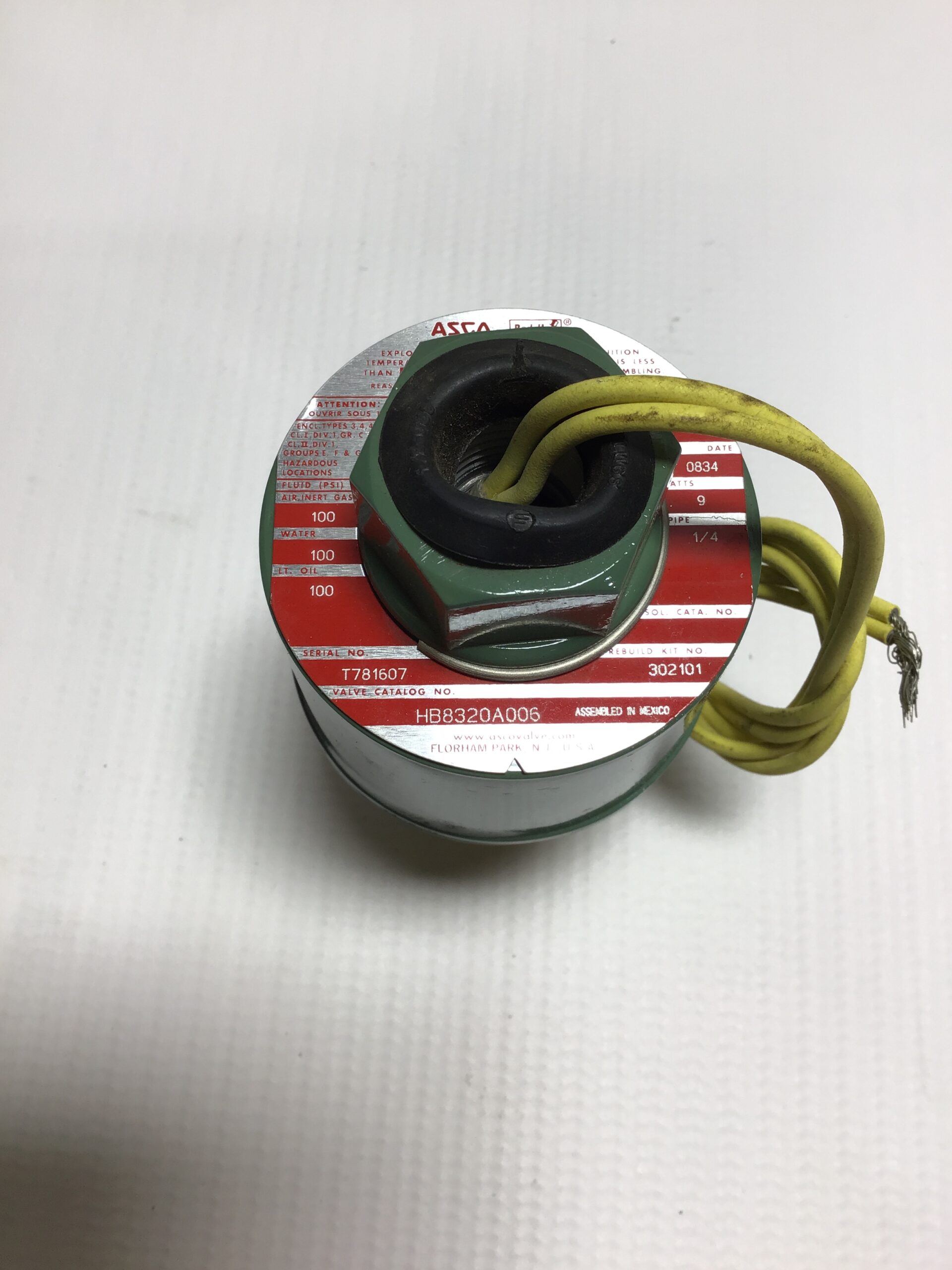

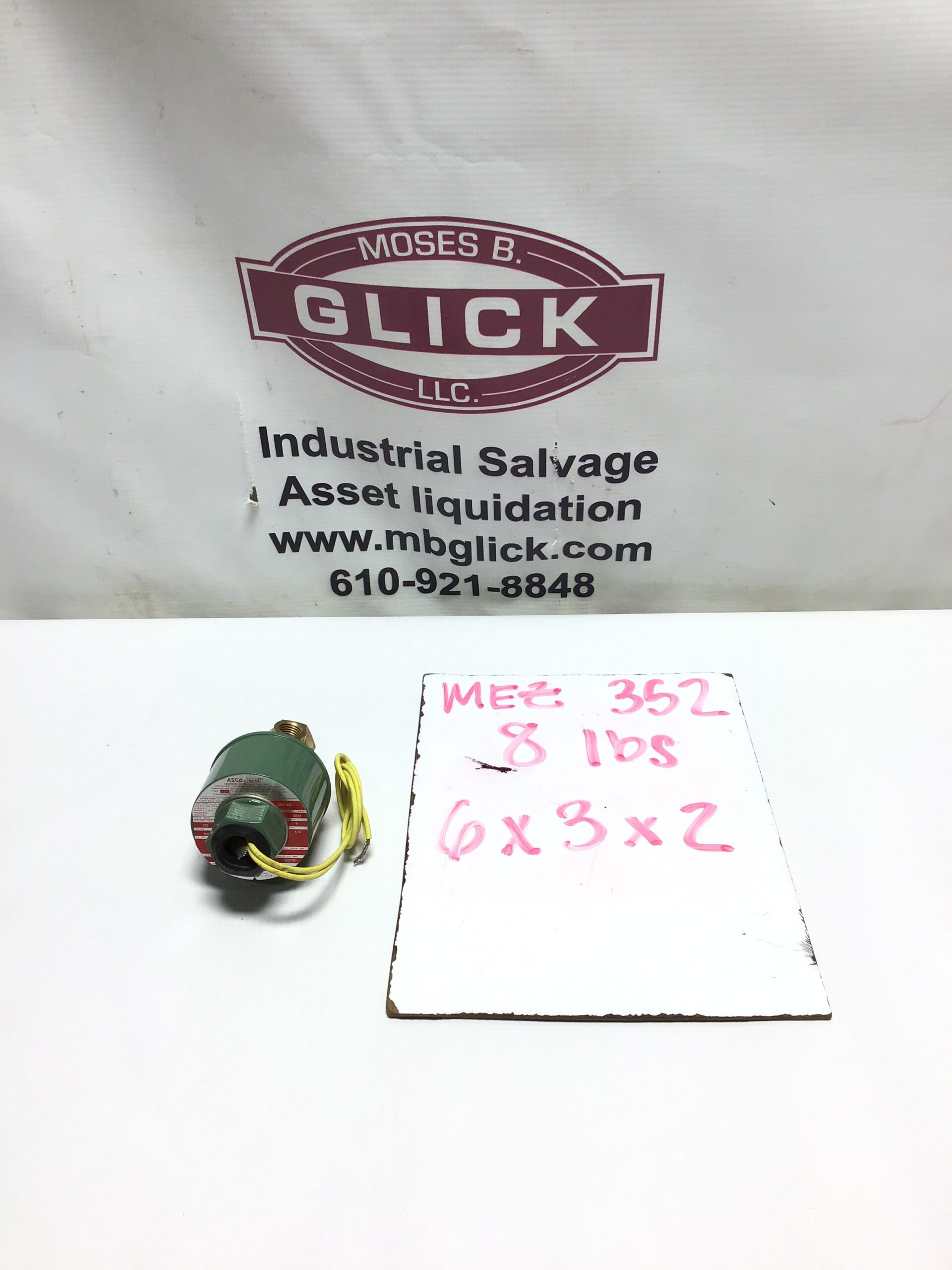

Asco HB8320A006 Solenoid Valve

1. General Overview

• Manufacturer: ASCO (Emerson)

• Model: HB8320A006

• Series: 8320

• Type: 3-way solenoid valve

• Function: Controls fluid flow in pneumatic or liquid systems

• Typical Applications: Industrial automation, HVAC, fluid handling, process control, air, gas, and light oil systems

2. Key Features

• Compact, reliable design for general service applications

• 3-way operation for precise control of flow direction

• Brass body construction for durability and corrosion resistance

• RedHat II solenoid design for efficient operation

• Versatile mounting options

• Suitable for air, inert gas, water, and light oil

3. Technical Specifications

• Valve Function: 3-way, 2-position

• Port Size: 1/4″ NPT

• Orifice Size: Standard for 8320 series

• Flow Capacity: High for its size and type

• Operating Pressure: Vacuum up to 150 psi (typical, verify per specific model)

• Voltage Options: AC 120V/60Hz, AC 110V/50Hz (other voltages may be available)

• Temperature Range: Standard for general service valves (-20°C to +80°C approx.)

4. Construction Materials

• Body: Brass

• Seals: NBR, Viton, or equivalent elastomers

• Internal Components: Stainless steel and high-quality plastics

5. Electrical Details

• Coil Type: Encapsulated RedHat II solenoid

• Voltage: AC or DC options depending on configuration

• Power Consumption: Low wattage design for energy efficiency
