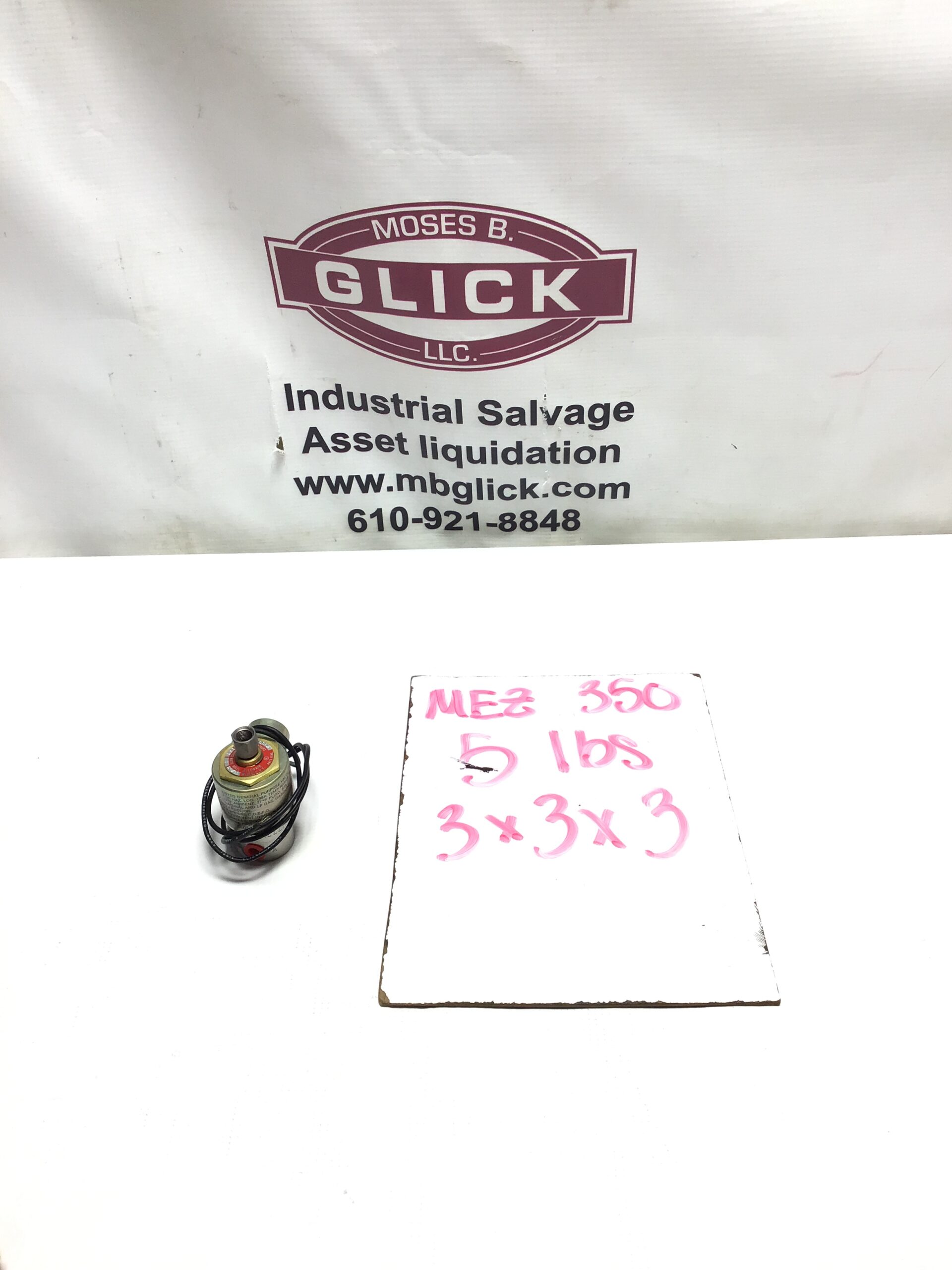

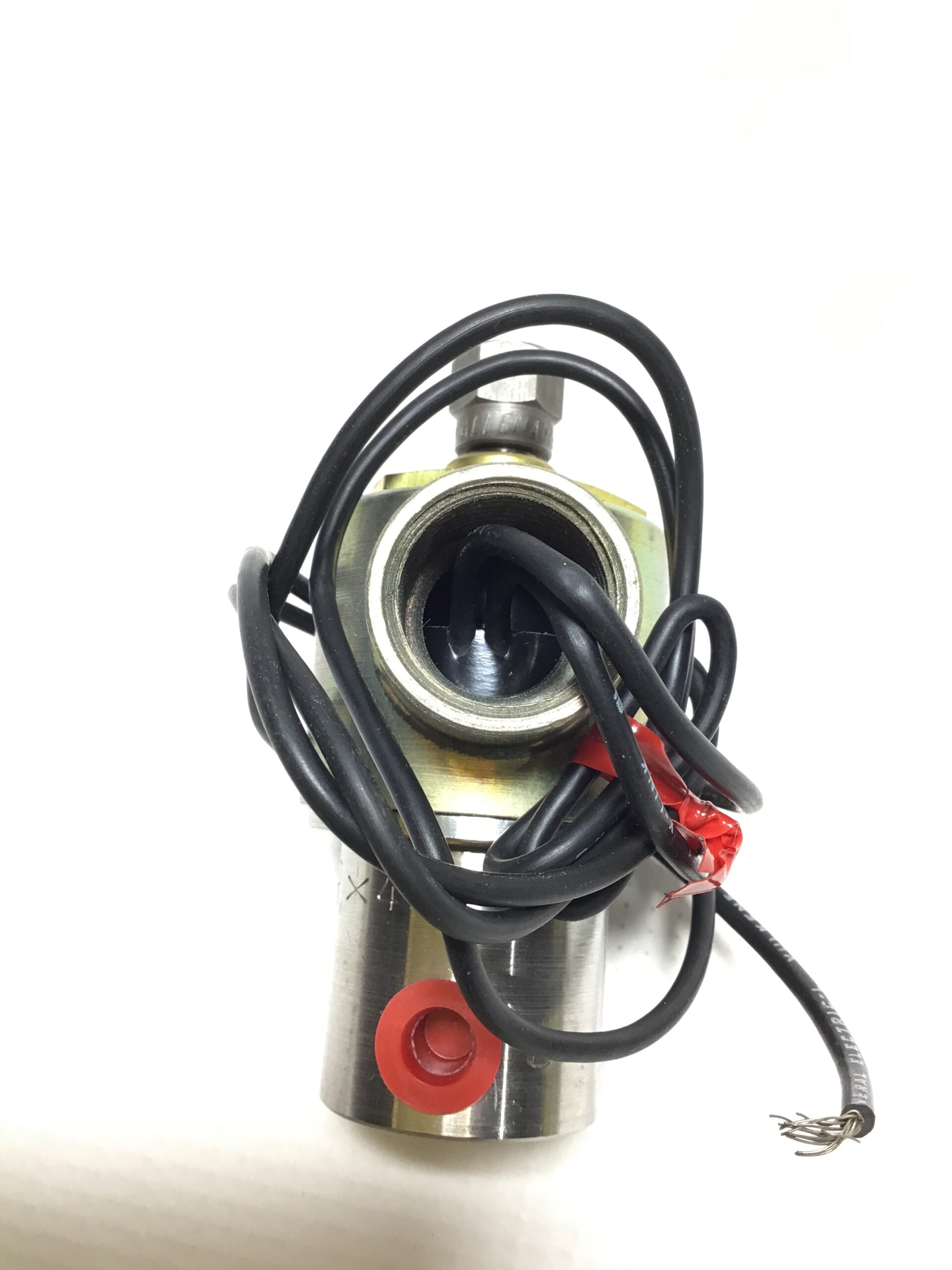

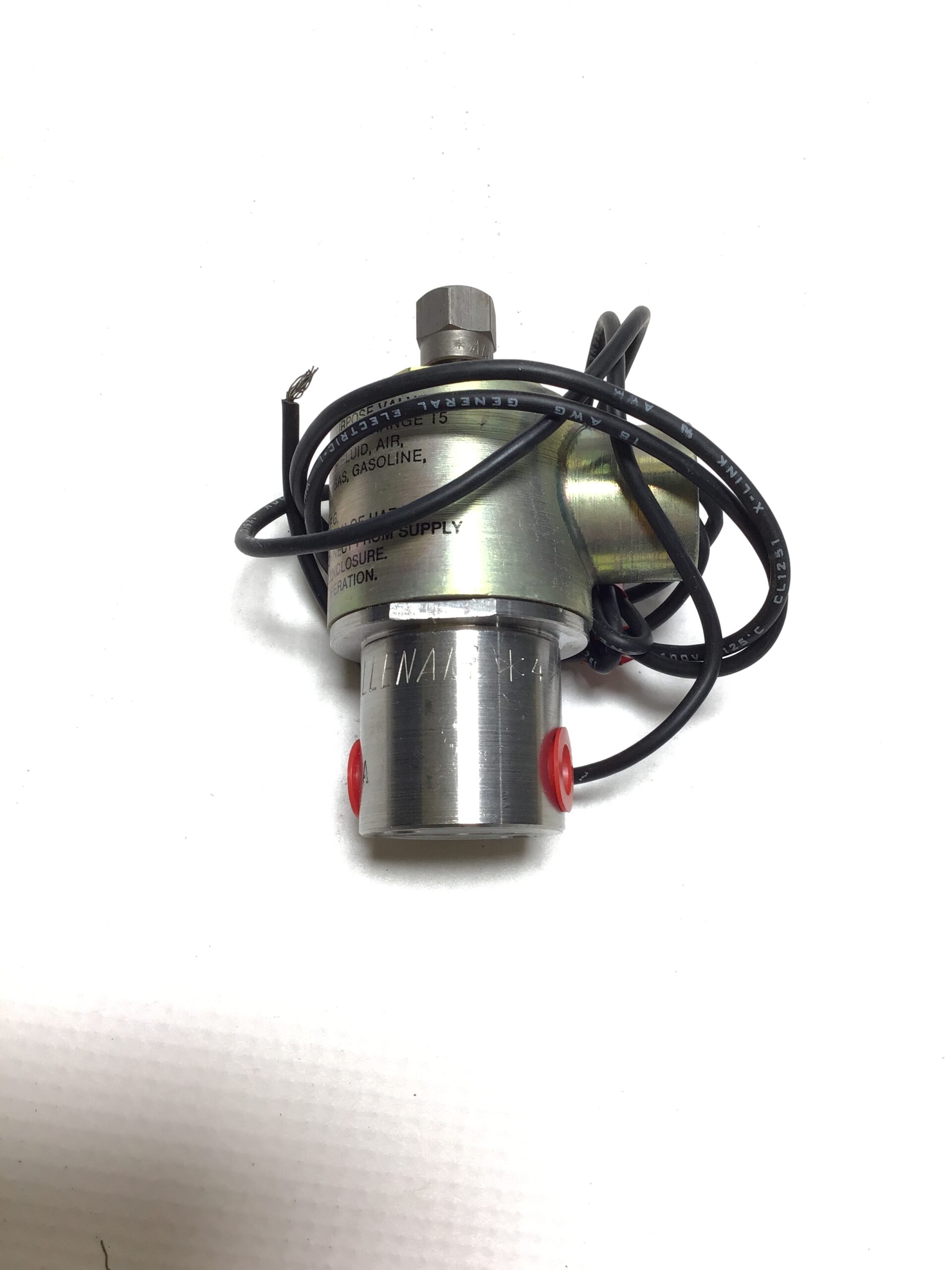

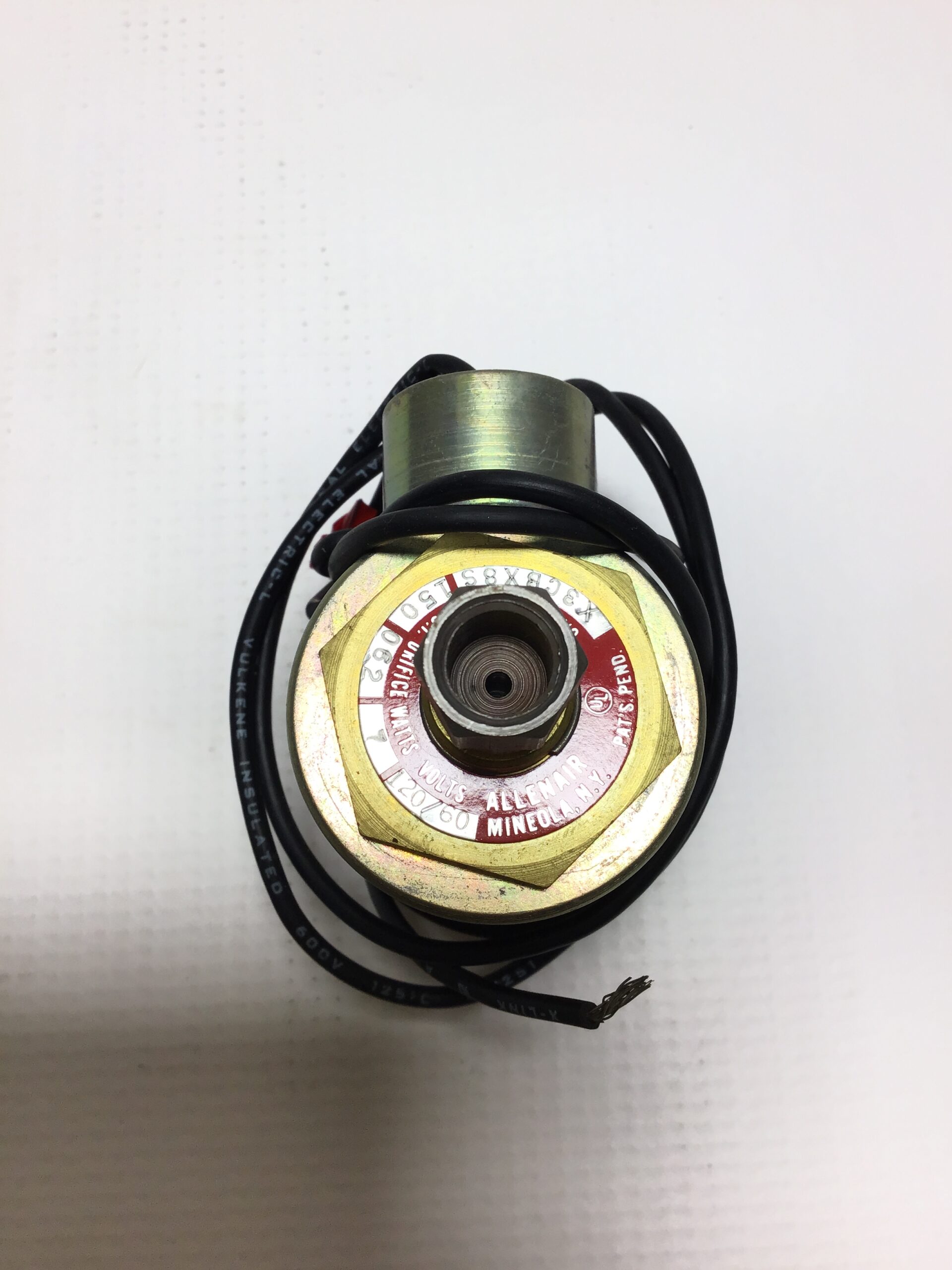

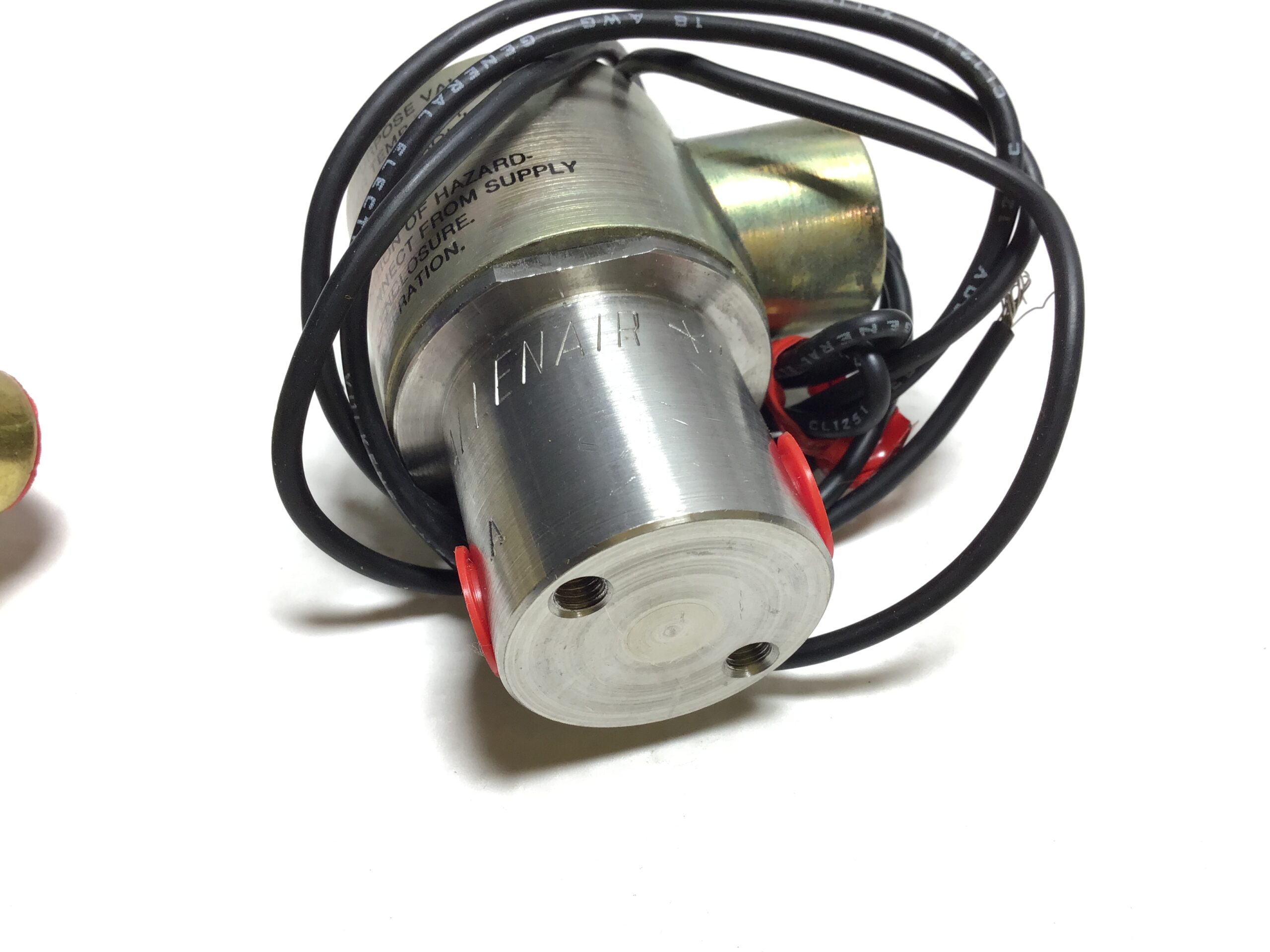

Asco X3CBXS Solenoid Operated Valve

1. General Overview

• Manufacturer: ASCO (Emerson)

• Model: X3CBXS

• Type: Solenoid-operated valve

• Function: Controls the flow of air, gas, or liquid in automated or pneumatic systems

• Typical Applications: Industrial automation, process control, air and gas systems, fluid handling, and OEM equipment

2. Key Features

• Compact, high-performance solenoid valve

• Reliable operation with fast response time

• Designed for long cycle life and consistent sealing

• Compatible with a wide range of media (air, inert gases, light liquids)

• Low power consumption coil options available

• Rugged design suitable for industrial environments

3. Technical Specifications

• Valve Function: 2-way or 3-way (depending on configuration)

• Port Size: Typically 1/8″ or 1/4″ NPT (check variant)

• Orifice Size: Standard ASCO industrial range for X3 series

• Operating Pressure Range: Vacuum to approximately 150 psi (varies by type and media)

• Flow Capacity (Cv): Medium to high for compact body size

• Temperature Range: -10°C to +80°C (14°F to 176°F typical)

• Voltage Options: 12VDC, 24VDC, 120VAC, 240VAC (depending on coil)

4. Construction Materials

• Body: Brass or stainless steel (model-dependent)

• Seals: Buna-N, EPDM, or Viton (based on application)

• Internal Components: Stainless steel and corrosion-resistant alloys

• Coil Housing: Encapsulated epoxy or molded thermoplastic for moisture resistance

5. Electrical Details

• Coil Type: Encapsulated solenoid coil (Class F insulation)

• Power Consumption: Low wattage coil option available

• Connection Type: DIN plug, flying leads, or conduit hub (as specified)

• Duty Cycle: Continuous service
