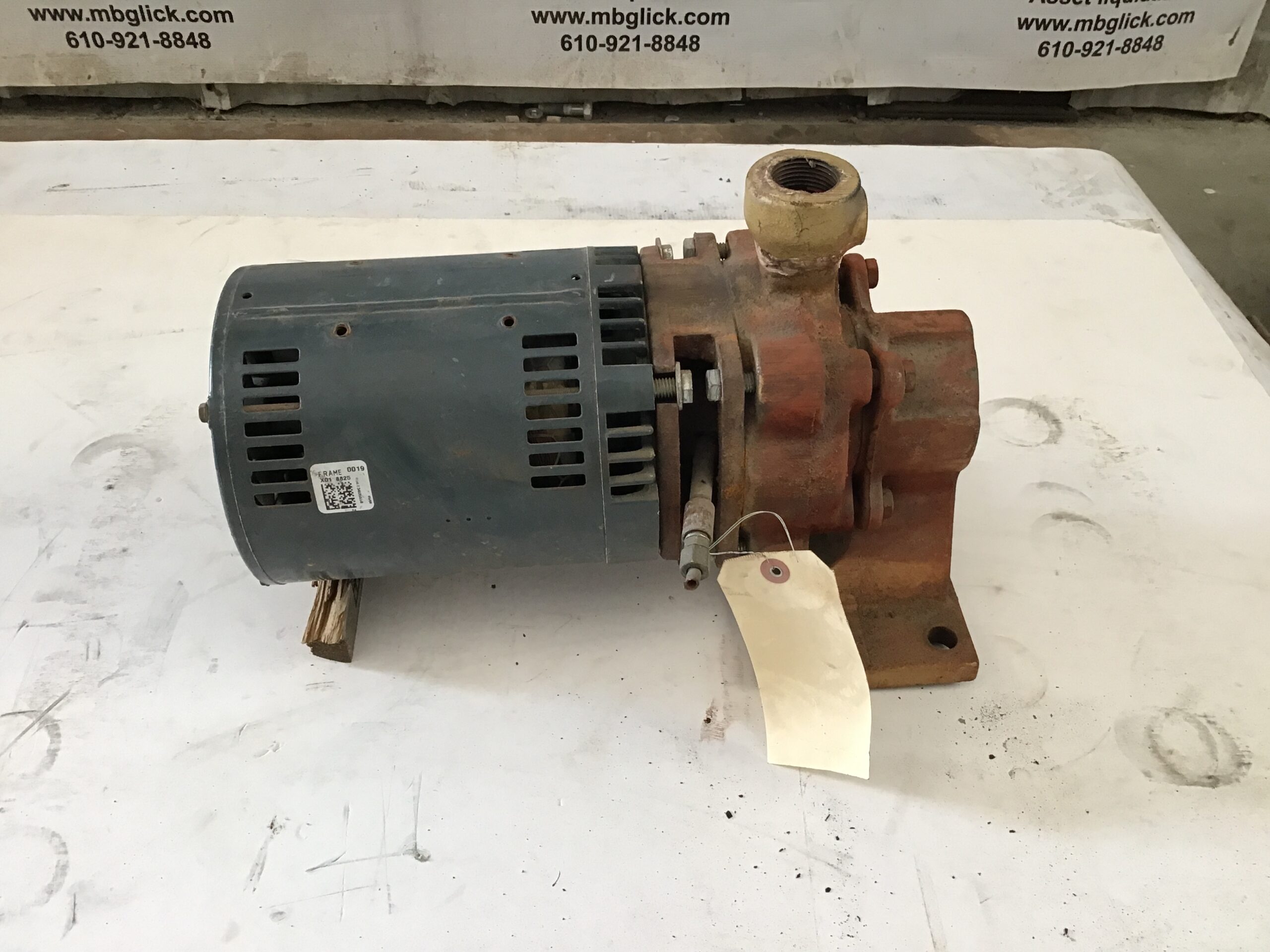

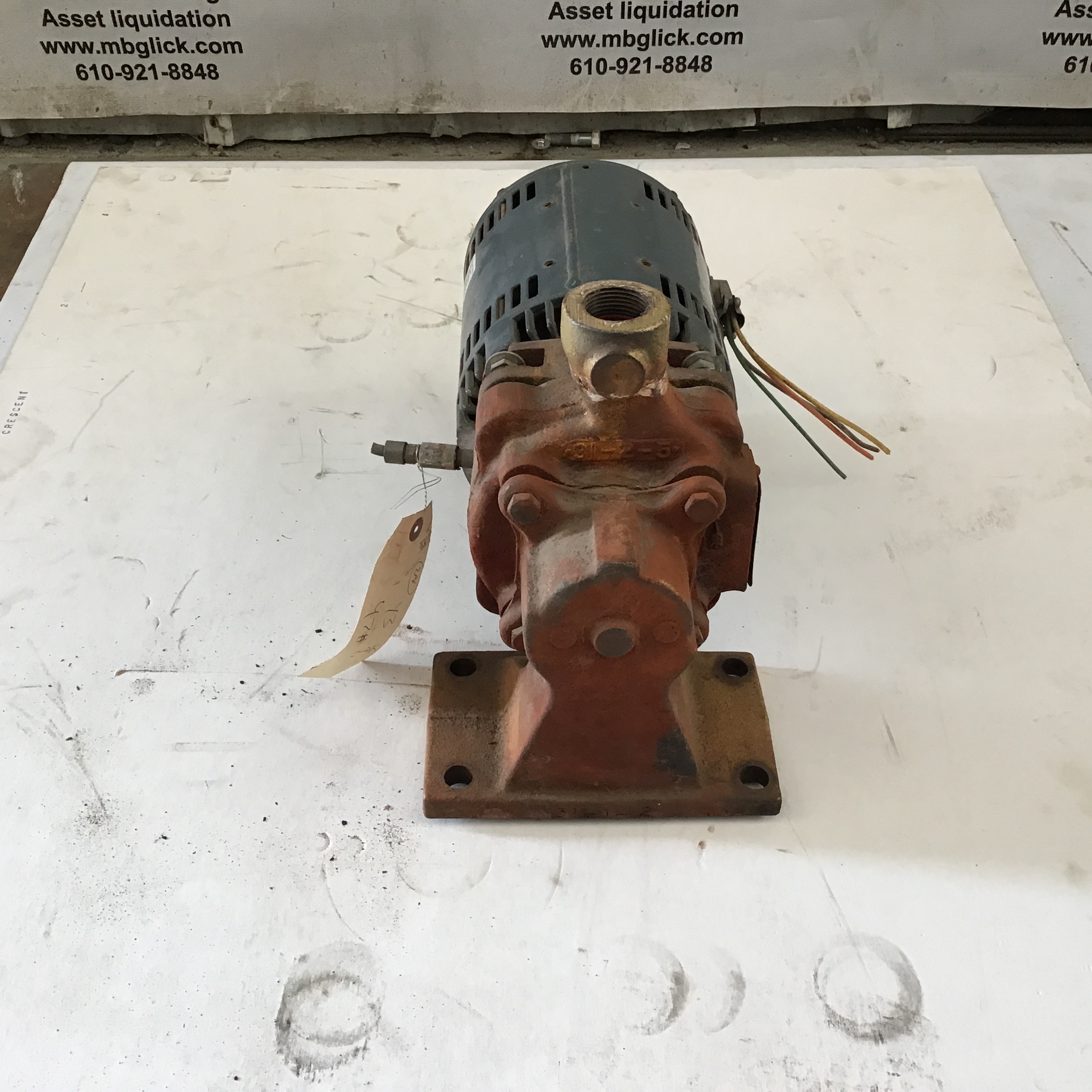

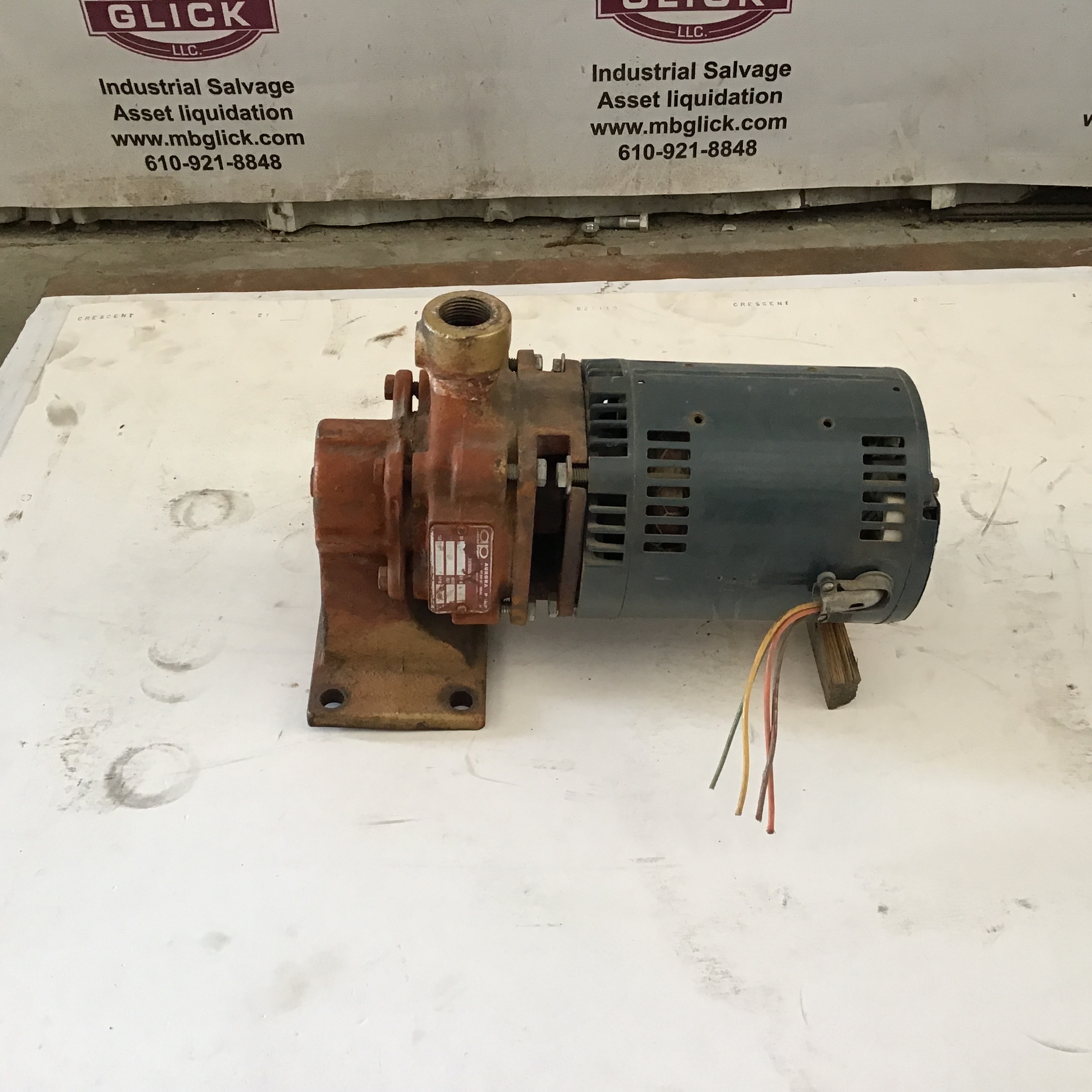

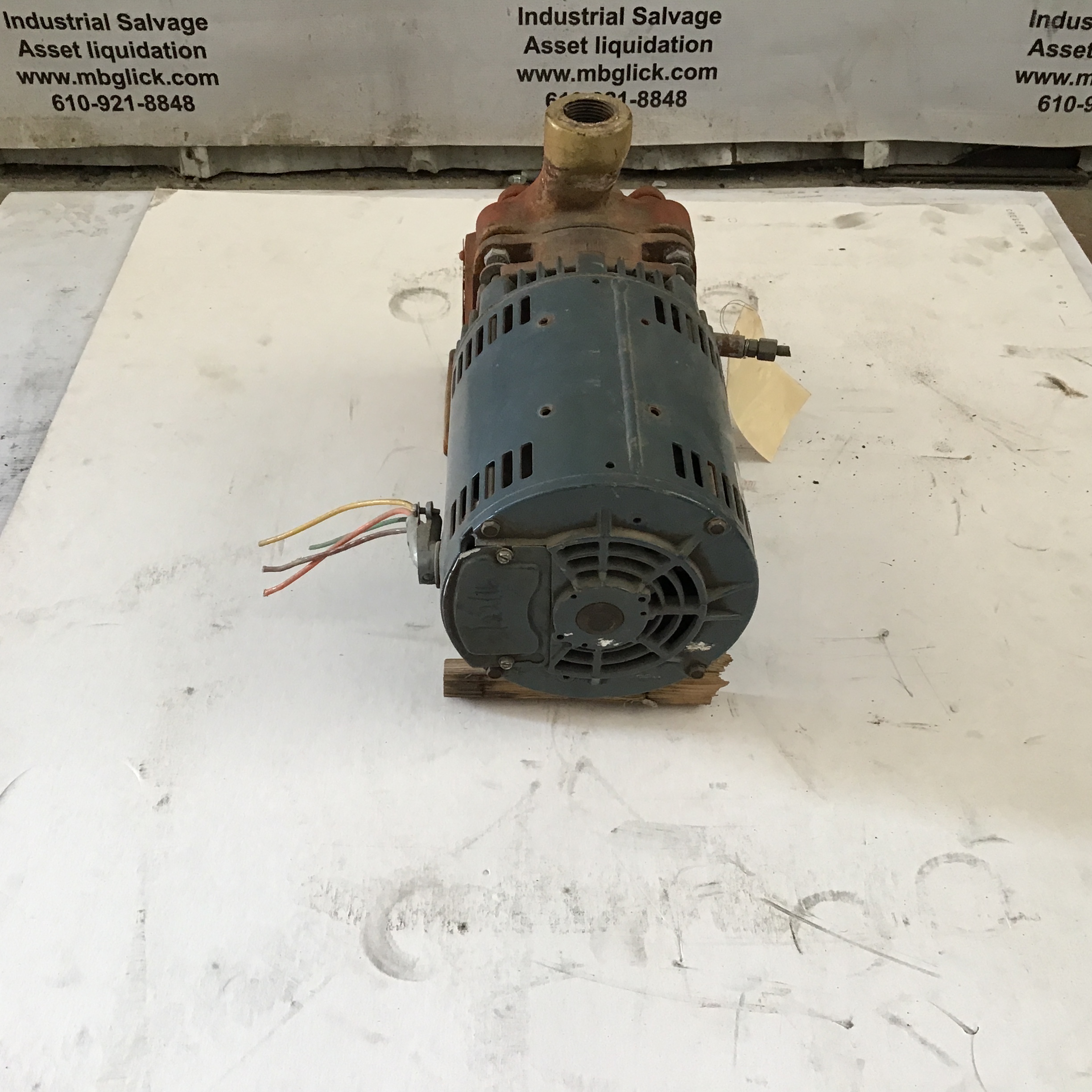

Aurora 80-08830-1 CI Centrifugal Pump 1/2HP 6GPM 3450RPM 1″ X 1.25″ X 5″ 3PH

⚙️ Pump Specifications

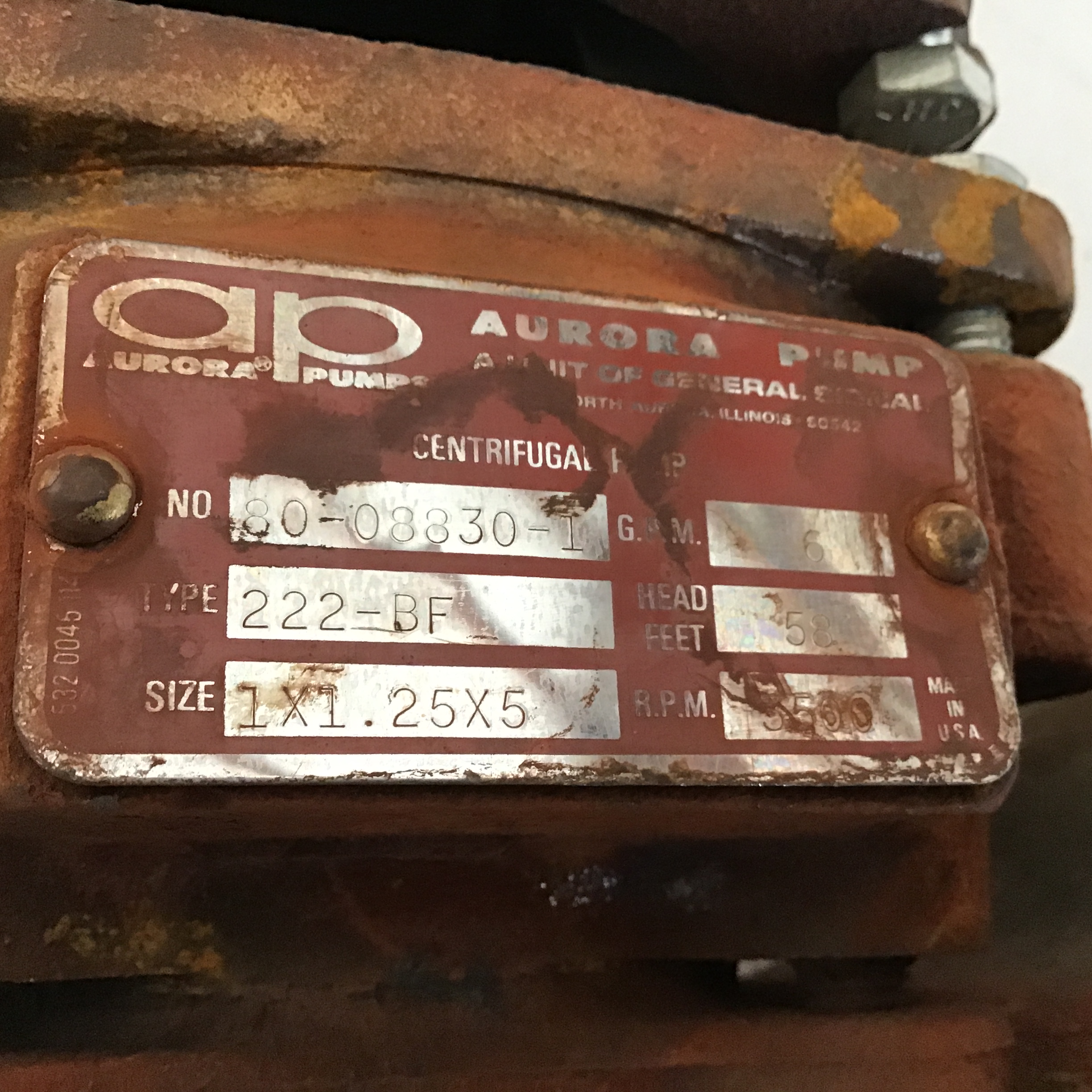

• Model: Aurora 80-08830-1

• Pump Type: End-suction centrifugal pump

• Material: Cast Iron (CI)

• Flow Rate: 6 GPM (Gallons Per Minute)

• Head/Impeller Size: Typically corresponds to a 5″ impeller diameter

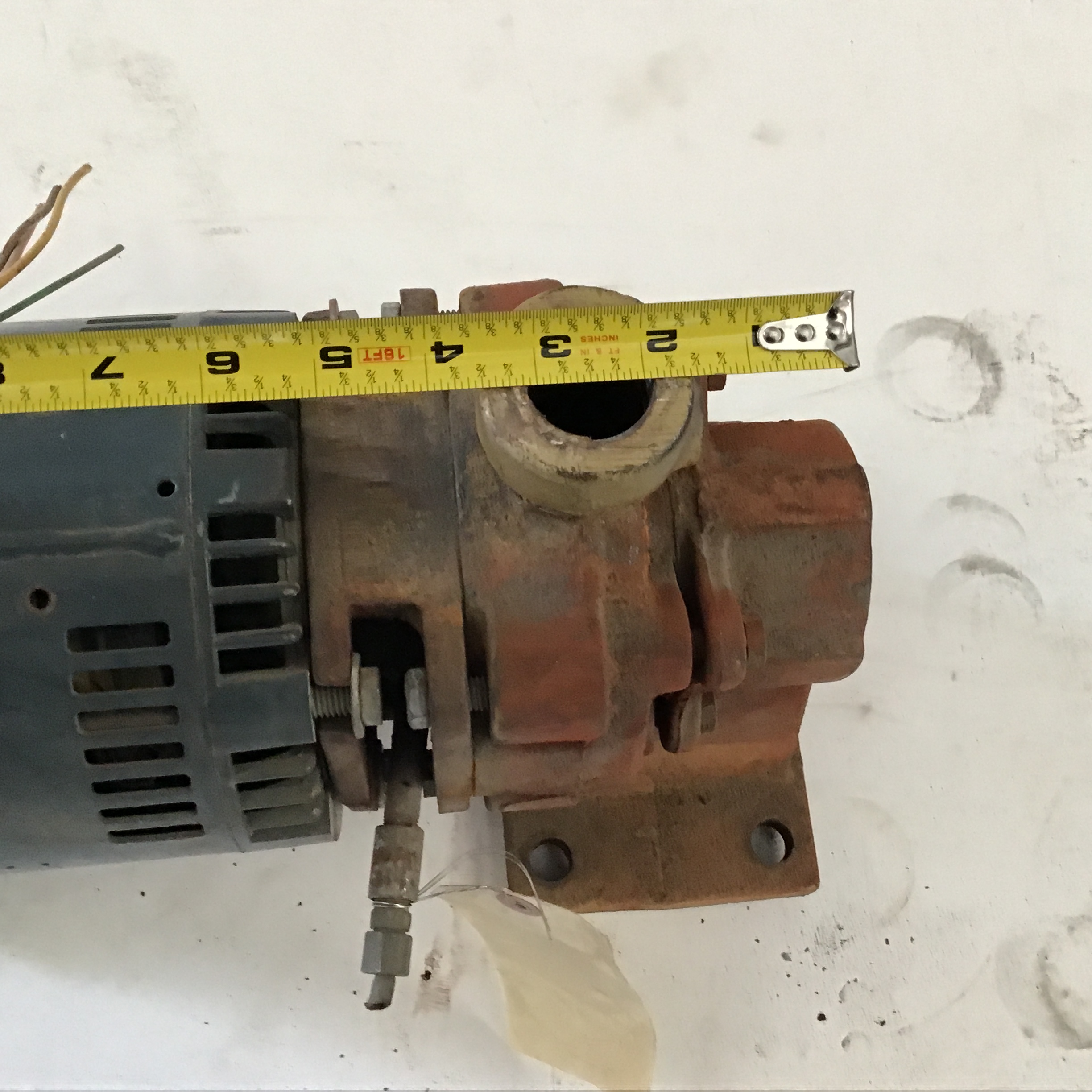

• Inlet x Outlet Size: 1.25″ inlet × 1″ outlet

• Discharge Pressure: Moderate pressure, designed for low to medium flow applications

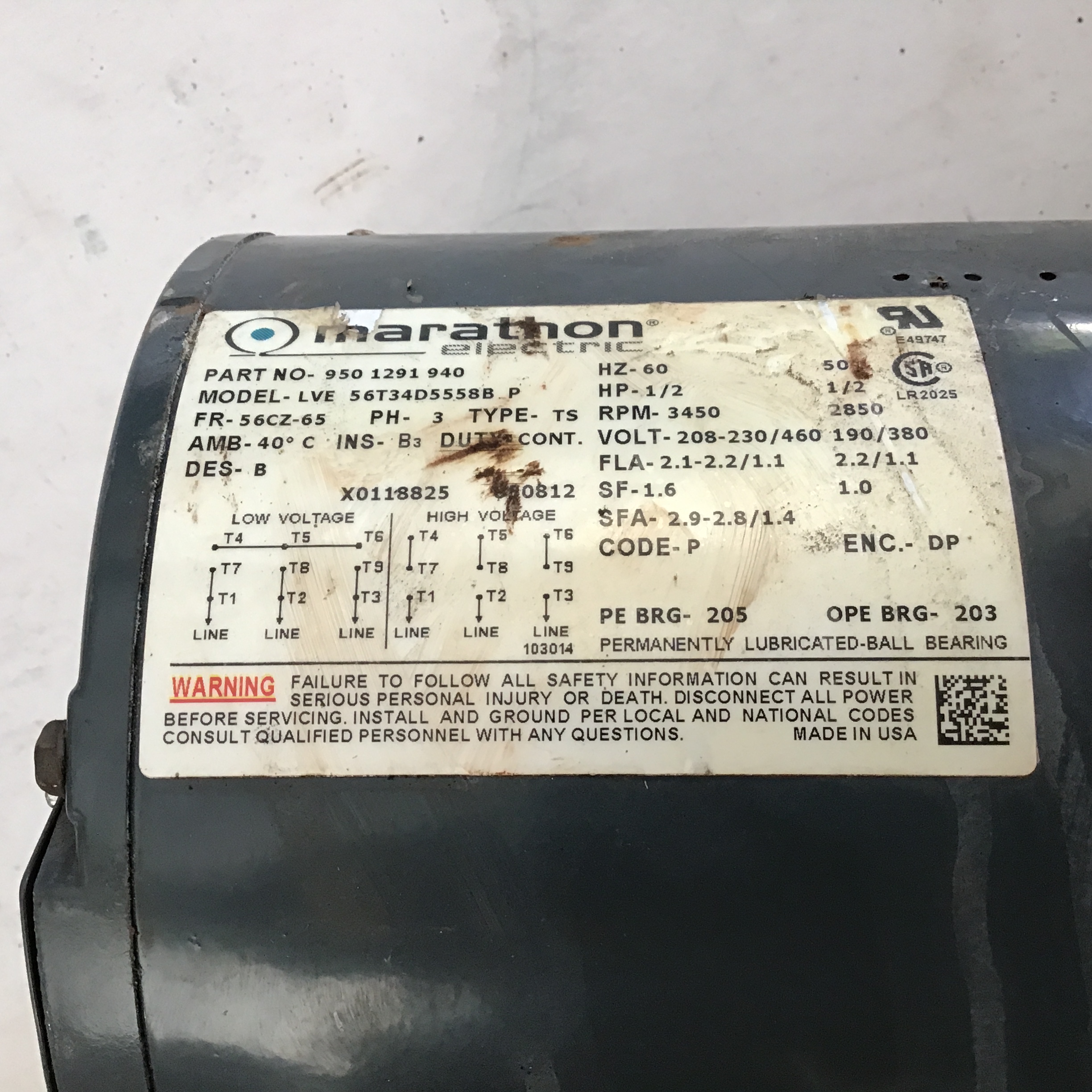

⚡ Motor Specifications

• Horsepower: 1/2 HP

• Speed: 3450 RPM (synchronous, 2-pole motor)

• Phase: 3-phase

• Voltage: Usually 208–230/460V, but should be confirmed on the motor nameplate

• Mounting: Close-coupled design (motor directly attached to pump casing)
