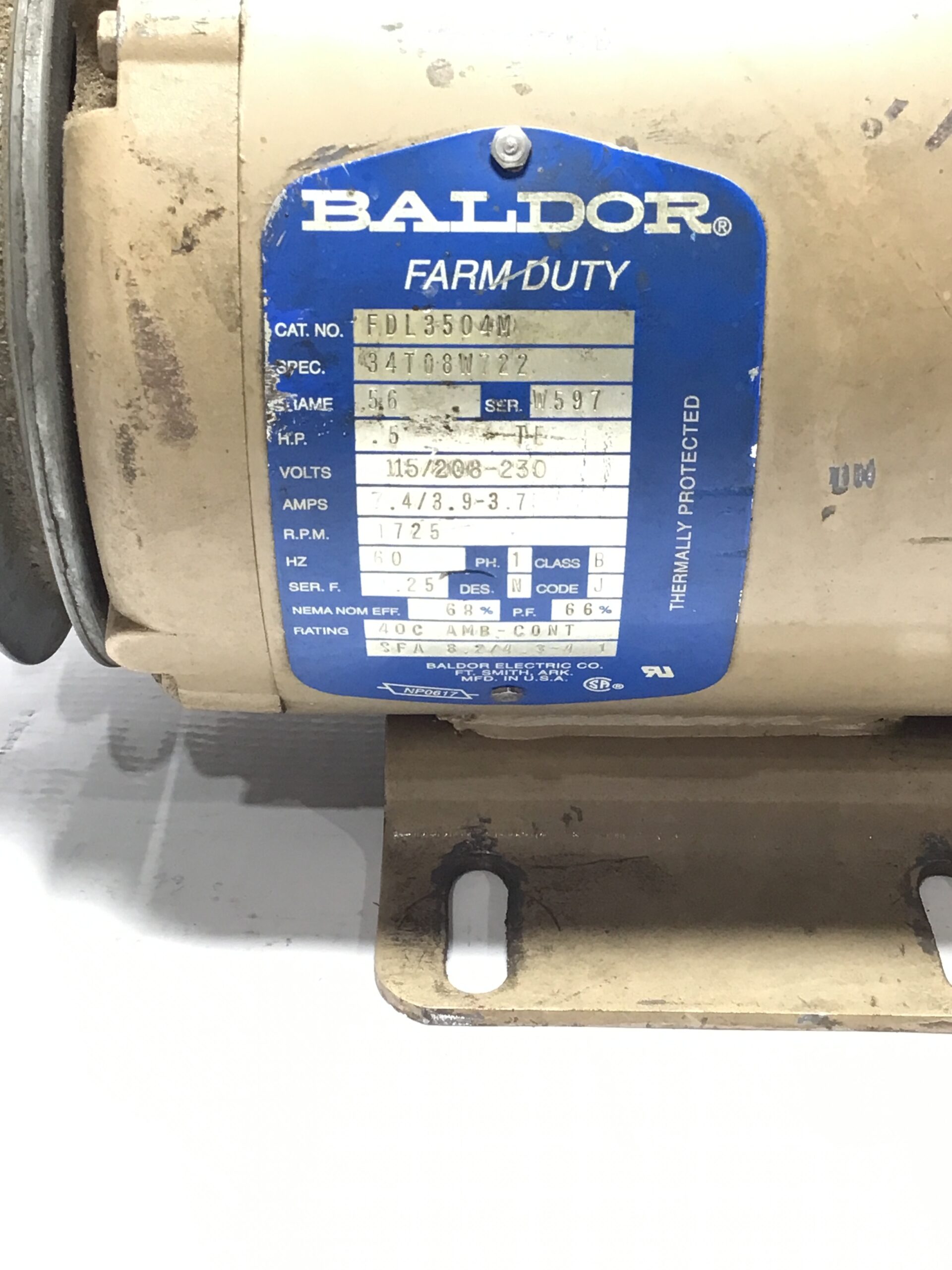

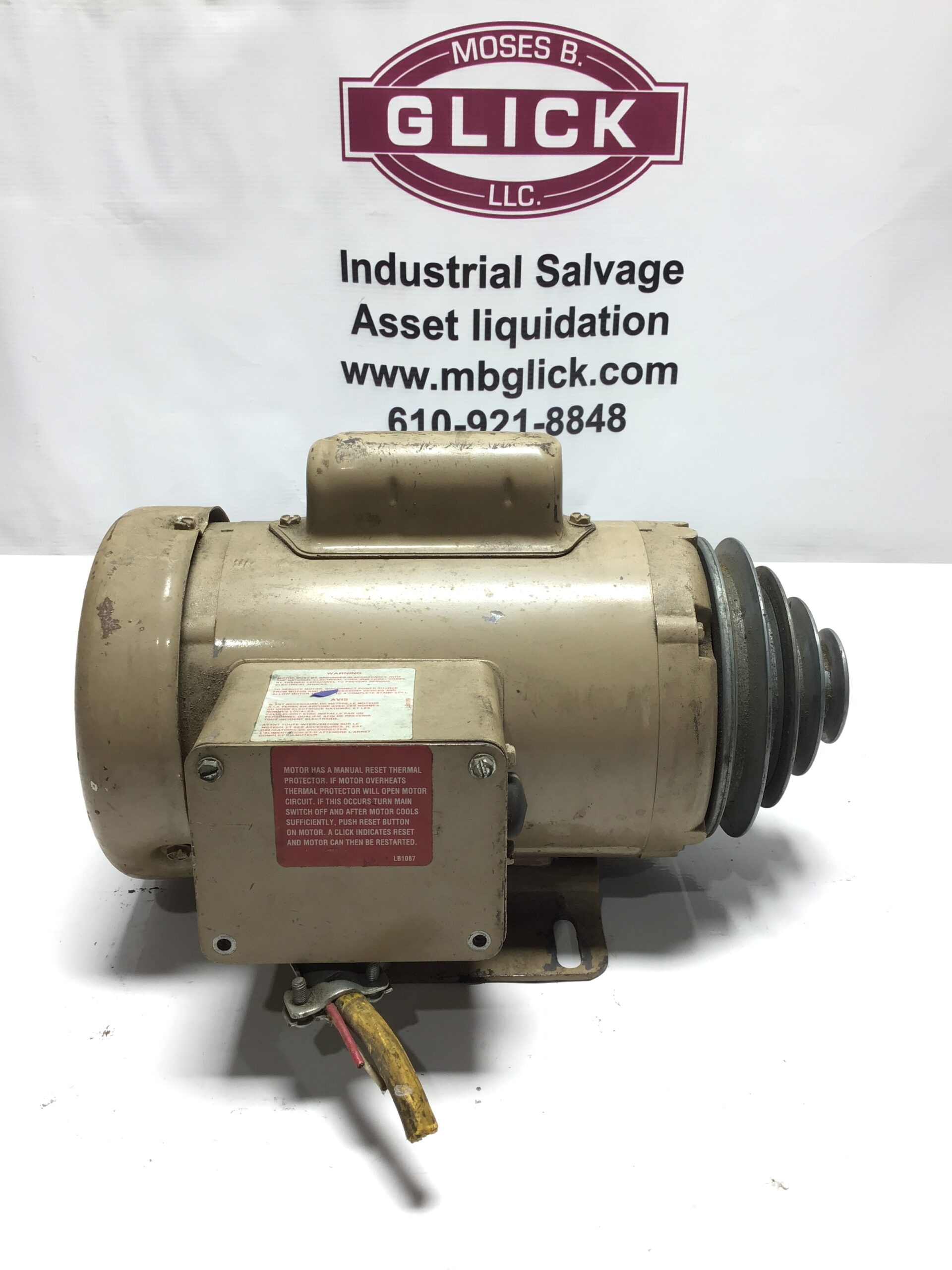

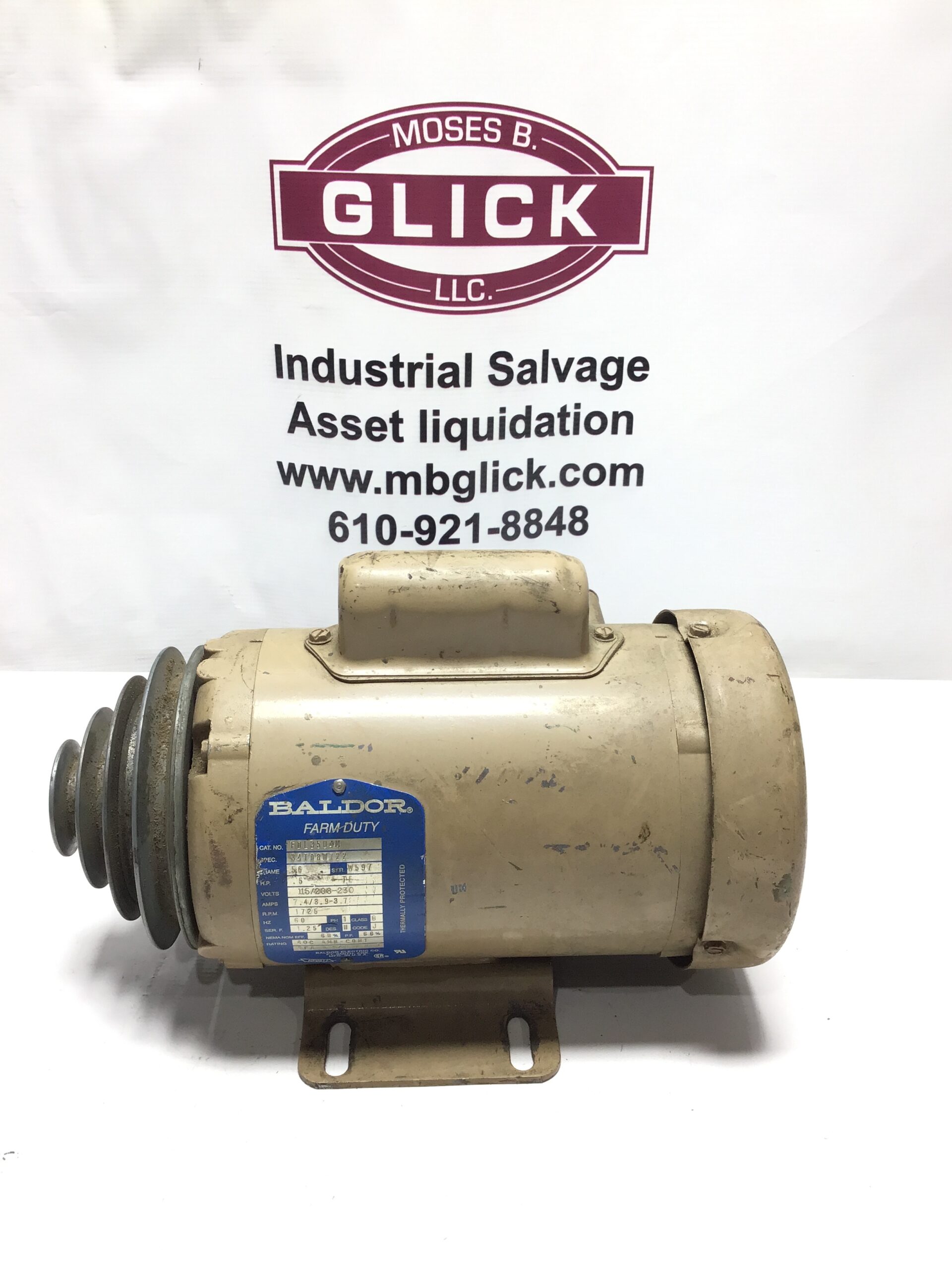

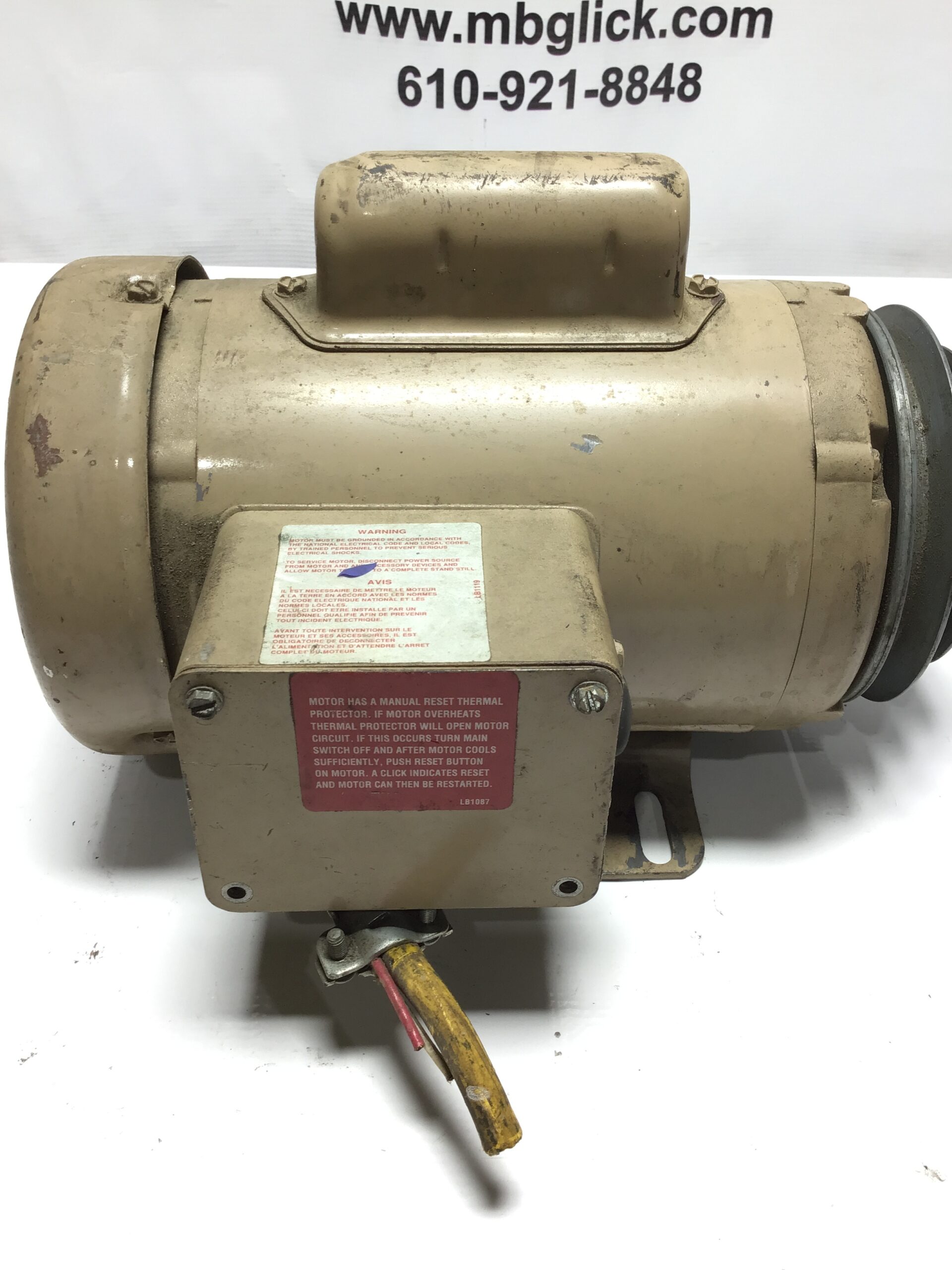

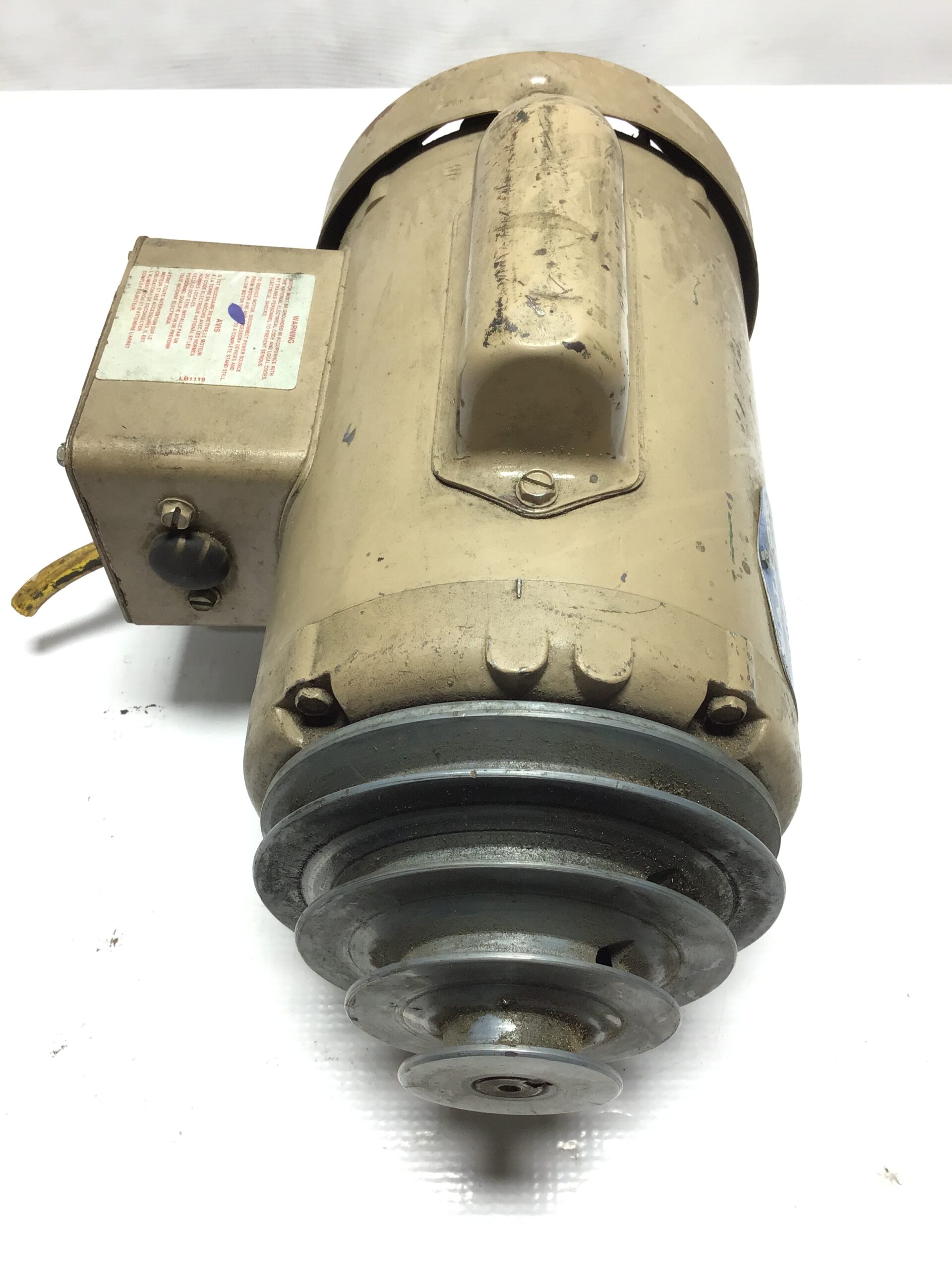

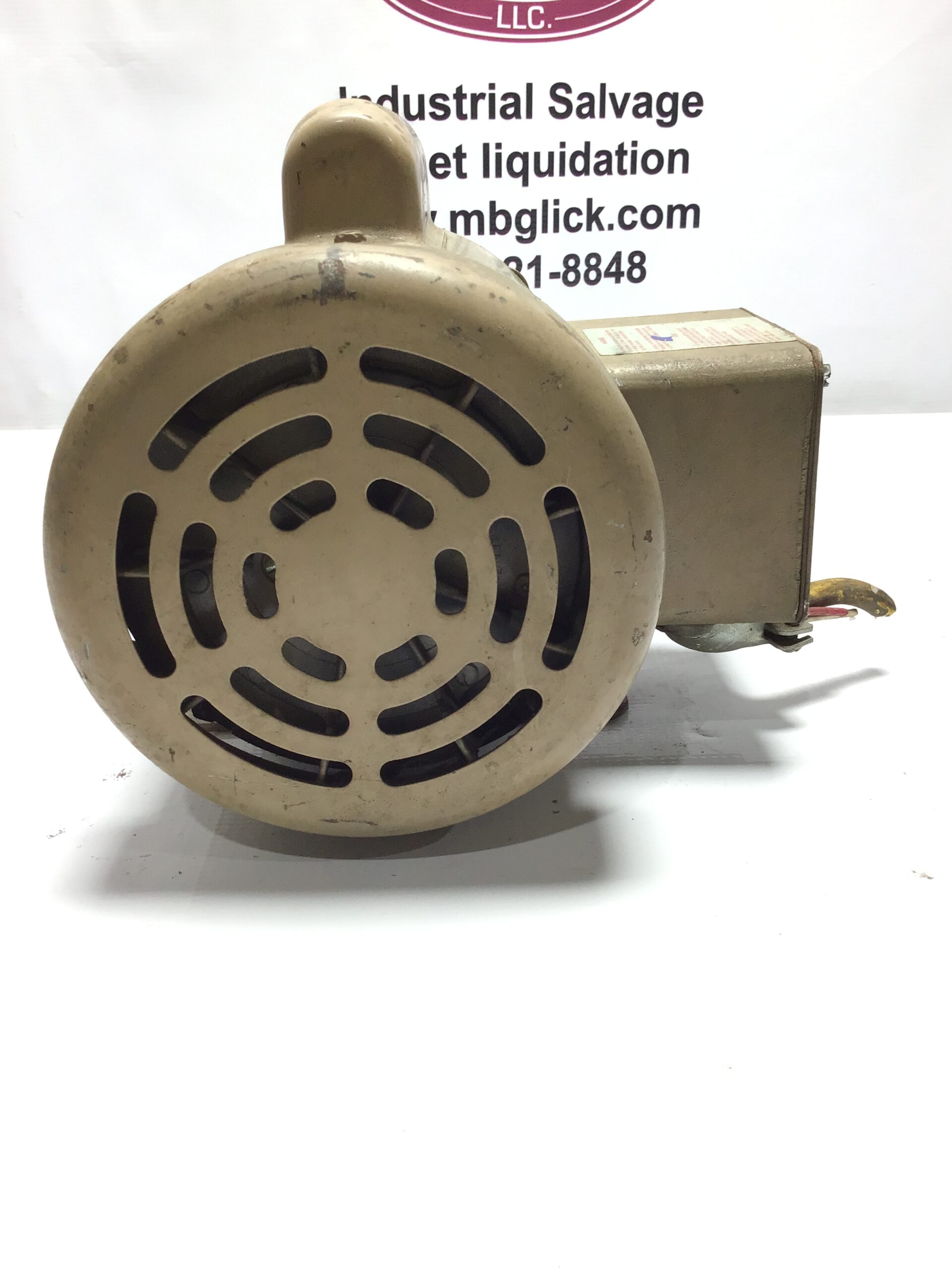

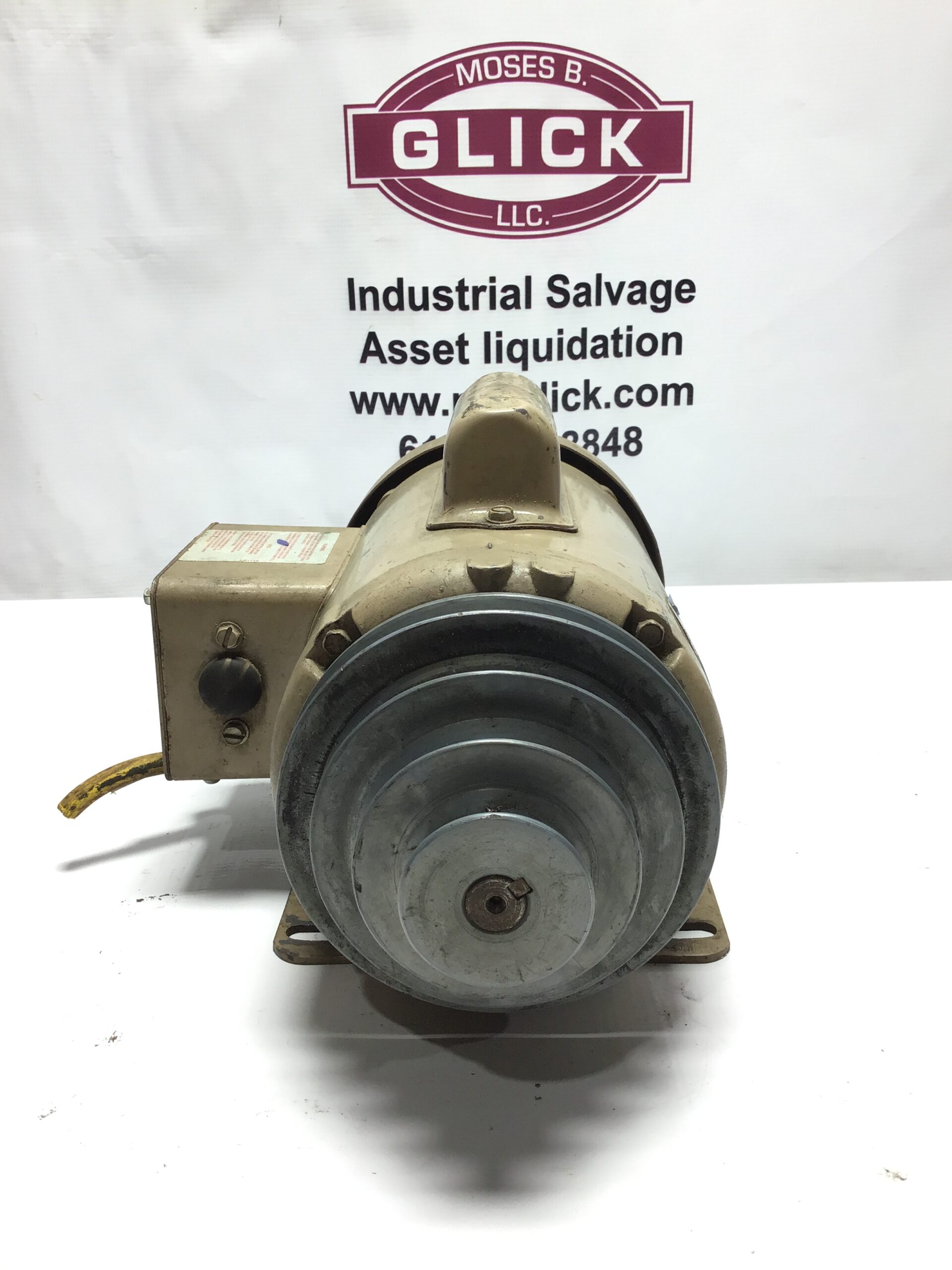

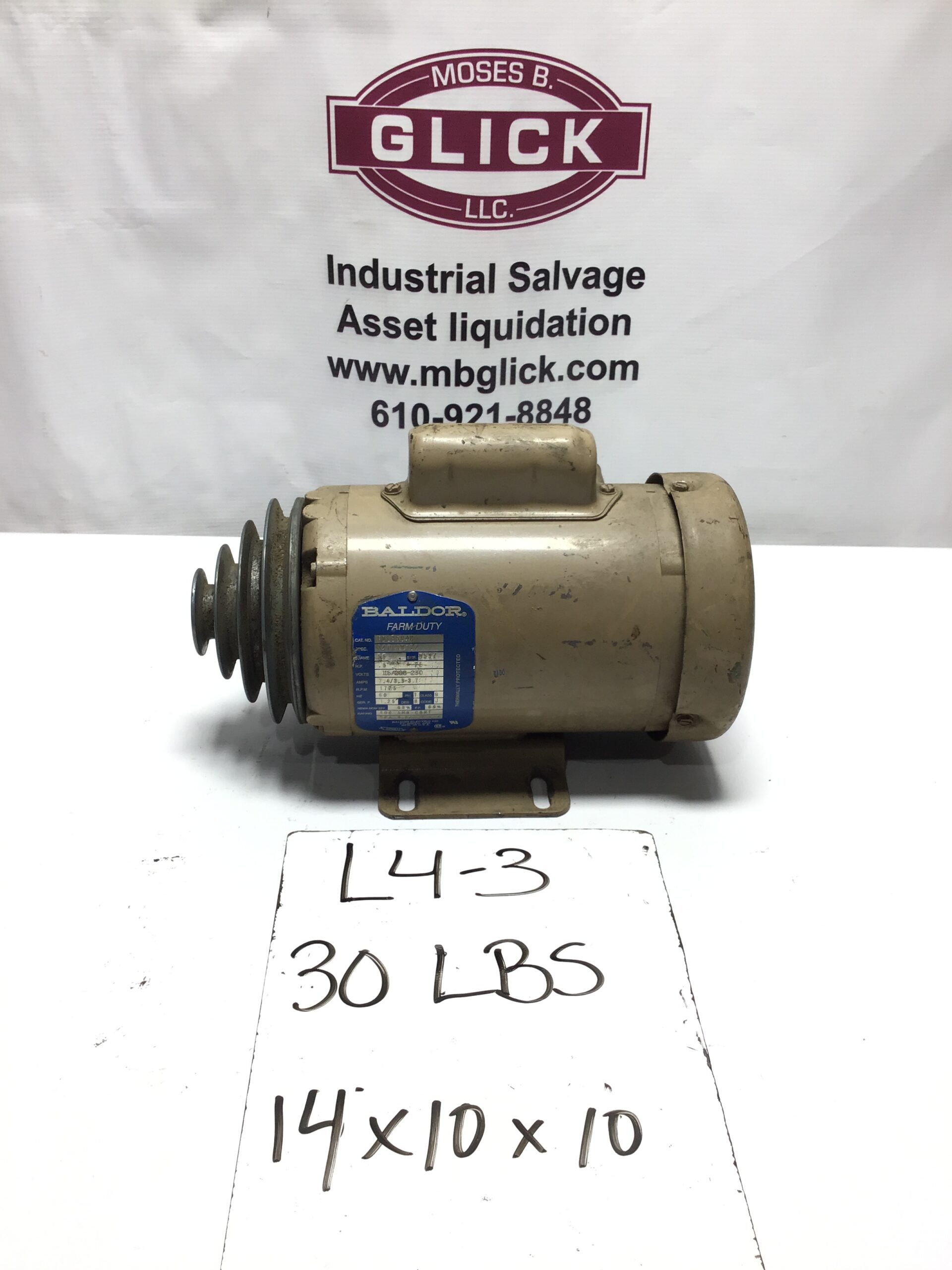

Experience reliable performance with the Baldor FDL3504M Farm Duty Electric Motor, designed for demanding agricultural applications. This robust 5HP motor operates at 1725 RPM and features a durable 5.6 frame, ensuring longevity and efficiency. With a Class B insulation rating and a service factor of 1.25, it delivers consistent power while maintaining optimal temperature control. Compatible with both 115/208-230V power supplies, it offers versatility with a current draw of 7.4/3.9-3.7 Amps. Upgrade your farm equipment with this dependable motor, engineered to meet the rigorous demands of farm duty operations.
🔌 Single Phase (1PH) motor engineered for consistent and reliable operation
💪 Powerful 5 Horsepower (5HP) output suitable for pumps, compressors, conveyors, and farm equipment
⚙️ Rated speed of 1725 RPM provides steady and efficient performance for medium-speed machinery
🔄 Operates at 60Hz frequency for standard electrical systems
🔋 Dual voltage capability: 115/208-230V allowing flexible installation options
🔌 Full load amperage: 7.4 Amps (115V), 3.9–3.7 Amps (208-230V) for efficient energy use
📏 NEMA Frame Size: 56 ensures compatibility with standard mounts and easy replacement
🧠 Class B insulation offers dependable thermal protection and extended motor life
⚡ Design N motor provides normal starting torque with low starting current
🔁 Service Factor (SF): 1.25 allowing the motor to handle temporary overload conditions safely
