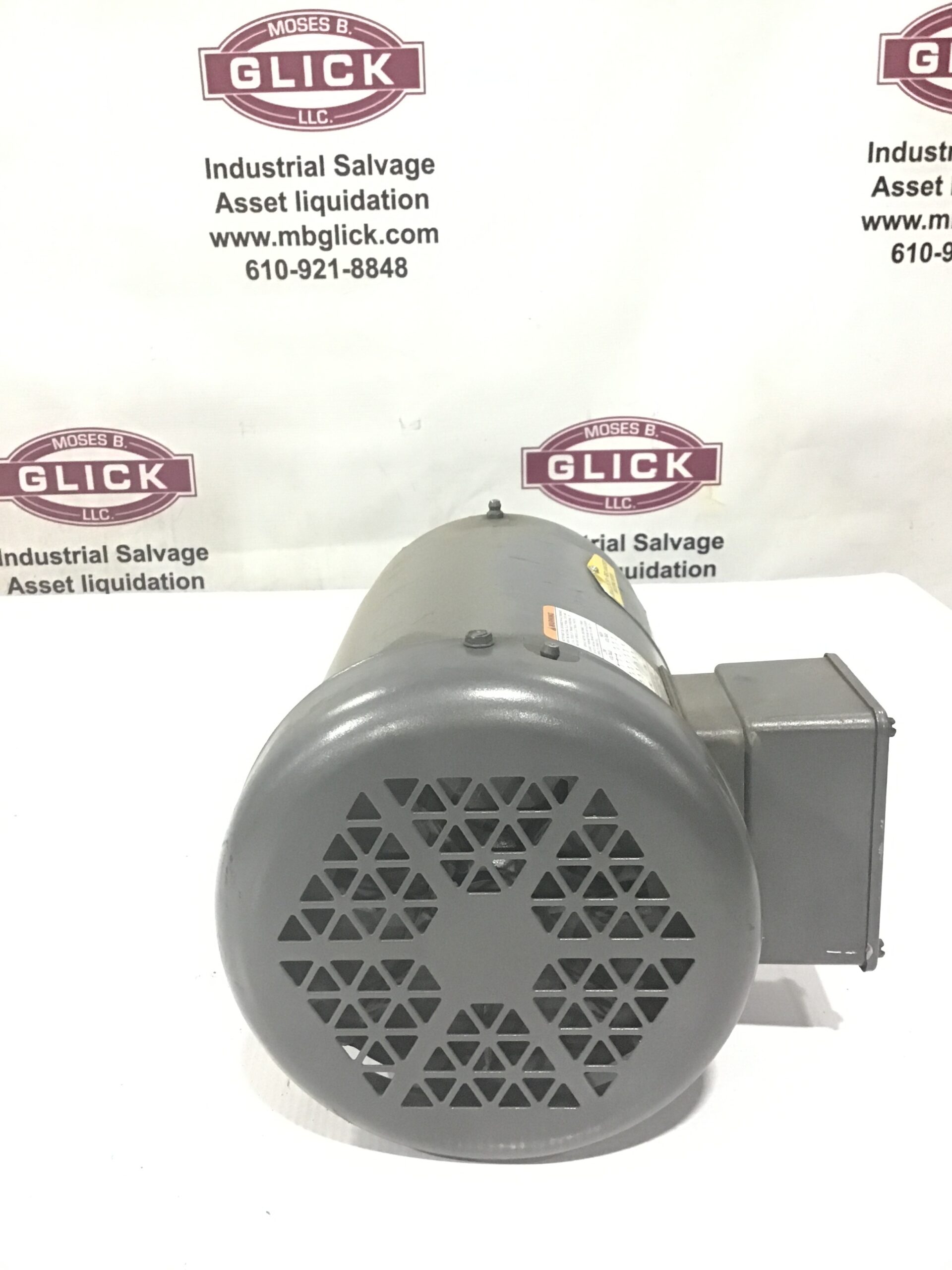

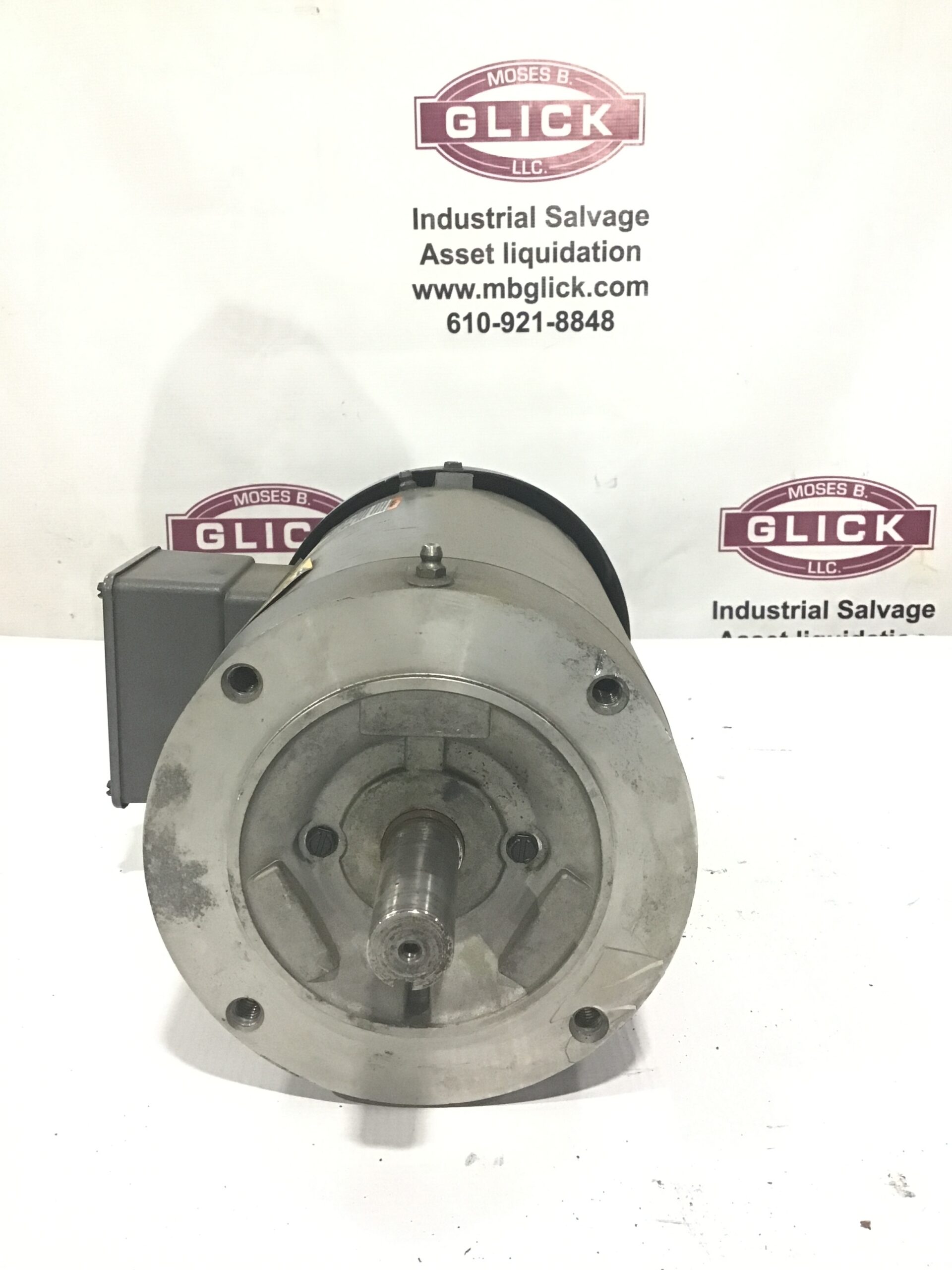

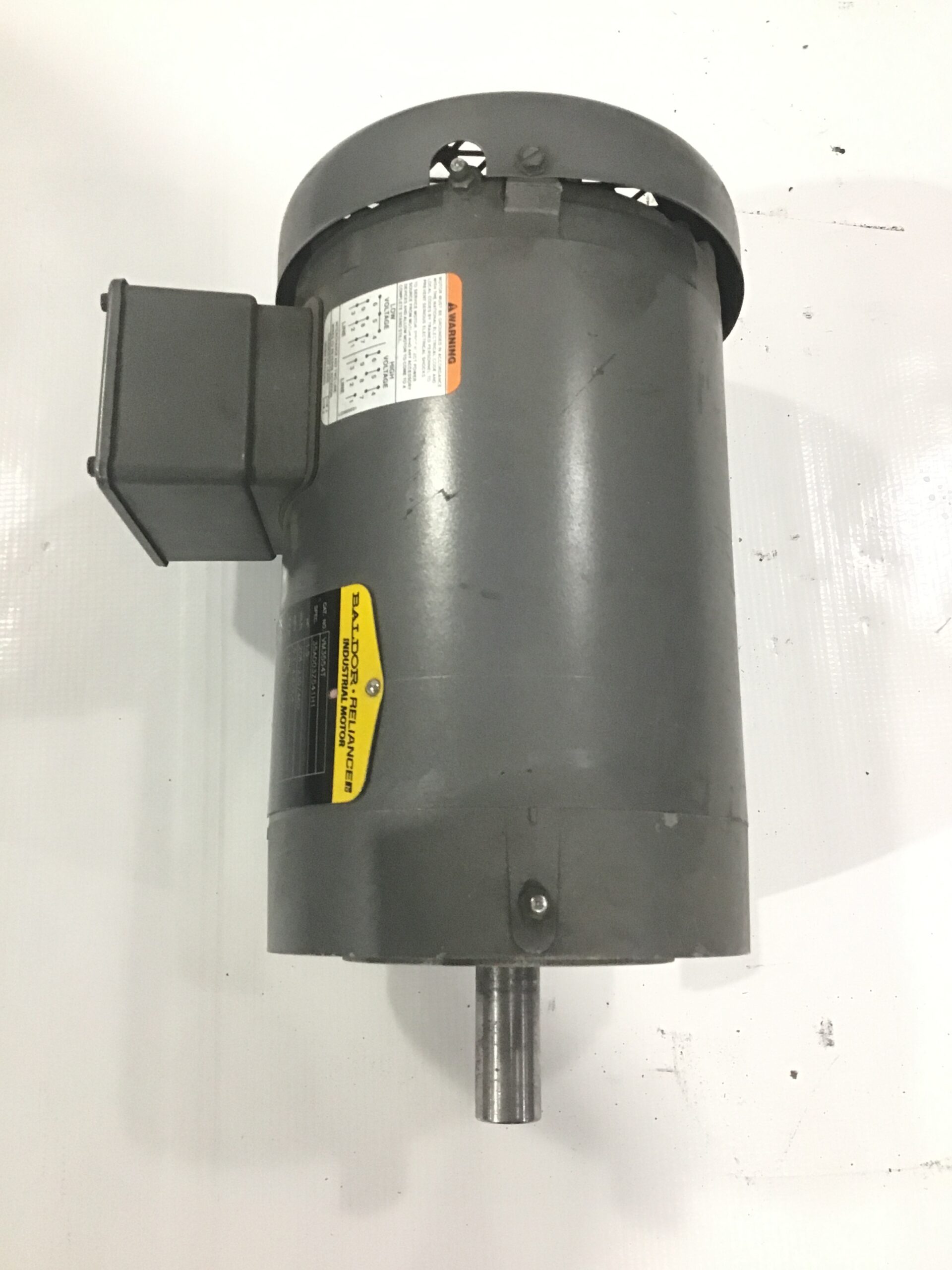

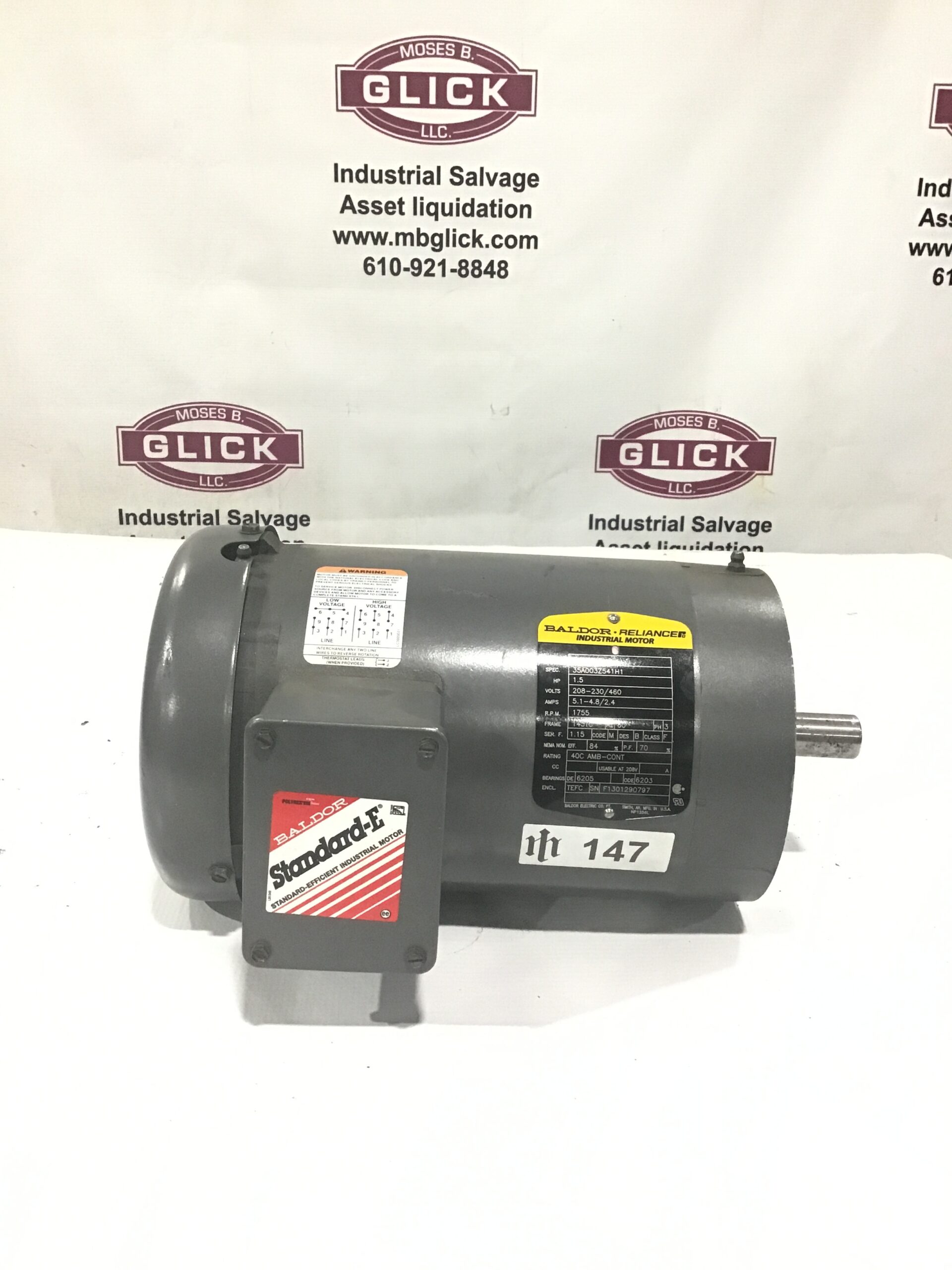

Baldor Reliance VM3554T 1.5HP 3-Phase Industrial Efficient Motor 1755RPM

Baldor Reliance Standard-E Industrial Electric Motor – VM3554T

Upgrade or replace your industrial motor with this high-quality Baldor Reliance Standard-E motor, known for durability, efficiency, and long service life in demanding industrial environments.

This motor is designed for continuous duty operation and is commonly used in pumps, conveyors, compressors, fans, and other industrial machinery.

Baldor motors are widely recognized for reliability and heavy-duty construction, making them a trusted choice in manufacturing and maintenance operations.

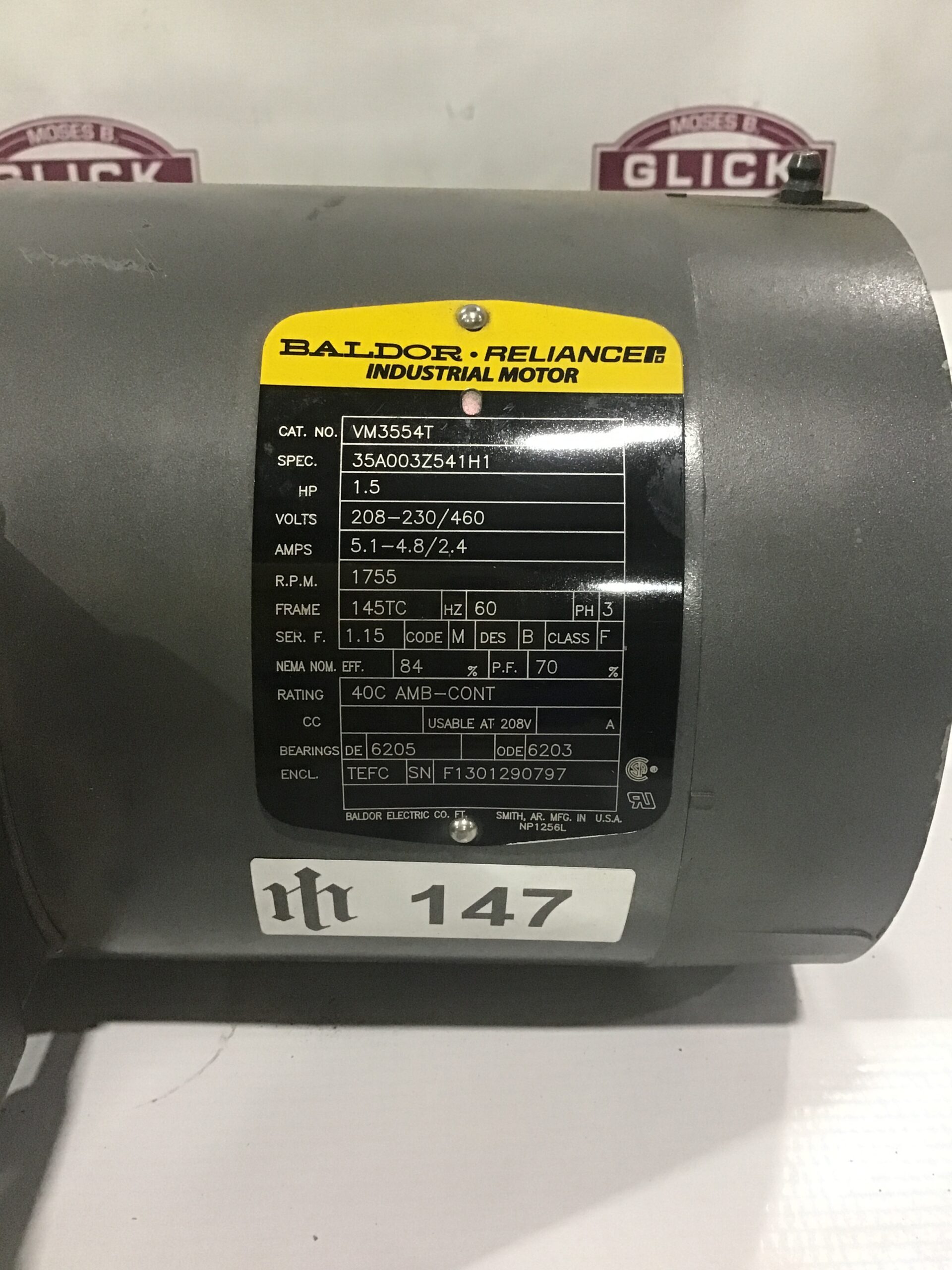

Key Specifications:

• Manufacturer: Baldor Reliance

• Series: Standard-E

• Catalog Number: VM3554T

• Horsepower: 1.5 HP

• Phase: 3 Phase

• Voltage: 208-230 / 460 V

• Amperage: 5.1 / 4.8 / 2.4 A

• Speed: 1755 RPM

• Frame: 145TC

• Frequency: 60 Hz

• Service Factor: 1.15

• Design: B

• Insulation Class: F

• NEMA Nominal Efficiency: 84%

• Power Factor: 70

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Bearings:

  • Drive End: 6205

  • Opposite Drive End: 6203

• Duty Rating: Continuous

• Ambient Rating: 40°C

Features:

✔ Heavy-duty industrial construction

✔ TEFC enclosure protects against dust and contaminants

✔ Designed for continuous operation

✔ Reliable Baldor engineering and performance

✔ Suitable for a wide variety of industrial and commercial applications

Typical Applications:

• Industrial machinery

• Pumps and compressors

• Conveyor systems

• HVAC equipment

• Manufacturing equipment

• Agricultural equipment
