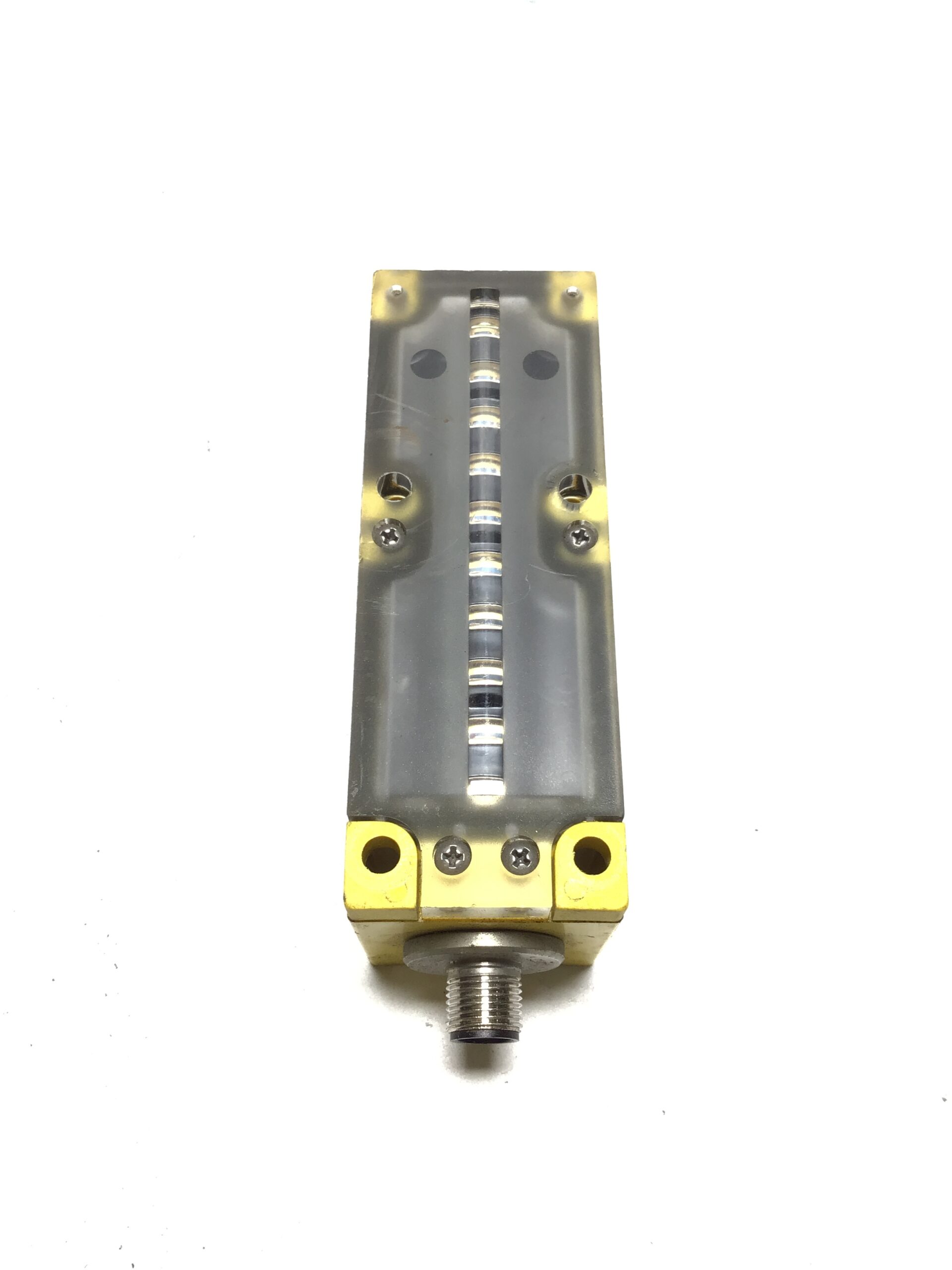

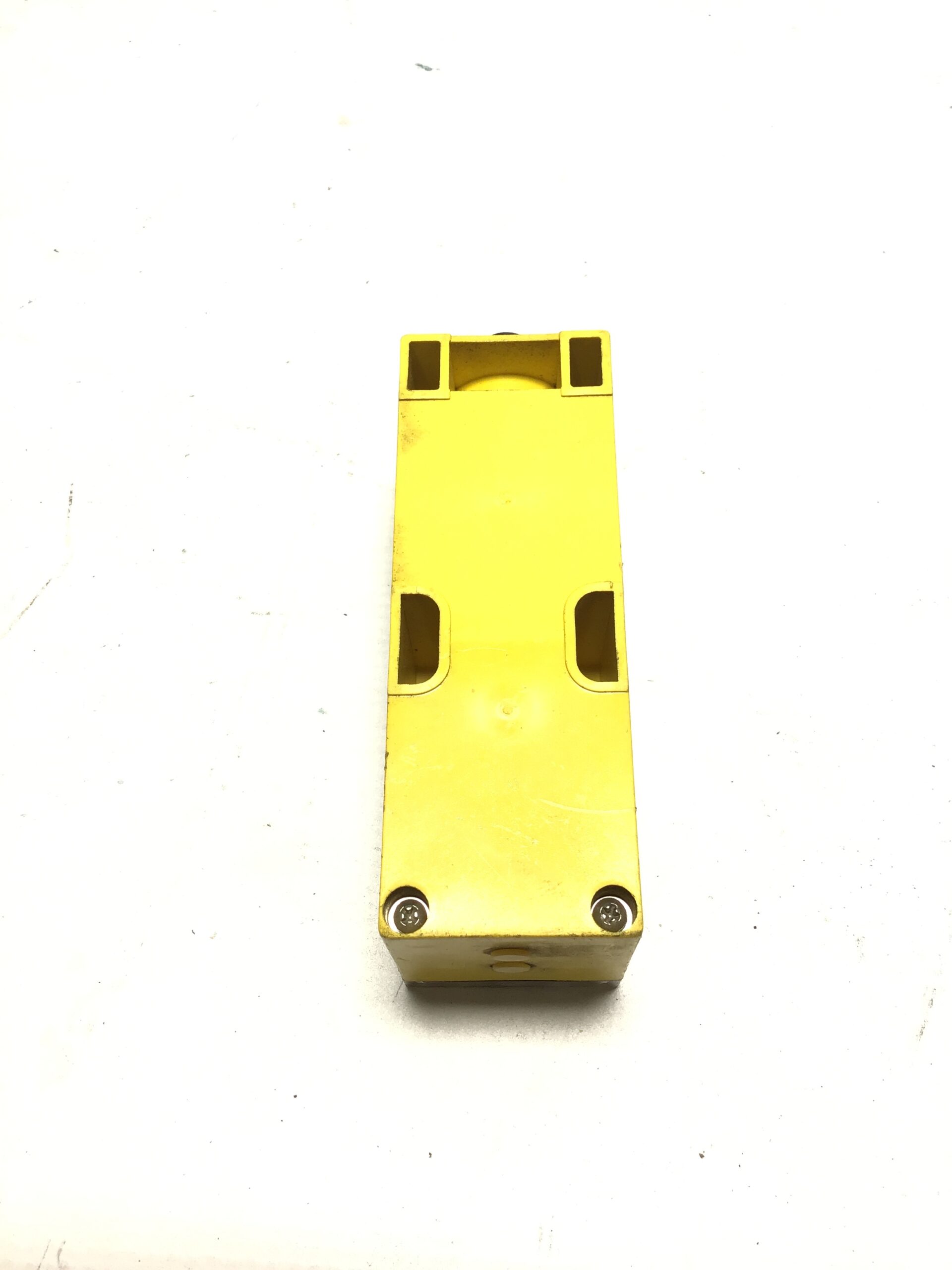

The Banner Engineering LS10RQDH is a receiver for the Banner MULTI-BEAM LS10 Light Screen System. It works with a compatible LS10-series emitter to create an infrared light screen for detecting objects that interrupt the beam. The LS10RQDH uses a 4-pin Euro-style quick-disconnect connection and provides both NPN and PNP outputs.
Key specifications:
- Manufacturer: Banner Engineering
- Model: LS10RQDH
- Series: MULTI-BEAM LS10
- Function: Light screen receiver
- Sensing method: Through-beam
- Supply voltage: 12–30 V DC
- Sensing range: Approximately 100–1,220 mm (3.94–48.03 in.) when used with the appropriate LS10 emitter

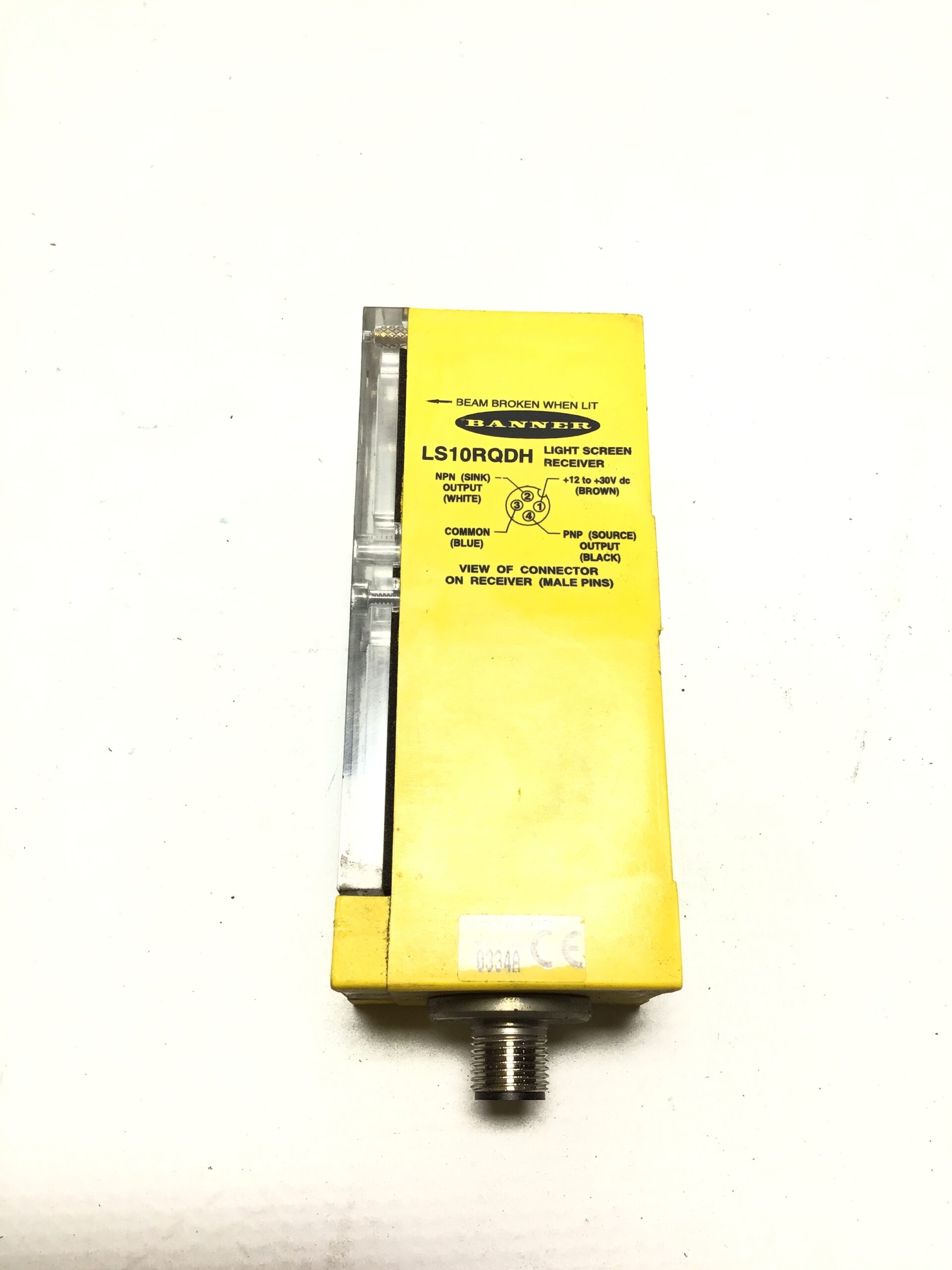

- Output: Bipolar — 1 NPN and 1 PNP

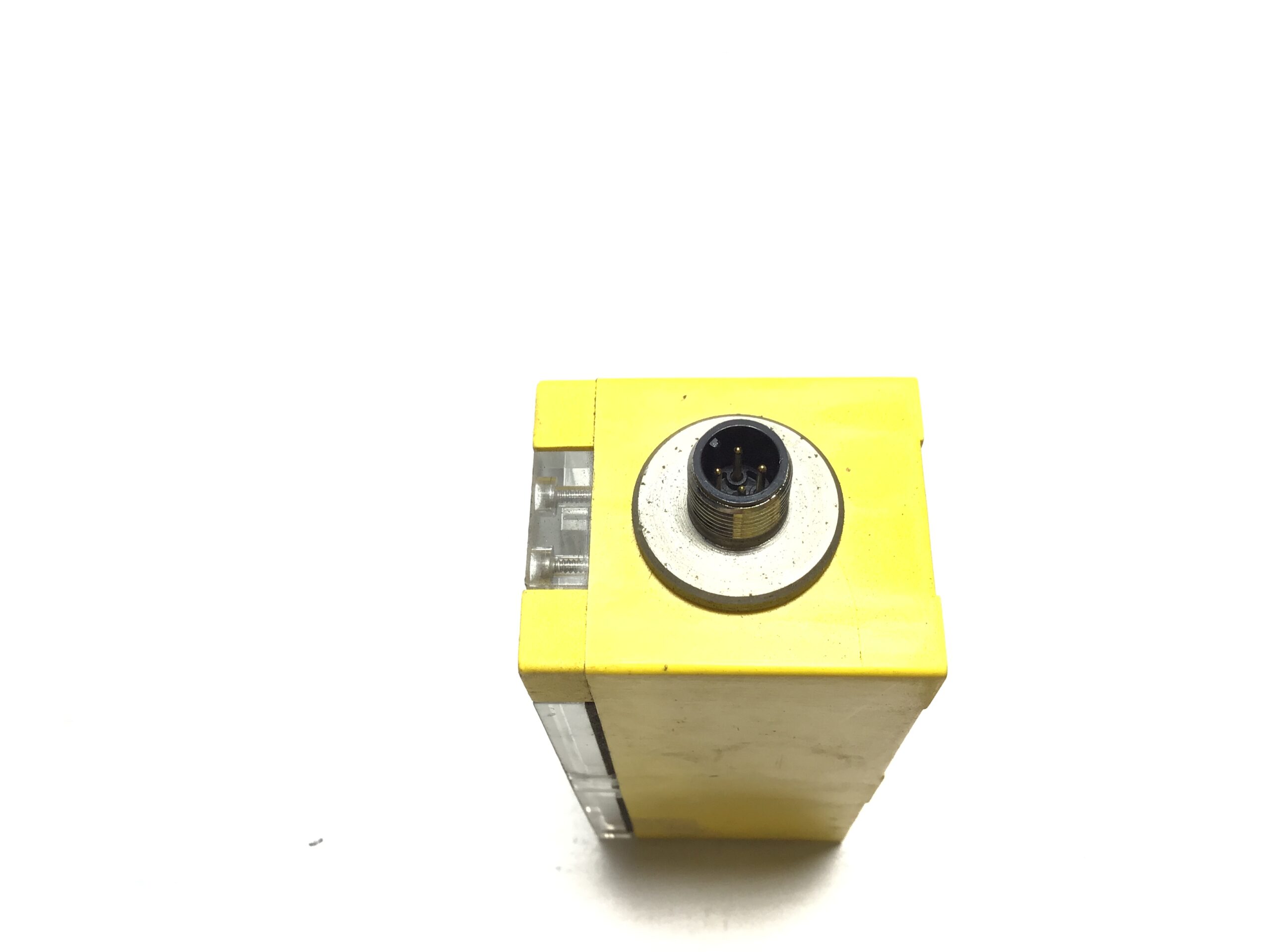

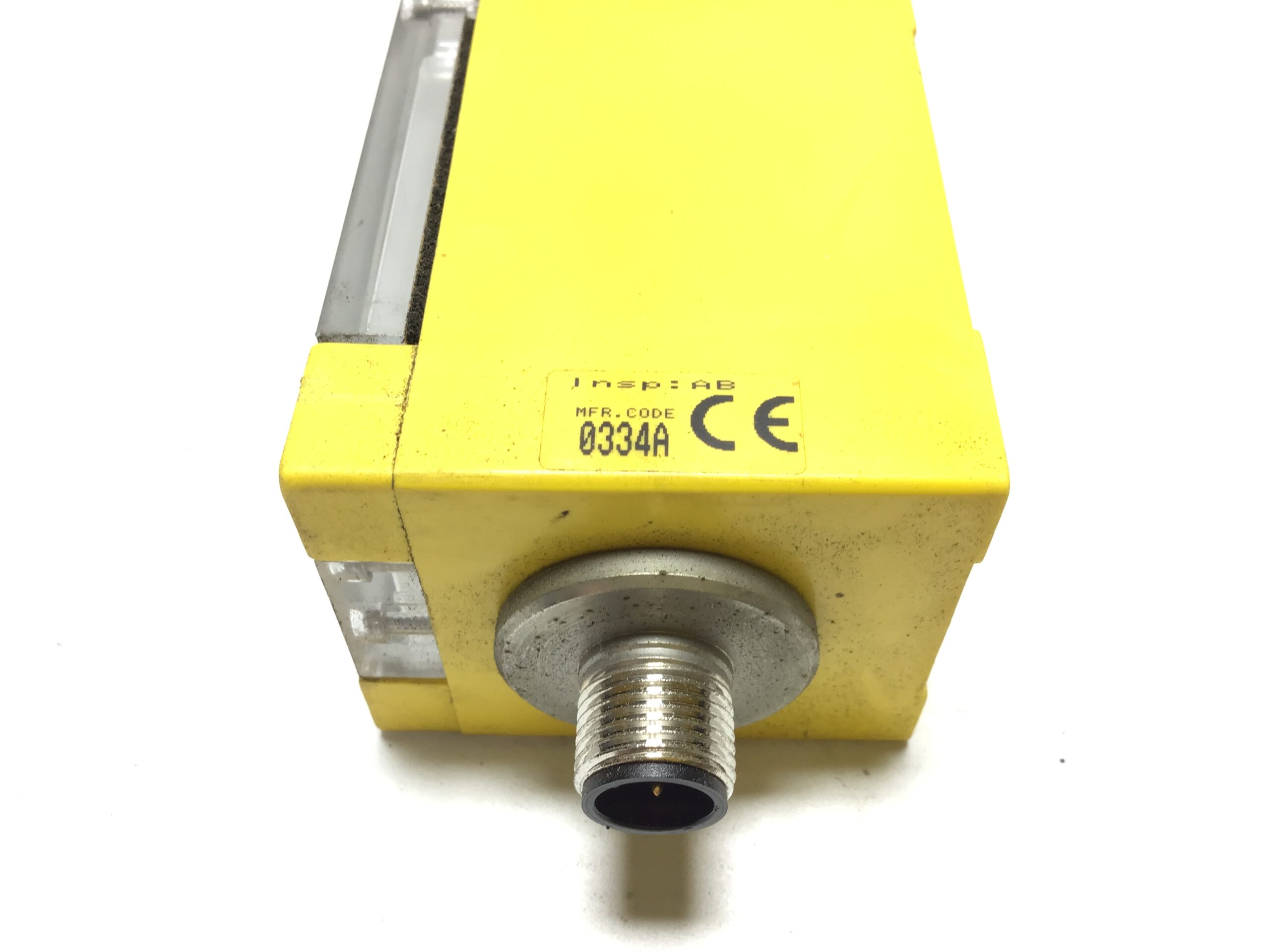

- Connection: 4-pin Euro-style quick disconnect
- Infrared wavelength: Approximately 880 nm
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Environmental rating: IP54 / NEMA 1, 2, 3, 12, 13
- Status: Obsolete/discontinued by Banner Engineering.
Applications
- Detecting objects moving through a production or processing area
- Part presence/absence detection
- Material detection on machinery or conveyor systems
- Counting or monitoring objects passing through a defined area
- Detecting interruptions in an industrial process
- Machine automation and control applications
- Providing an input signal to PLCs, control circuits, or Banner amplifier/logic modules
