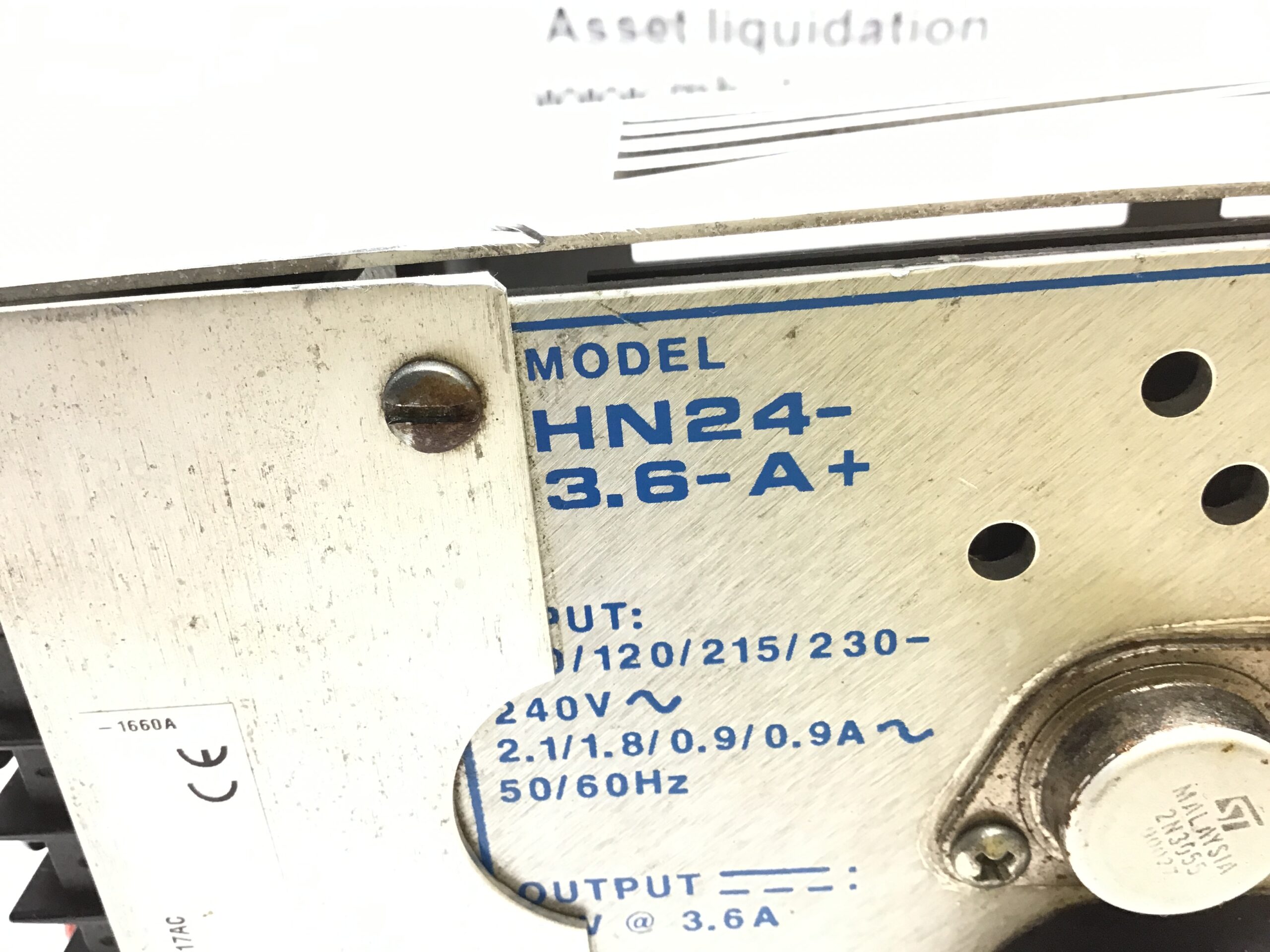

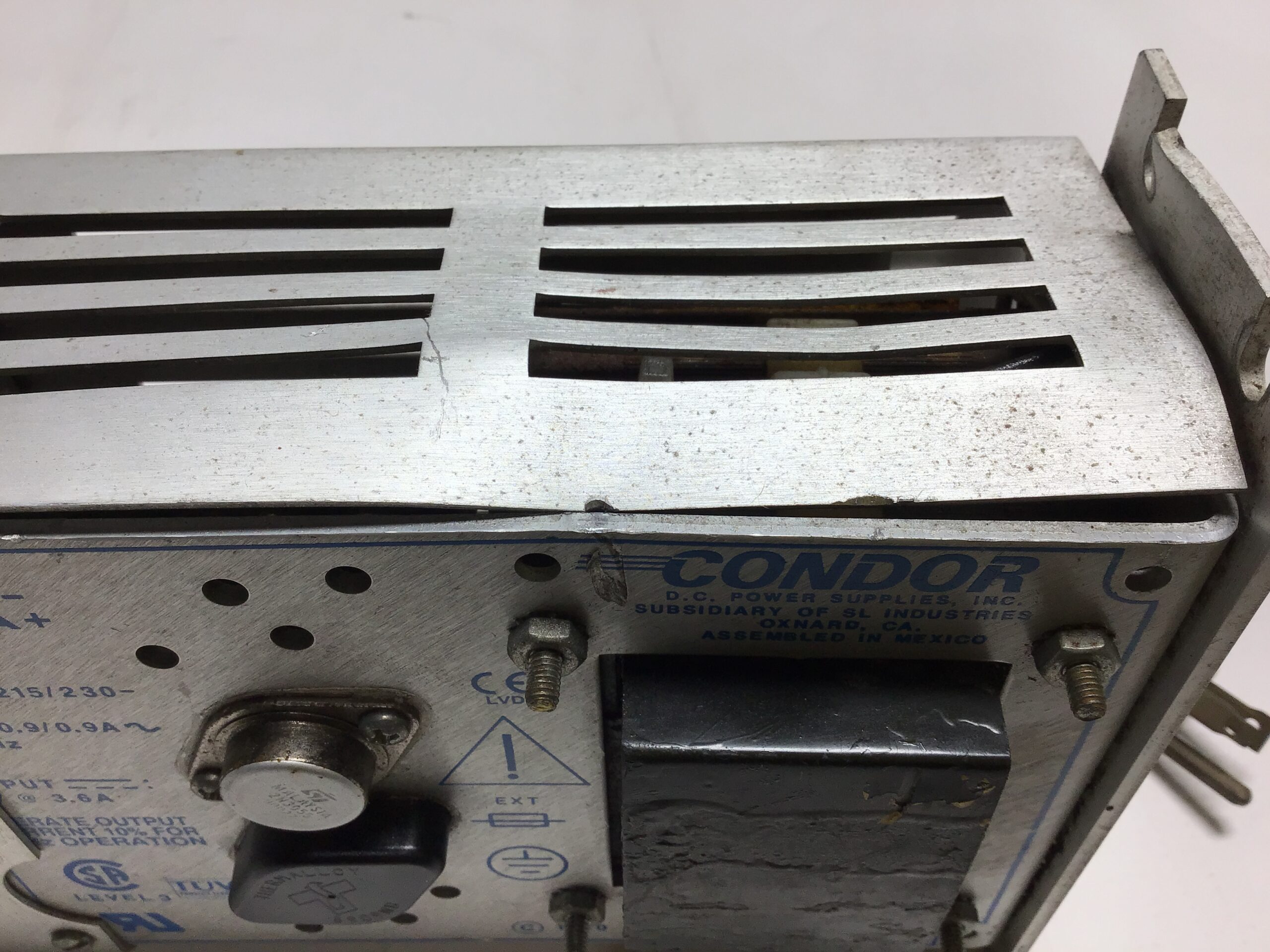

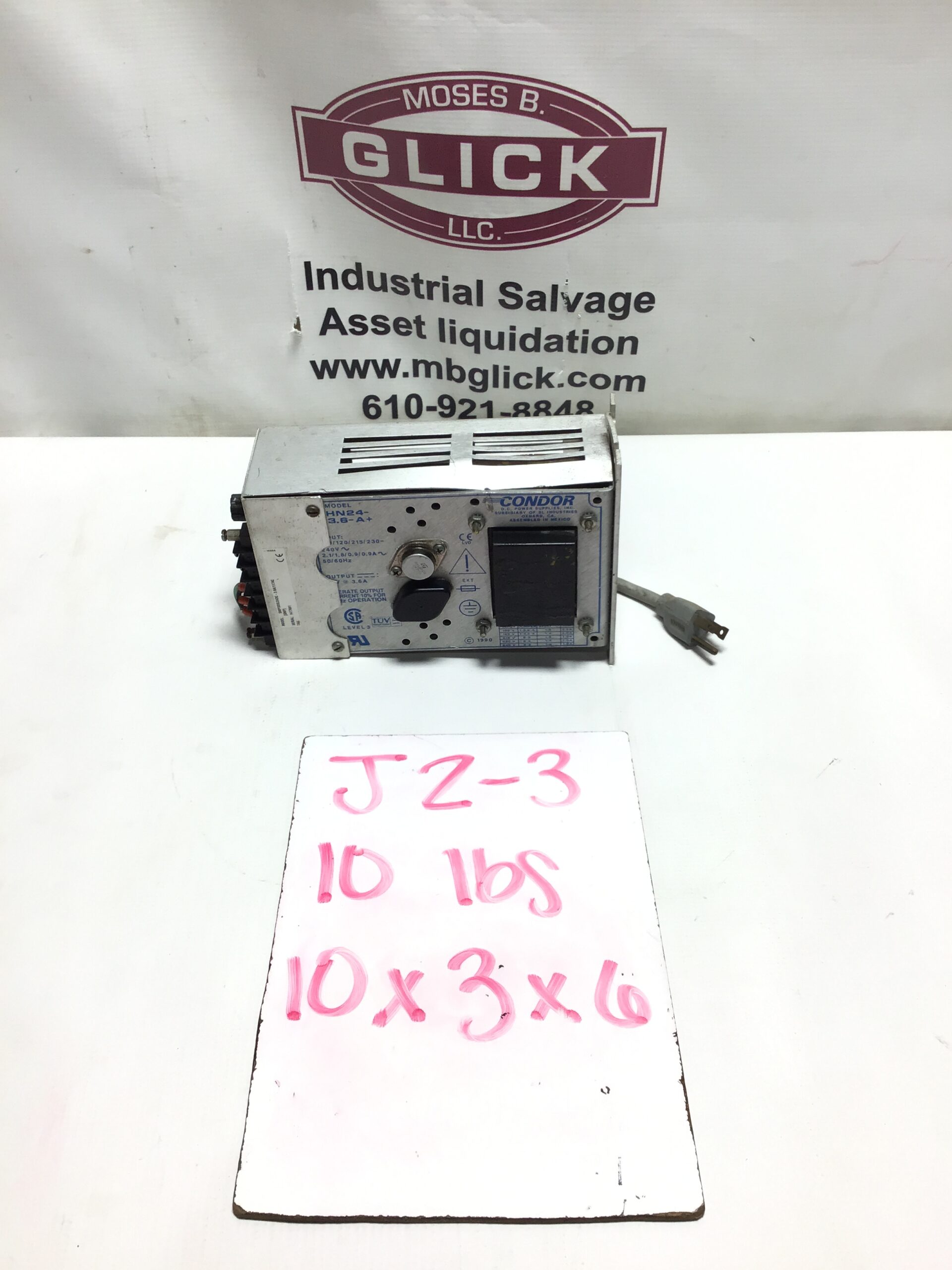

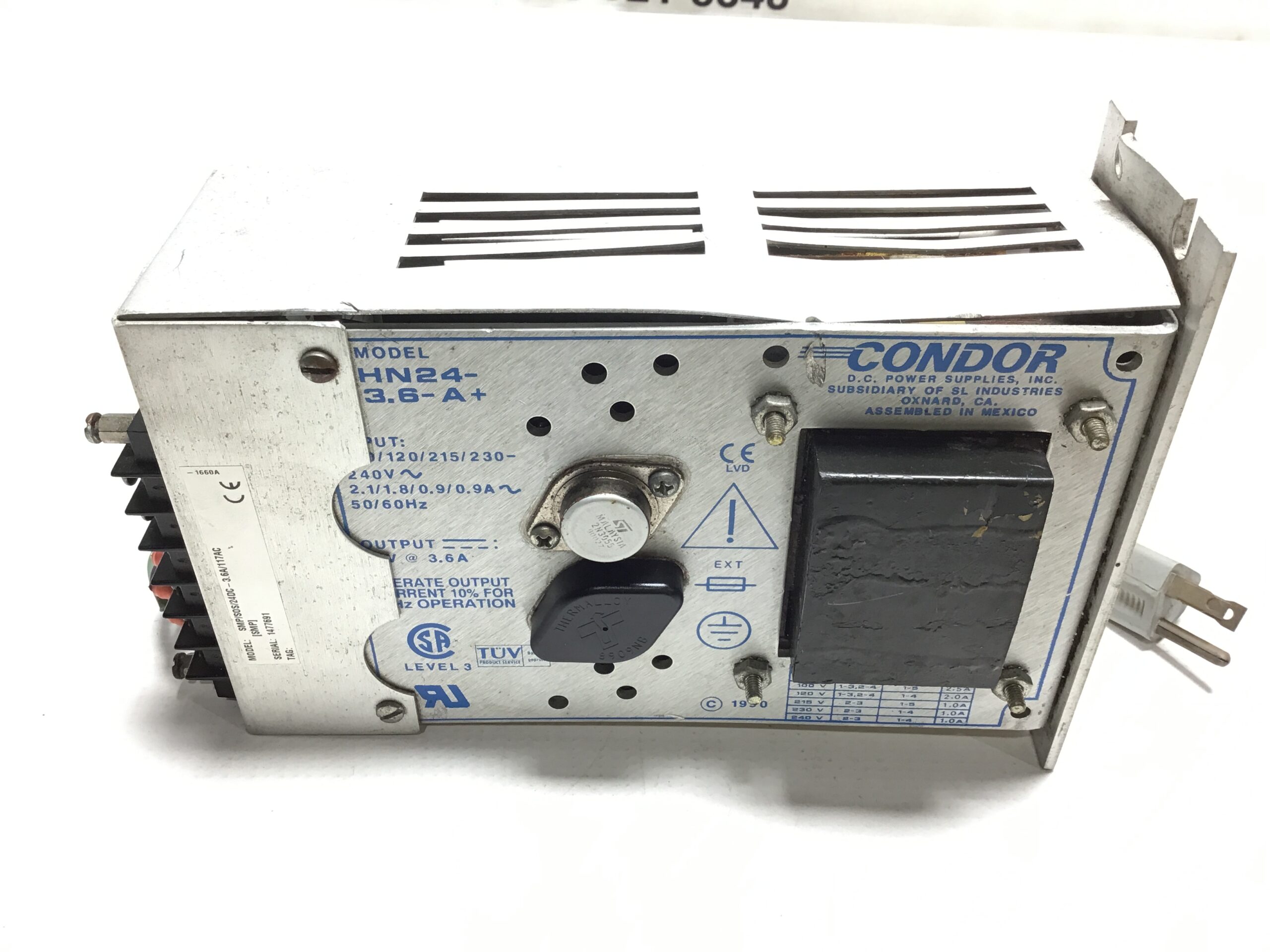

Condor HN24-3.6-A+ DC Power Supply

Product Overview

The Condor HN24-3.6-A+ is a linear, single-output DC power supply designed for industrial and instrumentation applications that require low noise and precise voltage regulation. It provides a regulated 24-volt DC output at up to 3.6 amps, delivering approximately 86 watts of output power. Manufactured by Condor (now part of SL Power Electronics), it’s a reliable, chassis-mount supply often used in test equipment, control systems, and other demanding electronic systems.

Key Features

• Output Voltage: 24 V DC

• Output Current: 3.6 A maximum

• Output Power: Approximately 86 W

• Input Voltage Range: 100–240 V AC, 47–63 Hz

• Topology: Linear regulated design for low noise and ripple

• Line and Load Regulation: ±0.05 % typical

• Output Adjustment Range: ±5 %

• Efficiency: Approximately 55–60 %

• Ripple and Noise: Very low (typical of linear supplies)

• Operating Temperature: 0 °C to 70 °C (derating may apply at higher temperatures)

• Cooling: Convection-cooled, with chassis-mount configuration

• Construction: Open-frame or chassis-mount style

• Protection Features: Over-voltage and short-circuit protection

• Certifications: UL, cUL, TUV, CE (varies by production version)
