Product Overview

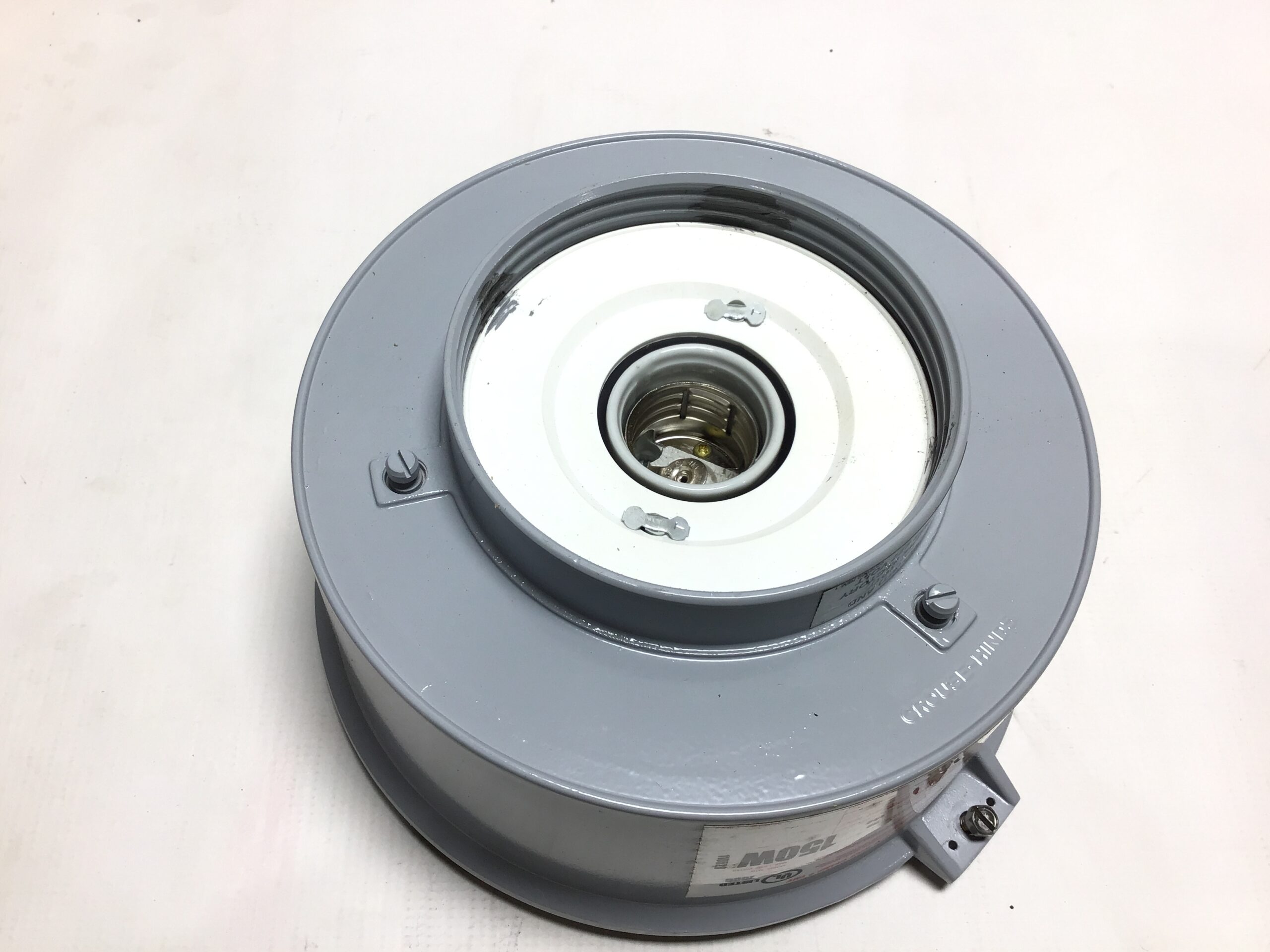

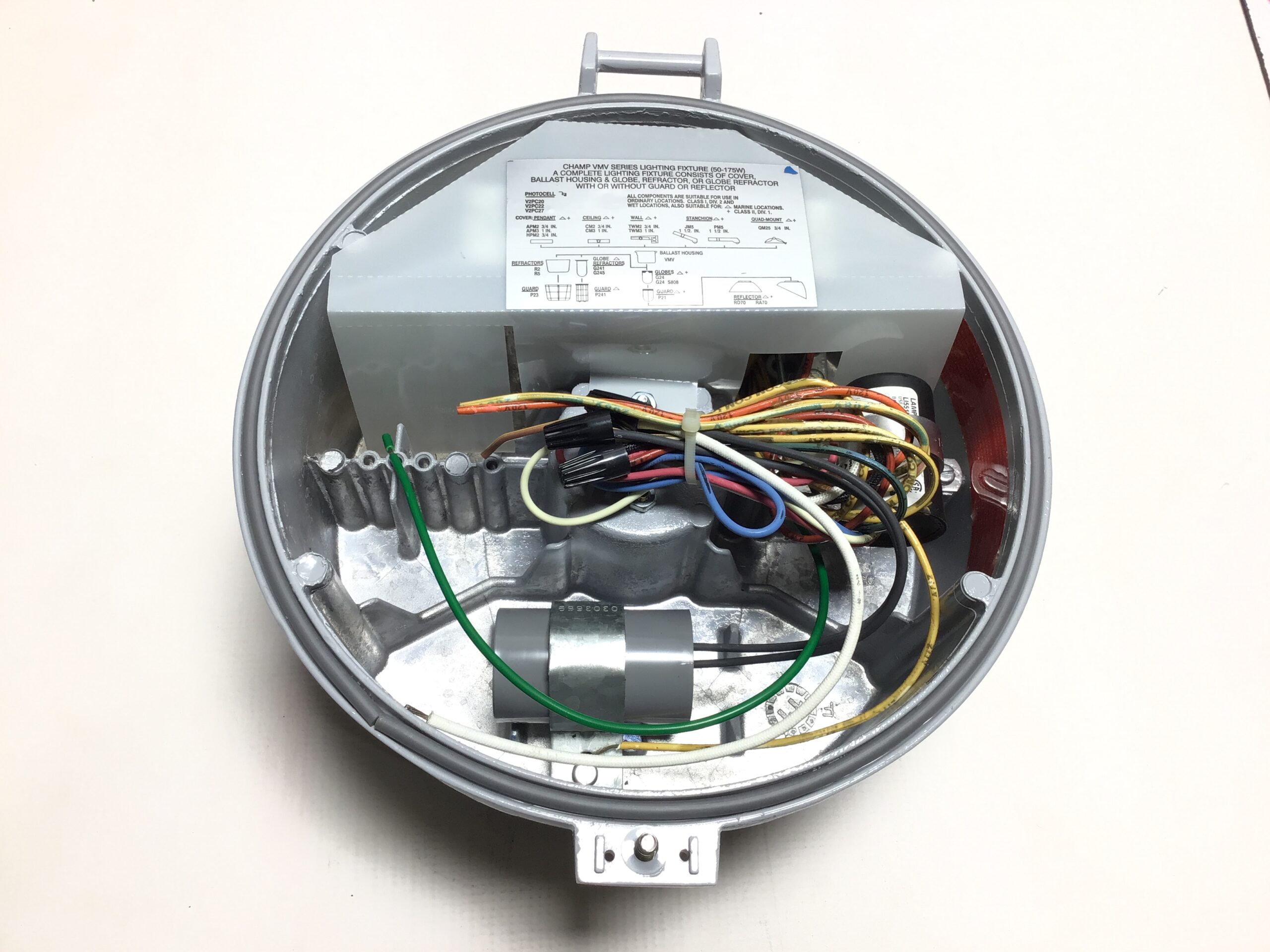

The VMVS150/MT LX is a 150 W multi-tap ballast housing for the Champ® VMV series of hazardous-location luminaires. It is engineered for installation in industrial, chemical, petrochemical and other demanding environments. It is intended as a durable, high-performance component of a Hazardous (Class/Zone) lighting system.
Key Features
-
Intended for use with high pressure sodium (HPS) lamps at 150 W.
-
Multi-tap input voltage configuration (covers nominal 120/208/240/277 V AC at 60 Hz).
-
Copper-free aluminum housing with epoxy powder-coat finish for corrosion resistance.
-
No mounting module included (mounting module is ordered separately).
-

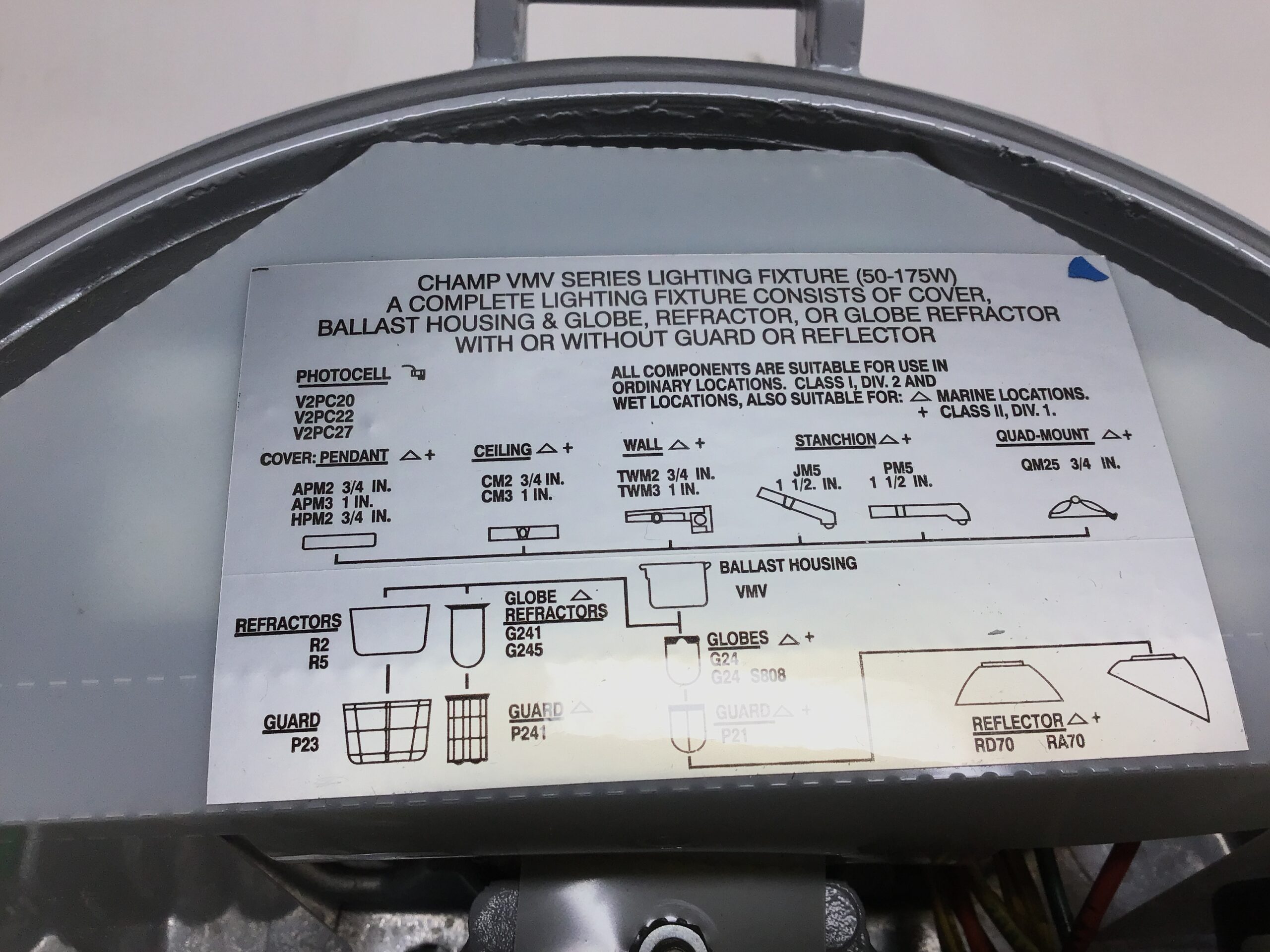

Ballast housing only — guard, globe, mounting module and other accessories may be required based on installation.
-
Rugged design suitable for hazardous-location use (e.g., Class I Division 2 / Zone 2) in industrial applications.
-
Typical dimensions approx. 11.56 in (L) × 10.00 in (W) × 7.00 in (H).
-
Epoxy powder-coated finish ensures durability in harsh environments.
Applications
This unit is designed for use in harsh or hazardous locations—such as refineries, offshore installations, chemical plants, processing facilities, docks/harbors, and heavy-industrial environments. It is suited for indoor or outdoor general-area lighting where flammable gases, vapors, dust, or fibers may be present and where durable construction and reliable operation are required.
Specifications Summary
-

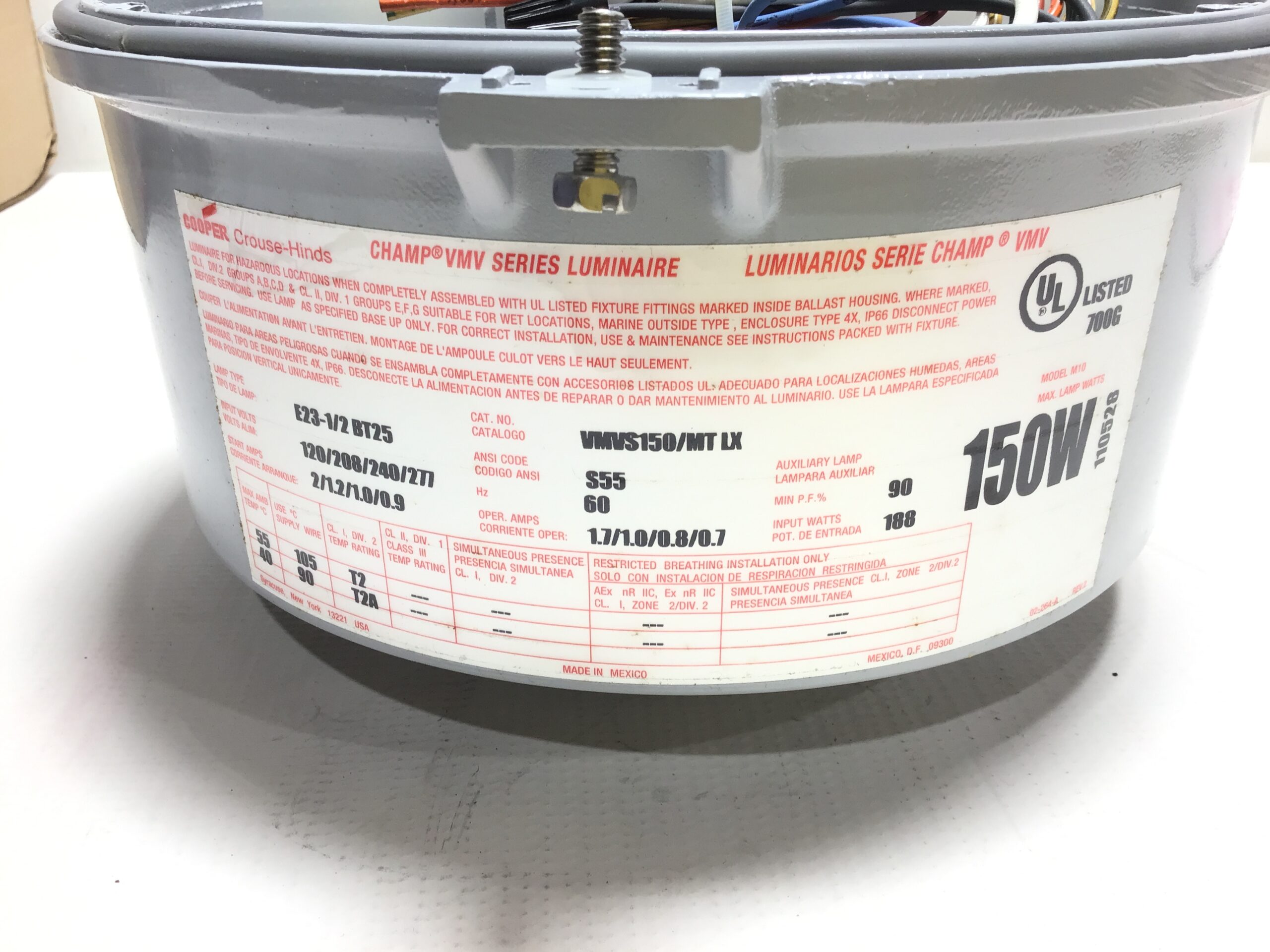

Catalog number: VMVS150/MT LX
-
Lamp type: High Pressure Sodium (HPS)
-
Nominal lamp wattage: 150 W
-
Input voltage: multi-tap (120/208/240/277 V AC, 60 Hz)
-
Finish: Epoxy powder-coated aluminum housing
-
Housing: Copper-free aluminum
-
Dimensions: 11.56″ × 10.00″ × 7.00″ (approx.)
-
Mounting: Requires separate mounting module (pendant, ceiling, wall, stanchion, etc)
-
Environment suitability: Hazardous-location compatible, rugged industrial duty
