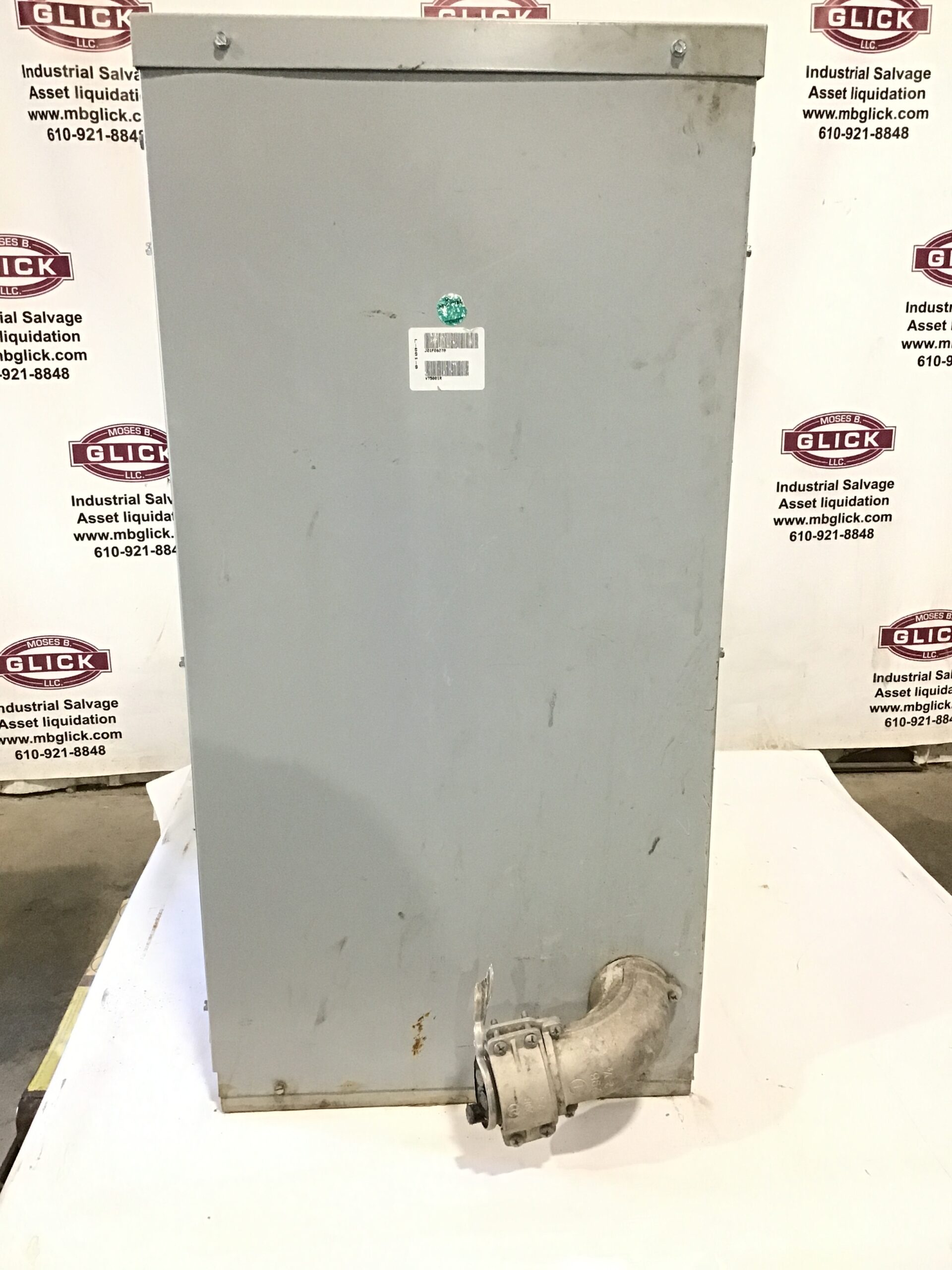

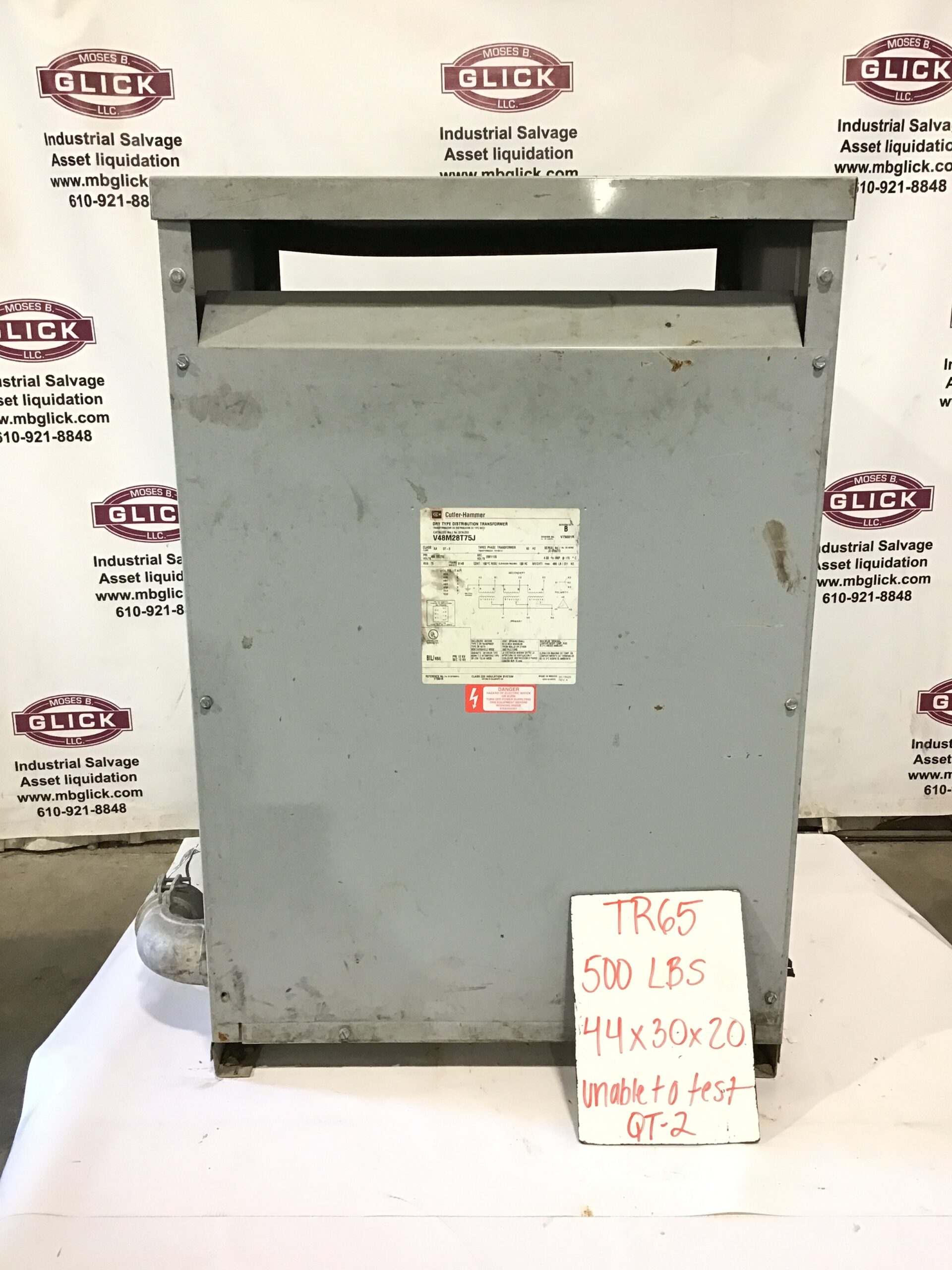

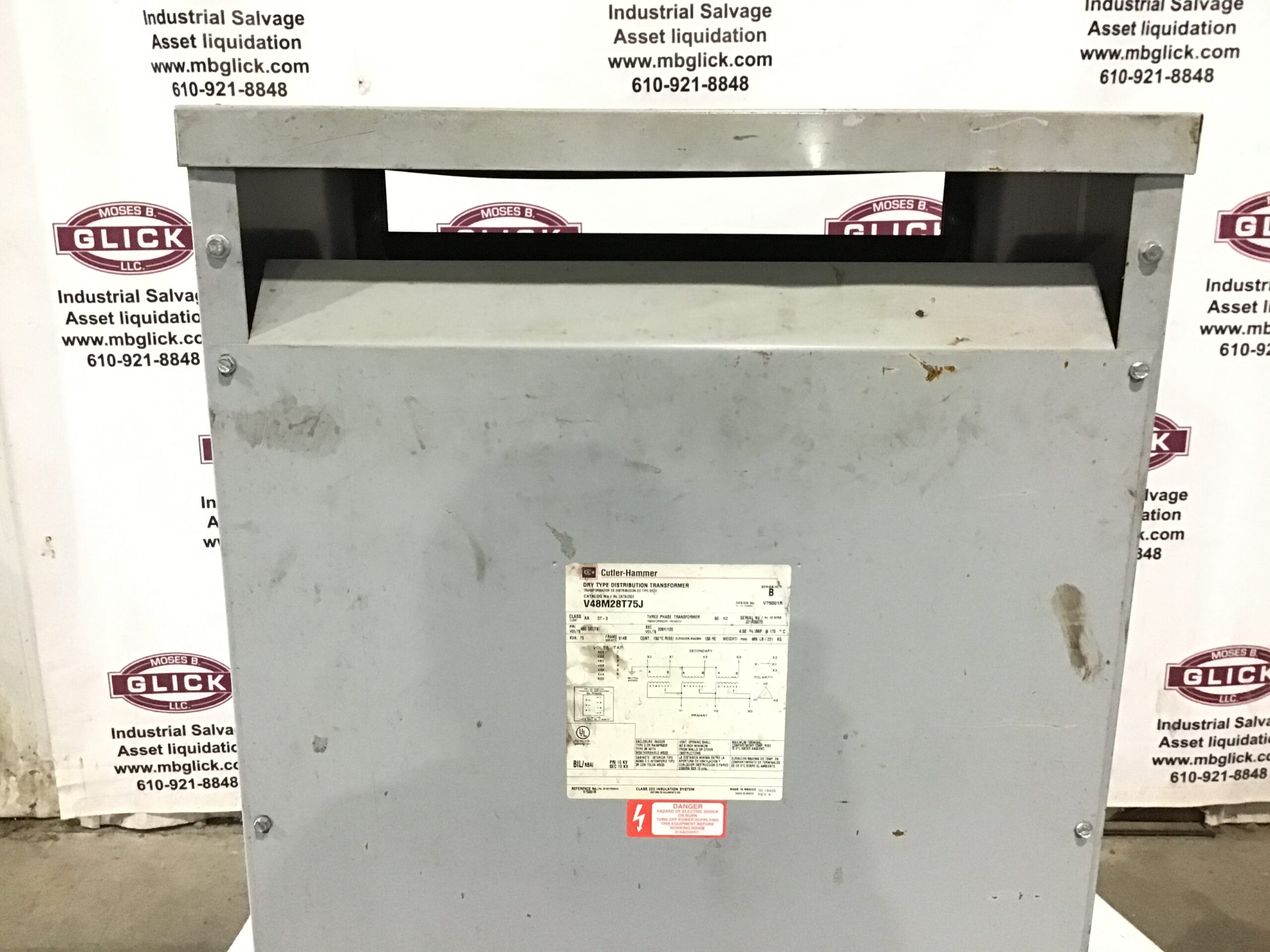

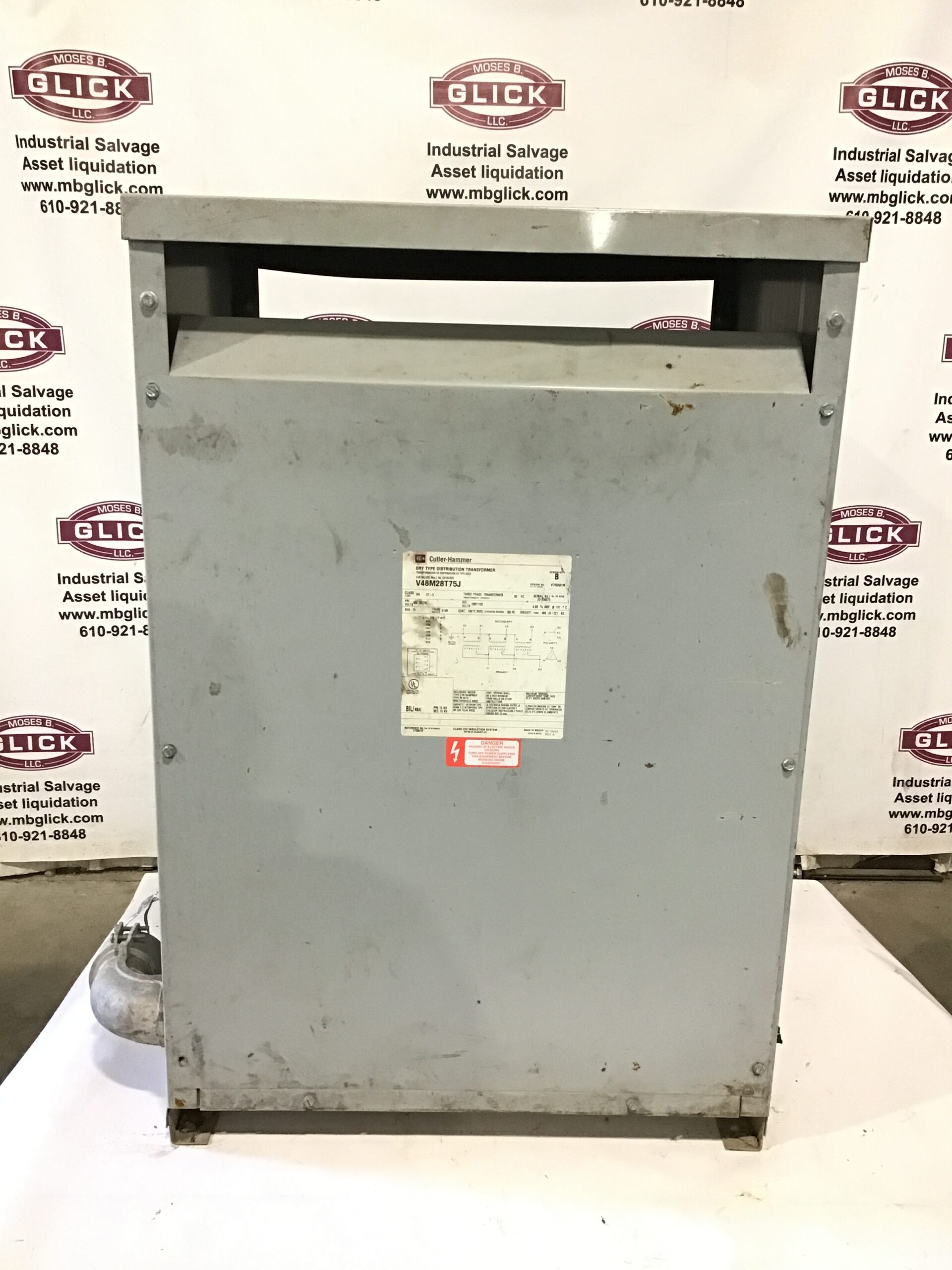

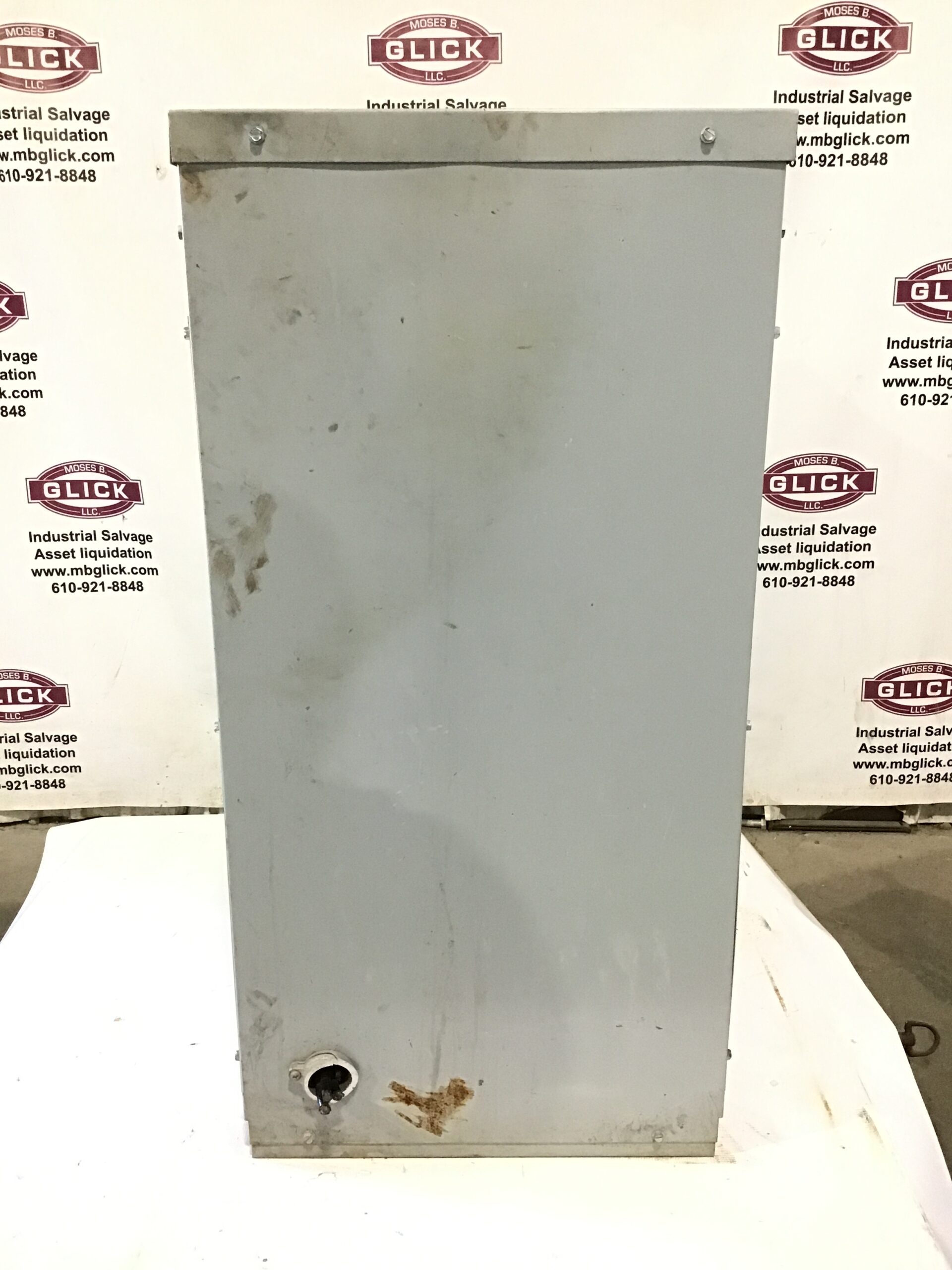

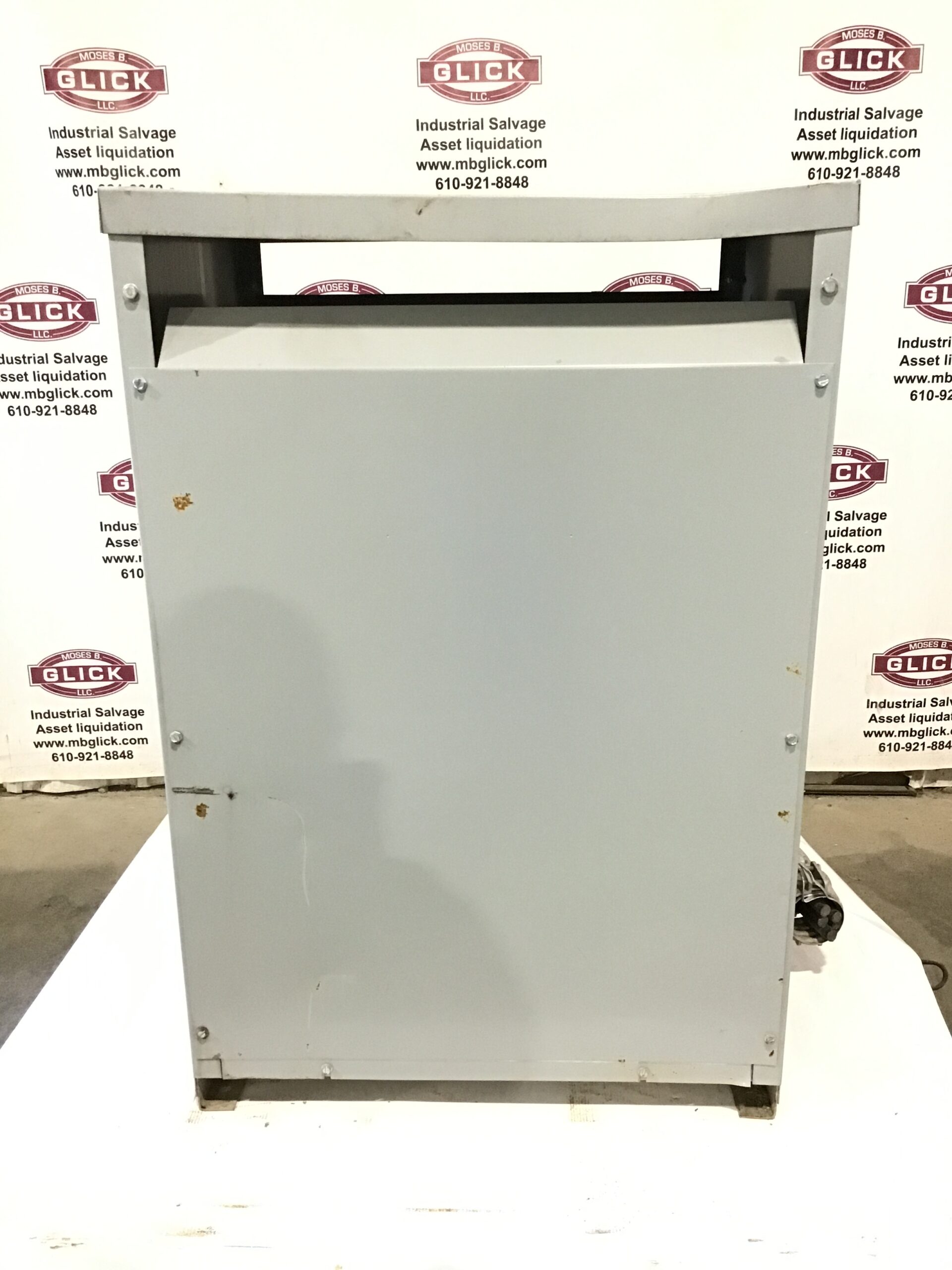

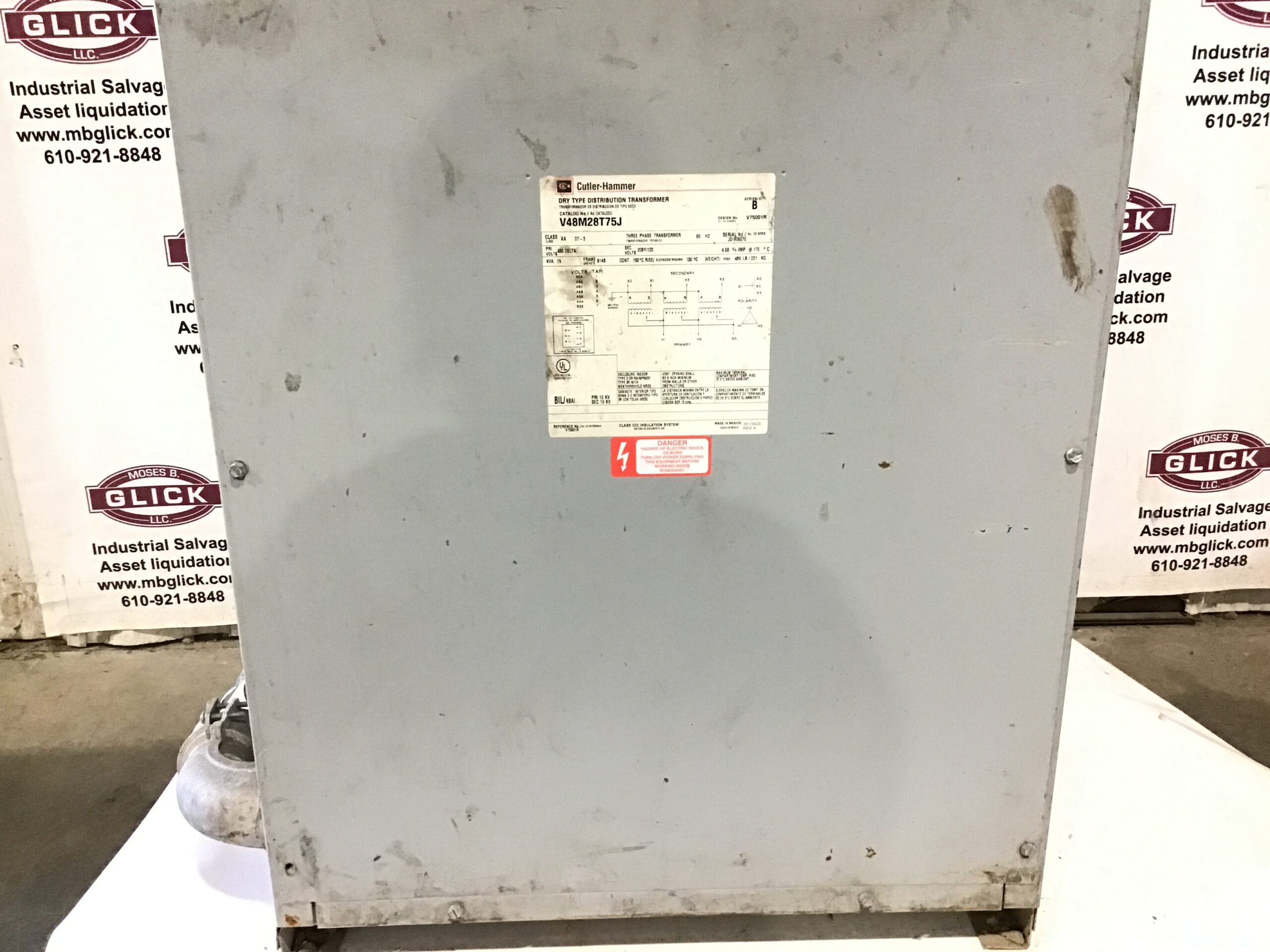

Built for demanding commercial and industrial power distribution applications, this Cutler-Hammer V48M28T75J 75 KVA Dry Type Transformer delivers dependable three-phase voltage conversion from 480V Delta to 208Y/120V. Engineered with rugged dry-type construction and a robust 75 KVA capacity, this transformer is ideal for manufacturing facilities, warehouses, office buildings, data centers, and other mission-critical environments requiring reliable power distribution. Featuring a UL-listed design, 4.68% impedance rating, 220°C insulation system, and 150°C temperature rise, it is designed to provide long-lasting performance and operational efficiency. With its heavy-duty industrial build and trusted Cutler-Hammer/Eaton engineering, this transformer offers a proven solution for powering equipment, lighting systems, HVAC installations, and distribution panels in demanding electrical infrastructures.

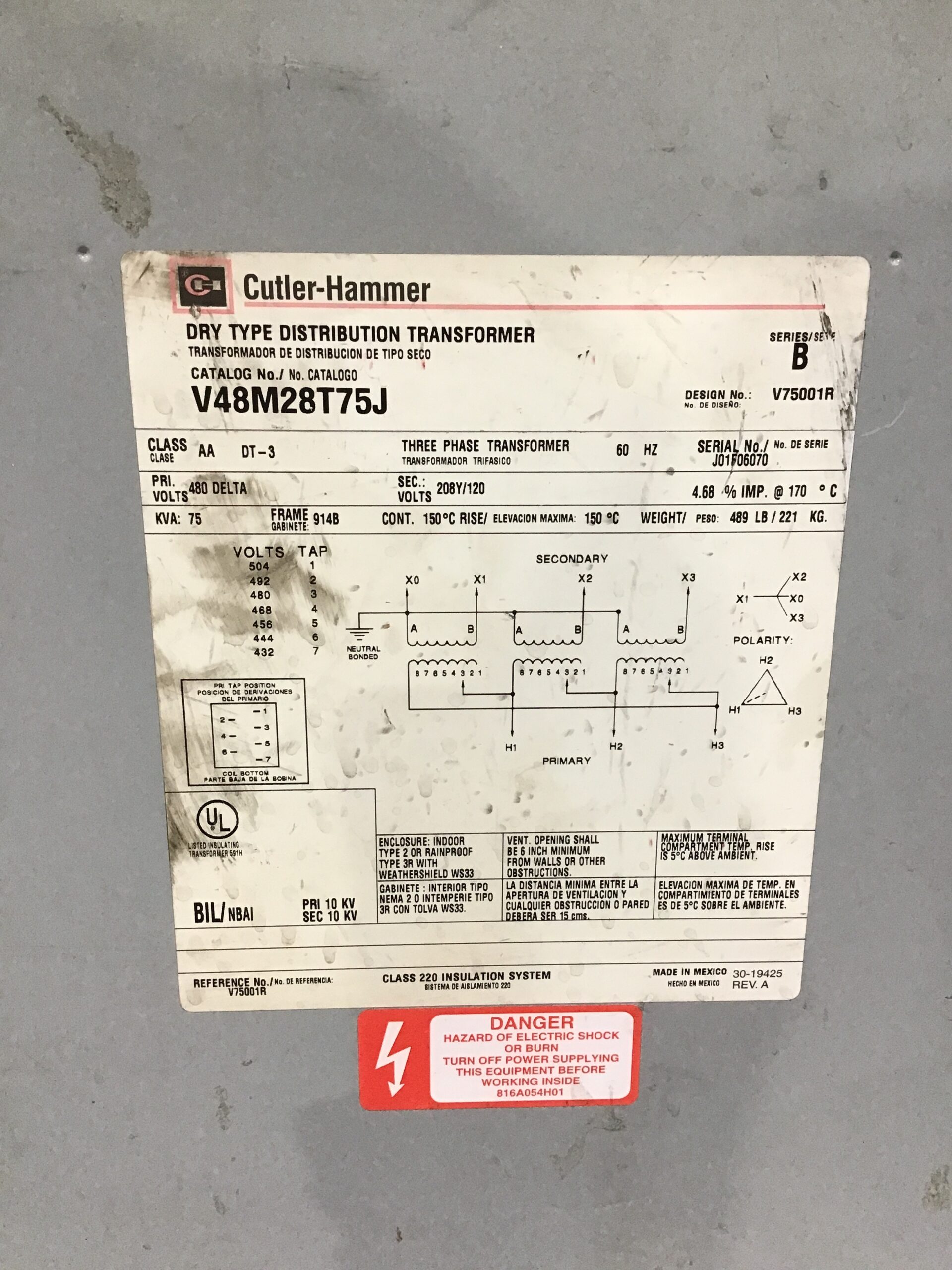

Specifications:
- Manufacturer: Cutler-Hammer (Eaton)
- Model Number: V48M28T75J
- Phase: Three Phase (3PH)
- Power Rating: 75 KVA
- Primary Voltage: 480V Delta
- Secondary Voltage: 208Y/120V Wye
- Frequency: 60 Hz
- Impedance: 4.68%
- Insulation Class: 220°C System
- Temperature Rise: 150°C
- Primary BIL Rating: 10 kV
- Secondary BIL Rating: 10 kV
- Frame Size: 914B
- Enclosure: Indoor, Type 2 or Type 3R with Weather Shield
Applications:
- Industrial manufacturing facilities
- Commercial buildings and office complexes
- Distribution and power panel systems
- HVAC equipment and mechanical systems
- Data centers and server rooms
- Warehouses and logistics centers
- Retail stores and shopping centers
- Educational and institutional facilities
- Processing plants and production lines
- Electrical system upgrades and expansion projects
- Step-down voltage conversion from 480V to 208Y/120V
- Powering three-phase machinery and equipment
- Lighting, receptacle, and building service distribution systems
