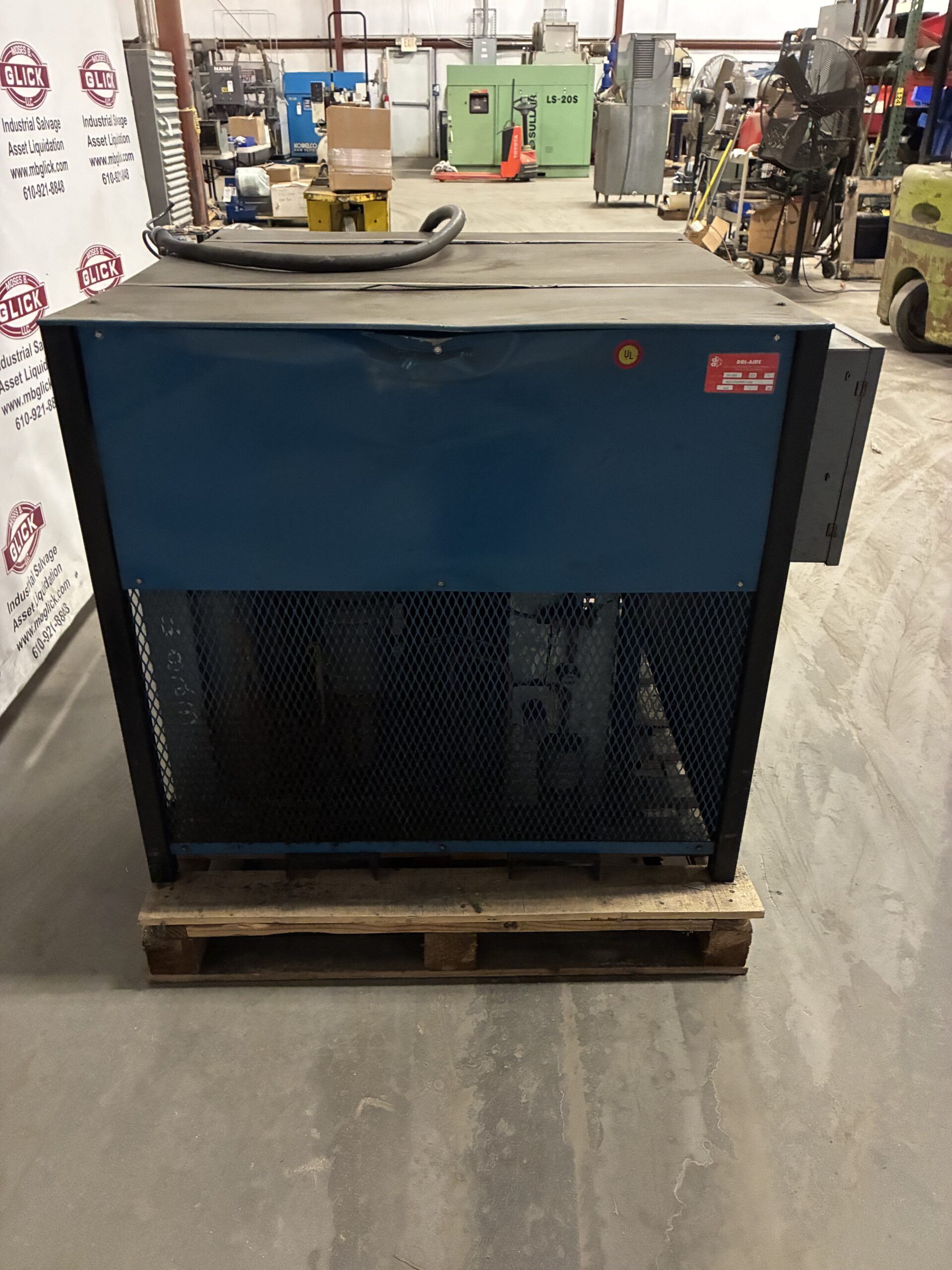

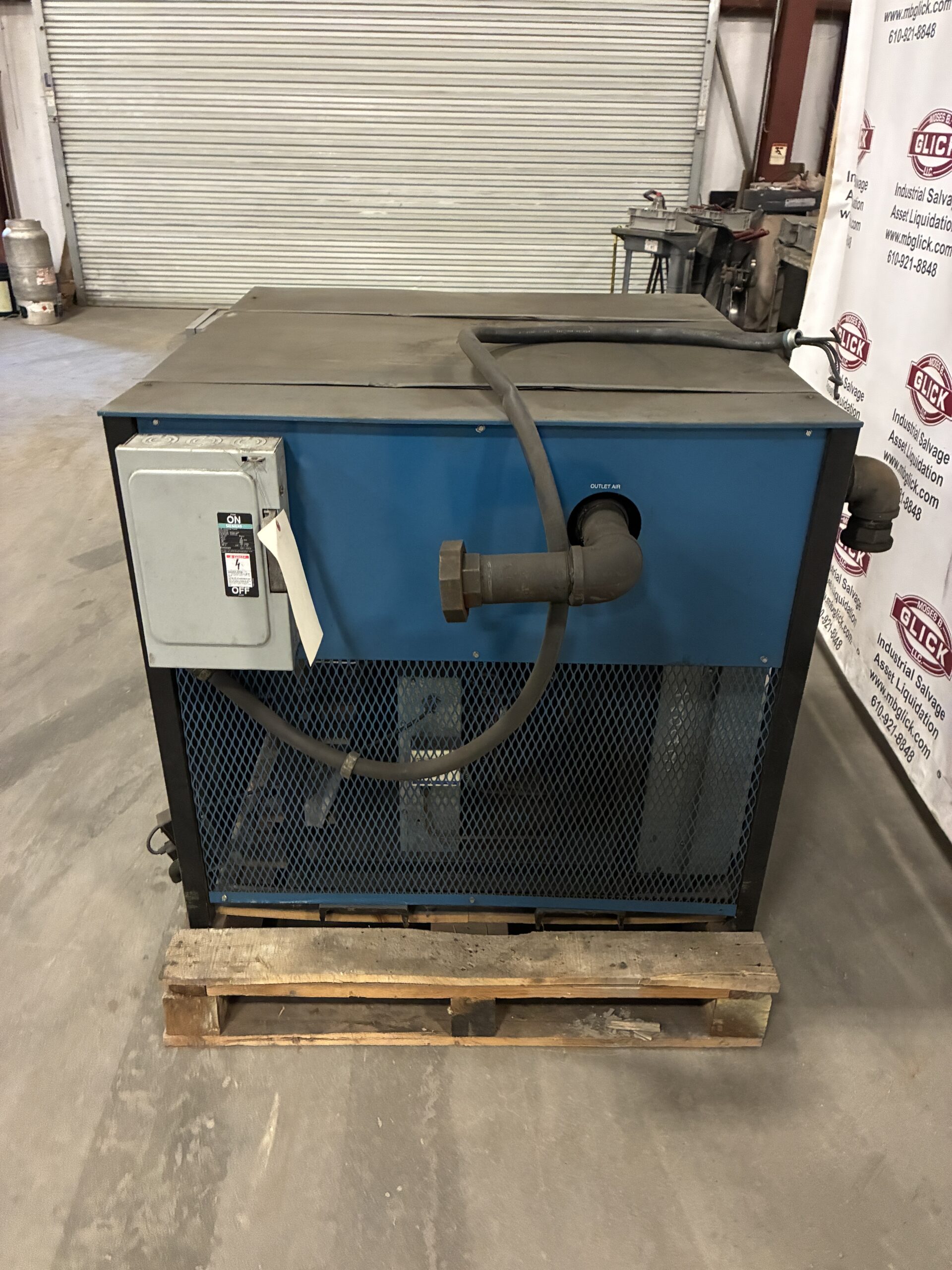

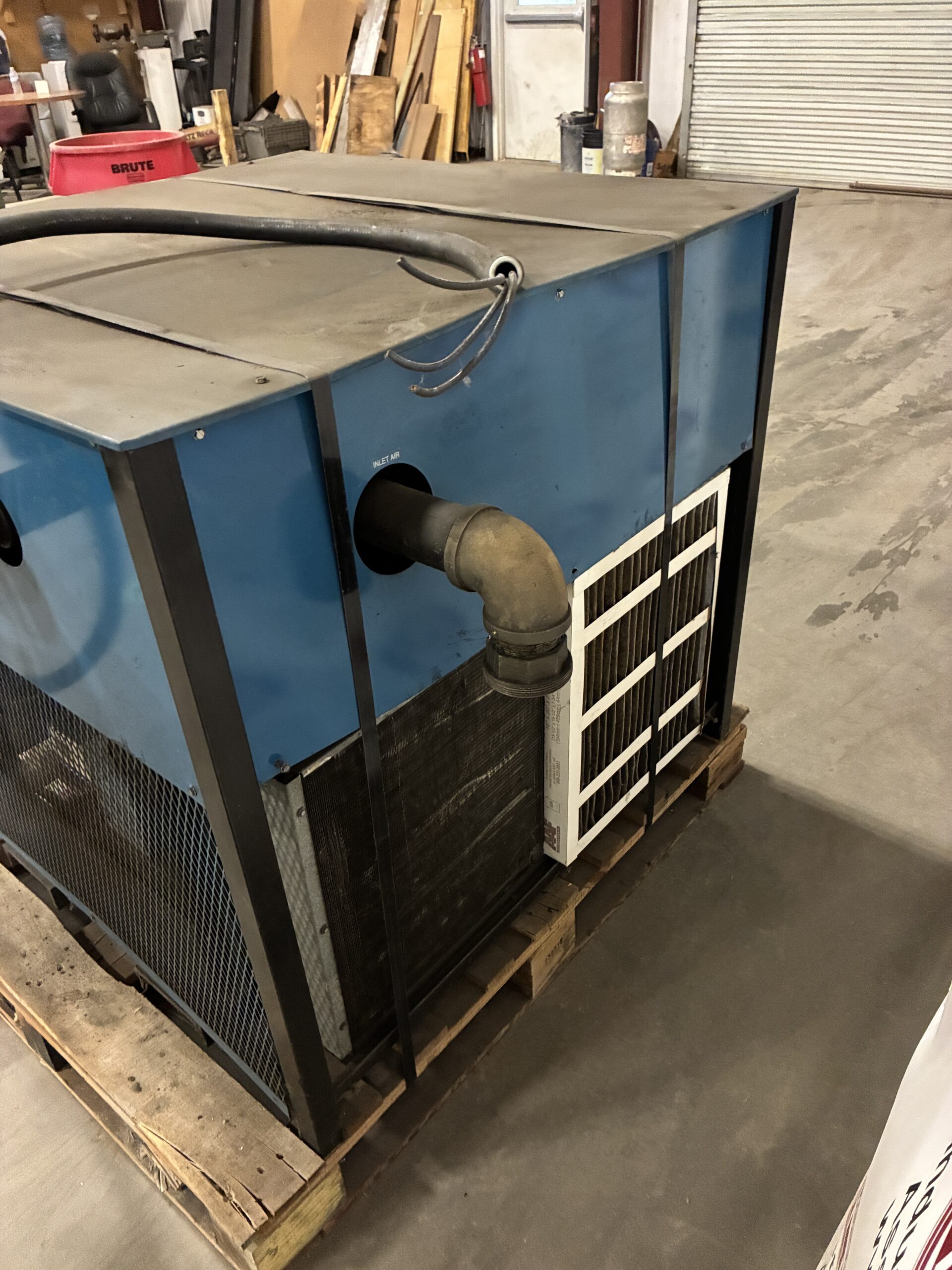

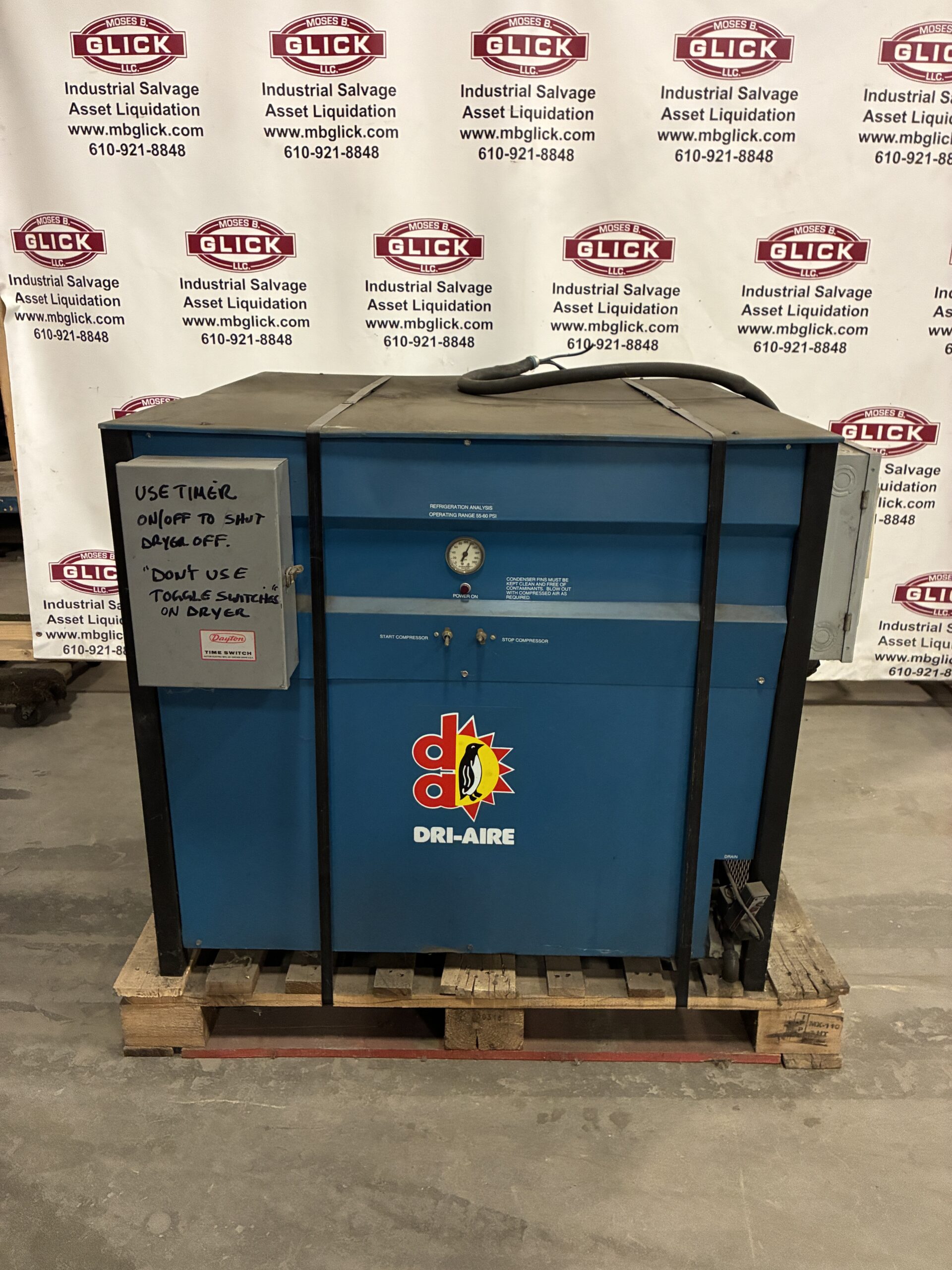

Dri-Aire DA-400 Refrigerated Compressed Air Dryer 460V 3PH 24,000 BTU/h

The Dri-Aire DA-400 is an industrial refrigerated compressed air dryer designed to remove moisture from compressed air systems. This unit operates on 460 Volt, 3 Phase power and is equipped with a Copeland CRD1-0200-TFD-274 hermetic reciprocating refrigeration compressor with an approximate refrigeration capacity of 24,000 BTU/hr (2 tons).

Specifications

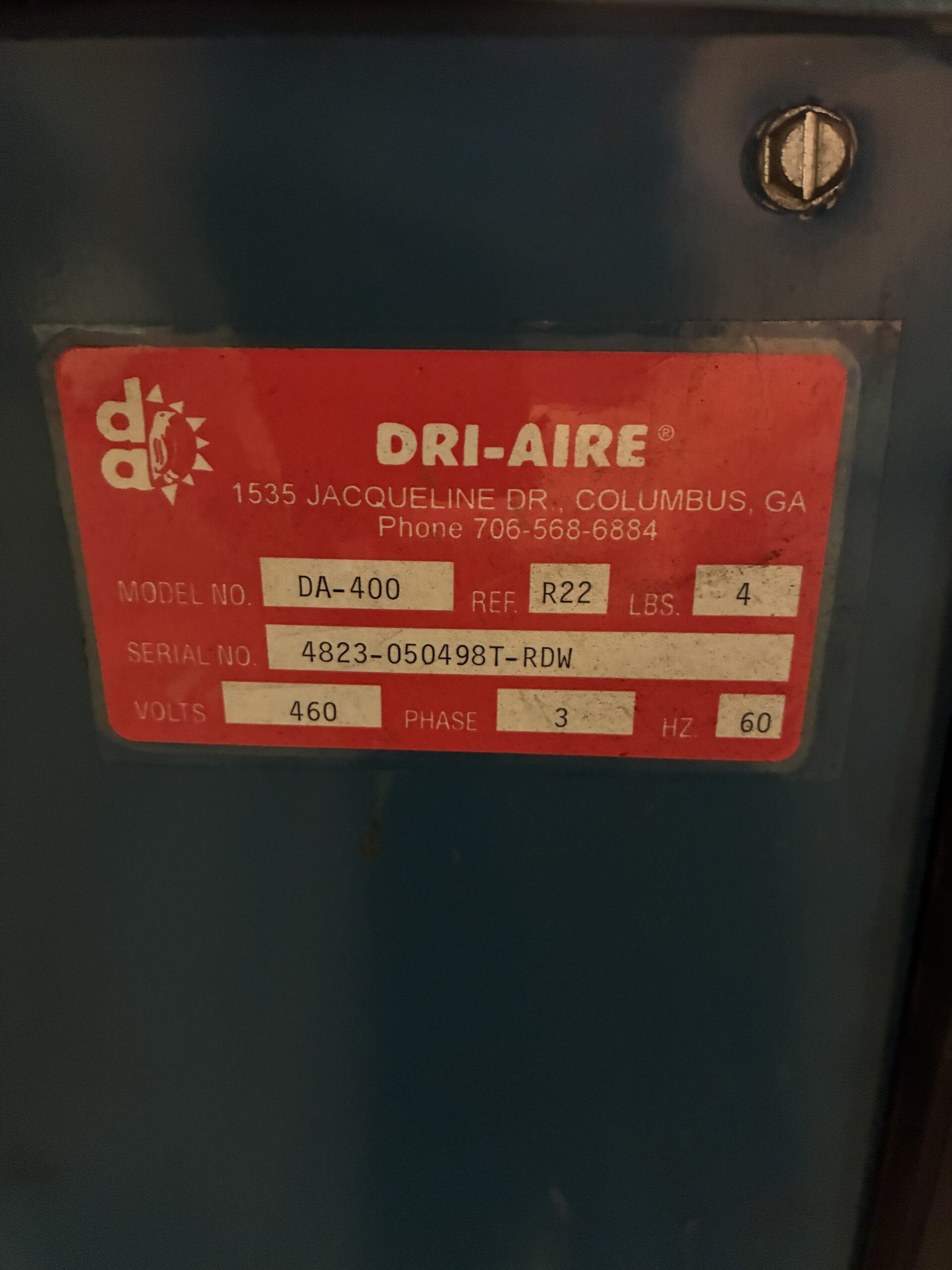

• Manufacturer: Dri-Aire
• Model: DA-400
• Type: Refrigerated Air Dryer
• Electrical: 460V, 3 Phase
• Refrigeration Compressor: Copeland CRD1-0200-TFD-274
• Refrigeration Capacity: Approximately 24,000 BTU/hr

Important Note: The SCFM/CFM capacity could not be verified because the original equipment data tag does not display an airflow rating, and no manufacturer’s literature or published specifications for the Dri-Aire DA-400 model could be located online. As a result, the dryer’s airflow capacity is unknown and cannot be confirmed from available documentation.
