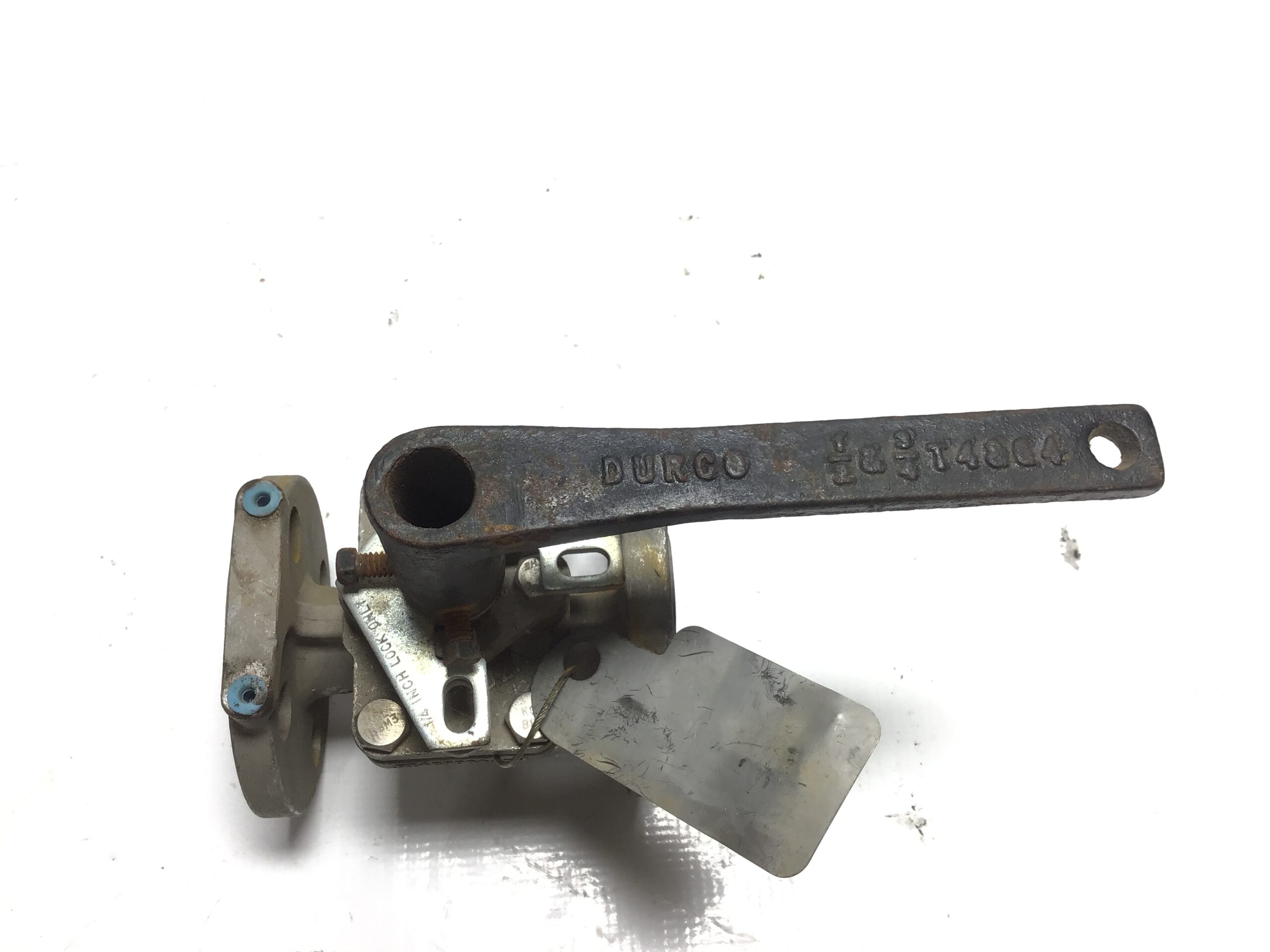

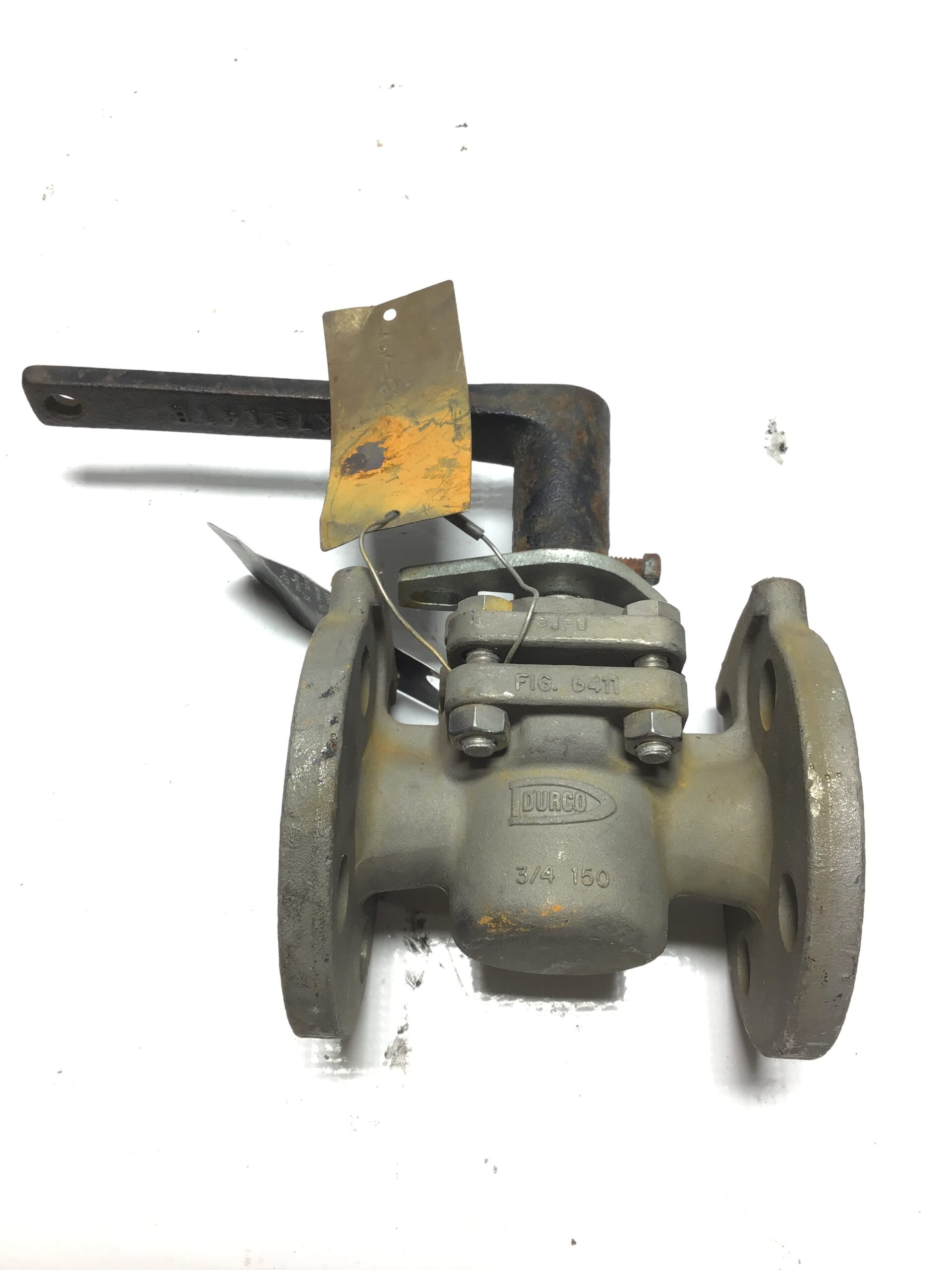

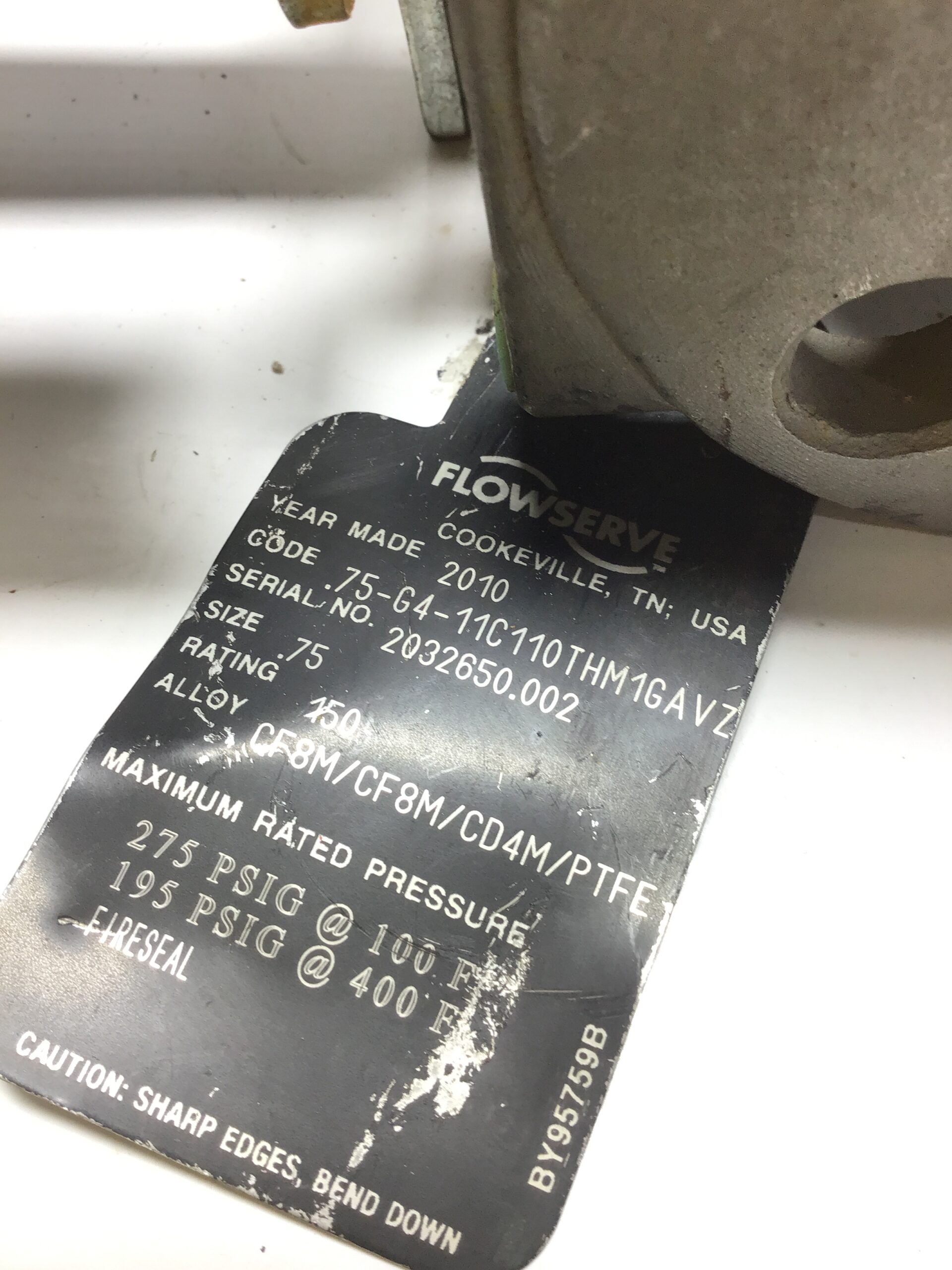

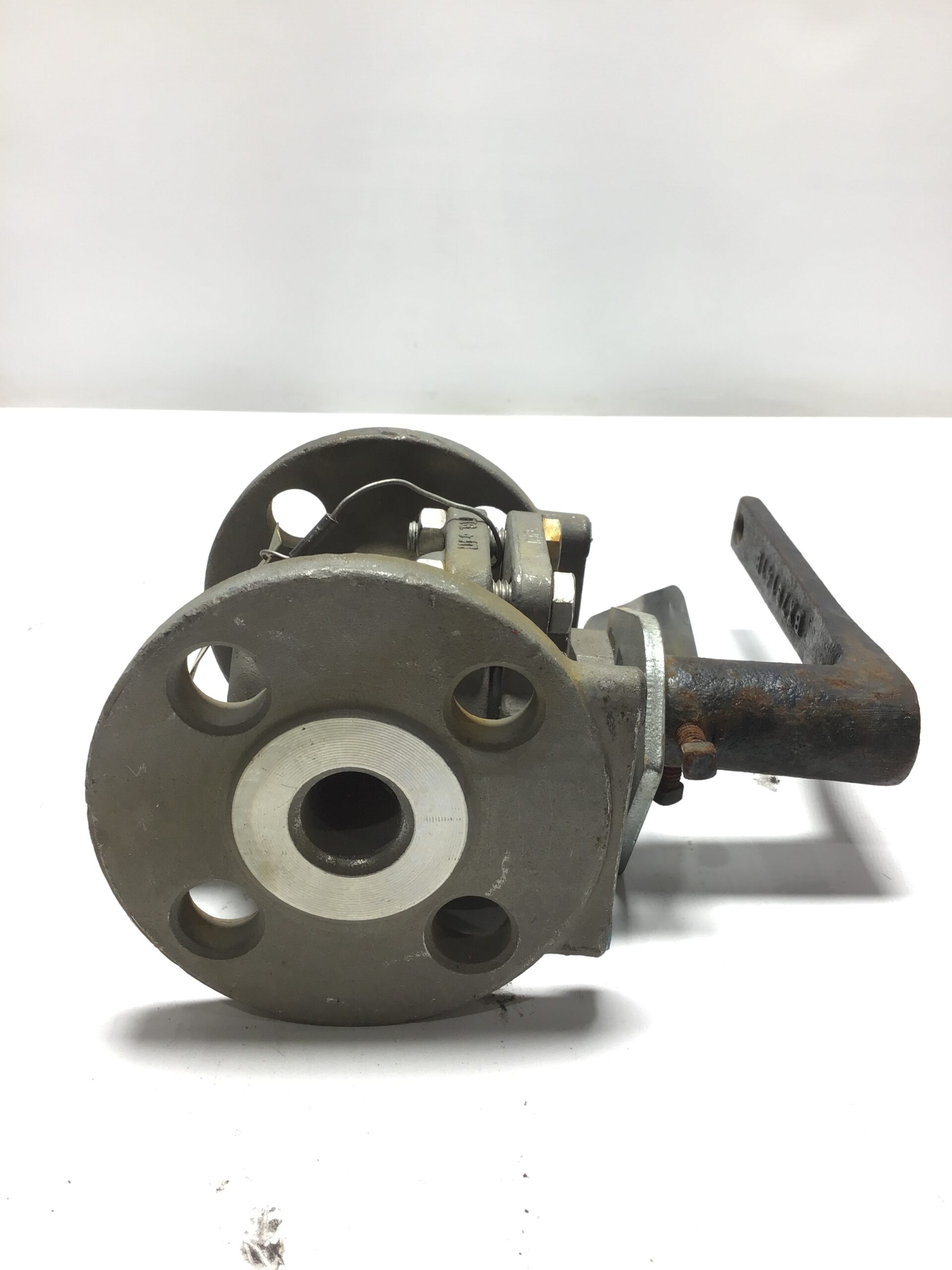

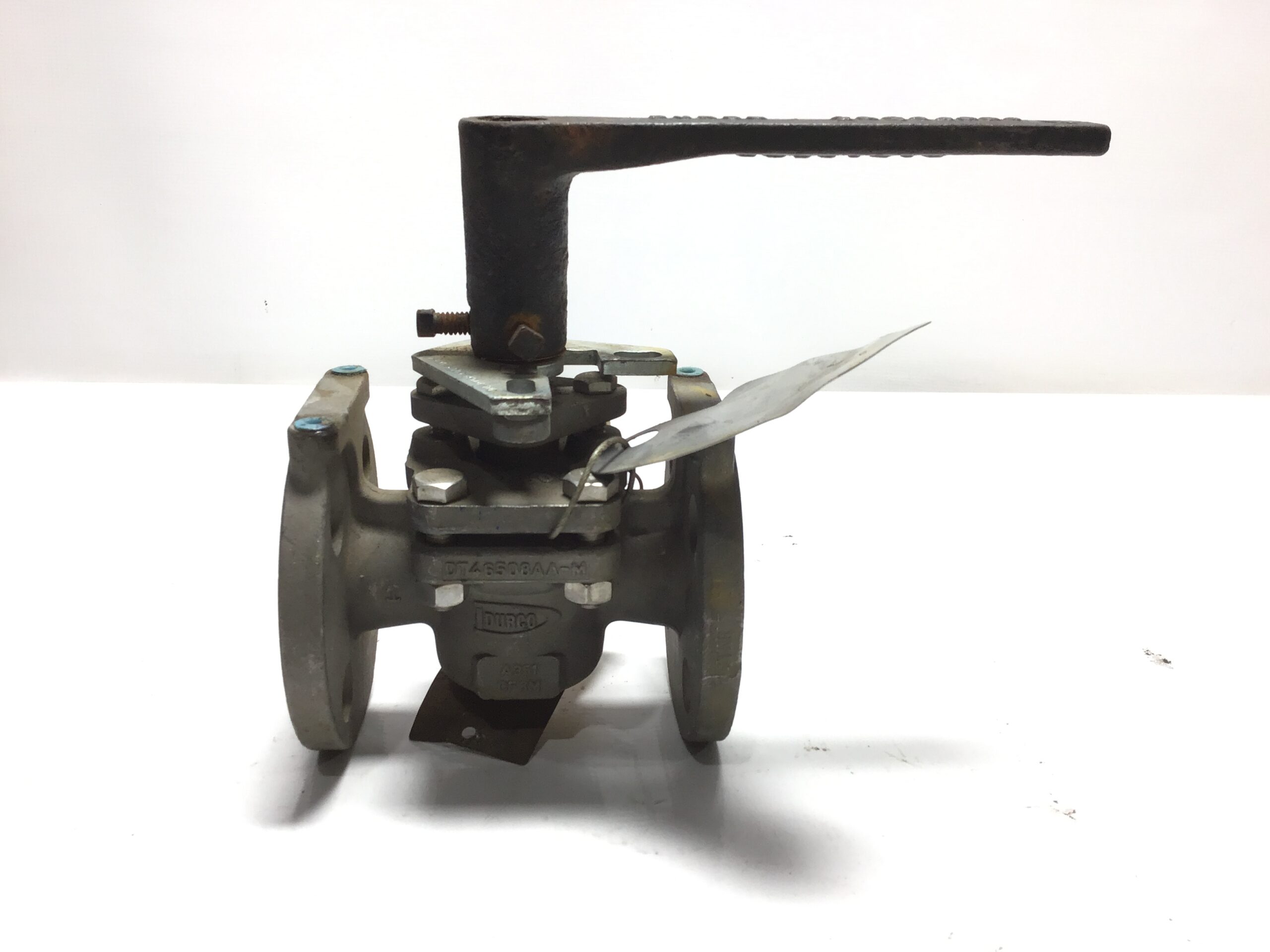

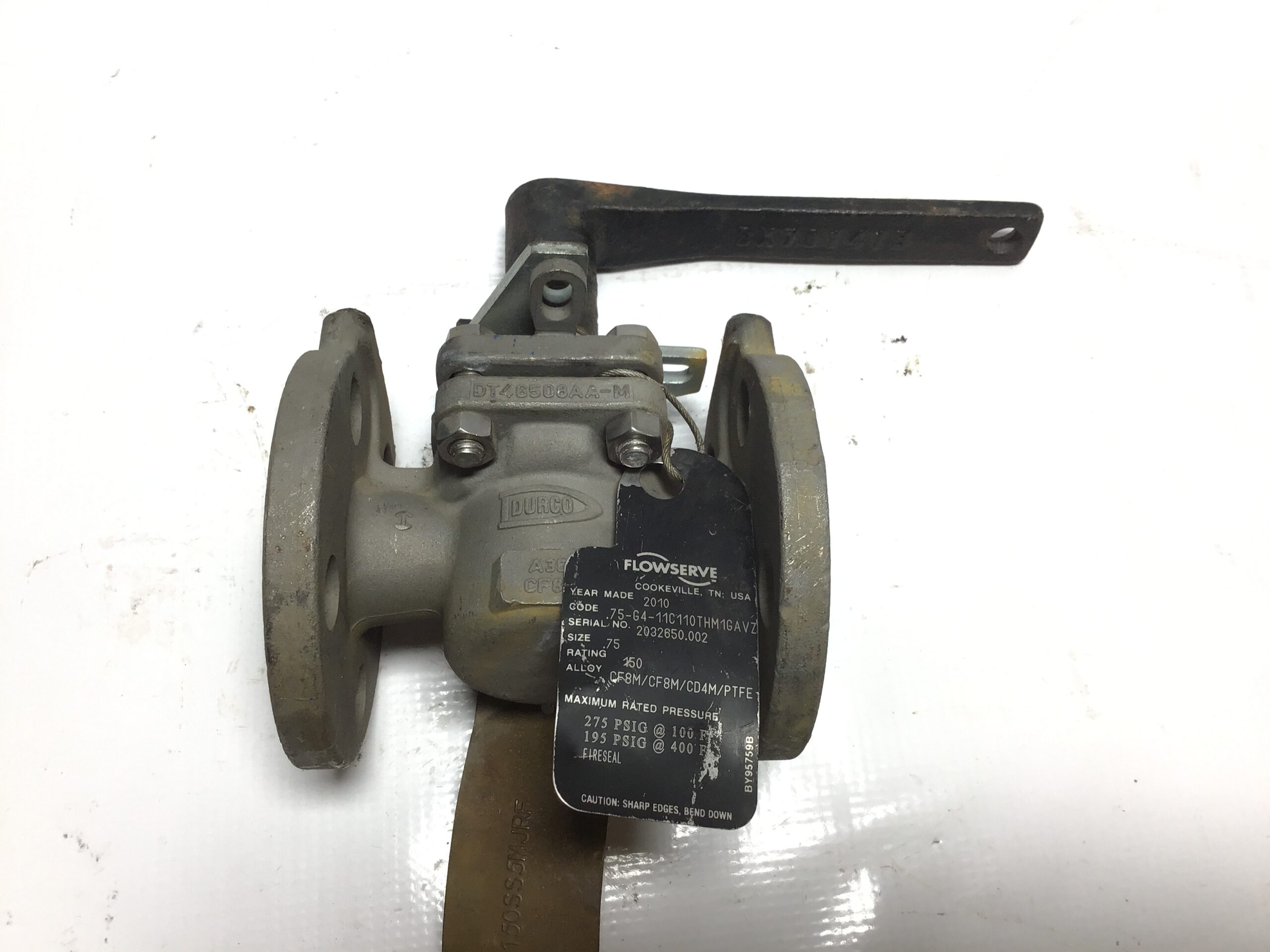

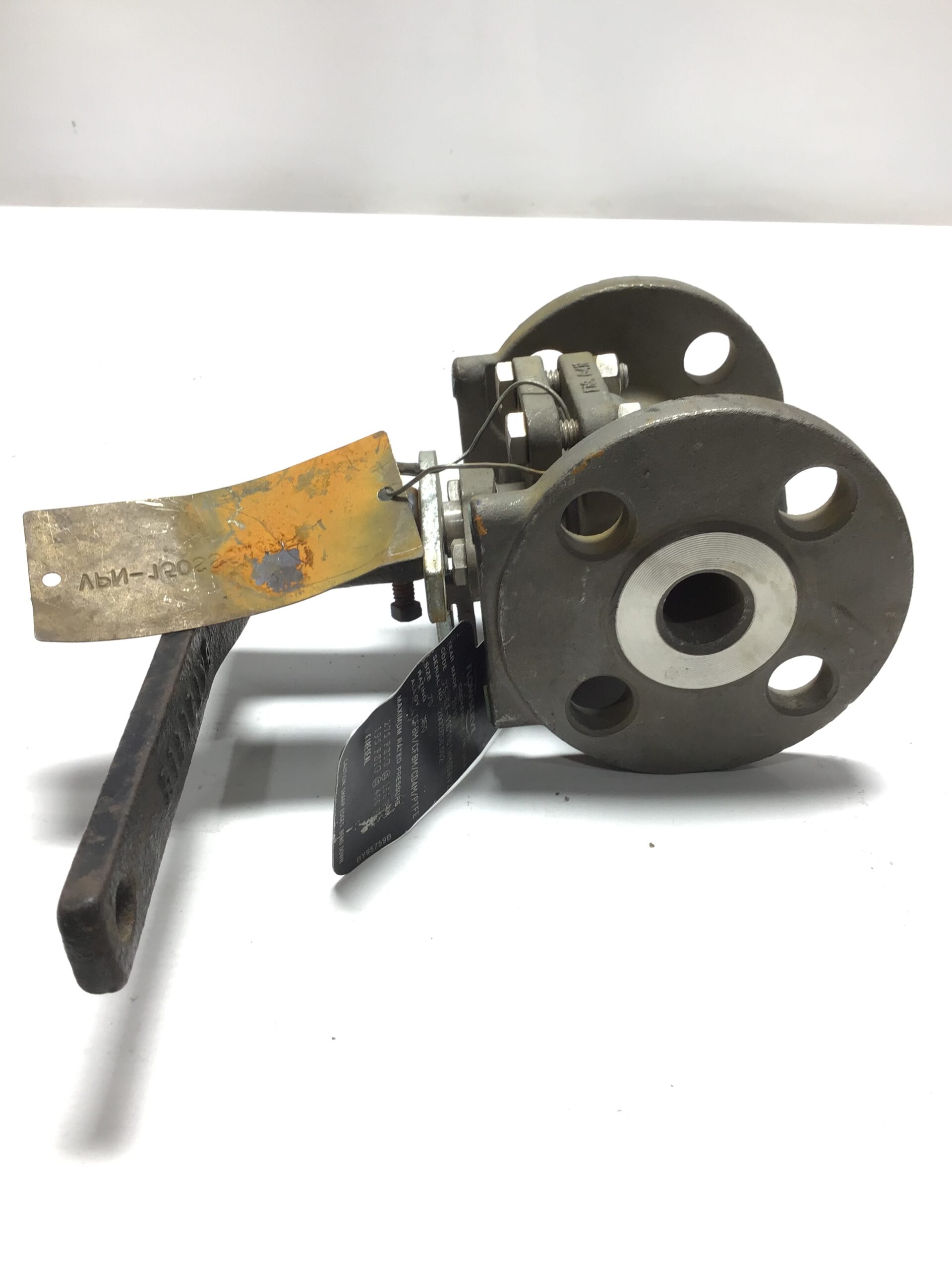

This authentic Durco by Flowserve G4 non-lubricated plug valve is a precision industrial fluid control component manufactured in Cookeville, TN, USA in the year 2010. Bearing the precise product code .75-G4-11C110THM1GAVZ and serial number 2032650.002, this heavy-duty valve features a 3/4″ (.75) size and an ANSI Class 150 pressure rating. Constructed from premium CF8M stainless steel alloy with a CD4M plug and a PTFE sealing sleeve, the unit is explicitly rated for maximum pressures of 275 PSIG at 100°F and 195 PSIG at 400°F. Equipped with Flowserve’s signature FireSeal protection, a stamped body marking of FIG. 6411 / DT46506AA-M, and a manual lockable lever handle stamped with “DURCO 1/2 & 3/4 T48C4”, this ruggedly built American valve is engineered to deliver reliable shut-off performance under demanding operational conditions.
Specifications:
- Brand: Durco
- Model: G4
- Year Made: 2010
- Product Code: .75-G4-11C110THM1GAVZ
- Serial Number: 2032650.002
- Size: .75 (3/4 Inch)
- Rating: 150 (Class 150)
- Alloy Body Material: CF8M
- Sleeve Material: PTFE
- Safety Feature: FIRESEAL
- Tag Part Number: BY95759B
Applications:
- High-Pressure Process Piping
- Elevated Temperature Operations
- Corrosive Fluid Management
- Fire-Hazardous Environments
- Secure Manual Flow Control:
