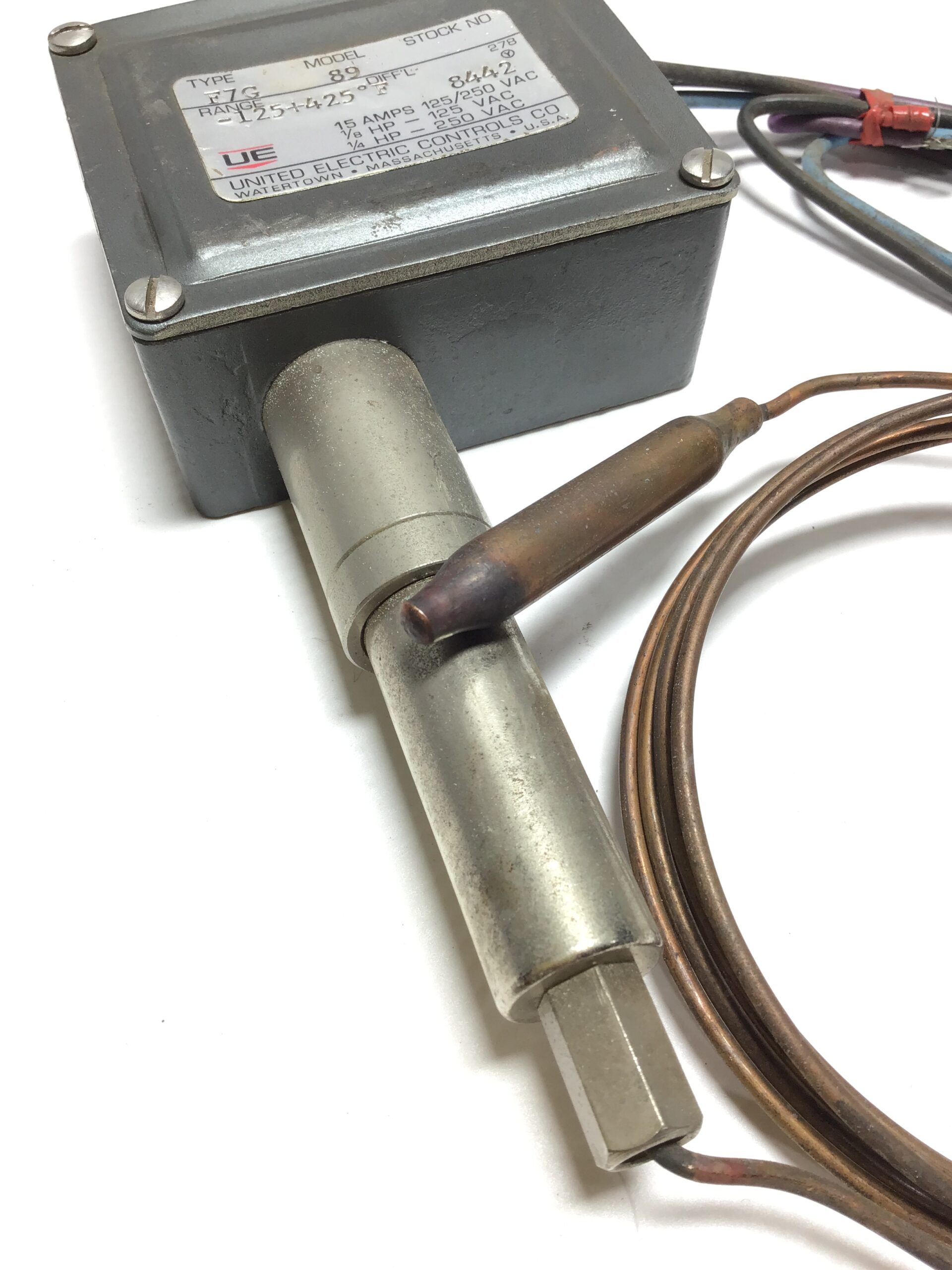

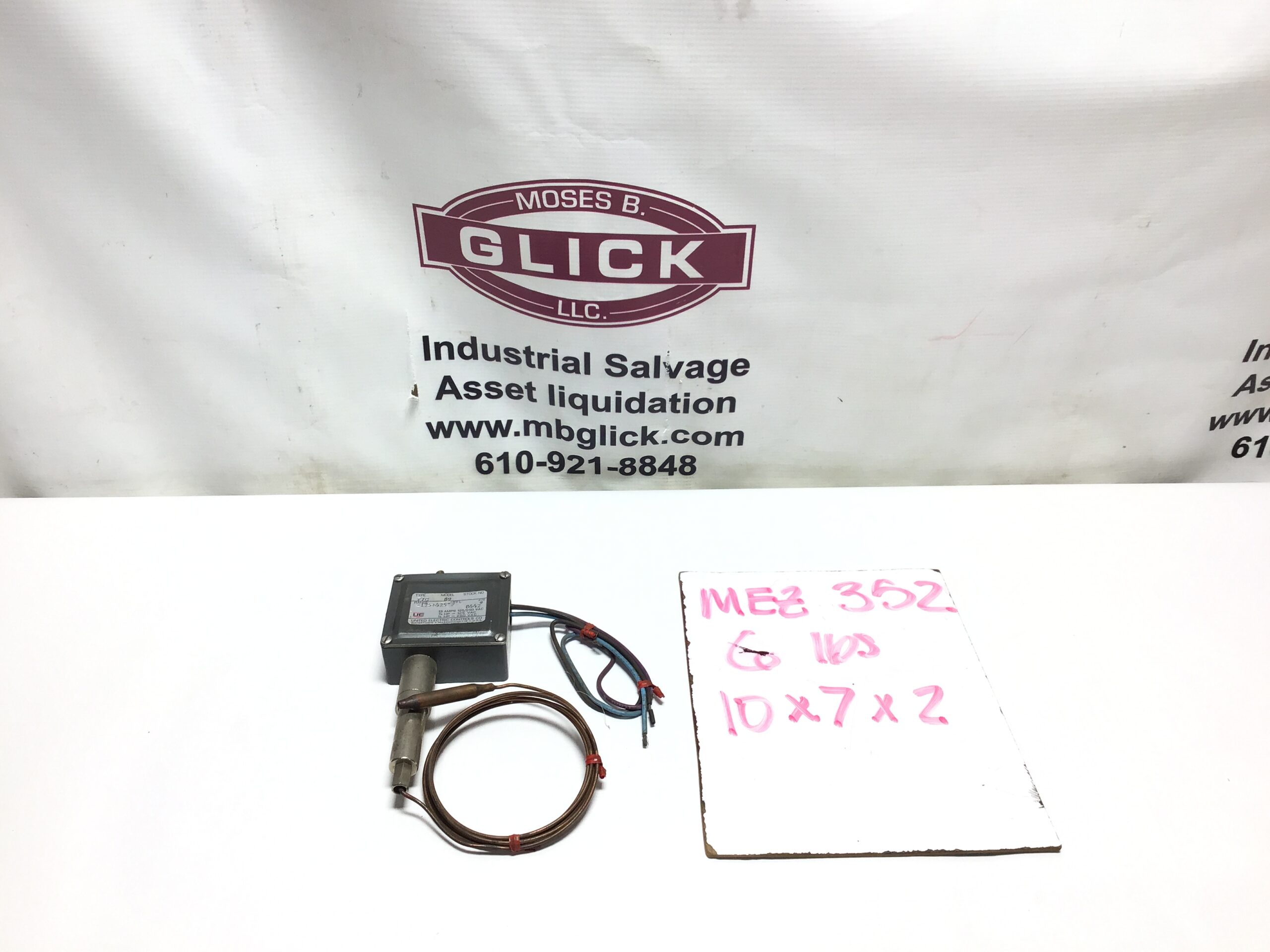

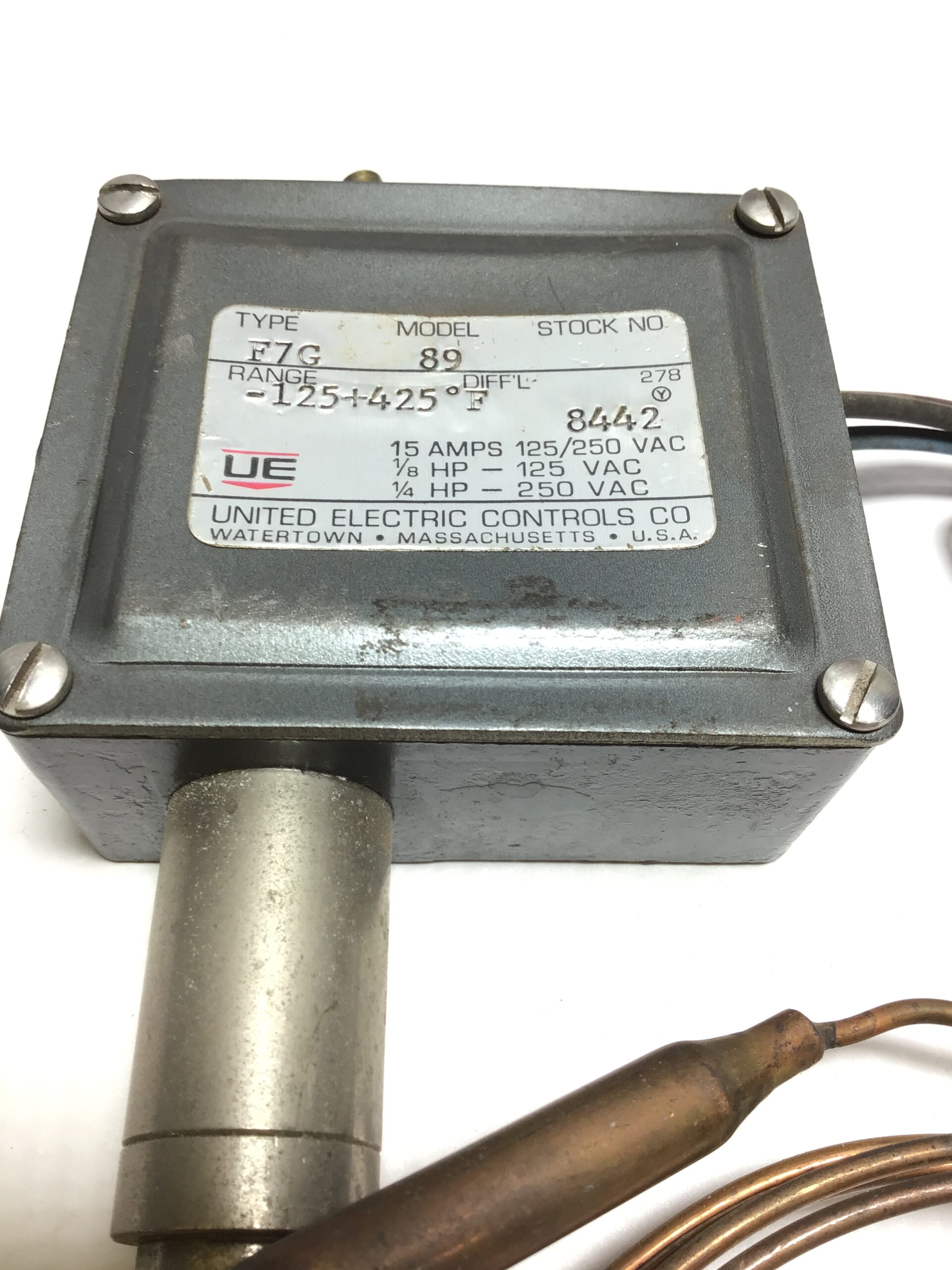

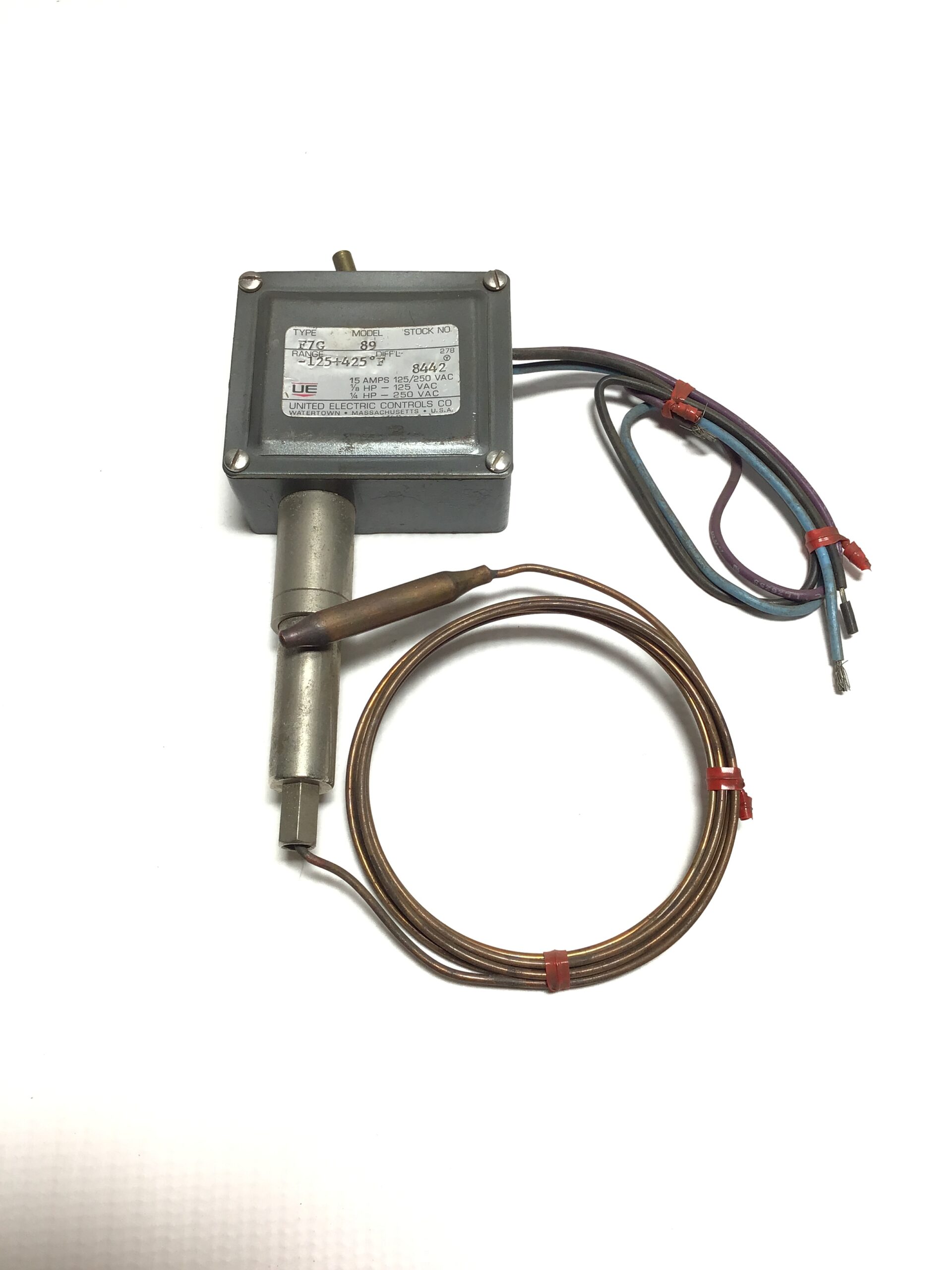

EU F7G 89 8442 Temperature Switch -125+425 Degrees F

1. General Overview

• Manufacturer: United Electric

• Model: F7G 89 8442 (or F7G‑89/8442 series)

• Type: Temperature switch / thermostatic control switch

• Function: Monitors and reacts to temperature changes in a system (opens/closes contacts when setpoint is reached)

• Temperature Range: Approximately ‑125 °F to +425 °F (as per user spec)

• Typical Applications: Industrial heating systems, HVAC, process control, machinery temperature safety cut‑outs, boilers, steam systems, oil/gas equipment

2. Key Features

• Wide operating temperature span (down to ‑125 °F, up to +425 °F) for extreme‑environment use

• Rugged industrial build suited for harsh service conditions

• Adjustable or preset set‑point (depending on variant)

• Reliable switching action — stable contact actuation at the designated temperature

• Compact size for integrating into control enclosures, panels or machinery

• Suitable for systems requiring temperature monitoring and safety shut‑off

3. Technical Specifications

• Switch Function: Temperature‑actuated switch (single or dual contacts depending on variant)

• Temperature Range: From approx. ‑125 °F (‑87 °C) up to +425 °F (+218 °C)

• Set‑Point Adjustment: External dial or internal mechanism (variant dependent)

• Contact Configuration: May be SPDT (Single‑Pole Double‑Throw) or other, check variant

• Electrical Rating: Rated for industrial loads — consult spec for maximum voltage/current

• Media/Environment: Designed for ambient/immersion mounting as specified (check sensor bulb or capillary length)

• Mounting: Panel, bracket or surface mount based on style

4. Construction Materials & Environment

• Enclosure: Rugged metal housing (industrial grade)

• Sensing Element: Thermostat/thermostatic element (bimetal, capillary, or bulb) capable of wide temperature span

• Contacts & Internals: Industrial‑grade contacts designed for frequent actuation and high reliability

• Seals & Gaskets: Suitable for high‑temperature service; resistant to thermal cycling

5. Installation & Connection Details

• Mounting orientation: As recommended by manufacturer — ensure proper sensing element placement

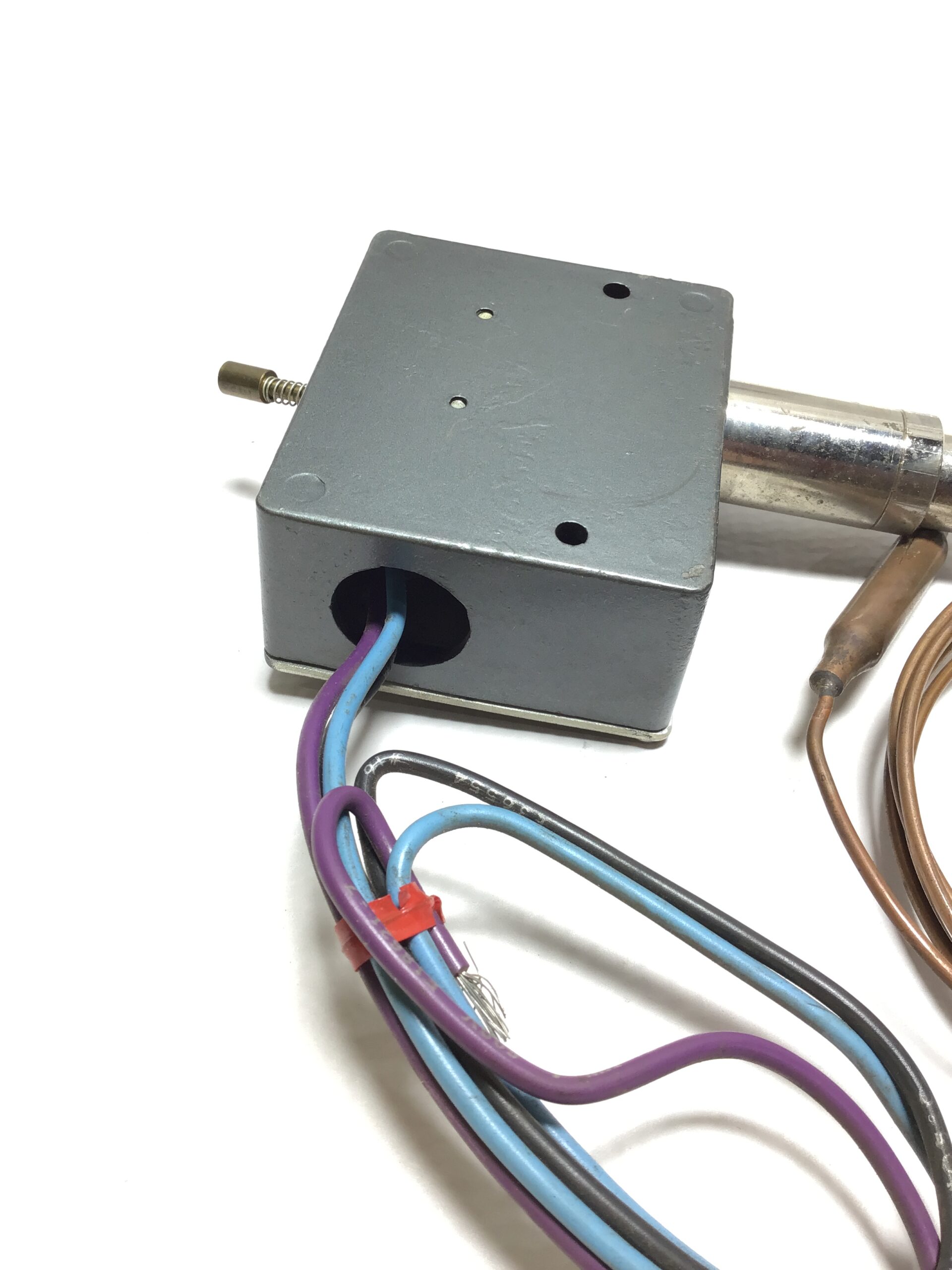

• Electrical connections: Terminal block or screw terminals; wiring must suit the rating

• Ensure system is powered off during installation

• Calibration or set‑point verification: After installation check switch actuates at desired temperature

• Environment: Ensure unit is not exposed to conditions beyond its rated range (extreme shock, vibration, chemical exposure)

6. Compliance & Certifications

• Manufacturer’s industrial certification (UL/CSA/CE) — verify variant spec sheet

• Designed to meet industrial temperature‑switching performance and safety standards

• Suitable for use in commercial/industrial control systems
