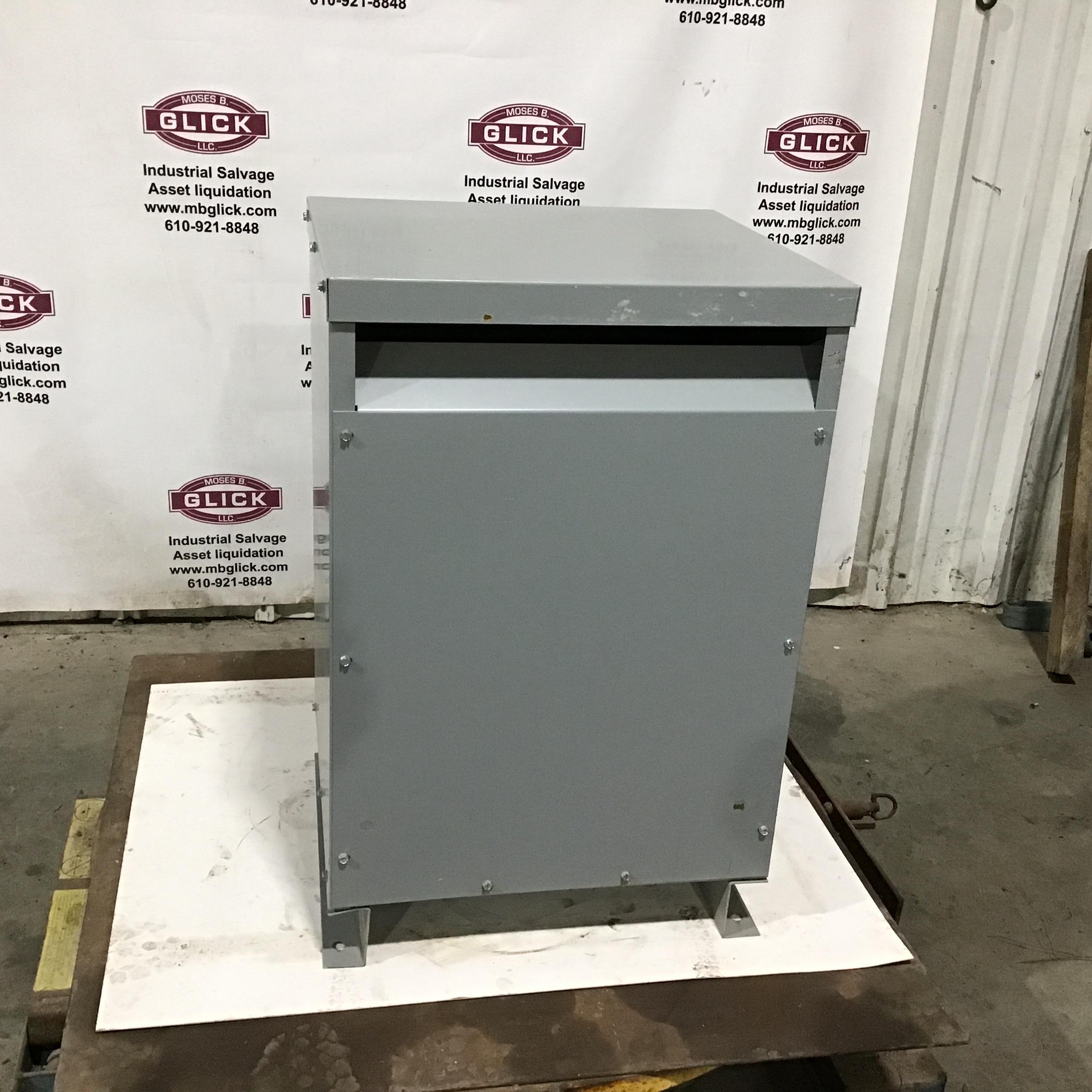

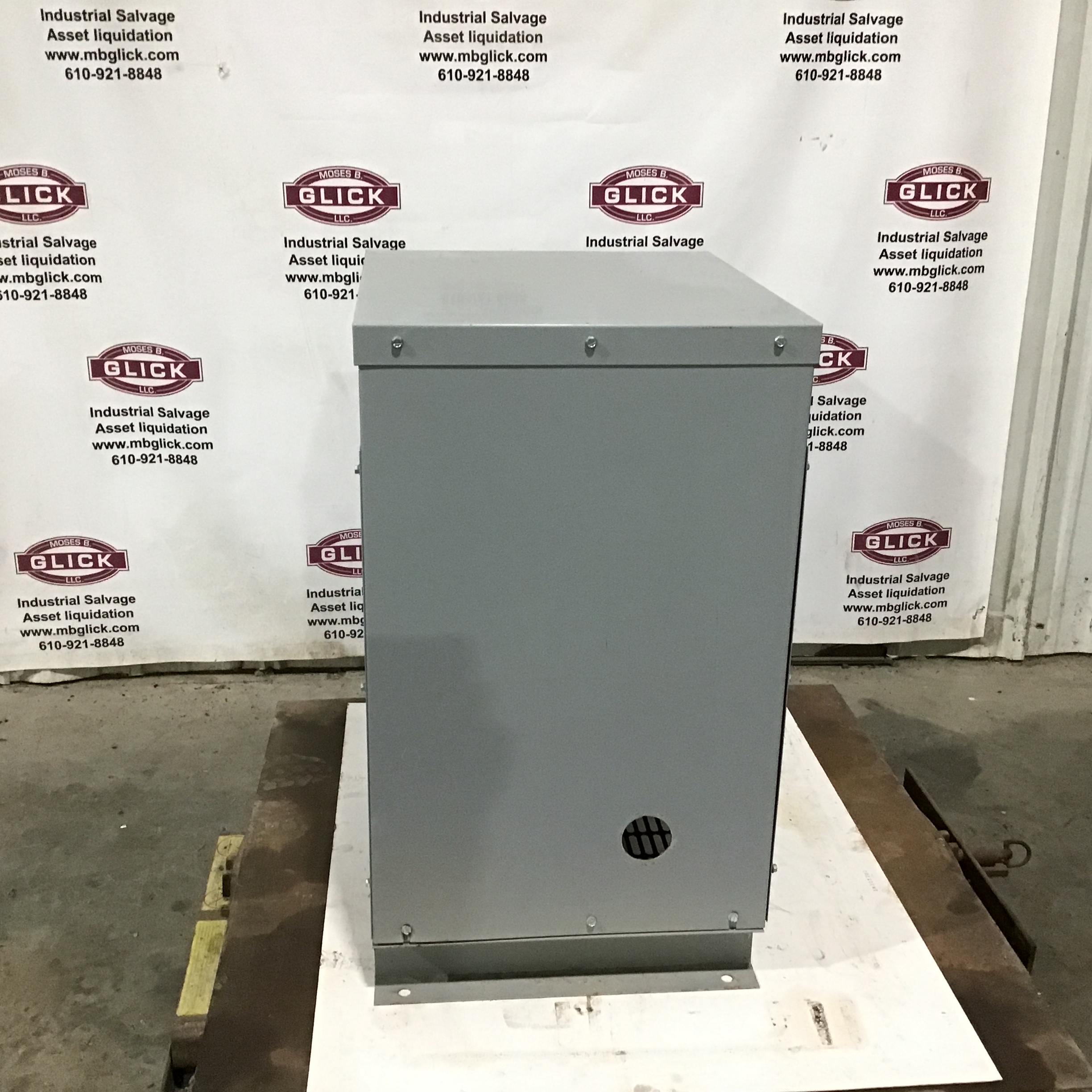

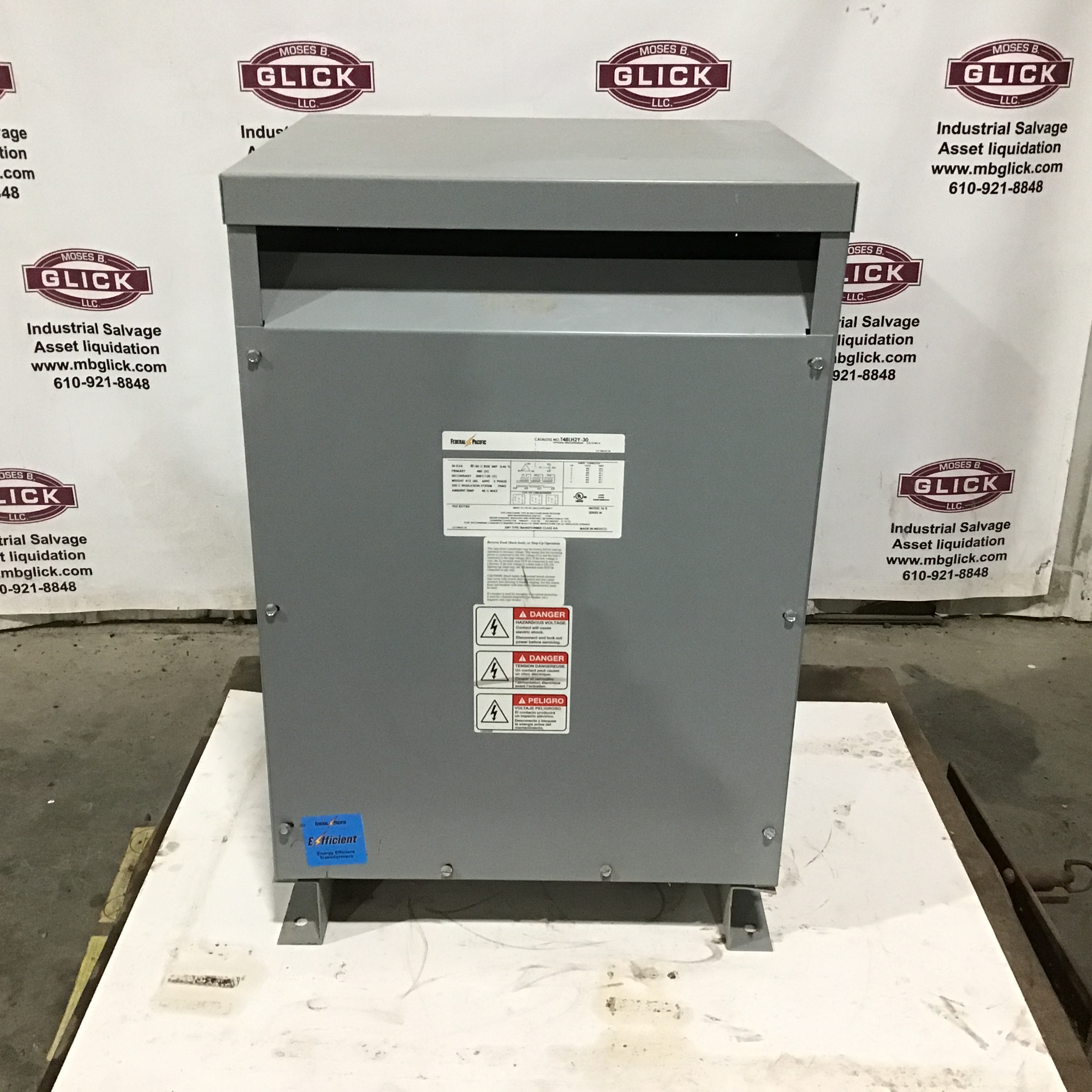

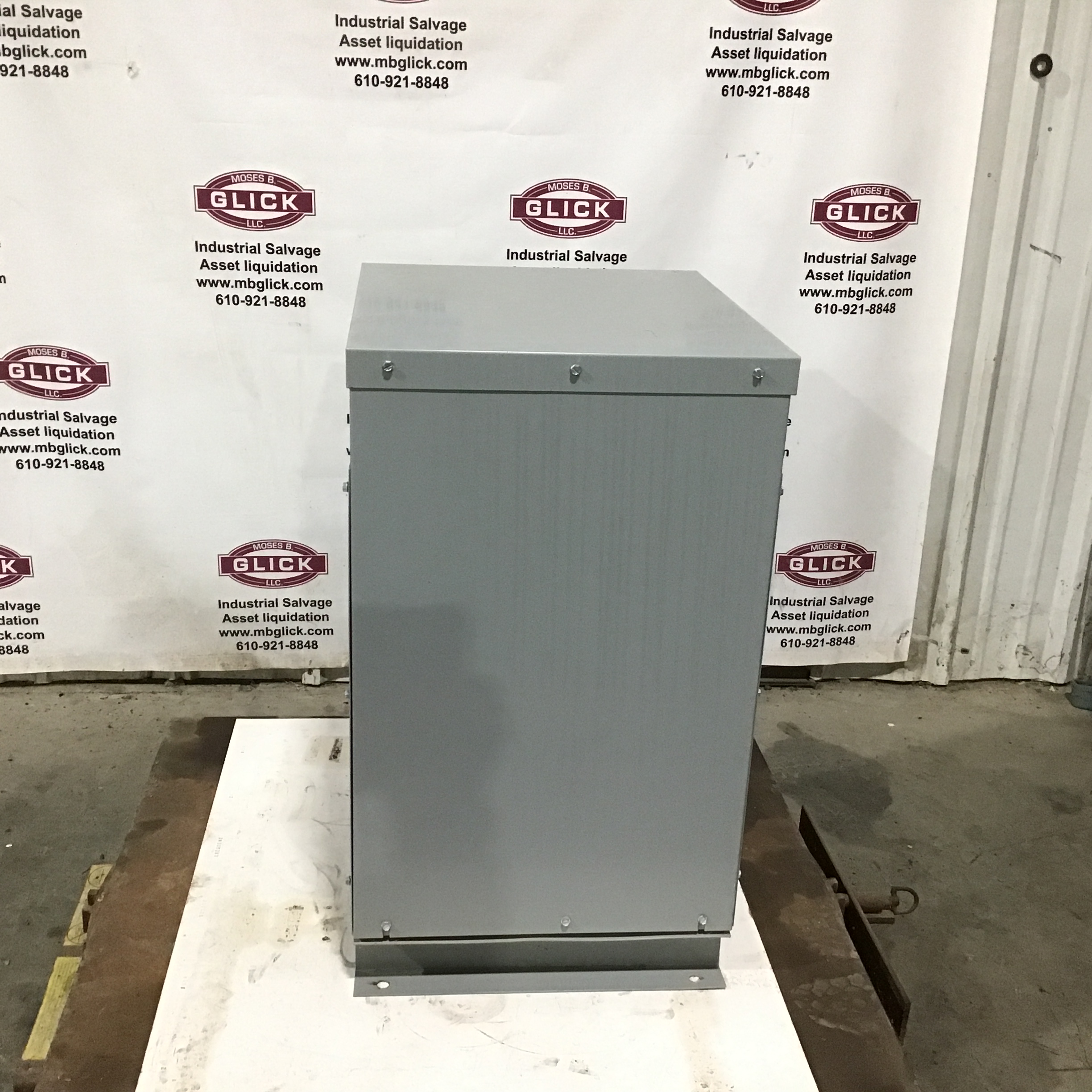

Federal Pacific T48LH2Y-30 Dry Type Transformer 30 kVA 480V

This listing is for a Federal Pacific 30 kVA dry-type distribution transformer, model T48LH2Y-30, in excellent used condition. This industrial-grade transformer is ideal for commercial, facility, industrial, and shop power distribution applications.

Built for reliability and continuous operation, this AA/FA rated transformer provides stable performance with a 480V primary and 208Y/120V secondary output. The unit is clean, tested, and ready for installation.

📌 Item Details

• Brand: Federal Pacific

• Model: T48LH2Y-30

• kVA Rating: 30 kVA

• Type: Dry-Type Transformer (AA/FA)

• Phase: 3-Phase

• Primary Voltage: 480V

• Secondary Voltage: 208Y/120V

• Frequency: 60 Hz

• Temperature Rise: 150°C

• Insulation System: 220°C

• Enclosure: Ventilated NEMA-style enclosure

• Weight: 415 lbs

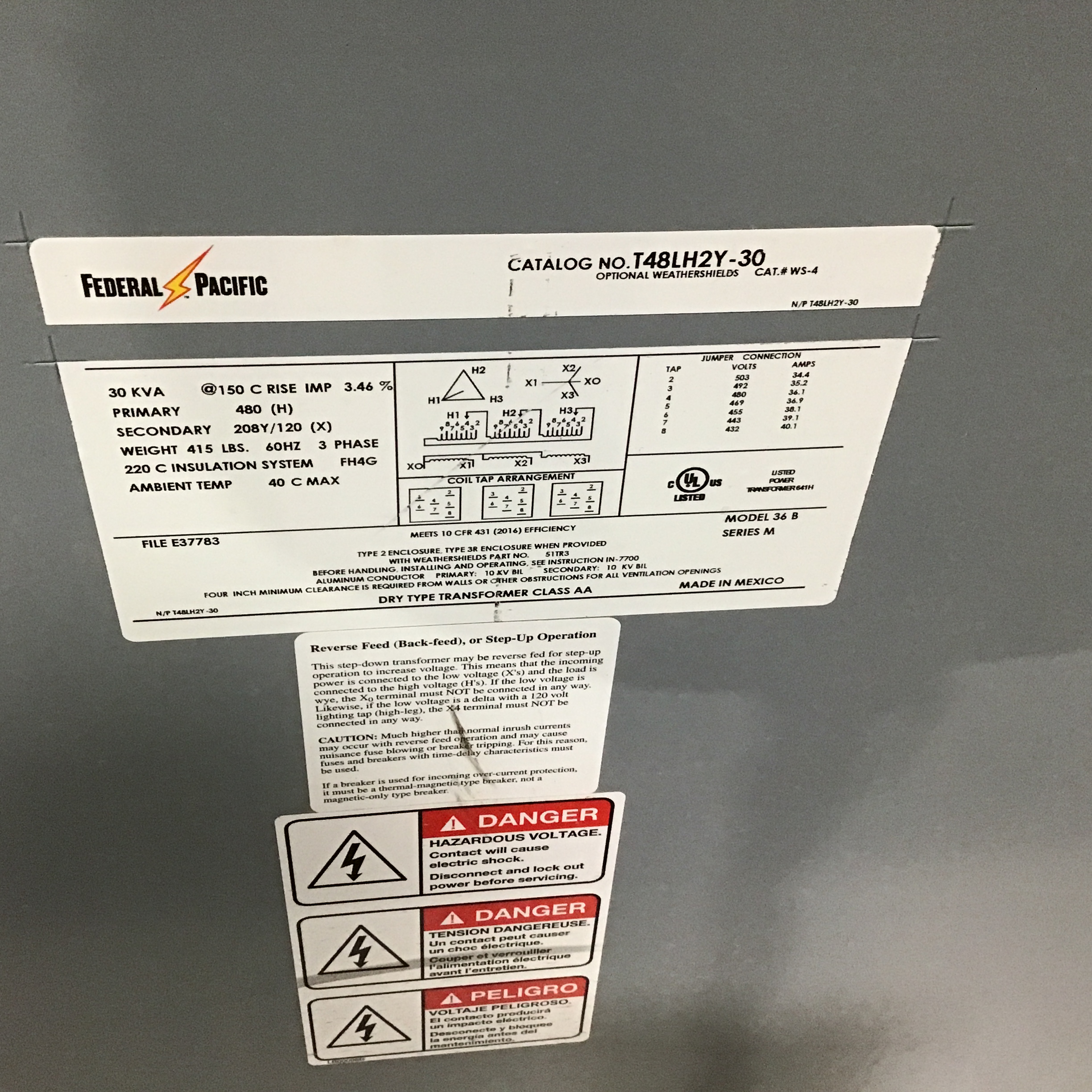

• Wiring Diagram: Label intact (see photos)

⭐ Features

• High-efficiency commercial-grade transformer

• Durable heavy-duty steel enclosure

• Suitable for warehouses, manufacturing, HVAC, and building power distribution

• Made in Mexico – quality Federal Pacific construction

• Ideal for step-down power conversion from 480V to 208Y/120V

🔧 Applications

• Industrial electrical distribution

• Commercial buildings

• Machine shops

• Panelboards & subpanels

• HVAC equipment

• Power distribution upgrades
