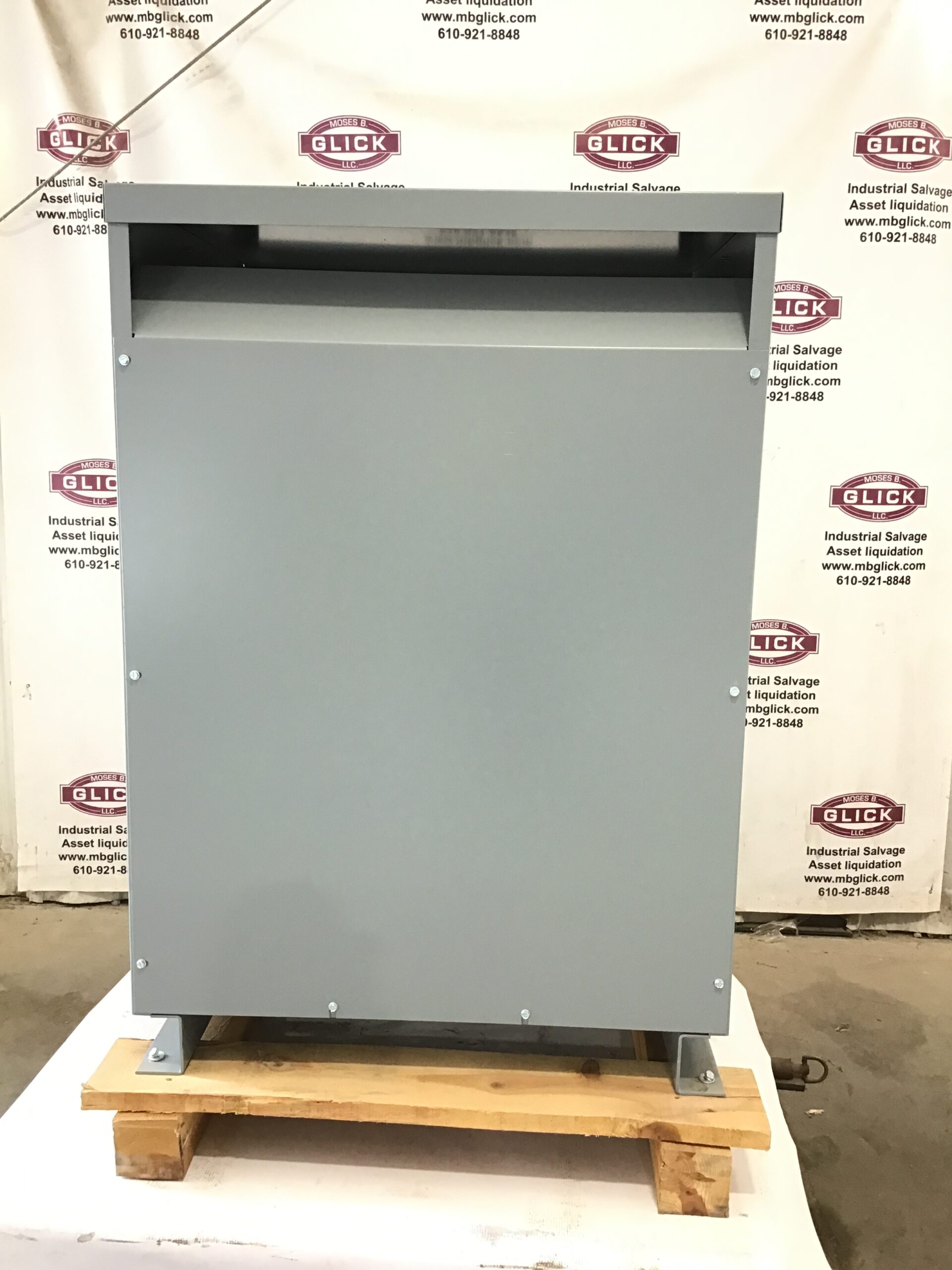

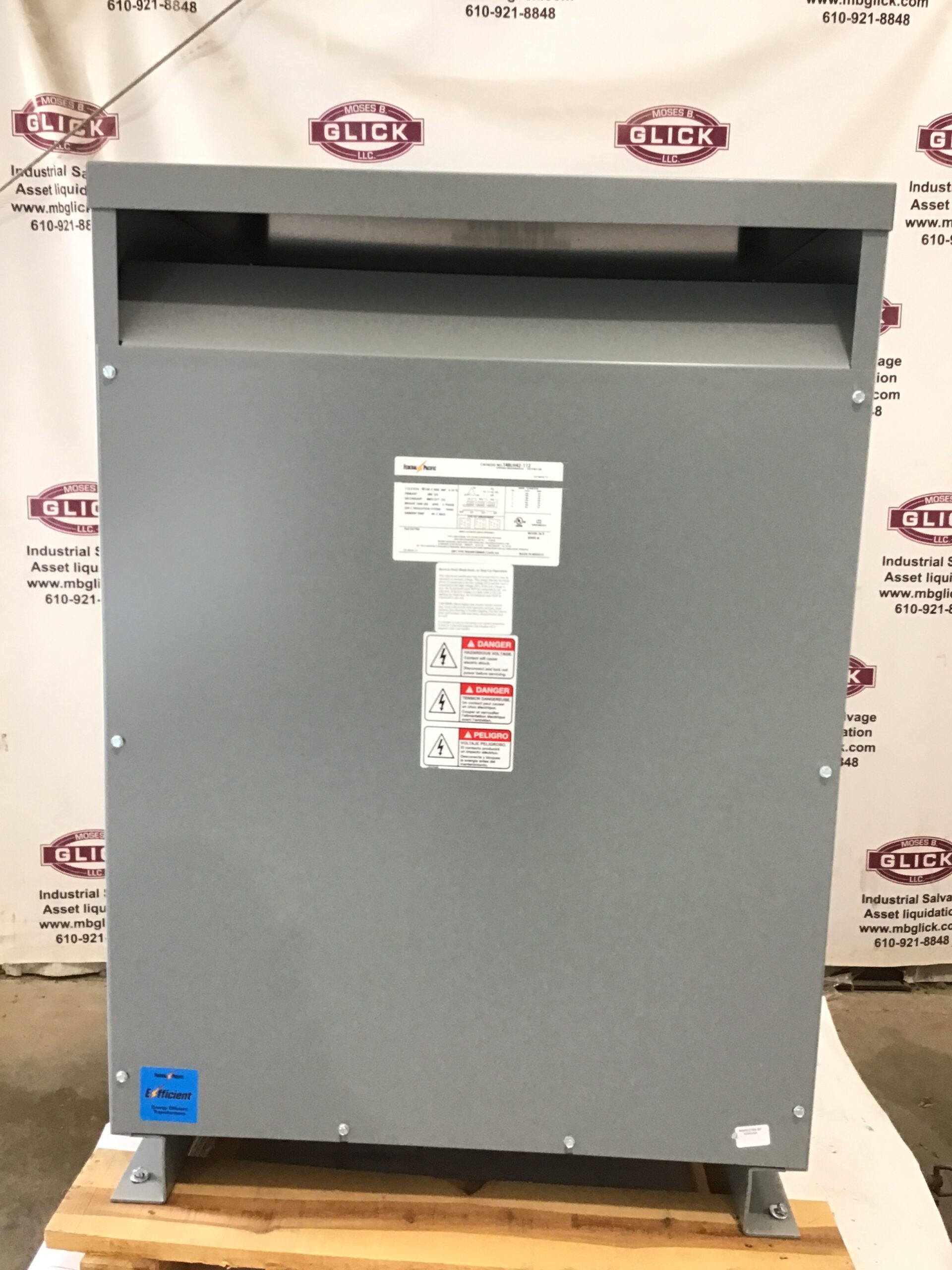

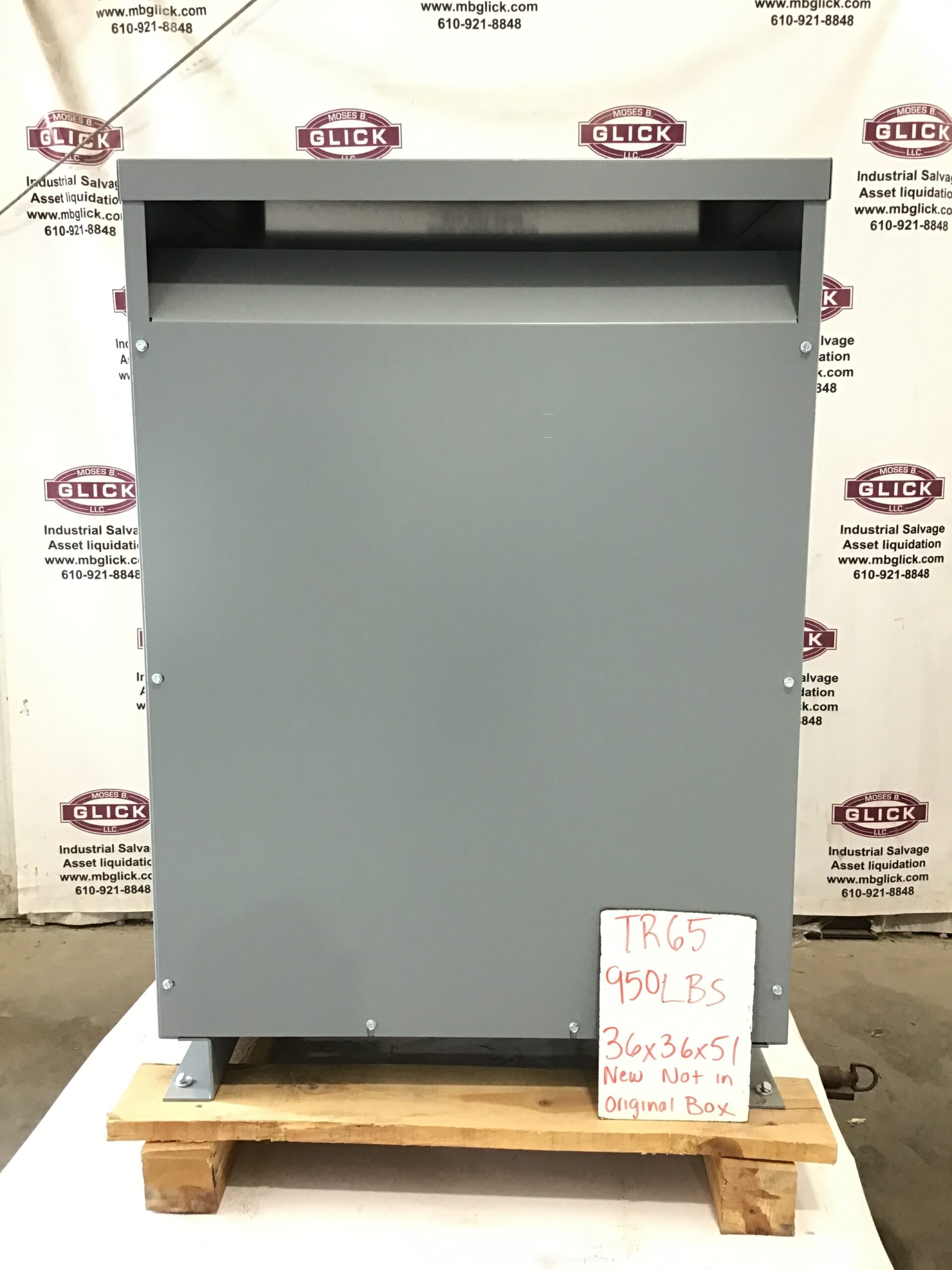

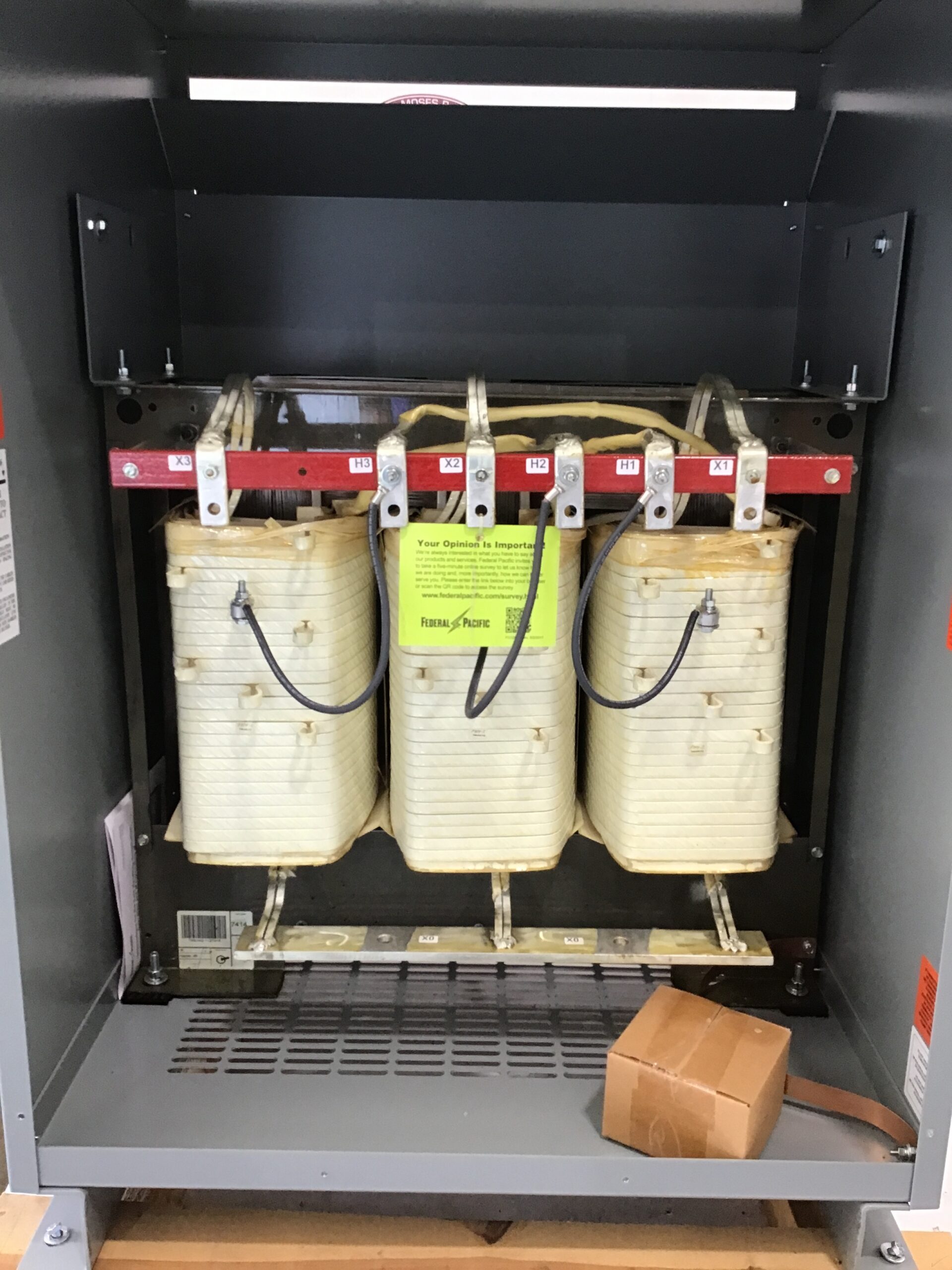

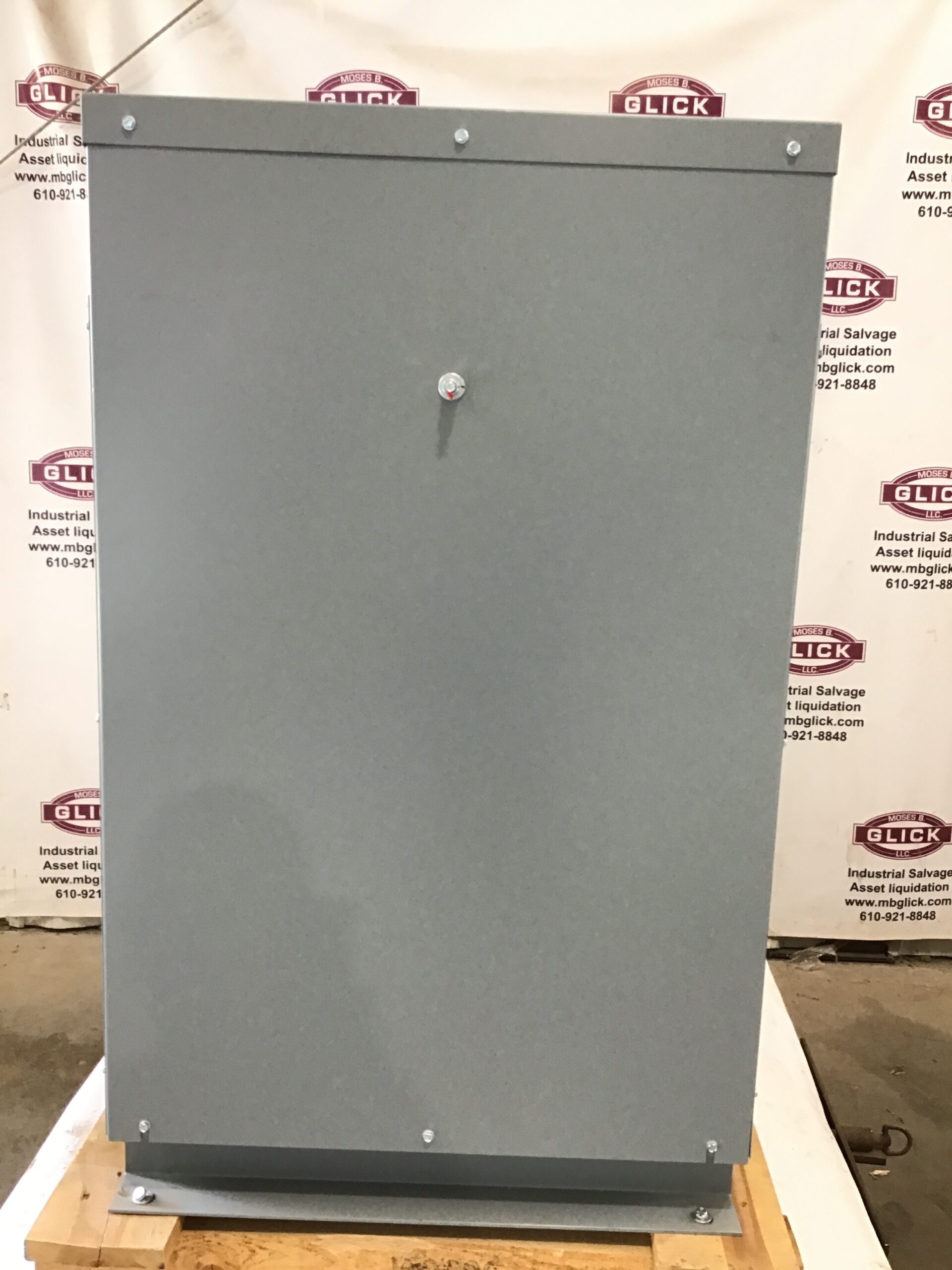

Power your facility with confidence using this Federal Pacific Efficient® 112.5 KVA Dry-Type Distribution Transformer, engineered for dependable performance, energy efficiency, and long-term reliability in demanding commercial and industrial environments. Featuring a 480V Delta primary and 480Y/277V Wye secondary, this 3-phase transformer is ideal for distributing power to lighting systems, HVAC equipment, machinery, panelboards, and other critical electrical loads. Built with a rugged Type 2 enclosure, 220°C insulation system, 150°C temperature rise, and UL Listing, it meets DOE 2016 efficiency standards for optimized energy performance. Whether you’re upgrading an existing electrical system, expanding a facility, or replacing aging equipment, this heavy-duty Federal Pacific T48LH42-112 transformer delivers the durability, efficiency, and trusted performance professionals rely on.

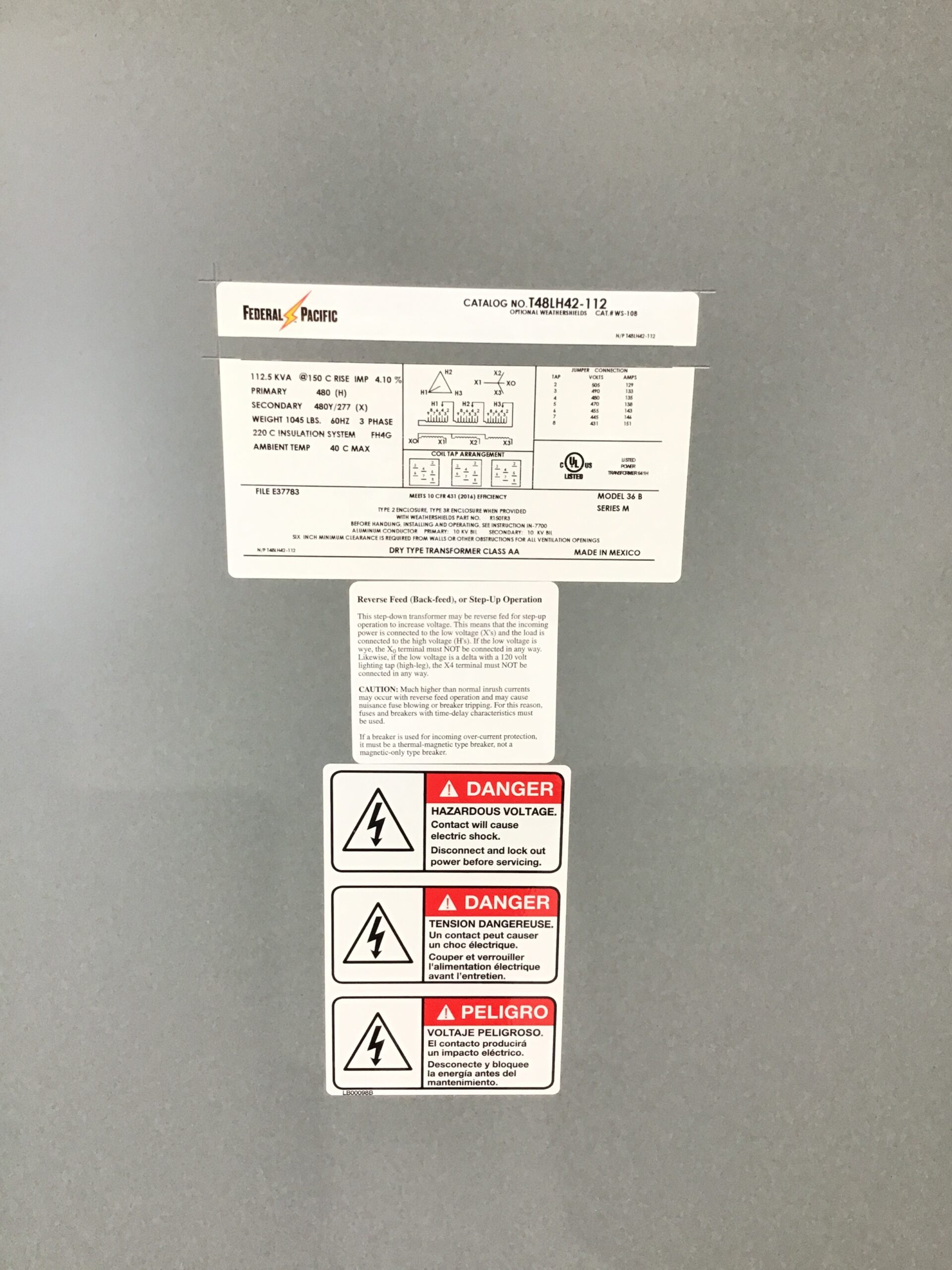

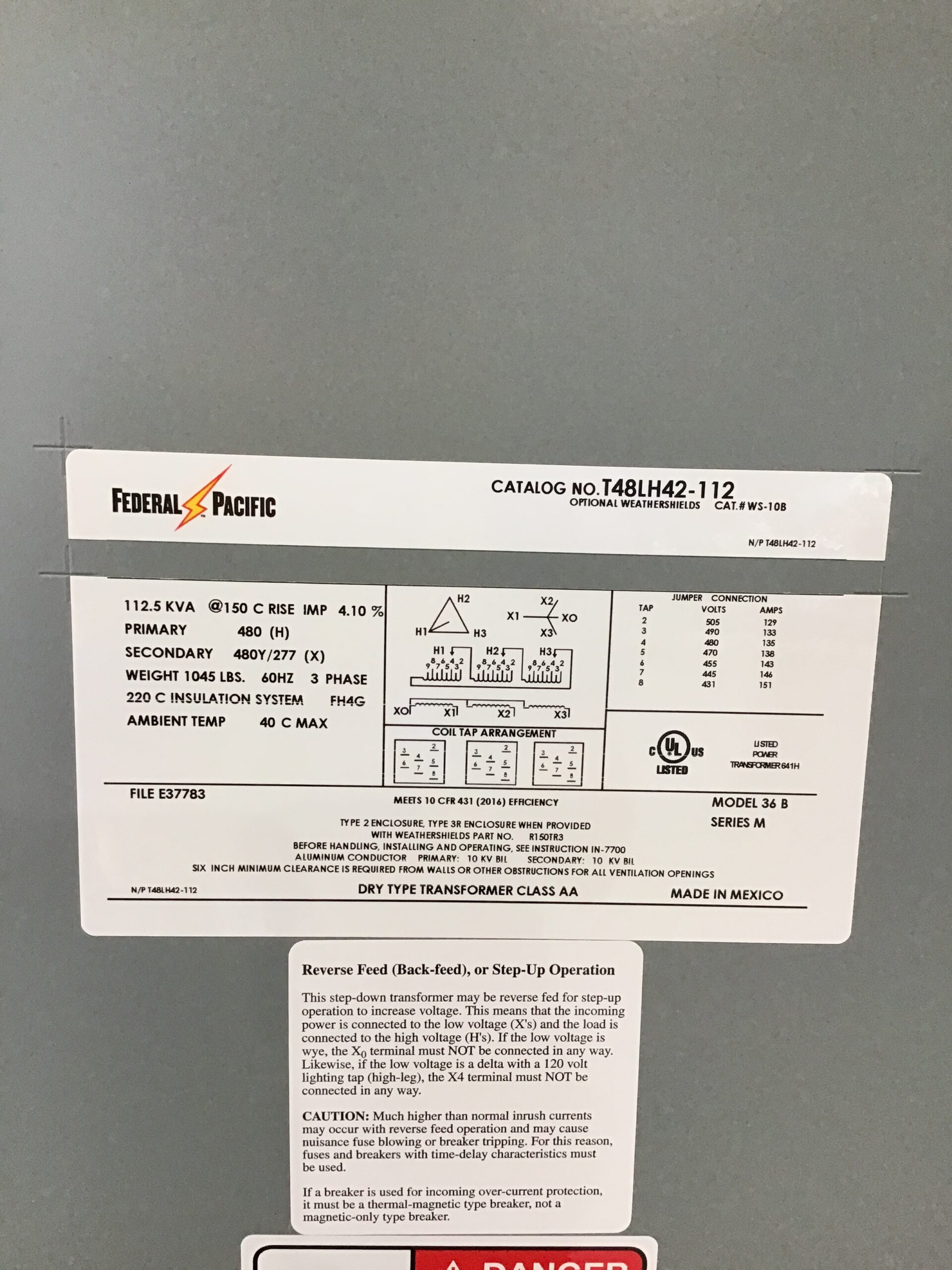

Specifications:
- Brand: Federal Pacific

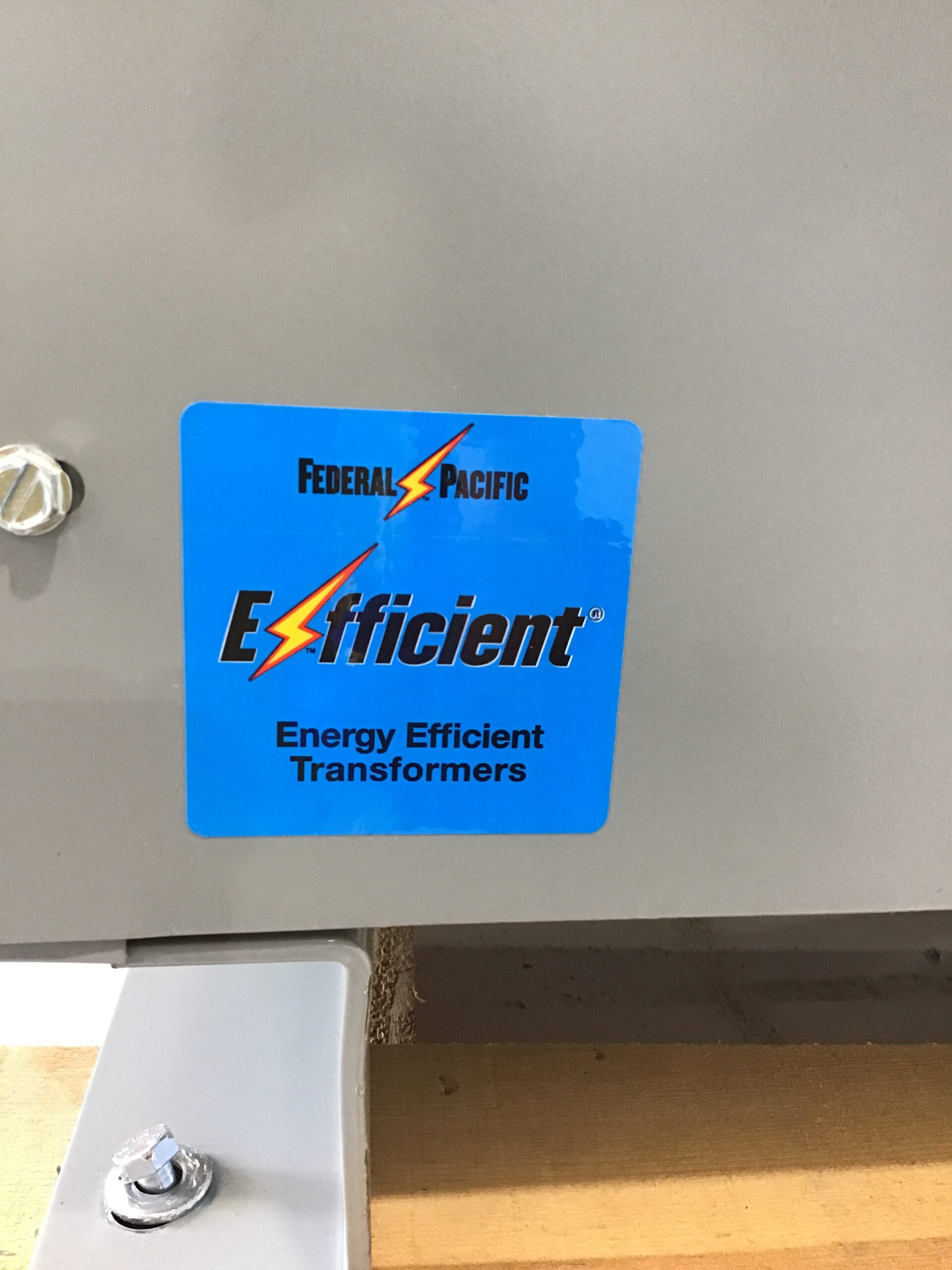

- Product Line: Efficient®
- Catalog Number: T48LH42-112
- Model: 36 B
- Series: M
- Power Rating: 112.5 KVA
- Primary Voltage: 480V
- Phase: 3 Phase
- Frequency: 60 Hz
- Impedance: 4.10%
- Temperature Rise: 150°C
- Insulation System: 220°C Class
- Maximum Ambient Temperature: 40°C
- Enclosure: Type 2
Applications:
- Commercial building power distribution
- Industrial manufacturing facilities
- Warehouses and distribution centers
- Office buildings and business complexes
- Schools, universities, and educational campuses
- Hospitals and healthcare facilities
- Data centers and telecommunications equipment
- HVAC systems and mechanical equipment
- Motor control centers
- Panelboards and switchgear
- Lighting distribution systems
- Retail stores and shopping centers
- Municipal and government facilities
- Process plants and production equipment
- Electrical system upgrades and replacement projects
- New construction and facility expansion
- General-purpose three-phase power distribution
