Fireye NXC20 Servomotor

Upgrade or replace your burner control system with this Fireye NXC20 Servomotor, designed for precise modulation of fuel/air ratio on commercial and industrial burners. The NXC20 delivers 20Nm (15 lb-ft) torque and features an adjustable cam system for accurate positioning and repeatable motion.

This industrial-grade servomotor is widely used in combustion systems, boilers, furnaces, and HVAC burner management setups. Built for long-term reliability under demanding conditions, the Fireye NXC20 is compatible with Nexus and BurnerLogix systems requiring high-precision actuator control.

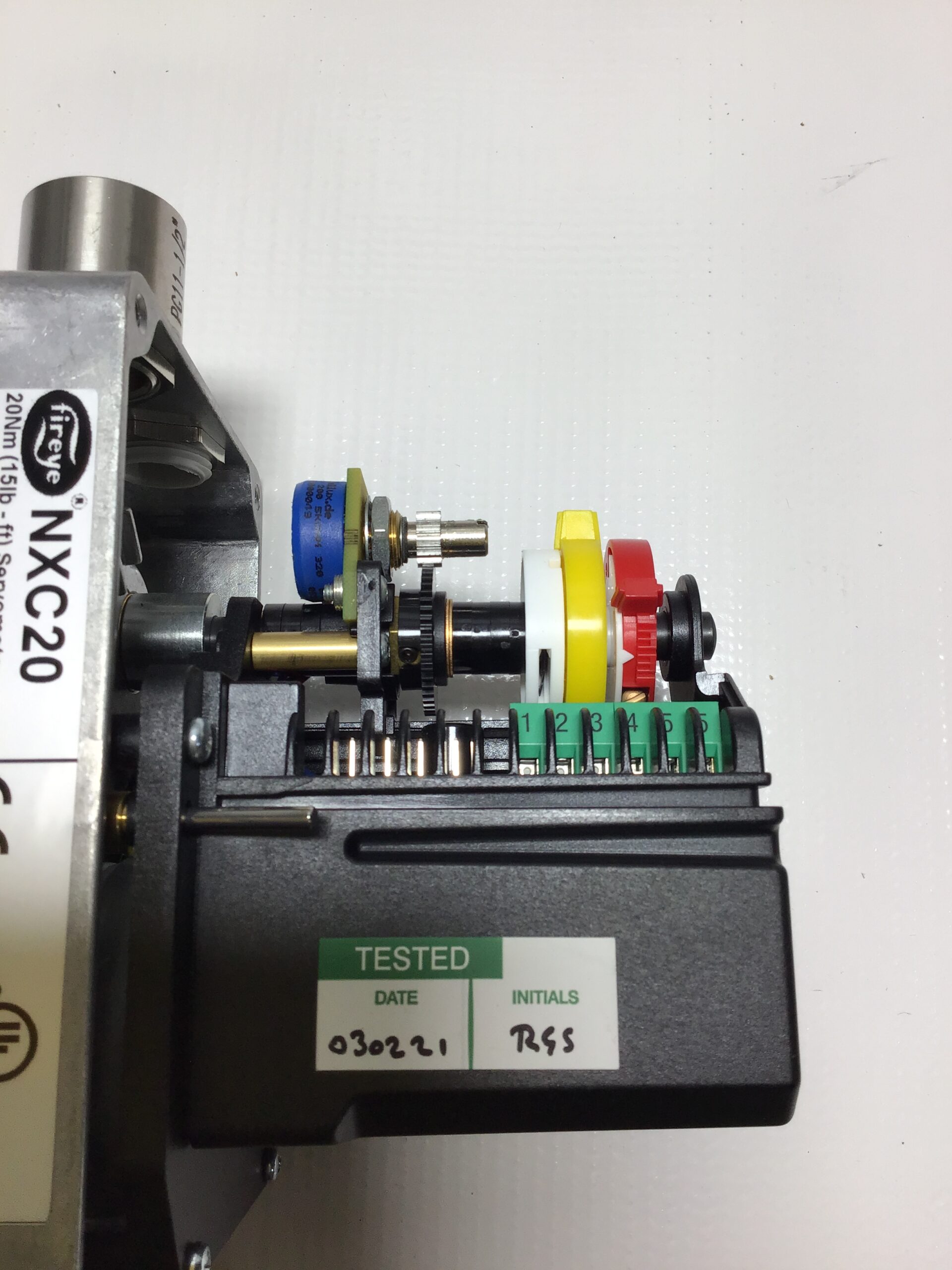

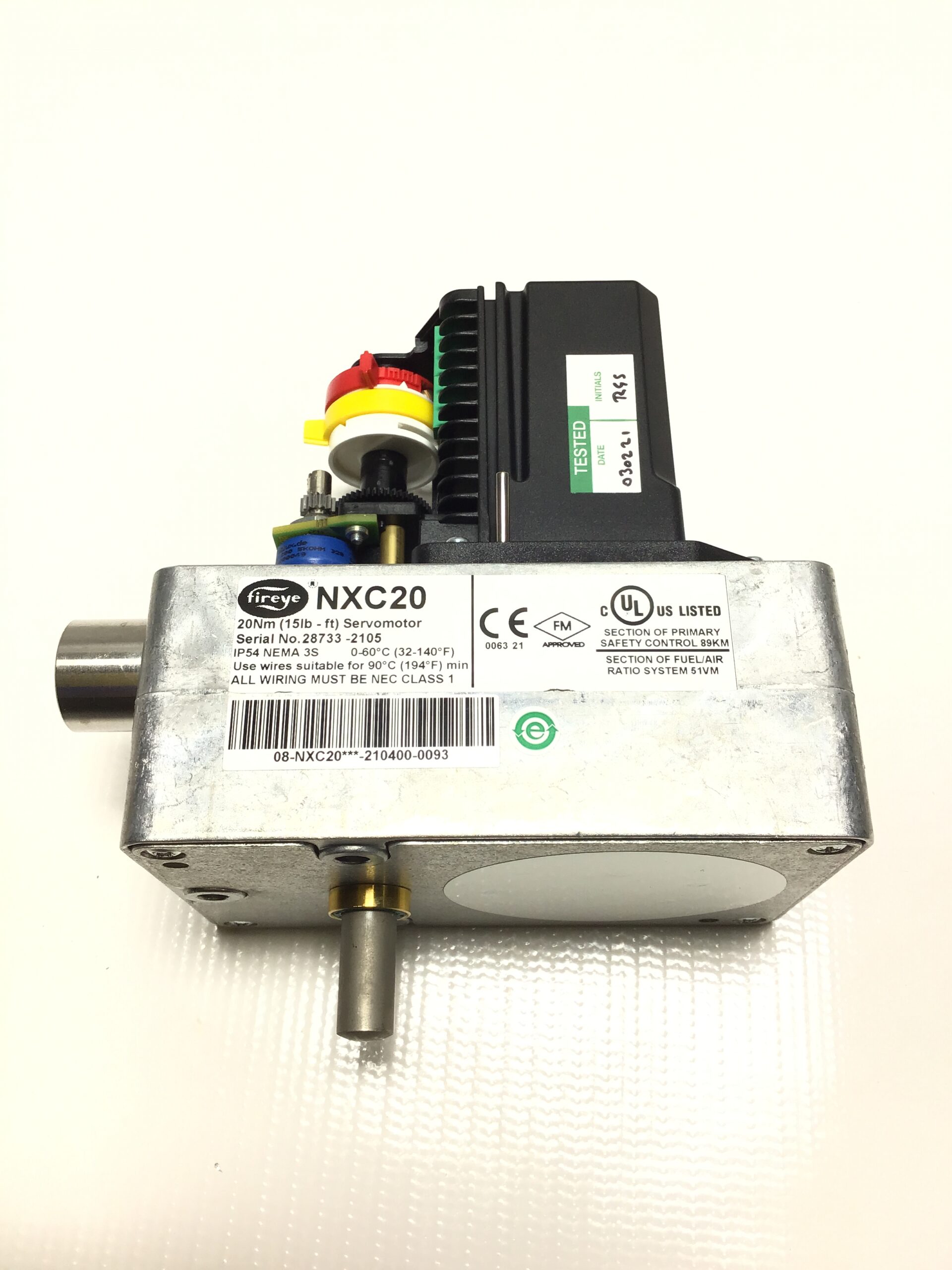

🔧 PRODUCT DETAILS (from label & images)

• Brand: Fireye

• Model: NXC20

• Part Number: 28733-2105

• Torque Output: 20 Nm (15 lb-ft)

• IP Rating: IP54 (NEMA 3S)

• Operating Temperature: –0°C to 60°C (32°F to 140°F)

• Wiring Rating: NEC Class 1

• Certifications: UL Listed, CE, FM Approved

• Function: Fuel/Air Ratio Servomotor / Modulating Actuator

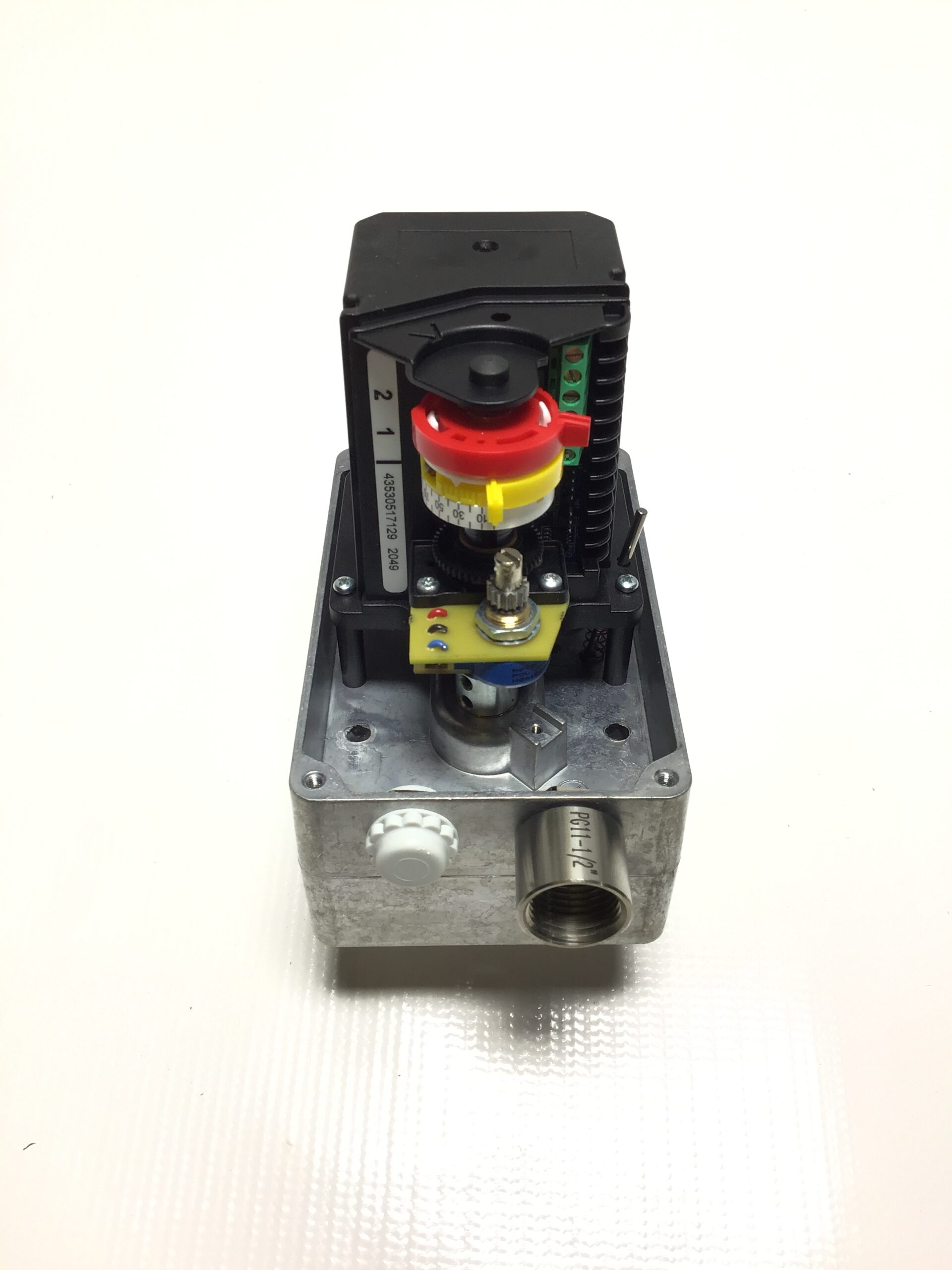

• Includes: Internal cam/gear assembly + protective housing

⭐ KEY FEATURES

• High-torque 20Nm industrial actuator

• Smooth and precise modulation

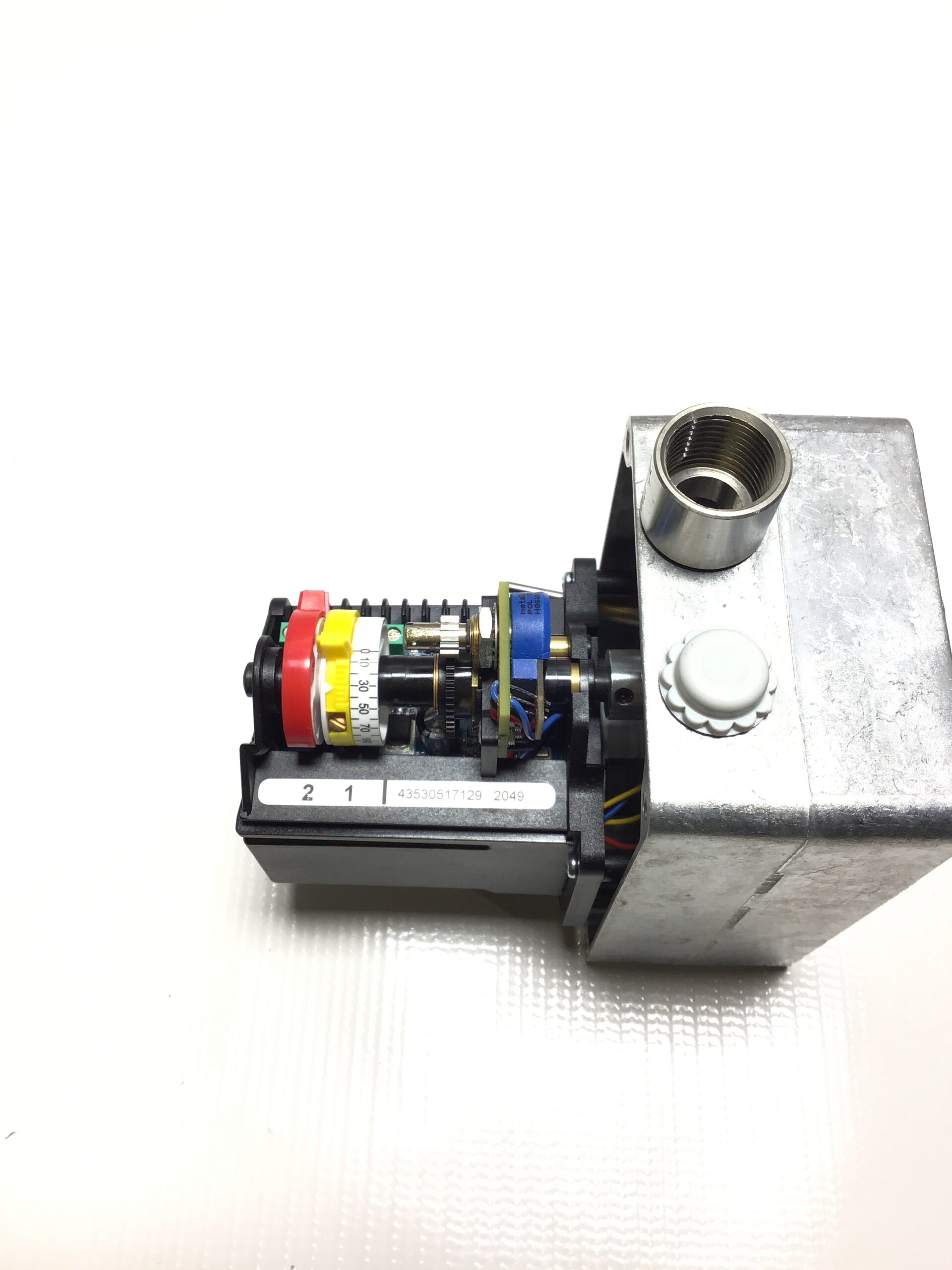

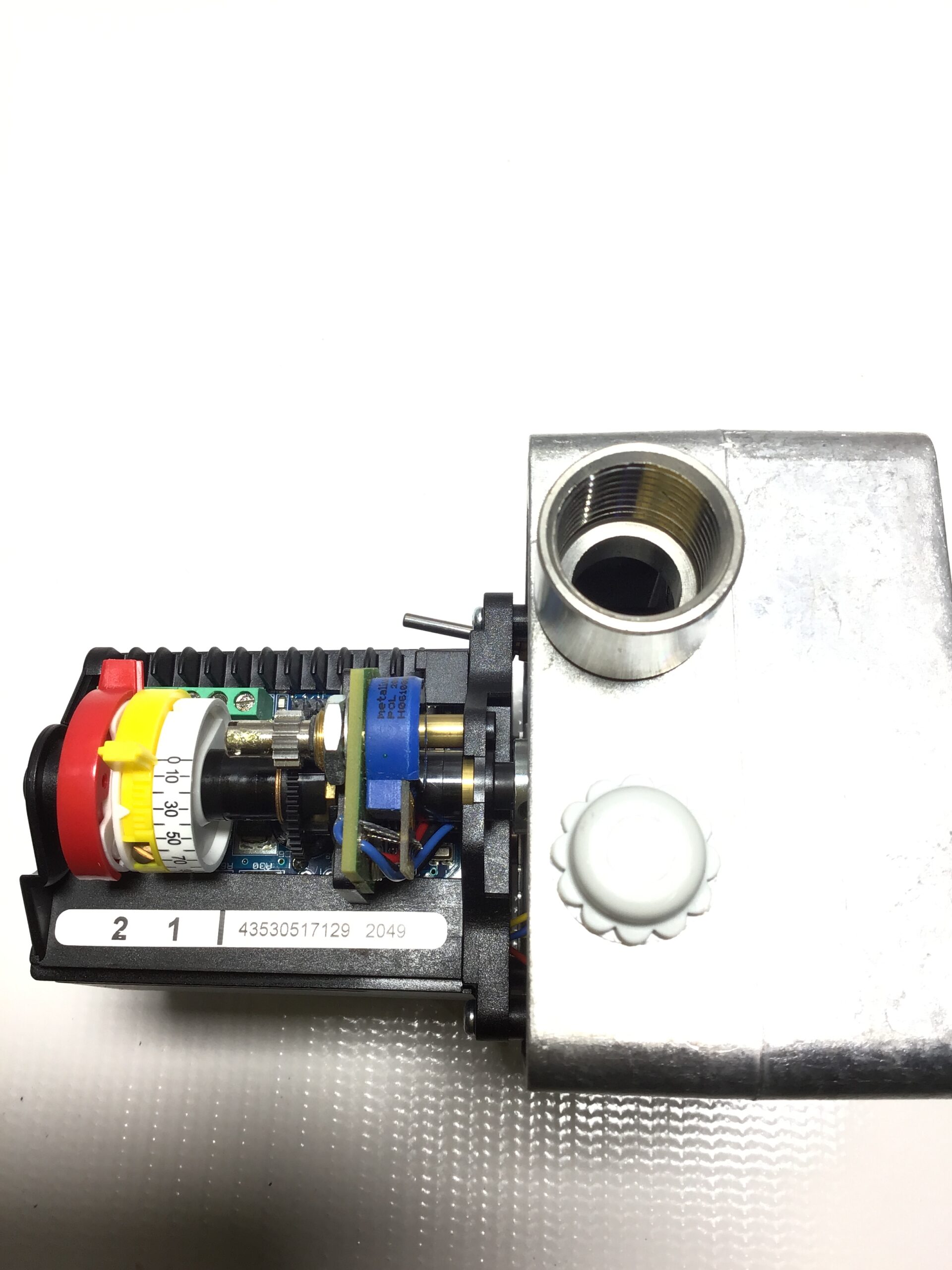

• Color-coded cam adjustment wheels

• Durable aluminum housing

• UL & FM approved for burner safety systems

• Suitable for 24/7 industrial service

• Designed for use with Fireye combustion controls

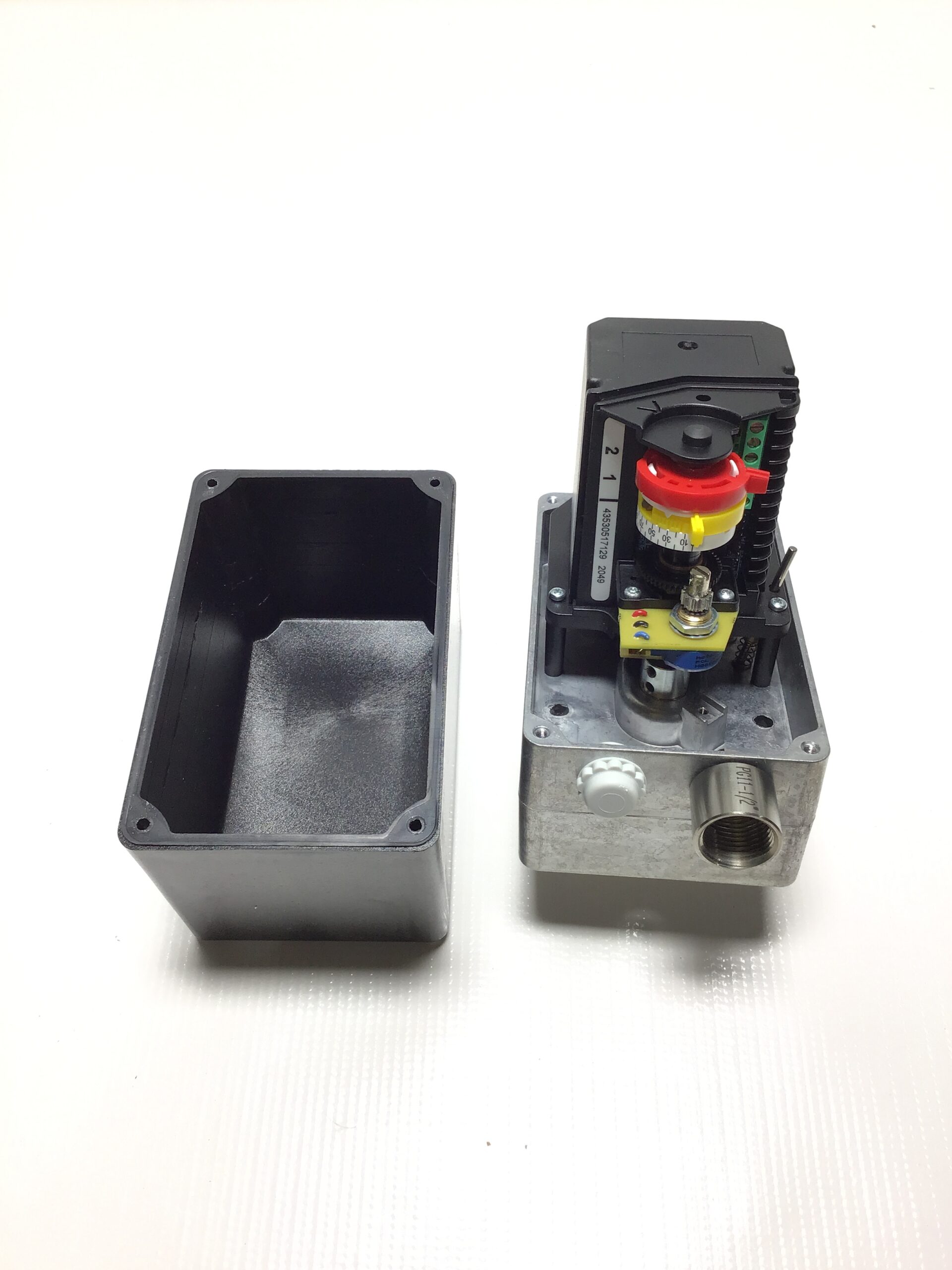

• Easy installation with removable protective cover

🧰 APPLICATIONS

This Fireye NXC20 servomotor is commonly used in:

• Industrial boilers

• Furnaces and burners

• HVAC combustion systems

• Fuel/air ratio control

• Process heating equipment

• Nexus / BurnerLogix system integration

• Rotary valve and damper actuation
