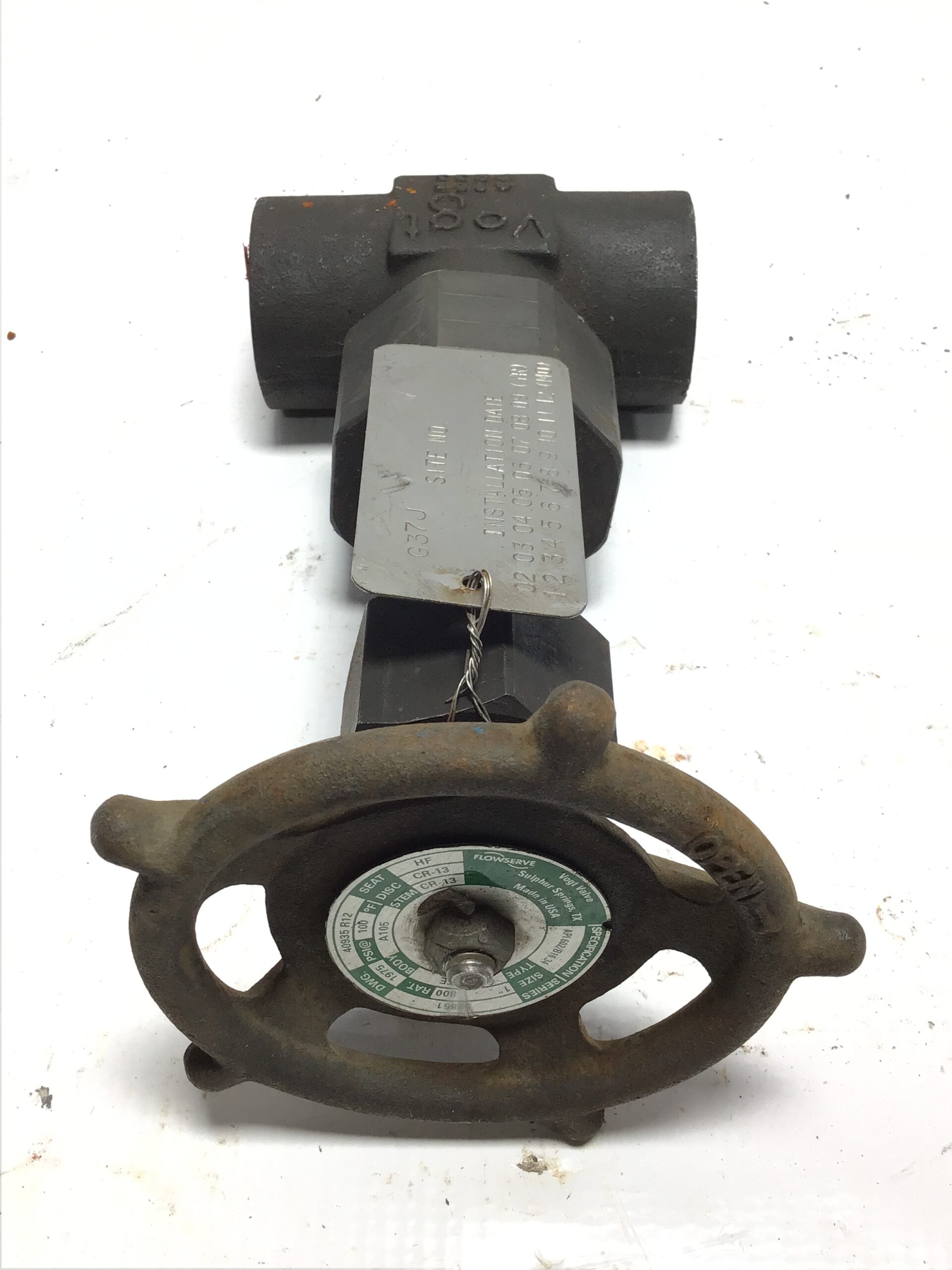

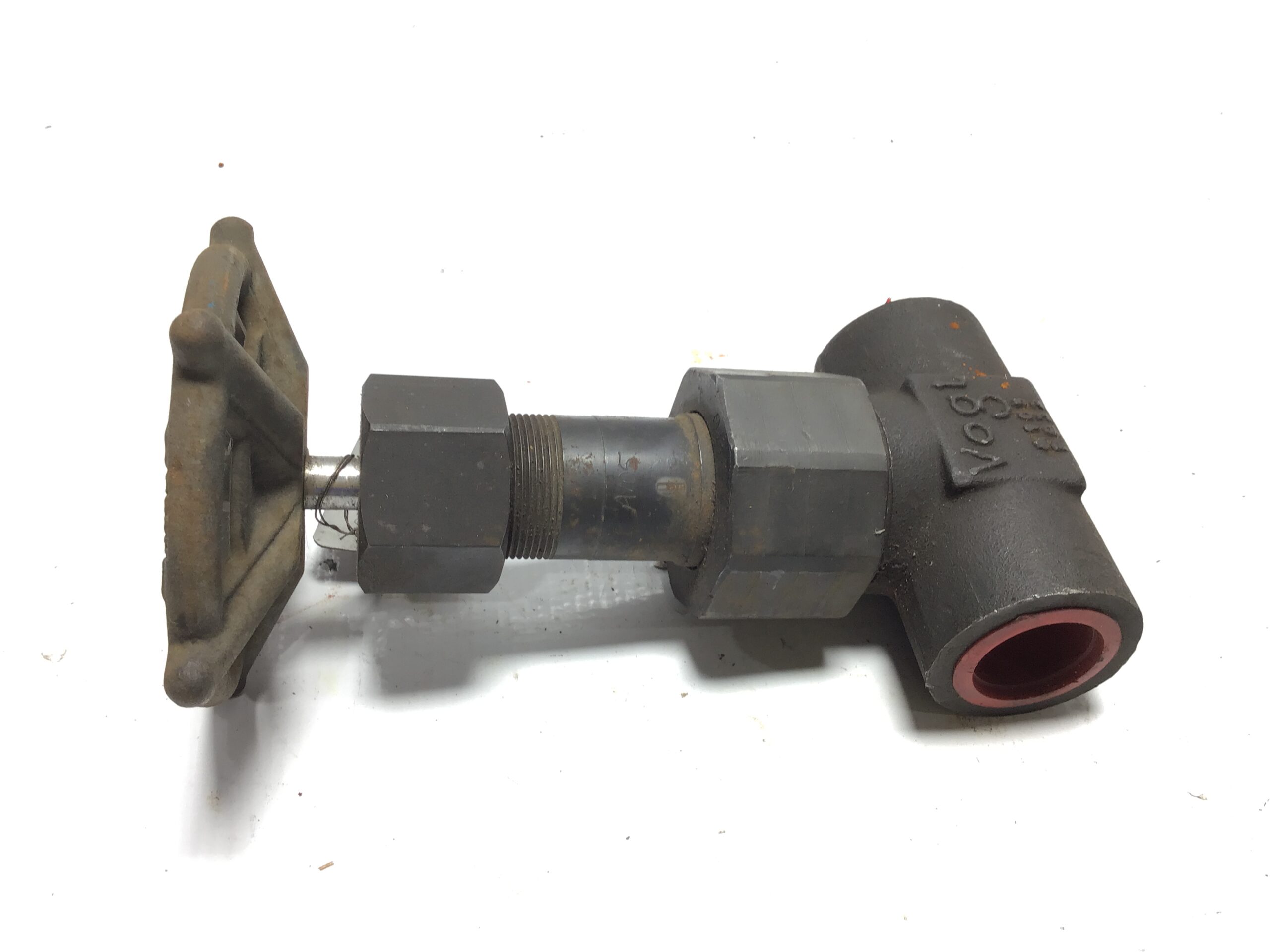

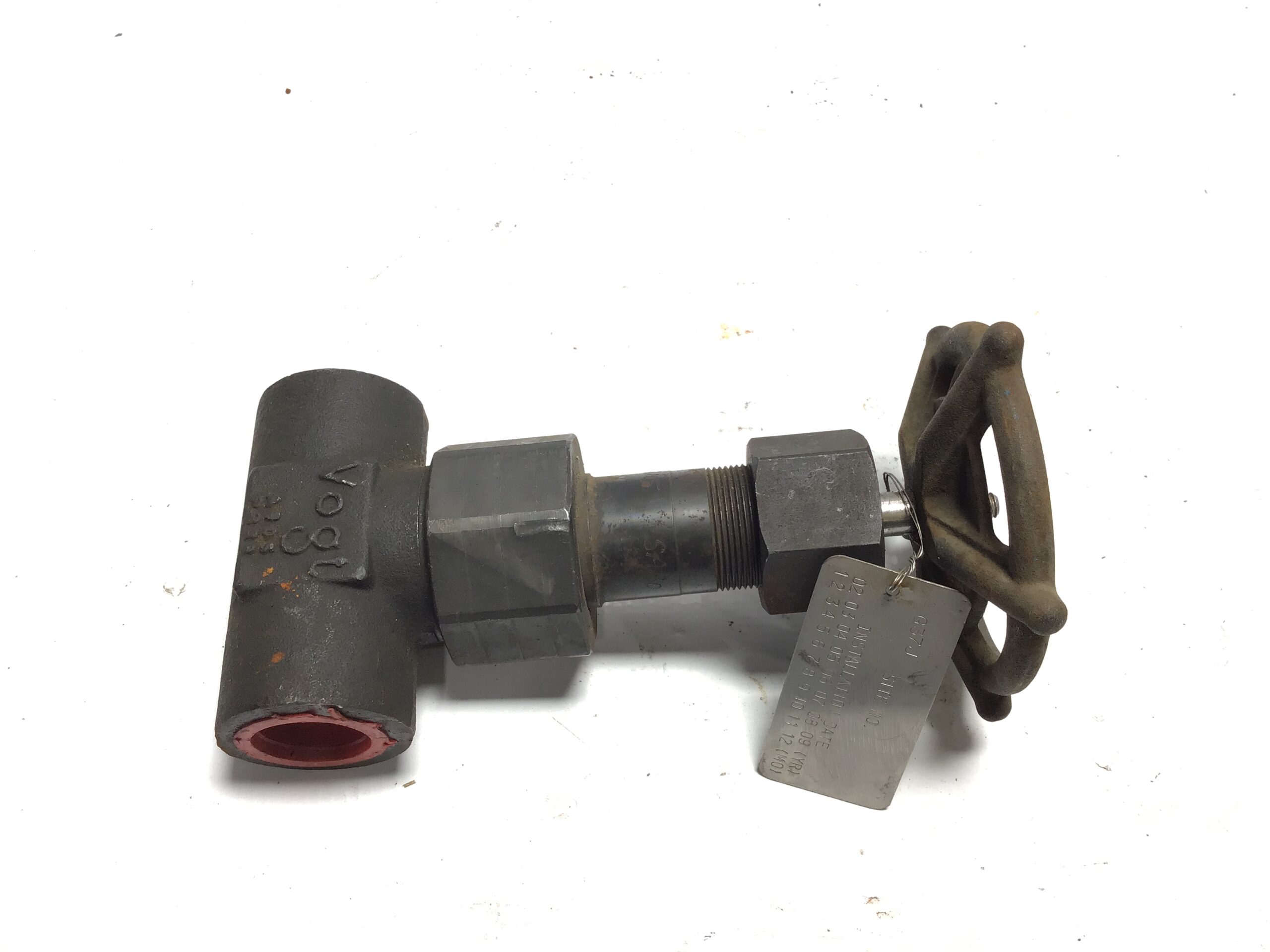

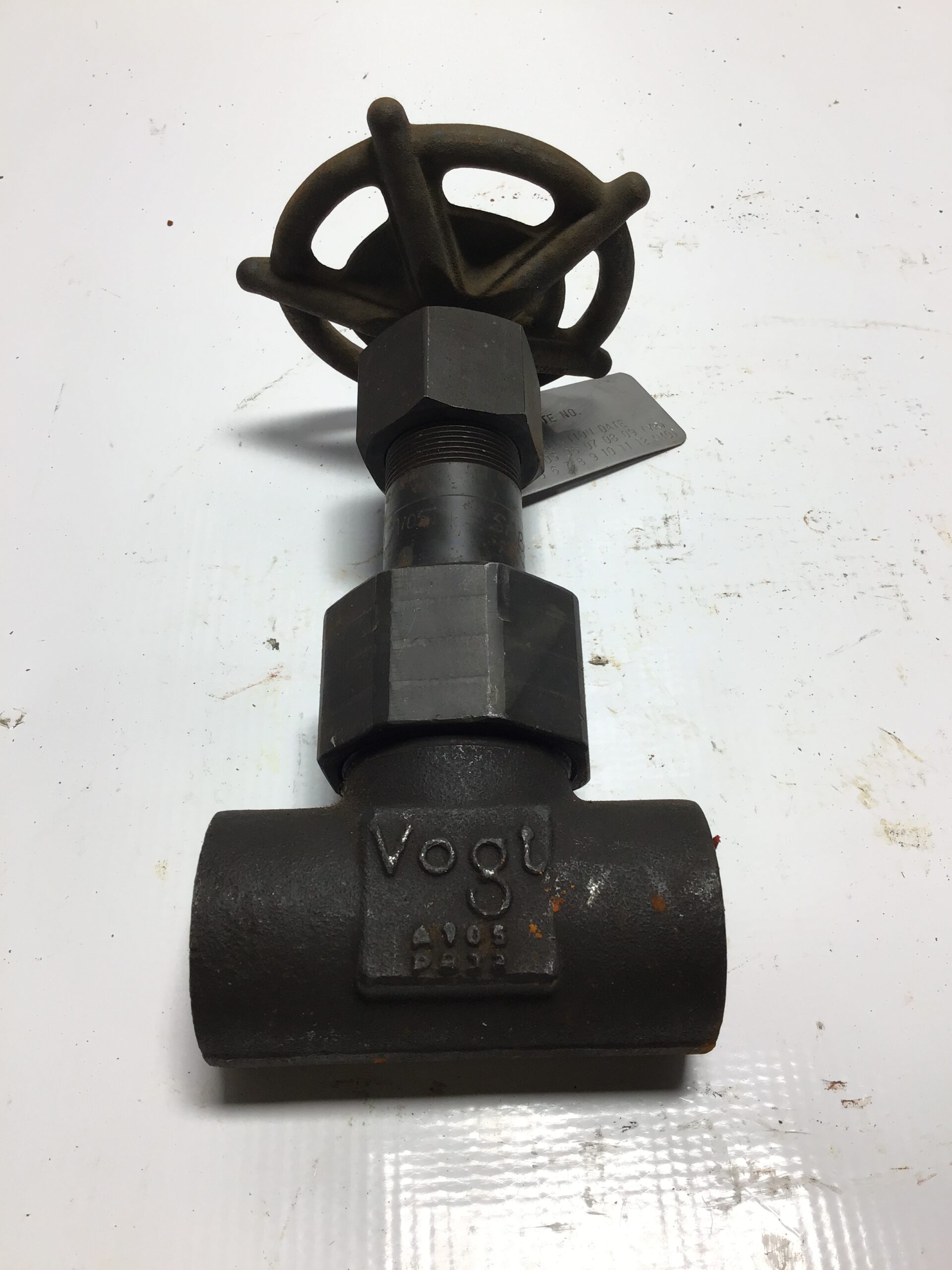

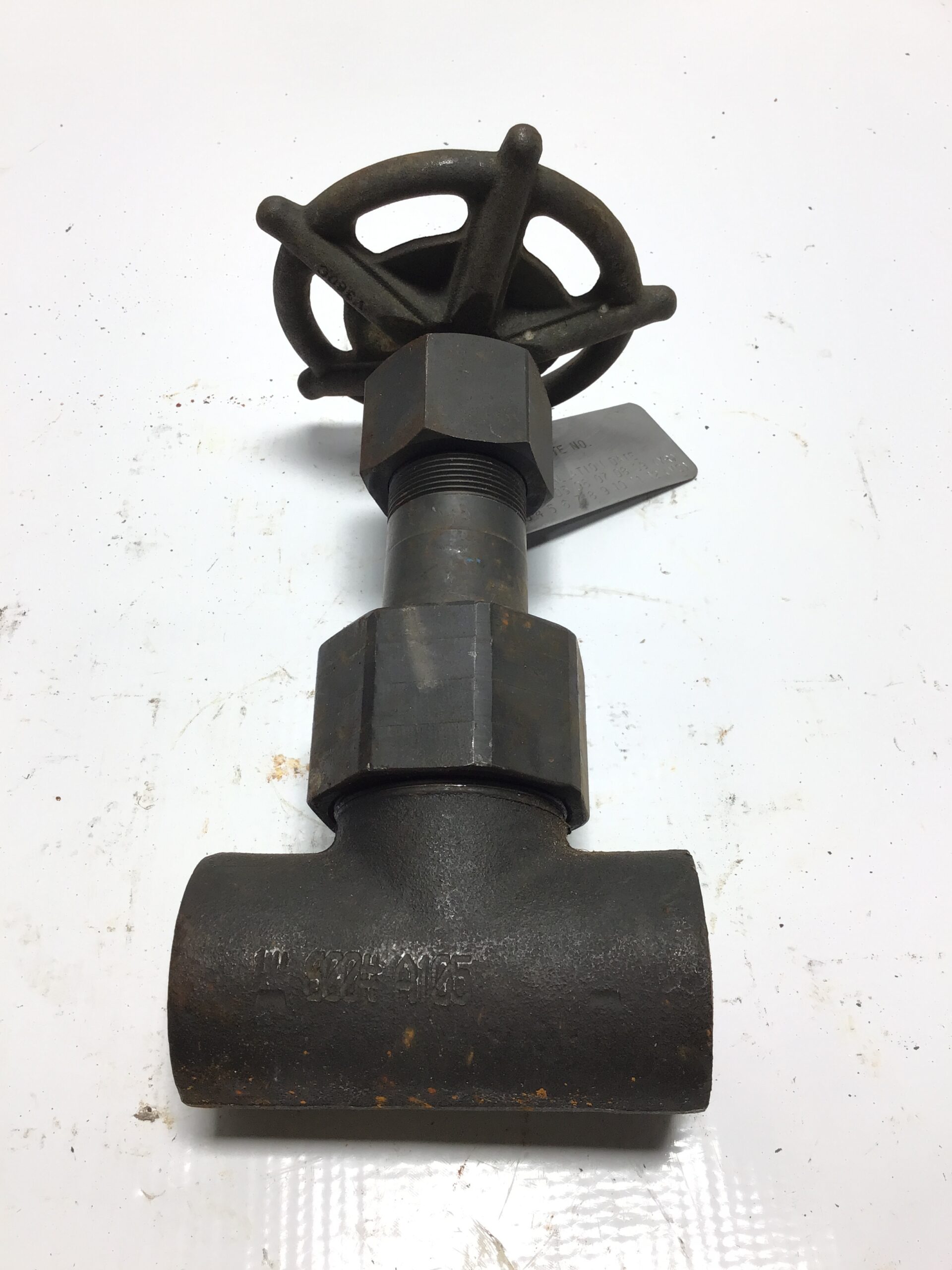

Engineered for demanding industrial service, this premium Flowserve Vogt Class 800 Gate Valve features a rugged ASTM A105 forged carbon steel body, CR13 disc and stem, and a hardfaced (HF) seat for exceptional durability, wear resistance, and reliable shutoff performance under high-pressure conditions. Manufactured in the USA by one of the industry’s most respected valve producers, this valve is designed for critical applications in oil & gas, petrochemical, power generation, steam systems, refineries, and process industries. Its heavy-duty forged construction and corrosion-resistant trim components provide long service life, dependable operation, and superior performance in challenging environments where safety and reliability are essential. A sought-after industrial valve built to meet rigorous service demands and trusted by maintenance professionals, engineers, and plant operators worldwide.

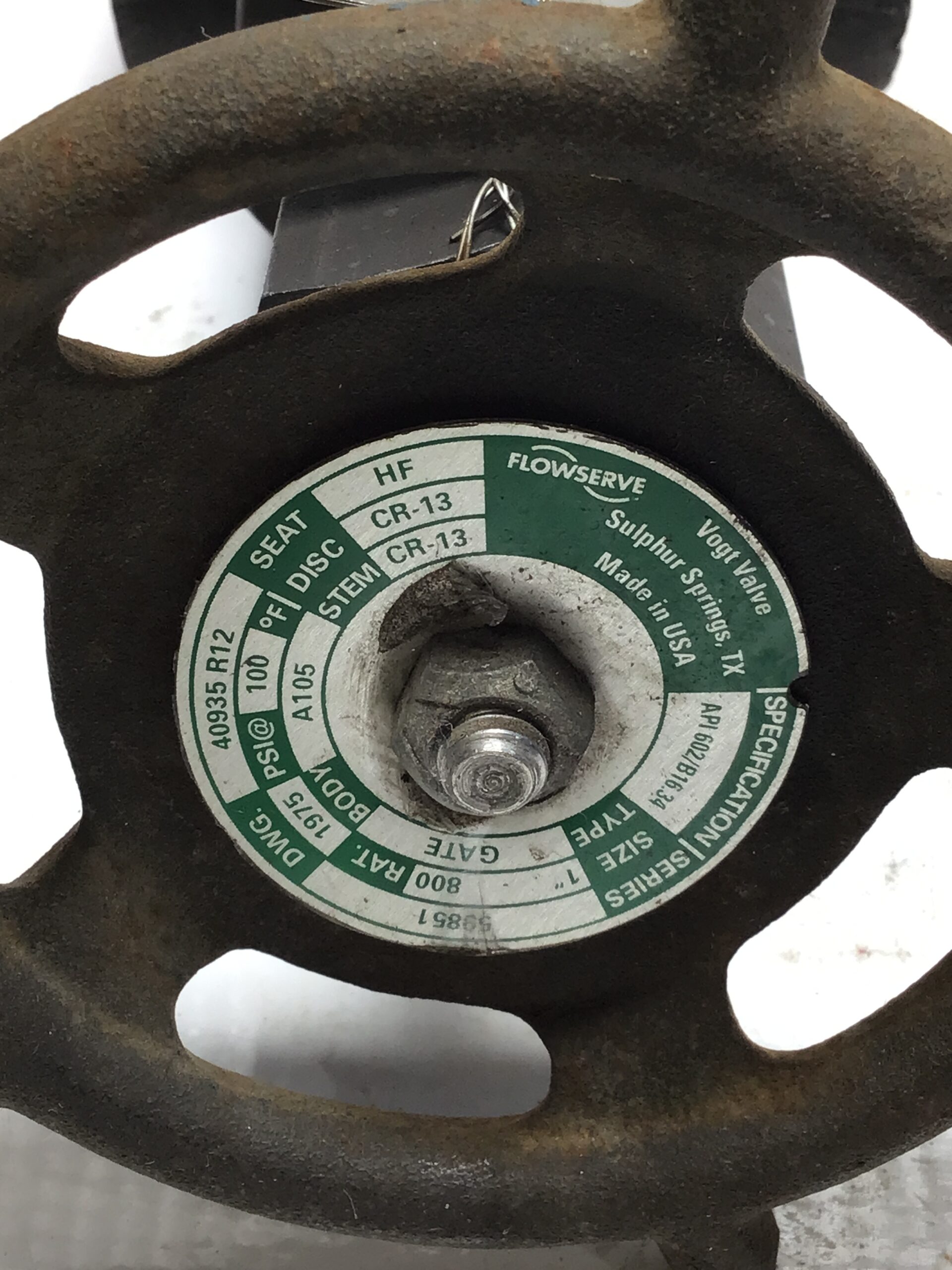

Specifications:

  • Brand: Flowserve Vogt
  • Valve Type: Gate Valve
  • Connection Type: Socket Weld
  • Nominal Size: 1″
  • Pressure Class: 800
  • Body Material: ASTM A105 Forged Carbon Steel
  • Disc Material: CR-13
  • Stem Material: CR-13
  • Seat Material: HF

Applications:

  • Oil & Gas Facilities
  • Refineries
  • Power Plants
  • Chemical Processing
  • Industrial Steam Systems
  • Petrochemical Facilities
  • High-Pressure Piping Systems

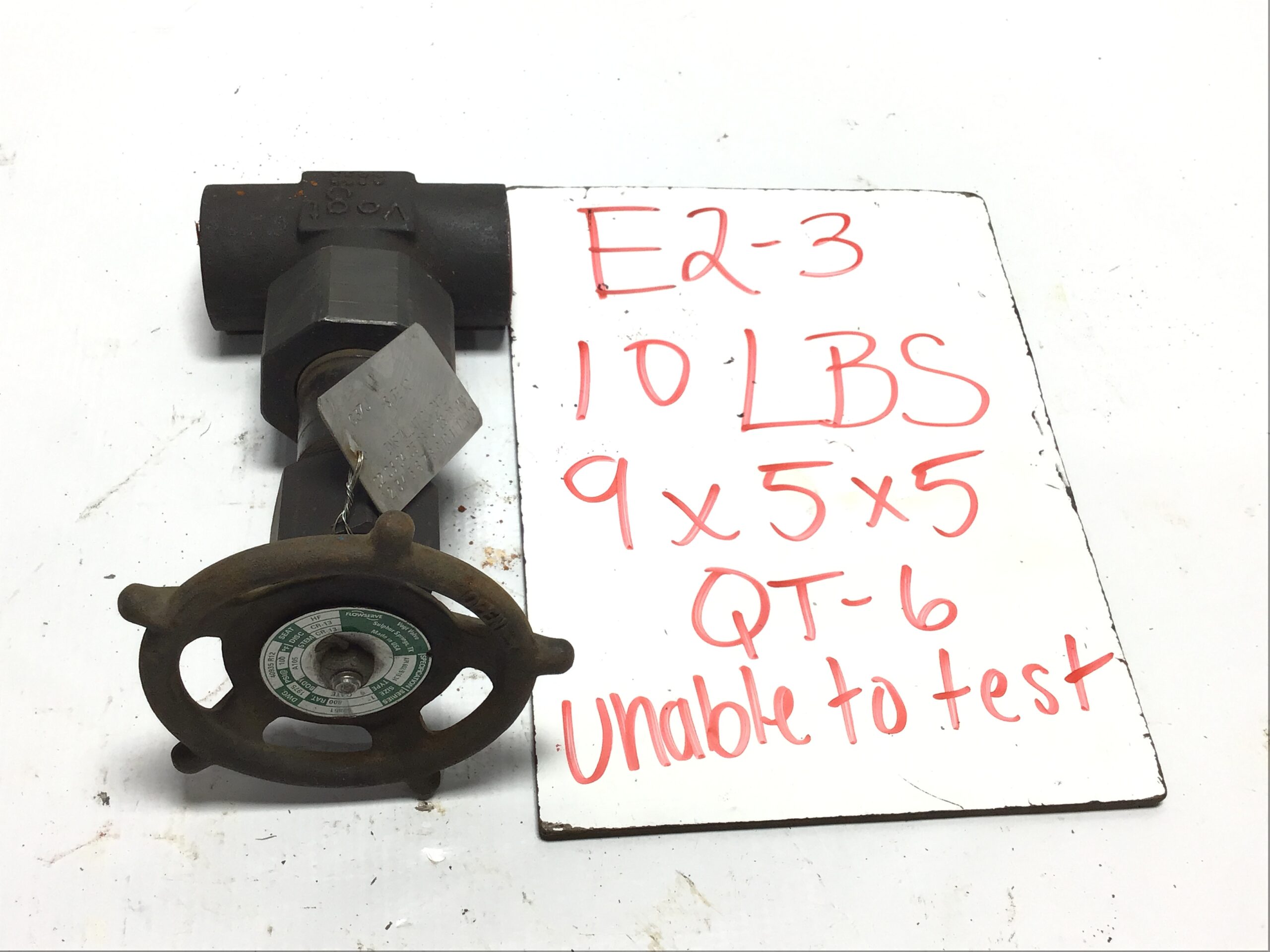

Weight 10 lbs
Dimensions 9 × 5 × 5 in
Brand

Flowserve Vogt
