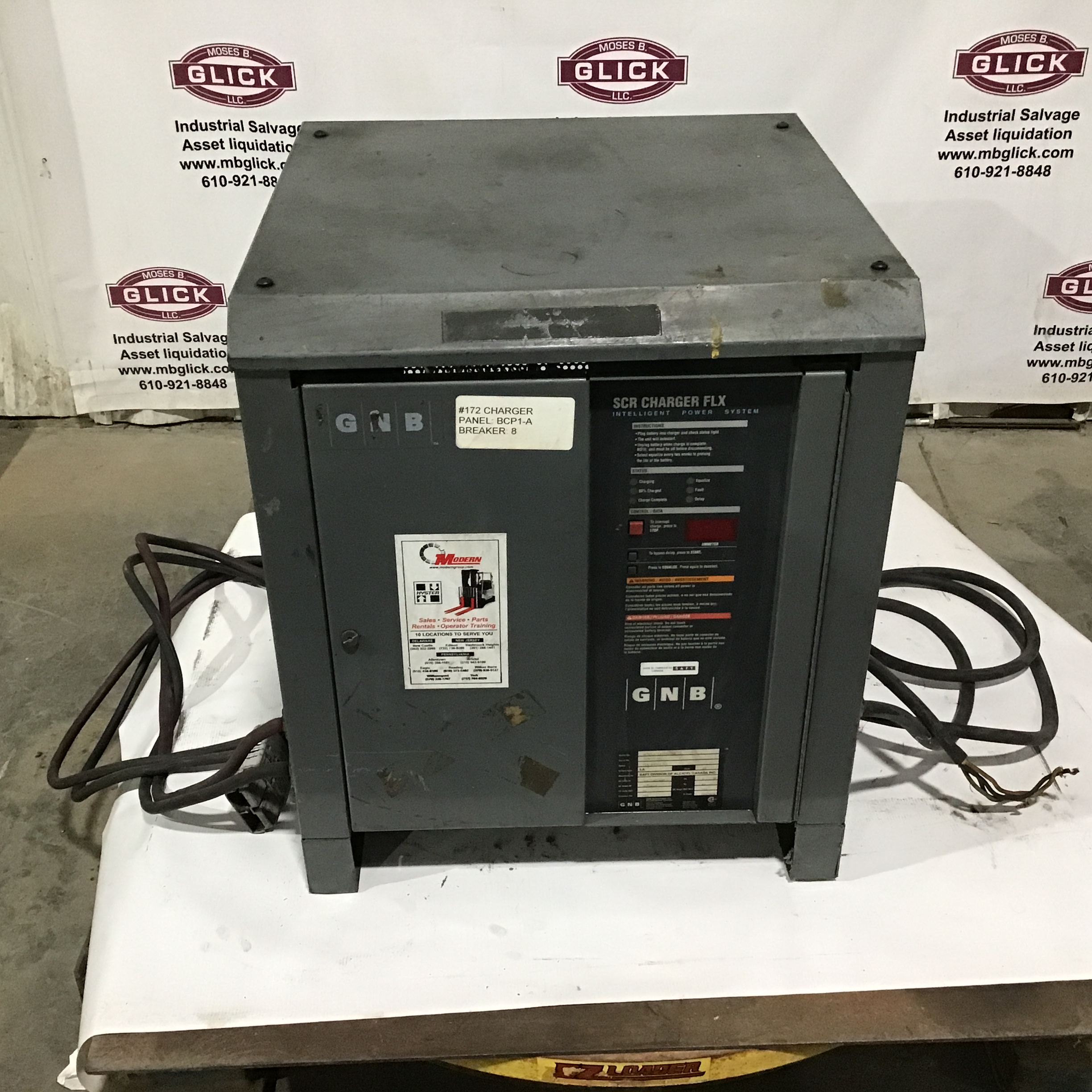

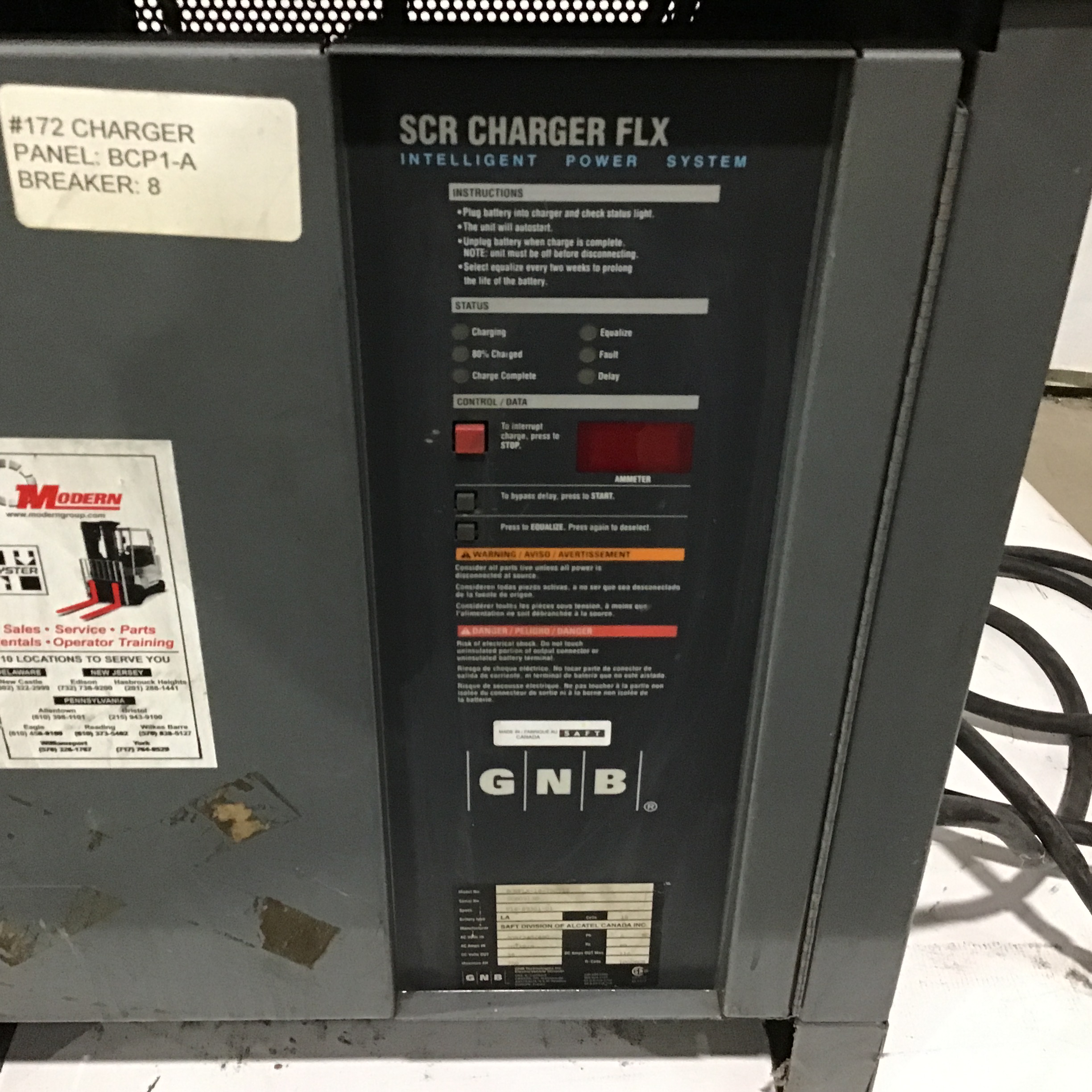

GNB SCRFLX-18-750T1Z SCR Charger FLX 36V 750AH

GNB SCR Charger FLX – Industrial Forklift Battery Charger

This is a heavy-duty industrial SCR FLX Intelligent Power System forklift battery charger, designed for lead-acid (LA) batteries in warehouse and material handling applications.

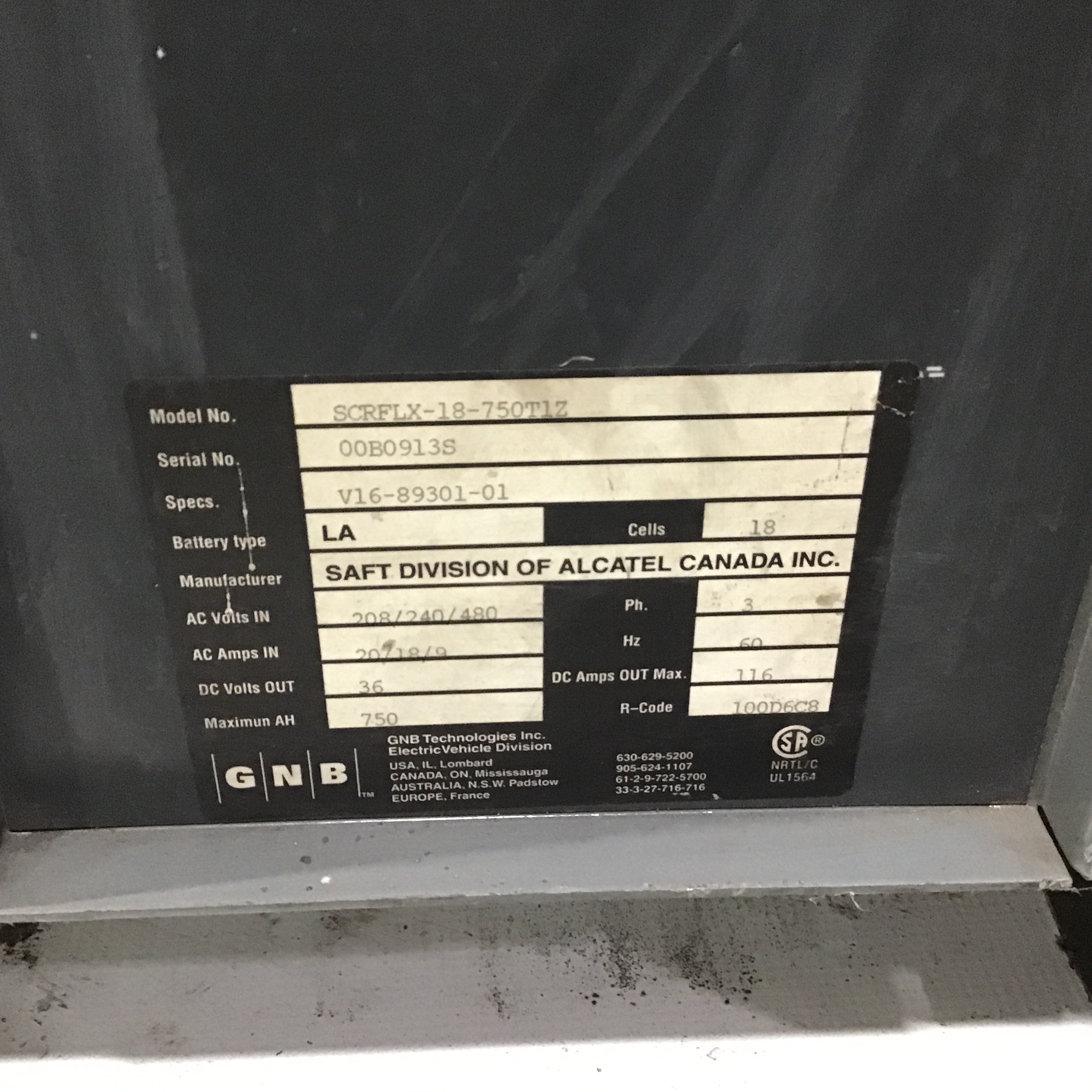

🔧 Specifications:

• Model Number: SCRFLX-18-750T1Z

• Serial Number: 00B0913S

• Spec Number: V16-89301-01

• Battery Type: LA (Lead Acid)

• Number of Cells: 18

• DC Output Voltage: 36 Volts

• Maximum AH Capacity: 750 AH

• DC Output Amps (Max): 116A

• AC Input Voltage: 208 / 240 / 480 VAC

• Phase: 3 Phase

• Frequency: 60 Hz

• R-Code: 100D6C8

⚡ Key Features:

• Industrial-grade SCR (Silicon Controlled Rectifier) technology

• Intelligent power system control

• Designed for forklift & industrial battery charging

• Compatible with 36V lead-acid battery systems

• Heavy-duty steel enclosure

• Ventilated cabinet for heat dissipation

• CSA Certified / UL1564 Listed

• Built for warehouse, distribution, and manufacturing environments

🏭 Applications:

• Electric Forklifts

• Pallet Jacks

• Reach Trucks

• Industrial Material Handling Equipment

• Warehouse Operations
