HEIDRIVE QO95-E338-0001-0B Servo Gear Motor Gearbox

This HEIDRIVE Servo Gear Motor / Gearbox Assembly is a precision-engineered industrial unit designed for high-performance motion control applications. Built for reliability and accuracy, it is ideal for automation systems, servo drives, robotics, and industrial machinery.

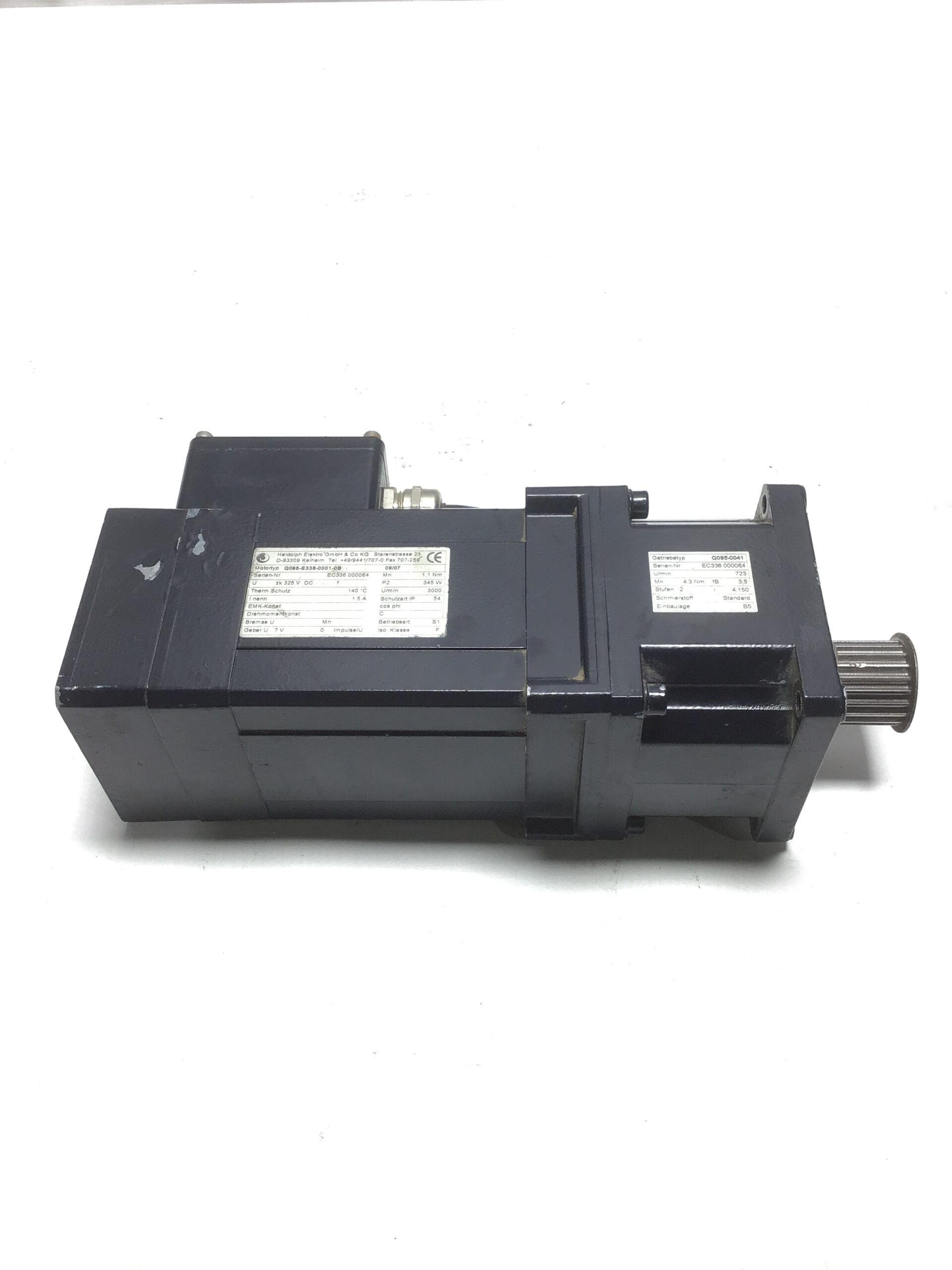

According to the manufacturer’s nameplate (shown in image), this unit delivers an output speed of 723 RPM with a rated torque of 4.3 Nm, combined with a gear reduction ratio of 4.15:1. The gearbox features B5 flange mounting, making it compatible with a wide range of industrial servo motor installations.

Manufactured to German industrial standards, this HEIDRIVE unit is designed for smooth operation, durability, and long service life.

🔹 Specifications

• Brand: HEIDRIVE

• Type: Servo Gear Motor / Gearbox

• Gearbox Type (Getriebetyp): QO95-E338-0001-0B

• Serial Number: EC336.000064

• Output Speed (U/min): 723 RPM

• Rated Torque (Mn): 4.3 Nm

• Service Factor (fB): 3.5

• Gear Stages (Stufen): 2

• Gear Ratio (i): 4.150

• Lubrication (Schmierstoff): Standard

• Mounting Position (Einbaulage): B5 Flange

🔹 Key Features

• Precision servo gearbox for motion control

• Smooth and efficient power transmission

• Compact industrial design

• High reliability for continuous operation

• B5 flange mounting for easy integration

🔹 Typical Applications

• Industrial Automation Systems

• Servo Drive Assemblies

• Robotics & Positioning Systems

• CNC & Packaging Machinery

• Factory & Process Equipment
